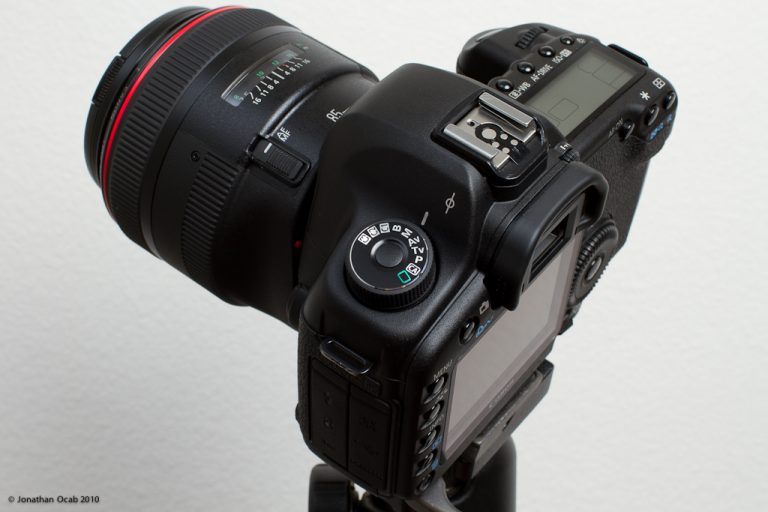

Canon EOS 5D Mark II Internal Speaker Replacement

Is your Canon EOS 5D Mark II’s internal speaker not working properly? Don’t worry, we’ve got you covered! In this tutorial, we’ll guide you through the process of replacing the internal speaker. Please note that this repair requires some technical expertise and patience, but with the right tools and a bit of caution, you should be able to complete it successfully.

Tools and Materials Needed

To complete this repair, you’ll need the following tools and materials:

• Phillips #000 screwdriver
• Phillips #0 screwdriver
• Anti-static wrist strap
• New internal speaker

Step 1: Remove the Rubber Flap

Lift the rubber flap covering the input/output jacks. This will give you access to the screws that hold the back panel in place.

Step 2: Remove the Screws

Using a Phillips #000 screwdriver, remove the single 3.4 mm screw that holds the back panel in place.

Step 3: Remove the Back Panel

Peel back the rubber cover above the in/out ports to reveal two screw heads. Remove both 5.4 mm screws using a Phillips #0 screwdriver.

Step 4: Disconnect the Data Ribbon Cables

Remove each data ribbon cable from the motherboard by applying pressure down towards the motherboard and gently sliding your thumb upwards on the slot where the cable meets the motherboard.

Step 5: Remove the LCD

Remove each of the 3.4 mm screws holding in the LCD using a Phillips #0 screwdriver.

Step 6: Remove the Speaker

Grip the wire attaching the speaker to the data ribbon cable and pull it out. Then, remove the single 4.8 mm screw using a Phillips #0 screwdriver.

Step 7: Install the New Speaker

Install the new internal speaker by reversing the steps above. Make sure to secure the speaker with the 4.8 mm screw and reconnect the data ribbon cables.

Conclusion

Congratulations! You have successfully replaced the internal speaker of your Canon EOS 5D Mark II. If you’re not comfortable with this repair or if you’re not sure about any of the steps, we recommend seeking the help of a professional. At Salvation Repair, we offer a limited lifetime guarantee on all parts and labor, and you can schedule a repair with us at https://salvationrepair.com/repair.
