Canon EOS 60D Motherboard Replacement

Is your Canon EOS 60D camera malfunctioning due to a faulty motherboard? Don’t worry, we’ve got you covered At Salvation Repair, we offer a limited lifetime guarantee on all parts and labor. In this tutorial, we’ll guide you through the process of replacing the motherboard in your Canon EOS 60D camera.

Step 1: Remove the LCD Screen

Start by removing the LCD screen from its place to expose the Phillips #PH00 screws. You’ll need to remove the two 2.5 mm Phillips #PH00 black screws on both sides of the LCD screen.

Step 2: Remove the Back Cover

Next, remove the two 3 mm Phillips #PH00 black screws near both sides of the base where the screen swivels. Use a plastic opening tool to carefully pry off the back cover of the LCD.

Step 3: Disconnect the Rear Connector

Using tweezers, carefully disconnect the rear connector by pulling it away from the screen.

Step 4: Remove the Hinge Screws

Now, four 2.2 mm Phillips #PH00 screws holding a cover around the hinge should be visible. Turn the swivel around to expose the remaining screws.

Step 5: Remove the Motherboard Screws

Use a PH00 screwdriver to remove the three 4.3 mm Phillips #PH00 screws holding the motherboard down.

Step 6: Lift the Motherboard

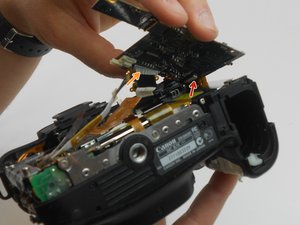

Carefully lift the motherboard out of the camera. Make sure to remove all the wires and connectors before lifting the motherboard.

Step 7: Remove the Motherboard

Once you’ve lifted the motherboard, you can remove it from the camera. Be careful not to touch any of the electrical components.

And that’s it You’ve successfully replaced the motherboard in your Canon EOS 60D camera. If you’re not comfortable with this repair, you can always schedule a repair with us at Salvation Repair.
