Samsung Galaxy A40 Replace Screen Guide: Step-by-Step Tutorial

– Kick things off by powering down your Galaxy A40 before we dive into this repair journey.

– Just hold that standby button for a bit longer and give the shutdown confirmation a tap on the screen.

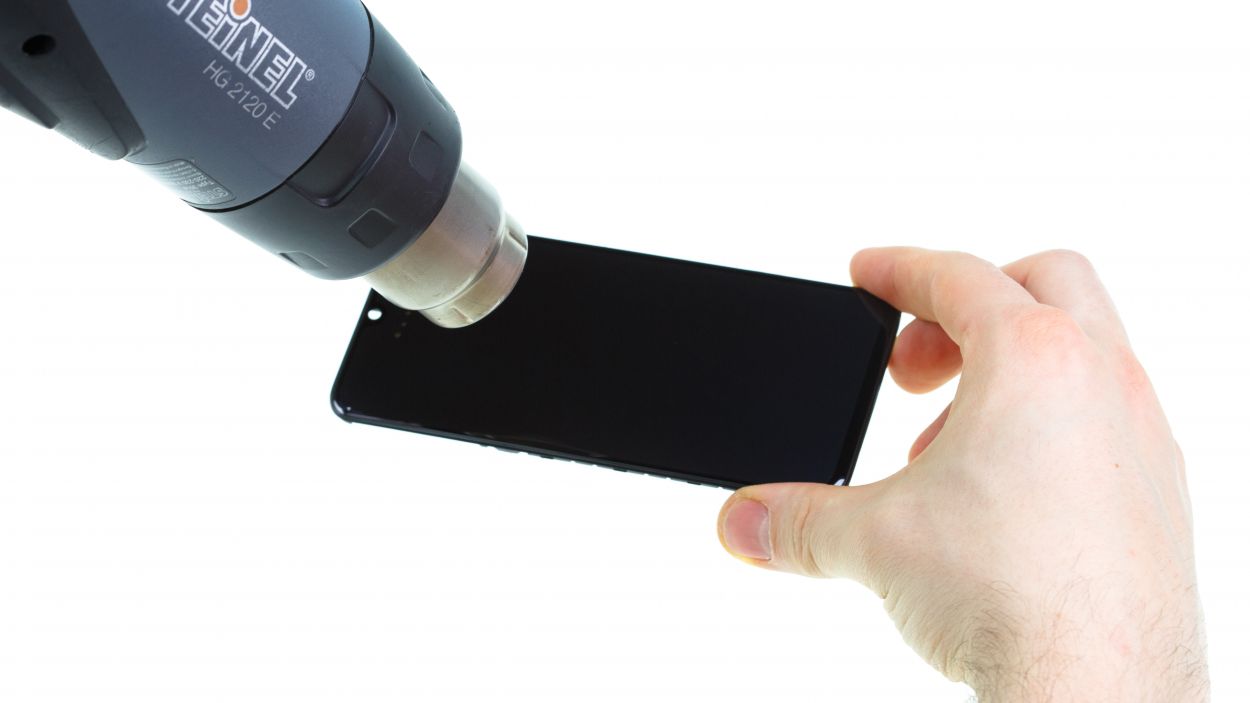

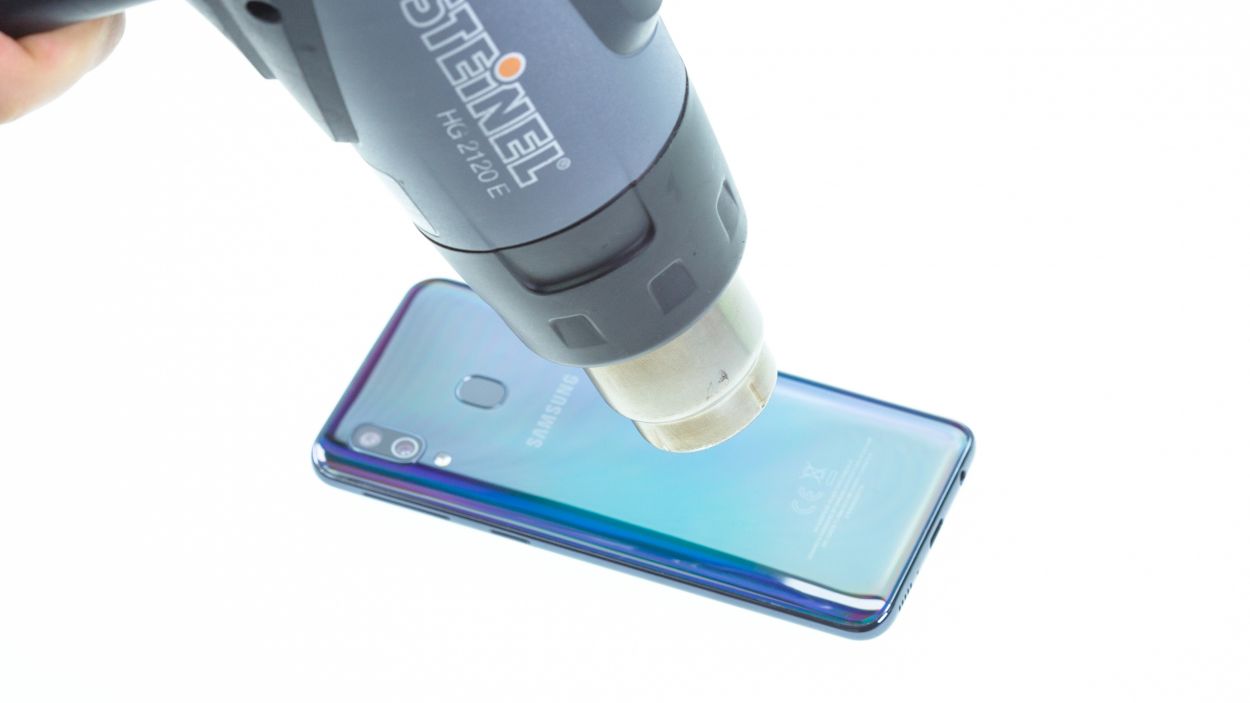

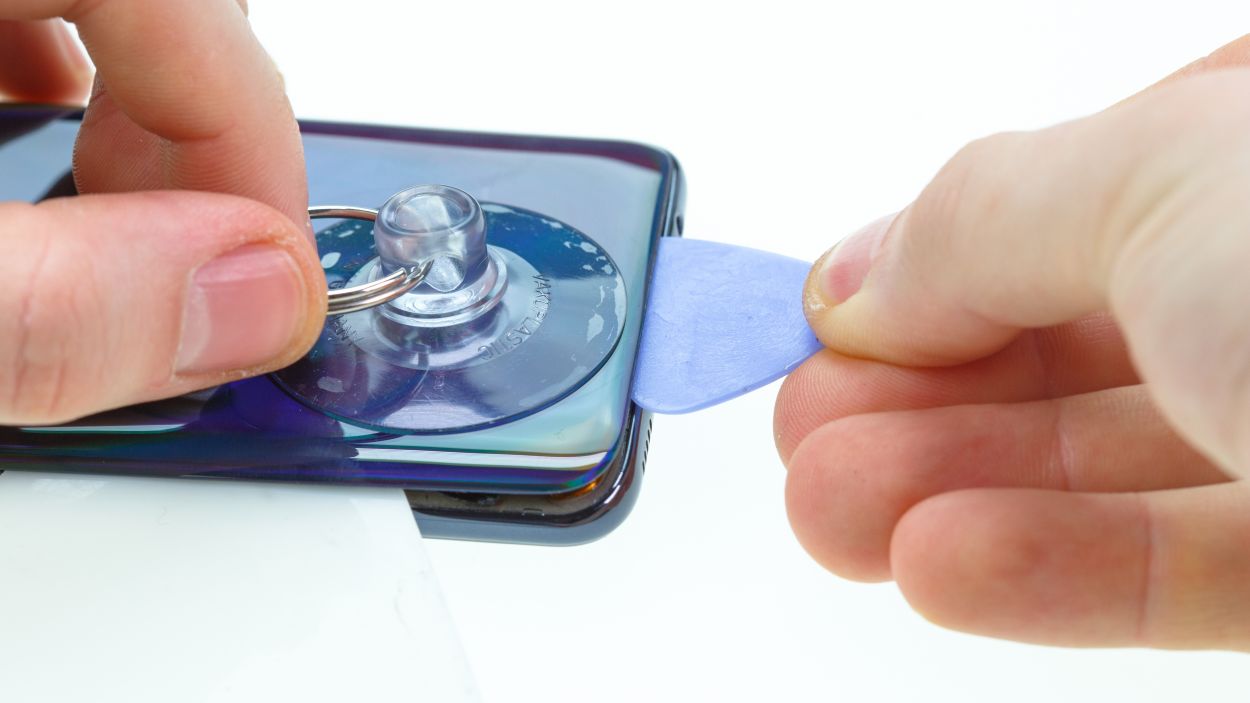

– Warm up the edge of your device using a heat gun or a regular hairdryer until it reaches about 60°C. Focus especially on the spot where you’ll be starting to peel off the back cover.

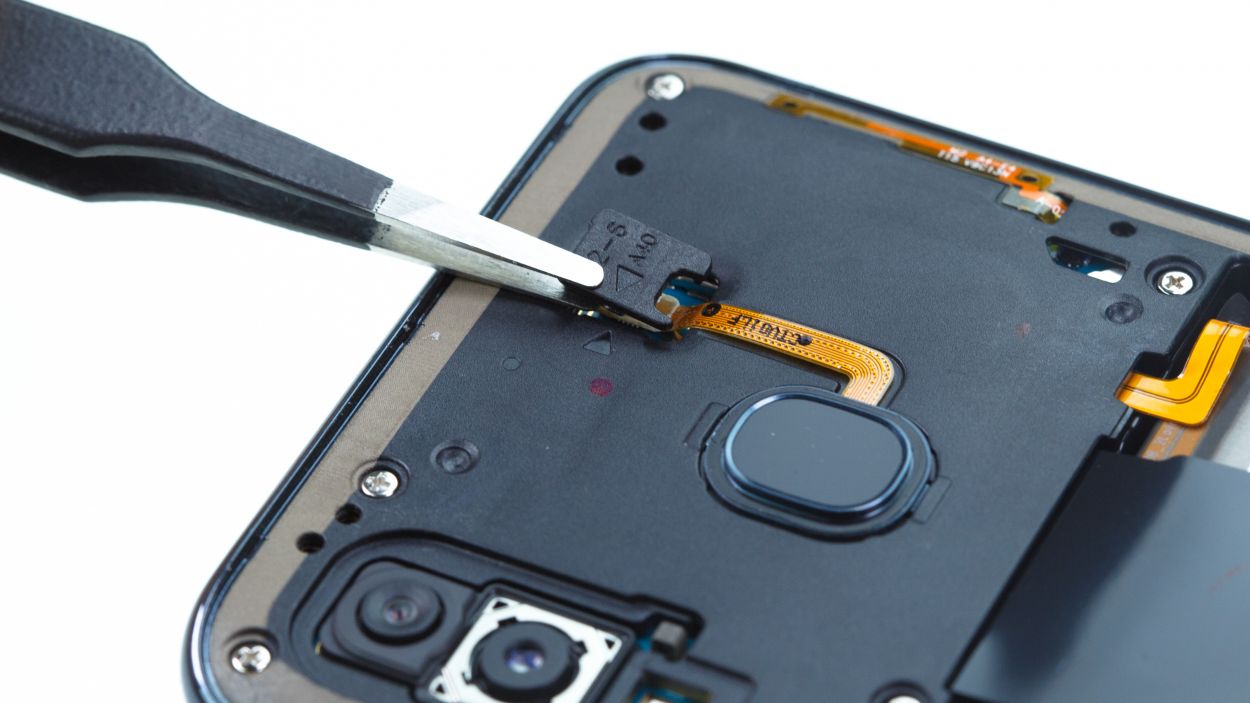

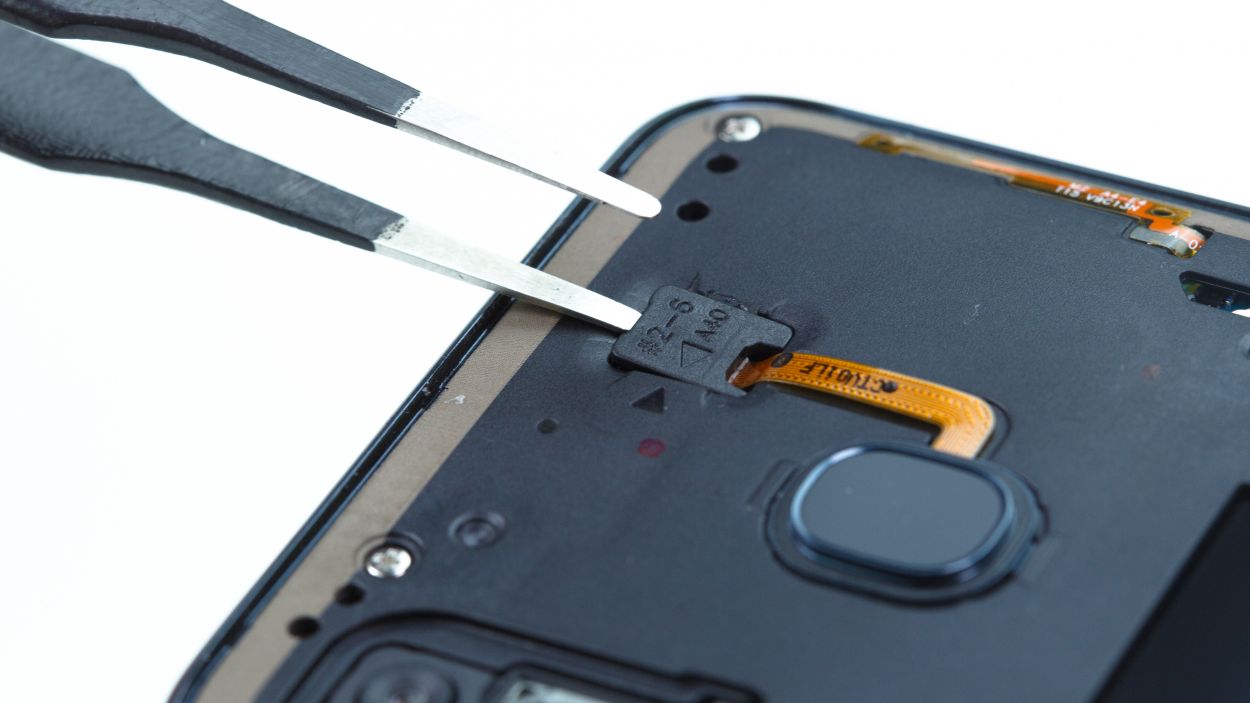

– Gently ease off the plastic cover above the connector using your trusty tweezers.

– Next, take your spudger and delicately pry apart the connector.

– Finally, lift out the fingerprint sensor with care.

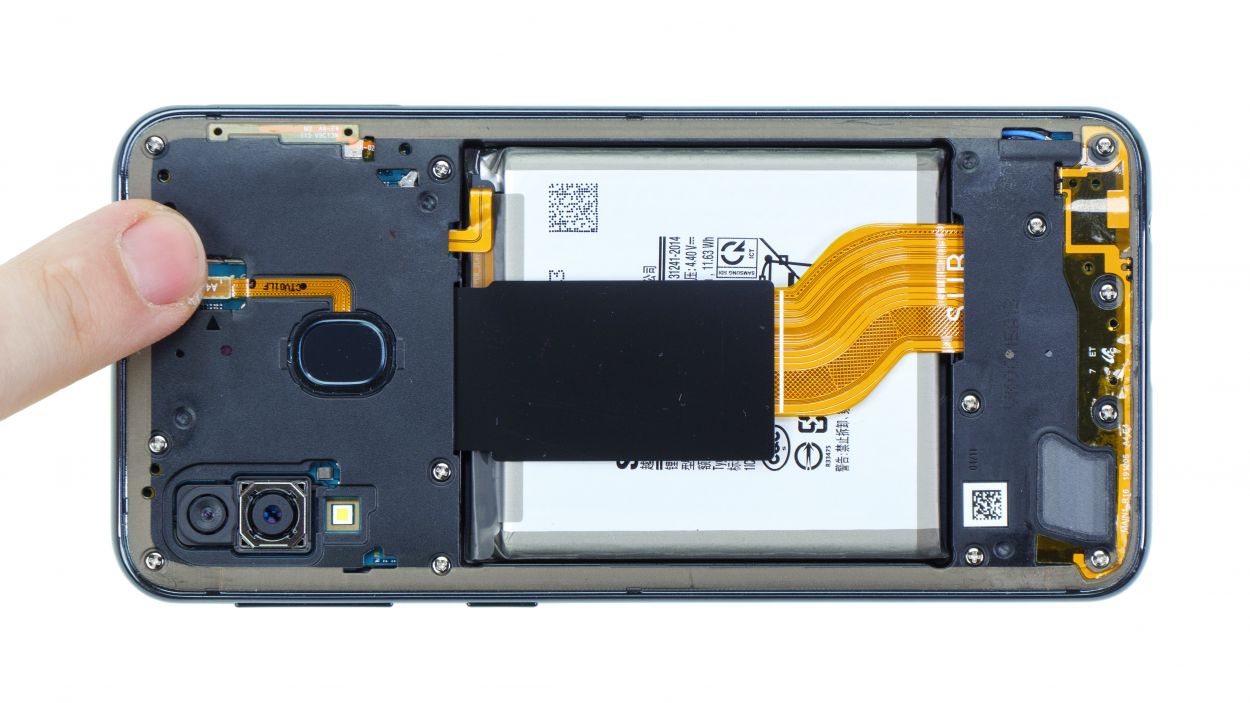

– The middle frame is held in place by a bunch of screws, and the display is clipped on with several little clips. Let’s get those screws loose and free that display!

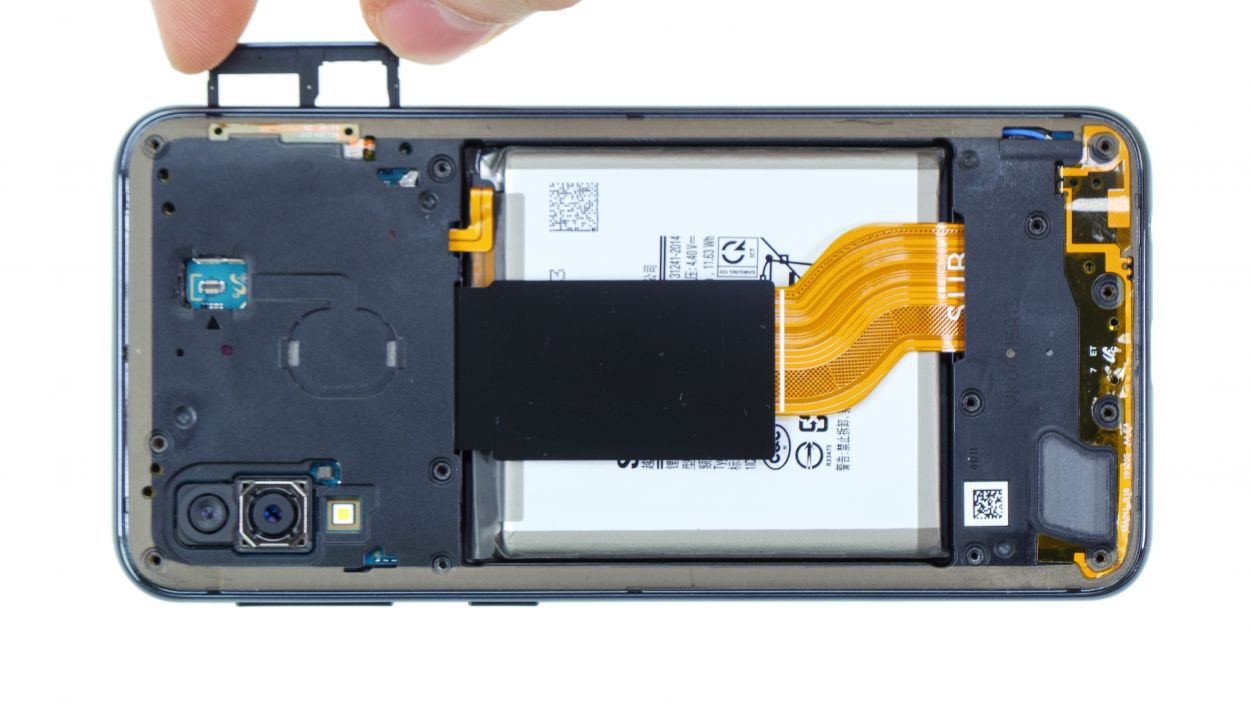

– Start by loosening all the screws and popping out the SIM card holder. Easy peasy!

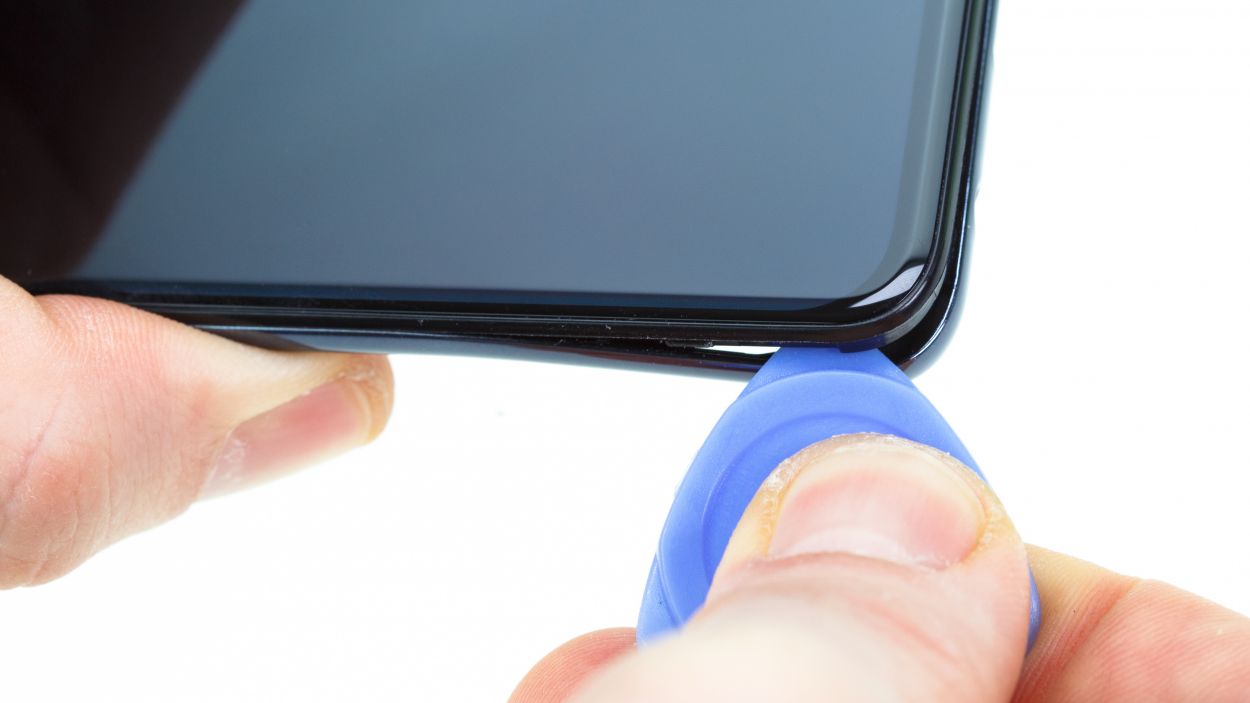

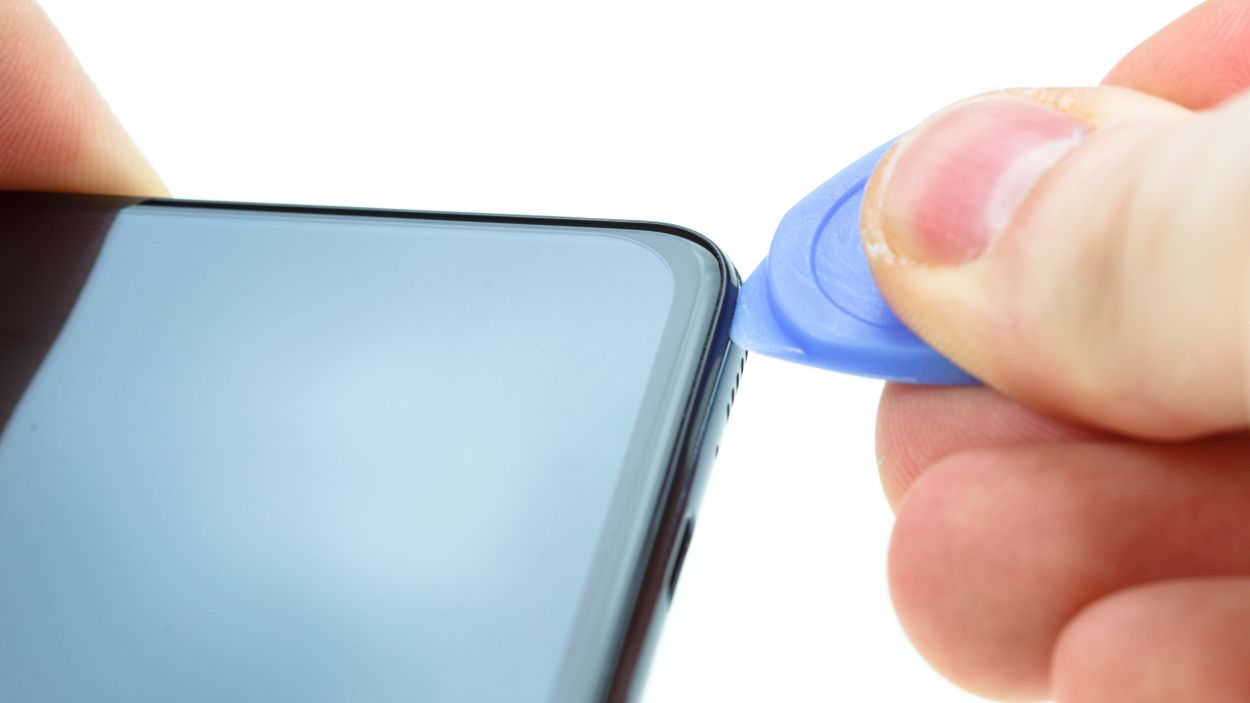

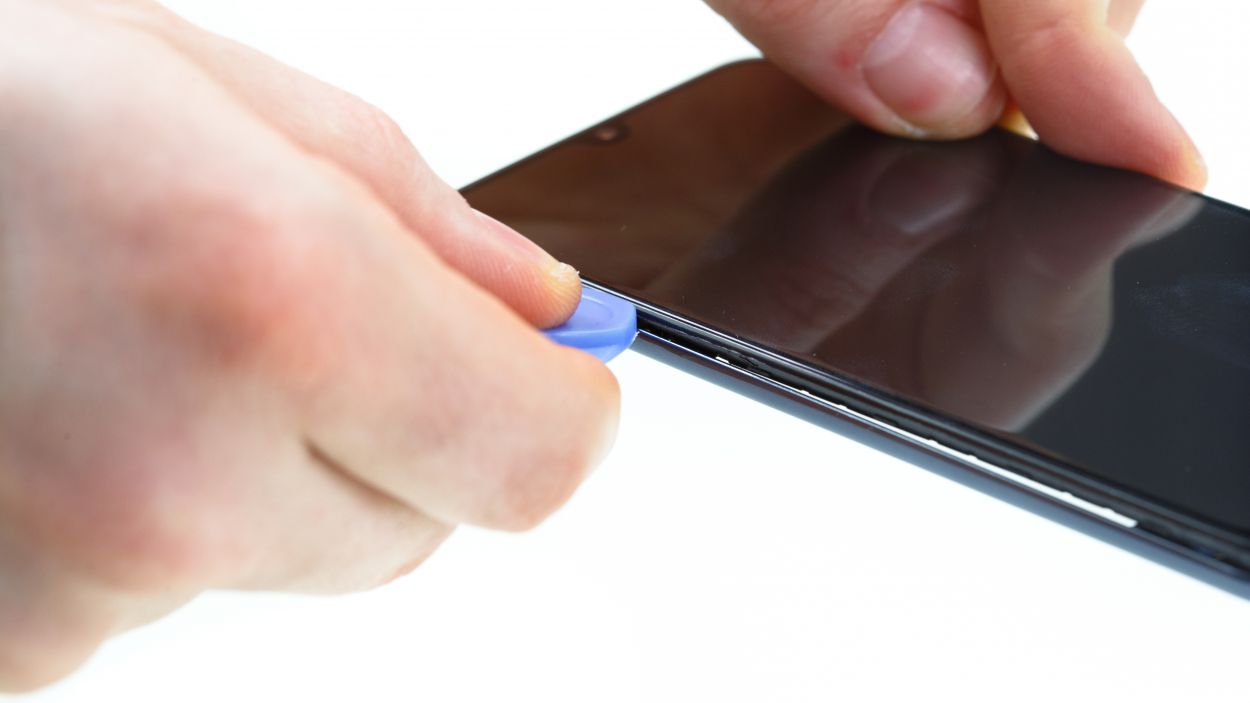

– Next, grab a plectrum and gently slide it between the frame and the display, releasing those clips one by one. It’s like a little dance!

– If the plectrum isn’t your best friend, feel free to use your fingernail to get into that gap. You’ve got this!

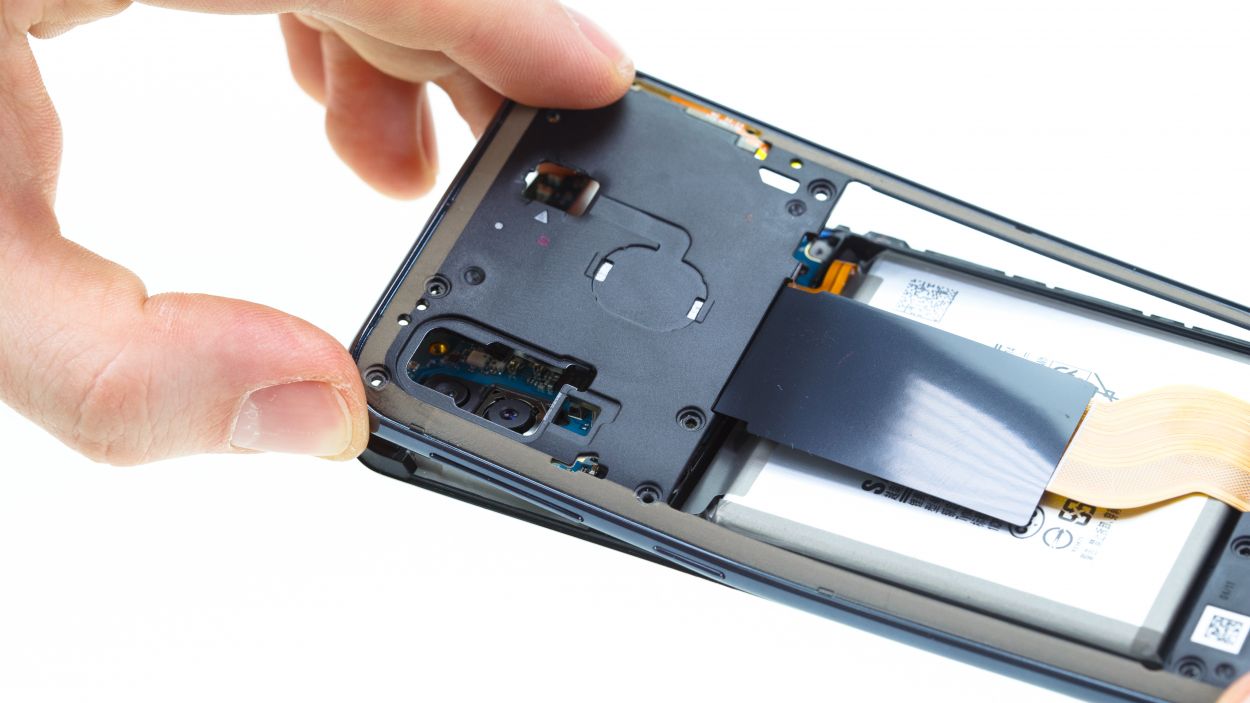

– Now, carefully detach the display from the frame all around and set the frame aside. You’re making great progress!

– First, let’s disconnect the battery from the main board. Just a little tug and it’s done!

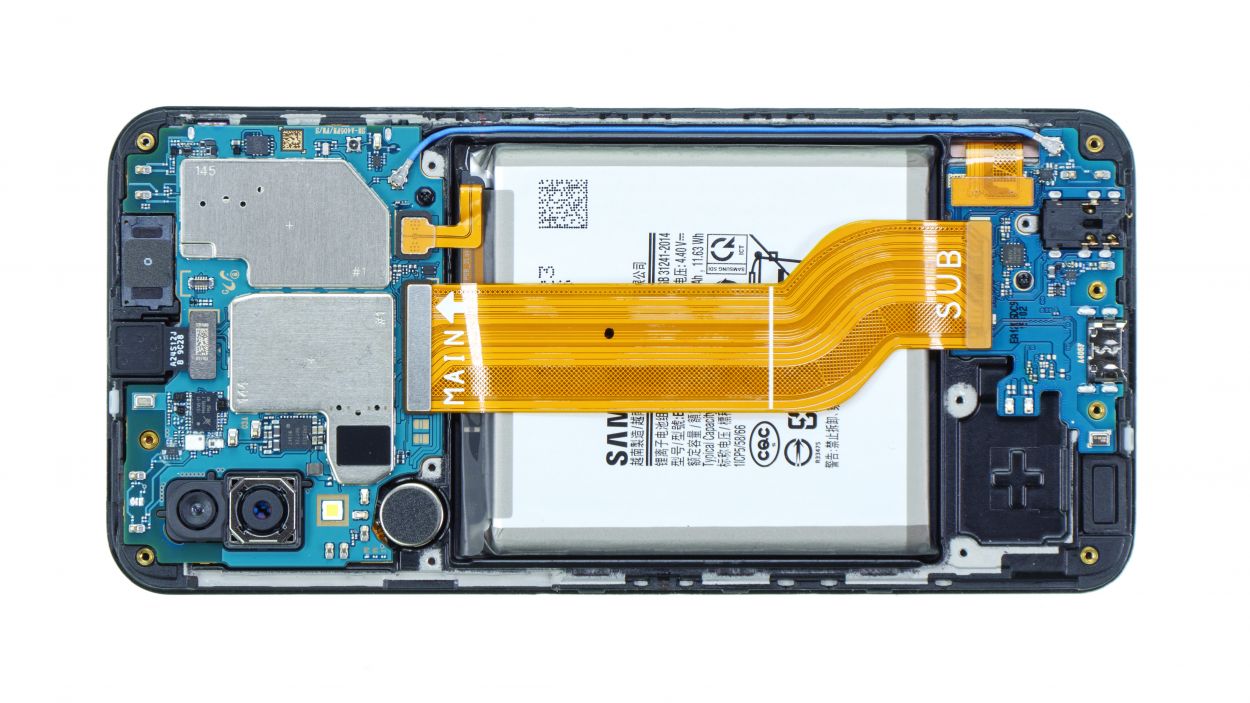

– Next up, gently unhook the connectors of that wide flex cable lounging over the battery. It’s time for it to take a break!

– And finally, set that flex cable aside like a pro. You’re doing great!

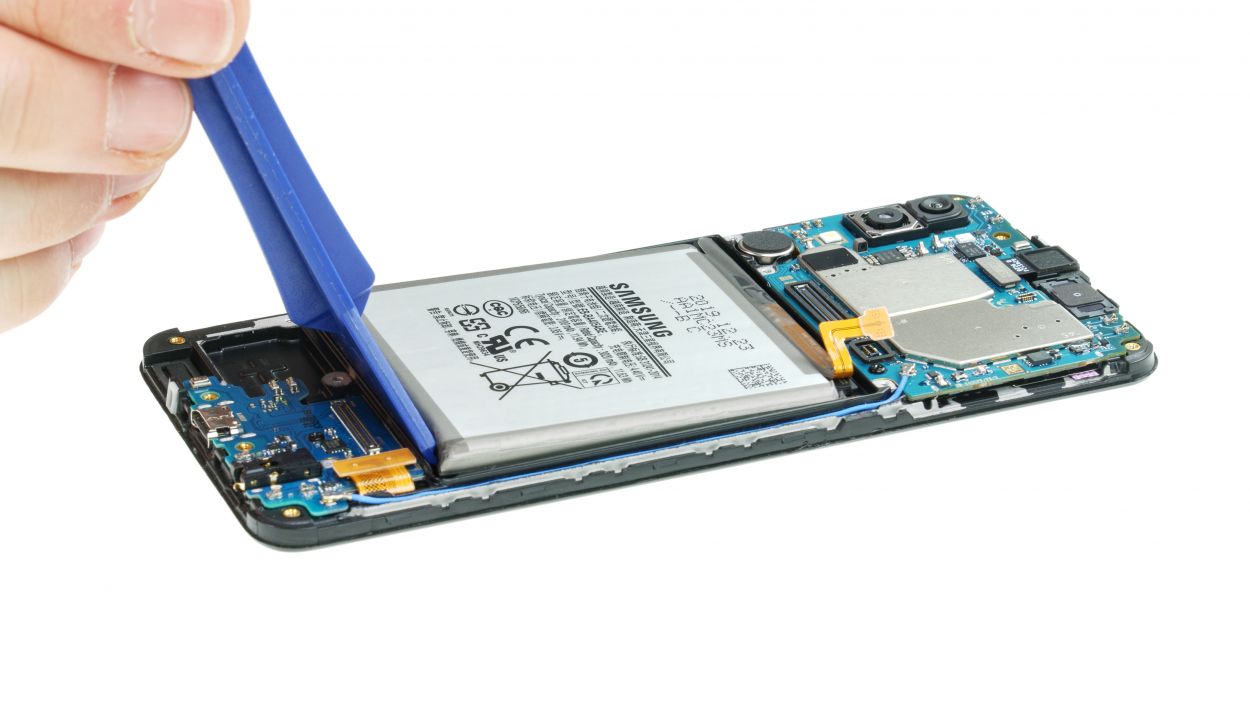

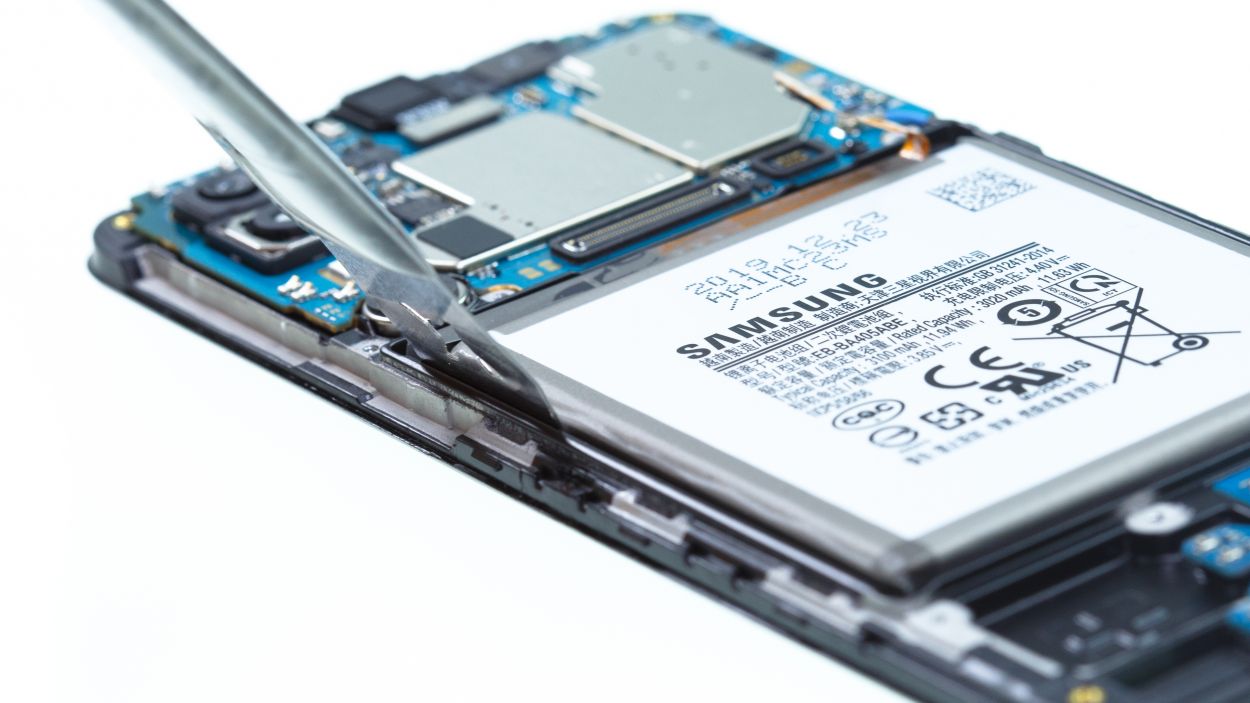

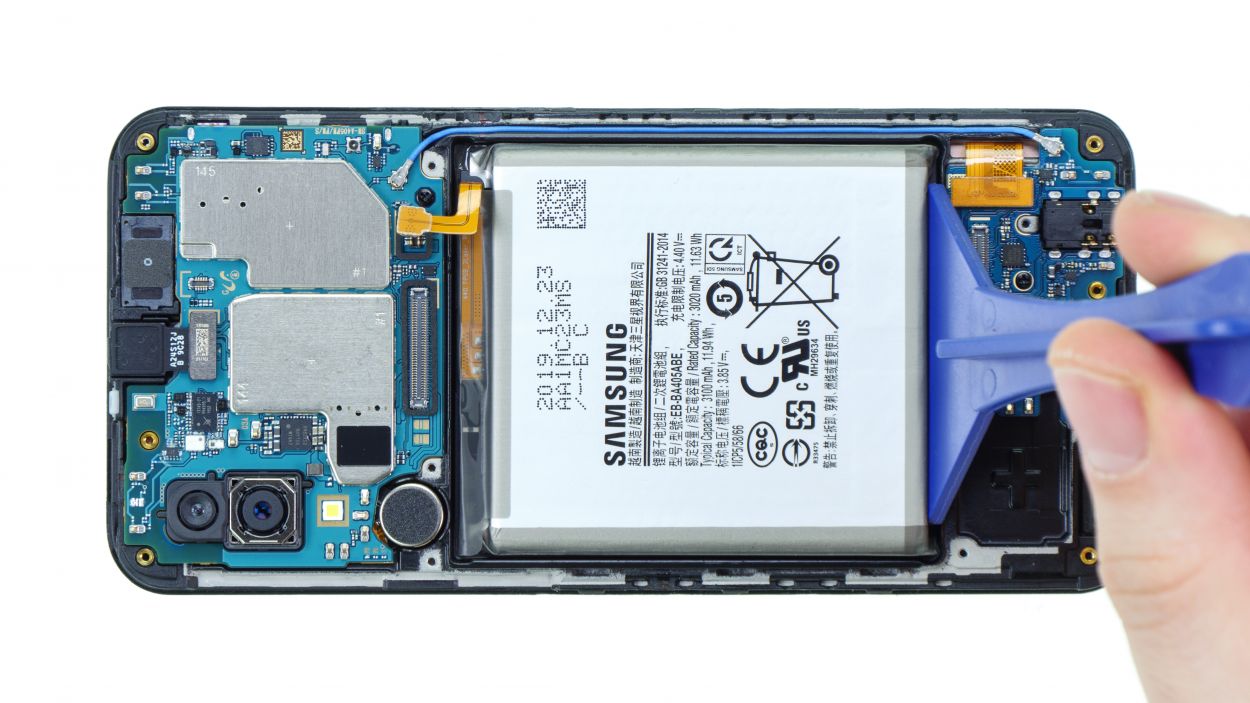

– The battery is firmly attached to the back of the display unit, covering a generous area. To make your life easier when it’s time to remove it, a little hot air can work wonders!

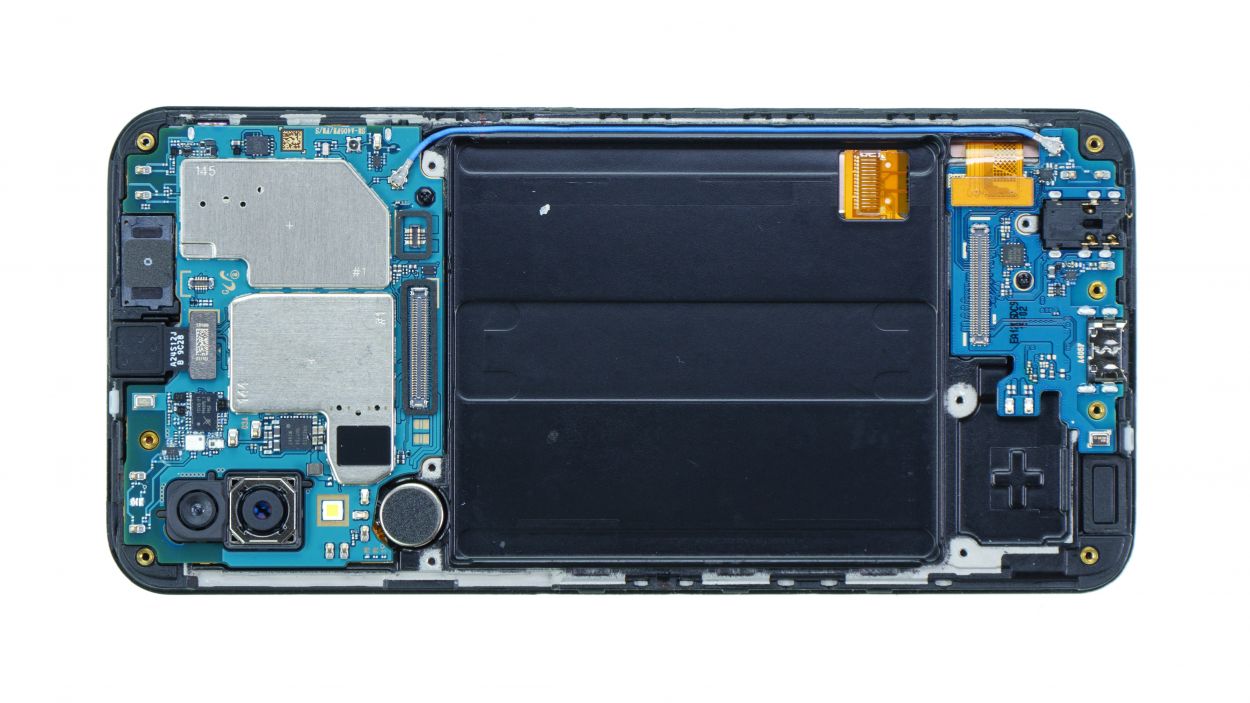

– Next up, let’s get that main circuit board out of there!

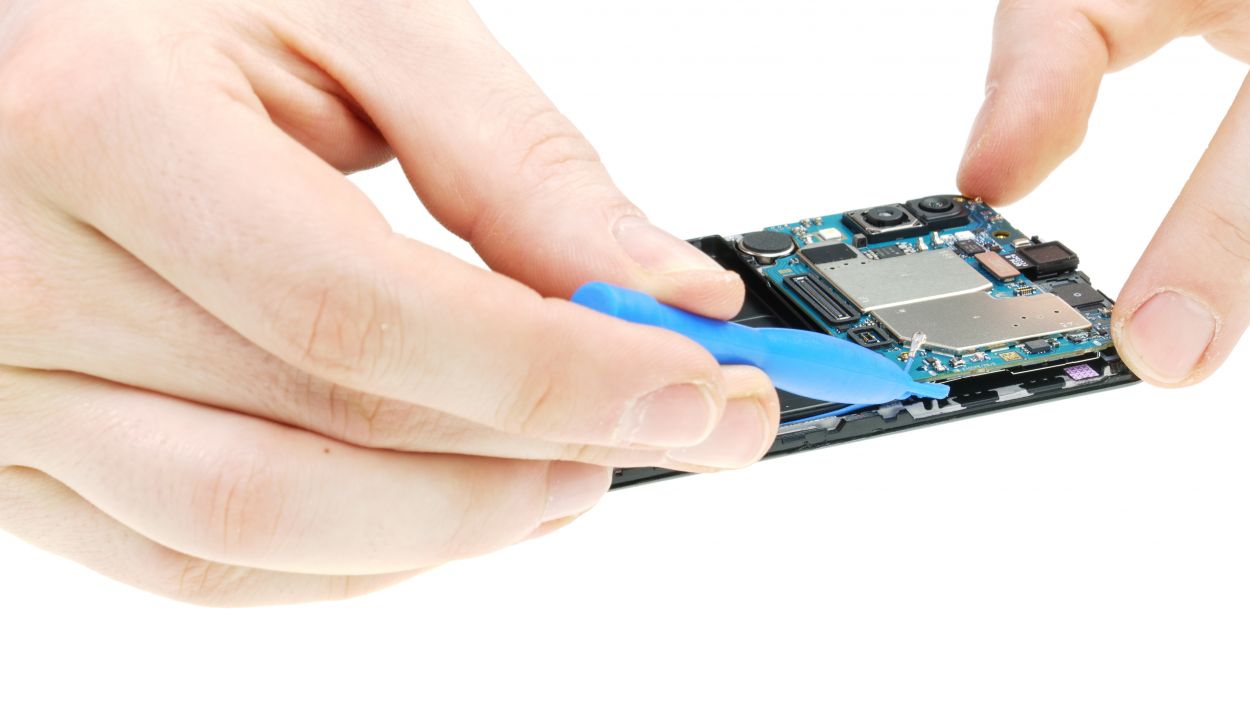

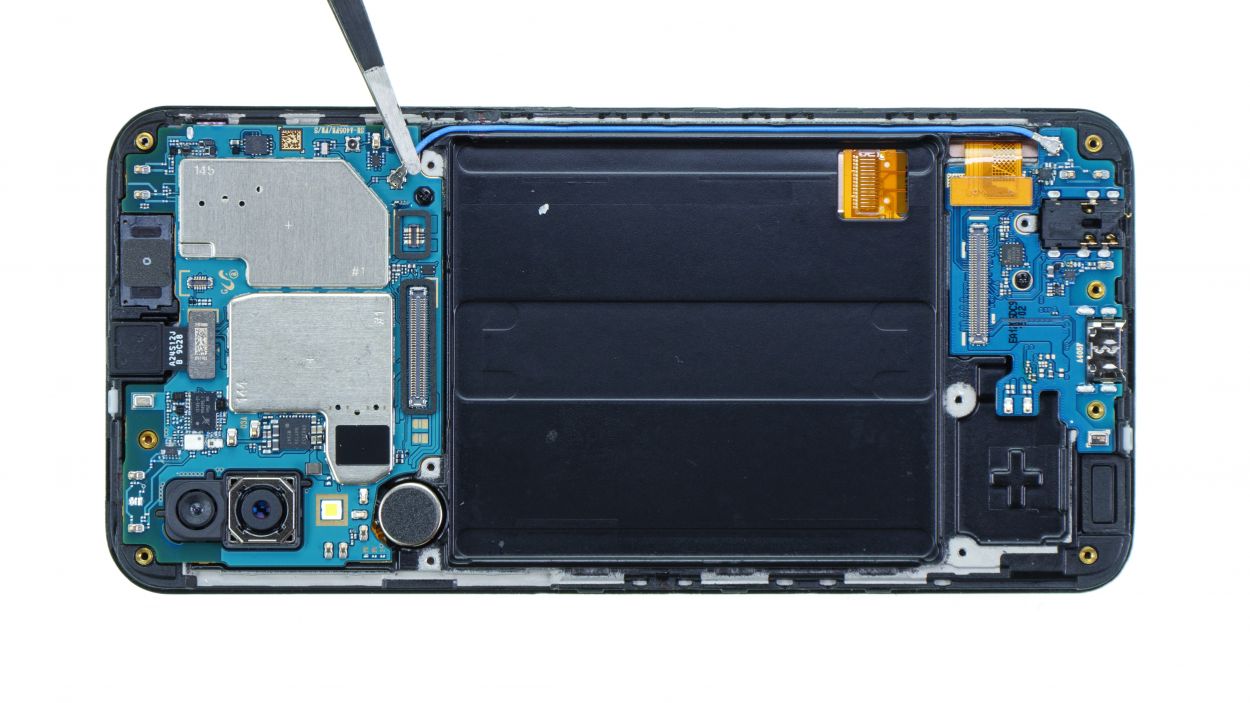

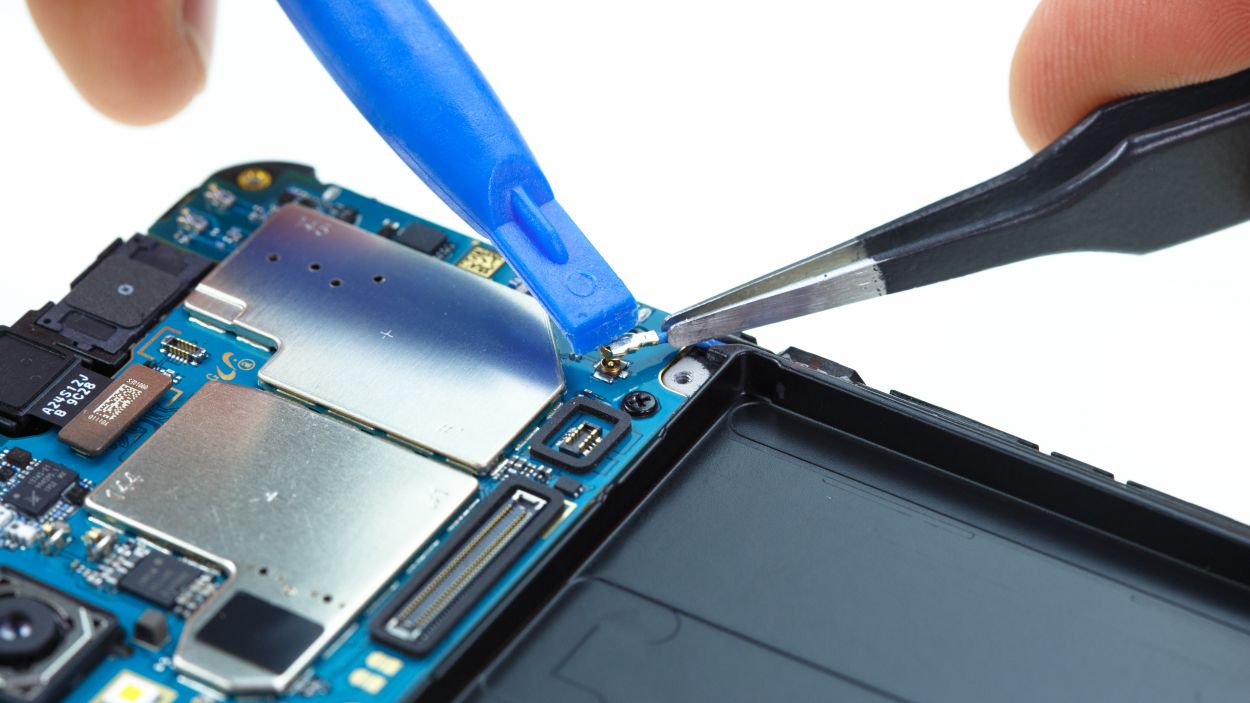

– Carefully separate the blue antenna contact by sliding a pair of tweezers underneath the cable and giving it a gentle lever.

– Now, it’s time to remove that lone Phillips screw.

– Just a heads-up: this screw is shorter than the ones from the middle frame, so keep an eye on it to avoid any mix-ups!

– Finally, lift the board up and gently take it out of the device. You’re doing awesome!

– Don’t forget to move the vibration motor and the earpiece over to the new display unit. They might be a bit clingy since they’re slightly glued down.

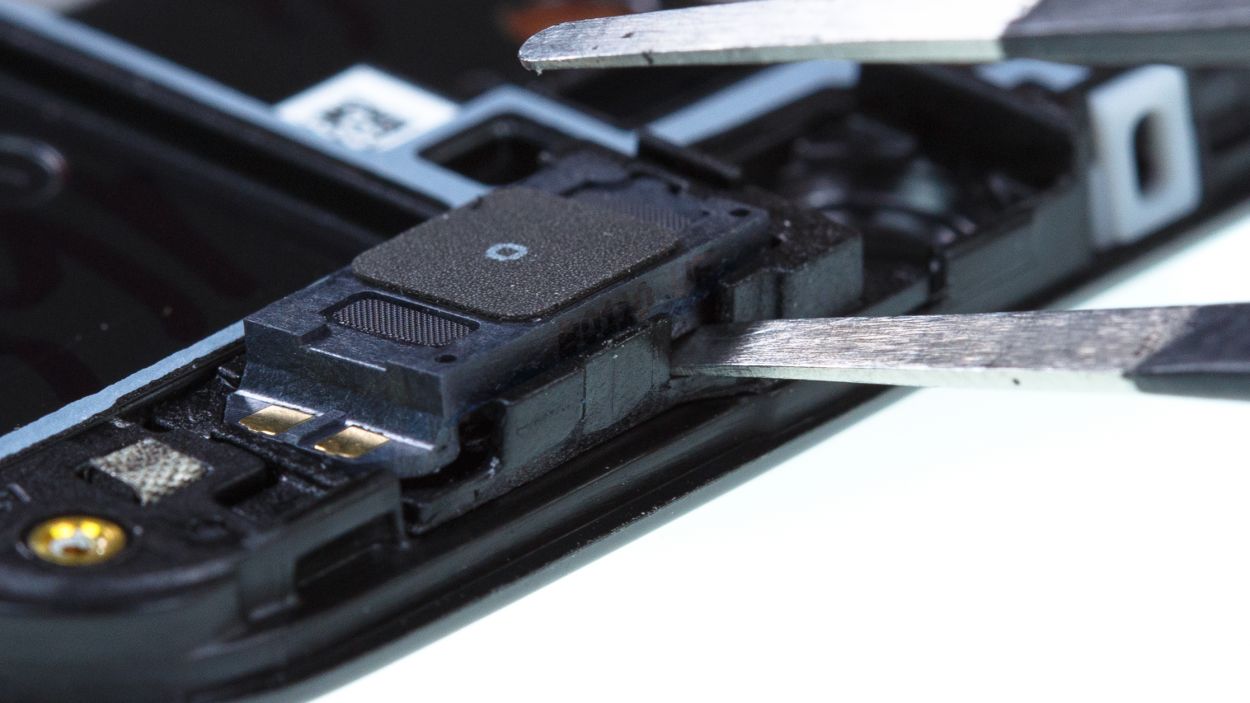

– Give that glue a little warmth and gently pry the vibration motor and earpiece out of the device. You’ve got this!

– Underneath, you’ll find the USB charging socket, headphone jack, and some other cool components like microphones and antennas ready to play their part.

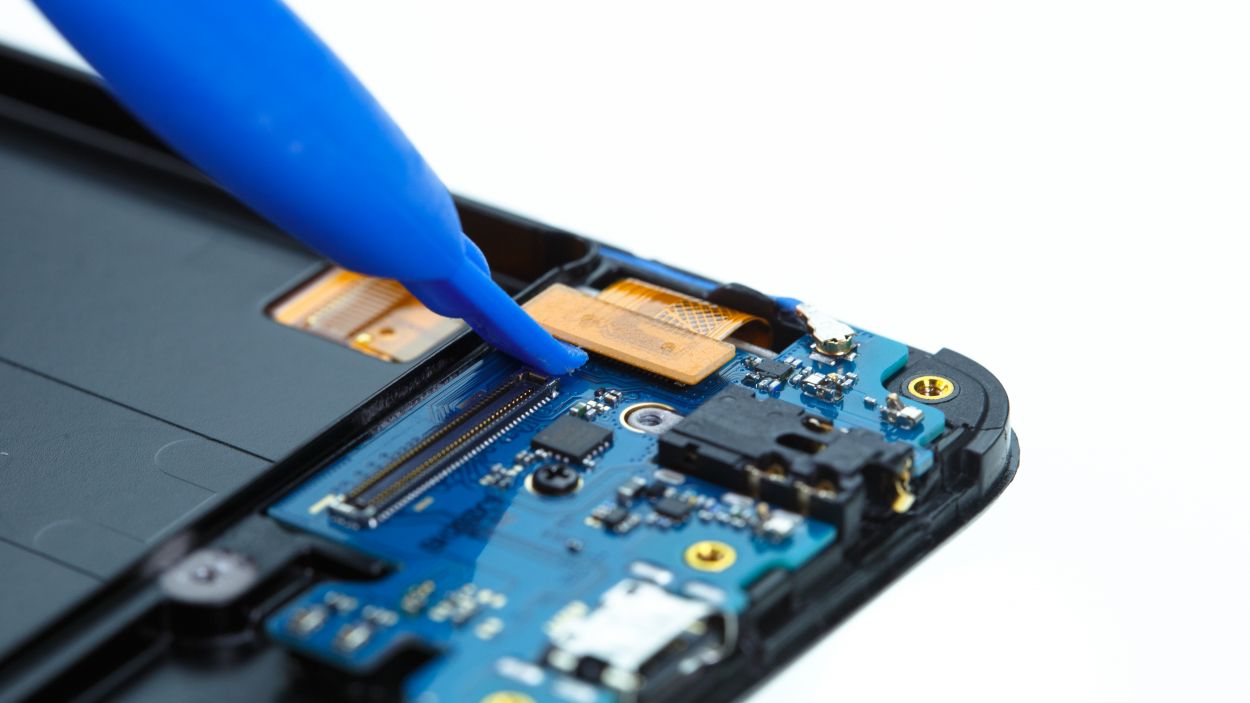

– First, let’s disconnect that connector and the blue antenna cable from the lower circuit board.

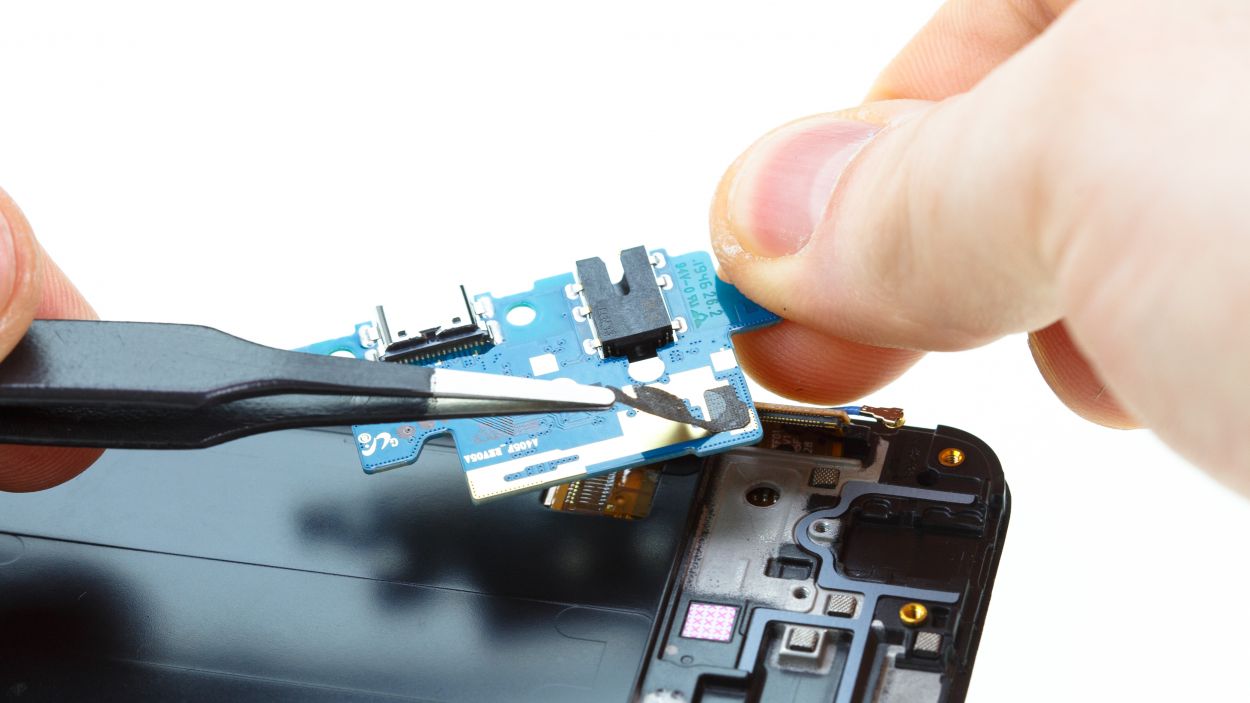

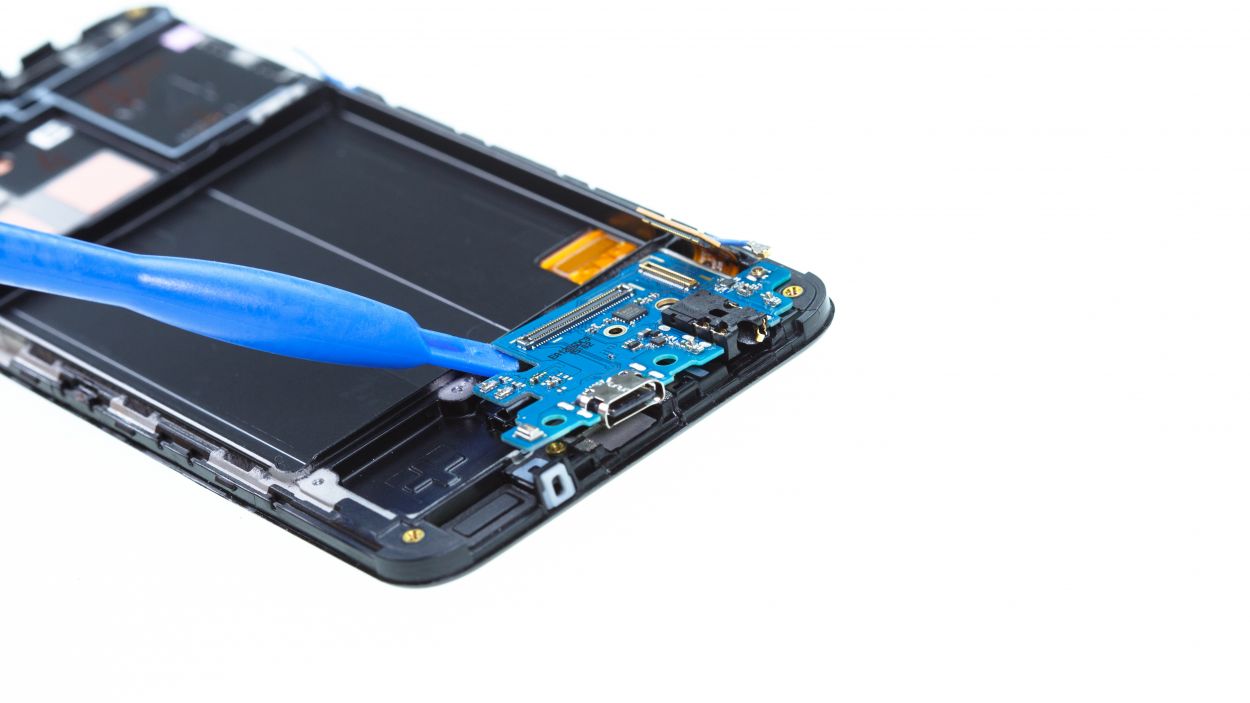

– Loosen the screw, and then gently lift that circuit board out of the device like a pro.

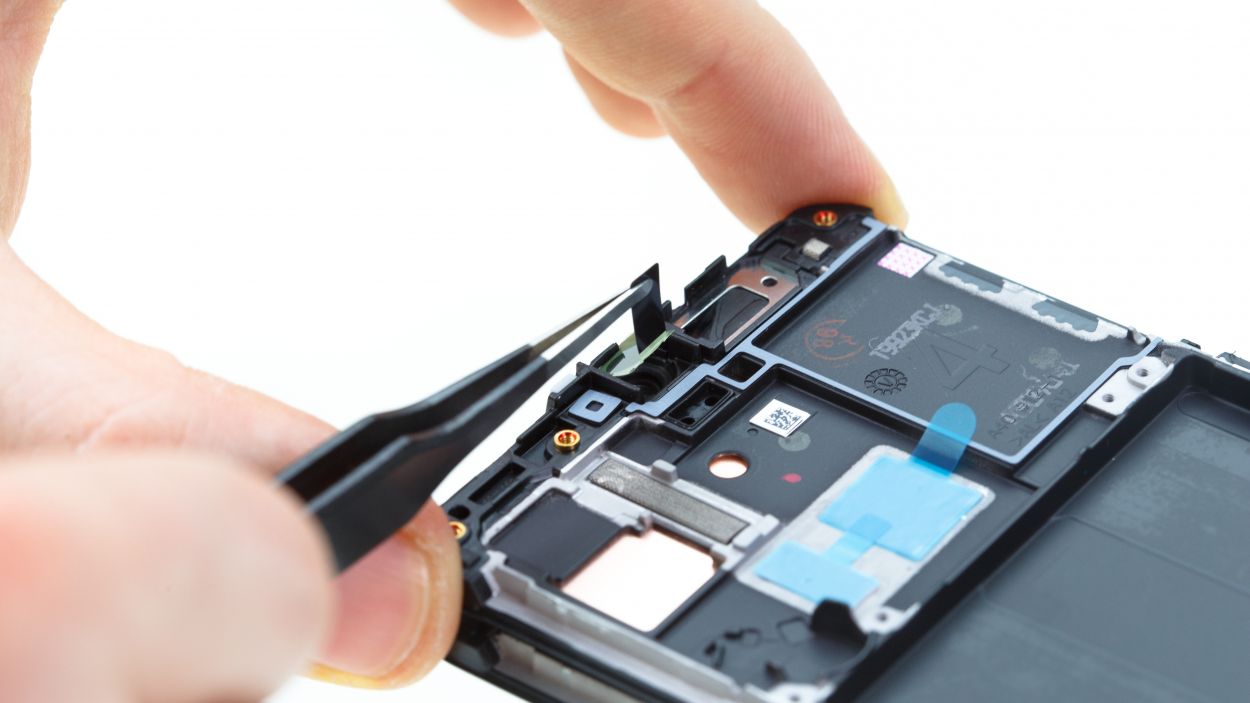

– Don’t forget to remove the blue antenna cable that’s hanging out along the side. It’s time for it to take a break!

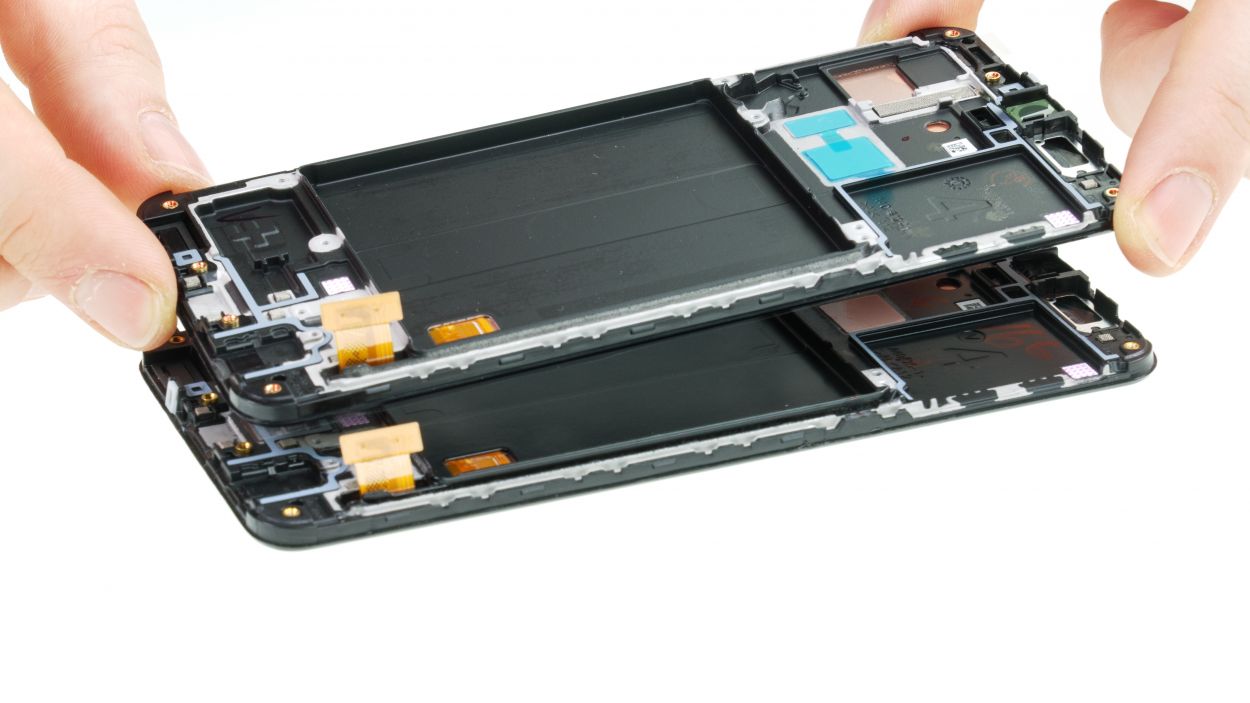

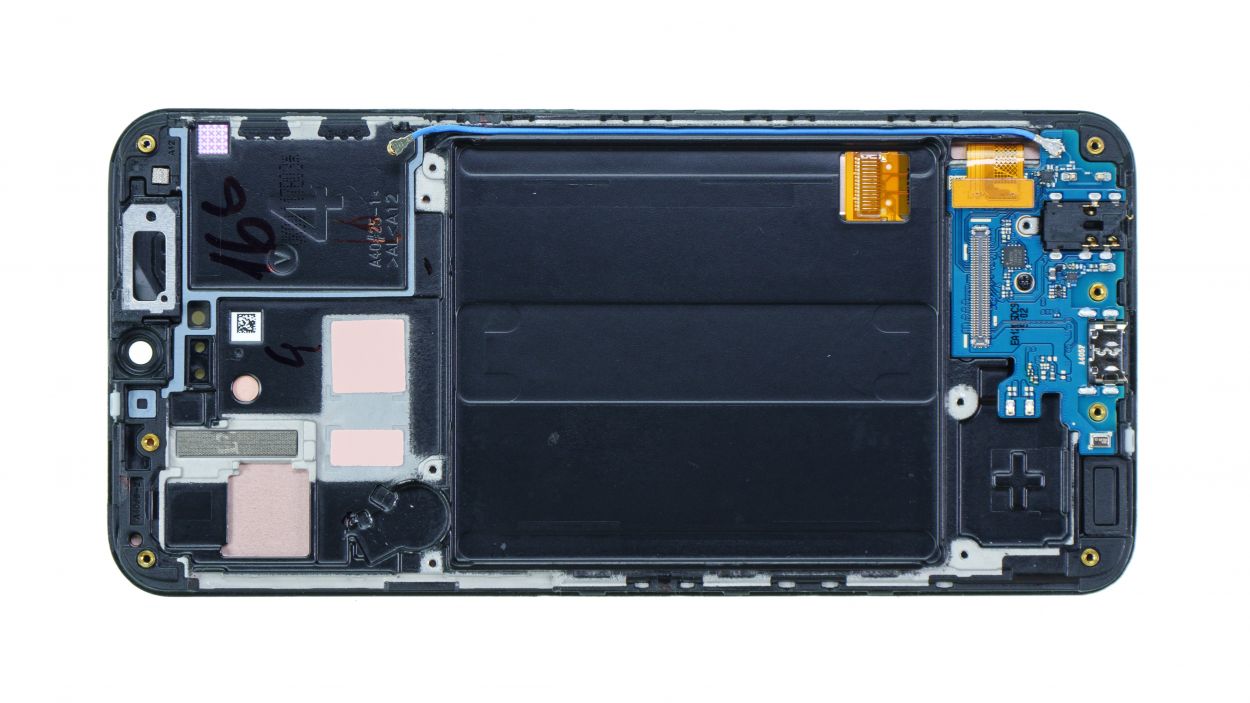

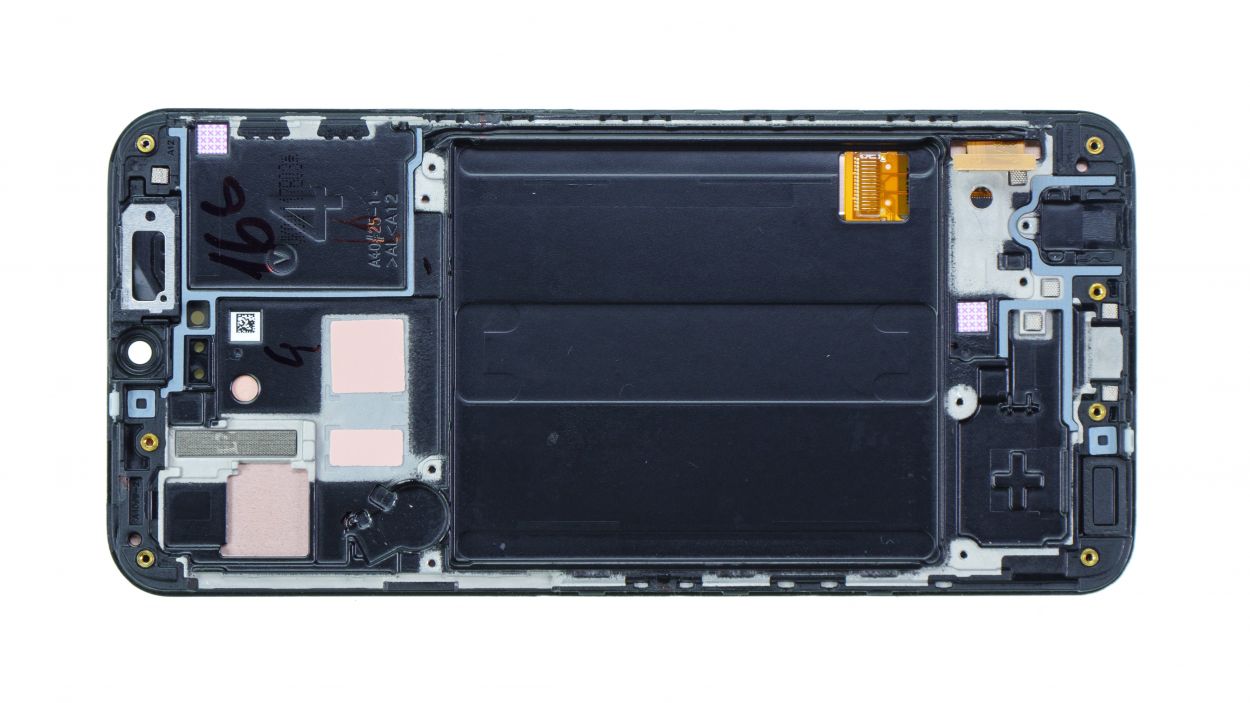

– First, take a moment to compare your old display with the shiny new replacement. If you notice any tiny parts missing, don’t worry—just transfer them over!

– If you’re using a genuine Samsung replacement display, you’re in luck! No need to worry about transferring parts.

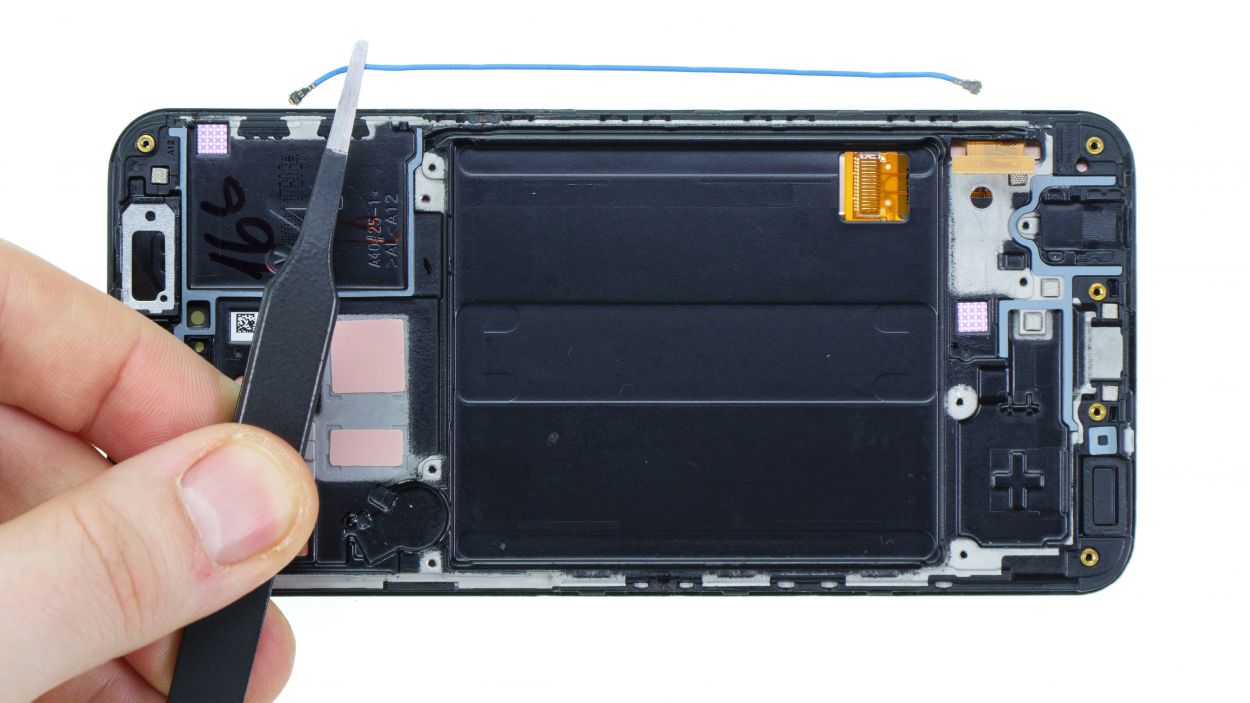

– Before you get started with the assembly, make sure to peel off all those protective films. They’re there to keep the front camera opening and the thermal pads under the motherboard safe and sound.

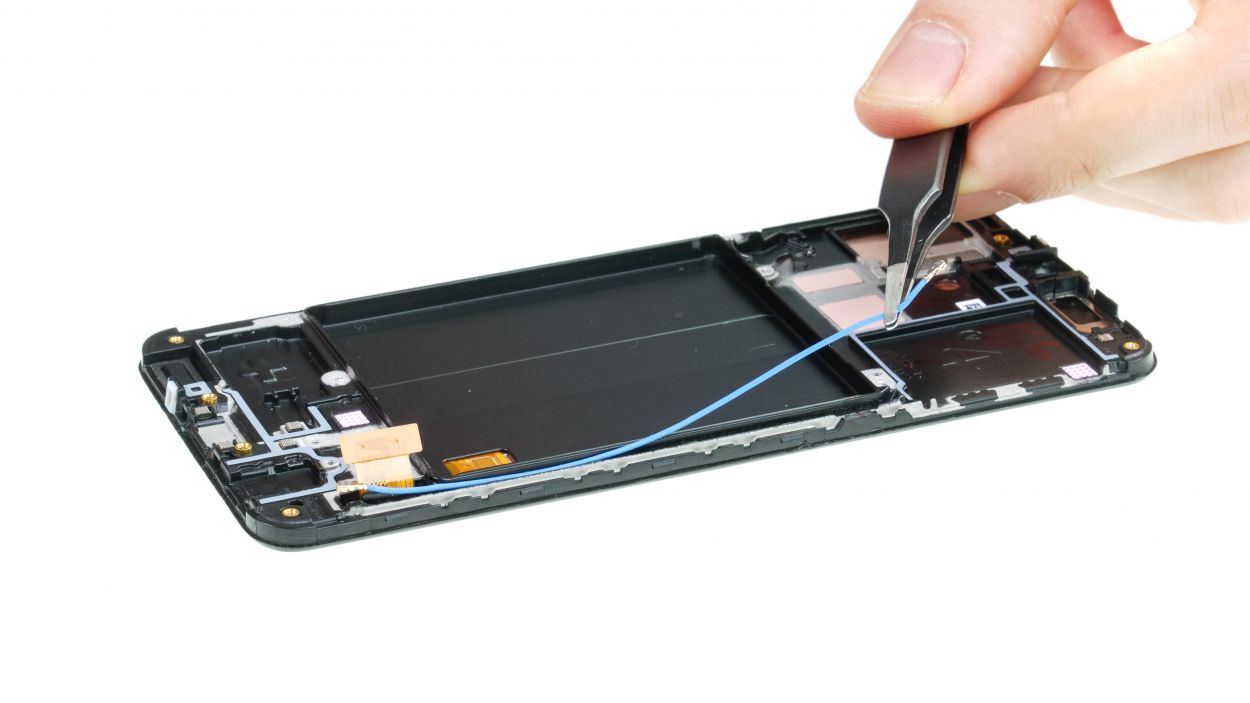

– First, slide that blue antenna cable into the side guide of the display frame like it’s meant to be there.

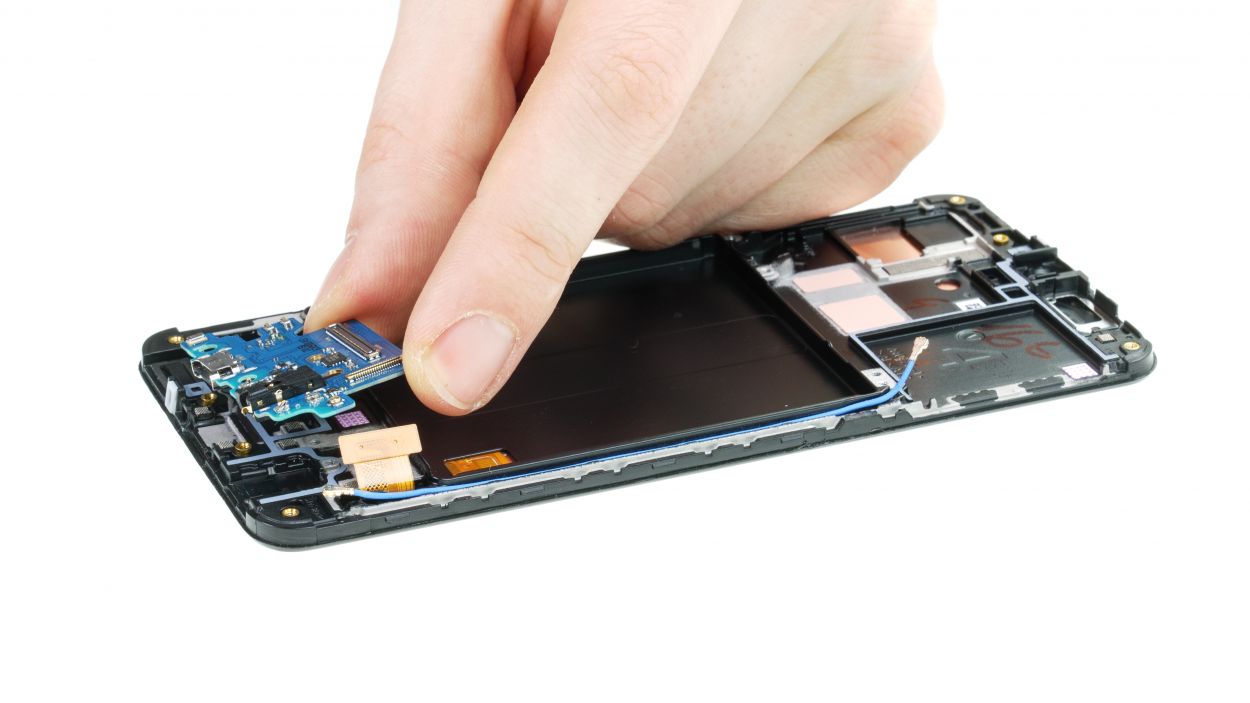

– Next, pop the USB board back into its cozy spot inside the device. Just make sure that sticky side is still on the board—no one likes a loose connection!

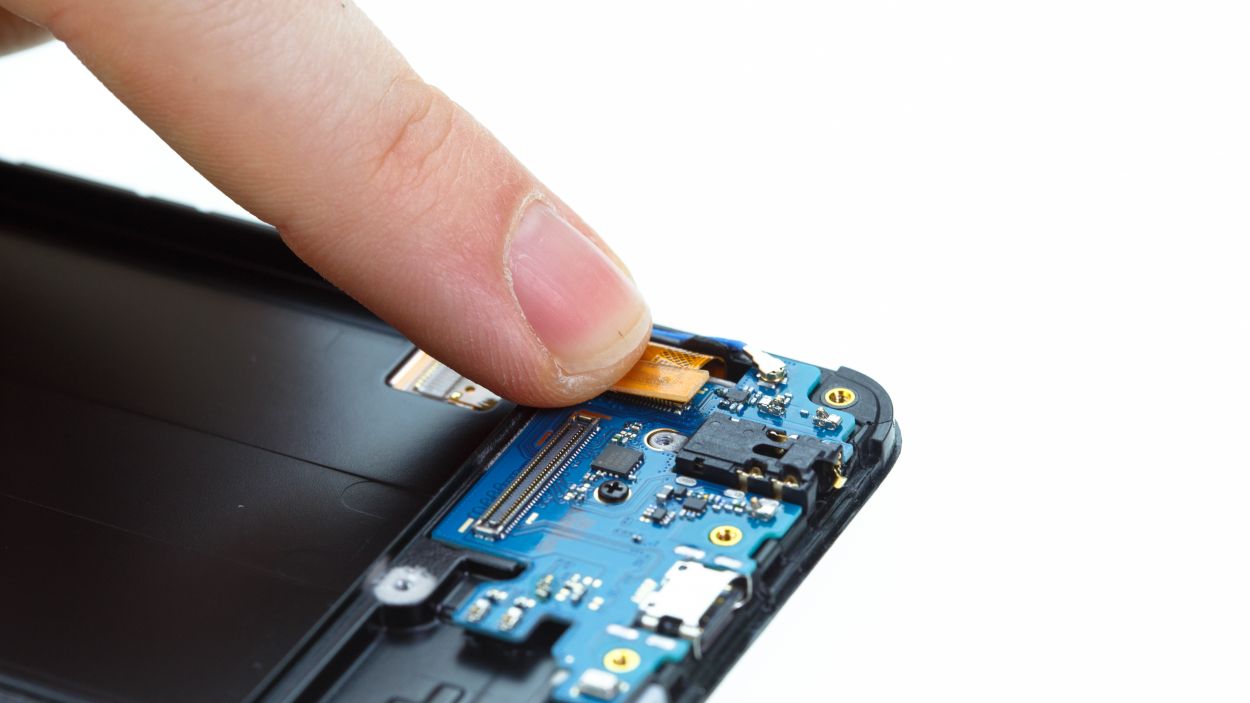

– Now, it’s time to reconnect that connector. Give it a little push until you hear a satisfying click—it’s like a high-five for your device!

– Finally, let’s connect that antenna contact. Grab your tweezers and gently position it over its connector on the board, then press it down with your trusty spudger. You’ve got this!

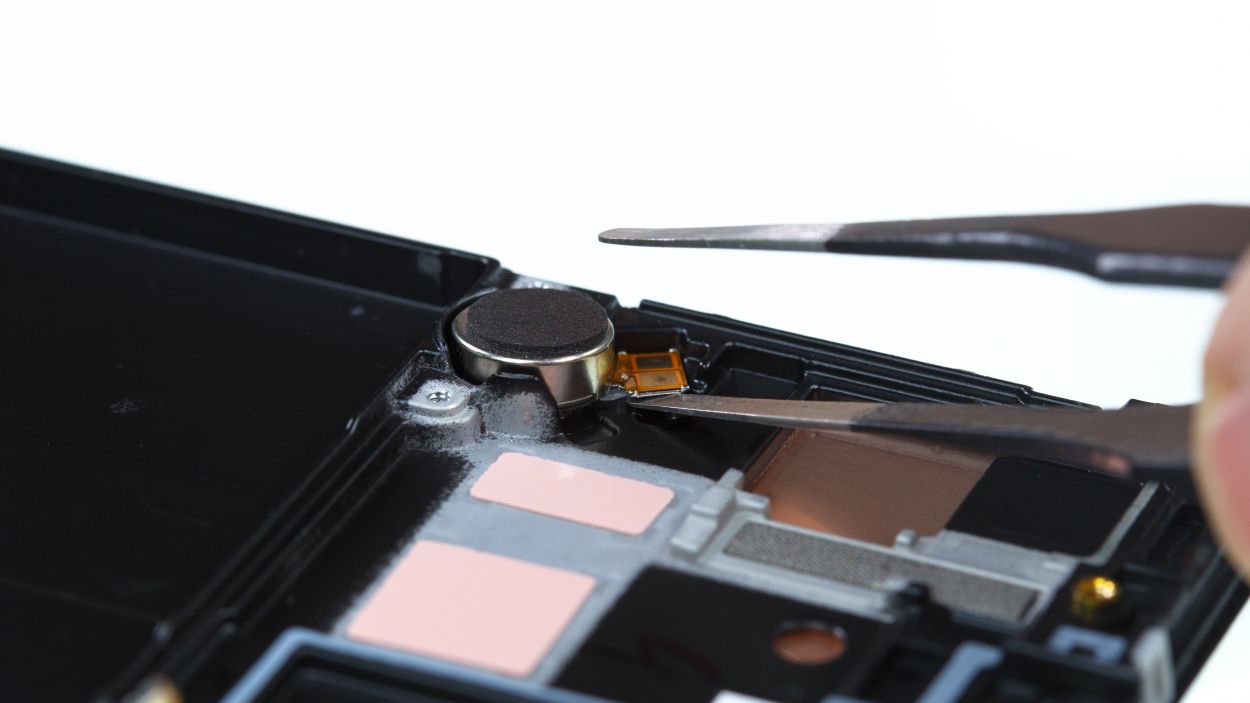

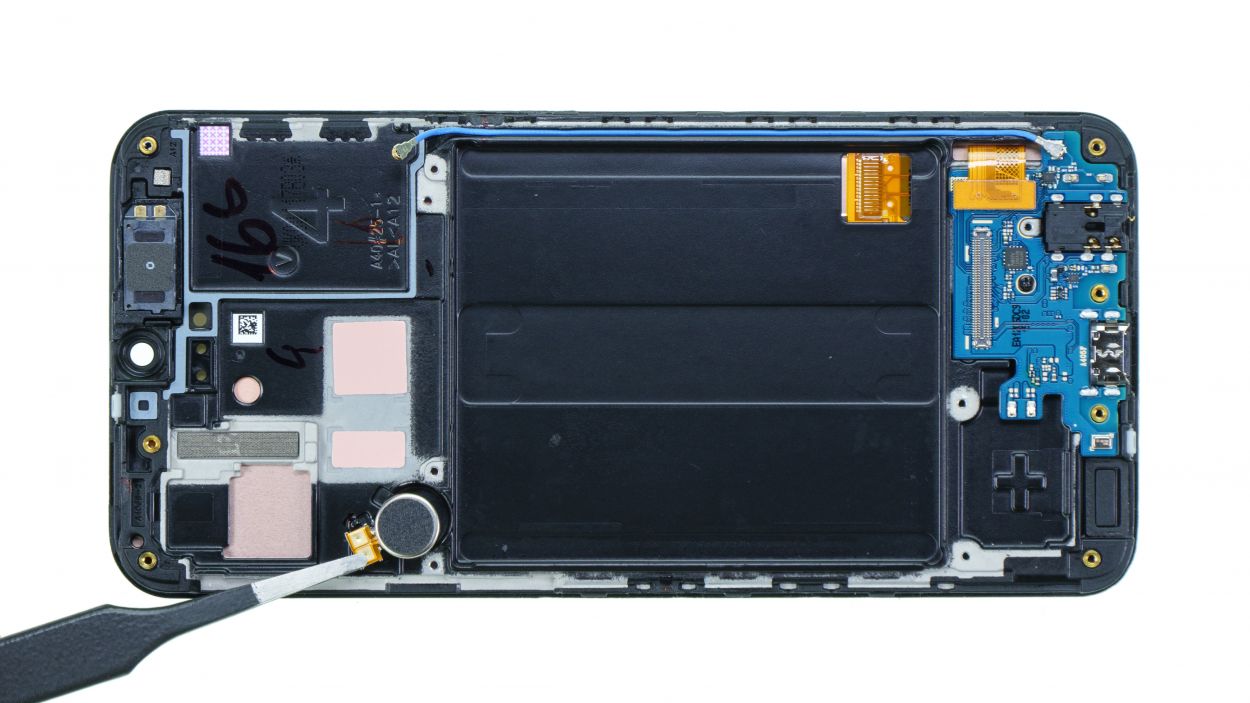

– Gently place the vibration motor back into your device and give it a light press to settle it in.

– Next, pop the earpiece back into its designated spot.

– Let’s slide that mainboard back into its cozy home in the device.

– Secure it with the single screw and don’t forget to reconnect the antenna for good measure!

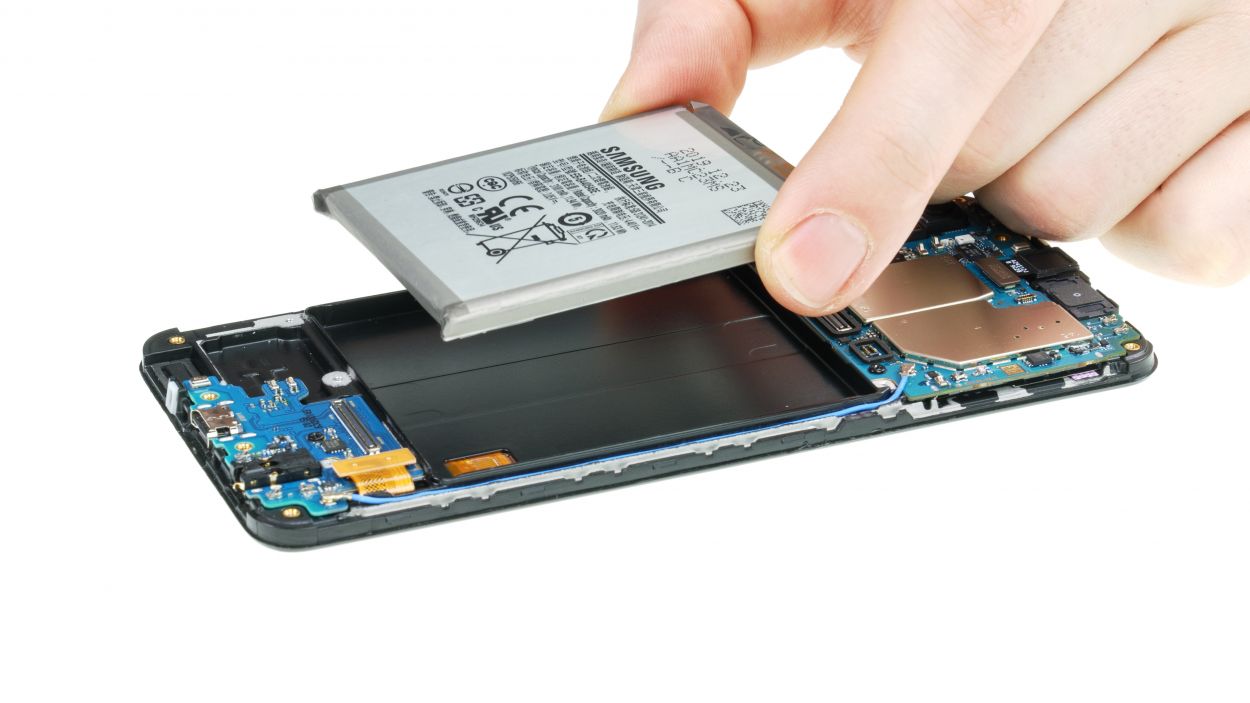

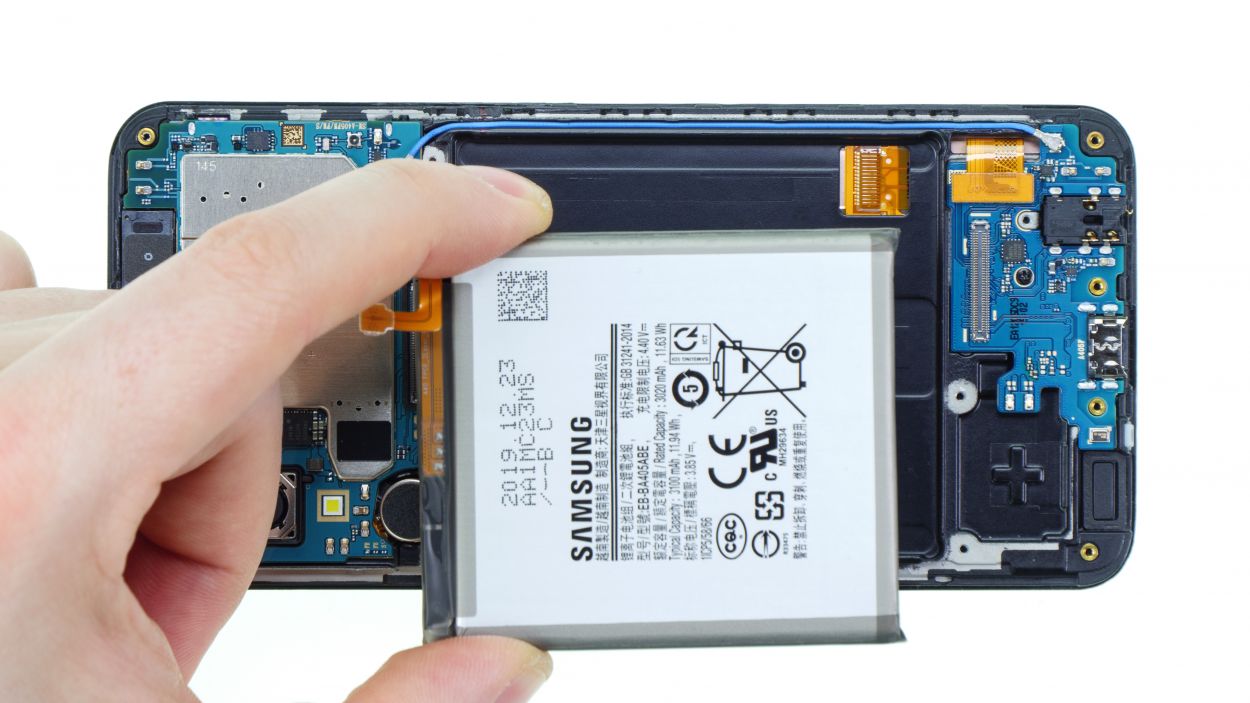

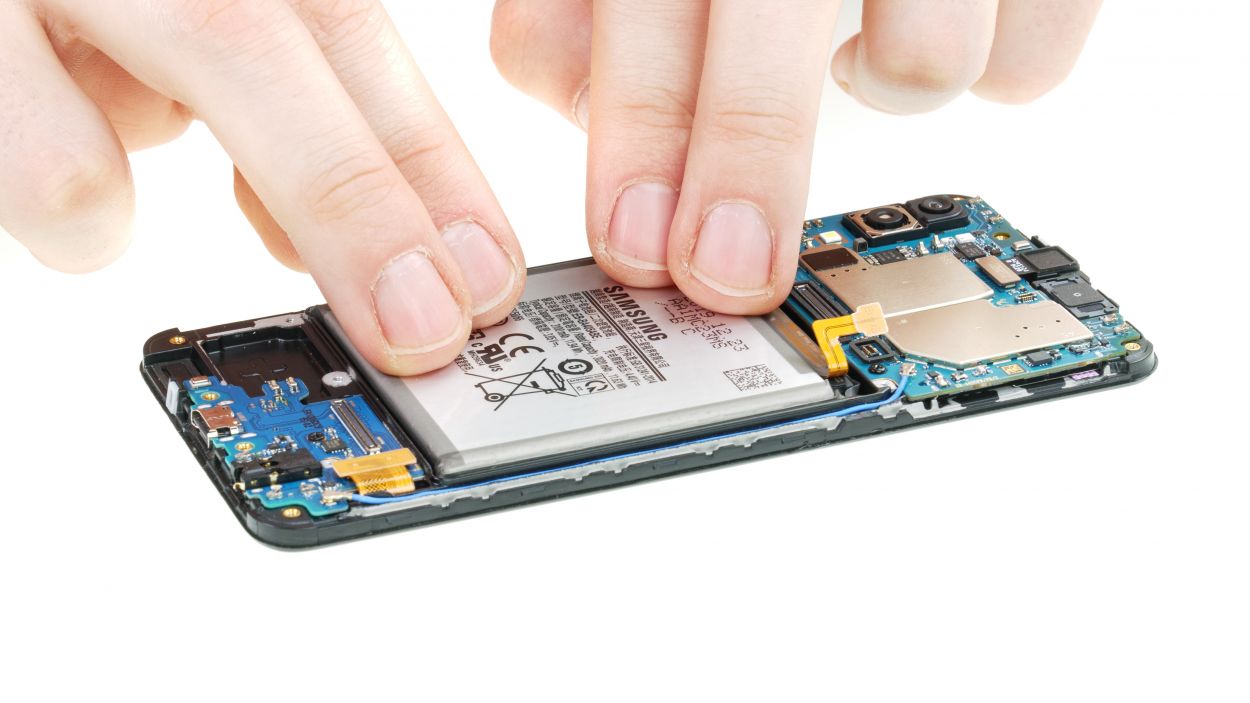

– Slide that battery back into your device like it belongs there!

– Keep an eye on that adhesive underneath—let’s avoid any wrinkles!

– Nestle the battery in, ensuring it has plenty of room to breathe all around.

– Give it a gentle press to help that adhesive stick like old friends.

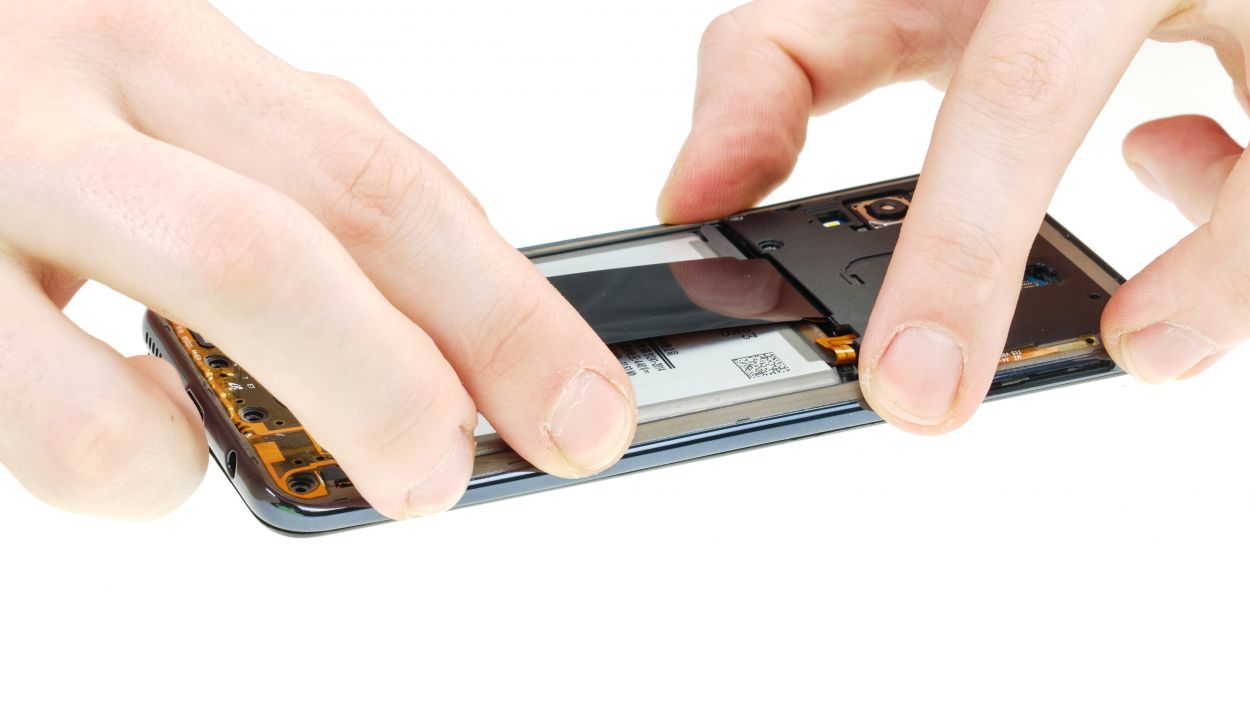

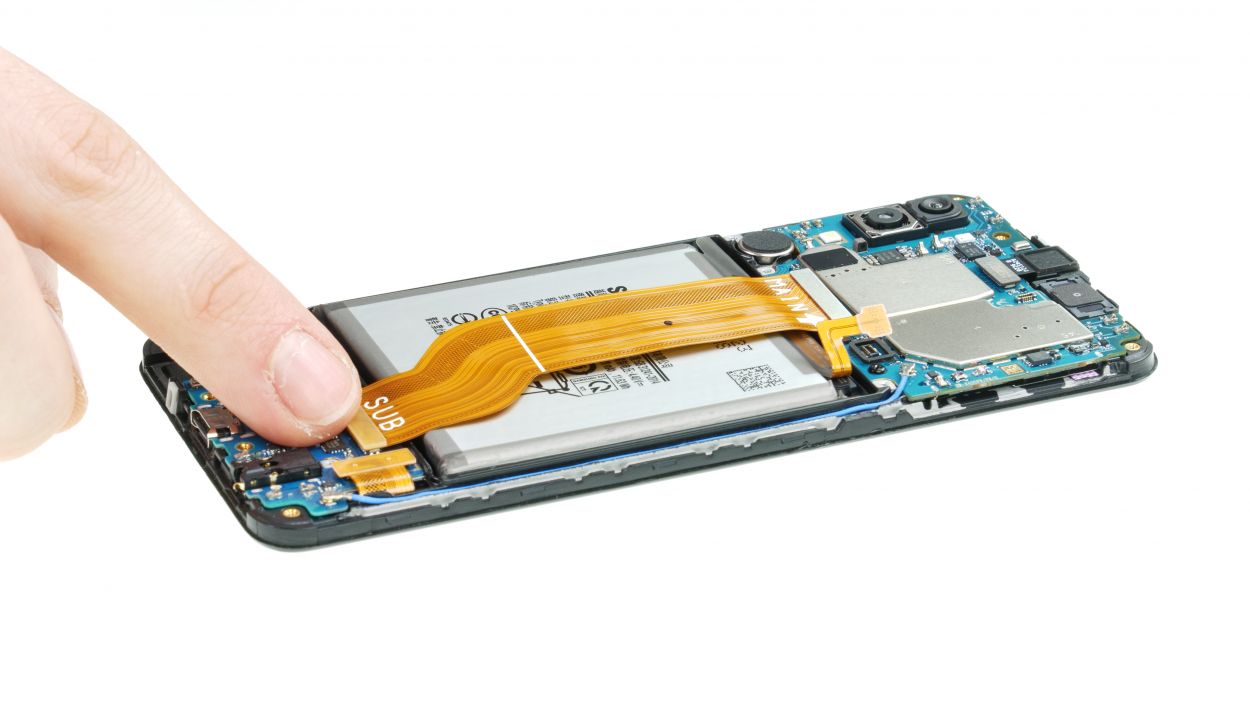

– Slide that wide flex cable back into its cozy spot in the device.

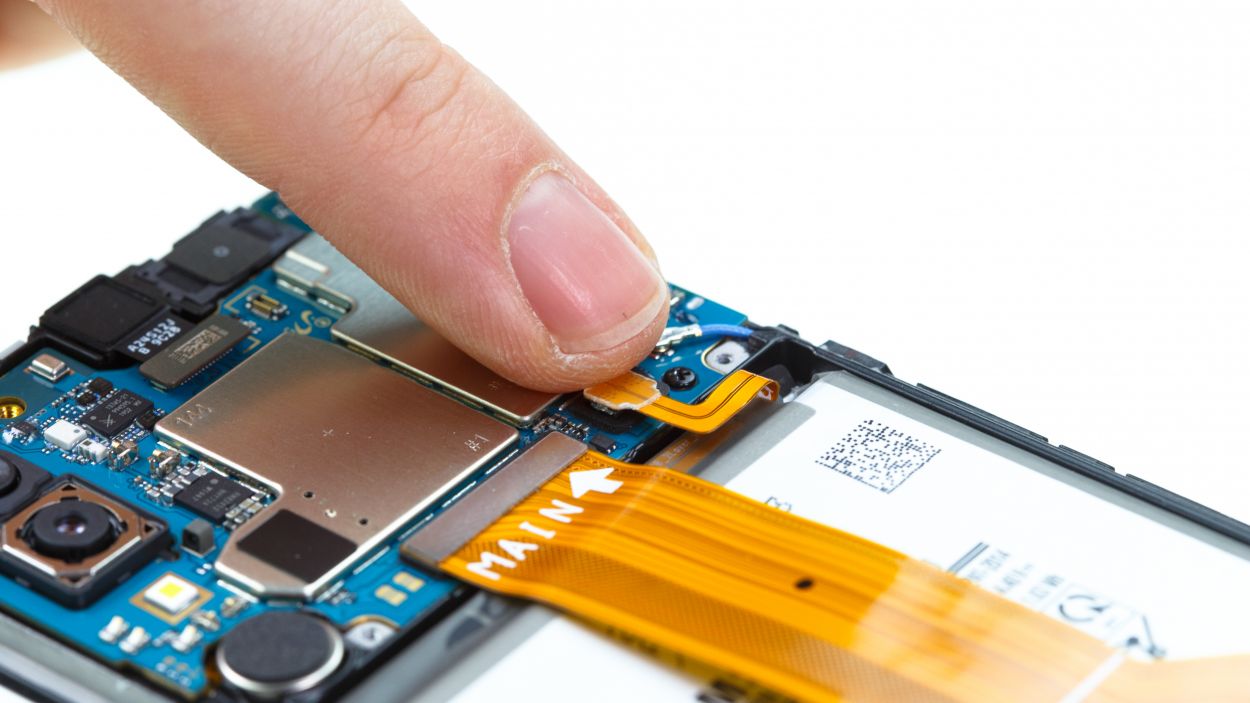

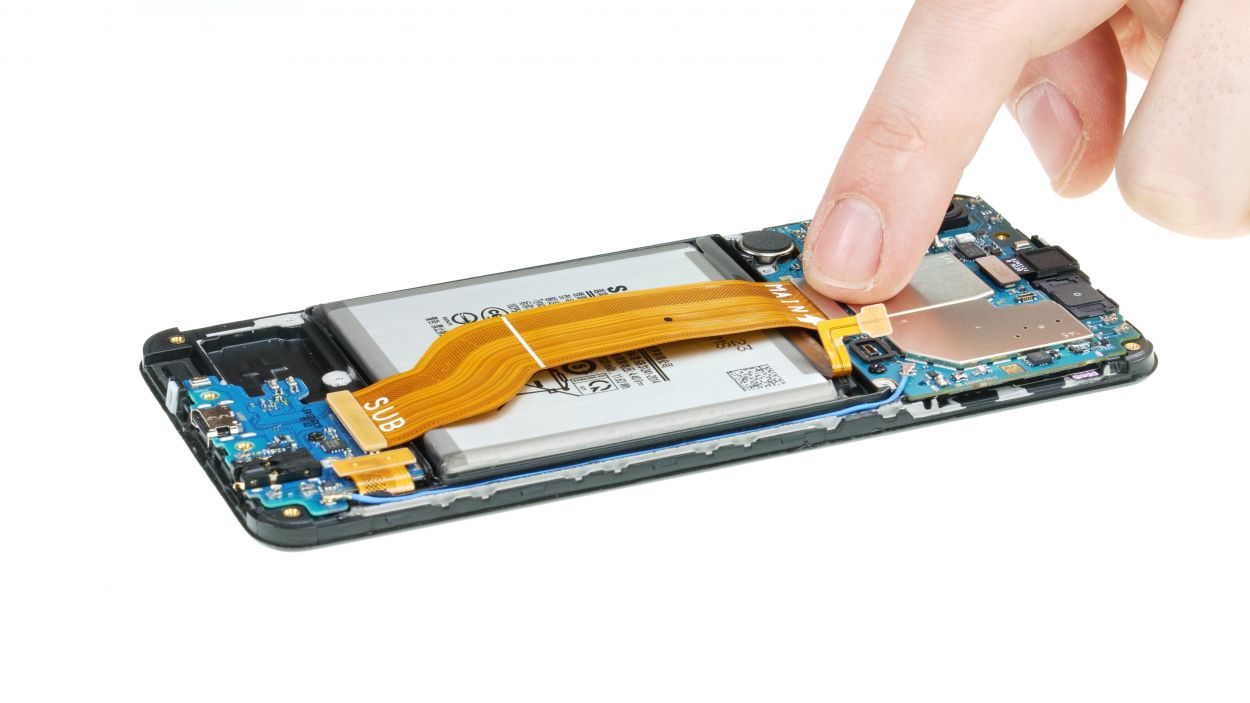

– Next, connect the two connectors of the flex cable—one to the mainboard and the other to the USB board. It’s like giving them a little handshake!

– And finally, reconnect the battery to wrap things up. You’re almost there!

– Now, let’s get that center frame snugly back on the display.

– Give it a good press all around to make sure every clip finds its home.

– Next up, fasten all those screws securely.

– Don’t forget to pop the SIM and SD card holder back into the device. You’re almost there!

– Carefully pop the fingerprint sensor back into its designated spot.

– Next, connect the little connector and place the plastic cover back on top.

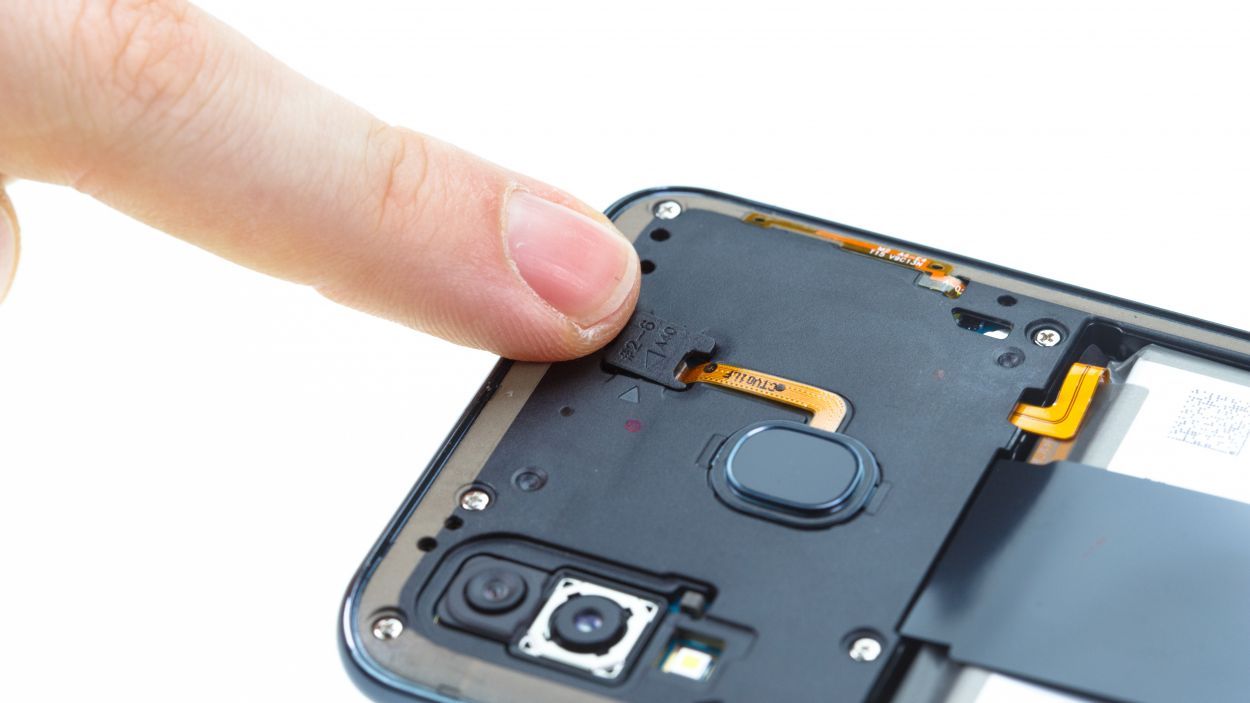

– Give that cover a gentle press until you hear it click into place, ensuring everything is snug and secure.

– Fire up your device and launch the phone app to put it to the test!

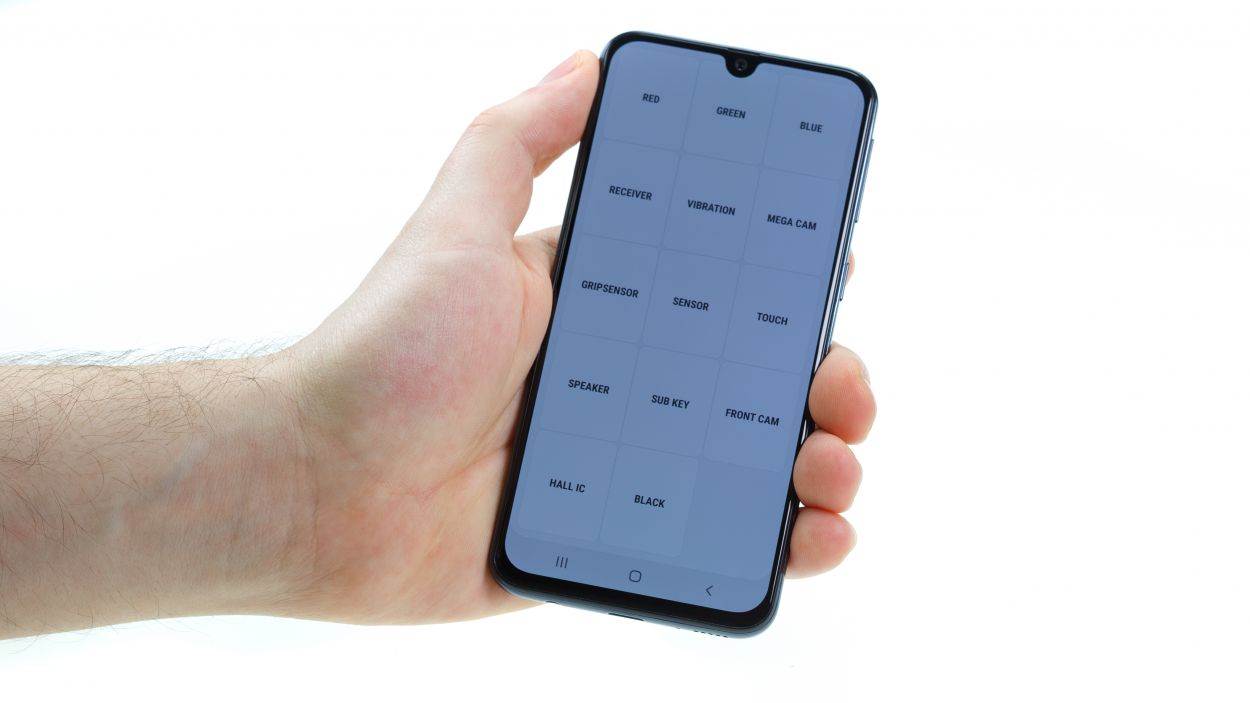

– Did you know that Samsung smartphones have a secret test menu? It’s like a backstage pass to check out all the cool functions of your device.

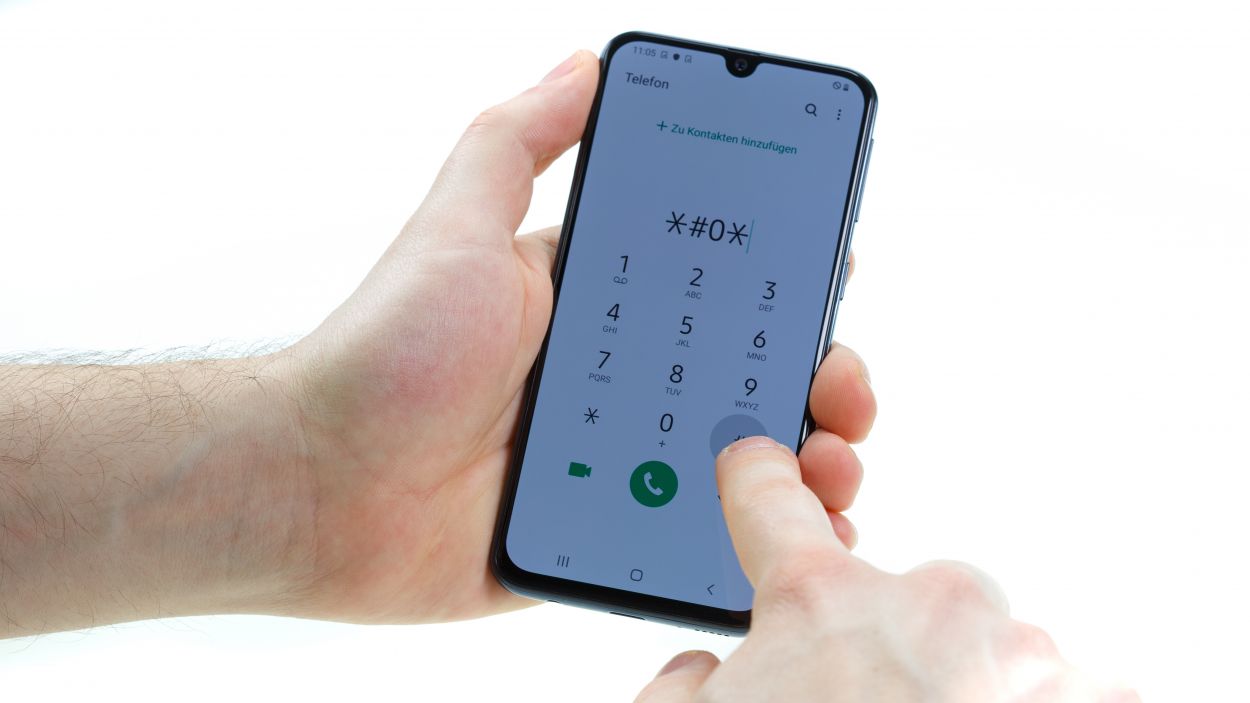

– Just type in the magic combo *#0*# on the dial pad, and voilà—the menu appears!

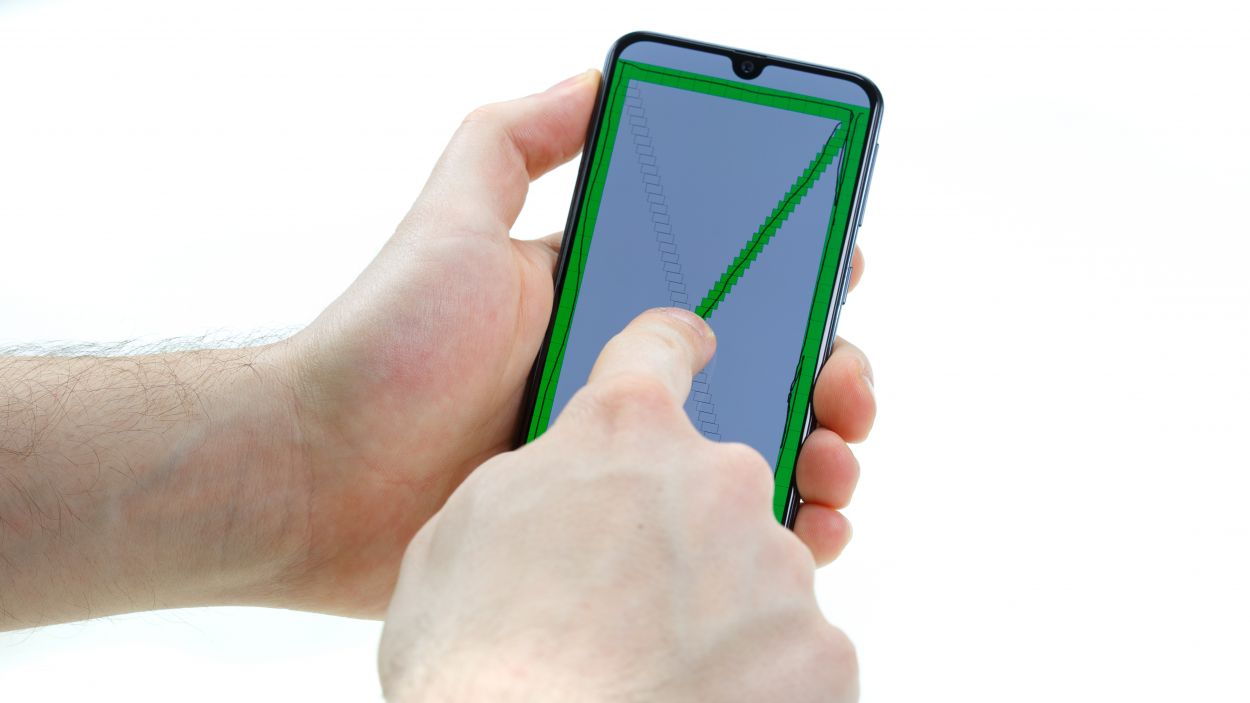

– Now, let’s make sure that touch screen is responsive everywhere. Don’t forget to check out all the other features too, like the earcup and loudspeaker. Happy testing!

– To get that back cover back on, you’ve got two options: stick with the old glue or go for a fresh adhesive frame.

– If you choose to reuse the old glue, just make sure it’s spread out evenly and doesn’t have any wrinkles or bumps.

– Going for a new adhesive frame? First, you’ll need to bid farewell to the old glue on both the back cover and the frame.

– Use tweezers to gently lift off the old glue. You can also scrape it off with a plastic tool or give it a good rub with a lint-free cloth and some rubbing alcohol.

– Once that’s done, lay the new adhesive frame on the device frame and peel off all those protective films. Make sure nothing is sticking out!

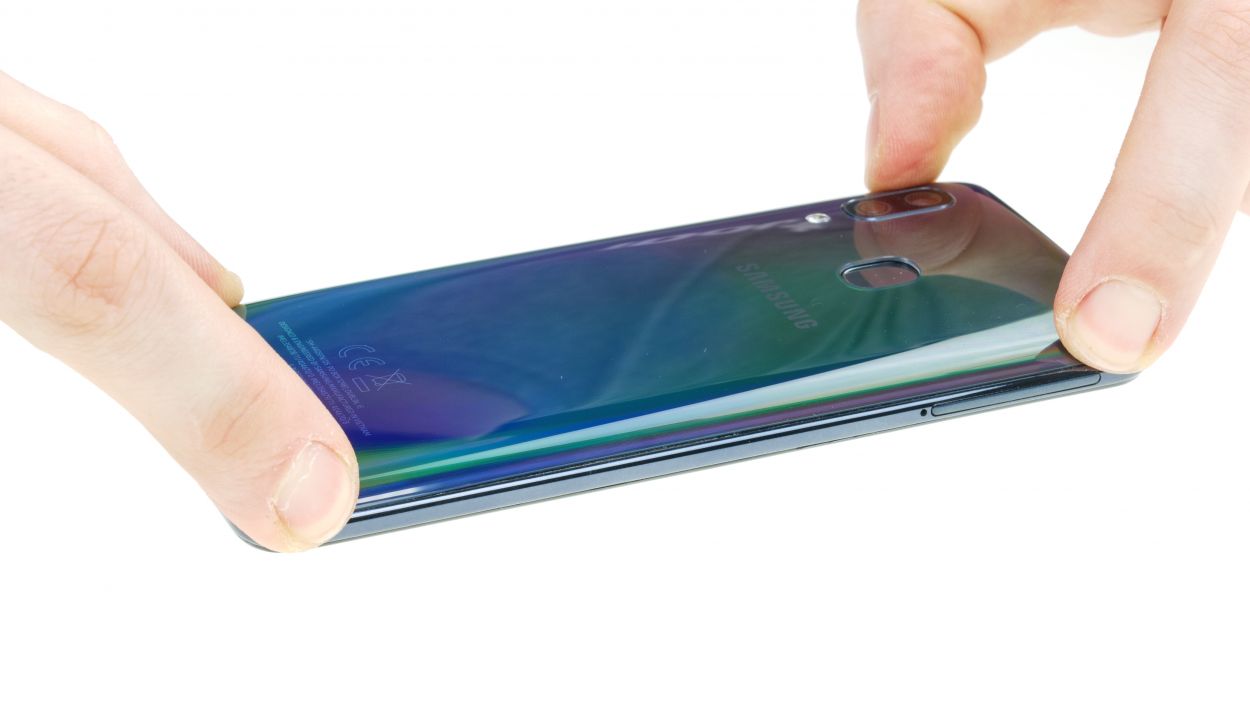

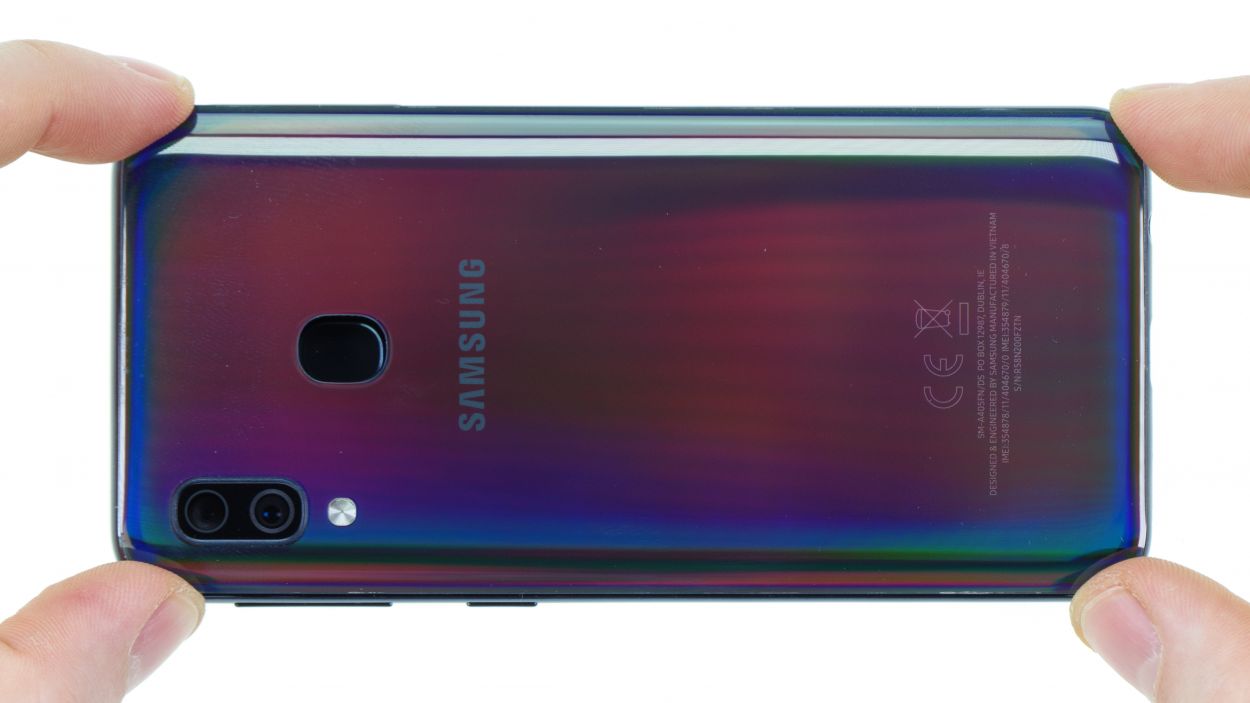

– Now, place the back cover back on and give it a firm press all around.

– To help that glue set like a champ, warm up the back cover frame again with hot air and stack a few books on top of your smartphone for some added weight.
