DIY Guide to Replace Galaxy S10 Battery Step-by-Step
Duration: somewhere between half an hour and two hours
Steps: 13 Steps
Now it’s time to swap out that battery! This easy-to-follow guide walks you through the process like a pro. Just a heads up, this repair is a tad trickier since you’ll need to remove the stubbornly attached glass back cover to access the battery. It might take a little while, so be sure to carve out enough time for this task. Wishing you all the best with your battery replacement! We can’t wait to hear your thoughts on our repair guide! If you need help, you can always schedule a repair.
Step 3
Heads up! Once you crack open your Galaxy S10, it waves goodbye to its waterproof charm, and the warranty for dust and splash protection takes a hike. Stay dry and keep it safe!

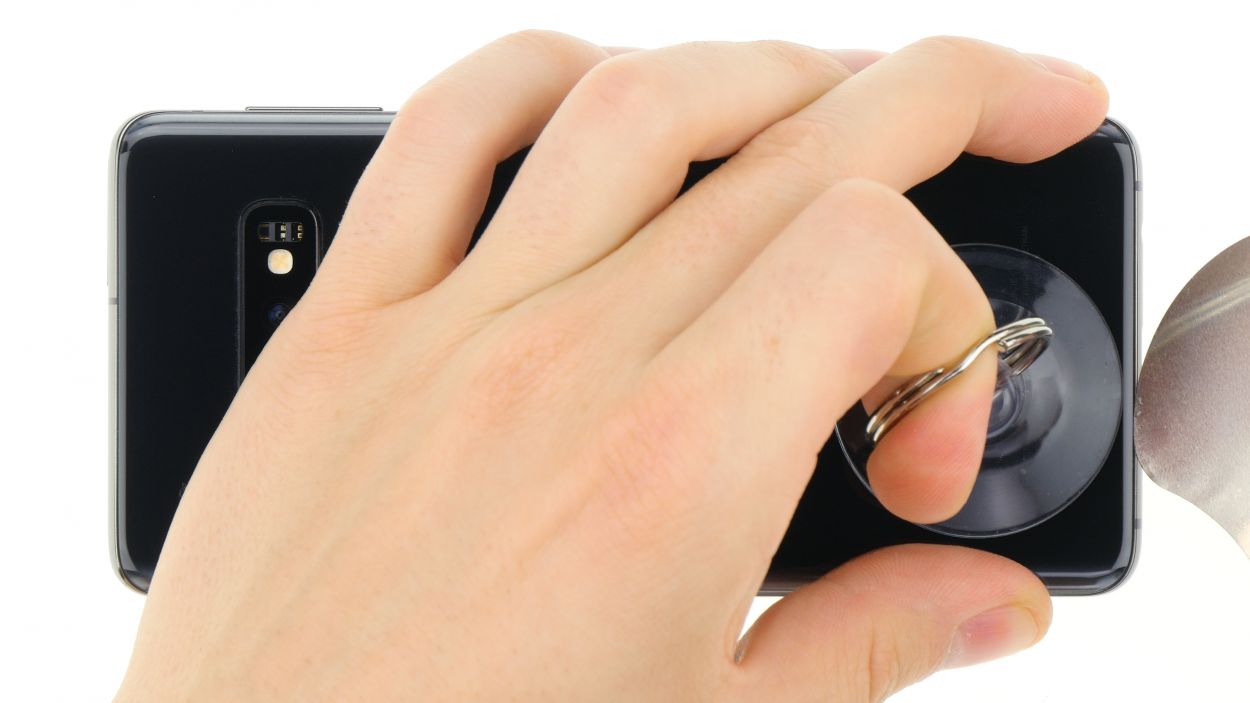

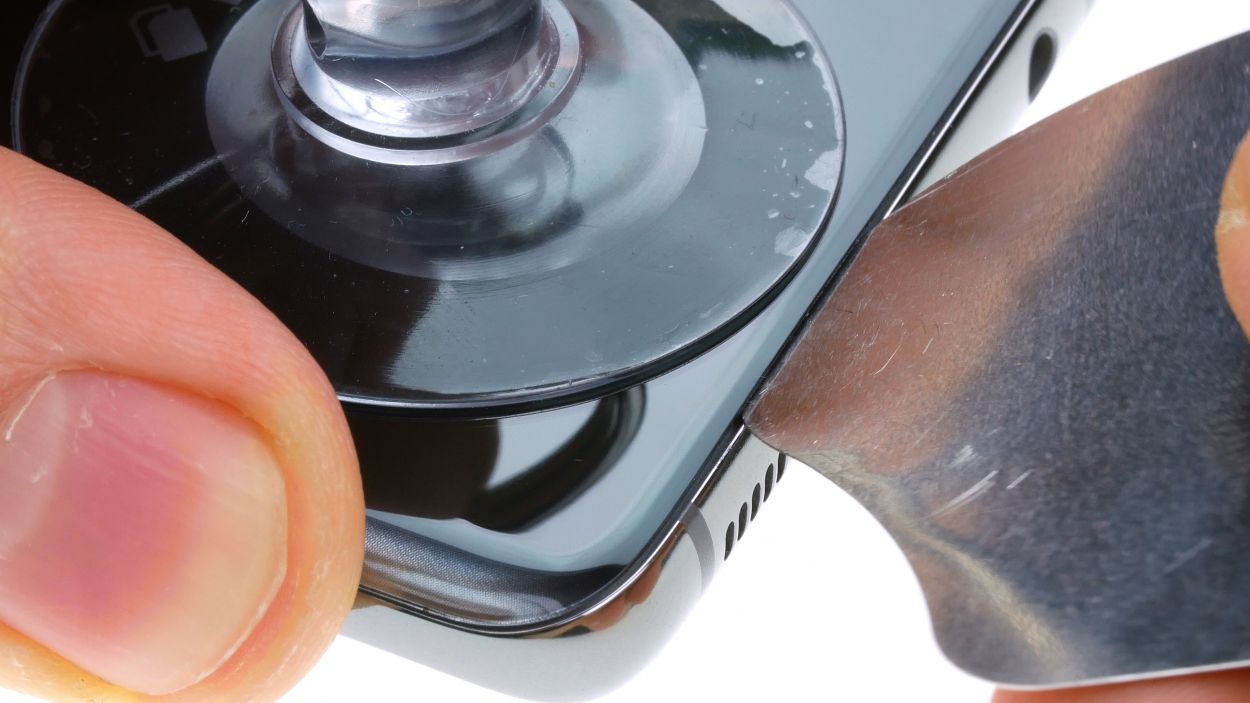

– Grab a suction cup and stick it right at the bottom of the back cover. Give it a gentle pull upwards to create a snug little gap between the back cover and the housing frame.
– Now, take a flat, sturdy tool and slide it into that gap you just made. Give it a little nudge to widen the gap by pushing the back cover up a bit more. We recommend using the iFlex for this task!
Tools Used
- screen and the frame. The practical iFlex is made of stainless steel and sits comfortably in the hand. This makes it the perfect assistant for every smartphone repair.” rel=”noopener”>iFlex Opening Tool
- VAKUPLASTIC Suction Cup
Step 4
– Grab a flat plastic tool and gently work your way around the edge of the housing, piece by piece. We recommend using the iPlastix for this task.
Be gentle with your tool and avoid going too deep—let’s keep everything safe and sound beneath that back cover!
The iFlex is crafted from thin yet tough metal, making it a breeze to slide into the gap between the back cover and the case frame. Just a heads up, though—the iFlex has some sharp edges that could scratch the frame. So, we suggest using the iFlex for the initial entry and then switching over to the iPlastix, which is made from flexible plastic, as soon as you can. Happy repairing!
Tools Used
- Flat Picks
- battery? Then the iPlastix with its large blade will help you. The practical assistant is made of flexible, especially sturdy plastic and lies comfortably in the hand. Thanks to its design, you can even get into smaller gaps, for example to lift the screen or to prevent it from sticking together again.” rel=”noopener”>iPlastix Opening Tool
Step 5
8 × 3,9 mm Phillips

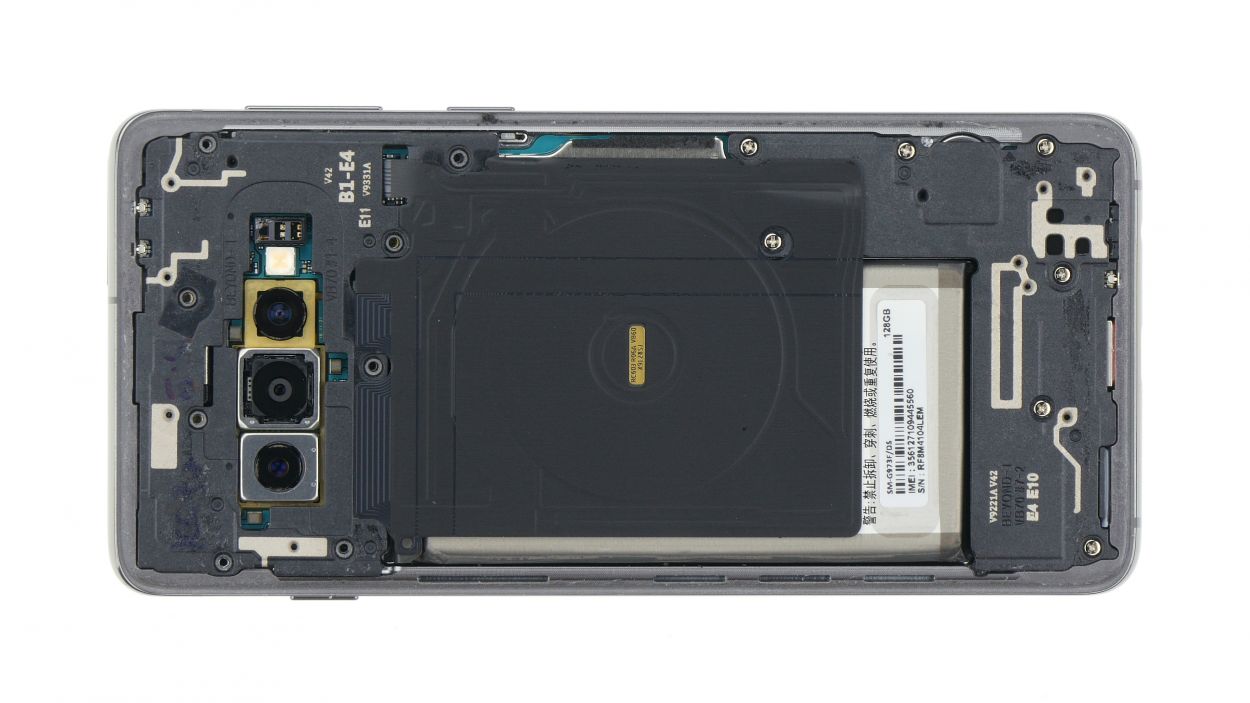

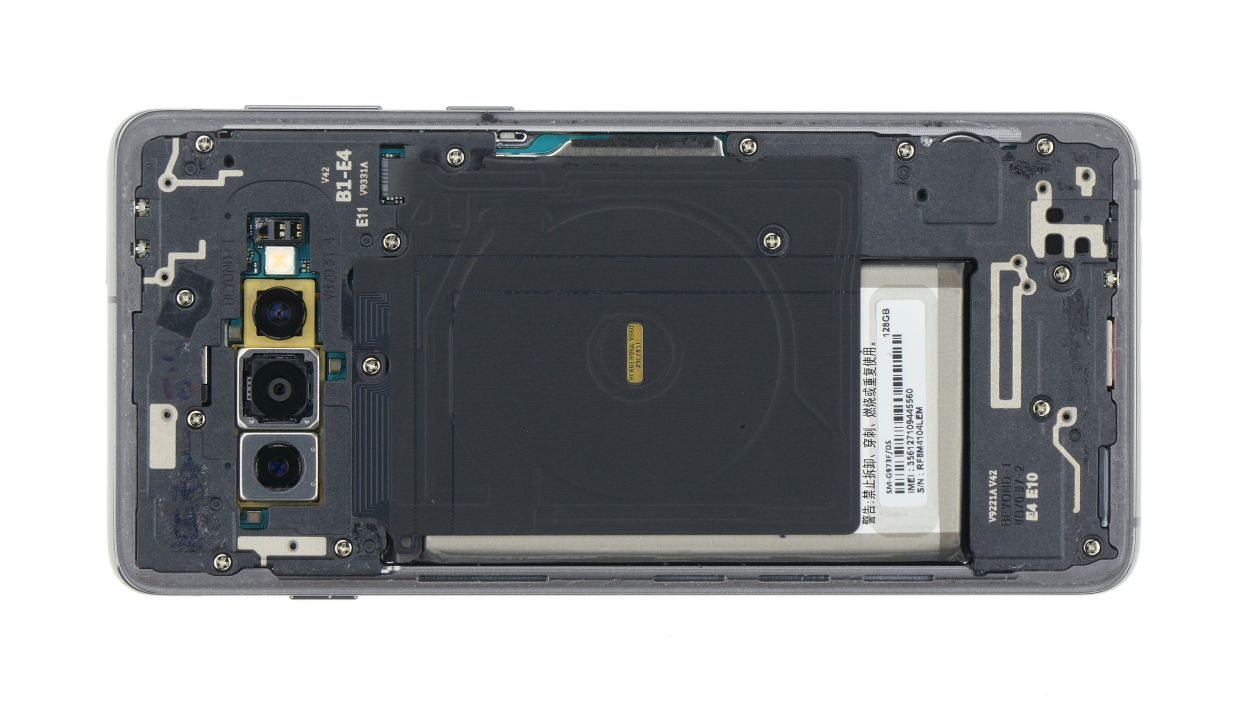

– First, grab your trusty Phillips screwdriver and unscrew those screws holding the plastic cover snugly in place.
– Next, take a flat tool and gently slide it under the glued coil to loosen it up. A steel spatula works wonders for this task!
– Now, it’s time to leverage that plastic cover! Use a spudger to pry it open from the upper edge of the display unit.

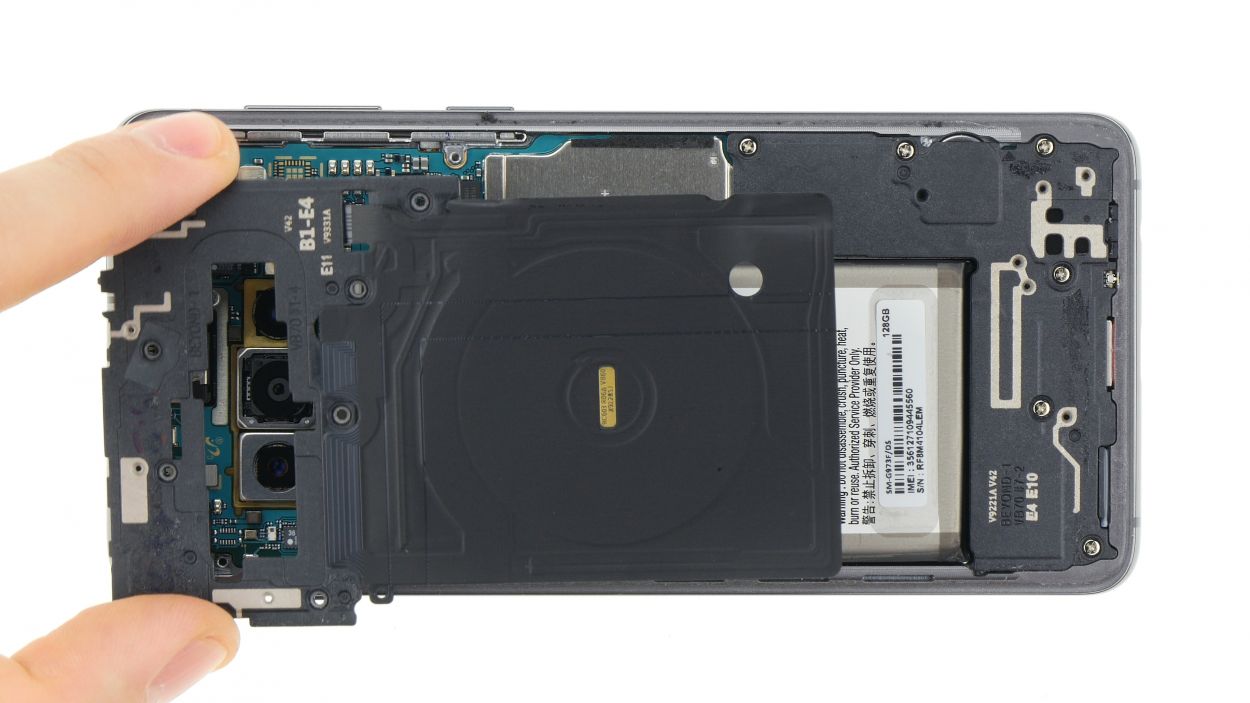

– And voilà! You can now lift off the cover along with the coil and the NFC antenna.
Step 6
Battery connector
When you’re prying things open, make sure to start from the side without those tiny components on the mainboard. This little tip helps you steer clear of any mishaps with capacitors or ICs. Keep it smooth and safe!

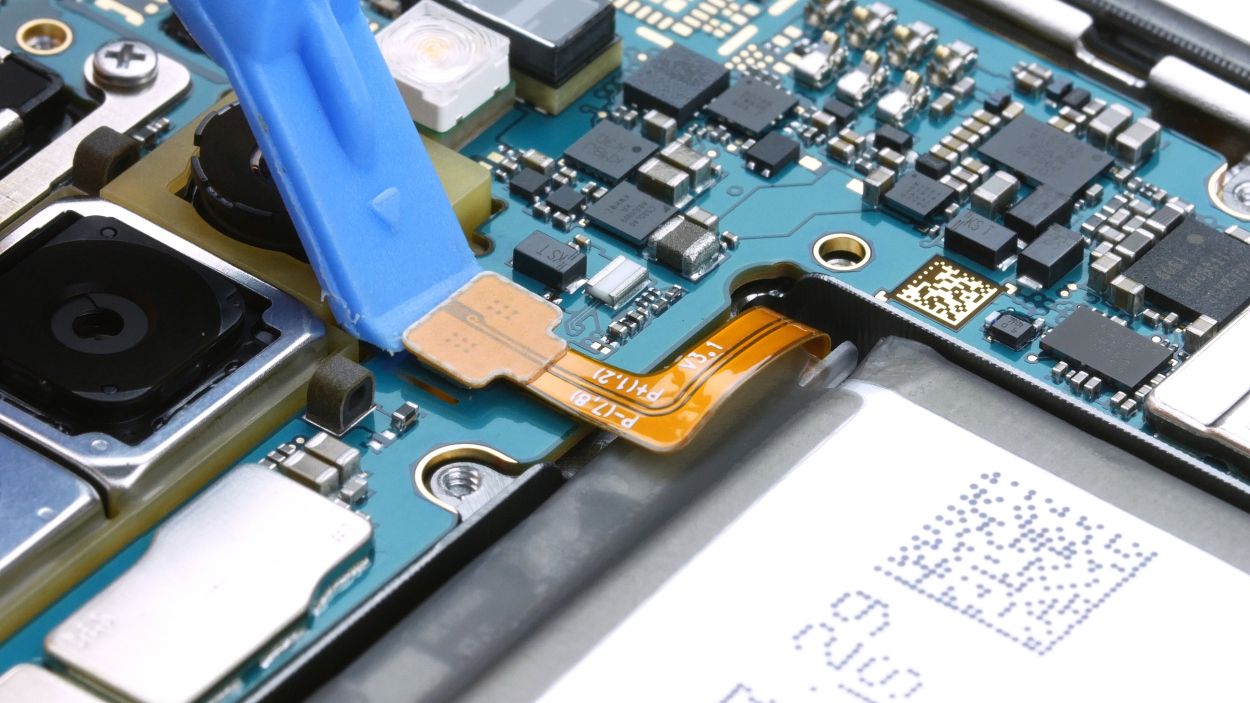

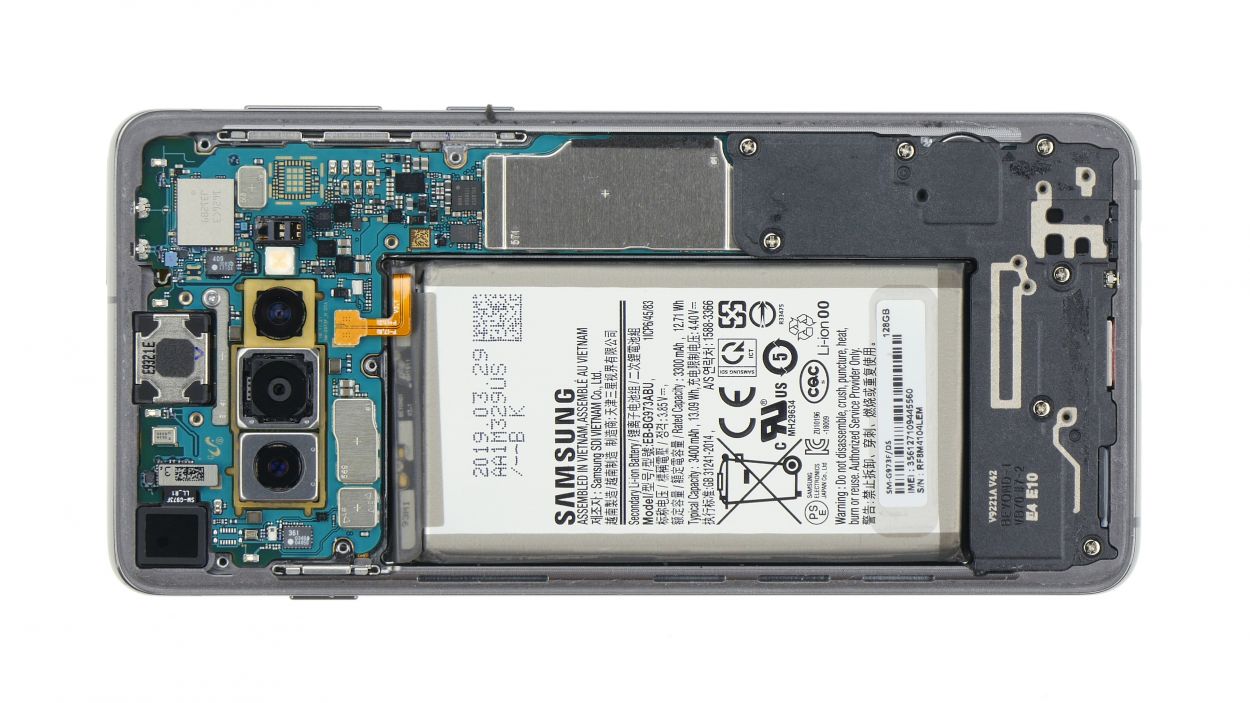

– Gently pry away the battery connector from the mainboard using your trusty spudger tool. You’ve got this!
Tools Used
Step 7

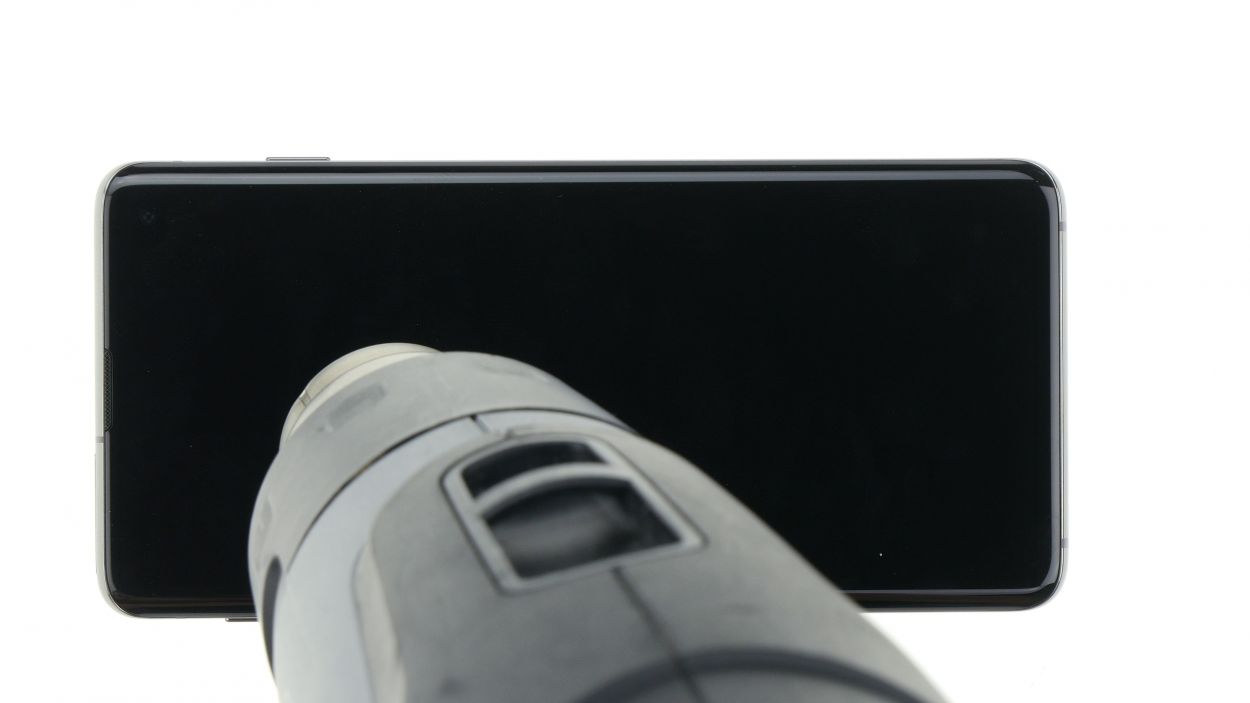

– Give that battery some love by warming it up with a hot air tool from below the display. It’s like a little spa day for your phone!
– Now, grab a flat, sturdy tool and gently pry the battery away from its cozy spot on all sides. A battery spudger or an iSesamo works wonders for this task!

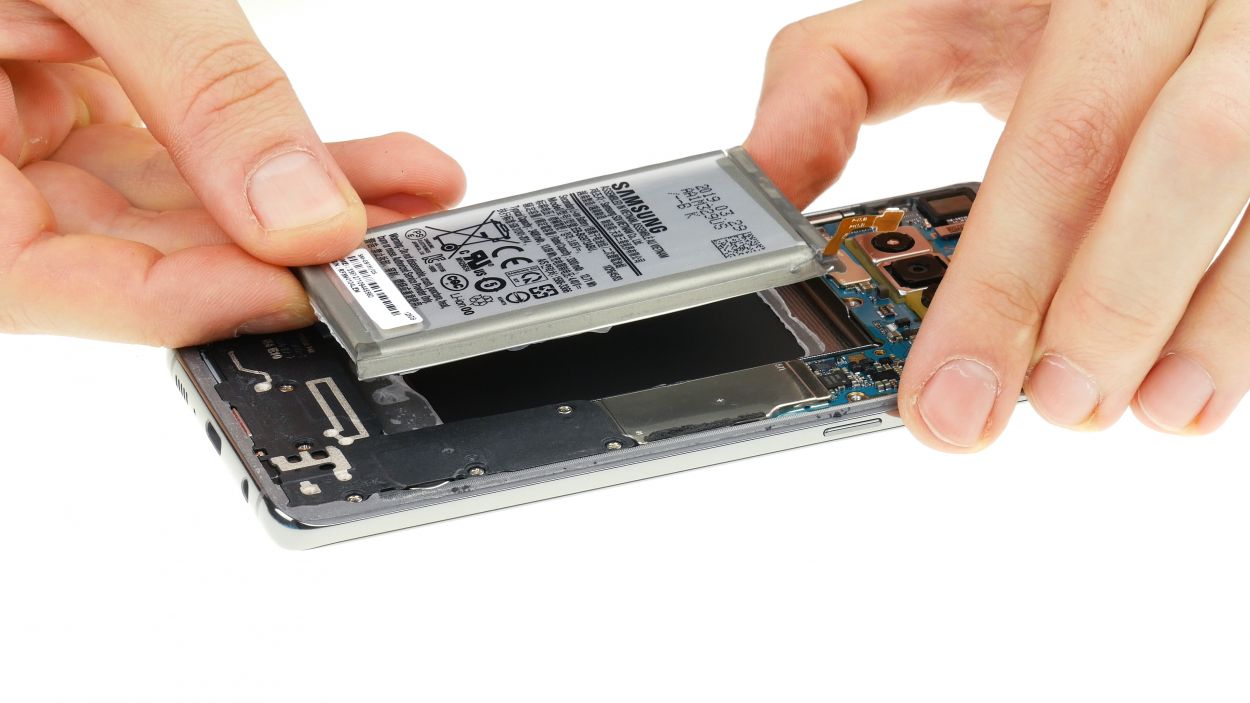

– Once you’ve loosened it up, carefully lift the battery out of your Galaxy S10 and set it aside like the superstar it is!
Tools Used
- heat gun to heat parts that are glued on so they’re easier to remove.
In most cases, you can also use a hairdryer.” rel=”noopener”>Heat gun - Battery Spudger
Step 8

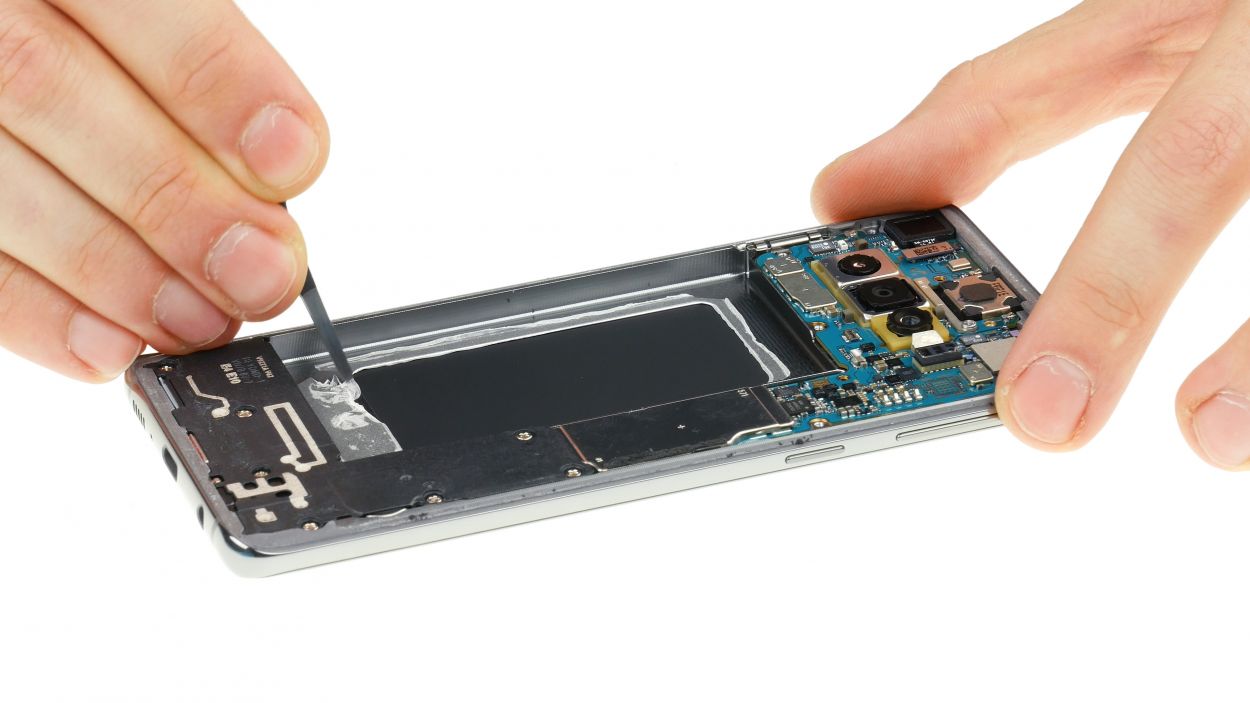

– To ensure your new battery sits perfectly in place, start by clearing away any leftover adhesive gunk inside the display. Let’s get that surface squeaky clean!

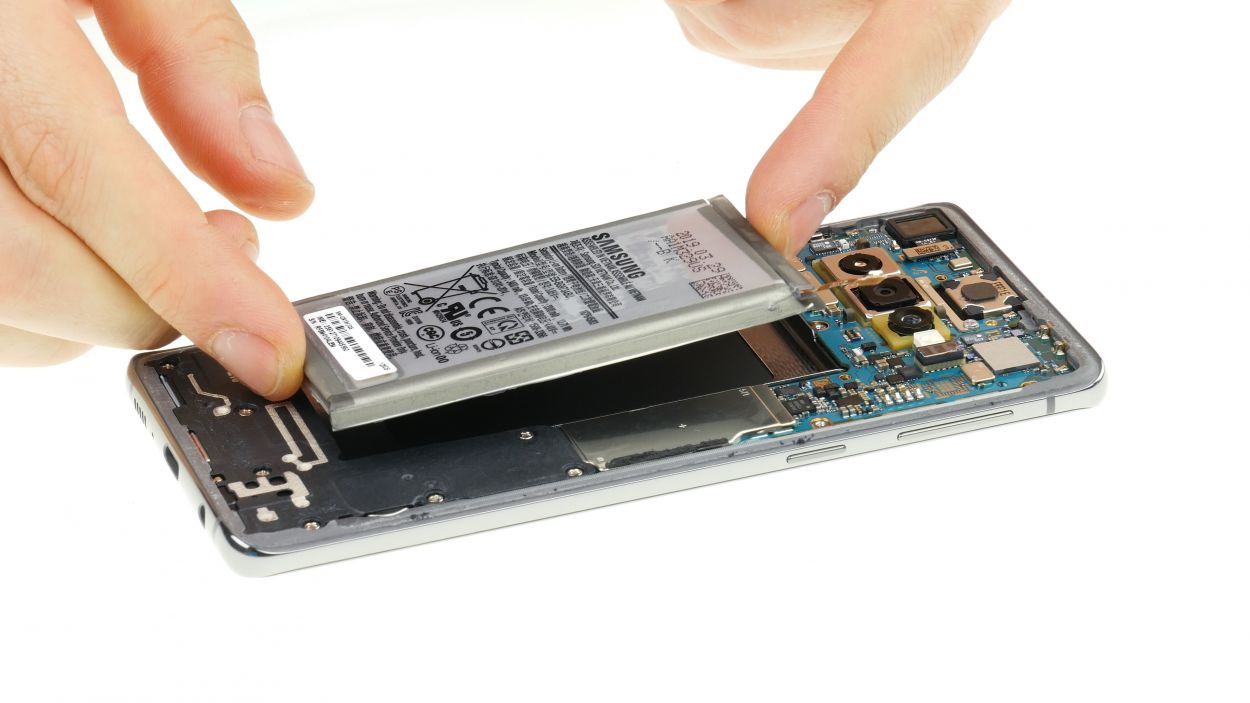

– Next up, peel off all the protective films from the adhesive parts of your shiny replacement battery. It’s time to let that sticky goodness do its job!
Hey there! If your new battery’s feeling a little bare on the sticky side, don’t sweat it! Just grab some thin, double-sided tape and give that battery a little hug – but only around the edges. Keep that sticky stuff away from the black bits inside the display frame, alright? Need a hand? You can always schedule a repair
Tools Used
Step 11
8 × 3,9 mm Phillips

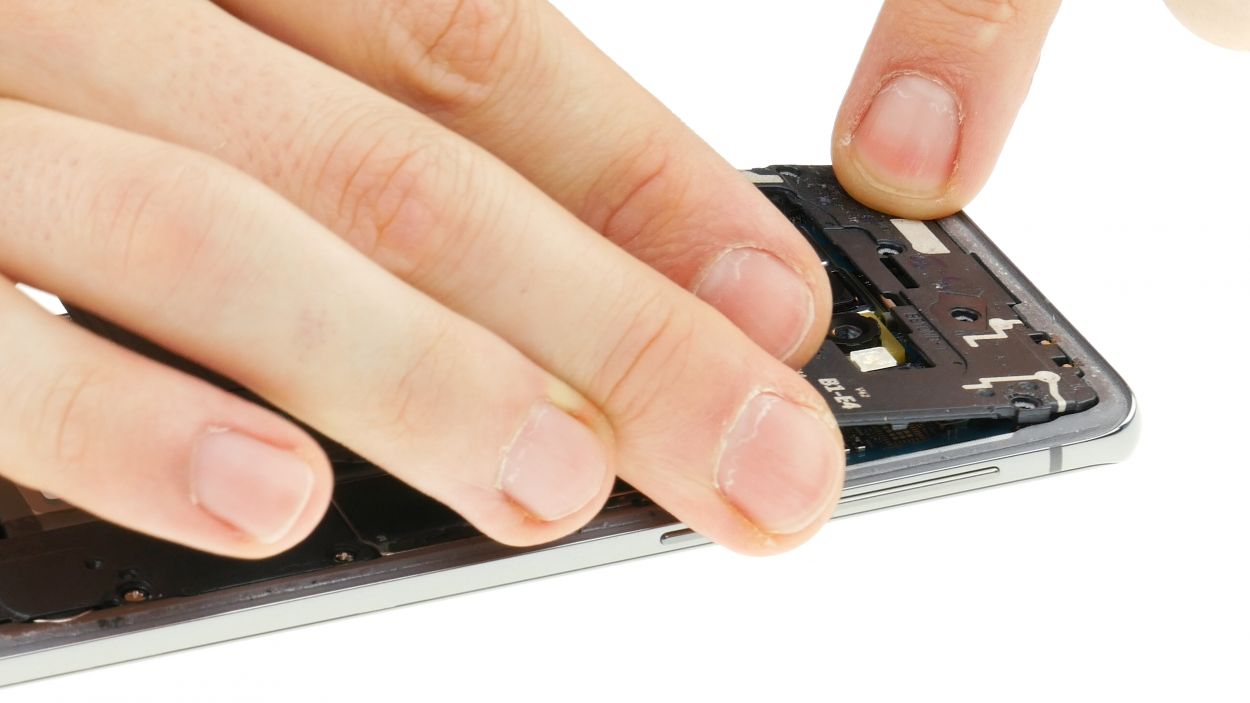

– Start by gently hooking the plastic cover back onto your Galaxy S10 at the top of the display unit.
– Once it’s in place, give it a firm press with your fingers until you hear that satisfying snap.
– Secure the plastic cover by fastening it down with the 8 Phillips screws.
Tools Used
Step 12
Before you snug that back cover back into place, let’s give your device a quick test drive! Be sure to check out the functions of the component you just swapped out. If anything seems off, no worries! If you need help, you can always schedule a repair.

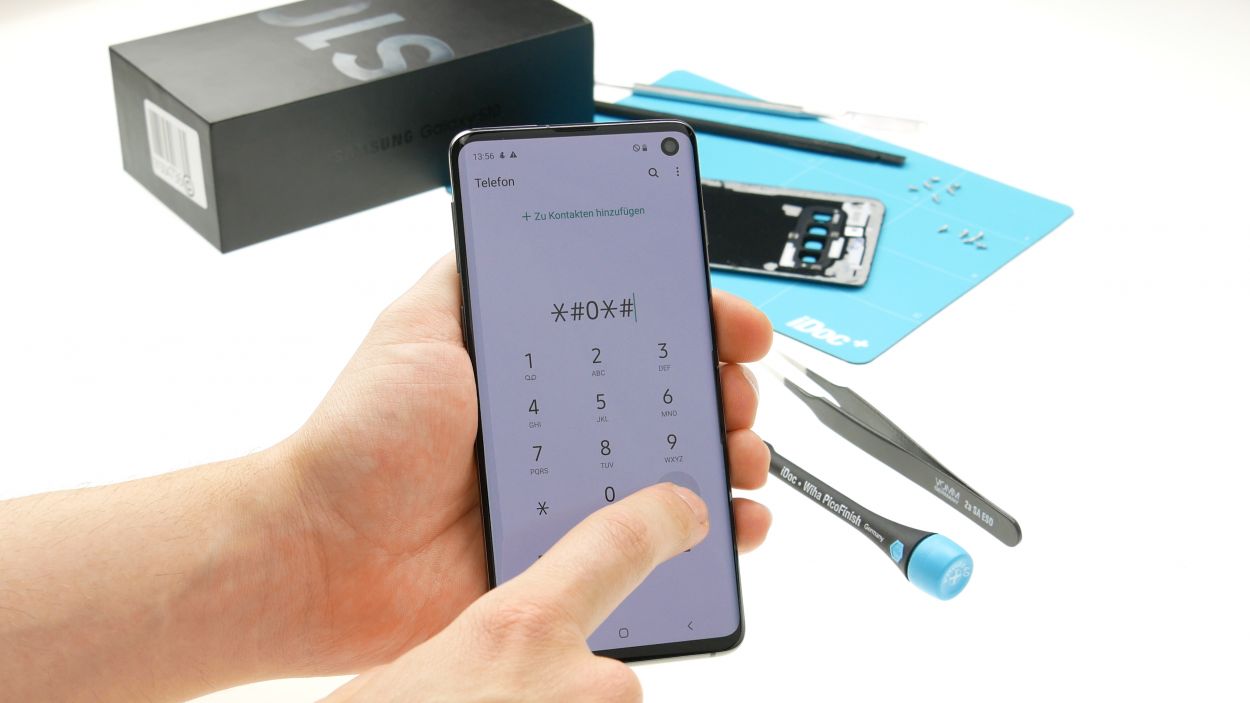

– Power up your device and dive into Samsung’s built-in test mode for a quick check-up.
– Just hit this magical key combo: *#0*#

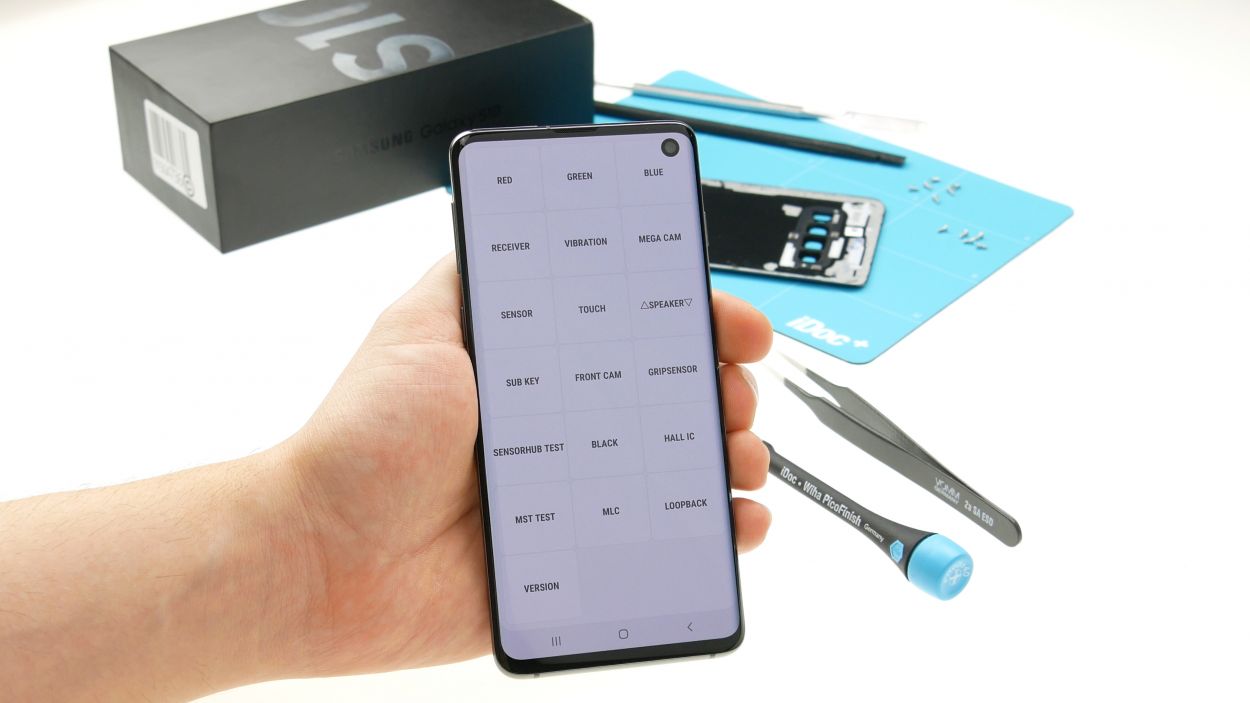

– Follow the prompts in the test menu to check out the display, cameras, and sensors. You’ve got this!
Step 13

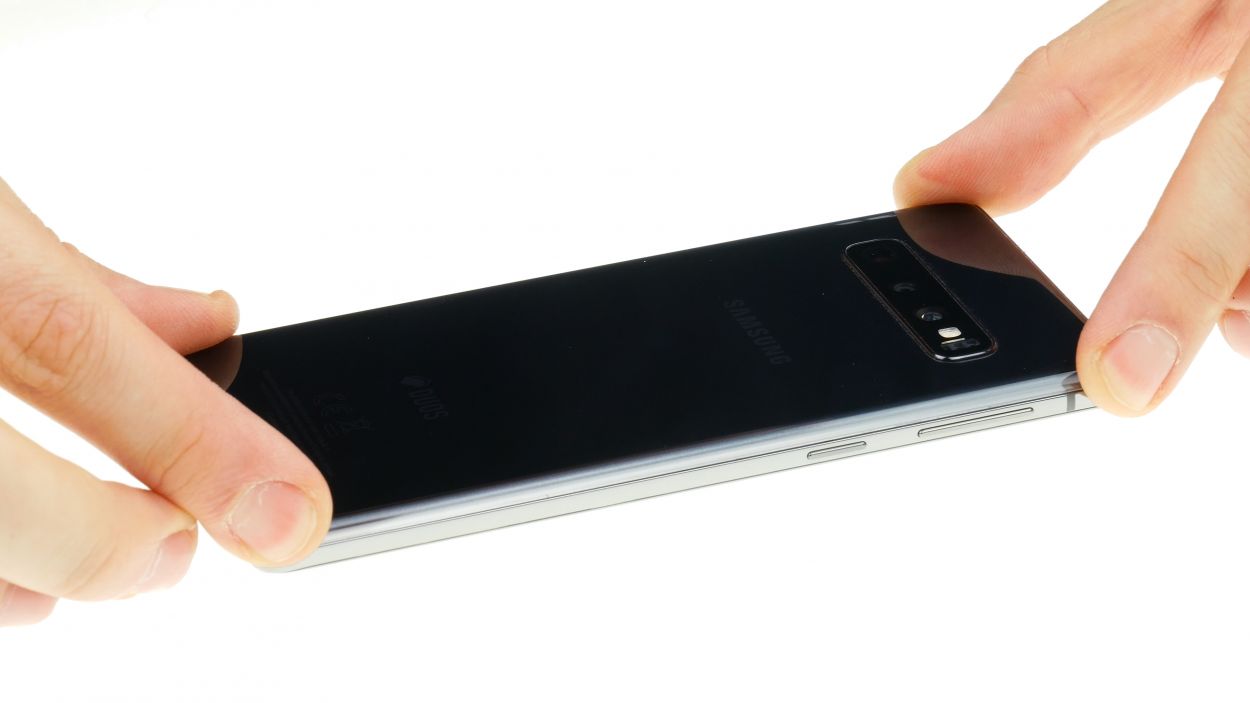

– Carefully place the back cover back where it belongs.
– Give it a gentle press all around to ensure the adhesive sticks like it’s meant to.

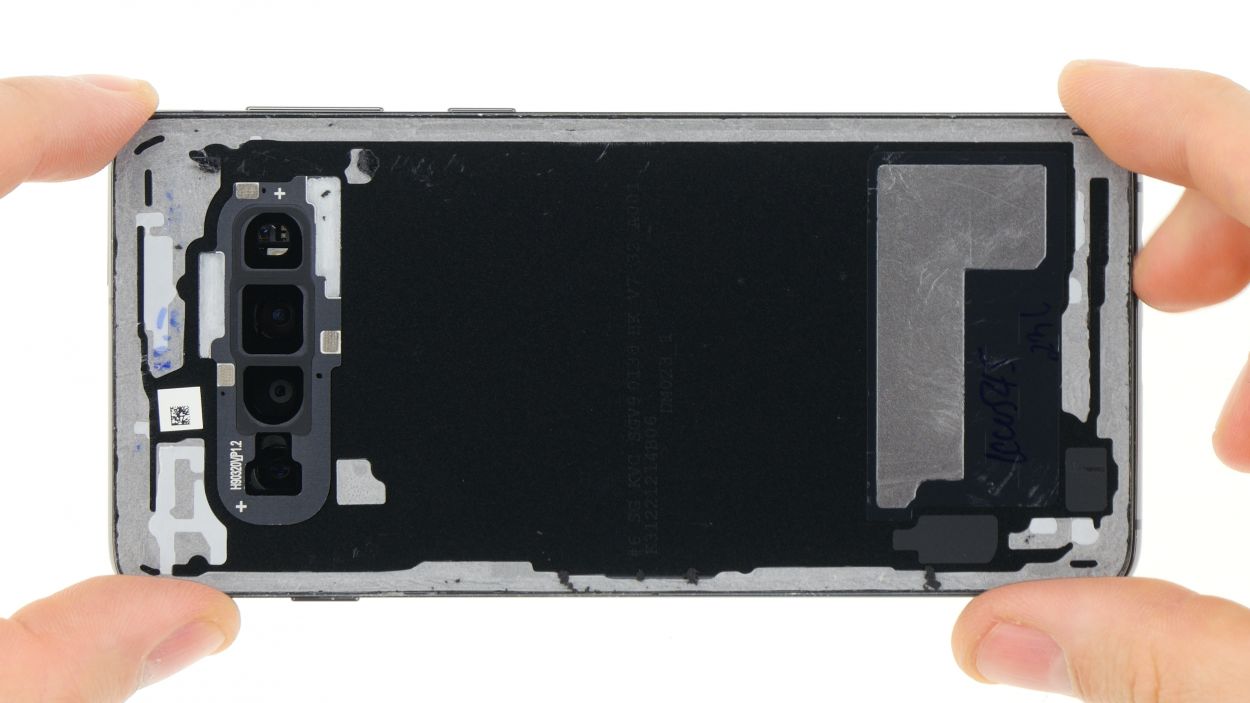

If the adhesive frame around your back cover has lost its stickiness, it’s time for some gentle cleanup! Remove any leftover adhesive residue and get ready to apply a fresh adhesive frame. But if your back cover’s adhesive frame is still holding strong, you can pop it back on without any fuss. And remember, if you need help, you can always schedule a repair.
Tools Used
- heat gun to heat parts that are glued on so they’re easier to remove.
In most cases, you can also use a hairdryer.” rel=”noopener”>Heat gun
