DIY Guide: Replace Samsung Galaxy S21 5G USB Board
Duration: 30 min.
Steps: 24 Steps
Hey there! Just a heads up: once you pop open your device, the IP certification (that nifty shield against dust and water) will be on borrowed time. Keep that in mind as you dive into your repair adventure!
Get ready for a fun little adventure! In this easy-to-follow photo guide, we’ll walk you through the process of swapping out the USB board all by yourself, step by step. Let’s get to it!
Step 1
Before diving into the repair of your Galaxy S21 5G, take a moment to run through our handy checklist to test its basic functions. This little step will help you see if your repair efforts hit the mark later on!
– Give that side button and volume down button a friendly squeeze together for a few seconds. They’ll appreciate the attention!

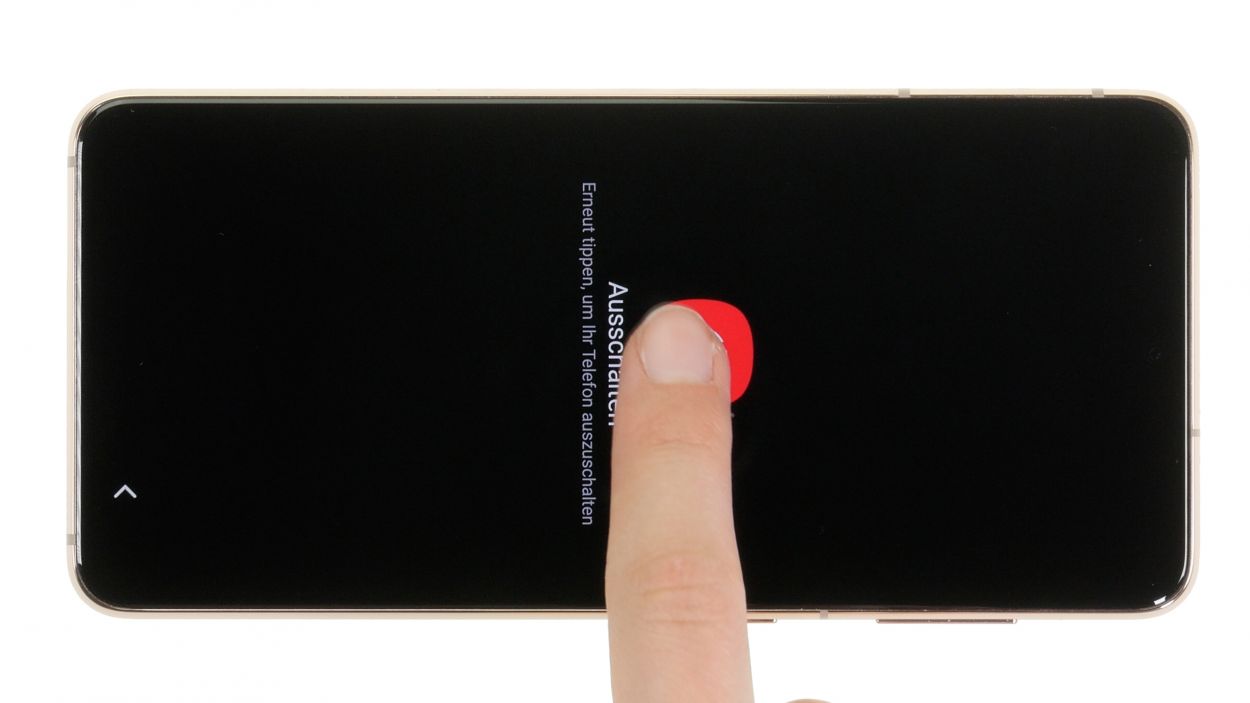

– When the menu pops up, just tap on ‘Power off’ and confirm with your unlock code. You’ve got this!
Step 2
– Warm up the edge of the back cover by smoothly gliding the hot air tool over it. You’re doing great!
Watch out for those fingers! After heating, it’s important to keep it cool enough to touch. Heat the back cover just enough so you can handle it comfortably.
Alright, let’s tackle that stubborn back cover! It’s glued on there pretty tight, so first things first: we need to give it a little love with some heat. Grab your trusty hot air tool, whether it’s a heat gun or just a regular hair dryer, and warm it up! This will make it easier to get that cover off without any hassle.
Tools Used
Step 3
To create a snug little space between the back cover and the display unit, grab yourself a flat, stable tool. We suggest the iFlex, as it boasts some impressively sharp edges that slide right in with ease. Happy repairing!

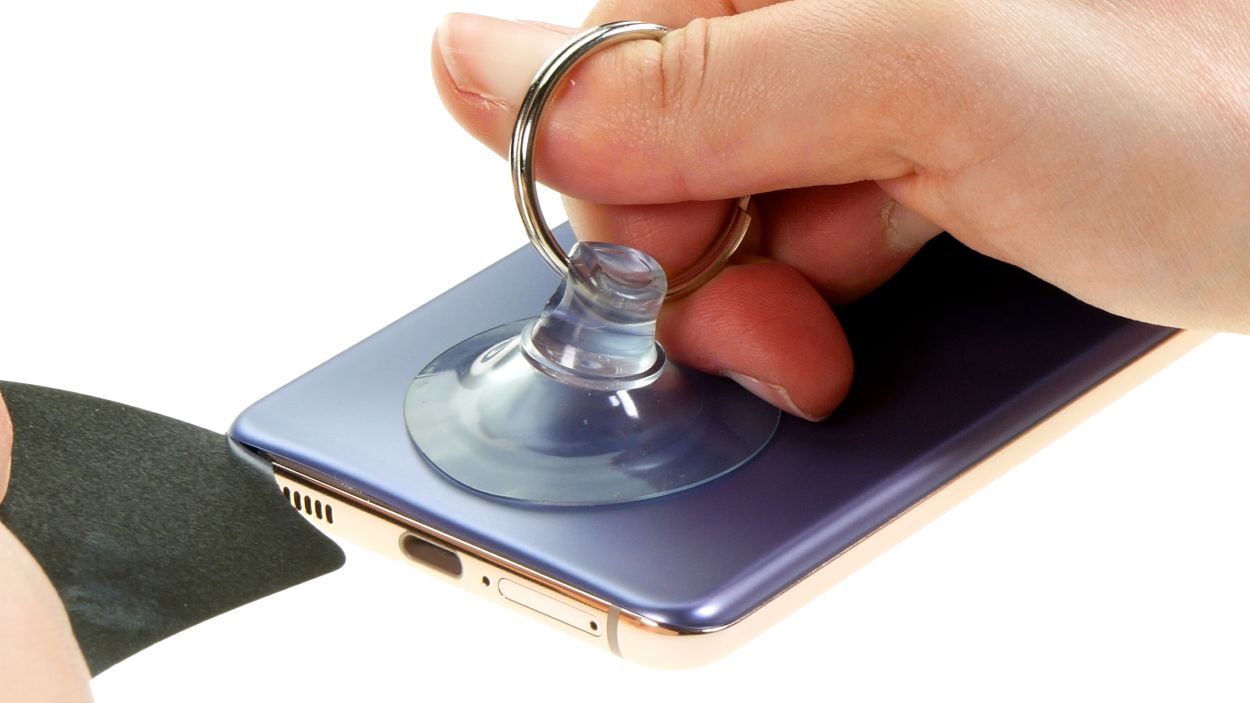

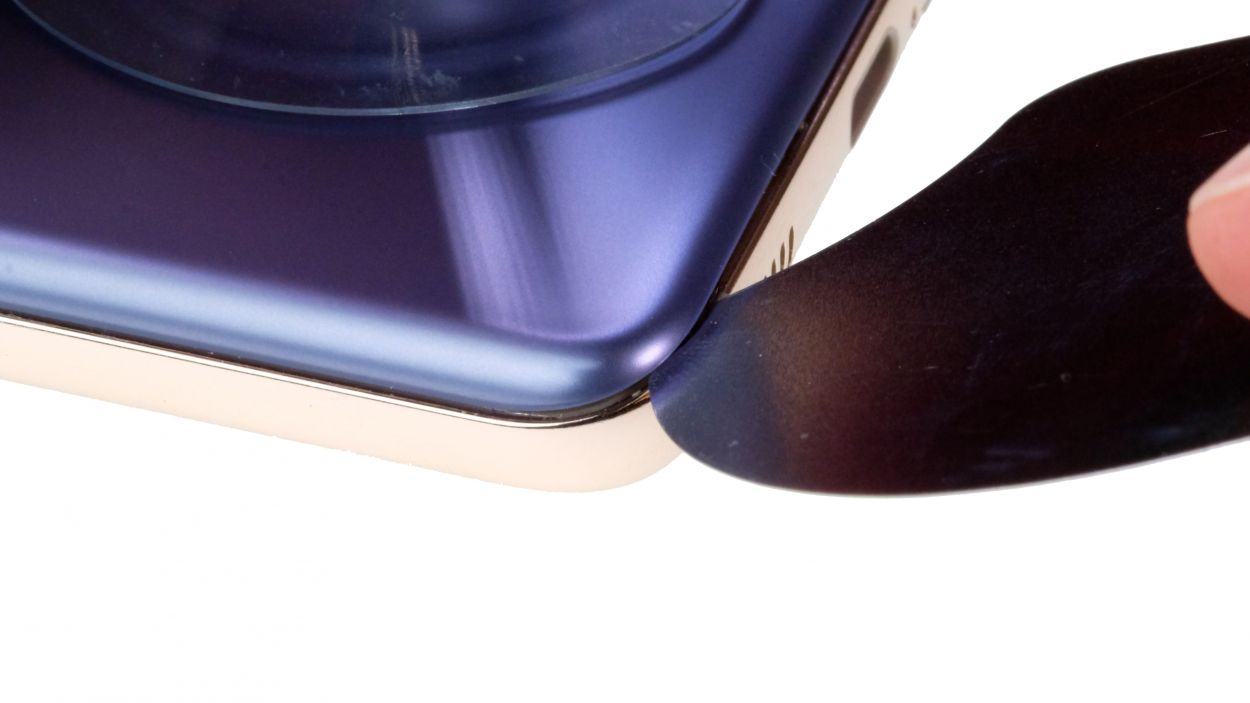

– Grab a suction cup and stick it to the bottom edge of the back cover, then gently pull it upwards. While you’re at it, slide the iFlex tool between the display and the back cover for a smooth separation.
Tools Used
Step 4
– Carefully run your tool all the way around the back cover to gently loosen it, piece by piece. Take your time, and enjoy the process!

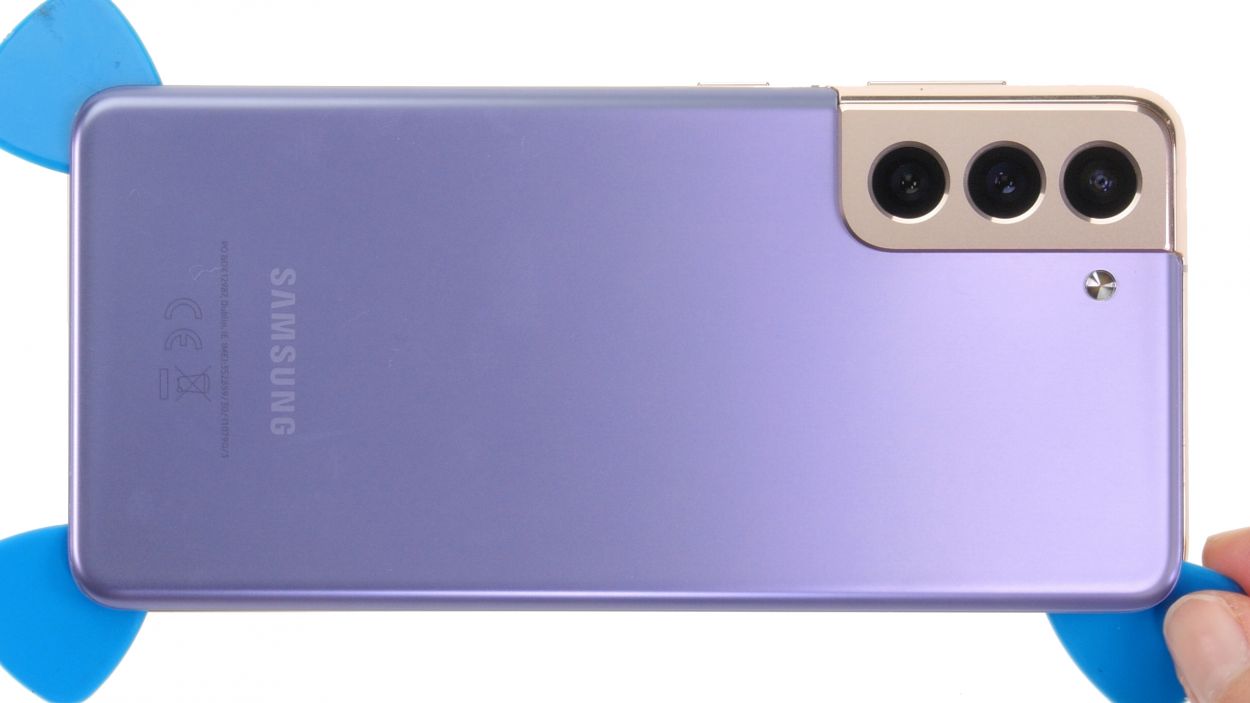

– Insert flat picks underneath the back cover at regular intervals. This will help keep the glue from sticking back together. You’re doing great!

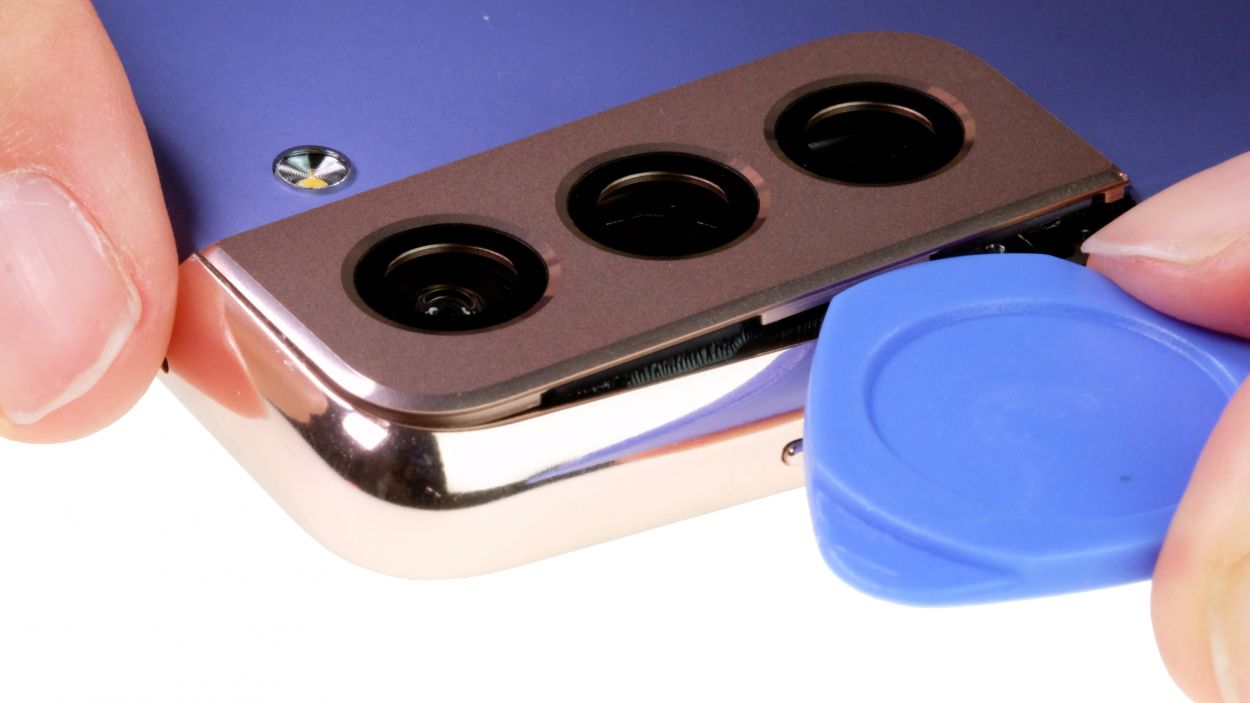

Hey there, just a friendly reminder: when you’re working on the camera module, make sure you don’t push your tool in too deep. We suggest using a hard plastic pick here—it’s designed to keep things safe and sound, so you can’t go wrong with it!
To keep your device’s case looking sharp and avoid any nicks from the iFlex’s pointy edges, it’s best to switch to a plastic tool like the iPlastix as soon as you can. You’ve got this!
Step 5

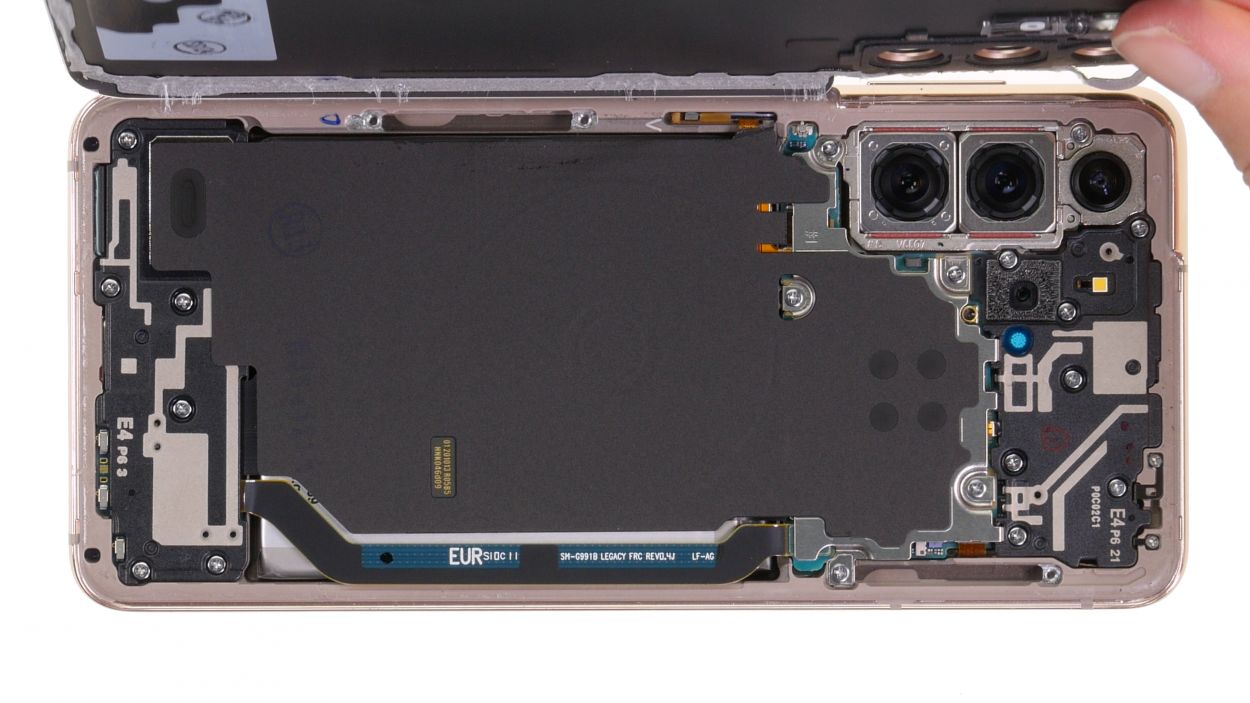

– Now that you’ve successfully popped off the back cover, it’s time to say goodbye to those plastic picks—remove them all with care!
– Once that’s done, give them a little unfold and set them aside for a moment. You’re doing great!
Step 6
5 × 4.9 mm Phillips
Keep your screws in check and avoid the dreaded screw loss! Grab a handy storage solution like an old sewing box to keep everything organized. For an extra boost, our top-notch magnetic pad ensures that nothing goes sliding off the table. You got this!

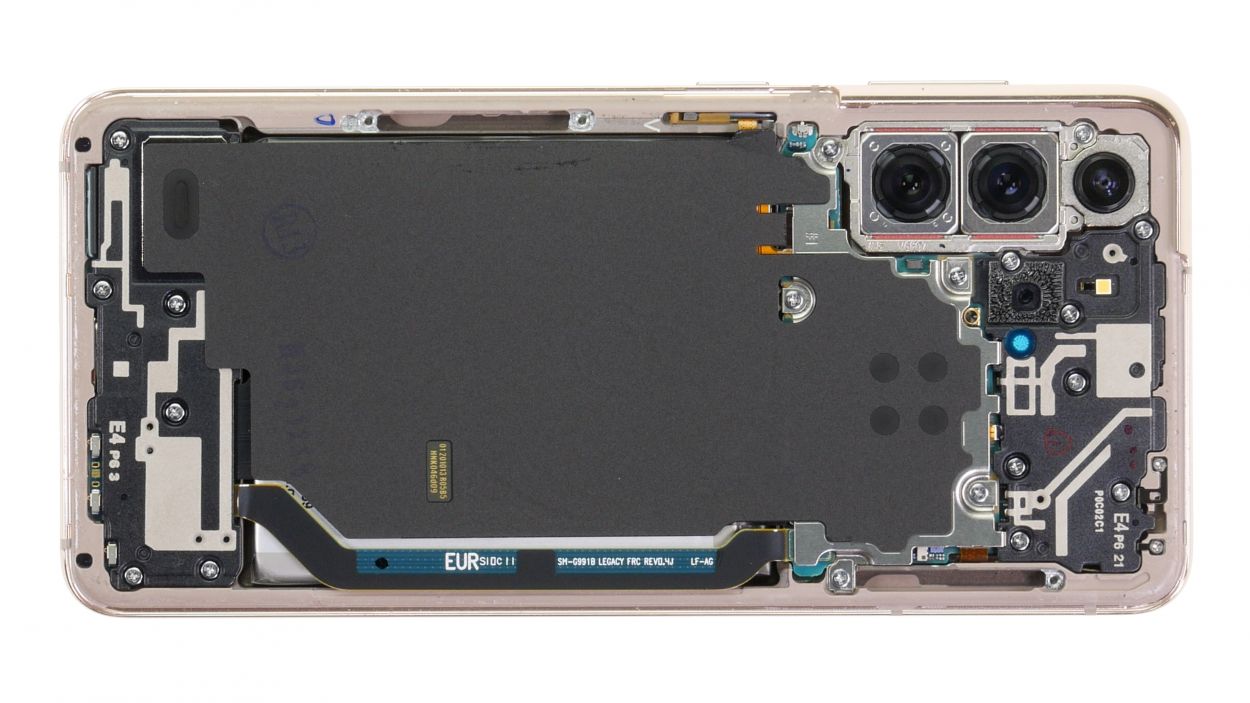

– Start by loosening those five Phillips screws holding down the charging coil cover. You’ve got this!
– Once you’ve got them free, place them on your magnetic pad so they don’t go wandering off.
Step 7
Be sure to unplug that battery connector right away to keep any pesky short circuits at bay!

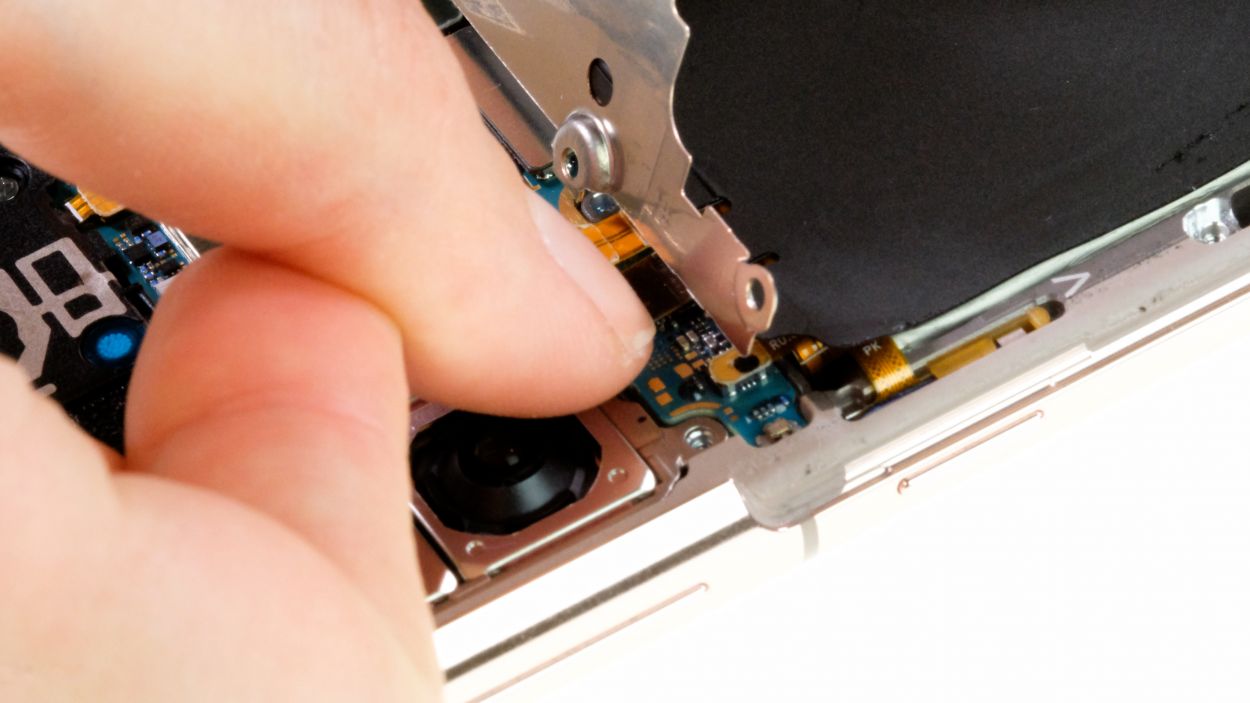

– Gently lift the metal cover of the NFC antenna like you’re unveiling a surprise!

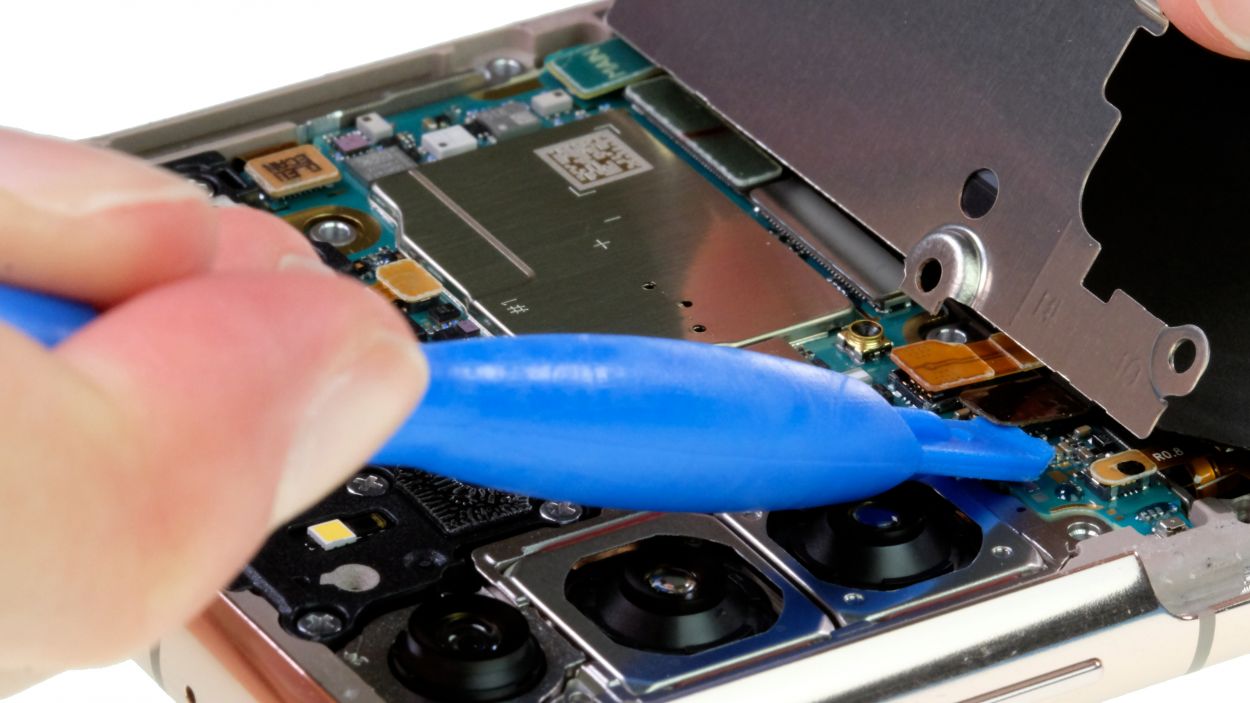

– With a careful touch, use a plastic lever tool to pop the orange battery connector free from the motherboard. A plastic spudger works wonders for this task!
Tools Used
Step 8
– Next, gently pry off the black connector of the charging coil from the circuit board using a spudger. Take your time and be careful, you’ve got this!
Tools Used
Step 9
The lower part of the charging coil has a little bit of glue holding it in place. Just a tiny bit of adhesive to keep things snug!

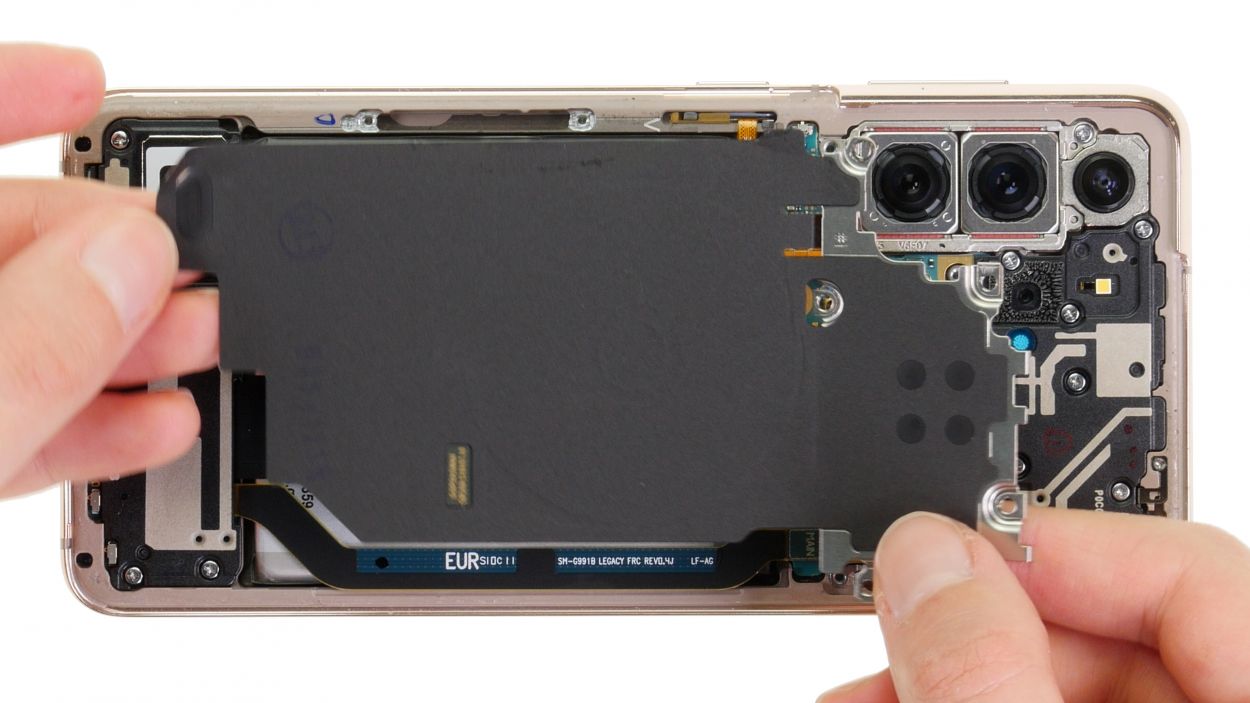

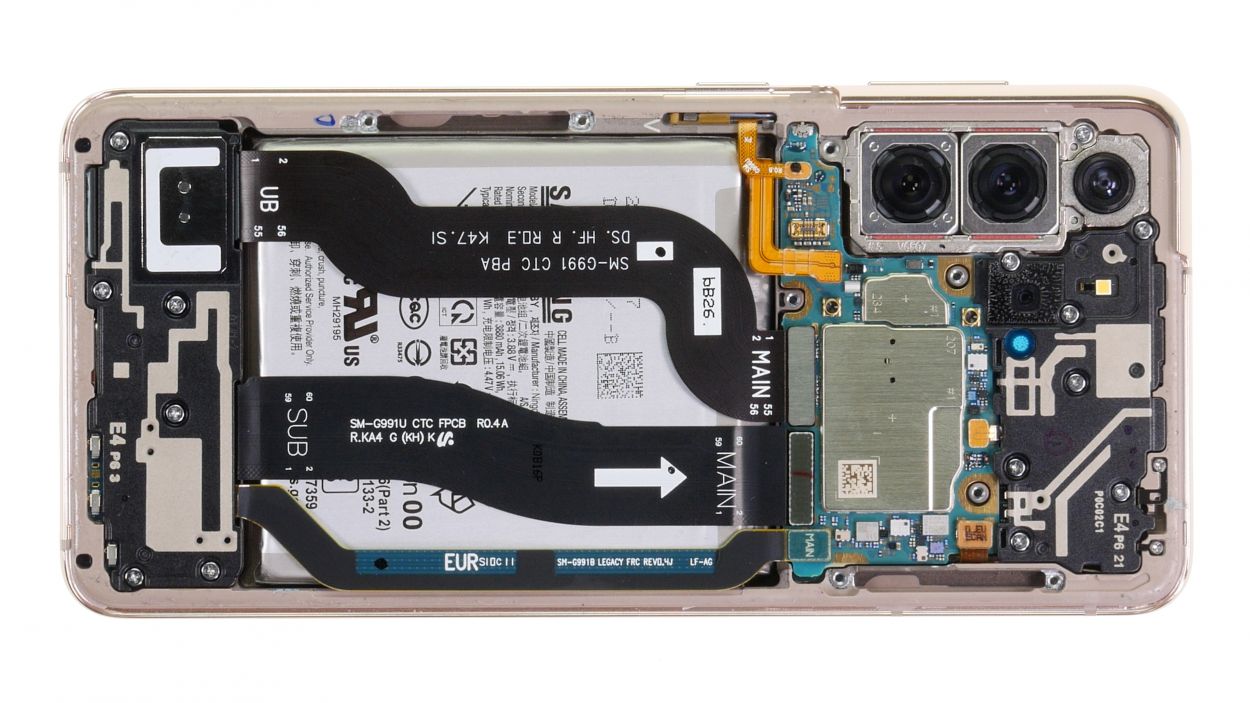

– Now that you’ve successfully separated the connectors, go ahead and gently remove the charging coil. You’ve got this!
Step 10

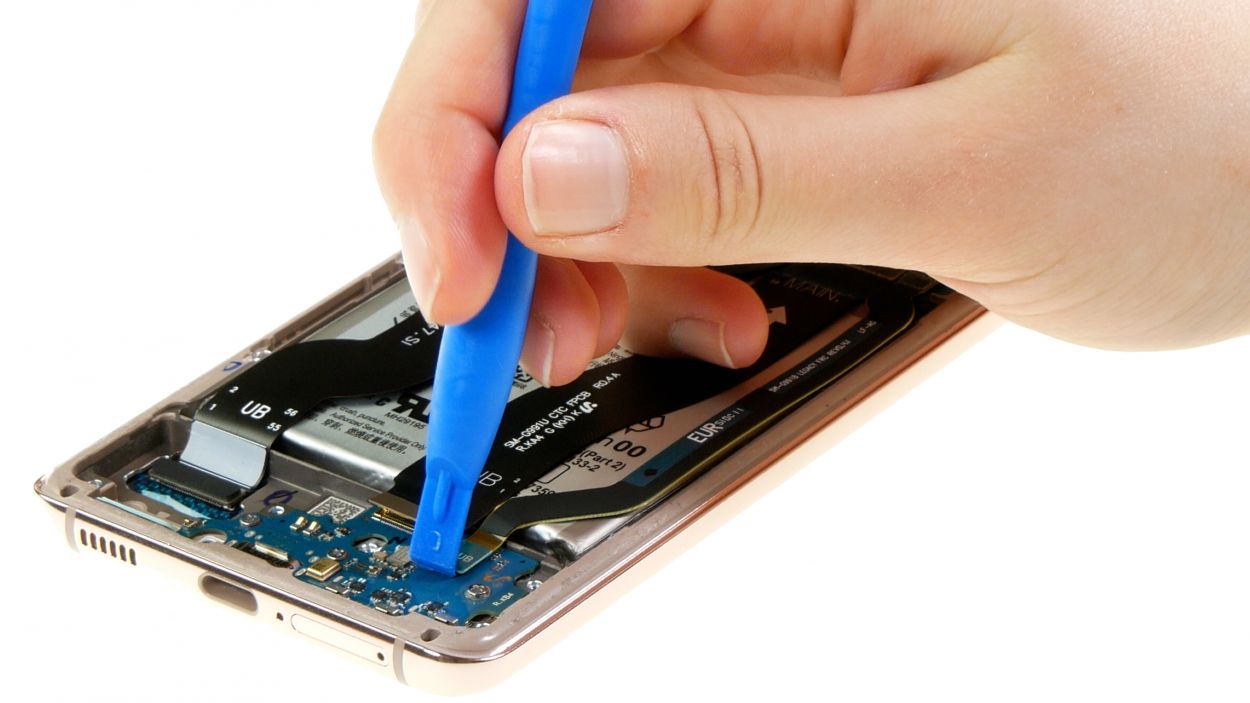

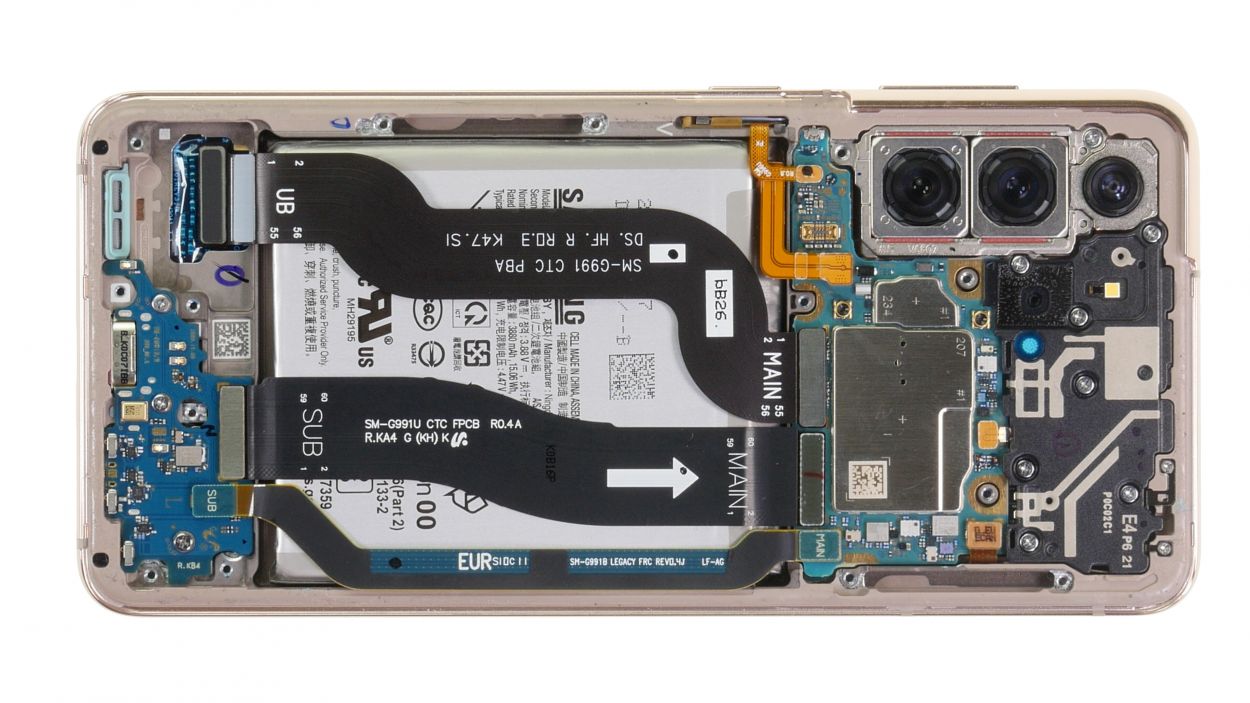

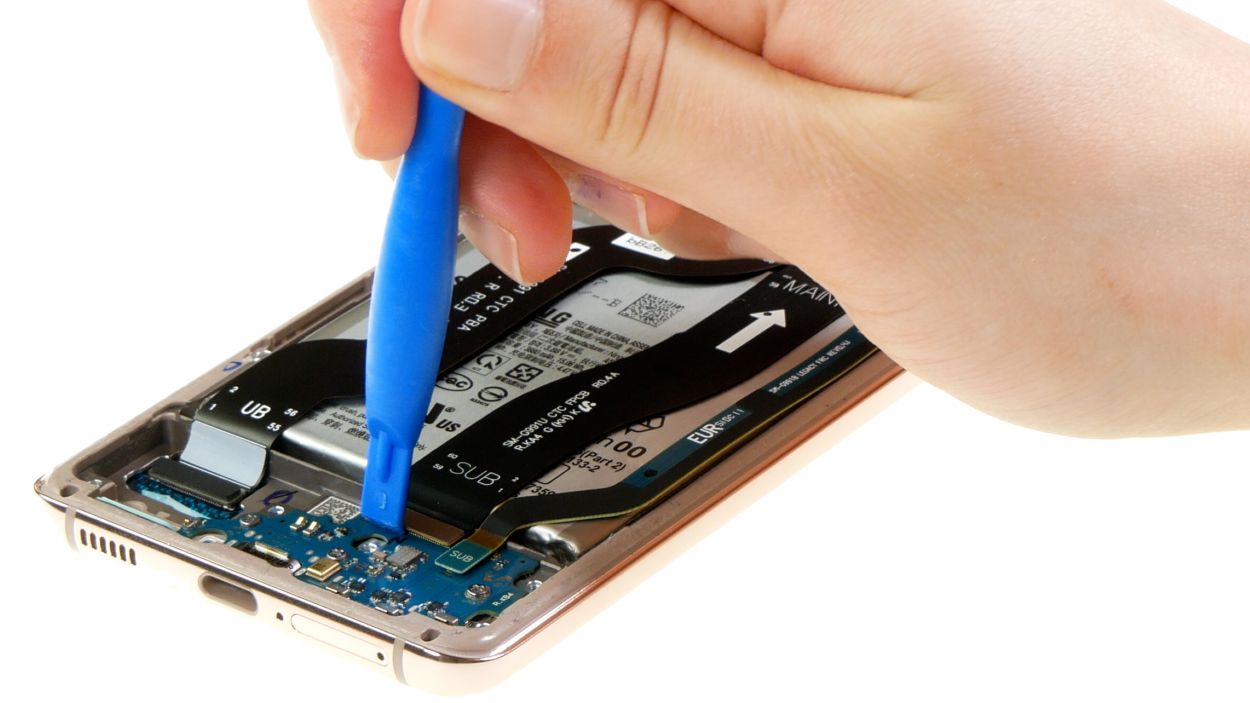

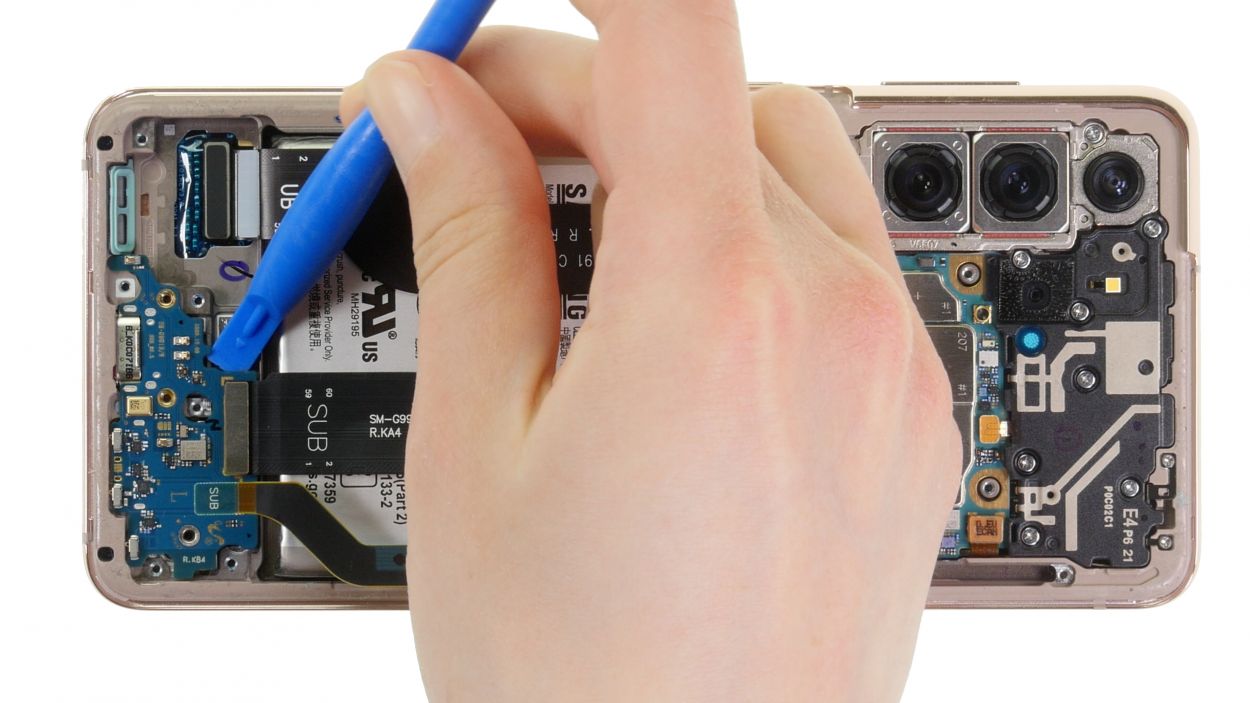

– Gently pry apart the connectors of the two cables attached to the USB board using a spudger. Take your time and be careful—you’re doing great!
Tools Used
Step 12
3 × 3.4 mm Phillips
– Remove the three Phillips screws from the USB board with a trusty screwdriver. You’ve got this!
Tools Used
Step 13

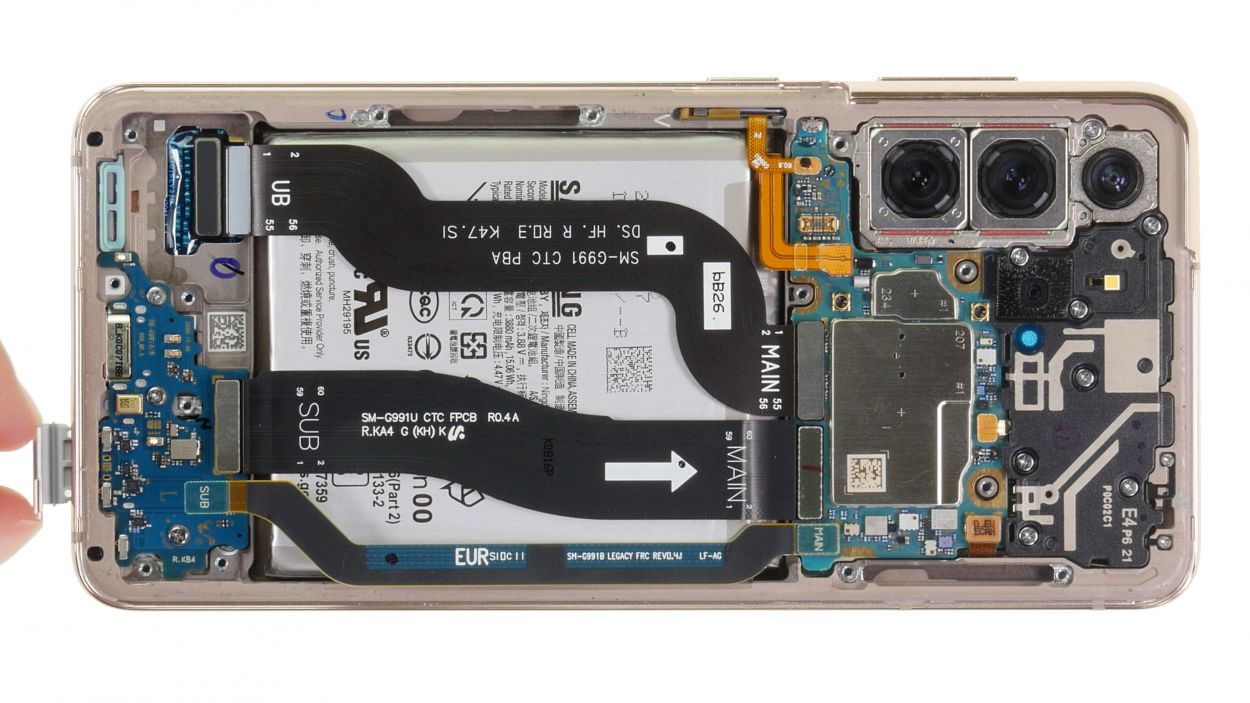

Set those connection cables aside for a moment! This little trick will give you the space you need to easily pop off the USB board.
– Gently pry the USB board away from its snug little home using a spudger and set it aside for now.
Tools Used
Step 14
To make sure your USB board fits just right, gently nudge the charging port into its cozy spot along the edge of the case. A little tip: inserting the board at a slight angle can make this process smoother and more fun!
– Gently slide the new board into the screen unit like you’re tucking it into bed for a cozy night in.
Tools Used
Step 15
3 × 3.4 mm Phillips
When putting those components back together, keep an eye on those screws! Mixing them up could lead to a long screw causing some serious display drama. Let’s keep everything safe and sound!
– Once the board is snug in place, go ahead and secure it with those three trusty Phillips screws.
Tools Used
Step 17
Hey there! Remember, when connecting those little guys, be gentle! Forcing them together can cause some serious damage, and we definitely don’t want to ruin an entire component. Take your time and if you need help, you can always schedule a repair.
– Gently reattach the two connecting cables to the USB board by pressing them down until you hear that satisfying click. It’s like giving them a little high-five!
Step 18

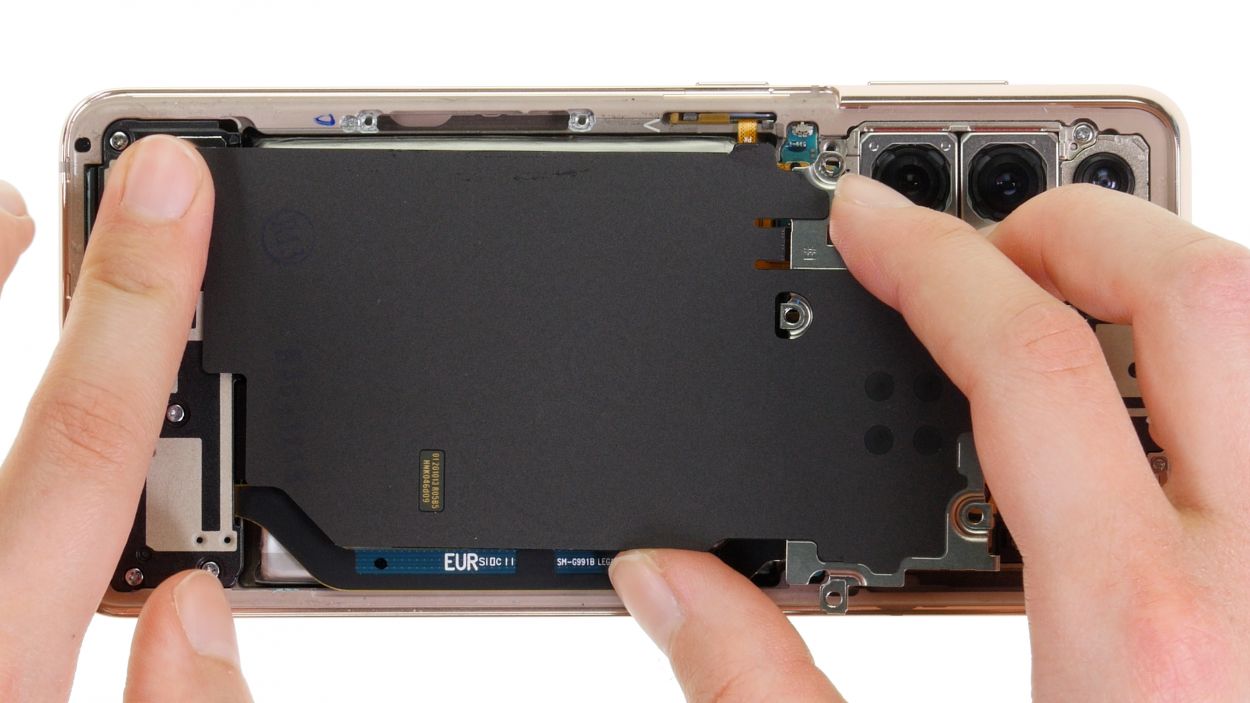

– Gently nudge the NFC antenna back into place within the screen unit and give its back end a little press to help the glue stick like it’s meant to. You’ve got this!
Step 19
– Gently lift the metal cover of the charging coil to connect its black connector hiding underneath. You’ve got this!
Step 20
Remember, always hook up that battery connector last to keep those pesky short circuits at bay!
– It’s time to reconnect the cheerful orange battery connector back to the motherboard!
Step 21
5 × 4.9 mm Phillips
– After you’ve reconnected the battery and charging coil, it’s time to put that metal cover back on like a pro!
Tools Used
Step 22
If things are acting a bit wonky during your testing phase, take a moment to ensure that everything is installed and connected just right. A little double-check can go a long way!

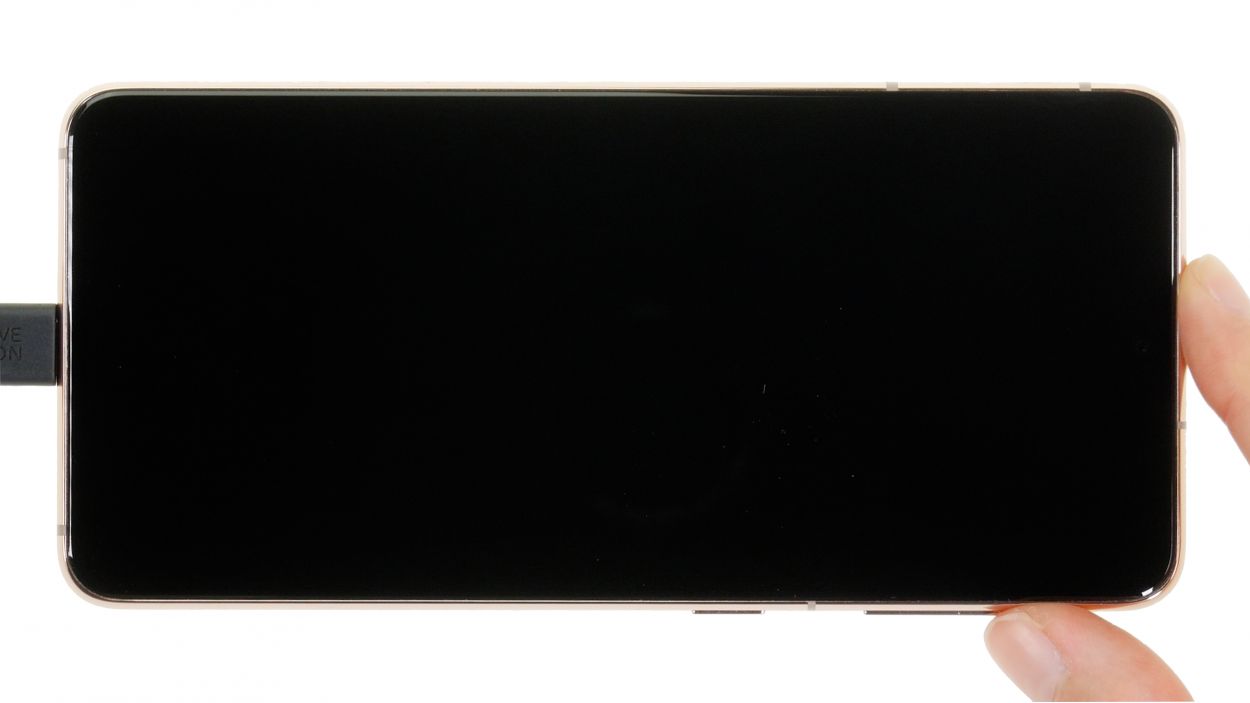

– First things first, let’s see if that shiny new USB board is working! Go ahead and plug your Galaxy in to charge it up.
– Next, connect it to a computer and check if it gets recognized. Fingers crossed!

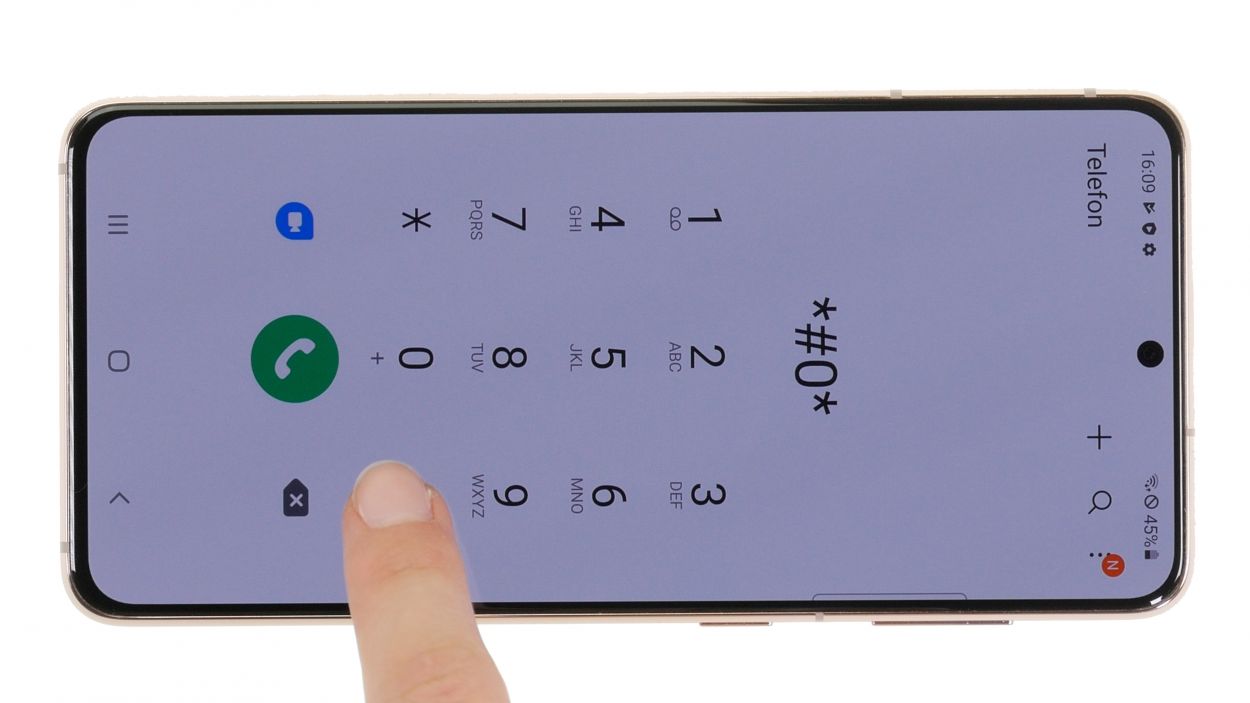

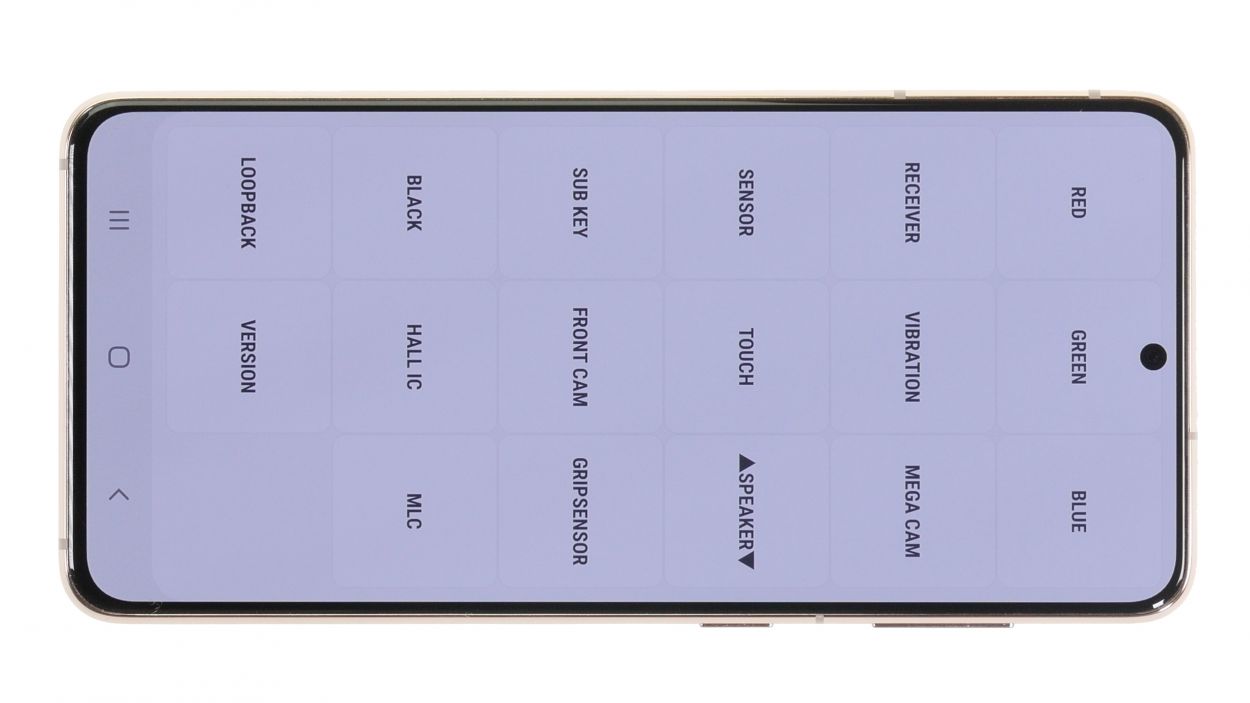

– For a little extra fun, dial *#0*# in your phone app to access the Samsung test menu and give those additional components a whirl. If you prefer, you can always use our handy checklist.
Step 23

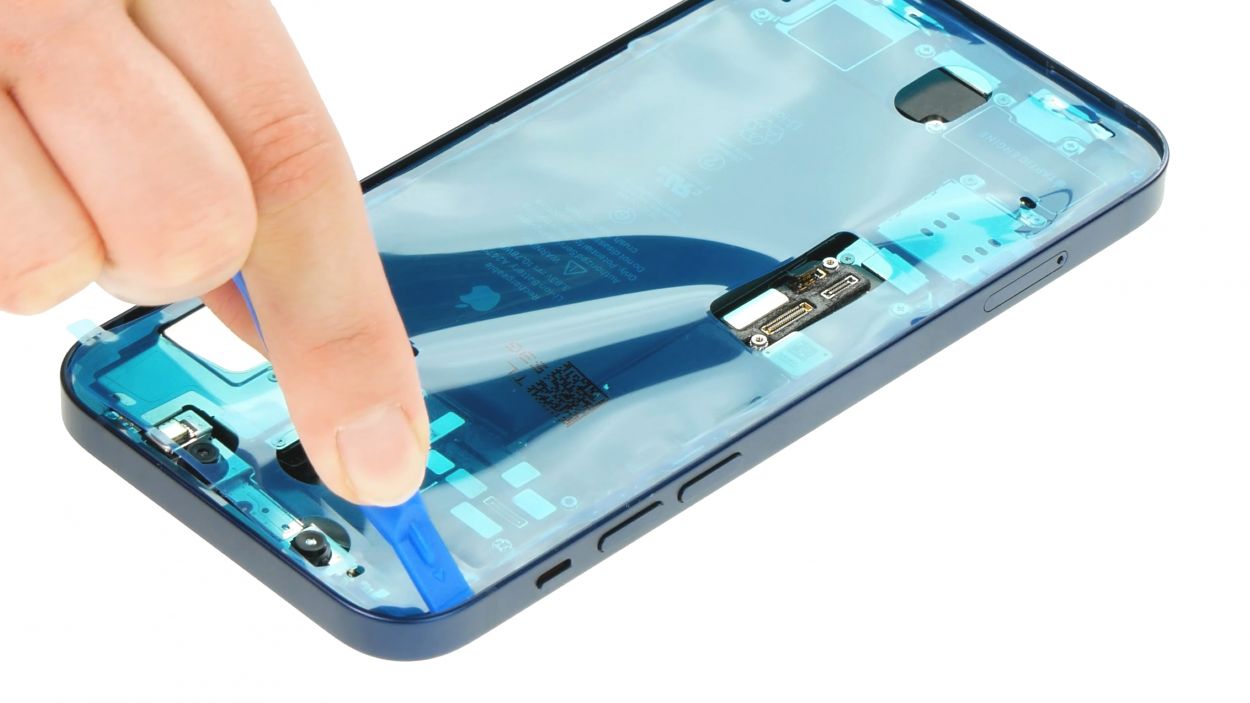

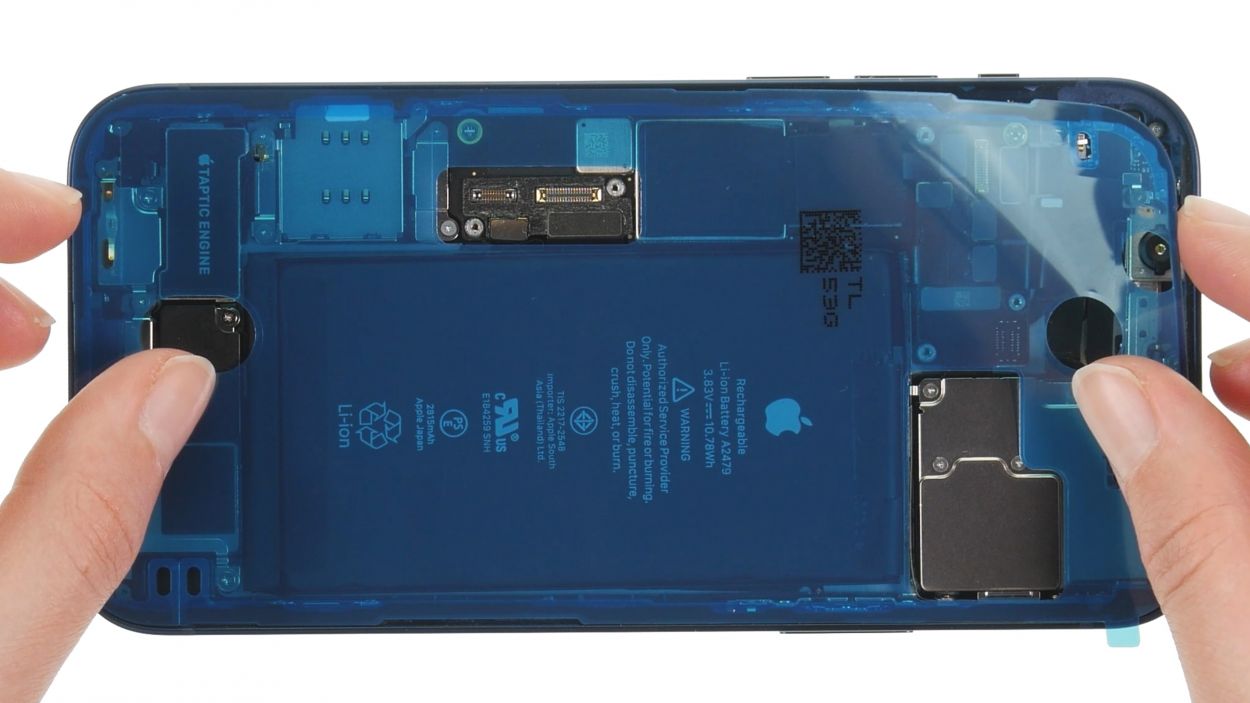

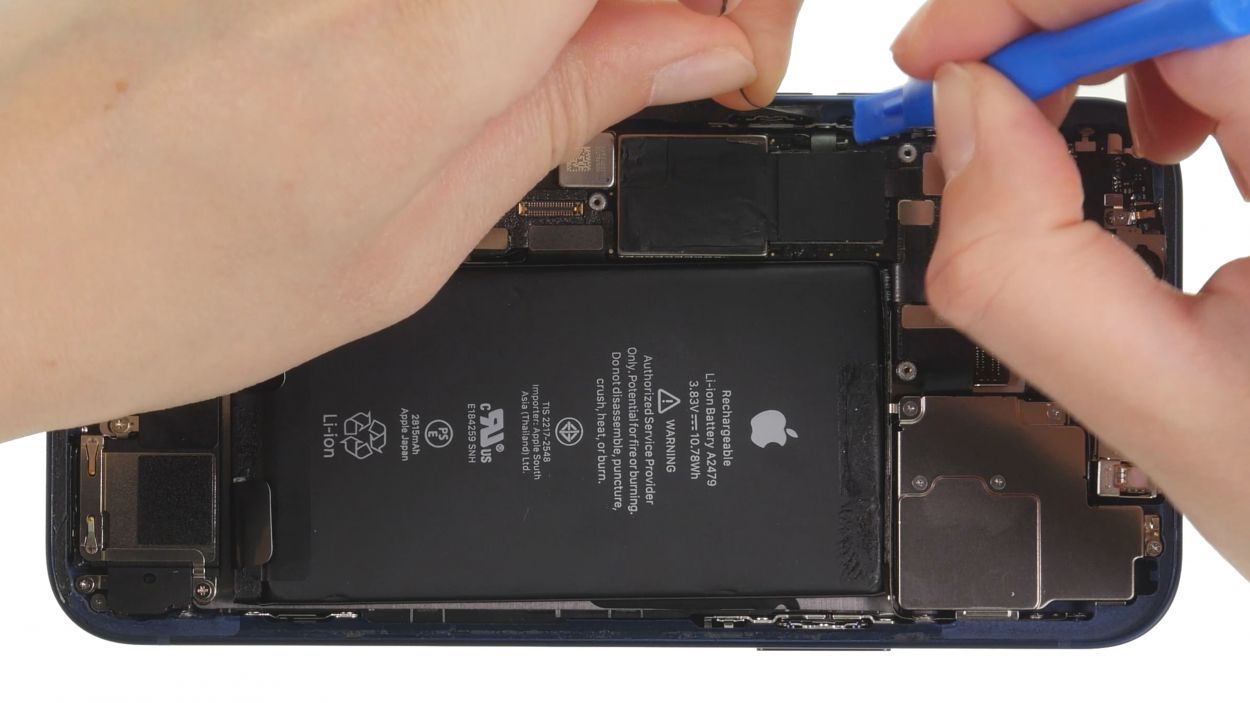

Adding a new adhesive frame? That’s totally up to you! If your current one is still holding strong, there’s no need to swap it out. But if it’s showing signs of wear or isn’t sticking like it used to, we suggest putting in a fresh adhesive frame for the best results. Remember, if you need help, you can always schedule a repair.
Tools Used
Step 24

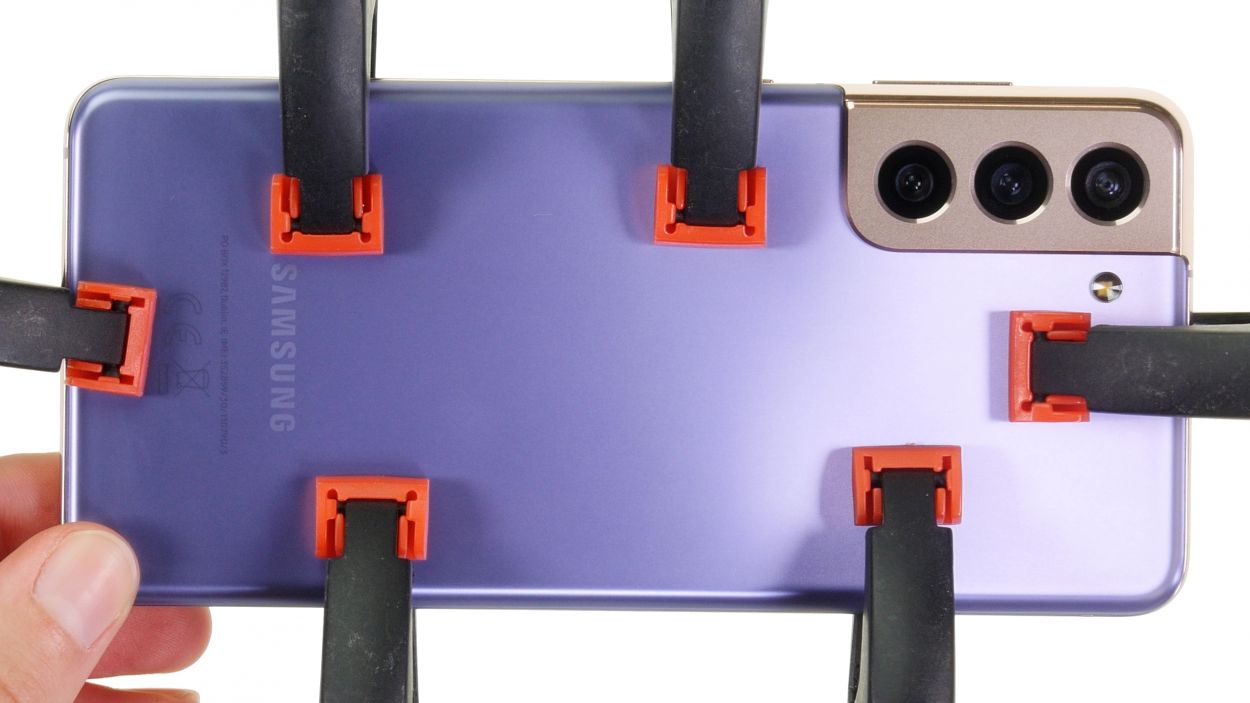

Give that back cover a little extra love by running some hot air along its edges again to ensure the glue sticks like it should. If you want to take it up a notch, try putting some books on your device for a few minutes or clamping it down just like we showed you in our example. You’ve got this!
– Wrap up your Galaxy S21 5G repair by gently pressing the back cover back onto the display unit. You’ve got this!
