DIY Guide to Replace iPhone 11 Pro Rear Camera
Duration: 75 min.
Steps: 16 Steps
No need to stress! In this super clear photo guide, we’ll walk you through each step of swapping out your rear camera so you can snap those crystal-clear shots with your iPhone once more. Check out our online store for top-notch spare parts for your iPhone 11 Pro, along with the perfect iPhone tool kit. Good luck with your camera replacement adventure! Remember, you’ve got this! If you need any help, feel free to schedule a repair.
Step 1

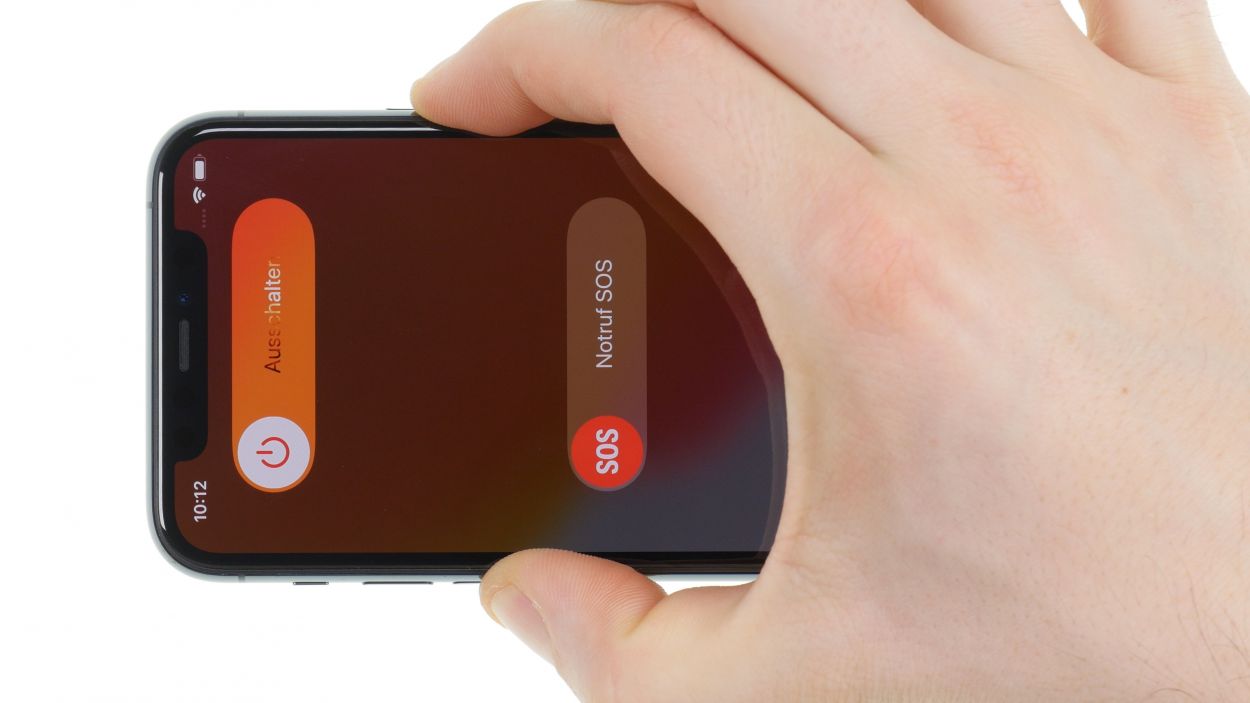

– Give those buttons a little love! Press and hold the sleep/wake button and the volume button together for a few seconds to power down your device.

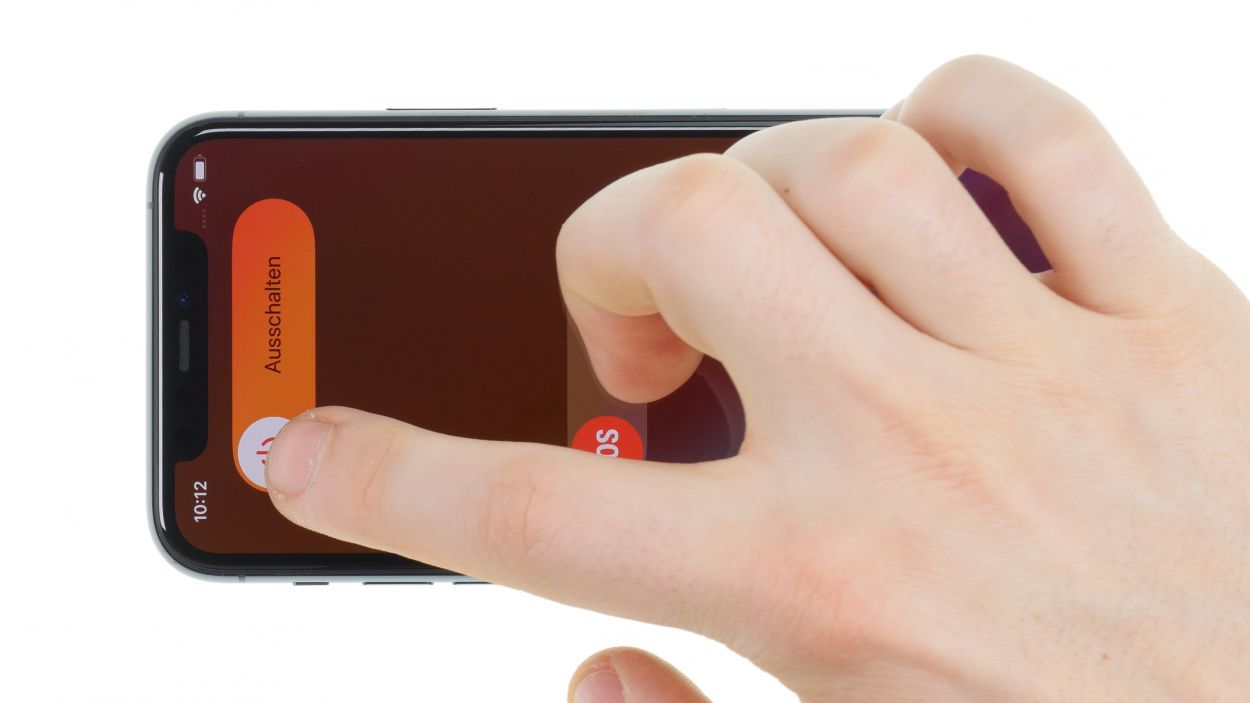

– Now, slide that “Switch off” slider from left to right like a pro!
– In just a few moments, your smartphone will be all powered down and ready for the next step.
Step 2
– Grab your special Pentalobe screwdriver and twist out those two Pentalobe screws like a pro!
– Now, toss them into your screw storage so they don’t wander off!
2 × 6.7 mm Pentalobe
Hey there, savvy fixer! To keep those tiny screws and parts from playing hide and seek, we suggest snagging a screw storage solution. An old sewing box can work wonders! At Salvation Repair, we love our trusty magnetic pad where you can lay out your parts just like they were in the phone. This way, you won’t lose any screws or mix them up, preventing any mishaps with your device. Happy repairing!
Step 3
Just a little tip from us to you: make sure the screen is warm enough to work with, but not so hot that it feels like you’re touching a campfire! Keep it cozy, and you’ll be just fine.
Step 4

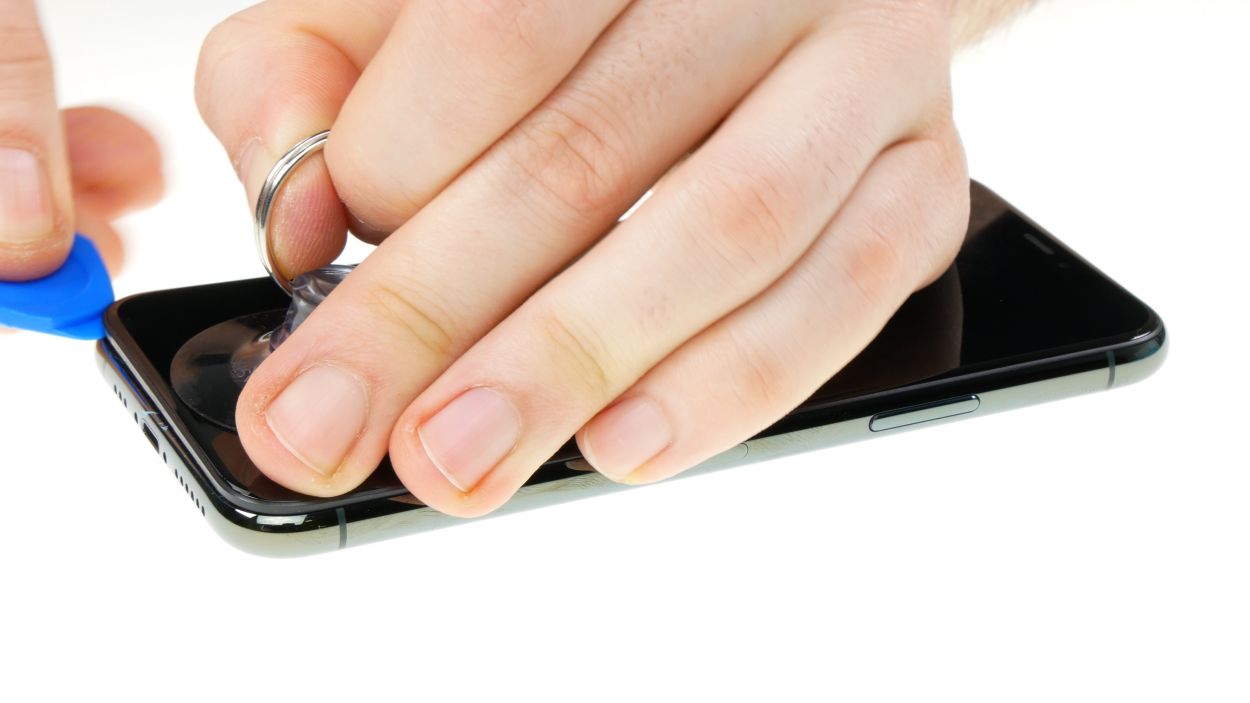

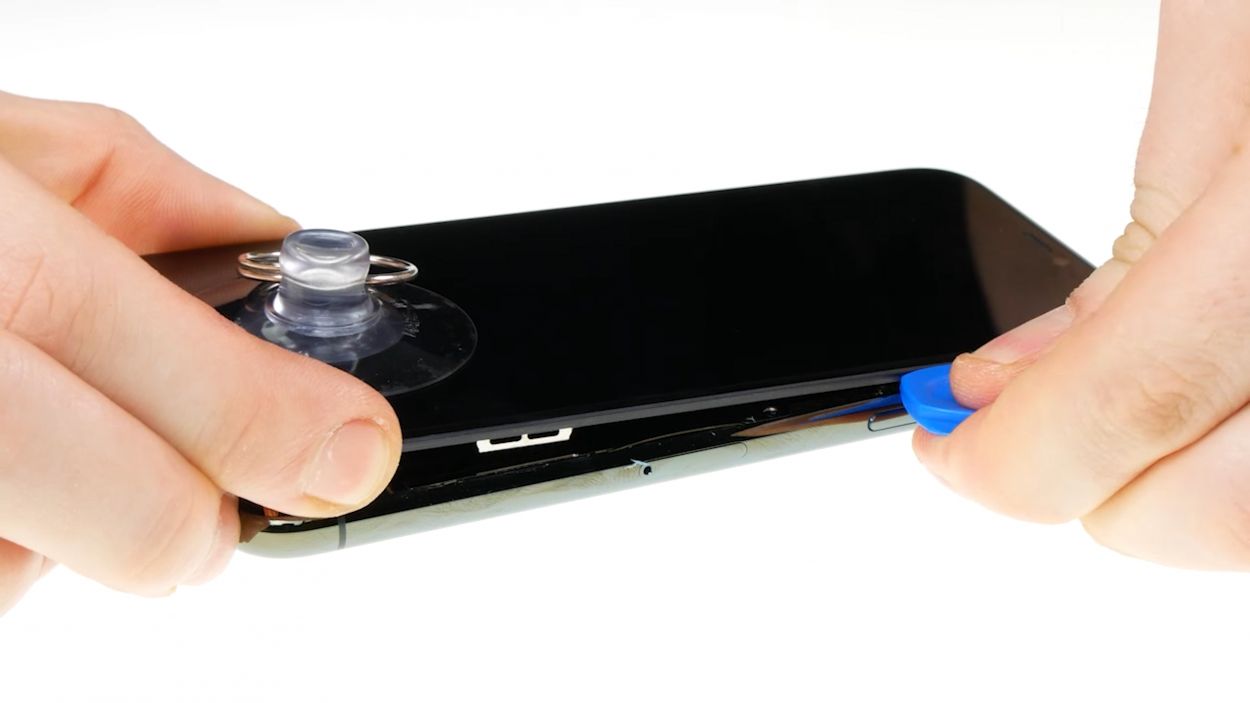

– Kick things off by sticking a suction cup on the bottom edge of your display. Gently pull it upwards to create a tiny gap between the display and the case.
– Next, grab a flat, sturdy tool and slide it into the gap to widen it. A hard plastic plectrum and the iFlex are your best buddies for this job!
Opening up your iPhone 11 Pro means saying goodbye to that shiny manufacturer’s warranty, along with the IP68 dust and water protection warranty. So, proceed with caution, and maybe keep that warranty in mind while you work!
Hey there, repair champ! The hard plastic plectrum is designed to be thinner at the corners, making it easier to slide in. Plus, it helps you avoid pushing it too deep into your device, which is a win-win! The iFlex, made from super thin yet sturdy metal, has sharp edges that can be a bit sneaky. To keep your device’s frame looking sharp and scratch-free, we suggest starting this step with the iFlex and switching to the hard plastic plectrum as soon as you can. You’re doing great—keep it up!
Tools Used
Step 5
While you’re at it, keep that display angle under 180°! We want to avoid any mishaps with those delicate flex cables getting torn. Your device will thank you!
Hey there, repair superstar! If you’re having a bit of a tussle with that stubborn glue, just reheat it with some hot air every now and then. It makes the whole removal process a breeze! You’re doing awesome—keep it up!
Tools Used
Step 6
2 × 1.5 mm Y-Type
4 × 1.46 mm Y-Type
When you’re about to detach those connectors, kick things off from the side without the tiny components hanging around. This way, you’re steering clear of any unintentional oopsies!
– First, let’s get that bracket plate off the battery connector by unscrewing those Y-type screws. You’ve got this!
Step 7
6 × 1.16 mm Y-Type
Connectors
When you’re about to detach those connectors, start from the side that’s free of tiny components. This way, you’re steering clear of any unintentional oopsies!
– First, let’s get that bracket plate off the display connectors by loosening those Y-type screws. You’re on the right track!
Step 8
2 × 1.44 mm Y-type
2 × 1.10 mm Y-Type
– First, give a little twist to those two Y-type screws on the small bracket plate and set it aside like a pro.
– Next, let’s tackle the two screws on the larger bracket plate and pop it out of the unit. You’re doing great!
Step 9
– Gently wiggle those three camera connectors away from the logic board using your trusty spudger. You’re doing great!
Connectors
When you’re about to disconnect those connectors, kick things off from the side that’s free of tiny components. This way, you’re steering clear of any unintentional oopsies!
Hey there, repair enthusiast! One of those sneaky connectors is playing hide and seek under the flex cable of another camera connector. Keep your eyes peeled and you’ll find it in no time!
Tools Used
Step 10
Connectors
Hey there, champ! Remember, no forcing those connectors! If you do, you might end up with a connector or slot that’s more broken than a New Year’s resolution. Let’s keep everything in tip-top shape!
– Carefully align the camera module and give it a gentle press into its spot at the top edge of the rear case. You’ve got this—just take your time!
Step 11
– Place that bracket plate right over the camera module and give it a good twist to secure it snugly.
– Now, grab the smaller bracket plate and fasten it down with screws, just like a pro!
2 × 1.10 mm Y-Type
2 × 1.44 mm Y-type
Always double-check that you’re using the right type and length of screws! A little screw mix-up can turn your repair adventure into a wild ride, and we definitely don’t want any device drama!
Hey there, awesome repair buddy! Slide that small bracket plate over to the side, ensuring it snugly holds the flex cables of the front camera in place. You’re on the right track—keep it up!
Step 12
Connectors
6 × 1.16 mm Y-Type
Hey there, superstar! Just a friendly reminder: don’t force those connectors together! If you do, you might end up with a connector or slot that’s more broken than a New Year’s resolution. Let’s keep everything in tip-top shape!

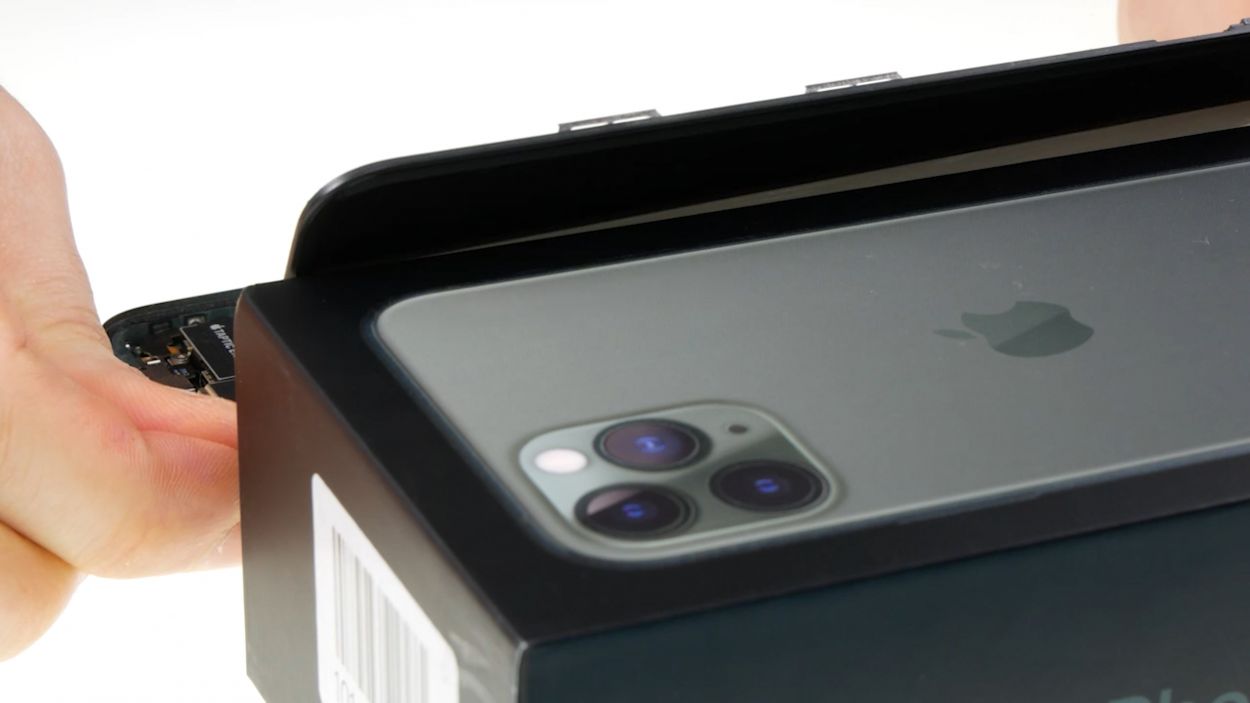

– Prop that display back against something sturdy! This way, you’ll keep those flex cables from overstretching while you connect everything. You’ve got this!
Step 13
4 × 1.46 mm Y-Type
2 × 1.15 mm Y-Type
– Gently press that battery connector down onto the board until you hear a satisfying click—like a high five for your phone!
– Next, place the bracket plate over the connector and screw it on tight, securing everything in place like a pro.
Step 14
Step 15
As you close up that display, just a friendly reminder: watch out for those flex cables! We definitely don’t want to give them a pinch—let’s keep everything cozy in there!
– To wrap things up, gently fold that display over and press it down evenly into the rear case until you hear that satisfying click. You’ve got this!
Tools Used
Step 16
2 × 6.7 mm Pentalobe
– Secure those Pentalobe screws on either side of the Lightning connector like a champ!
