DIY Guide to Replace Battery in iPhone 12 mini
Duration: 90 min.
Steps: 37 Steps
If your battery looks like it’s been hitting the gym a little too hard, remember that the gas inside is a bit of a fire hazard and could escape. If you’re not feeling up to the challenge, no worries! Just schedule a repair at a shop and let the pros handle it.
If your one-year manufacturer’s warranty has run out, it’s time to give that battery a fresh start! In this straightforward photo guide, we’ll walk you through each step of the process. Good luck with your repair adventure!
Step 1
Before diving into your repair, why not give our handy checklist a whirl to test the basic functions of your iPhone 12 mini? This little step will help you confirm if your repair adventure was a success!
– To turn off your iPhone, simply press and hold the side button and the volume down button together for a few seconds. It’s like giving it a little nap!
– After that, just swipe the slider from left to right, and watch as your phone gracefully powers down in just a few moments.
Step 2
2 × 6.7 mm Pentalobe
Keep your screws and tiny parts organized during your repair journey! Grab an old sewing box or better yet, our nifty magnetic pad to make sure nothing goes missing. It’s like having a personal assistant for your screws—so you can focus on the fun part of fixing!
– Get your Pentalobe screwdriver ready and gently loosen those two Pentalobe screws. You’ve got this!
– Once they’re free, place them on your trusty magnetic pad. It’s like a cozy bed for your screws!
Step 3
Watch out for those hot fingers after heating! It’s best to warm up the display just enough so you can still give it a friendly tap.
The display edge is glued down pretty tightly, so let’s give it a little love with some heat first! Grab your trusty hot air tool, whether it’s a heat gun or a regular hair dryer, and warm it up nicely.
Step 4
To create a snug little space between the display’s edge and the case, grab a flat and stable tool. We think the iFlex is your best buddy for this job, thanks to its super sharp edges that slip in like a charm!

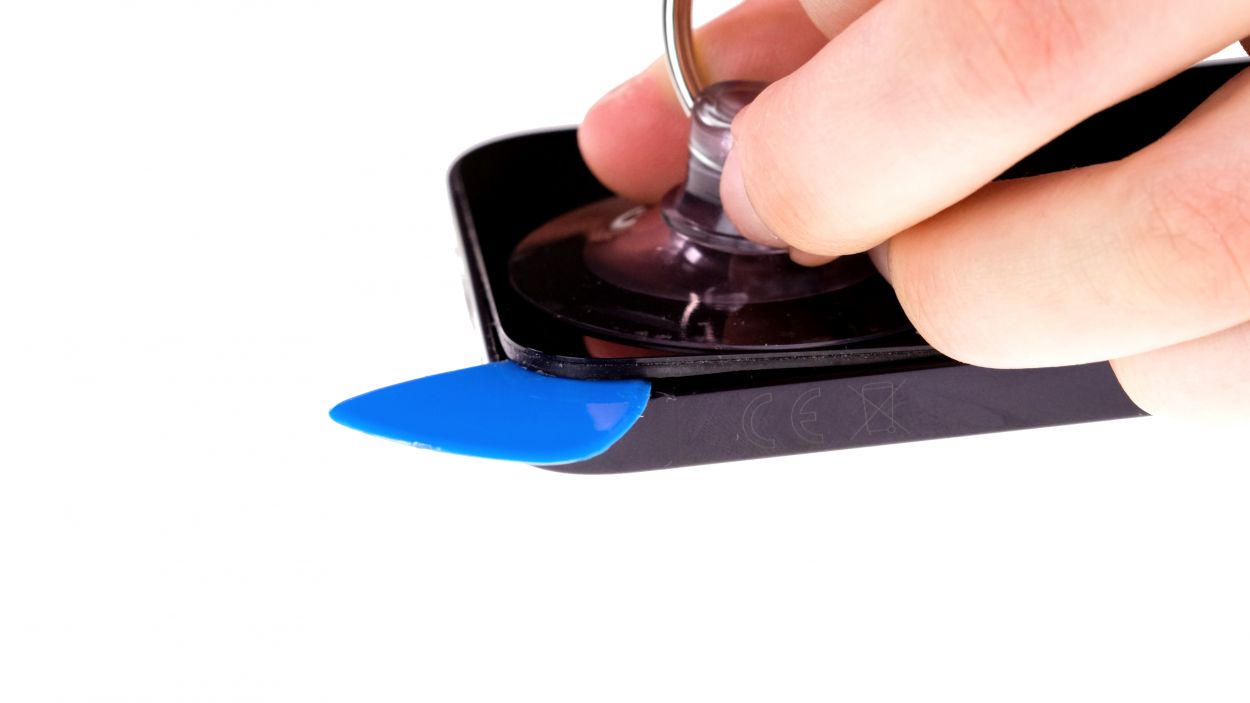

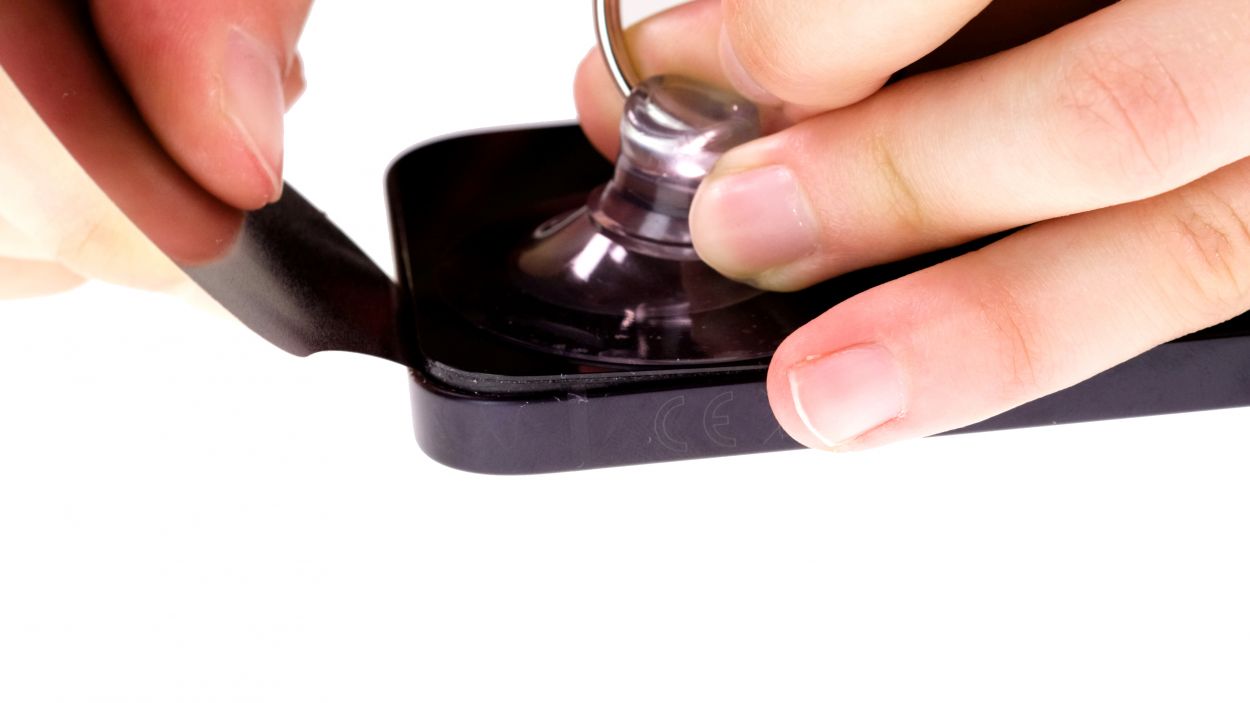

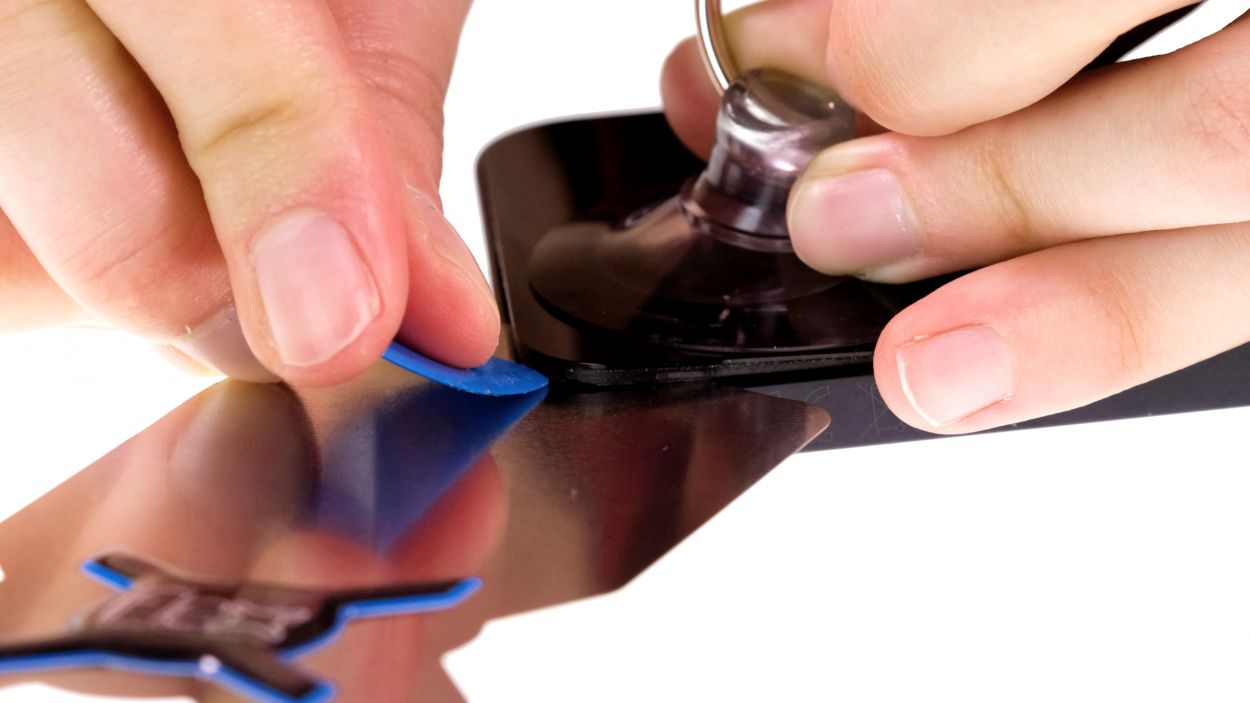

– Stick a suction cup on the lower edge of the display and give it a gentle pull upwards. While you’re at it, slide the iFlex tool between the display and the case like you’re sneaking in for a surprise!
– Now, grab a flat pick and slide it into a spot you’ve already loosened up. This way, the glue won’t have a chance to get all clingy again!
Tools Used
Step 5
When you’re ready to detach the display, remember to swap out that sharp iFlex for a plastic tool to keep the case edge safe and sound. A hard plastic pick is your go-to buddy for this task!
Step 6
Keep that screen unfolding to a cool 180° or less while those sensitive cables are still connected. Going beyond that could lead to a tear, and nobody wants that drama!
– Once you’ve completely freed the display, it’s time to say goodbye to those plastic picks. You can do it!
– Next, gently open the display towards the volume buttons. Support it against something stable to keep those flex cables from overstretching. You’ve got this!
Step 7
1 × 1.0 mm Y-Type
5 × 1.2 mm Y-Type
– Unscrew those six Y-type screws from the two cover plates using your trusty Y-type screwdriver. You’re doing great!
– Once you’ve got them loose, make sure to place them on your magnetic pad. It’s like giving your screws a little vacation!
Step 8
– Use your trusty tweezers to gently lift off those two cover plates from your device. You’ve got this!
– Once they’re free, make sure to place them along with their matching screws on your magnetic pad. It’s like giving them a cozy little home!
Tools Used
Step 9
Make sure to unplug that battery connector as soon as you can—it’s the best way to keep those pesky short circuits at bay!

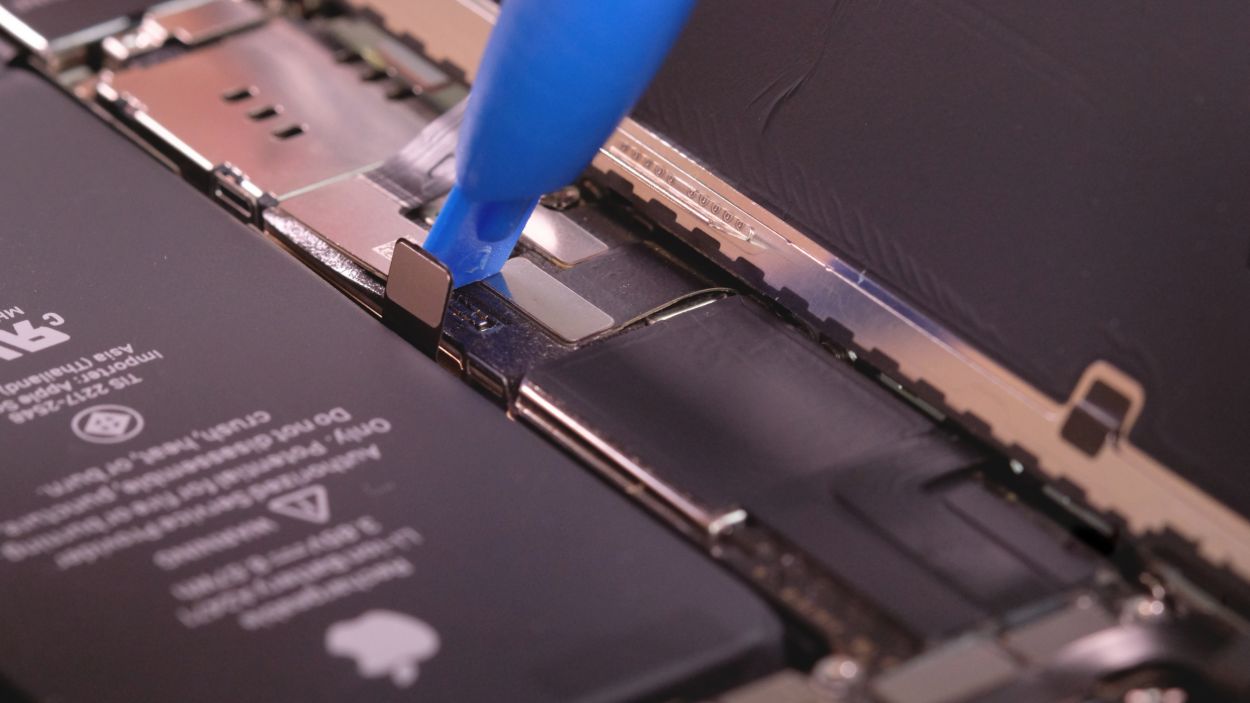

– Gently take your plastic lever tool and slide it under the battery connector to separate it from the board. A plastic spudger works wonders for this task!
Tools Used
Step 10
The iPhone 12 mini is equipped with not one, but two display connectors! One of these little guys connects the earpiece right to the logic board. So, when you’re in there, make sure to handle them with care!
– Slide your trusty spudger under each of the two display connectors, one at a time, and gently coax them off the logic board. You’ve got this!
Tools Used
Step 11
– Once you’ve fully liberated the display, go ahead and lift it off with a smile and set it aside like a pro!
Step 12
4 × 1.6 mm Phillips
– Grab your Phillips screwdriver and gently loosen those four Phillips screws on the speaker module. Once they’re all nice and loose, go ahead and take them out of your device. You’re doing awesome!
Step 13
– With your trusty tweezers in hand, gently lift that loosened speaker out of your device. You’re on a roll!
– Now, find a cozy spot for it next to the screws on your magnetic pad. It’s like giving your speaker a little vacation!
Tools Used
Step 14
1 × 1.3 mm Phillips
1 × 2.0 mm Phillips
– Unscrew those two Phillips screws from the cover plate. It’s the guardian of the Taptic Engine connector, keeping it safe and sound!
– Once they’re free, just pop them out of the device.
Step 15
– With the help of your trusty tweezers, gently lift the cover plate of the Taptic Engine out of your device. You’re doing great!
– Once it’s free, make sure to place it along with its matching screws on your magnetic pad. It’s like giving them a cozy little home!
Tools Used
Step 16
The Taptic Engine connector hangs out with the Lightning connector cable set. So, when you’re in there, just remember to treat them like best buds!
– Slide your trusty spudger under the Taptic Engine connector and gently pry it away from the logic board. You’re doing great—keep it steady!
Tools Used
Step 17
1 × 1.6 mm Y-Type
1 × 3.0 mm Standoff
– Now, let’s get those two screws that are holding the Taptic Engine in place nice and loose. You’re on the right track!
– Once you’ve loosened them up, go ahead and take them out. You’re doing great!
Step 18
– Gently lift the Taptic Engine out of your iPhone. You’ve got this!
– Now, set it down on the magnetic pad along with its matching screws. It’s like giving them a little family reunion!
Tools Used
Step 19
The adhesive battery strip tabs are lying super flat on the battery, so keep your eyes peeled! You wouldn’t want to mix them up with another battery film. Stay sharp!

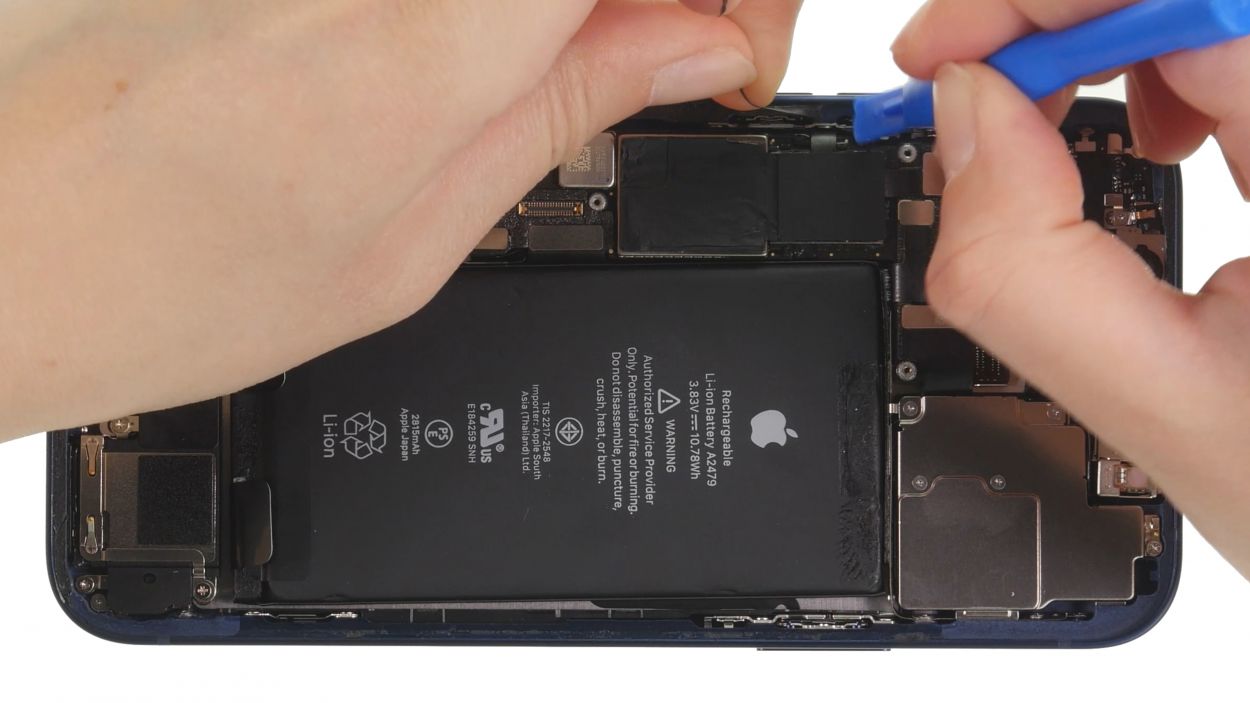

The iPhone 12 mini’s battery is held snugly in place with 4 adhesive+strips+iPhone+12+mini&crid=1TJIMMAJSUJUZ&sprefix=repair+tools%2Caps%2C165&linkCode=ll2&tag=salvationrepa-20&linkId=c486487cf454ce8edd6f5beefab4110f&language=en_US&ref_=as_li_ss_tl'>adhesive strips. You can easily pull them out using their tabs, which are conveniently attached to the top of the battery. Let’s get that battery out!
Tools Used
Step 20

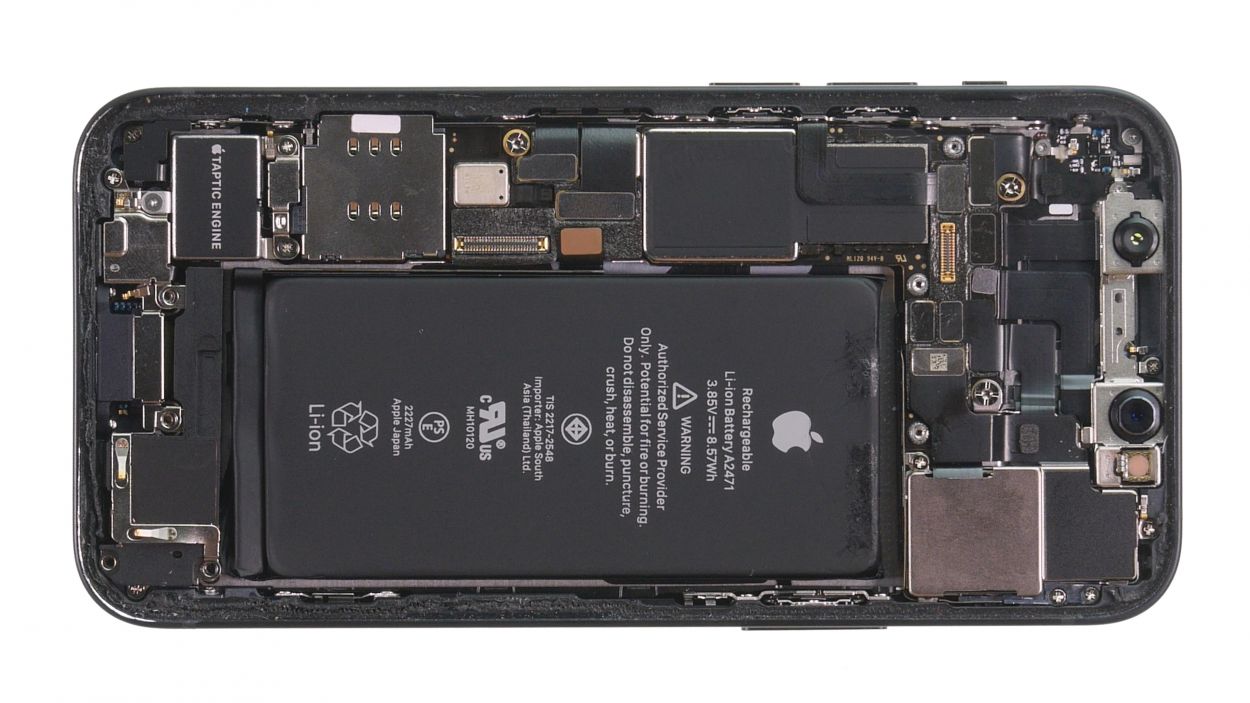

– Carefully take out the battery from your device and set it aside, just like a gentle hug for your phone!
– With your trusty tweezers, delicately peel off any leftover adhesive+strips+iPhone+12+mini&crid=1TJIMMAJSUJUZ&sprefix=repair+tools%2Caps%2C165&linkCode=ll2&tag=salvationrepa-20&linkId=c486487cf454ce8edd6f5beefab4110f&language=en_US&ref_=as_li_ss_tl'>adhesive strips from the bottom of the case. You’ve got this!
If one of those adhesive+strips+iPhone+12+mini&crid=1TJIMMAJSUJUZ&sprefix=repair+tools%2Caps%2C165&linkCode=ll2&tag=salvationrepa-20&linkId=c486487cf454ce8edd6f5beefab4110f&language=en_US&ref_=as_li_ss_tl'>adhesive strips decides to throw a tantrum and tears, just take a deep breath and gently pry that battery out. It’s a bit bendy, so be extra careful! When you’re using your trusty battery spudger, stick to the short sides of the battery only. This way, you won’t accidentally mess with the flex cable or the NFC antenna hiding underneath. You’ve got this!
Tools Used
Step 21

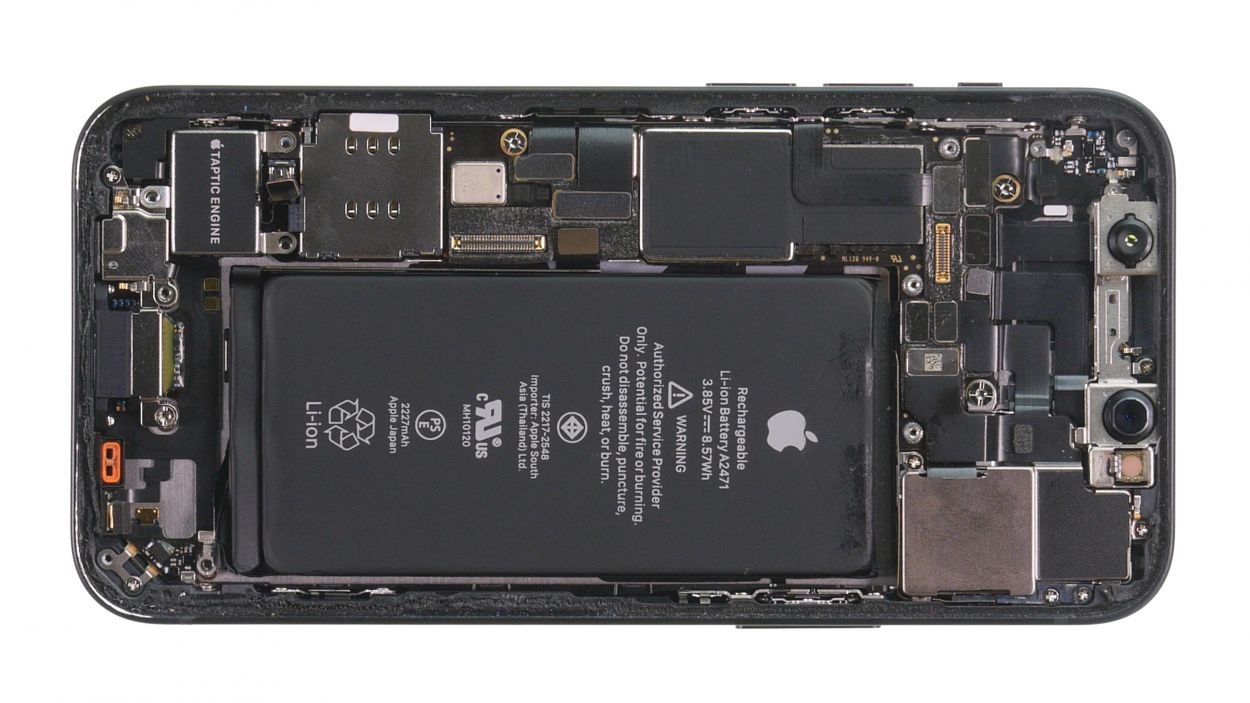

Now that you’ve peeled off those protective films from your shiny new battery, it’s time to pop it in! Let’s get that power flowing and your device back in action!
Step 22
– With your trusty tweezers in hand, gently set the Taptic Engine back in its cozy spot where it belongs. You’re doing great!
Tools Used
Step 23
1 × 1.6 mm Y-Type
1 × 3.0 mm Standoff
Hey there, superstar! Just a friendly reminder to keep those screws sorted. Using a screw that’s too long might just invite some unwanted drama to your case unit. You’ve got this!
– Secure the Taptic Engine in place by tightening one Y-type screw and one standoff screw. You’re almost there!
Tools Used
Step 24
Hey there, superstar! Just a friendly reminder: don’t force those connectors together! A little pressure can cause big problems, like the whole component going kaput. Let’s keep it smooth and easy!
– Gently press your connector onto its slot on the Lightning connector cable set. You should feel and hear it click into place—like a high five for your phone!
Step 25
– Carefully place the cover plate of the Taptic Engine back over its connector, making sure it fits snugly. You’re doing a fantastic job!
Tools Used
Step 26
1 × 1.3 mm Phillips
1 × 2.0 mm Phillips
To keep that cover plate from playing hide and seek while you’re screwing it in, just use your tweezers to hold it steady. You’ve got this!
– Secure the cover plate of the Taptic Engine with those two Phillips screws. You’re nailing it!
Step 27
– Carefully place that speaker back into its cozy spot in the case unit. You’re doing great!
Step 28
4 × 1.6 mm Phillips
– Screw the speaker with the four Phillips-screws.
Tools Used
Step 29
Step 30
– Gently place the display back onto the casing unit. For this, lean it against a solid object to keep it steady.
Step 31
– Gently slide your trusty spudger under each of the two display connectors, one at a time, and coax them off the logic board like a pro. You’ll hear that satisfying click when they pop into place—it’s music to your ears!
Step 32
Hey there! Just a little tip: connect that battery connector as late as you can to keep those pesky short circuits away. Safety first, friend!
– Carefully connect the battery connector by pressing it onto the logic board. You should feel and hear it click into place, like a little victory dance!
Step 33
After you’ve swapped that battery, give your iPhone a little flip to test it out! Just remember, no need to press it down into the case just yet. This way, if you need to pop it open again, you can do it in a jiffy!

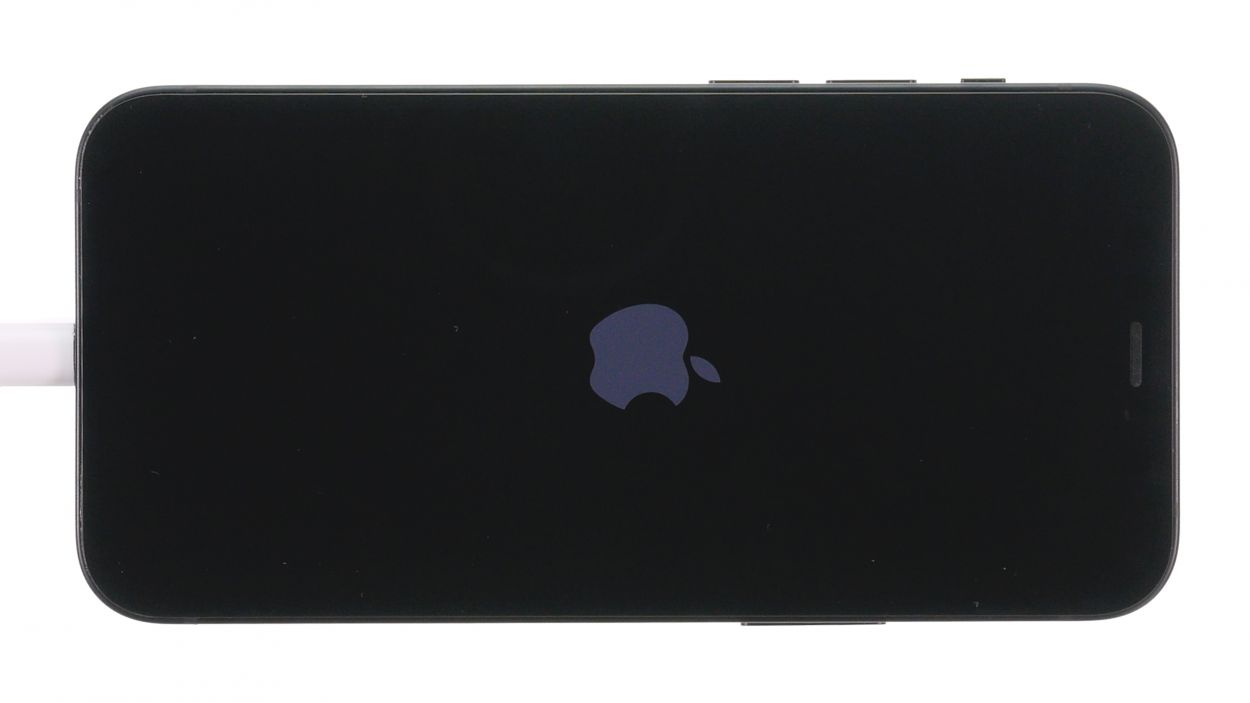

– Plug in a charging cable to see if your new battery is ready to rock! If your iPhone starts charging, you’re all set!
– Next up, let’s check out how the other components are doing. Don’t forget to use our handy checklist as your guide!
Step 34
– Give that display a little flip back open after your test run—just like a pro!
– Now, place those two cover plates over the battery and display connectors. Use the screw holes as your trusty guide!
Tools Used
Step 35
1 × 1.0 mm Y-Type
5 × 1.2 mm Y-Type
– Now it’s time to screw those two plates back onto the logic board using your trusty Y-type screws. You’ve got this!
Tools Used
Step 36

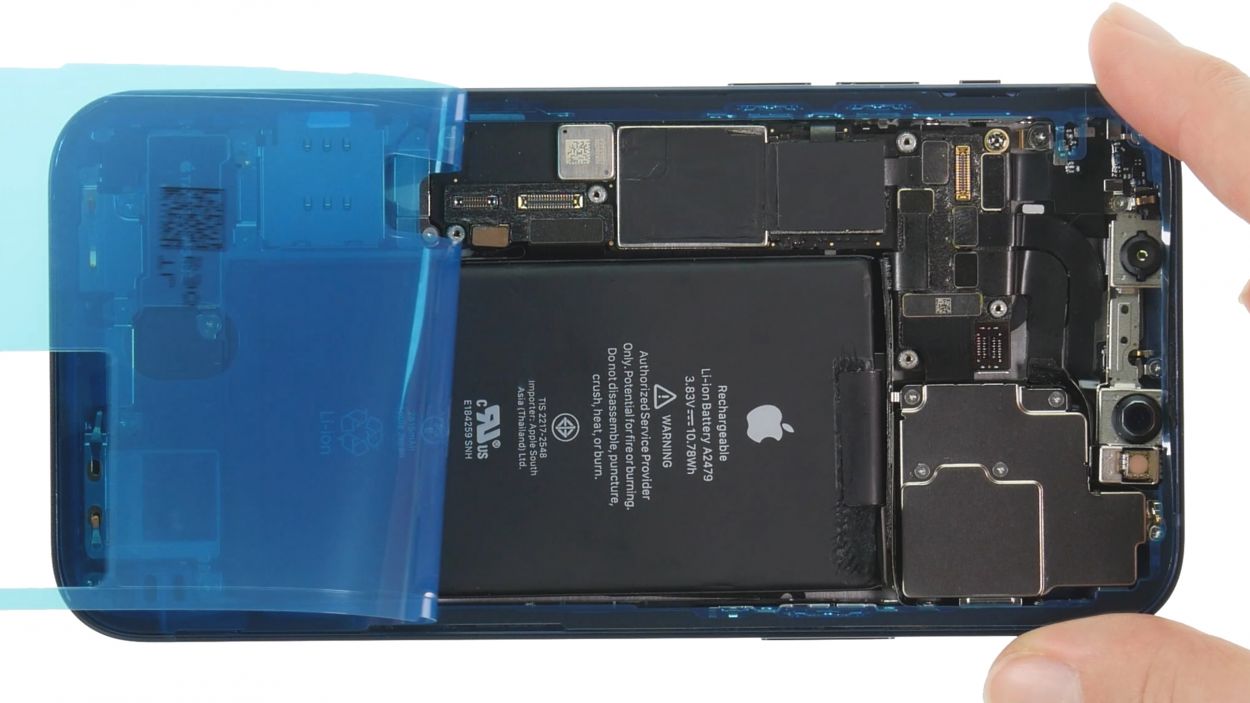

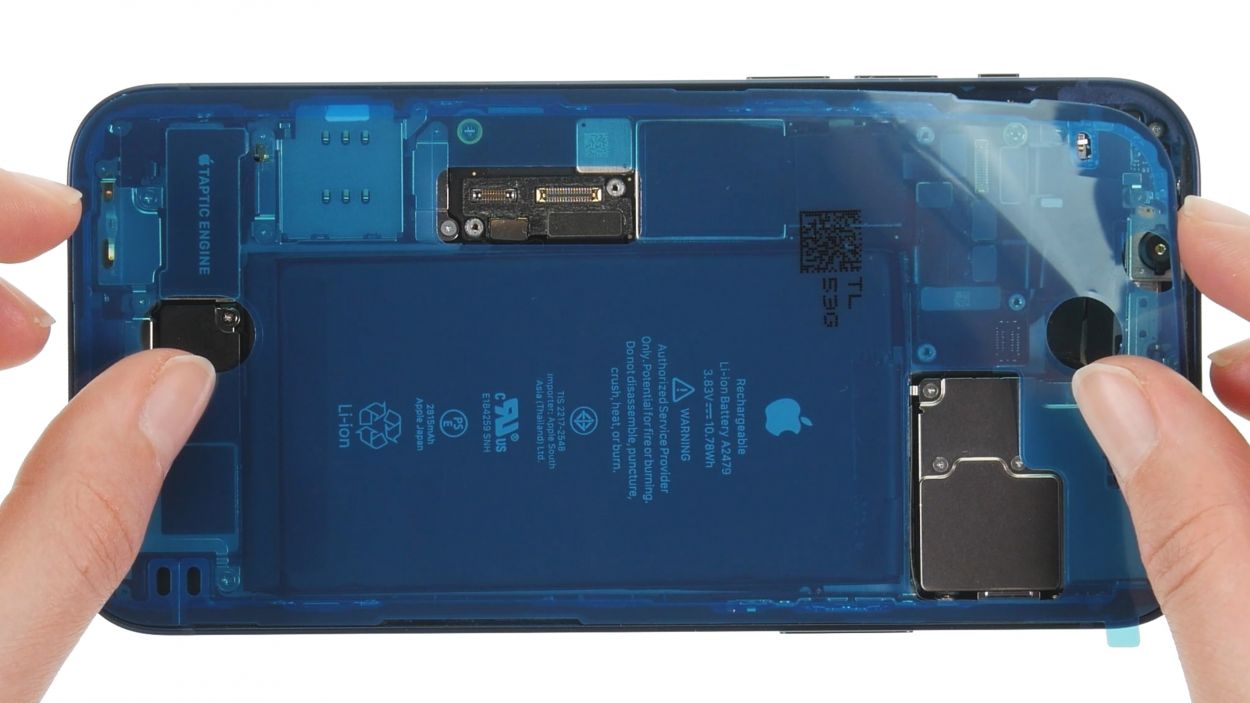

To make sure your display sticks like glue to the case unit after you pop it back in, give the edge a little warm-up with some hot air. Once that’s done, grab a couple of books to weigh down your iPhone for about half an hour, or if you’re feeling crafty, you can clamp it down instead!
