iPhone 4s – Removing the mainboard
Duration: 60 min.
Steps: 23 Steps
In this guide, we show you how to remove your iPhone 4s’s logic board. You need to remove the logic board if you want to clean it. In this guide, we show you how to remove your iPhone 4s’s logic board. You need to remove the logic board if you want to clean it.
Step 1
- You need a pentalobe screwdriver to open your phone.
- Remove the two pentalobe screws at the bottom of the enclosure. They are located to the right and left of the dock connector. Put the screws in the same compartment of your organizer tray.2 x 3.6 mm pentalobe screws
Step 2
- Use your thumbs or the palm of your hand to push the back cover of your iPhone about 4 mm away from the bottom of the phone where the dock connector is (see figure 1).
- Then you can lift the back cover at the end that’s sticking out past the phone (see figure 2).
Step 3
The contact point on the logic board could come off. If the contact point breaks off but the soldering points are still intact, you can solder the contact point back on.
- If your iPhone’s still on, turn it off now by holding down the standby button for about five seconds and following the prompt on the display.

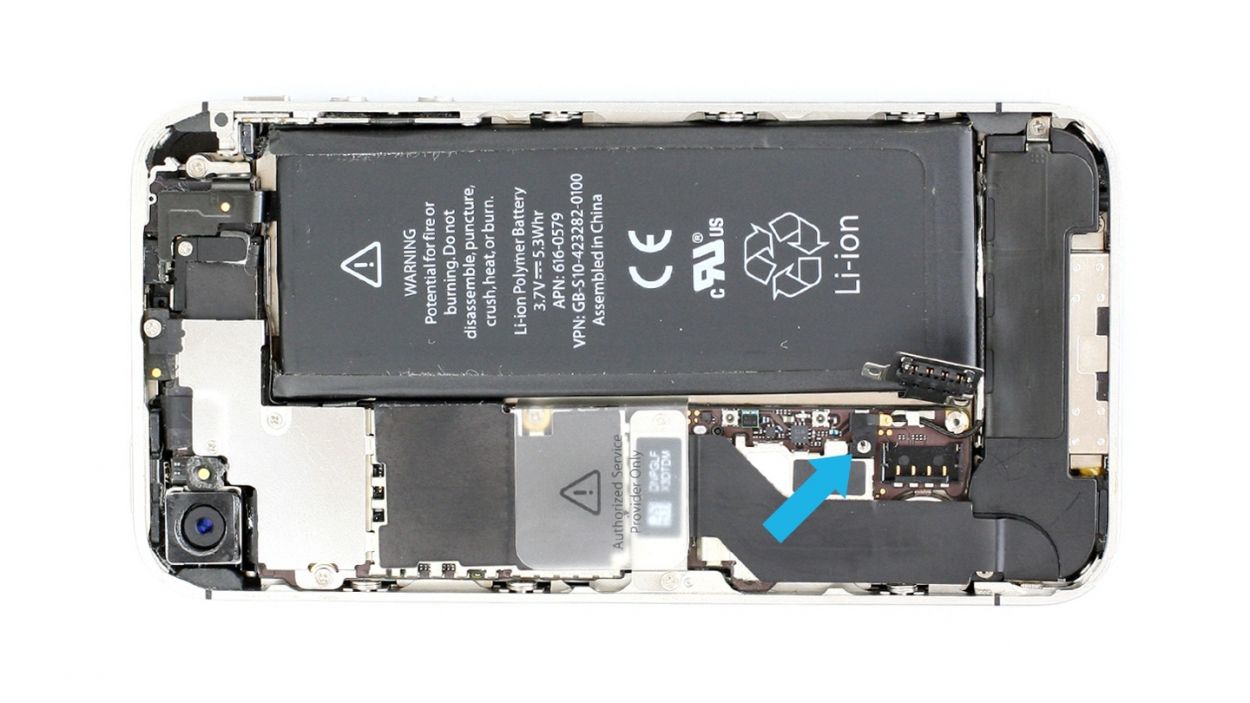

- Remove the two Phillips screws on the battery connector using a Phillips screwdriver (see figure 1). Put the screws in the same compartment of your organizer tray.1 x 1.5 mm Phillips screw1 x 1.3 mm Phillips screwThe contact point on the logic board could come off. If the contact point breaks off but the soldering points are still intact, you can solder the contact point back on.
- Now carefully lift off the battery connector by inserting the pointed ESD spudger slightly below the silver cover plate (see figure 2). If you don’t have a spudger, you can also try using your fingernail.
- For the rest of the repair, you can also use the metal laboratory spatula instead of the spudger. This may make some steps easier for you. However, we explicitly recommend using the ESD spudger produced specifically for precision electronics.
Step 4
- The antenna cover is under the battery connector. Remove the cover and put it in the same compartment of your organizer tray as the Phillips screws you removed before (see figure 1).
- Now remove the battery. It’s sometimes glued firmly in place. Insert the flat end of the spudger into the space (about 1 cm to the left of the volume down button) between the battery and the outer frame, and slowly lift the battery (see figure 2). If the battery’s really stuck on, use other leverage points to the right and left of the original spot to pry it off. If you still can’t detach the battery, you can use a heat gun to warm it slightly from the outside and soften the glue.
- Now you can also disconnect the antenna connector by carefully pulling it off the plug head using the spudger (see figure 3).
Step 5
- Fold the plastic tab with the warning over and press it firmly onto the lower adhesive strip. This way, it won’t get in the way during your repair.
- Of course, you can also remove the plastic tab.
Step 6
- Remove the two Phillips screws from the dock connection cable and remove the silver cover (see figure 1).1 x 1.1 mm Phillips screw1 x 1.4 mm Phillips screw
- Put the screws and cover in the same compartment of your organizer tray. It’s easy to tell them apart.
- Now you can carefully detach the connector by using the pointed tip of the spudger to lift the connector. Alternatively, you can also use your fingernail again (see figure 2).
- Pull the flat cable that’s lightly glued in place off of the logic board and bend it carefully over the frame (see figure 3).
Step 7
- Remove the four Phillips screws from the cover (see figure 1). Put the screws in the same compartment of your organizer tray. It’s easy to tell them apart.1 x 2.6 mm Phillips screw2 x 1.2 mm Phillips screws1 x 2.7 mm Phillips screw (thin thread)
- The cover is slightly clamped in place on the midframe (see figure 2). In order to remove the cover, use the spudger to push it slightly to the left, toward the dock connector (see figure 3).
Step 8
- Use the spudger to lift off the camera connector and remove the camera (see figure 1).
- Use a pair of tweezers or the laboratory spatula to remove the black sticker below the flash (see figure 2).
- There’s a Phillips screw below that. Remove it (see figure 3).1 x 2.6 mm Phillips screw
- Now remove the copper contact (see figure 4).
- Put all the parts in the same compartment of your organizer tray.
Step 9
Make sure you don’t break off the resistors that are soldered onto the logic board.
- Now you can disconnect the following five connectors. Be very careful.
- Place the pointed tip of the spudger very slightly below the contact and lift it up.
- Start with theconnector. There’s a secondconnector below it.
- Test the new display.Temporarily connect the new display assembly.Connect the dock connector, the connectors you disconnected previously and then the battery.Start the iPhone and check whether the LCD and touchscreen work properly. Make sure the connectors are securely plugged in to the connections.
- Temporarily connect the new display assembly.
- Connect the dock connector, the connectors you disconnected previously and then the battery.
- Start the iPhone and check whether the LCD and touchscreen work properly. Make sure the connectors are securely plugged in to the connections.
Step 10
- Remove the Phillips screw on the antenna cover (see figure 1). Put the screw in a separate compartment of your organizer tray.1 x 1.5 mm Phillips screw
- Now you can remove the cover of the antenna cable (see figure 2).Put it with the screw you removed before.
- Disconnect the antenna connector below it using the spudger (see figure 3).
Step 11
- You can use the SIM Tool or a paperclip to remove the SIM card tray. Press the SIM Tool into the small hole in the SIM card tray to remove it.
Step 12
- Now unscrew all four screws that hold the logic board in place (see figure 1) and sort them as follows./and/in two different compartments of your organizer tray.
- You’ll need both the Phillips screwdriver and a flathead screwdriver or the laboratory spatula.1 x 4.9 mm Phillips/flathead screw1 x 2.4 mm Phillips screw1 x 2.6 mm Phillips screw1 x 3.7 mm Phillips/flathead screw
- Now you can carefully lift the logic board below the battery connection using the spudger (see figure 2) and remove it by hand (see figure 3).
- There’s a little black rubber protector on the upper end of the logic board (see figure 4). It comes off easily. Put it with the screws from this step so it doesn’t get lost.
Step 13
- Put the rubber protector back on the sharp edge of the logic board. The thicker part should be facing down (see figure 1).
- Put the logic board back in carefully as shown in the picture (see figure 2). The logic board will click gently into place when it’s in the right position. This may take several attempts. Use figure 3 to check whether your logic board is in the right place.Make sure the antenna cable attached to the speaker isn’t under the logic board.
- Now screw in all four Phillips screws that hold the logic board in place (see figure 3).1 x 4.9 mm Phillips/flathead screw1 x 2.4 mm Phillips screw1 x 2.6 mm Phillips screw1 x 3.7 mm Phillips/flathead screw
Step 14
- Connect the antenna connector (see figure 1).
- Put on the cover for the antenna cable (see figure 2).
- Fasten the Phillips screw on the antenna cover (see figure 3).1 x 1.5 mm Phillips screw
Step 15
Don’t pull too hard on the cable if it’s too short because it could easily tear. We recommend that you reinstall the display.
- Reconnect all five contacts. Use your finger to carefully press them in. Only use as much pressure as you need for the contacts to gently click into place.
- If the LCD cable is too short, you forgot to pull it tightly through the slot in the midframe.Don’t pull too hard on the cable if it’s too short because it could easily tear. We recommend that you reinstall the display.
Step 16
- Put the copper contact back in as shown in the picture (see figure 1).
- Then tighten the Phillips screw in the thread again (see figure 2).1 x 2.6 mm Phillips screw
- Use tweezers or the laboratory spatula to put on the black sticker (see figure 3).
- Connect the camera connector.
Step 17
- Carefully put on the cover. It will be slightly clamped in place (see figure 1).
- Fasten all the Phillips screws on the connector cover (see figure 2):1 x 2.6 mm Phillips screw2 x 1.2 mm Phillips screws1 x 2.7 mm Phillips screw (thin thread)
Step 18
- Connect the dock connection cable again and put the silver cover on it.
- Fasten the two Phillips screws for the dock connection cable.1 x 1.1 mm Phillips screw1 x 1.4 mm Phillips screw
Step 19
- Give that plastic tab a little love! If you took it out, just pop it back in, or if it's still in there, detach it with a smile. You're doing great!
Step 20
- Now put the battery back in the iPhone.
- First you have to attach the antenna connector again (see figure 1).
- Then install the antenna cover (see figure 2).
- Now click the battery connector back into place and screw it in (see figure 3).1 x 1.5 mm Phillips screw1 x 1.3 mm Phillips screw
Step 21
- Put the back cover back on and carefully push it the last few millimeters toward the dock connector.
Step 22
- Now screw in the two screws at the bottom of the enclosure.2 x 3.6 mm pentalobe screws
- Then all you have to do is push in the SIM card tray.
Step 23
When the battery is removed from the device, the iPhone loses the time and sets itself to 1:00 a.m. on 1/1/1970. You could have trouble connecting to the cellular network if the time isn’t set.
- Get your iPhone ready for repair! Synchronize your iPhone with iTunes or connect to a WLAN network and wait until the time is set.
- Take a deep breath and remove the SIM tray with the SIM card. Then, reinsert it to ensure a smooth repair process.
- Switch to airplane mode on your device, and then deactivate it. This will help you avoid any unwanted interruptions.
