DIY Guide to Replace iPhone 6s Plus Lightning Connector

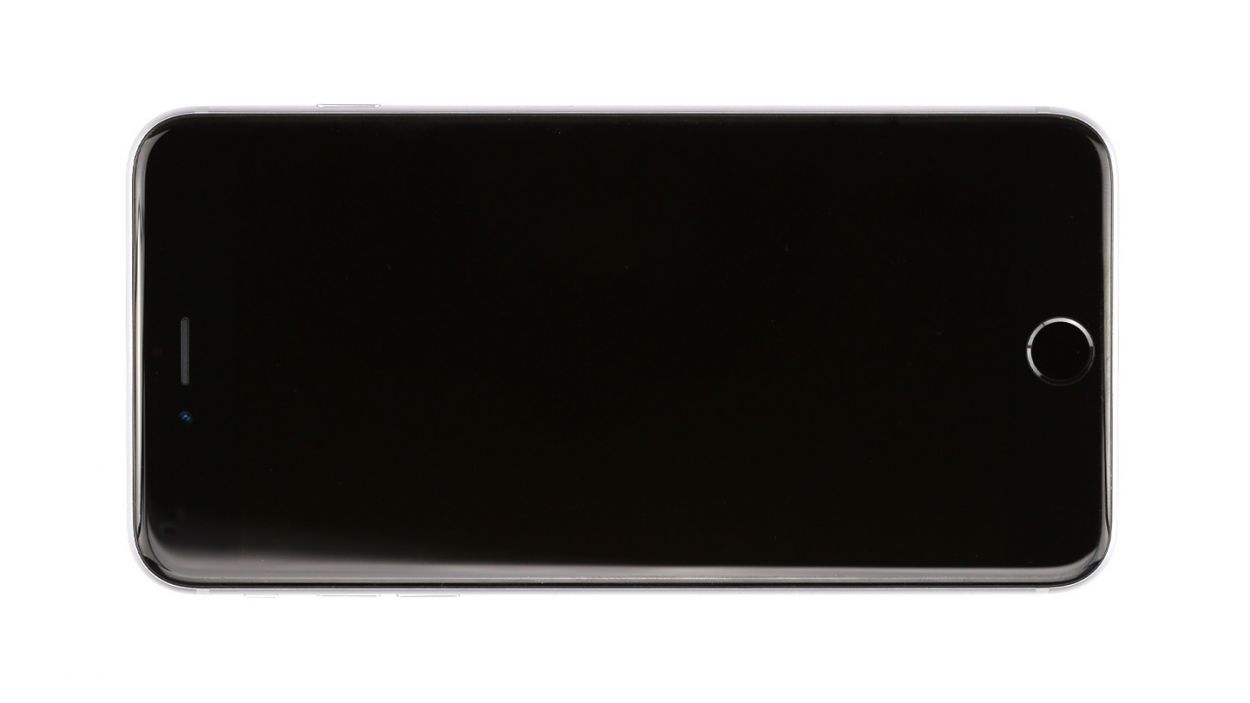

– First things first, let’s give your iPhone a little break! Power it down completely to keep it safe during the repair. Just press that standby button for about three seconds until you see the slider pop up.

– Now, slide that bad boy from left to right. Your iPhone will take about ten seconds to fully shut down. Hang tight, we’re just getting started!

– Grab your trusty pentalobe screwdriver – it’s time to get that iPhone 6s Plus open!

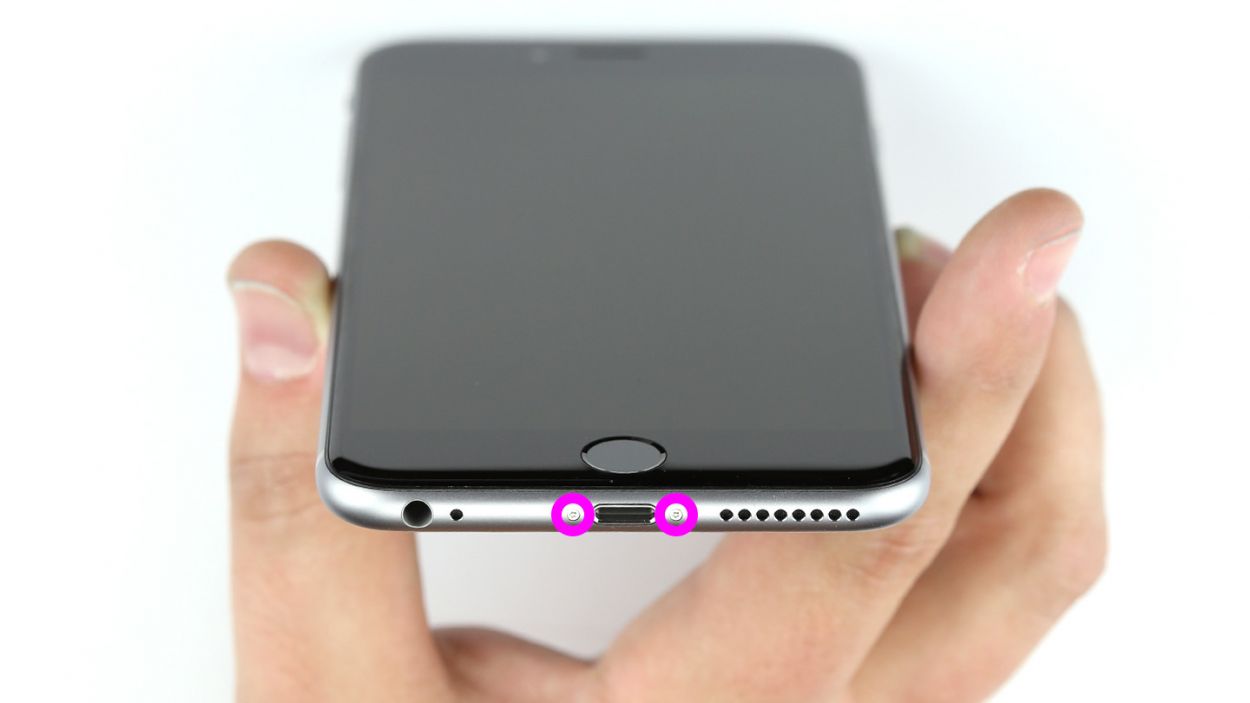

– Unscrew the two pentalobe screws nestled at the bottom of the enclosure, right next to the Lightning connector. Don’t forget to keep those screws in the same container; they’re 2 x 3.3 mm pentalobe screws and you’ll want them handy for later!

– Place your iPhone 6s Plus on a soft, clean surface – we want to keep that back looking pristine!

– To lift the display, grab a suction cup, a hard plastic pick, and a heat gun. If your screen is looking like it’s been through a battle, cover it with packing tape first. Safety first – we don’t want any glass mishaps!

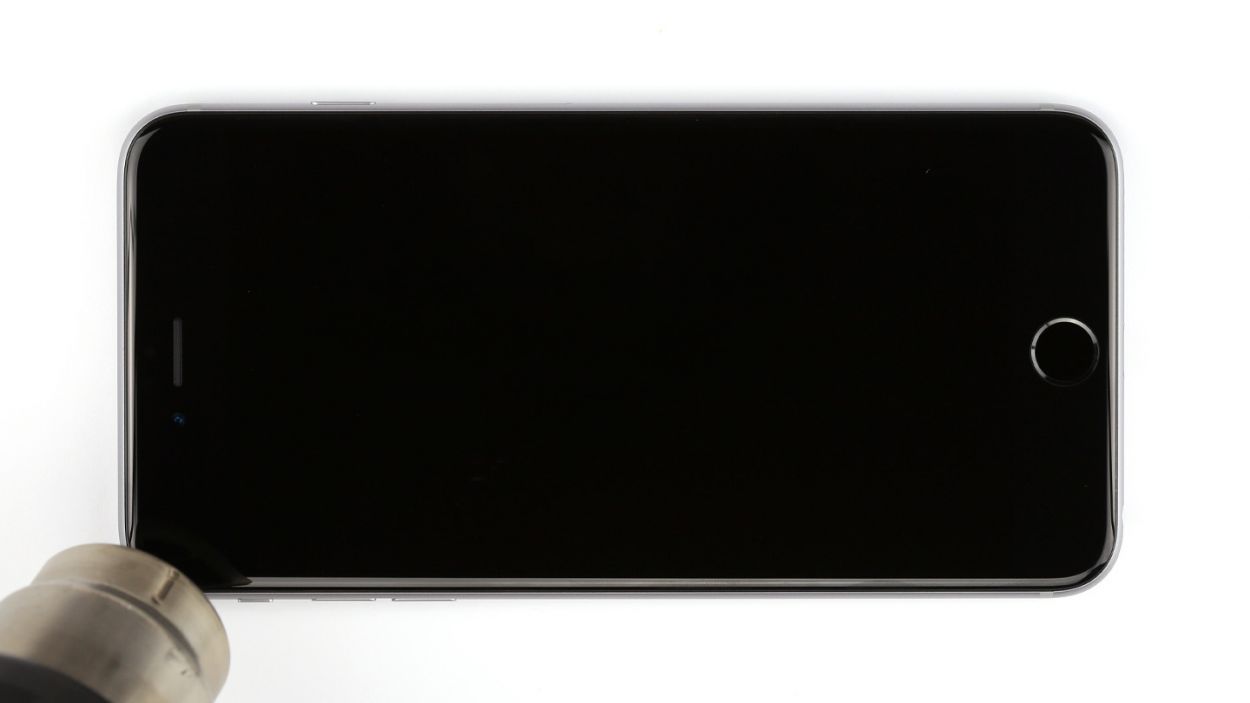

– The display is lightly glued to the frame, so let’s warm it up a bit! Use that heat gun to heat the edges to around 60°C (140°F).

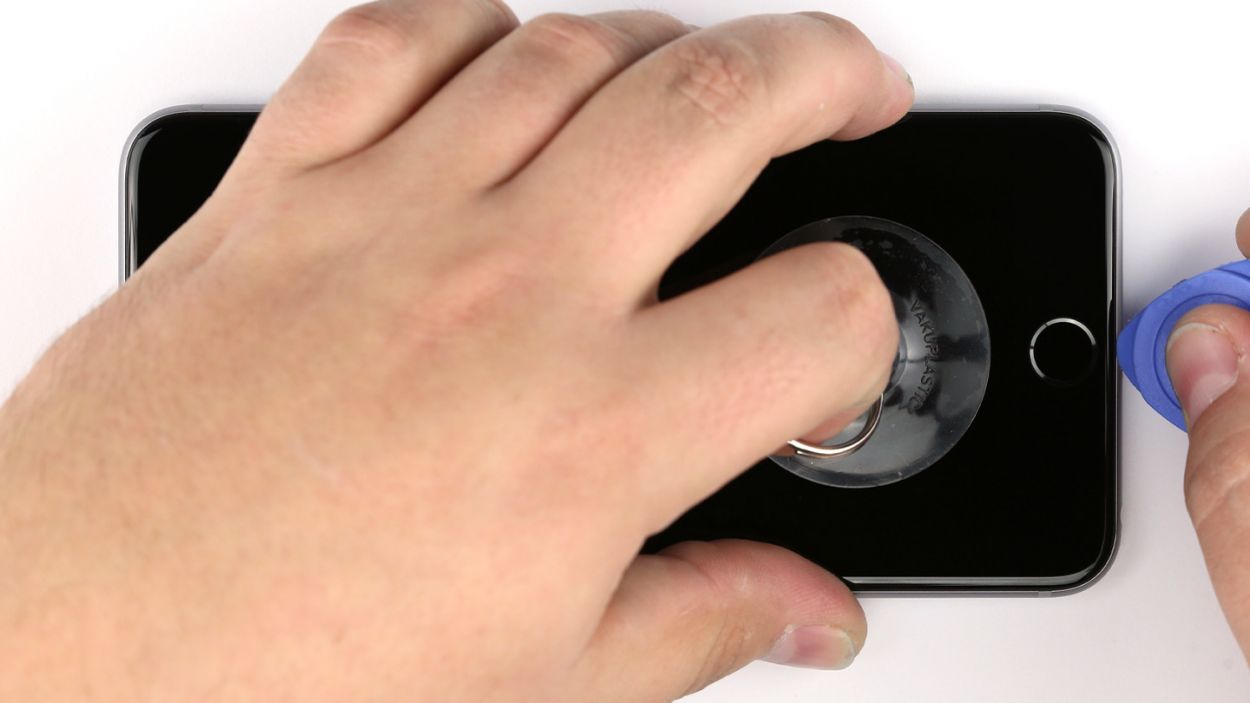

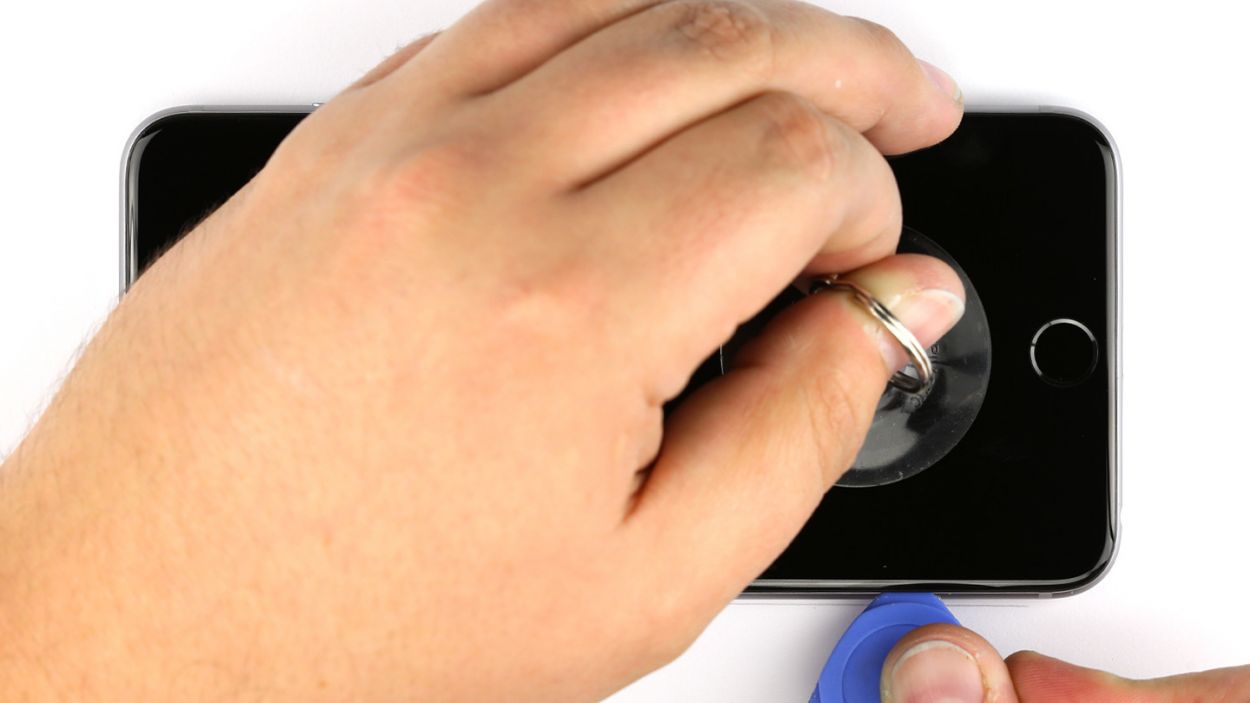

– Position the suction cup over the Home button (or right next to it if that’s tricky). While gently lifting the display with the suction cup, use the hard plastic pick to push down on the aluminum frame. Slide that pick between the frame and the display – it might take a few tries, but you’ve got this!

– Once you’ve created a small gap, you can gently twist the pick to open it up a bit more.

– When you can lift the display a few millimeters, carefully work your way around the edges until it’s loosened on both sides. If needed, give the outer edges a quick heat up every now and then.

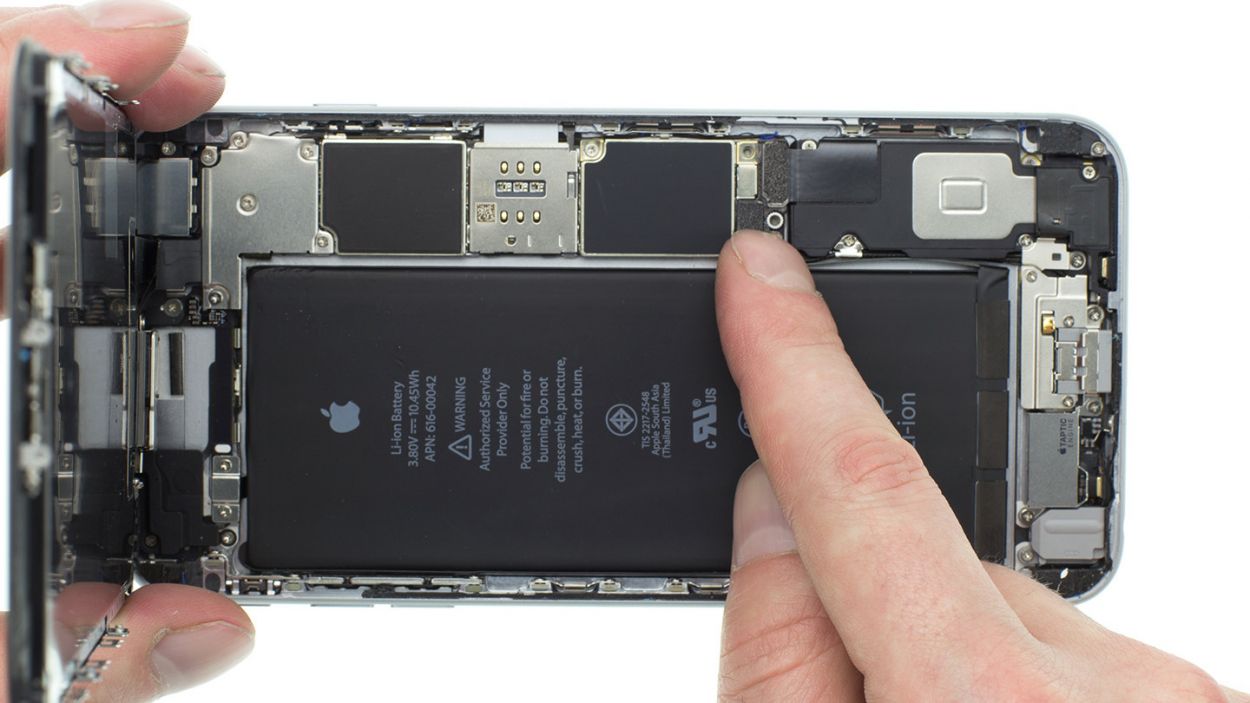

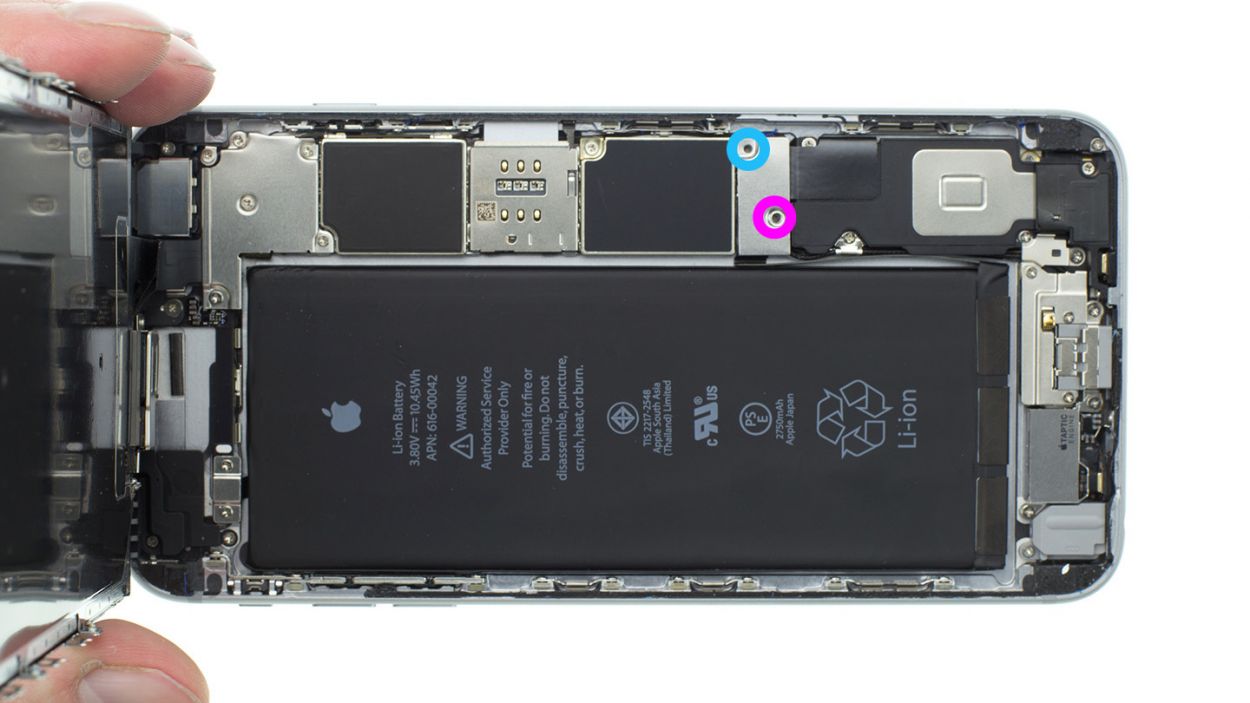

– To kick things off, grab your Phillips screwdriver and remove those two screws. Once they’re out of the way, you can pop off the shiny silver cover. You’re looking for a 2.0 mm Phillips screw and a 2.9 mm Phillips screw, so keep an eye out!

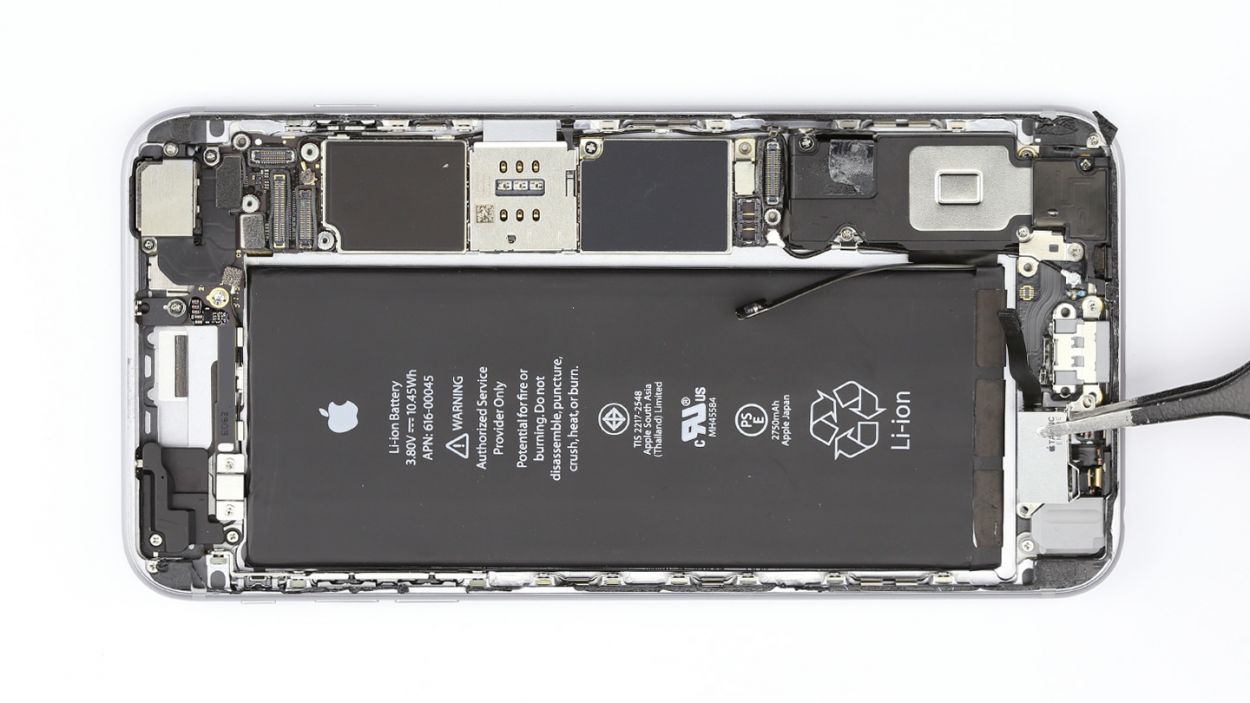

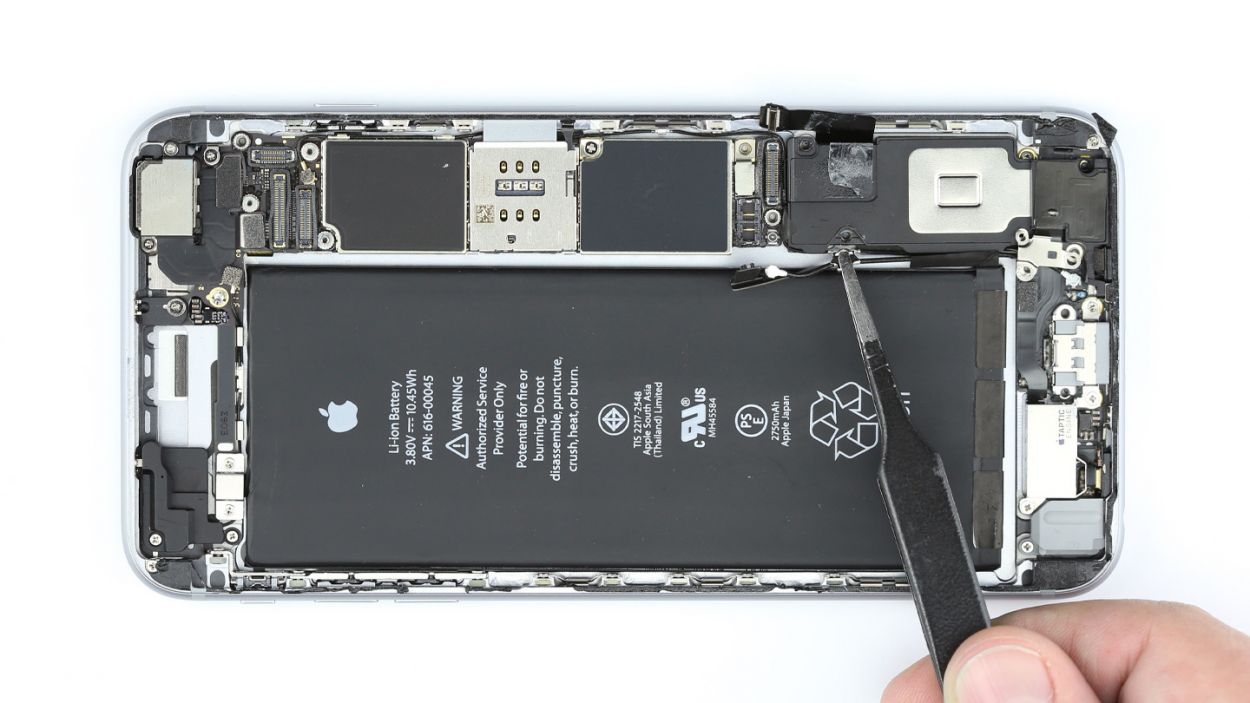

– Next up, take your trusty spudger and gently disconnect the lower connector that links the battery contact, antenna, and Lightning connector. Easy peasy!

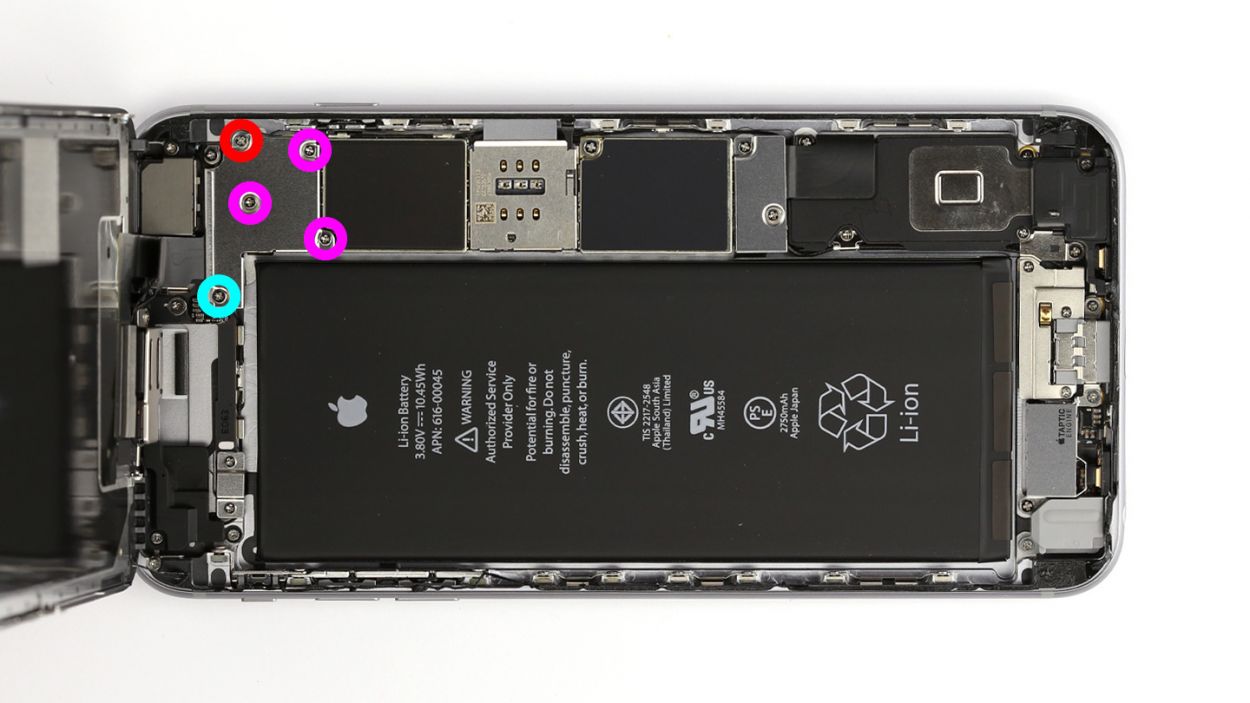

– Alright, let’s kick things off by removing the five Phillips screws from that shiny silver cover! Make sure to stash those screws in the same container so they don’t go on a little adventure of their own. You’ll need: 1 x 2.6 mm Phillips screw, 3 x 1.2 mm Phillips screws, and 1 x 1.6 mm Phillips screw.

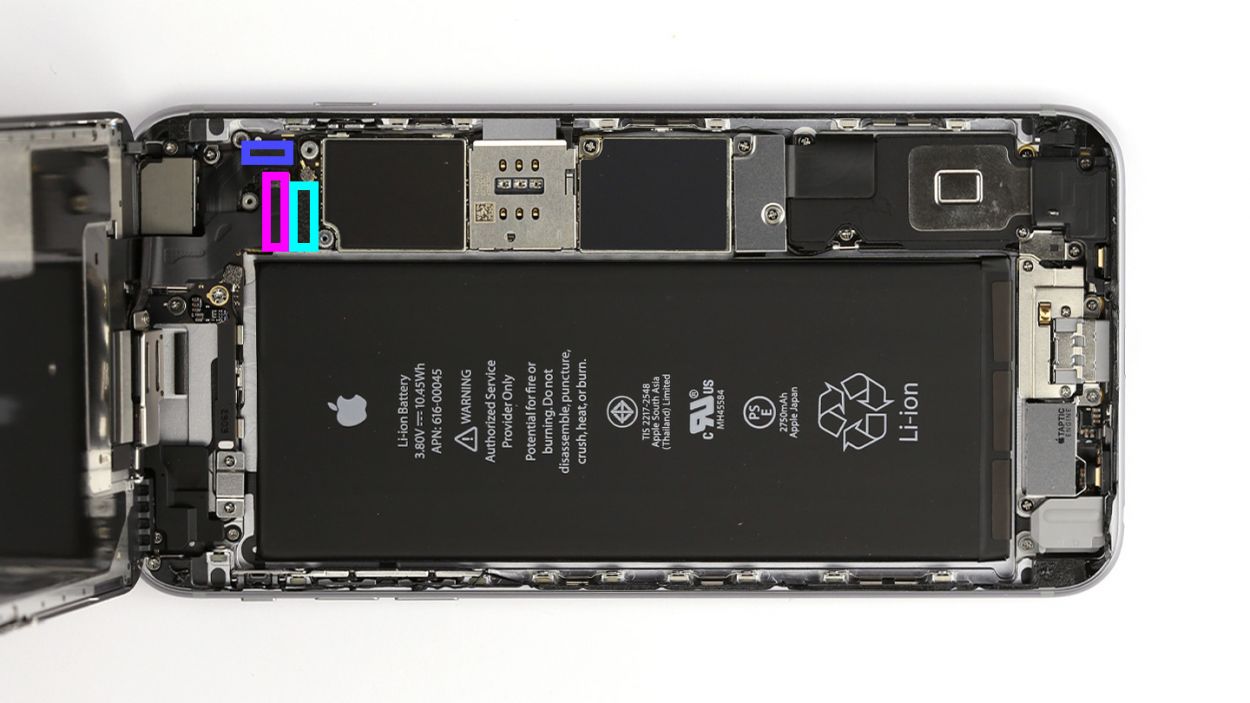

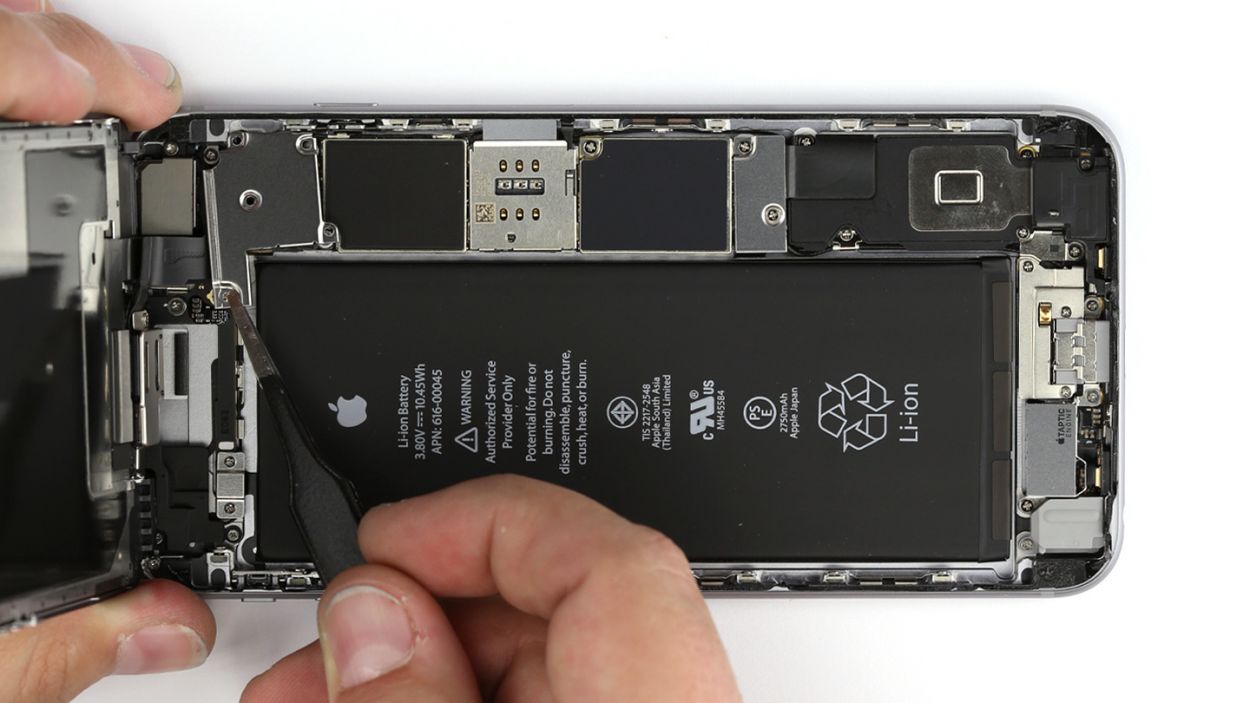

– Next up, it’s time to disconnect the three overlapping connectors. Follow the order shown below and take your time! Gently slide the pointed tip of your spudger just beneath each connector and lift it carefully. Here’s what you’ll be disconnecting: Touch ID cable, Front camera/sensor/earpiece/ambient microphone, and the Display.

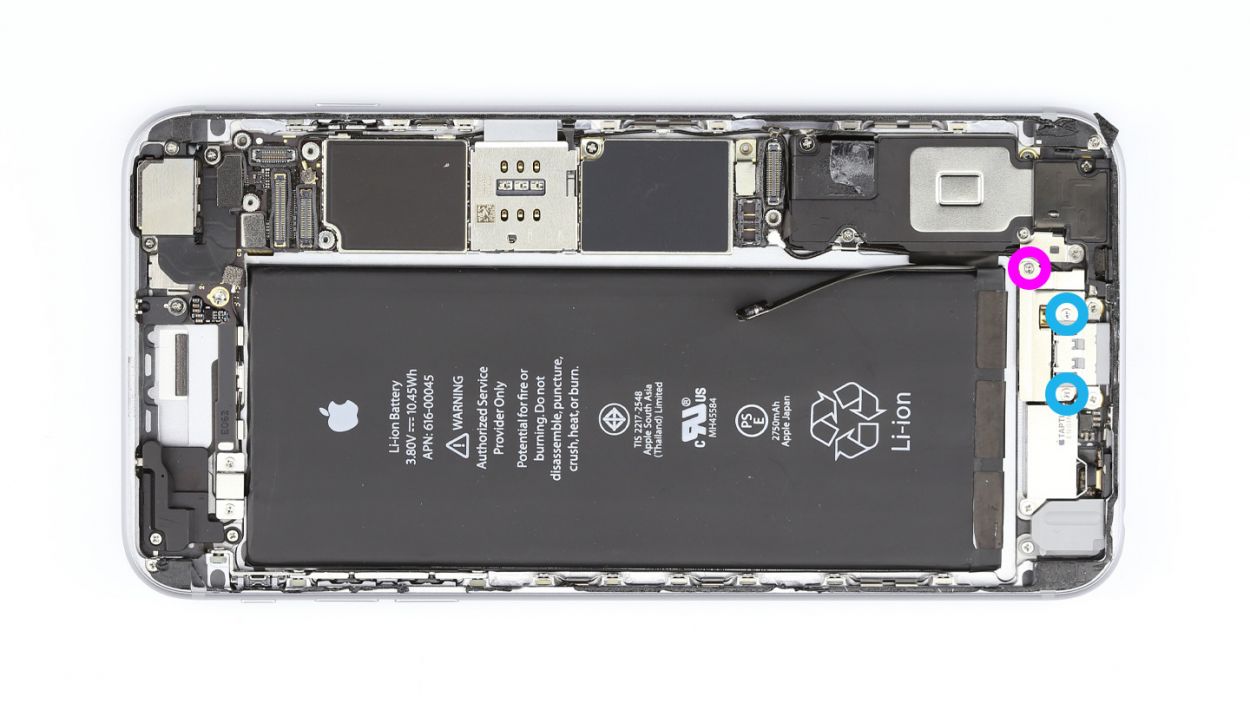

– Underneath a sneaky little plate lies the Taptic Engine’s contact. Time to get that plate off! Start by removing the three screws holding it down: 1 x 2.6 mm Phillips screw and 2 x 3.3 mm Phillips screws.

– Once you’ve got the screws out, gently lift off the plate and keep it together with the screws. You’re doing great!

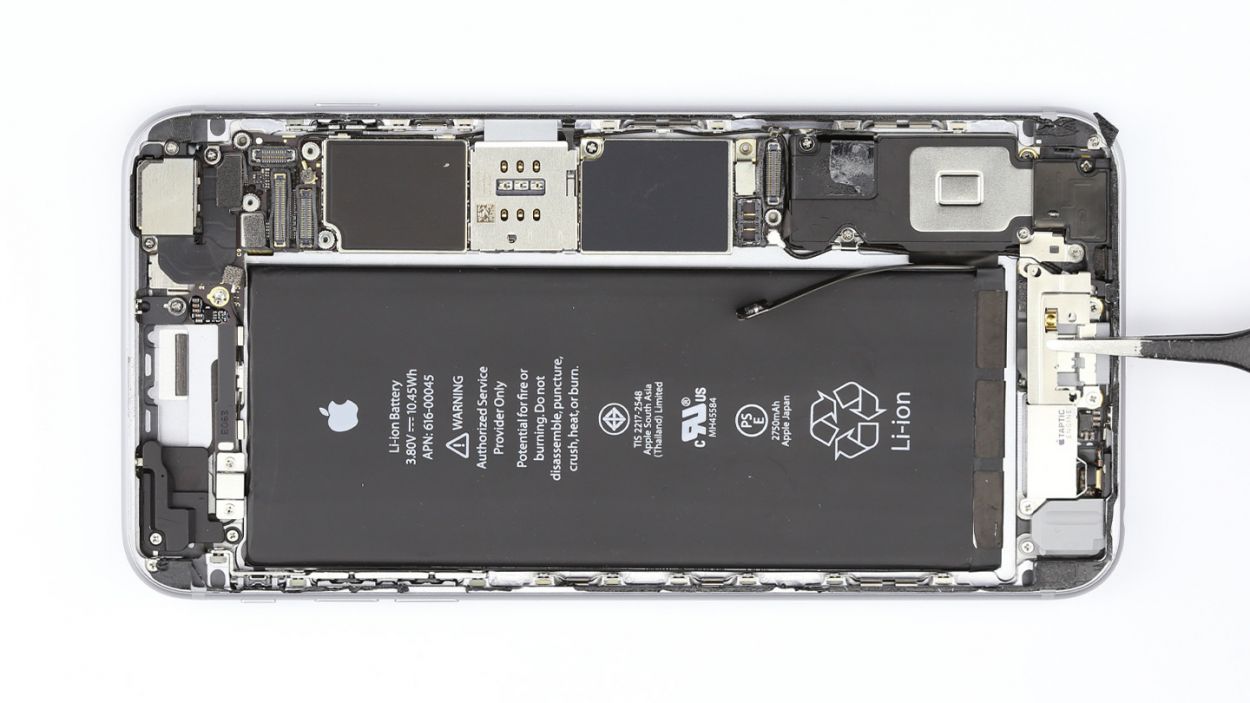

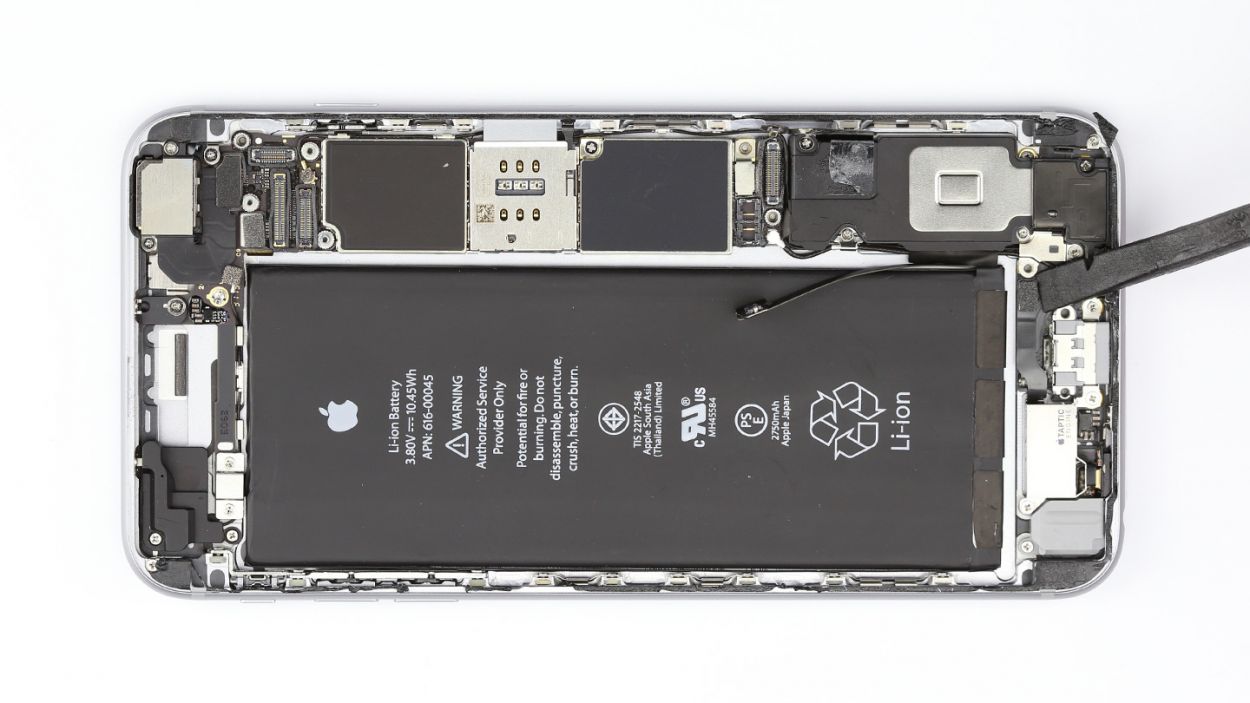

– First, let’s disconnect that contact and say goodbye for now!

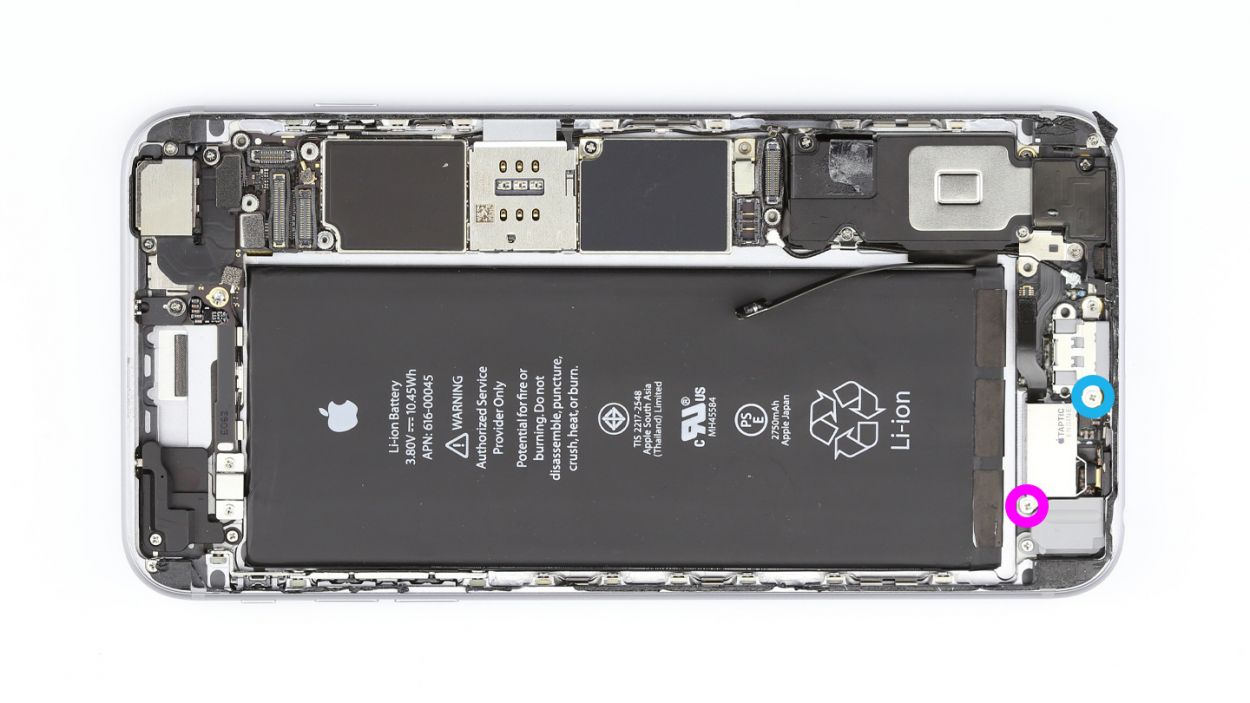

– Next up, grab your trusty screwdriver and unscrew the two little screws keeping the Taptic Engine cozy in its spot. You’ll need a 2.1 mm Phillips screw and a 3.0 mm Phillips screw for this part.

– Now, it’s time to gently lift out the Taptic Engine and give it a new home!

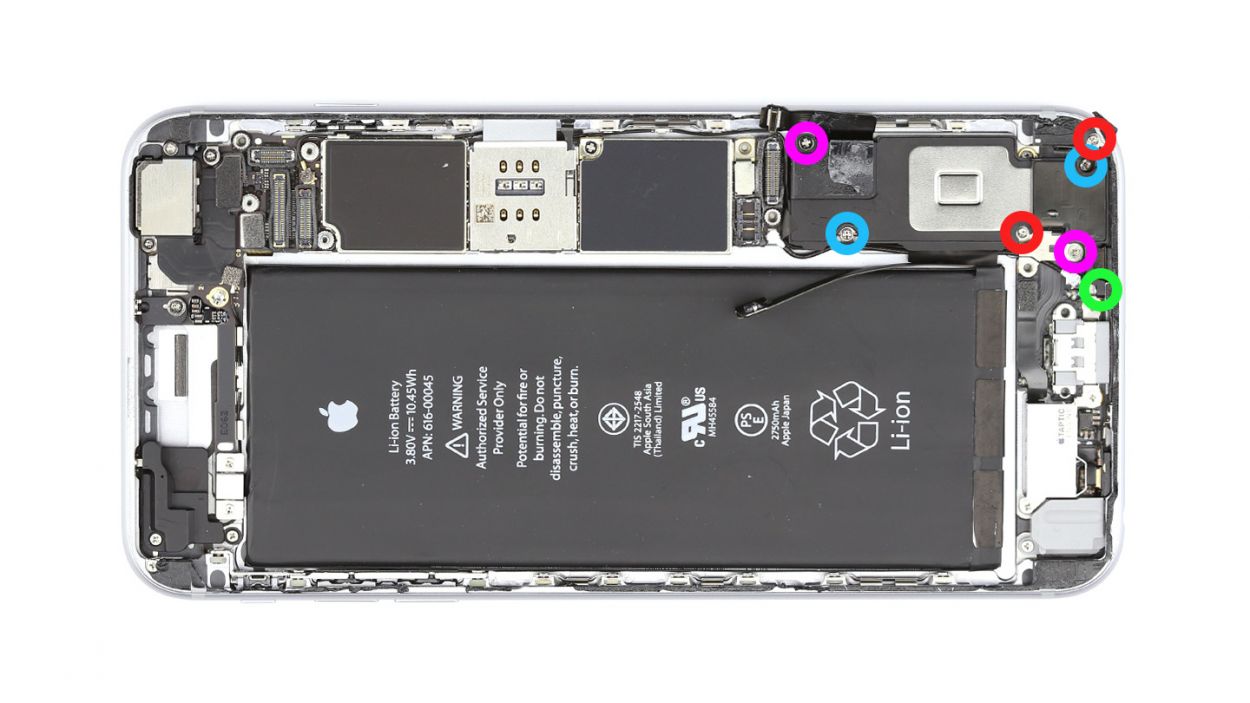

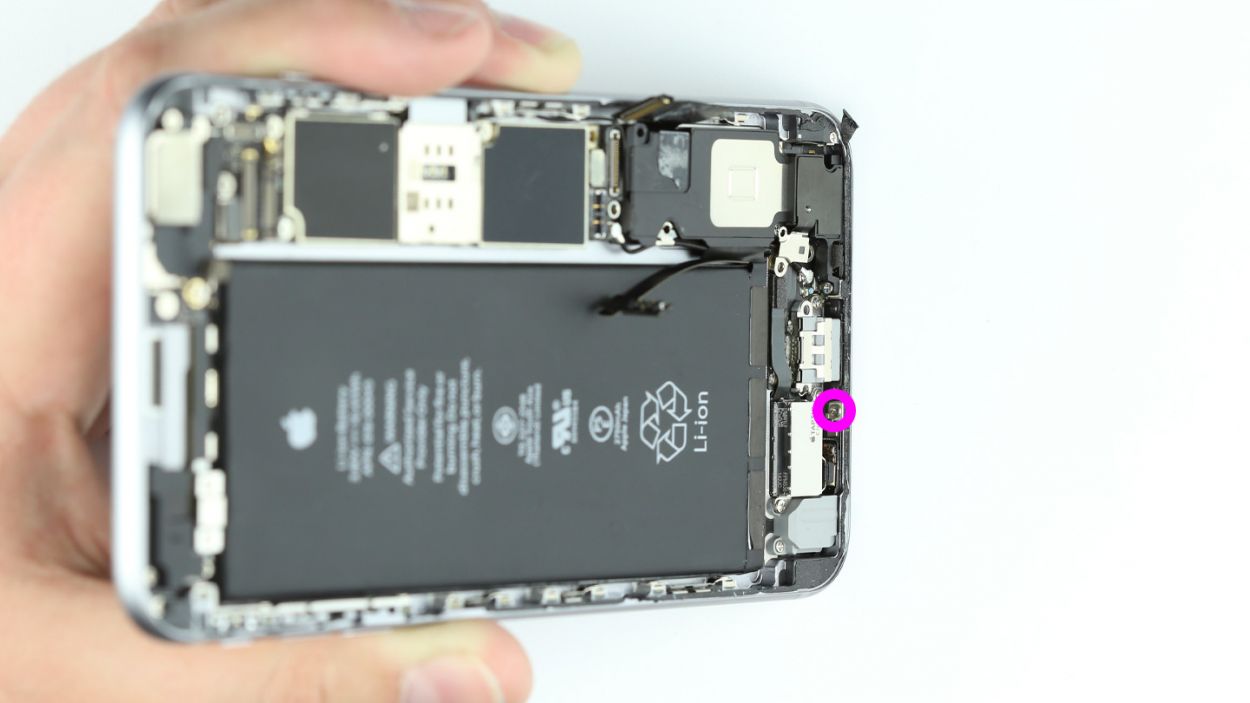

– Let’s get those seven Phillips screws out of the way so we can free the speaker! Keep your screws organized in different containers for easy identification later. You’ll need: 2 x 2.2 mm Phillips screws with large heads, 2 x 2.6 mm Phillips screws, 2 x 1.5 mm Phillips screws, and 1 x 2.4 mm Phillips screw (angled).

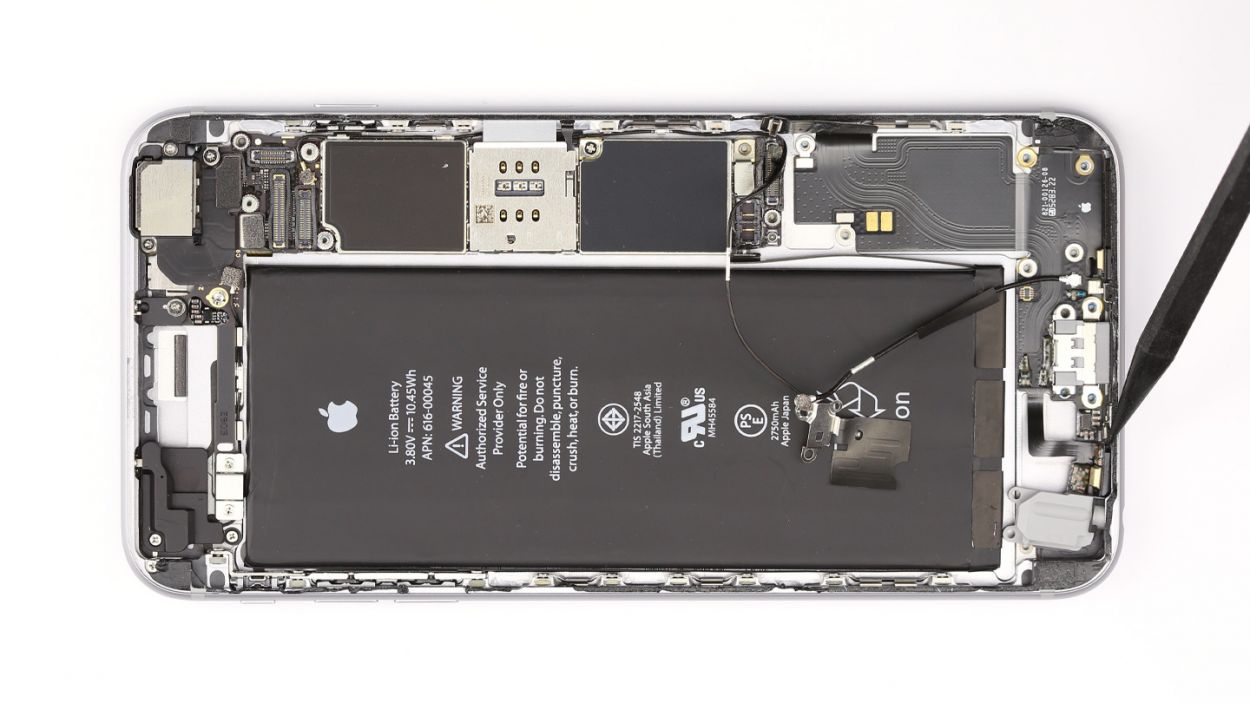

– Gently slide the antenna cable to the side and place the cable guide with the 2.6 mm Phillips screws.

– Now, grab your steel spatula and carefully detach the antenna from the speaker. You’re doing great!

– Use the flat end of the spudger as a lever to help detach the speaker.

– And just like that, remove the speaker!

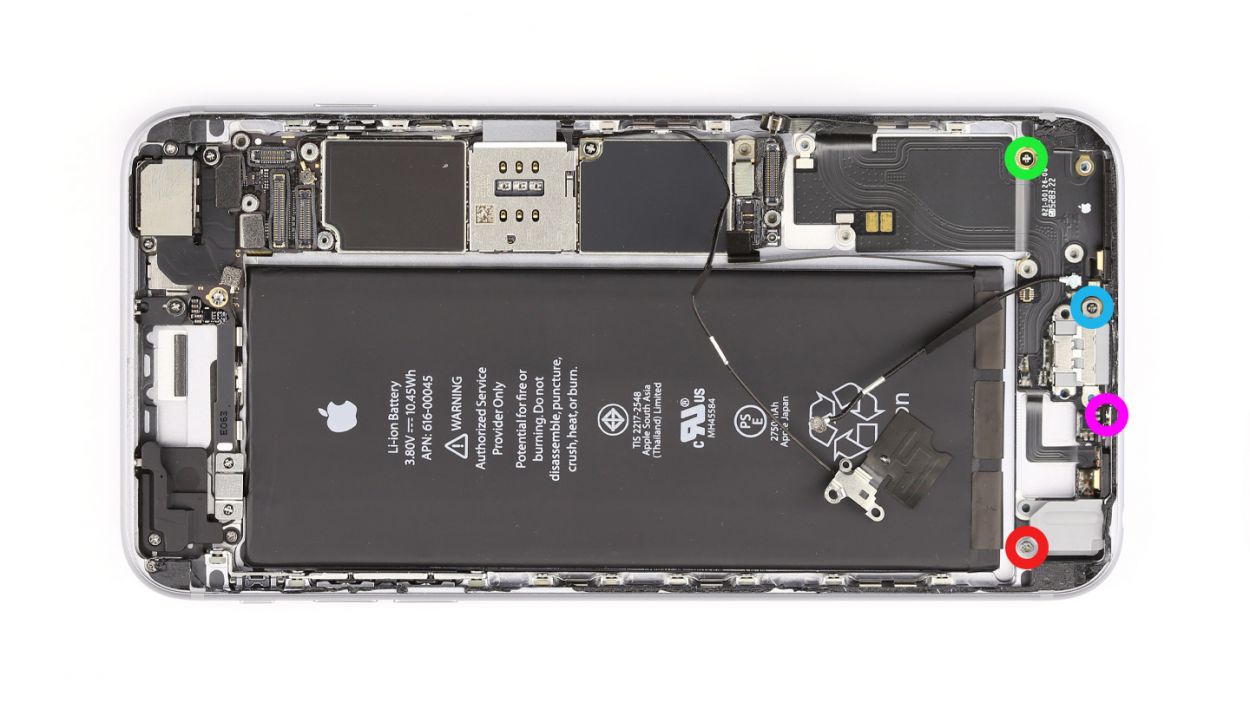

– Time to unscrew some fun! Locate those four Phillips screws and give them the boot. To keep things organized, toss those screws into different containers so they don’t play hide and seek later. Here’s what you’re looking for: 1 x 3.0 mm Phillips screw, 1 x 1.1 mm Phillips screw (angled), 1 x 1.8 mm Phillips screw, and 1 x 1.3 mm Phillips screw.

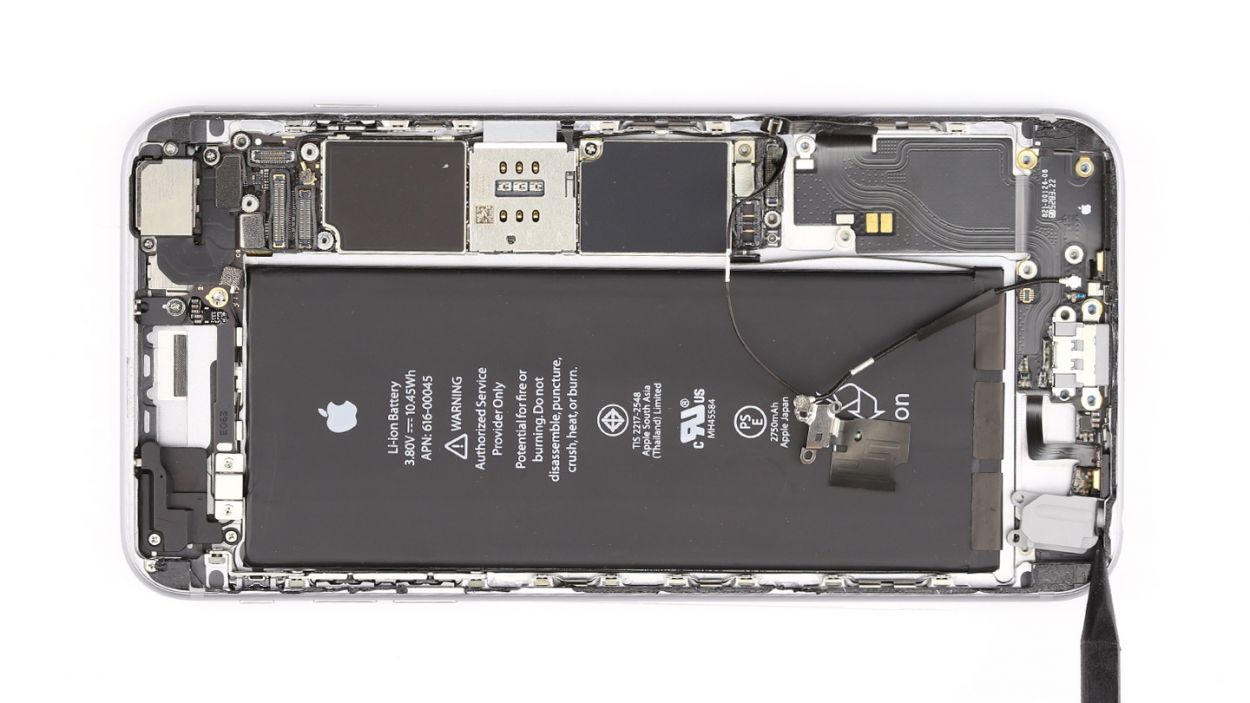

– Now, grab your spudger and use its pointed tip to gently pry away the headphone jack along with the two shiny gold microphones. You’re doing fantastic!

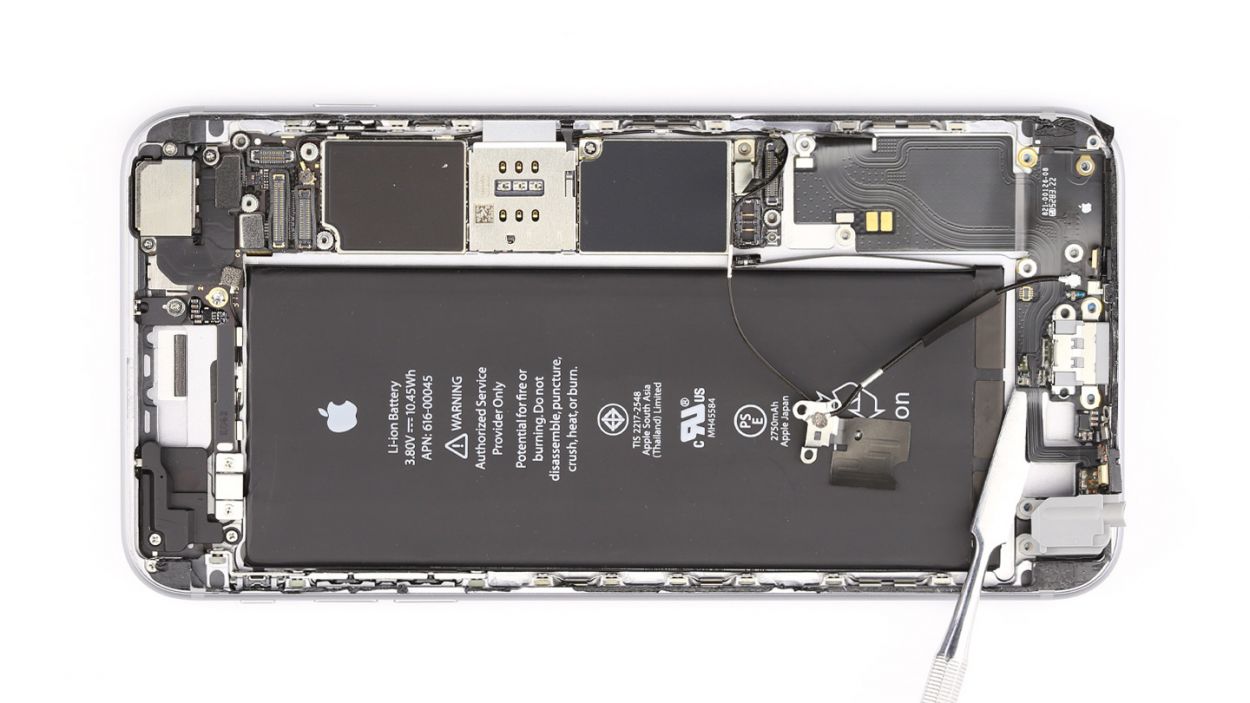

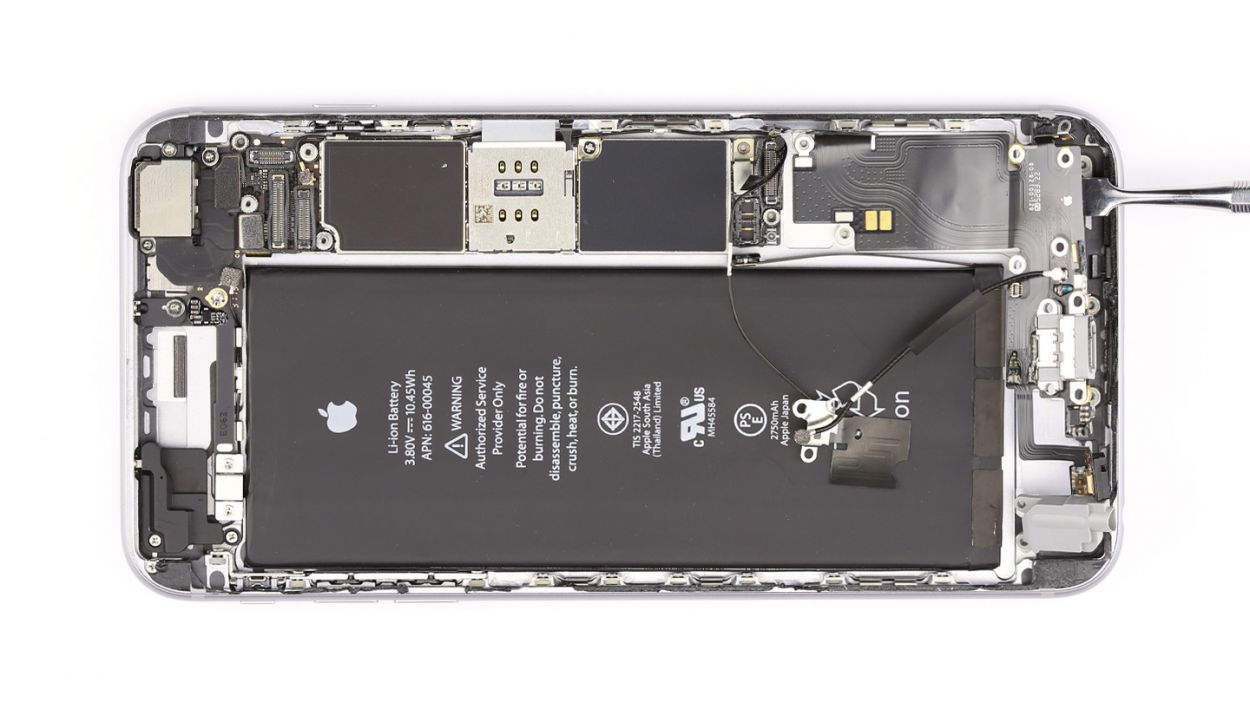

– Grab that steel laboratory spatula and gently wiggle it to disconnect the Lightning connector like a pro!

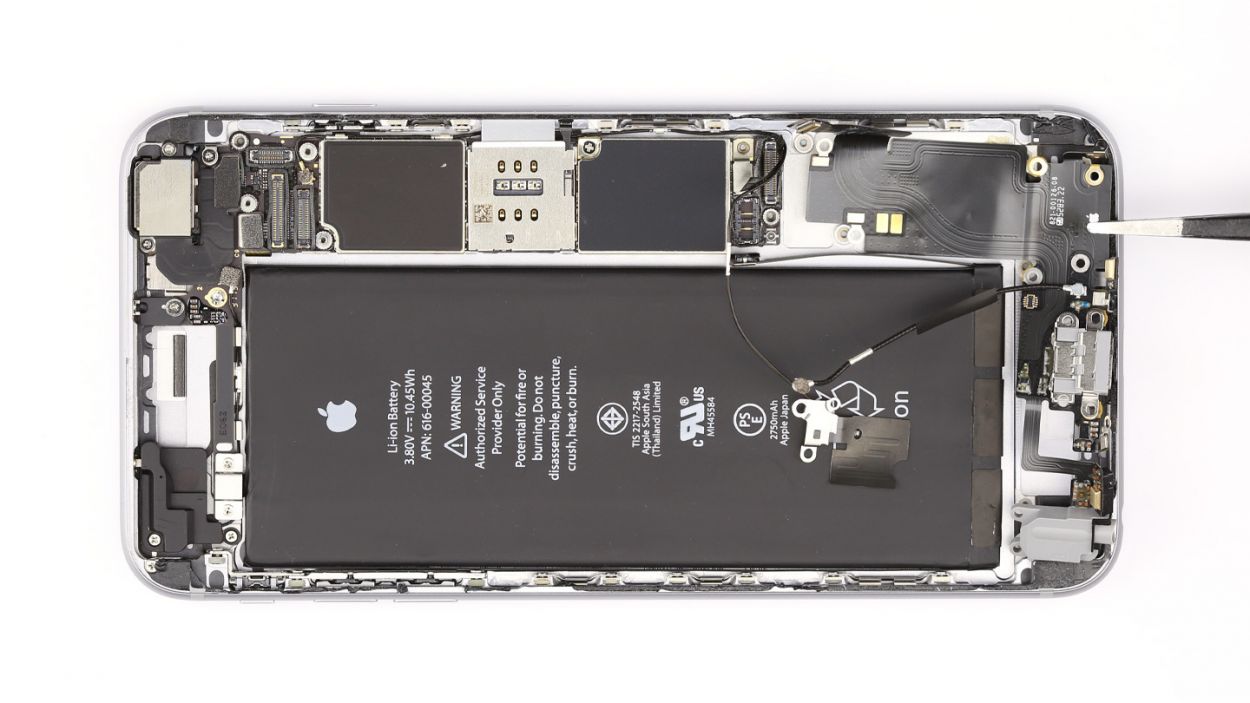

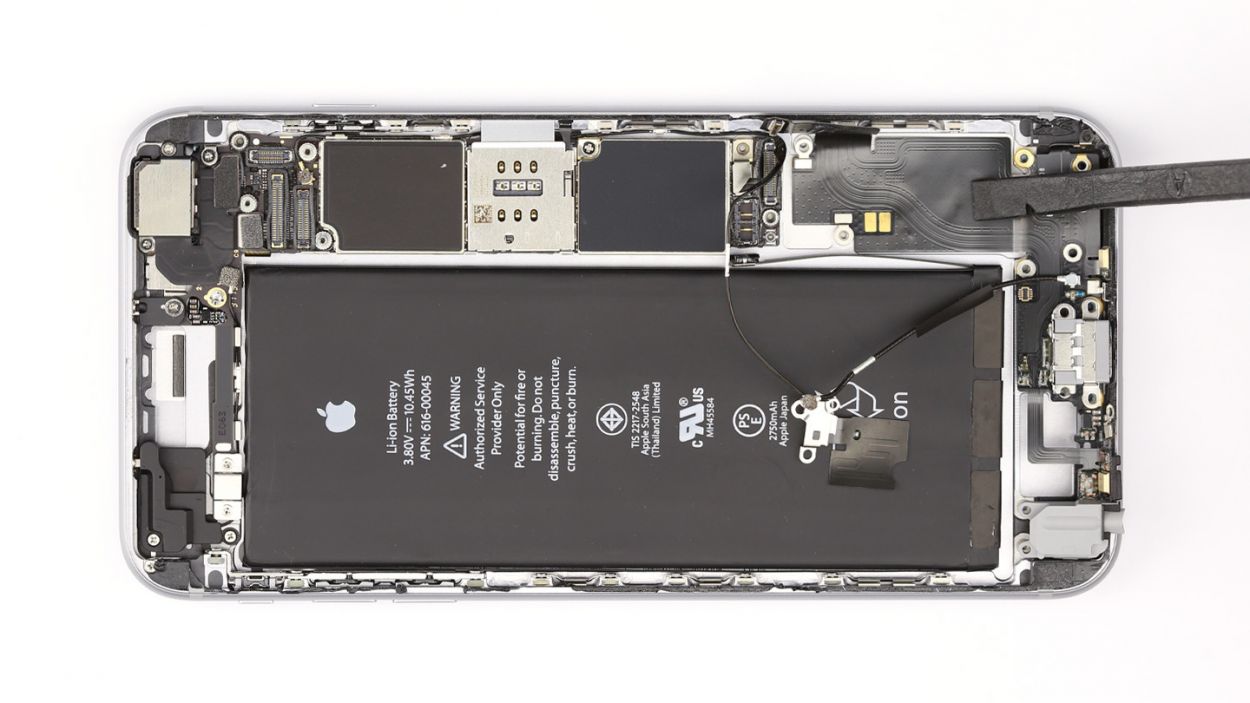

– Slide that spatula under the flexible flat cable in a few spots, just to give it a little nudge.

– Using your fingers or tweezers, carefully lift away the ribbon cable. You’re doing great!

– Place the Lightning connector back where it belongs – it’s like putting the final puzzle piece in!

– Give that flexible flat cable a good press down so it sticks like a champ.

– Double-check that the two shiny gold microphones, the Lightning connector, and the headphone jack are snugly fitted in the frame. Everything should be in its happy place!

– Time to tighten up that Lightning connector! Grab your Phillips screwdriver and secure it with these four little screws: 1 x 3.0 mm Phillips screw, 1 x 1.1 mm Phillips screw (angled), 1 x 1.8 mm Phillips screw, and 1 x 1.3 mm Phillips screw. You’re doing awesome!

– Let’s get that speaker snug in the back cover of your iPhone 6s Plus. Just make sure those antenna cables are sitting pretty in their guides!

– Give a gentle press to stick that antenna onto the speaker.

– Now, use the guide to give the antenna cable a little hug against the speaker.

– Time to secure the speaker! Fasten it down with these seven trusty Phillips screws: 2 x 2.2 mm Phillips screws with large heads, 2 x 2.6 mm Phillips screws, 2 x 1.5 mm Phillips screws, and 1 x 2.4 mm Phillips screw (angled).

– Let’s get that Taptic Engine back where it belongs! Place it in its original spot, just like a puzzle piece fitting perfectly.

– Now, secure the Taptic Engine with those two screws. You’ll need a 2.1 mm Phillips screw and a 3.0 mm Phillips screw. Tighten them up and make sure everything is snug!

– Finally, connect the contact to the flexible flat Lightning cable. You’re almost there!

– Let’s get that plate back on! It’s like putting the finishing touch on a masterpiece.

– Secure it with those three little screws: one 2.6 mm Phillips screw and two 3.3 mm Phillips screws. You’re doing a fantastic job!

– Reconnect the antenna, Lightning connector, battery, and logic board – it’s like a family reunion!

– Next, let’s bring back that shiny silver cover. It’s time for a little makeover!

– Screw the cover onto the logic board using one 2.0 mm Phillips screw and one 2.9 mm Phillips screw. You’re almost done!

– Now, let’s gently fold that display down. It should click into place at the top edge where the connection cables hang out. Just like a puzzle piece!

– Next, give the display a little nudge towards the Home button until it fits snugly in the frame. We want it to be flush and happy with the frame!

– Now, grab that pentalobe screwdriver and let’s get those two screws at the bottom of the enclosure in place! These little guys are 2 x 3.3 mm pentalobe screws, so make sure they’re snug and ready to go!

– Sync up your iPhone with iTunes or hop onto a WLAN network and hang tight until the time is set just right!

– Pop out the SIM tray, give that SIM card a little love, and then slide it back in.

– Flip on airplane mode for a sec and then switch it off again to refresh things up!
