iPhone 8 – Removing the logicboard
Duration: 90 min.
Steps: 26 Steps
In this manual we will show you how to remove the logicboard on your own, to let it dry, or to clean it if necessary.We wish you good luck with the disassembly of your logicboard! Please leave us an evaluation of our instructions. In this manual we will show you how to remove the logicboard on your own, to let it dry, or to clean it if necessary. We wish you good luck with the disassembly of your logicboard! Please leave us an evaluation of our instructions.
Step 1

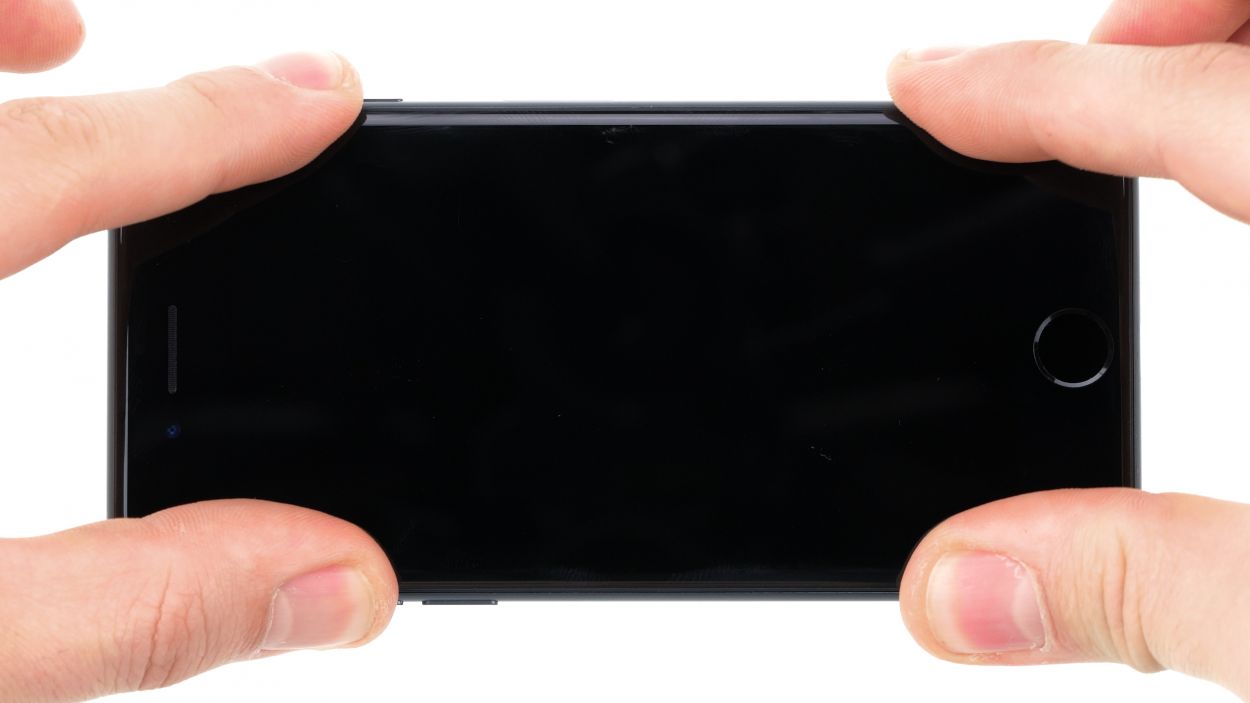

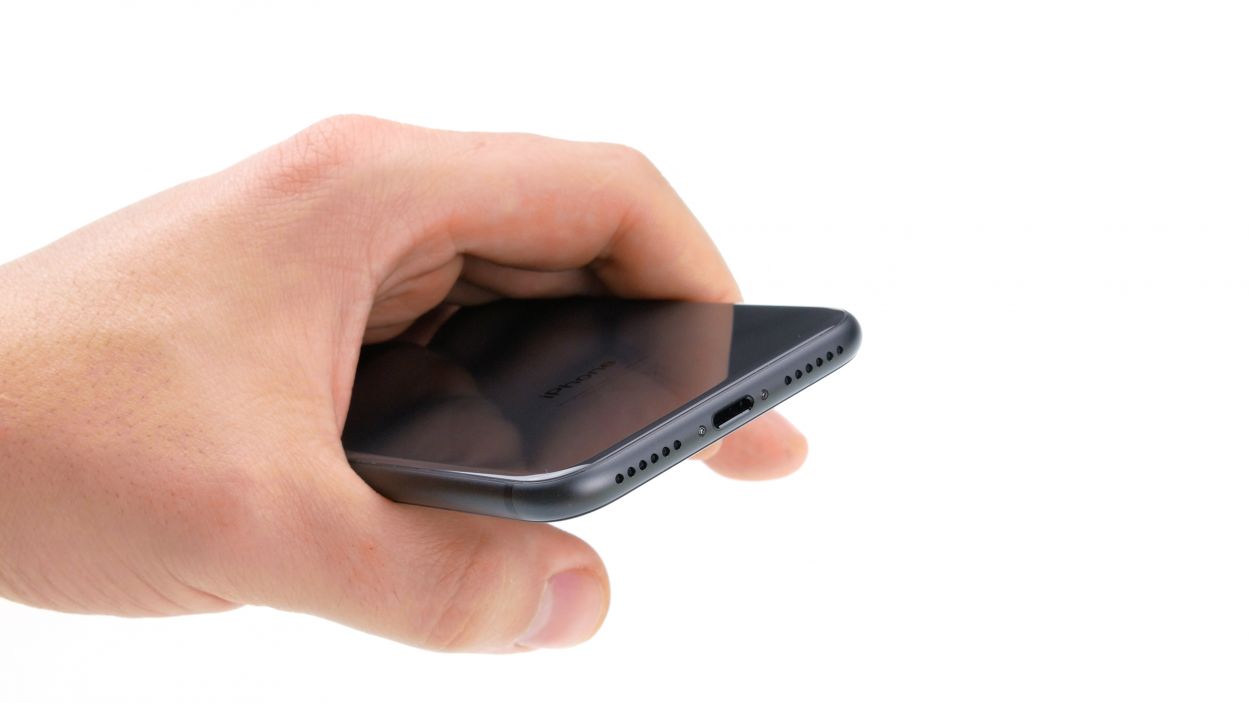

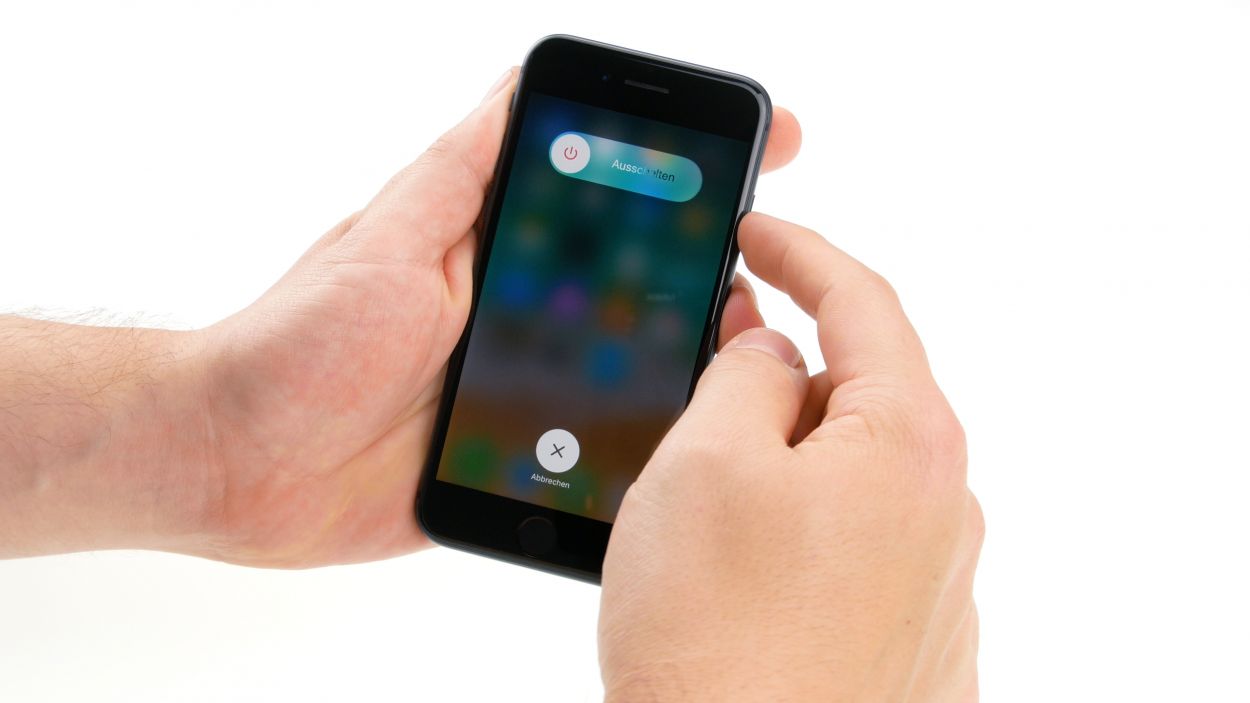

- First things first, let’s keep your iPhone safe! Power it down completely to dodge any pesky short circuits. Just press that standby button for about three seconds until you see the 'Turn off' slider pop up on your screen.
- Now, give that slider a gentle swipe from left to right and hang tight until your iPhone is fully powered down. You're doing great!
Step 2
- Loosen the two Pentalobe screws on either side of the Lightning Connector and stash them away safely in your screw storage. You've got this!
2 × 3.4mm Pentalobe
To keep your screws and small parts safe and sound, we suggest using a screw storage solution. An old sewing box can work wonders for this! At Salvation Repair, we love our high-quality magnetic mat, which helps us arrange the parts just like they were in your phone. This way, you’ll know exactly where each screw came from, making reassembly a breeze!
Tools Used
Step 3
When it comes to heating your device, think of it like a warm hug – just enough to feel cozy without burning your fingers! Keep it at a comfy temperature, and you're golden.
- First, let's set the stage for success! Place your iPhone 8 on a soft, clean surface to keep it scratch-free while you lift the display.

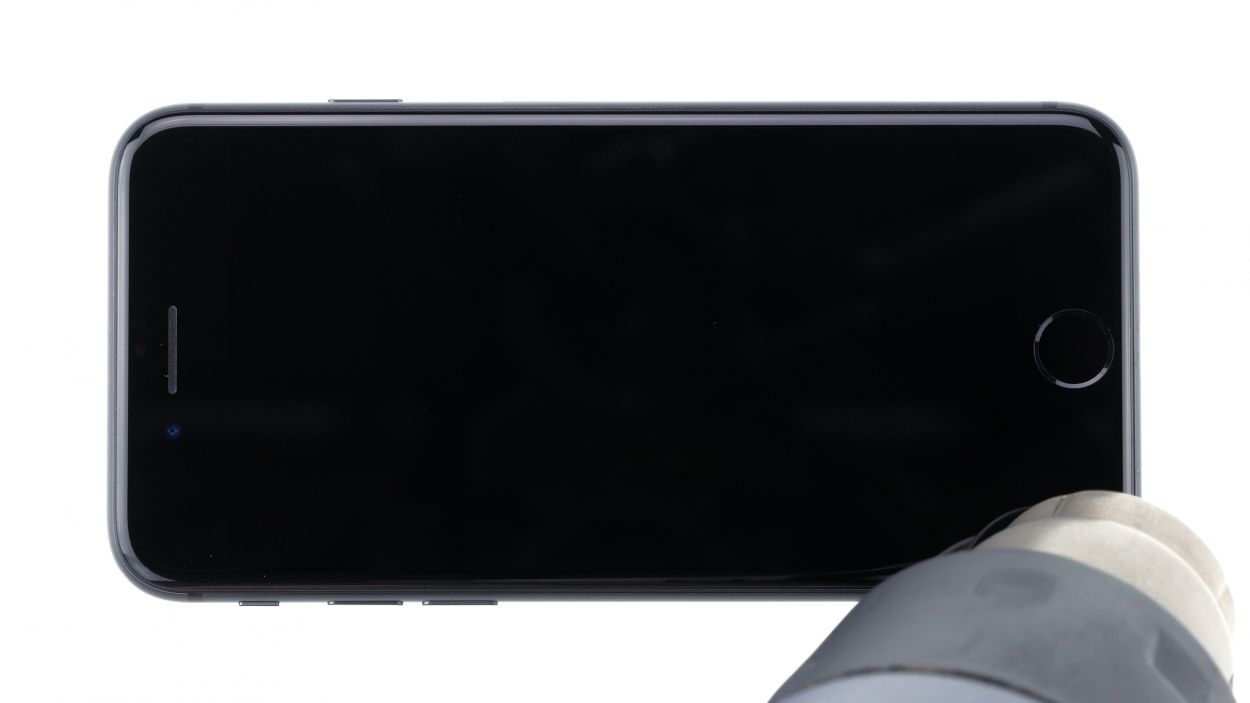

- Next, grab a hot air tool, whether it's a heat gun or a trusty hairdryer, and give the outside of the display a nice, even warm-up. You're on the right track!
Tools Used
Step 4
Opening up your iPhone 8 means waving goodbye to that sweet warranty that protects against dust and splashes, as well as its waterproof charm. But hey, you're on a repair adventure now!

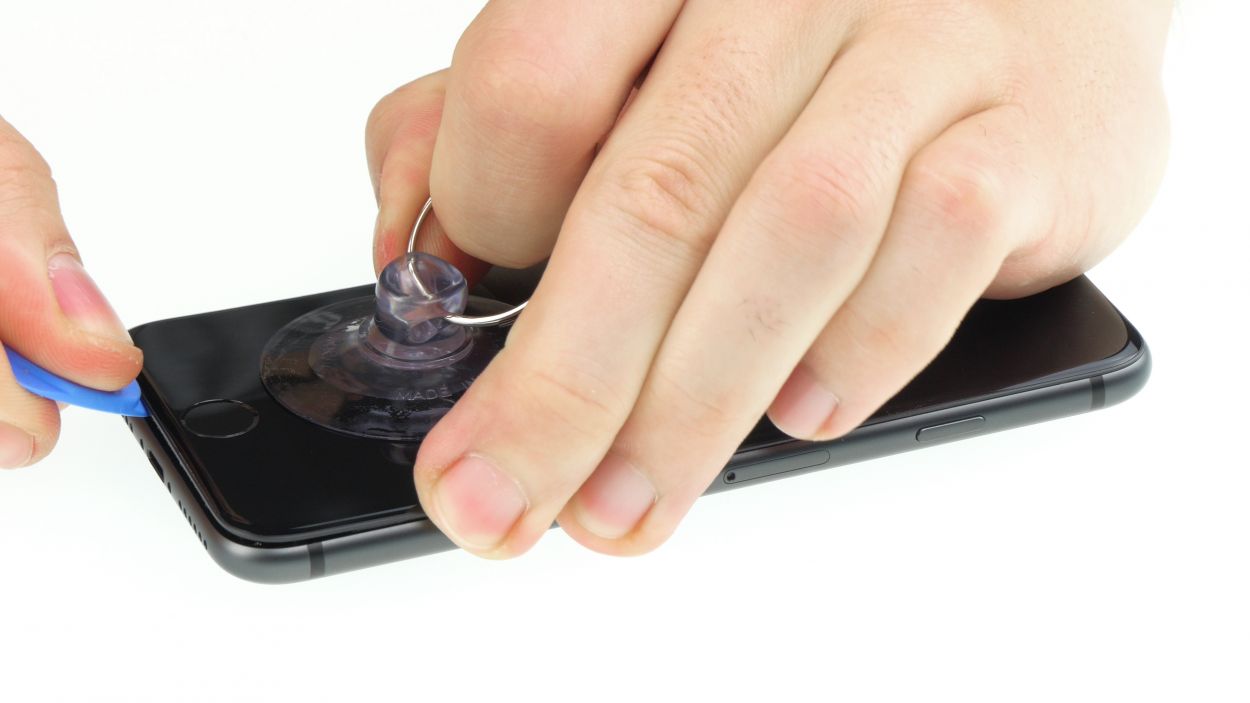

- Stick a suction cup on the display just above the Home button and give it a gentle tug upwards. This will create a tiny gap between the aluminum and display frames – you're doing awesome!
- Now, grab a flat plastic tool and slide it into that narrow gap you just made. Use it to nudge the aluminum frame upwards a bit. Flat plastic picks work wonders for this task!
Tools Used
Step 5
While you're opening up your iPhone 8, remember to keep it within a 180° angle! Going beyond that could risk those delicate flex cables getting a bit too stretched. Let's keep everything safe and sound!

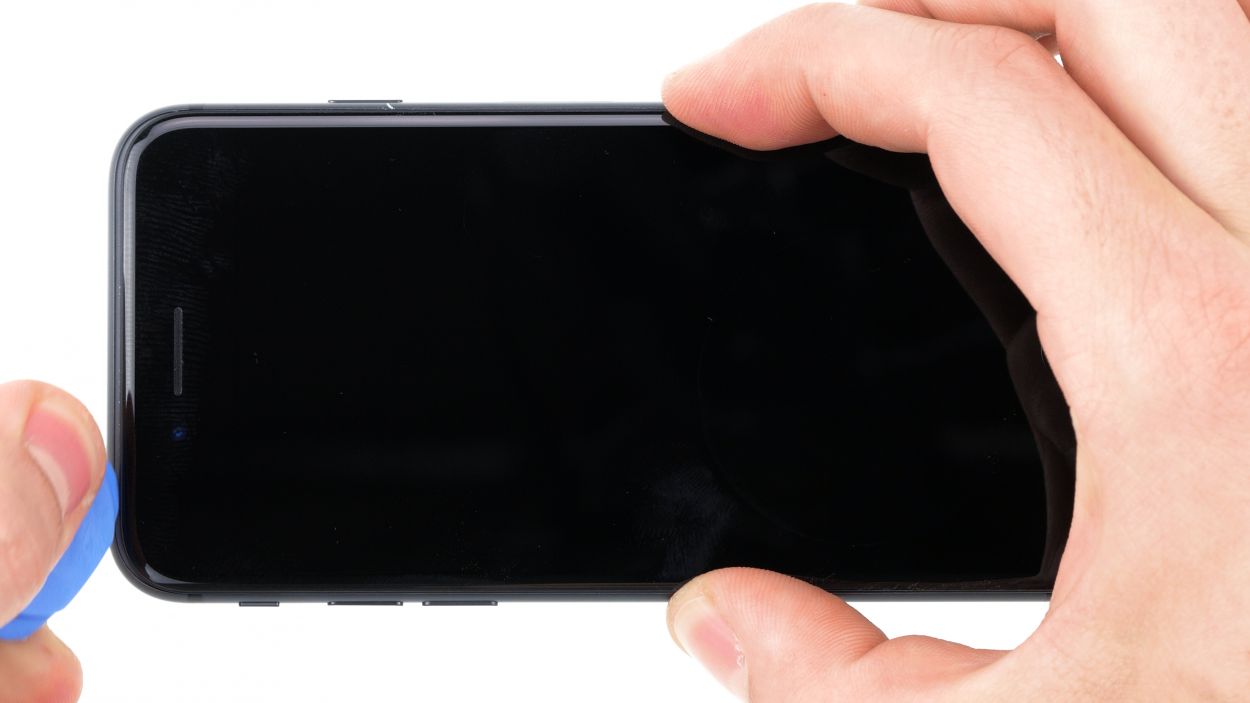

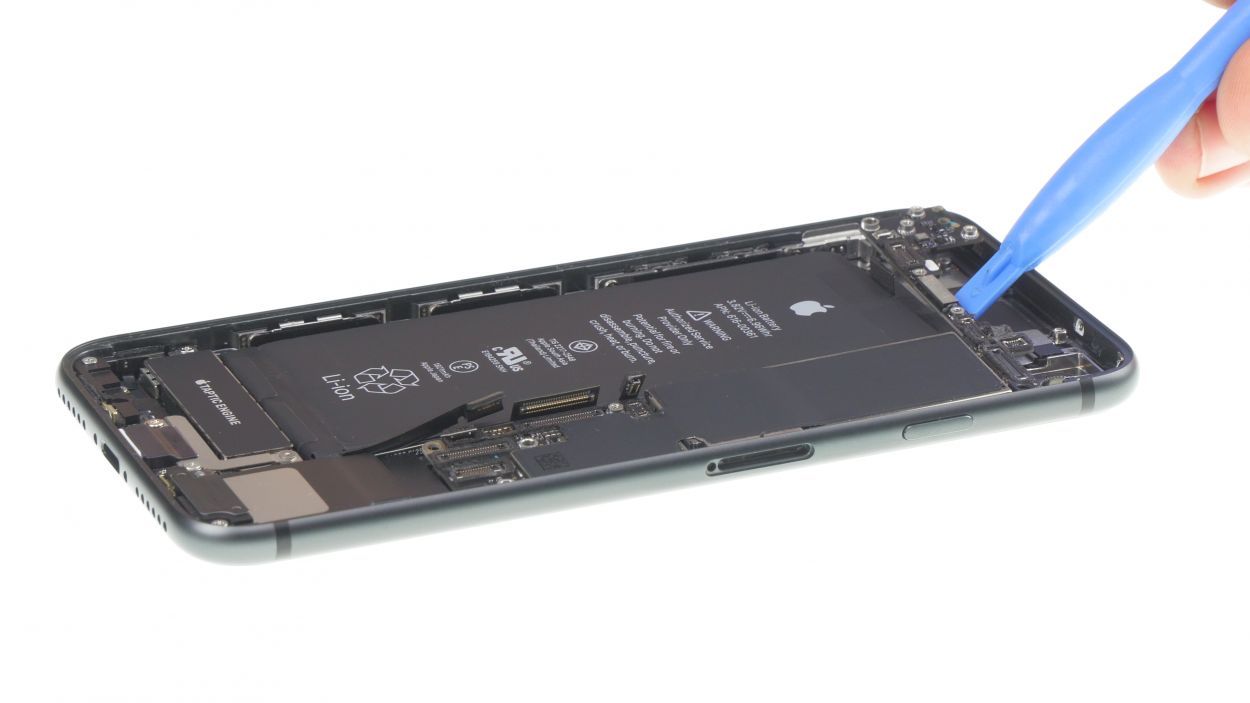

- With a gentle touch, push the display upwards using your trusty plectrum to pop those lugs free from the aluminum frame. You're doing fantastic!

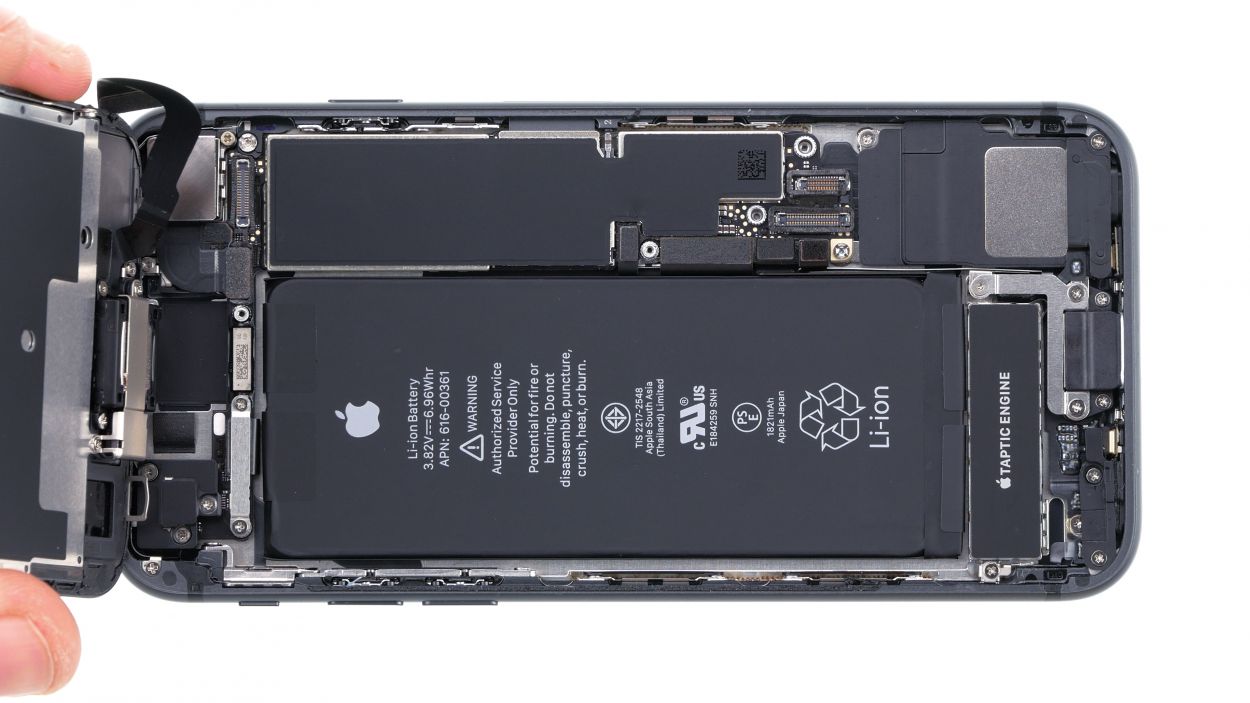

- Next, swing the display open towards the standby button. Lean it against something sturdy to keep those flexible cables from overstretching. You've got this!
Tools Used
Step 6
2 × 2.6 mm Phillips
2 × 1.0 mm Phillips

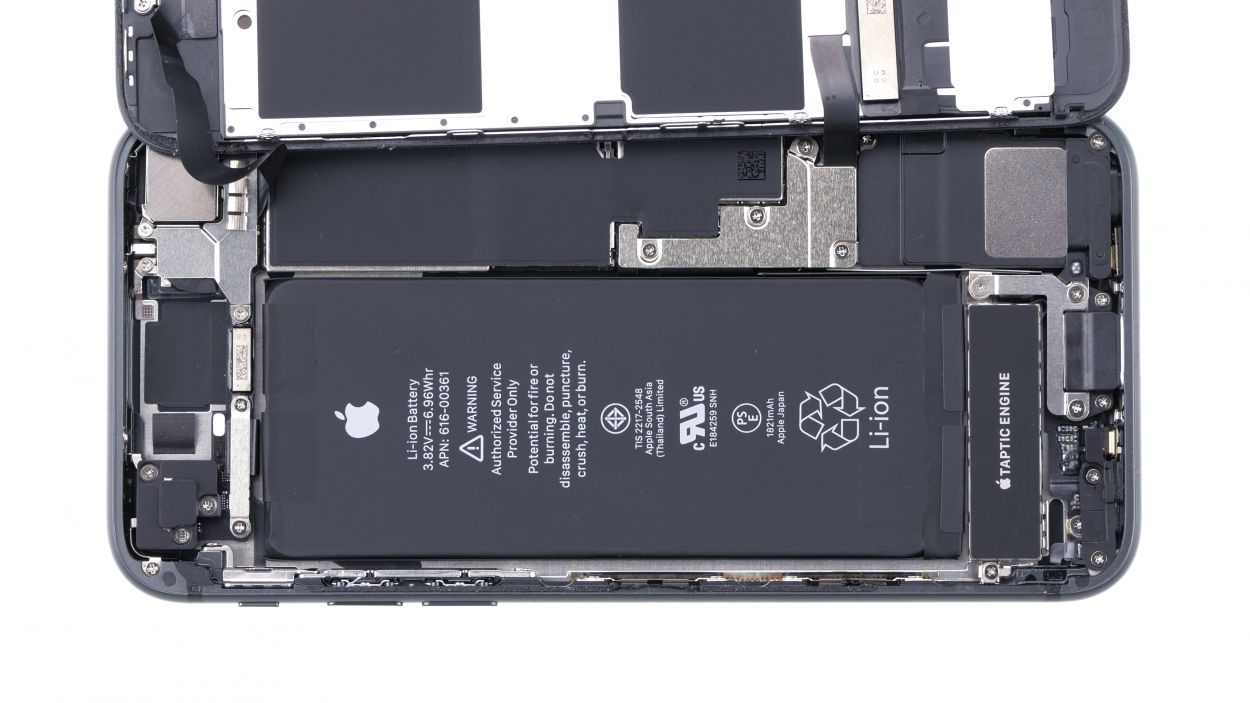

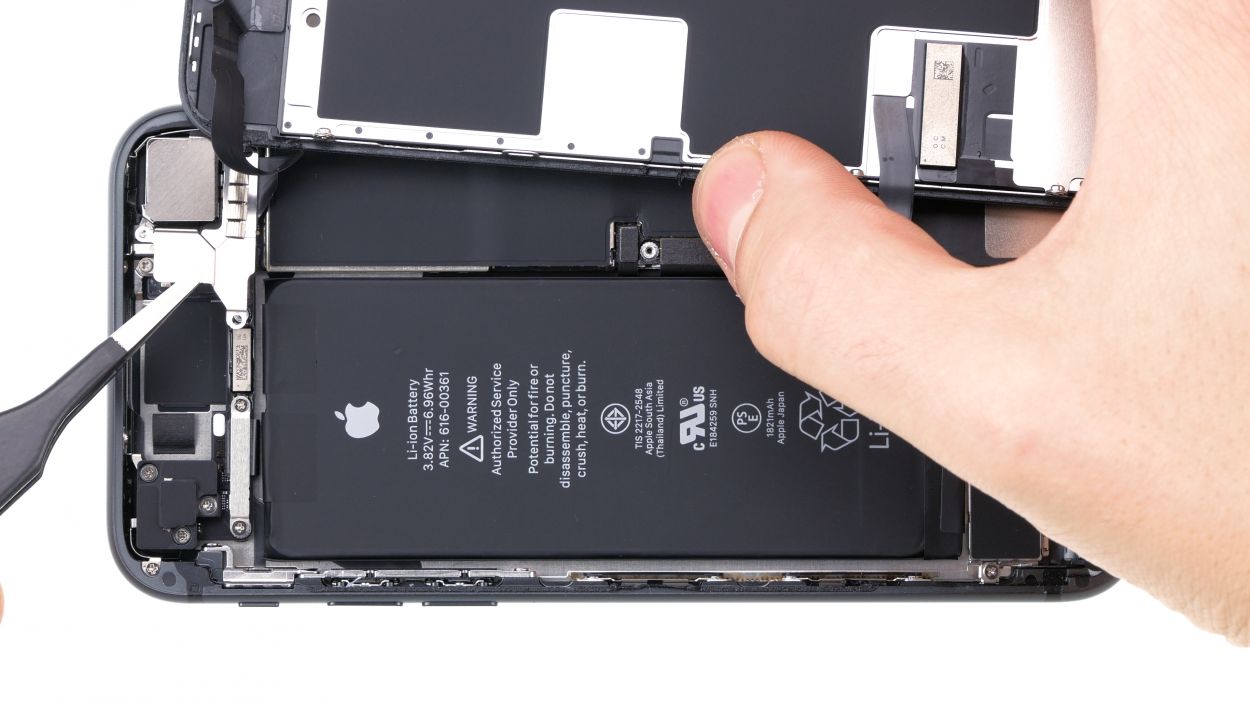

Before diving into the repair fun, make sure to disconnect that battery connector! It’s like putting on your safety goggles – it keeps those pesky short circuits at bay and prevents your device from accidentally powering up while you're in the zone.

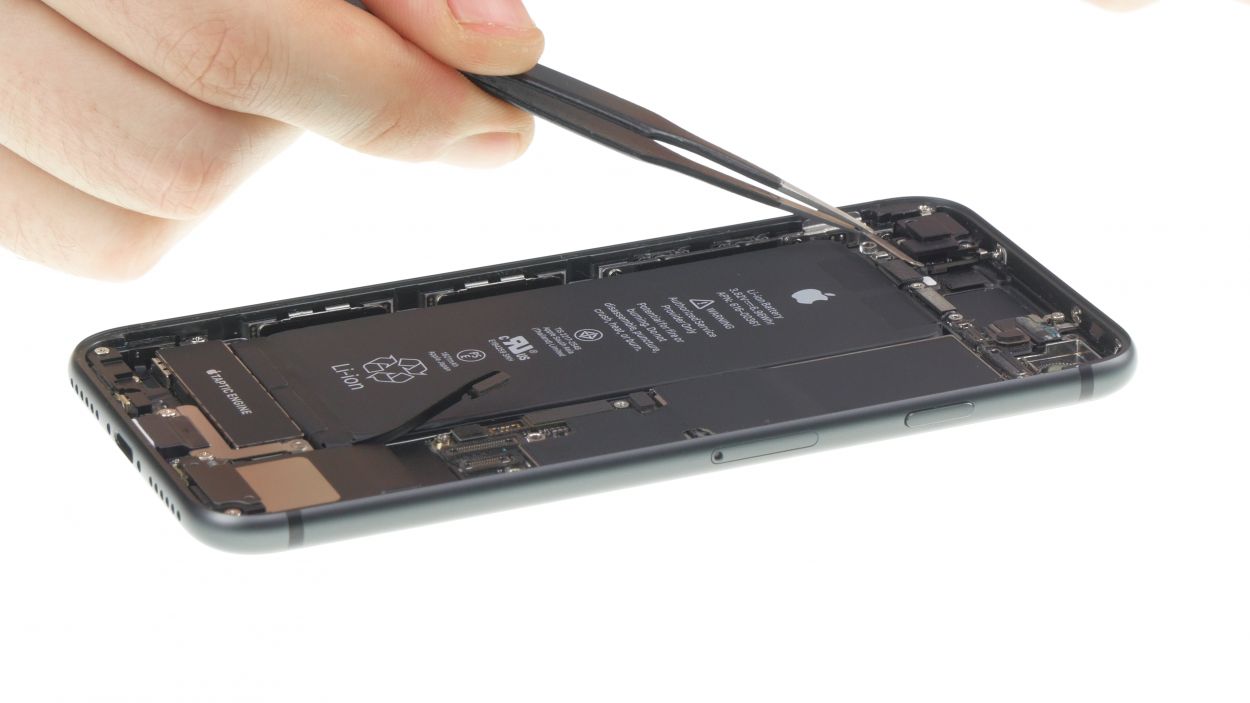

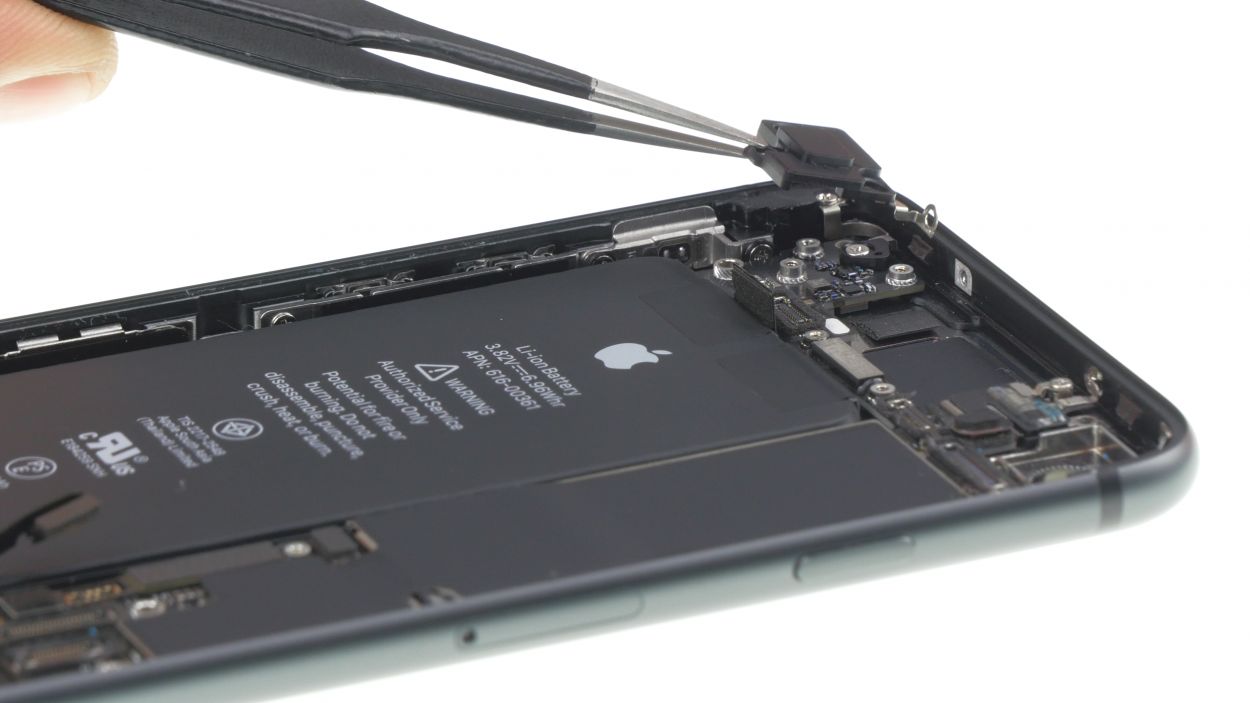

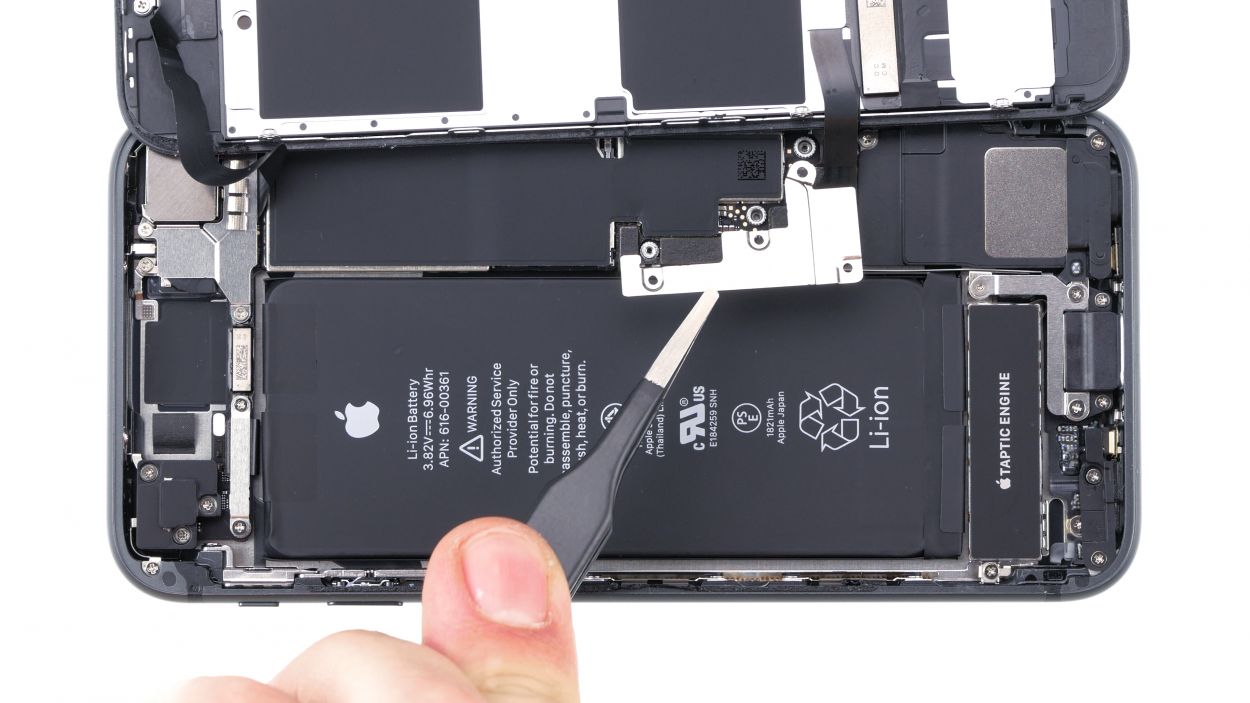

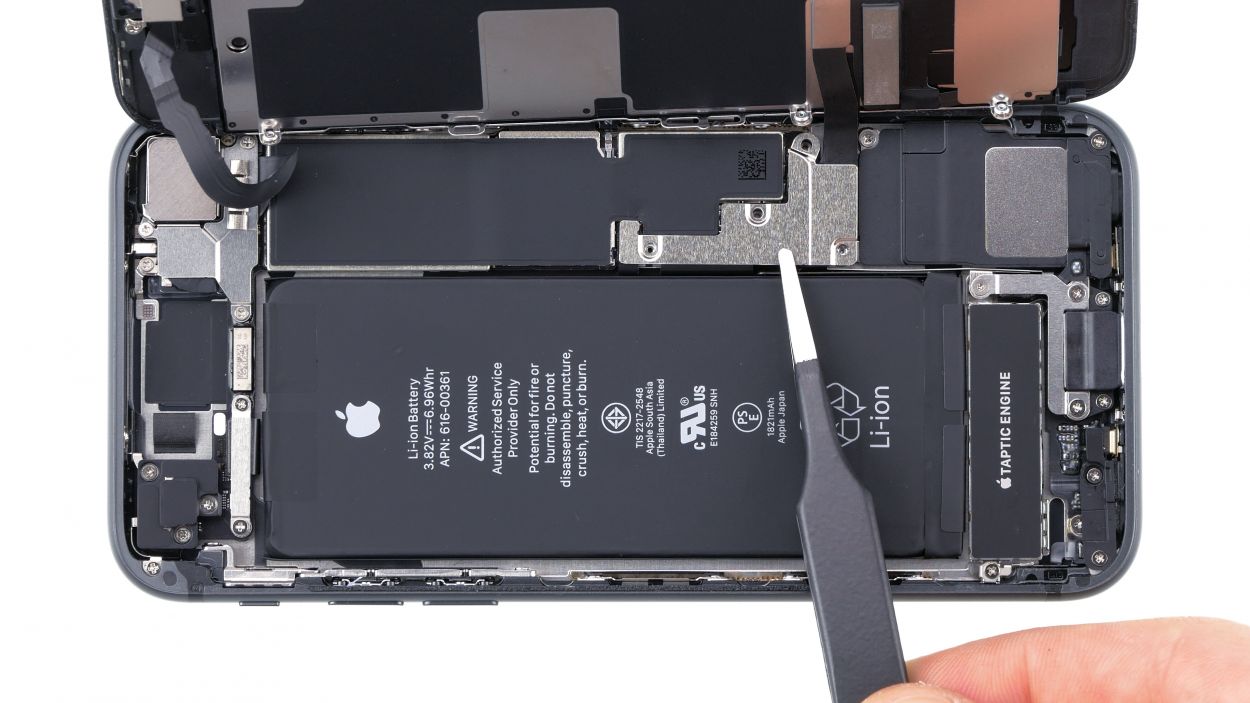

- Grab your trusty Phillips screwdriver and tackle those four Phillips screws. Once they're out of the way, use your tweezers to gently lift off the cover. You've got this!

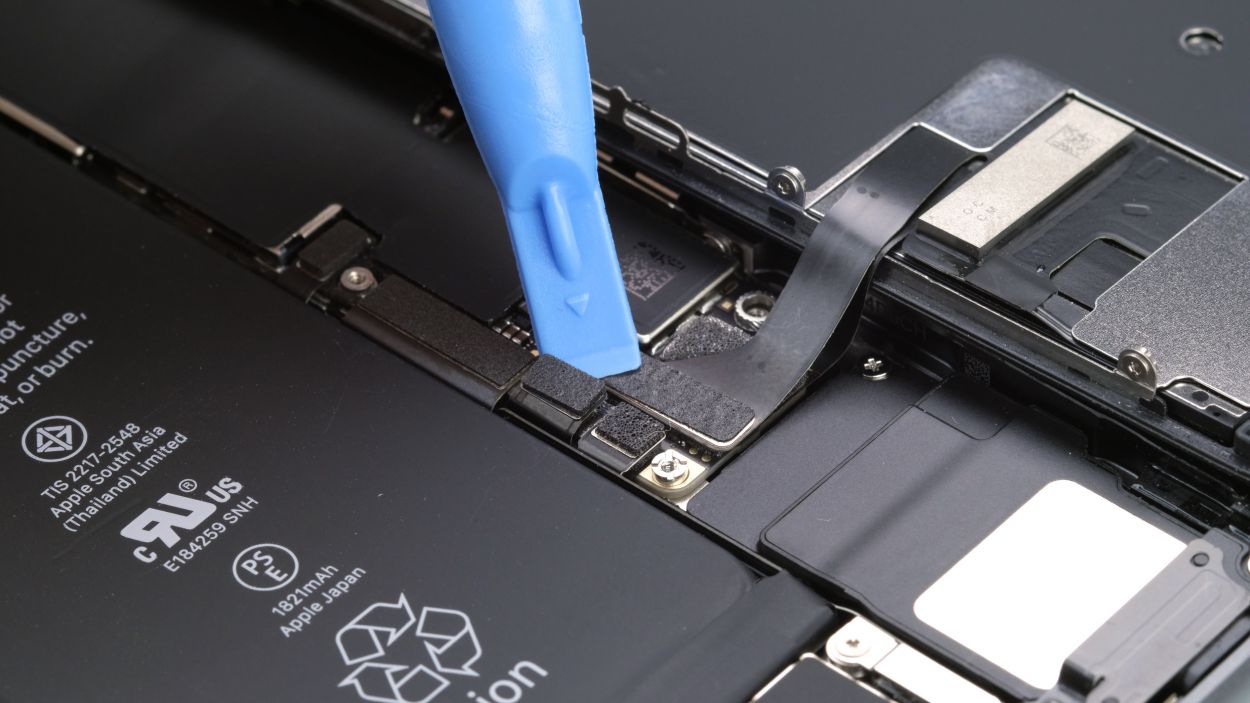

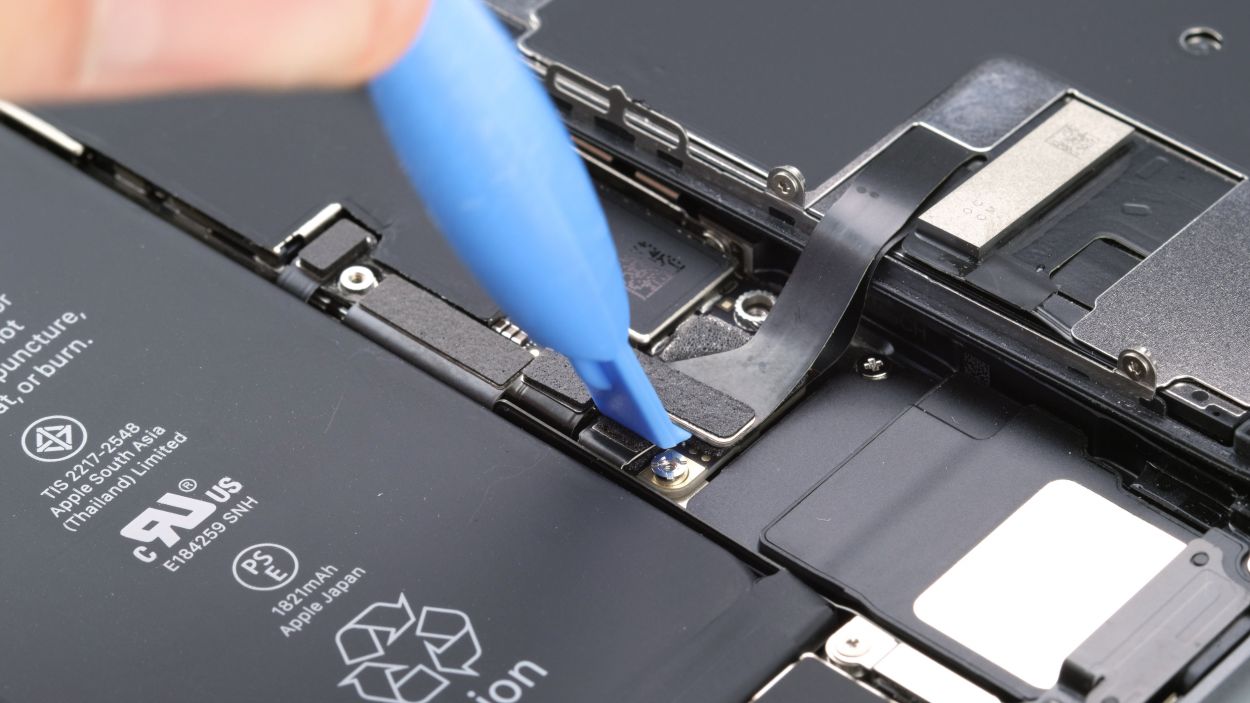

- Next up, it's time to disconnect the battery connector! Use a plastic spudger to carefully pry it off. Easy does it, and you're on your way to success!
Step 7

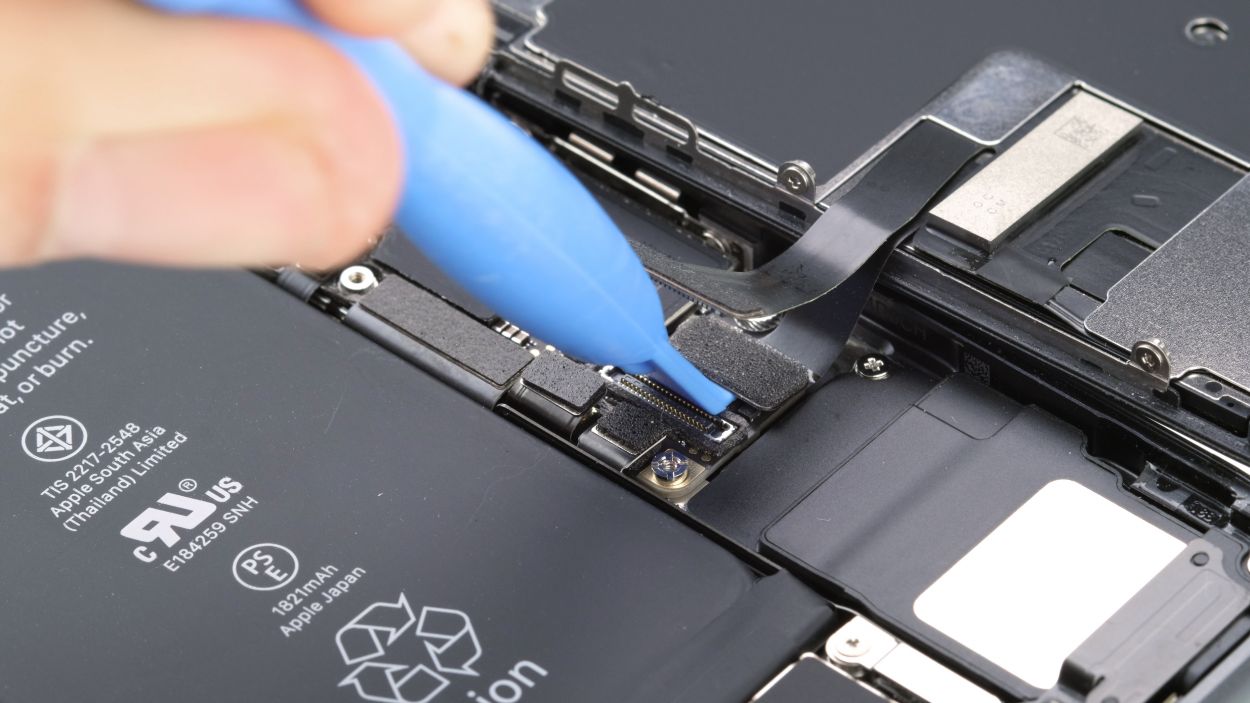

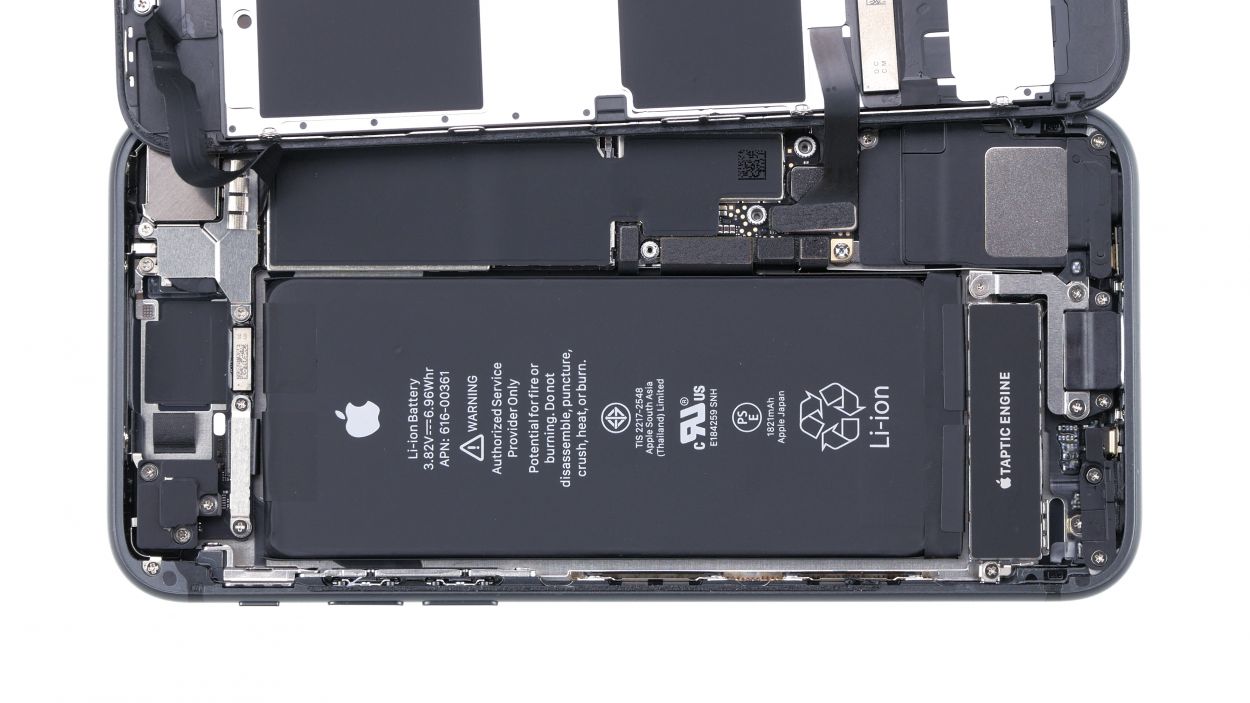

- Grab your trusty spudger and give a little love to those display connectors! Disconnect both the display and the home button with a gentle touch. You're nailing it!
Tools Used
Step 8
3 × 1.0 mm Phillips

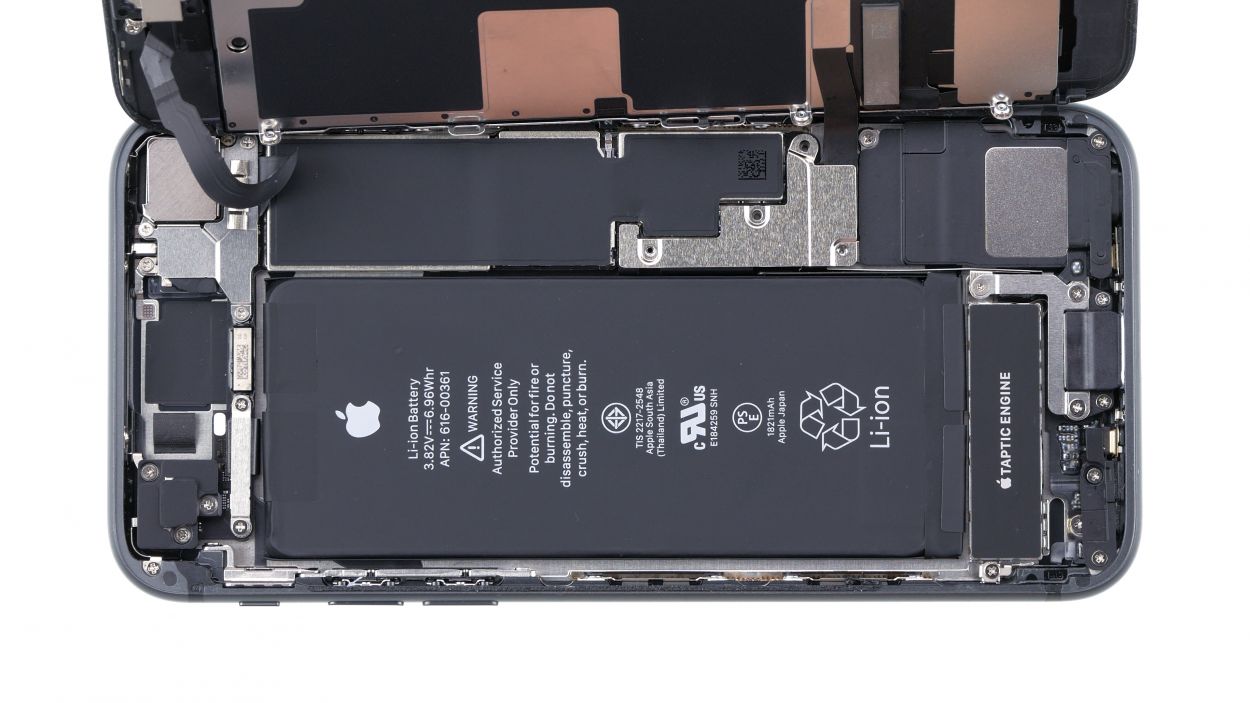

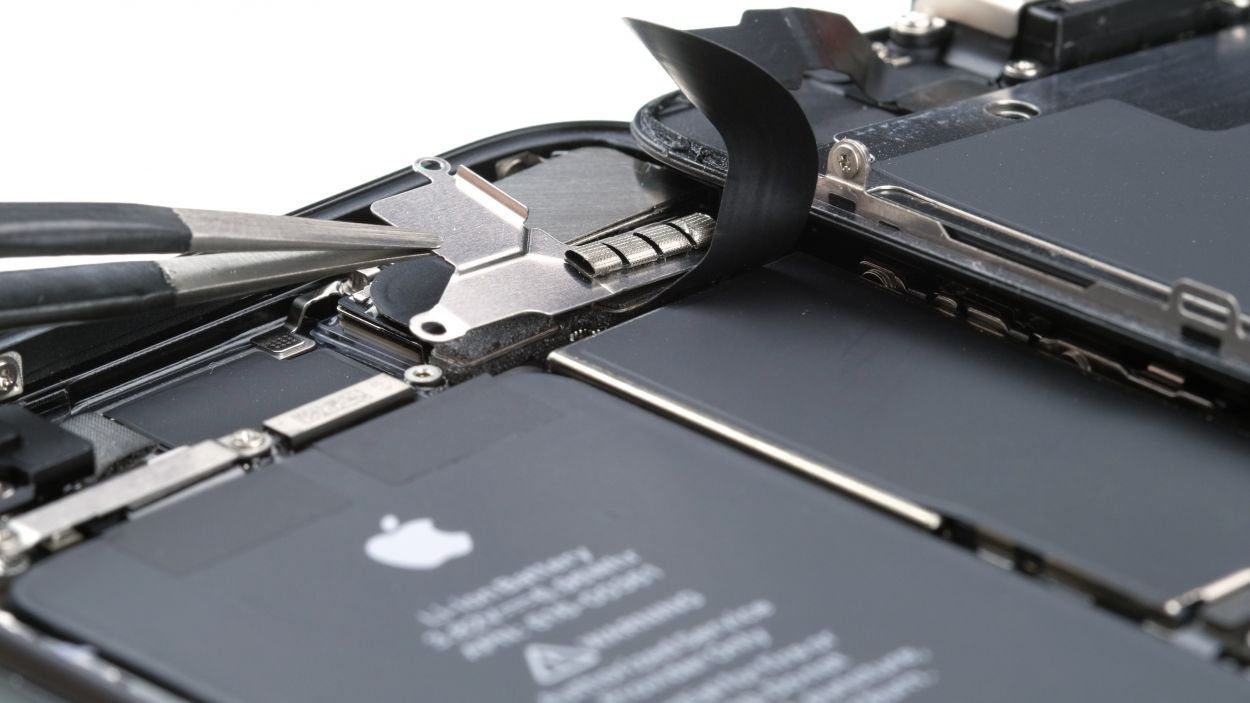

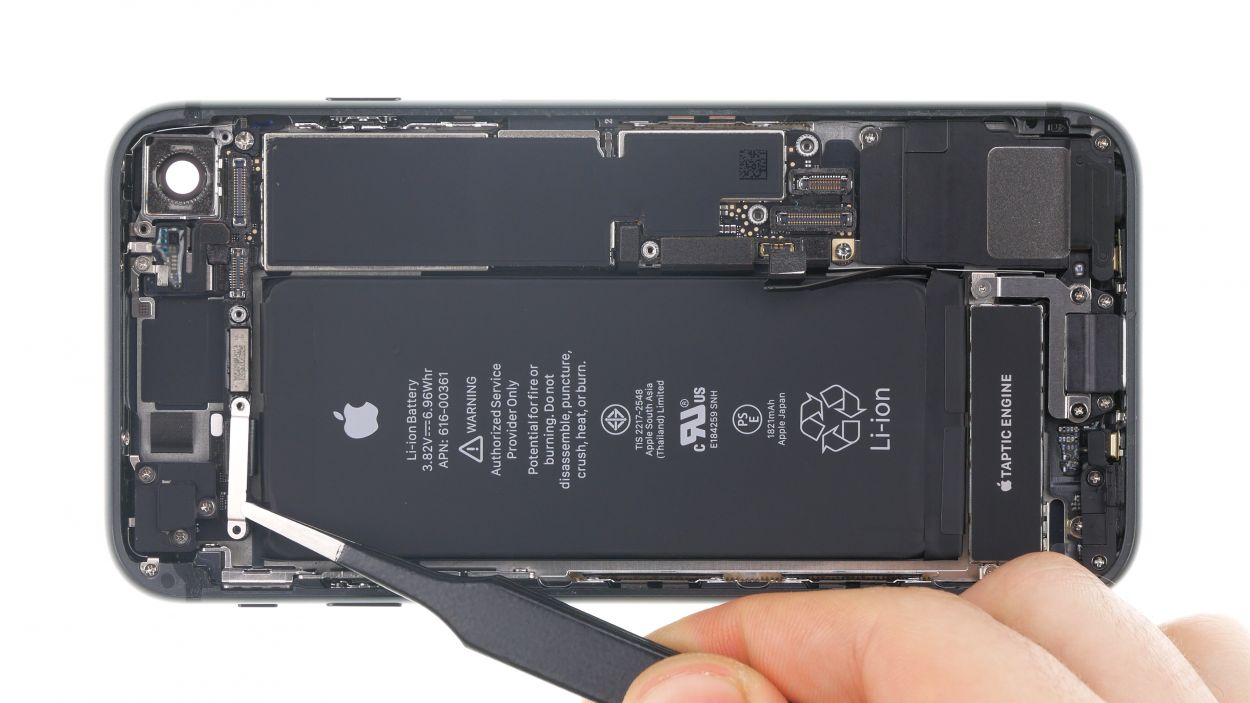

- Start by loosening the three Phillips screws that are holding the cover plate above the connector. You've got this!

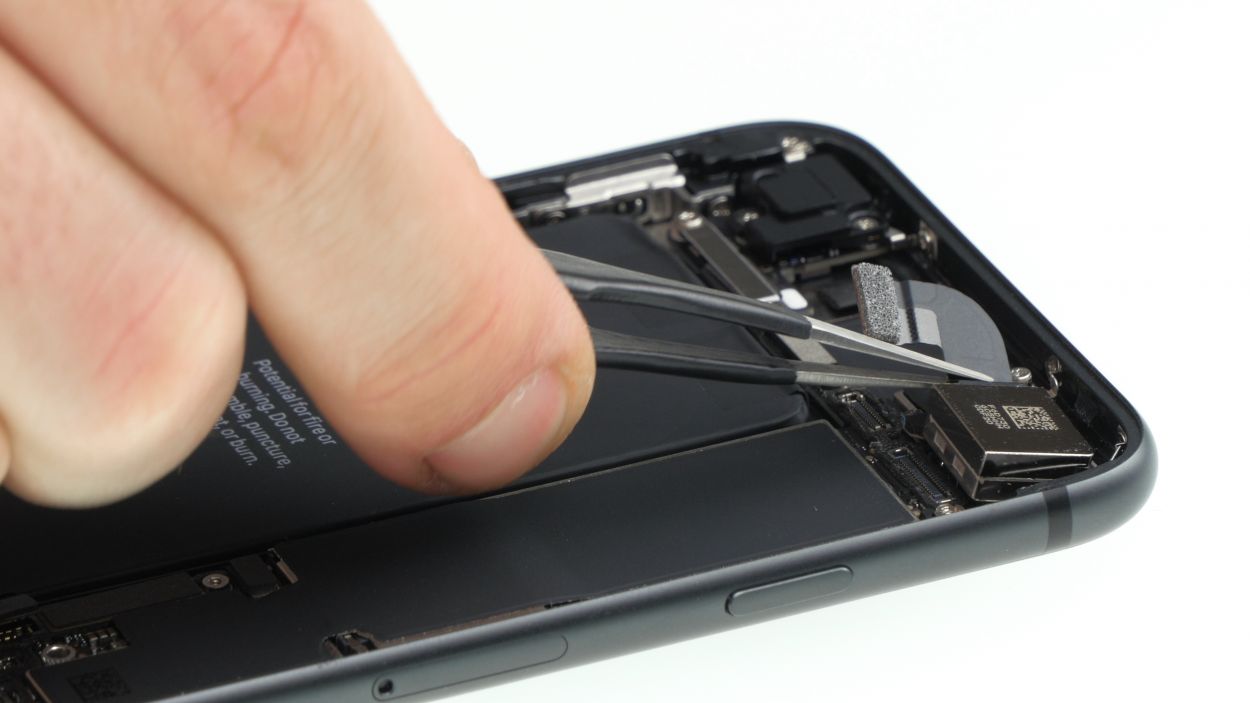

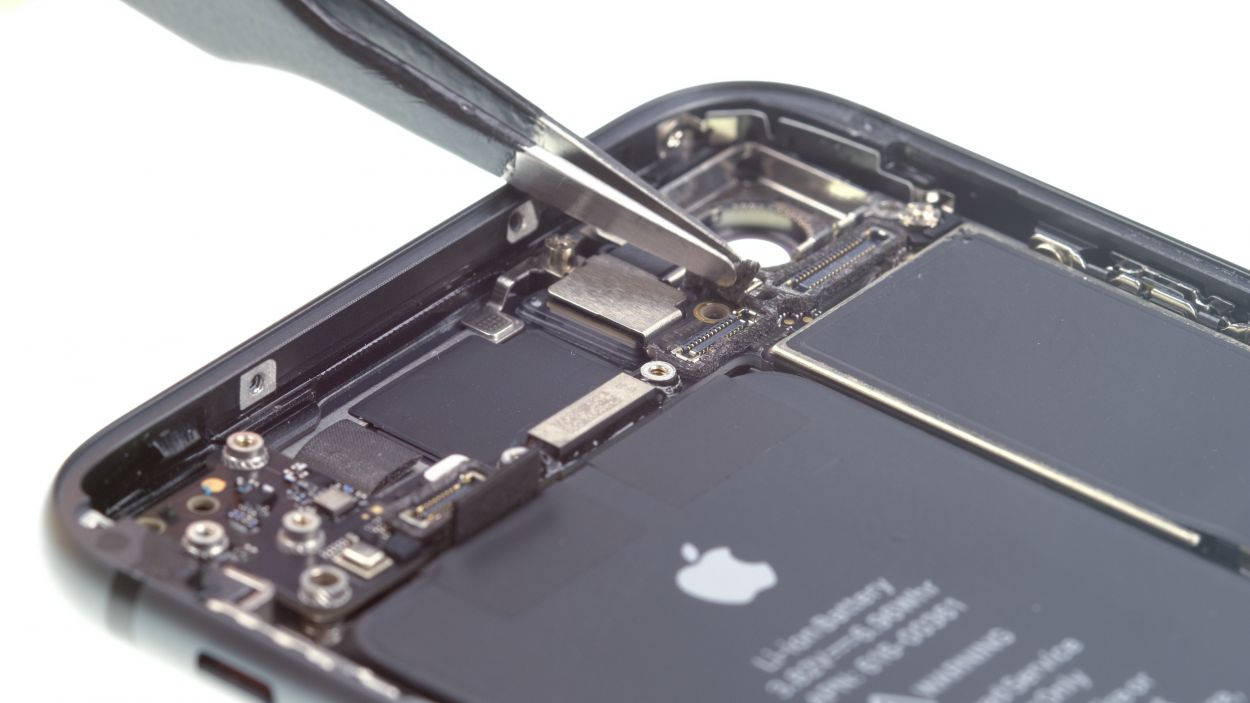

- Next, grab your tweezers and gently lift off the cover plate from your iPhone 8. Easy peasy!

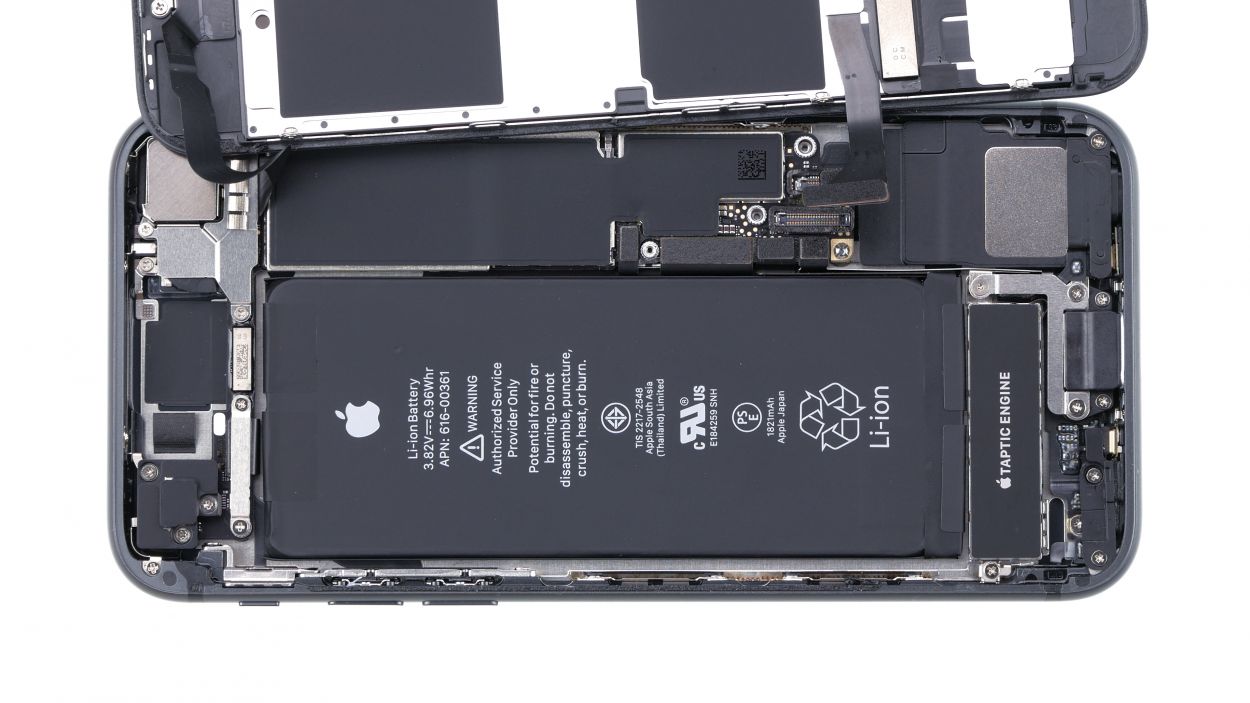

- Now, take your spudger and carefully separate the FaceTime connector from the board. You're doing great!
- And just like that, you can now completely remove the display. Way to go!
Step 9
1 × 2.9 mm Phillips
1 × 3.0 mm Standoff
You can find special screwdrivers designed for that tricky stand-off screw, but don't sweat it! A regular narrow slotted screwdriver will do the job just fine. Get ready to tackle that repair!

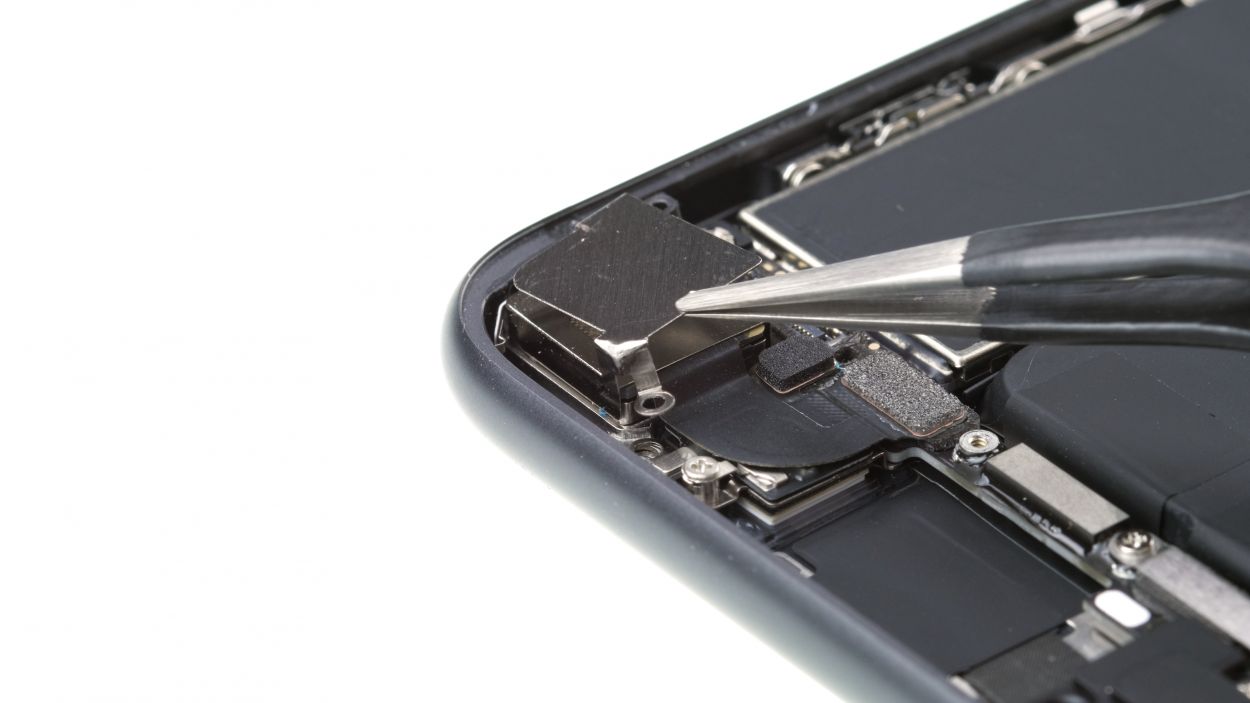

- Loosen the screws and take off the cover plate for the iSight camera. You're almost there!
Step 10
1 × 1.1 mm Phillips
1 × 2.7 mm Phillips
- First up, let's tackle those screws holding the bracket plate in place. Unscrew them with care!
- Next, gently lift out the bracket plate from your device. You're doing awesome!

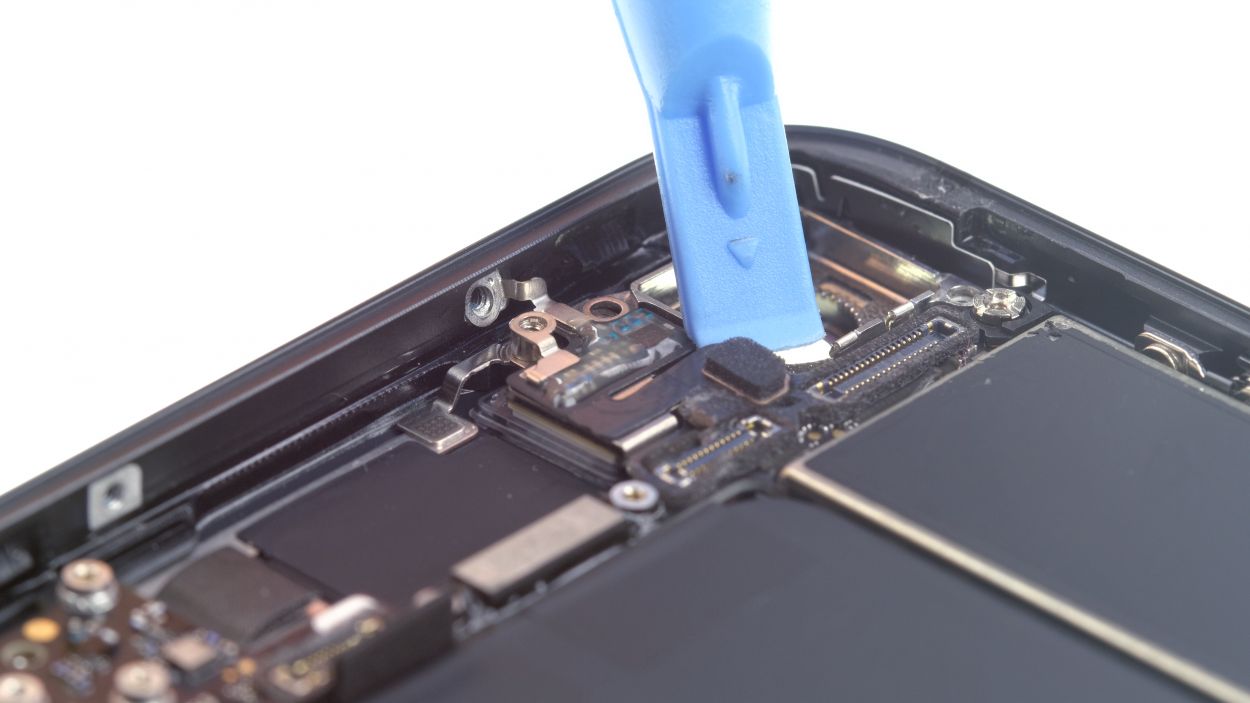

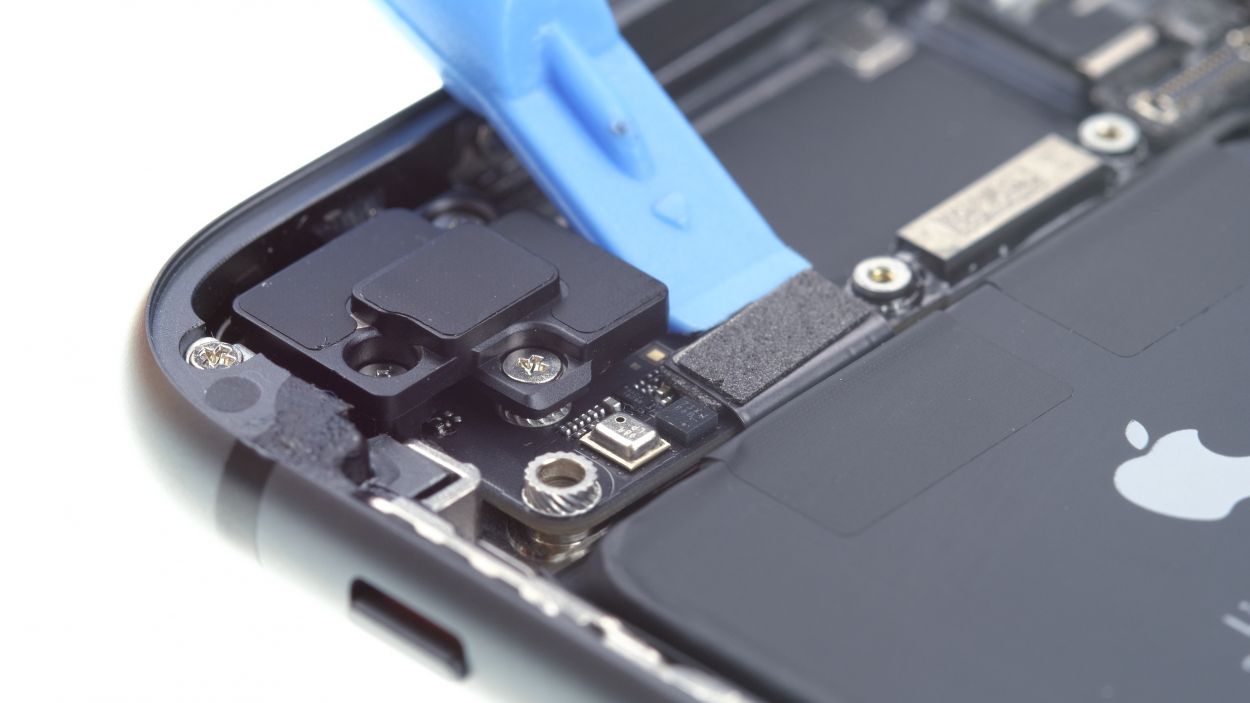

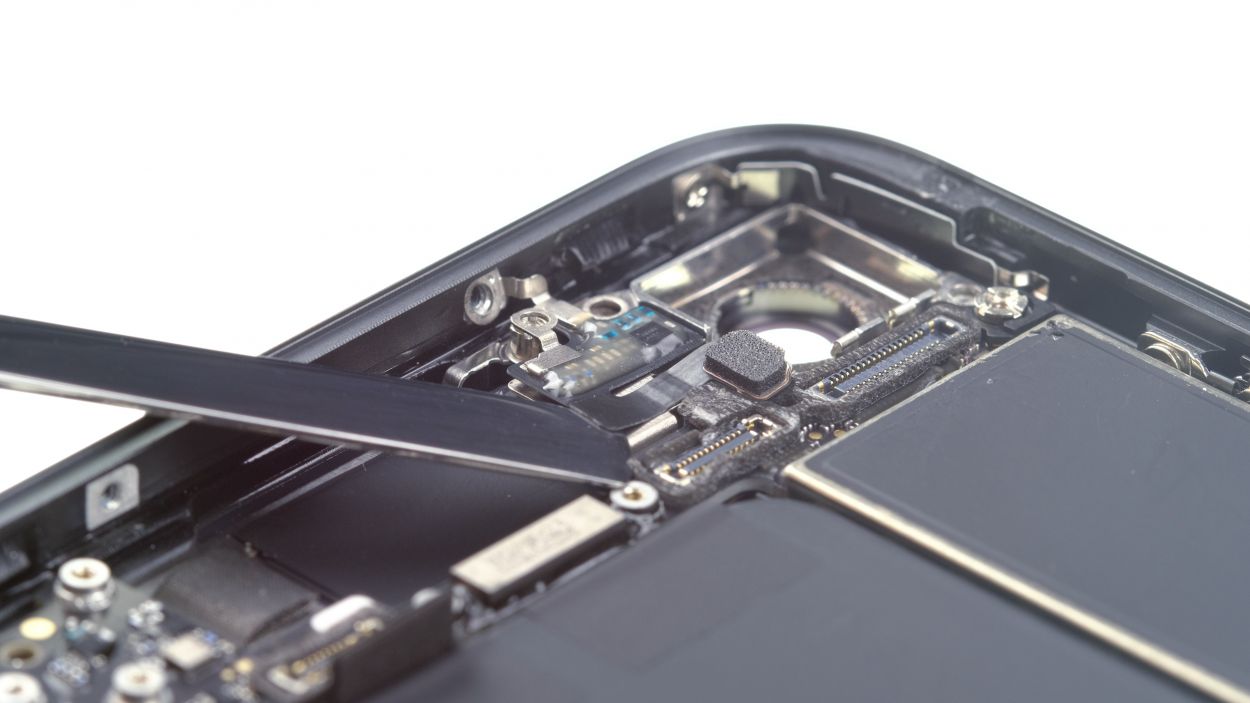

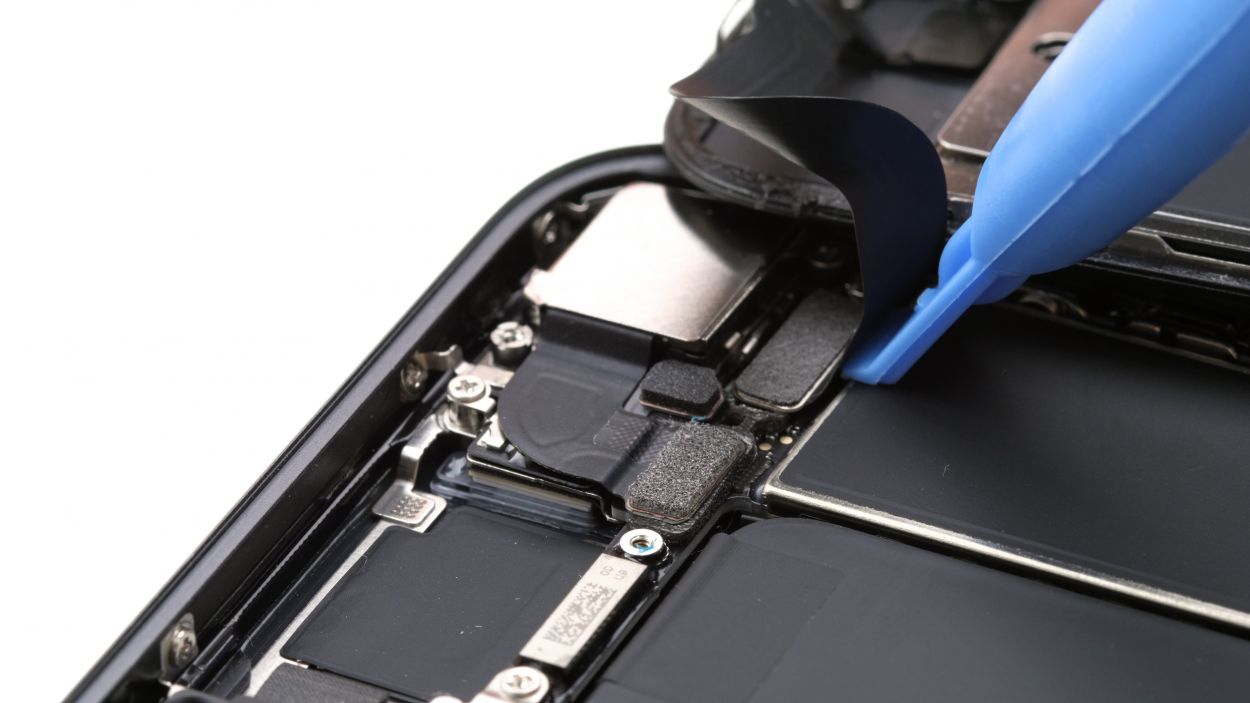

- Now, it's time to disconnect the connector from the logic board. Use a plastic spudger and pry it off carefully. You've got this!
Step 11
2 × 1.2 mm Philliips
2 × 1.0 mm Philliips
1 × 2.5 mm Phillips
1 × 1.4 mm Phillips

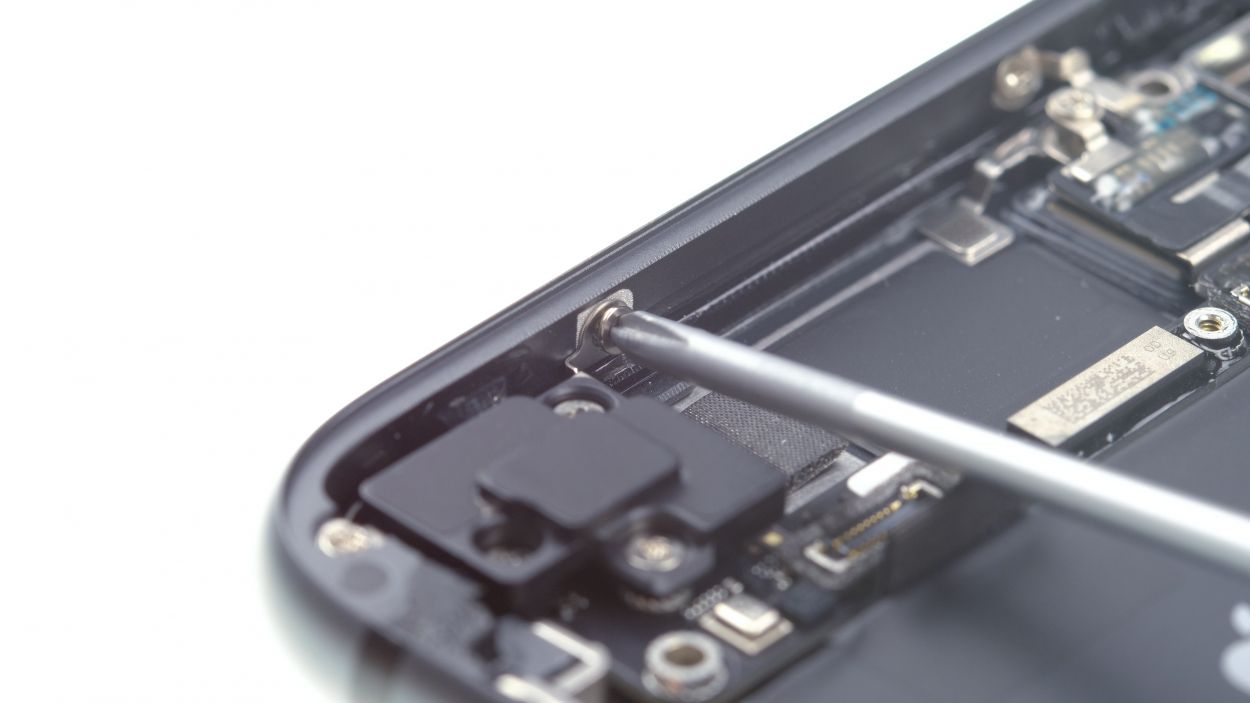

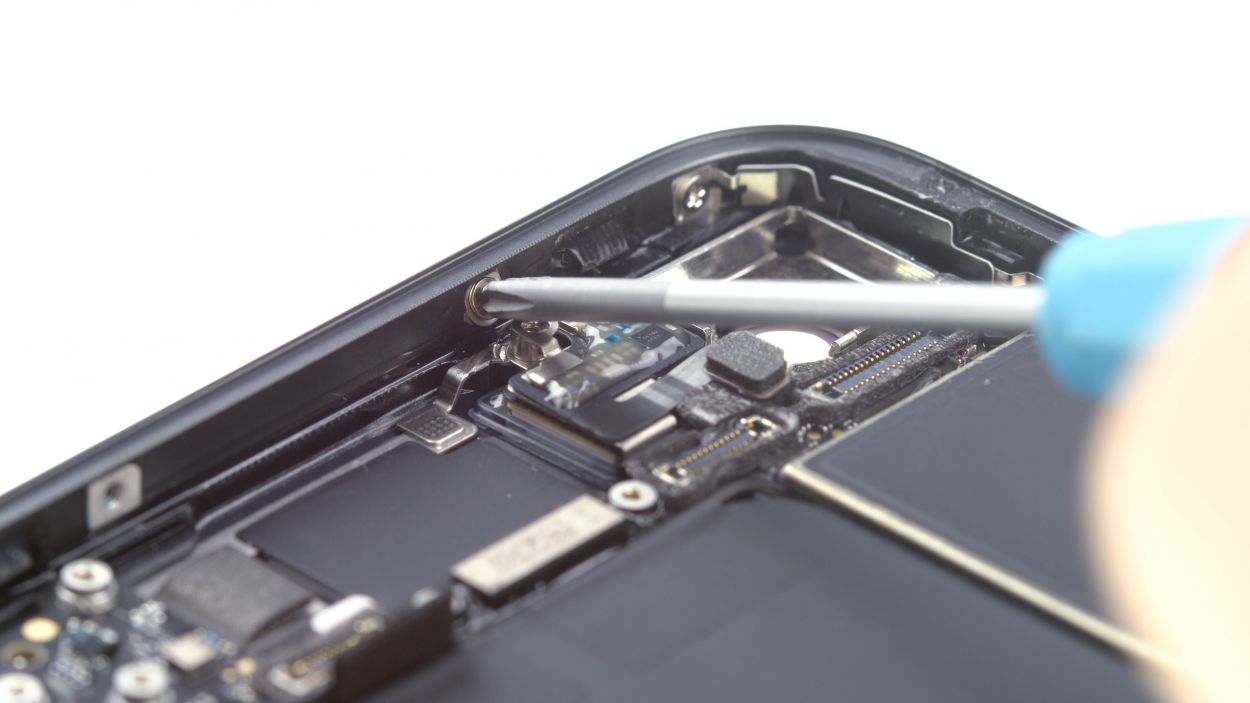

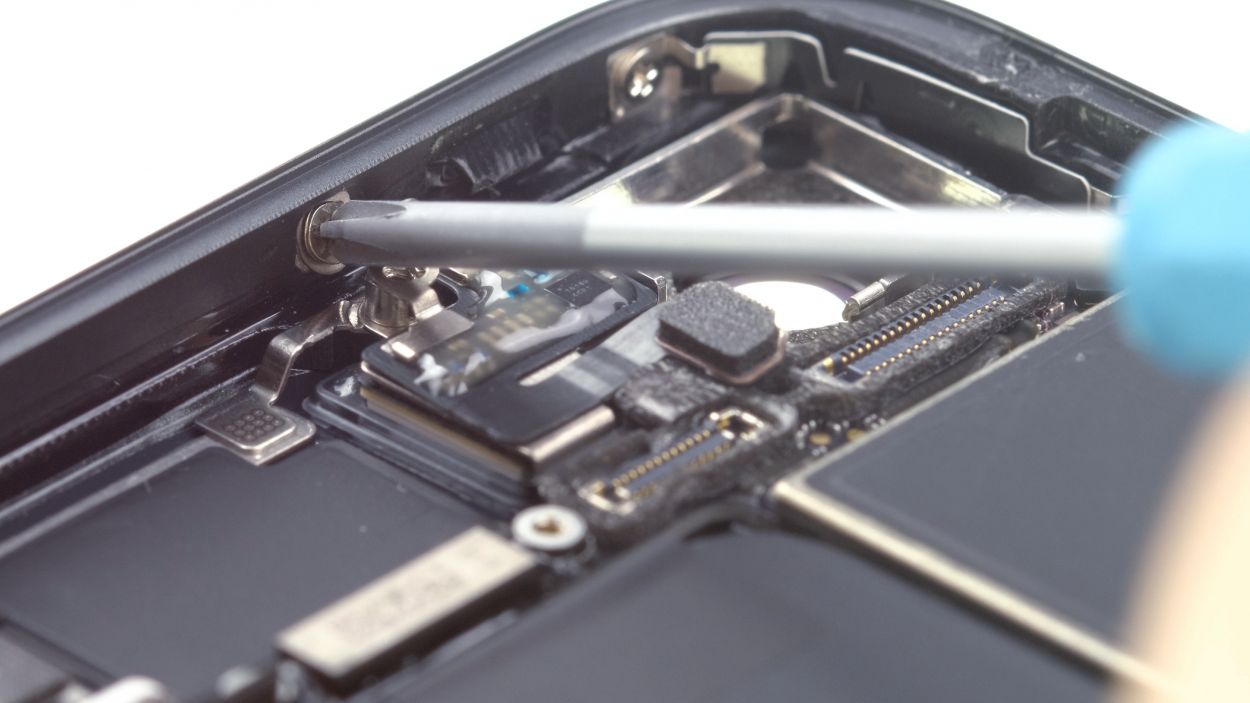

One of the screws is snugly nestled into the side of the back cover, just waiting for your skilled hands to set it free!

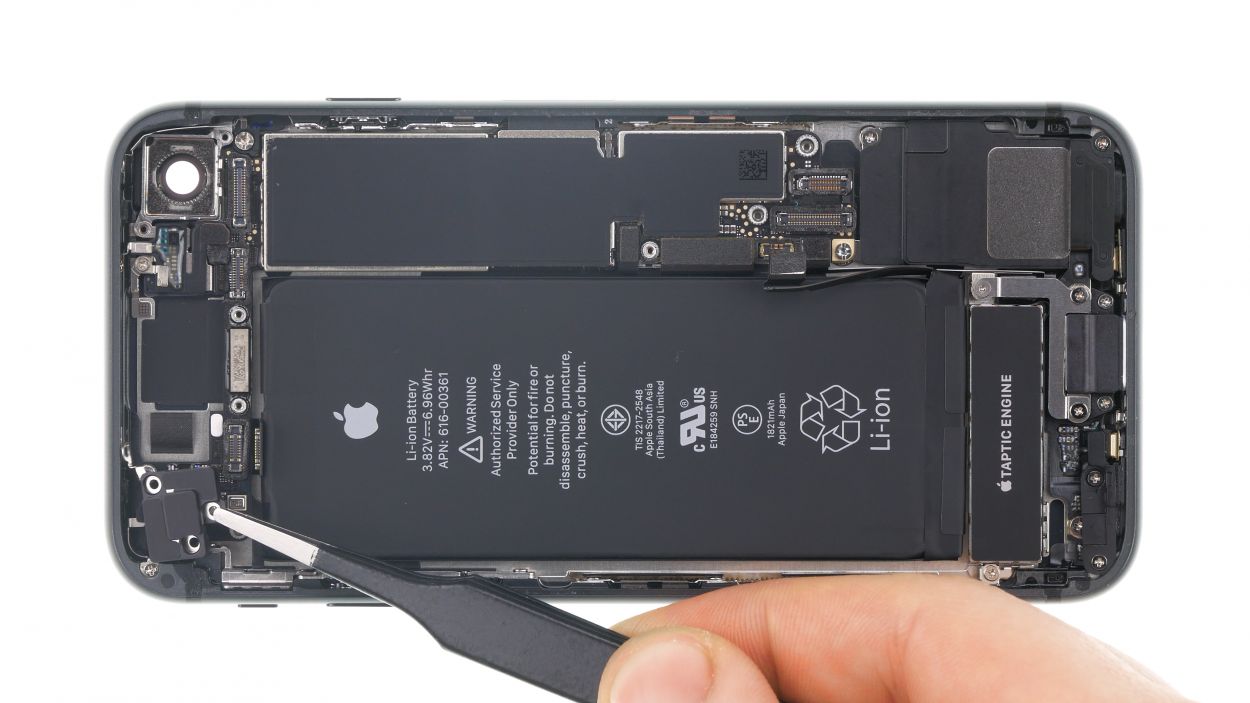

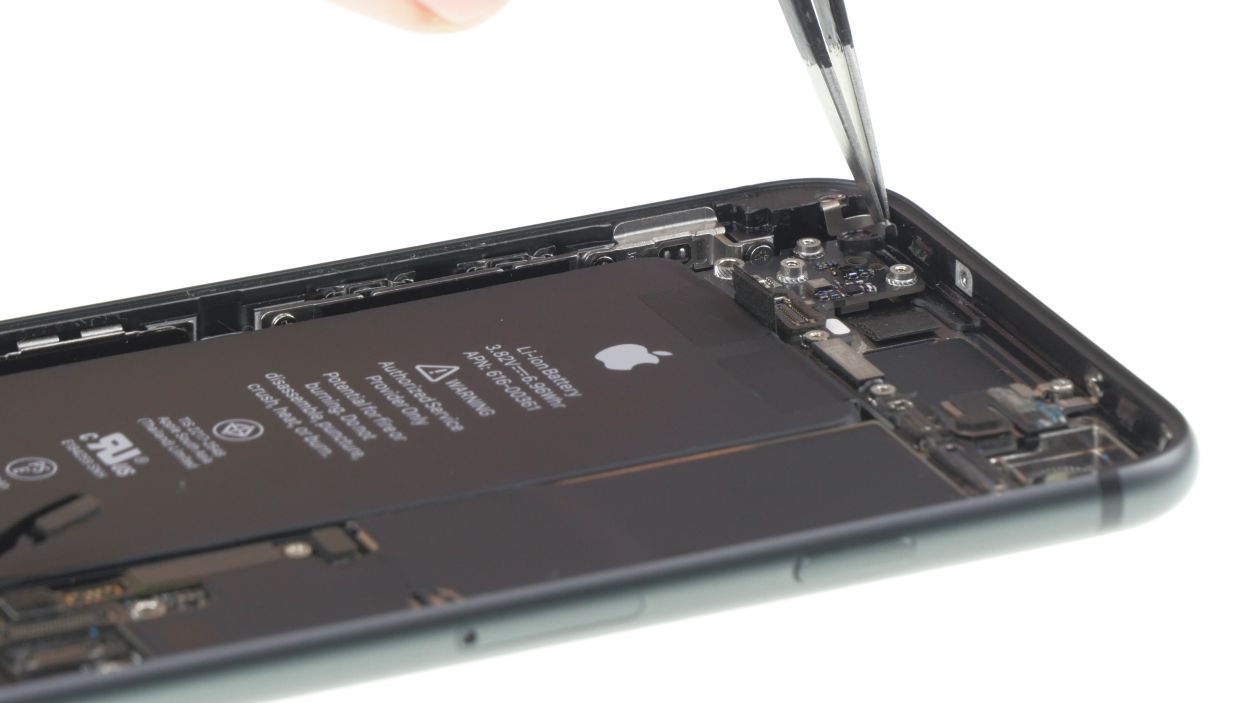

- First, let's give those plastic bracket screws a little twist to loosen them up!
Step 12
1 × 1.3 mm Phillips
1 × 1.2 mm Phillips
- First, let’s get those Phillips screws out of the way that are holding the antenna in place. You can do it!

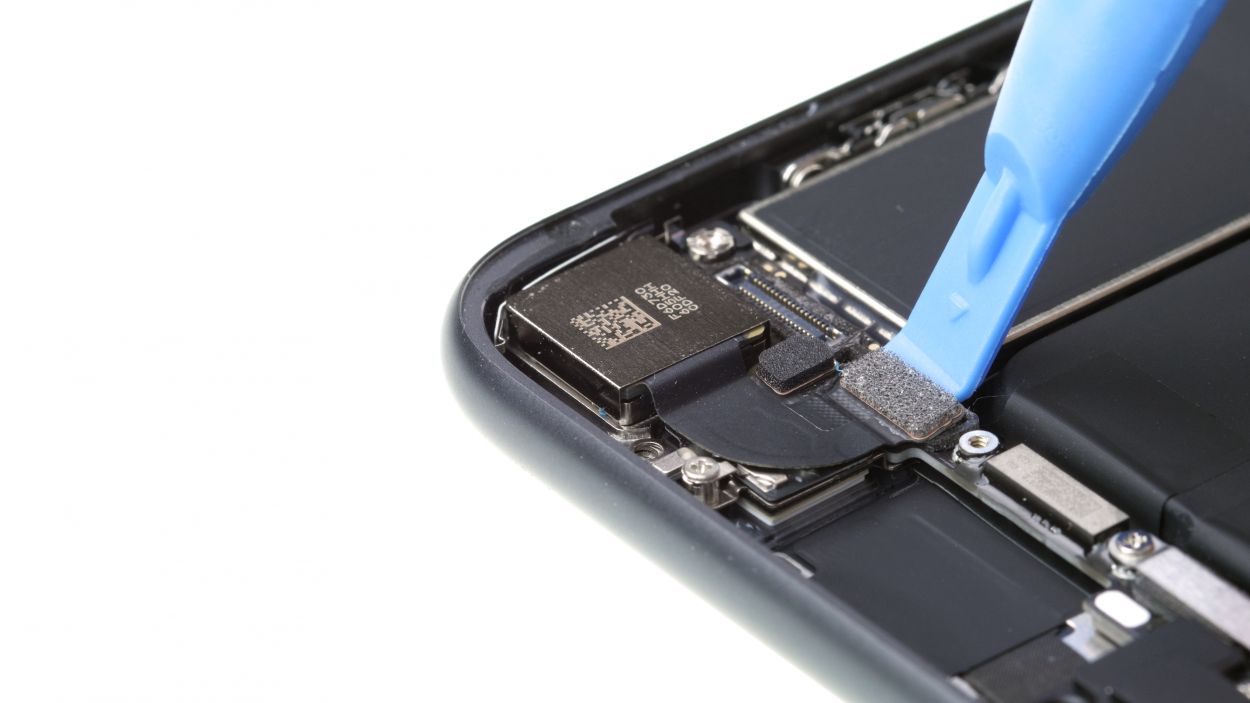

- Next up, gently detach the connector from the board. You're making progress!

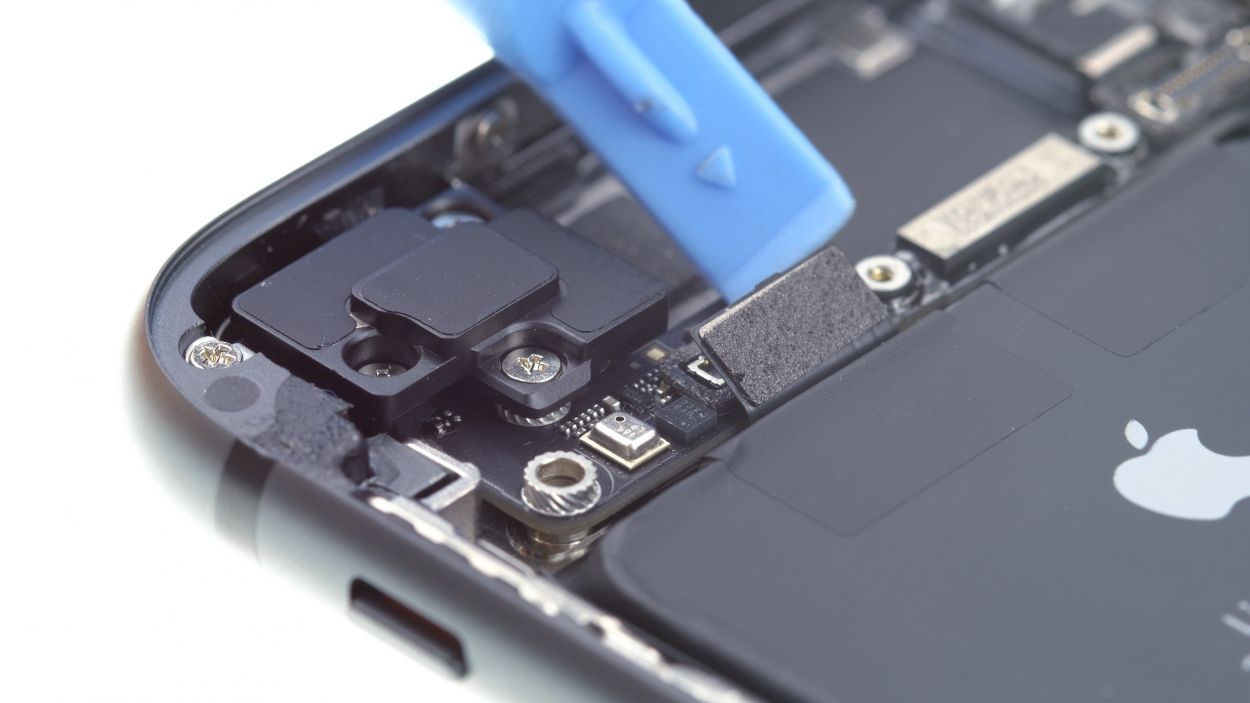

- If the antenna is feeling a bit stubborn, warm it up with a little hot air and carefully use a spatula to pry it off. You've got this!
Step 13

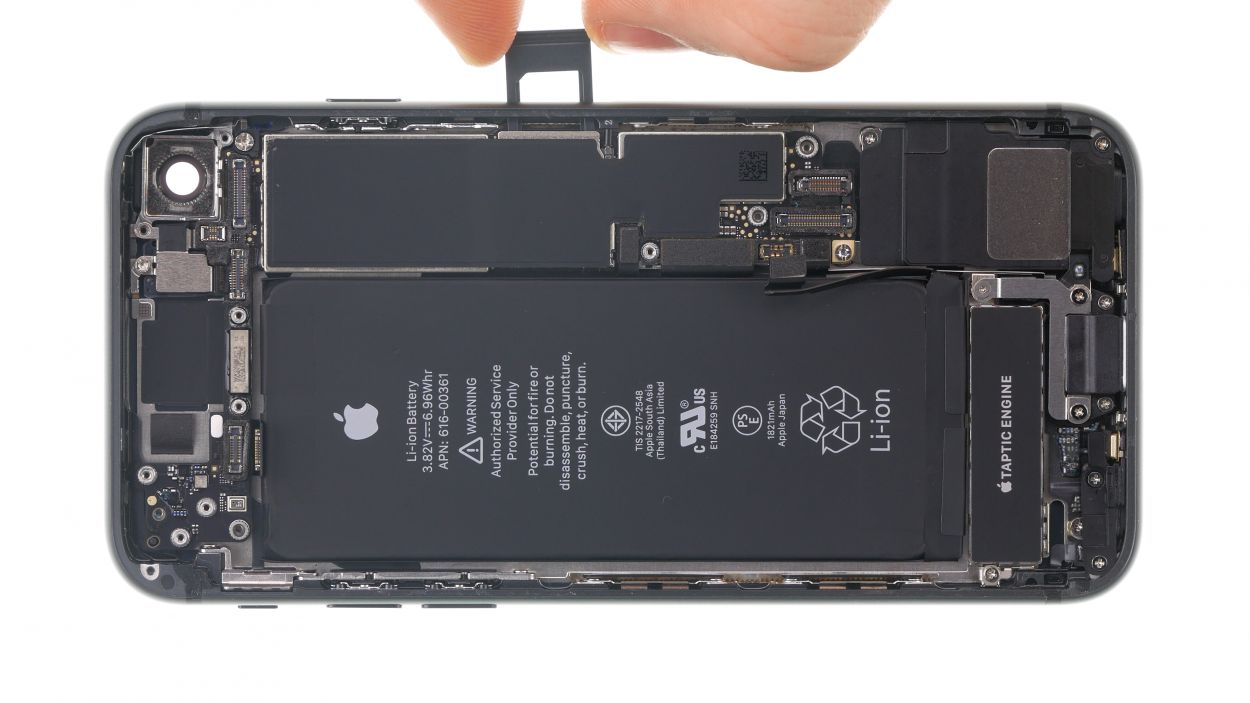

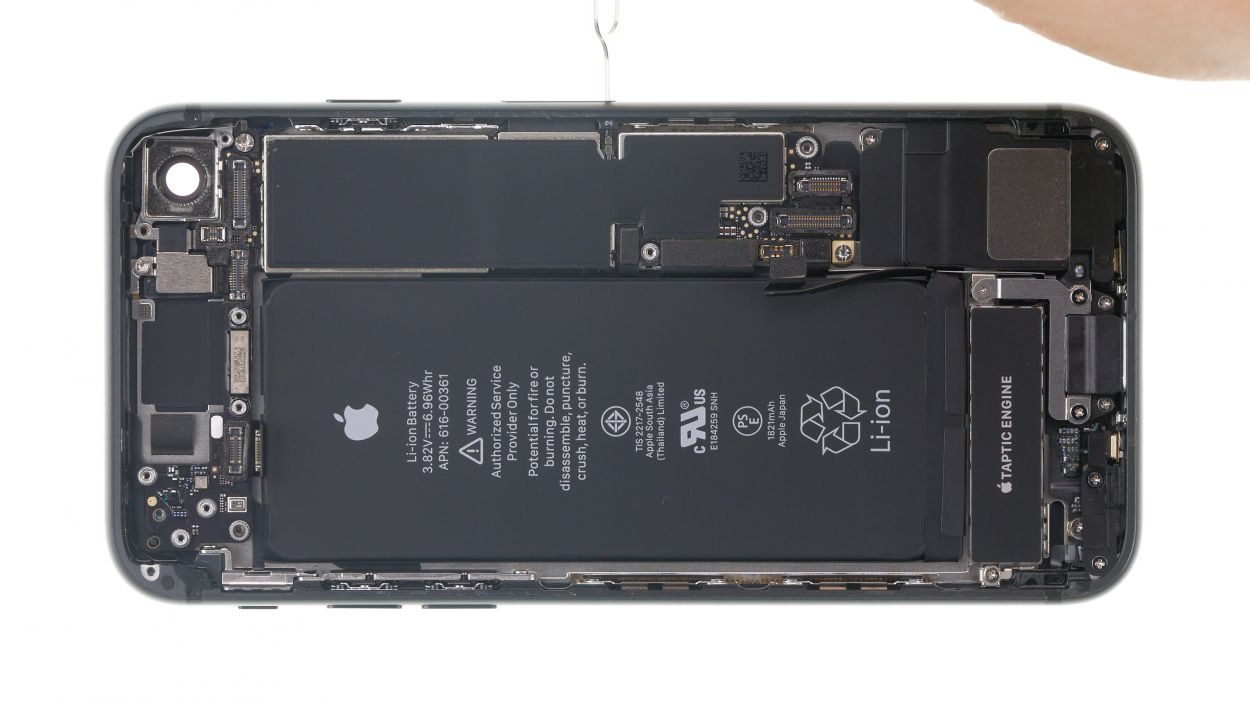

- Grab your trusty SIM tool or a paperclip to pop out the SIM card holder. Just press that tool into the tiny hole next to the SIM card holder, and you'll be golden!
Tools Used
Step 14
1 × 2.4 mm Standoff
1 × 2.1 mm Standoff
1 × 1.6 mm Phillips
The Phillips screw is hiding under a sticker! Just peel it back gently to reveal the screw underneath (check out the photo for a sneak peek).

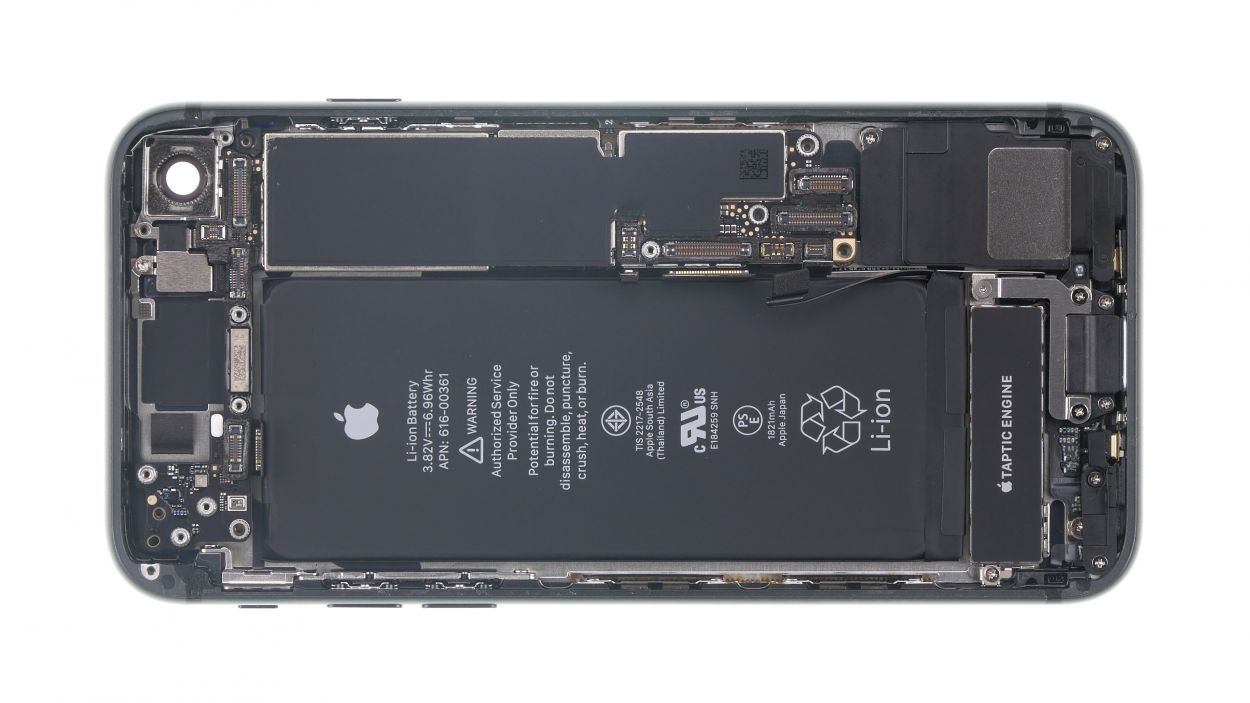

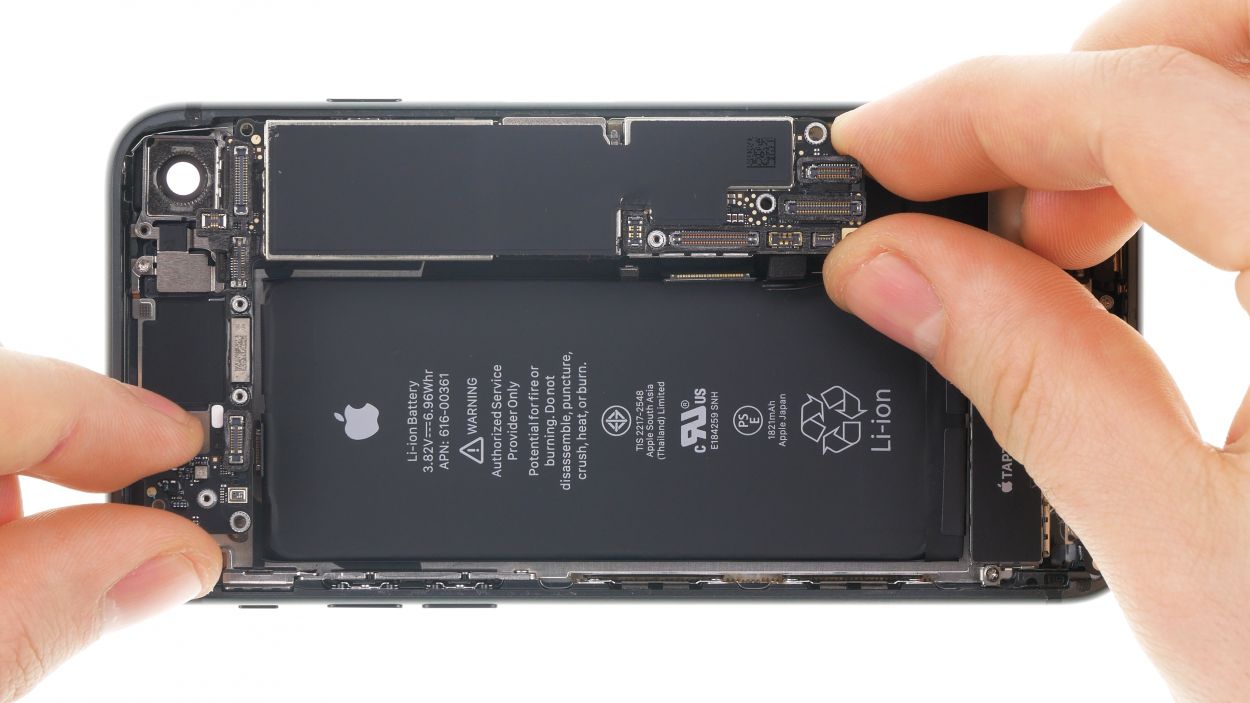

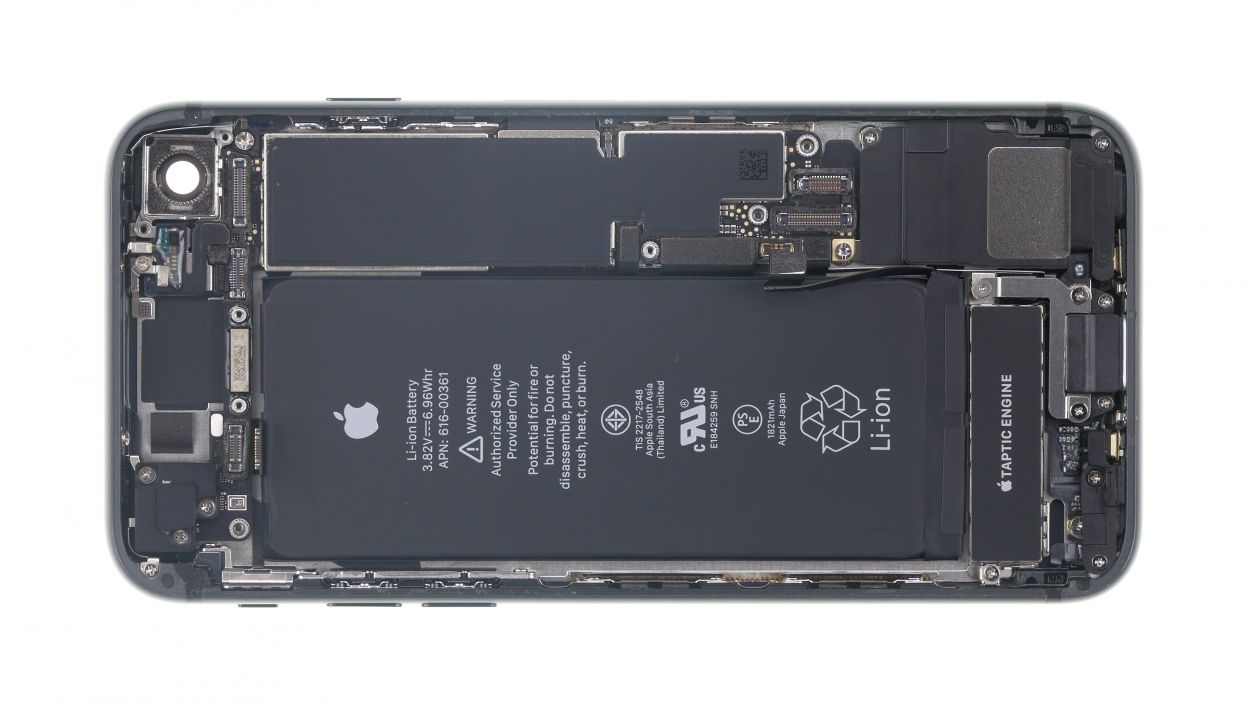

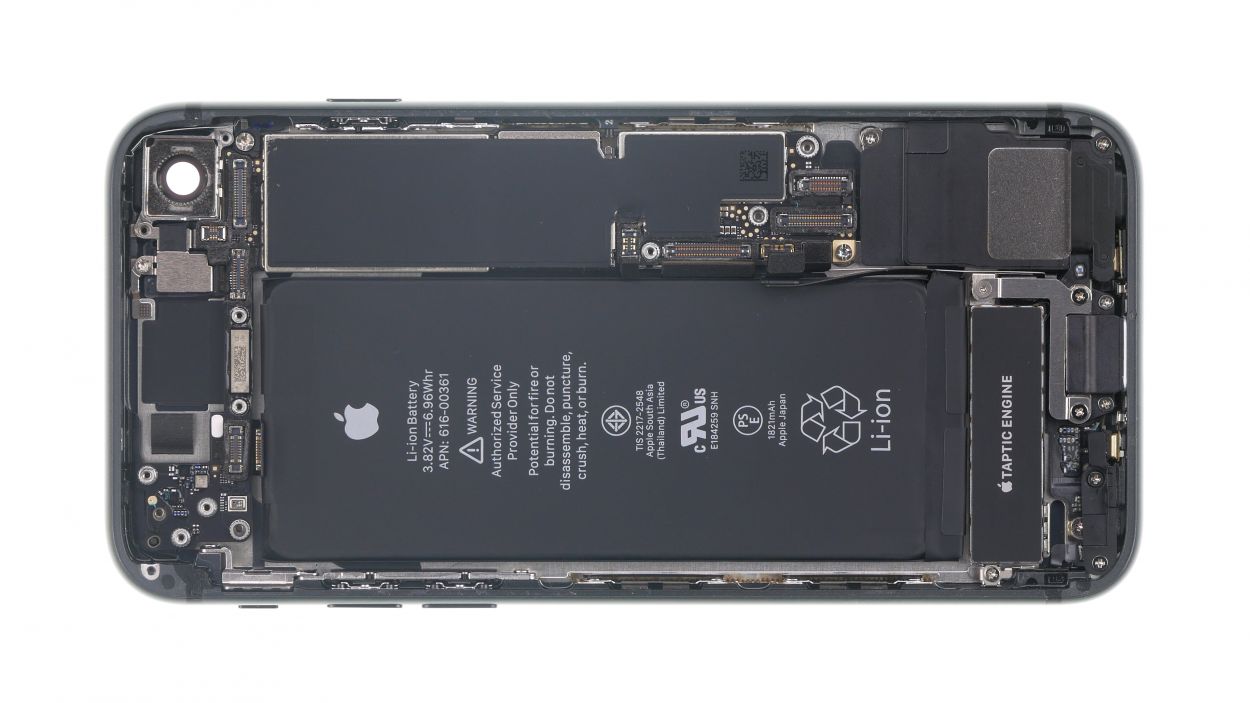

- First off, let's get those screws out of the way that are keeping the logic board snug and secure. Unscrew them all with care!

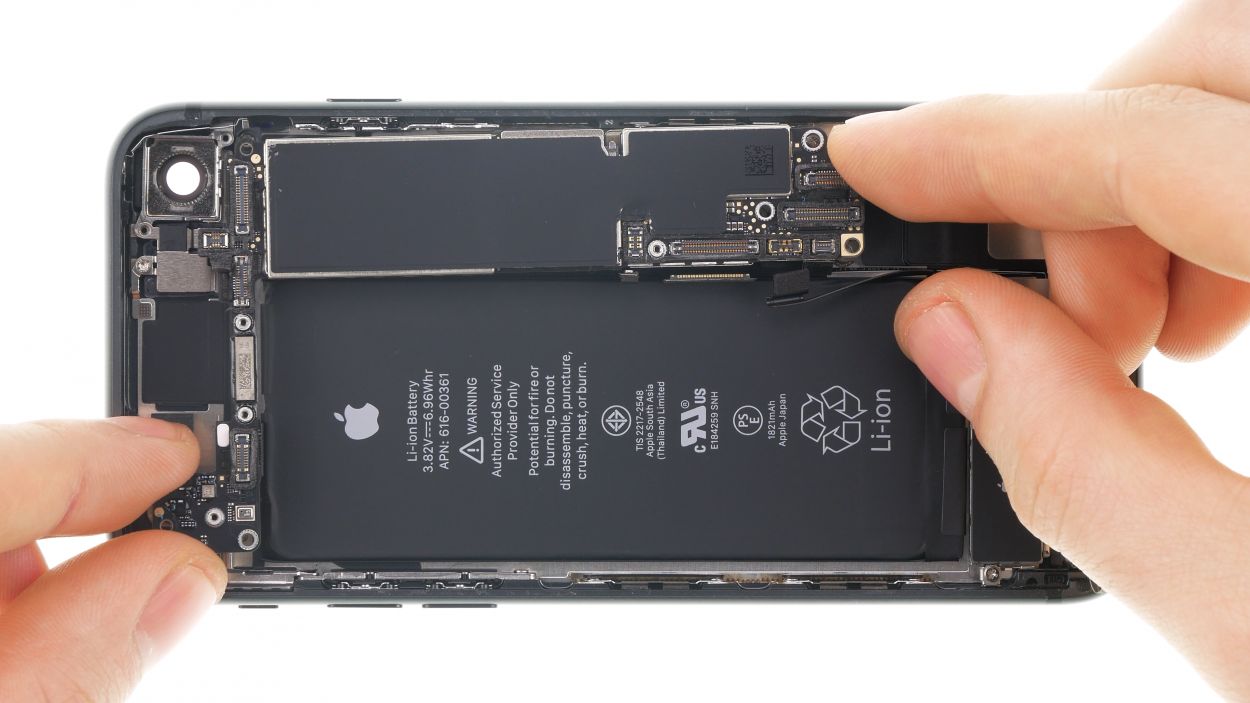

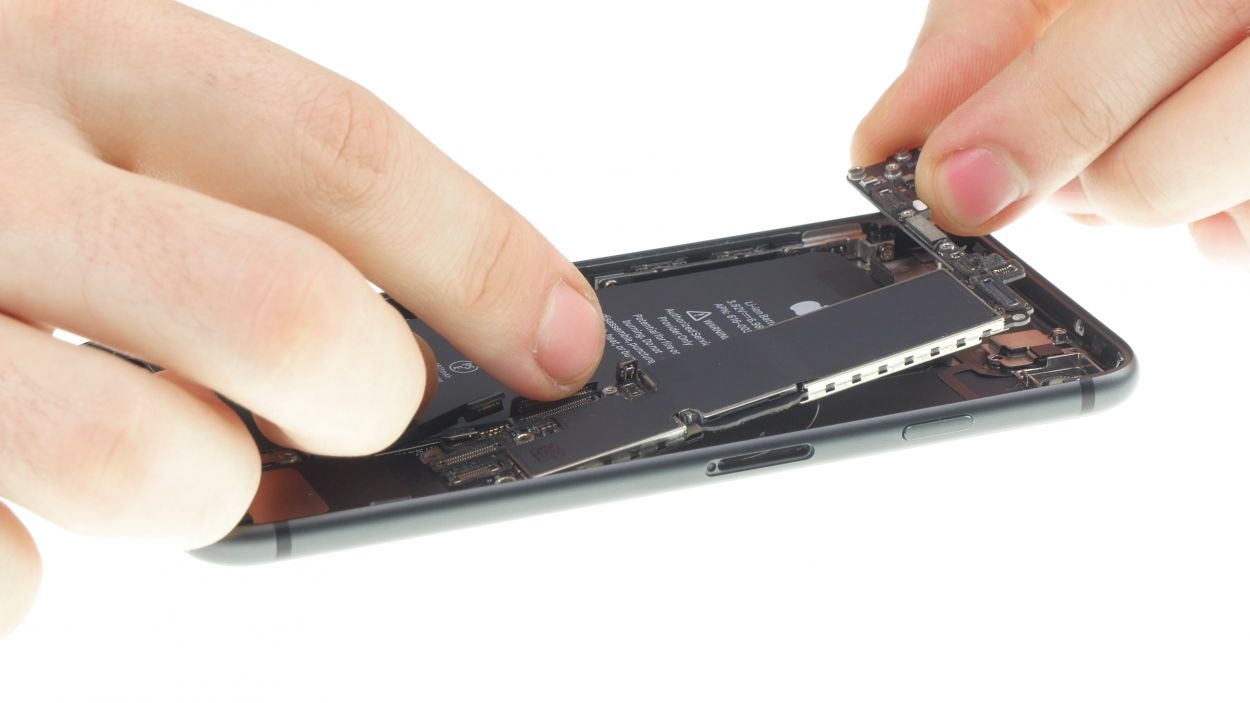

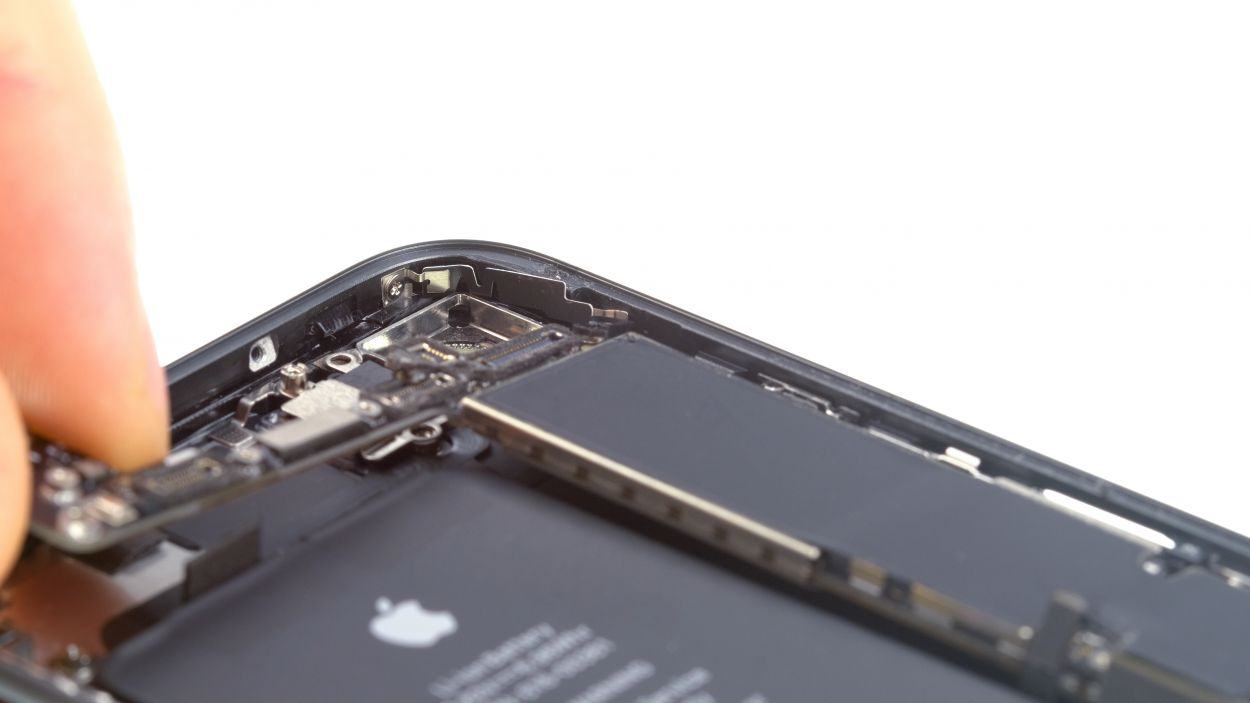

- Now, it's time to gently lift out the logic board using your hands. Just a heads up, there’s a little plastic holder for a screw right next to the two holes for the iSight camera. This holder sits on top of the logic board, so keep an eye out for it!
Step 15
1 × 2.4 mm Standoff
1 × 2.1 mm Standoff
1 × 1.6 mm Phillips
The camera holder is your trusty sidekick, resting right on top of the logic board, perfectly positioned over that screw hole in the top right corner of the image. Keep it cozy up there!

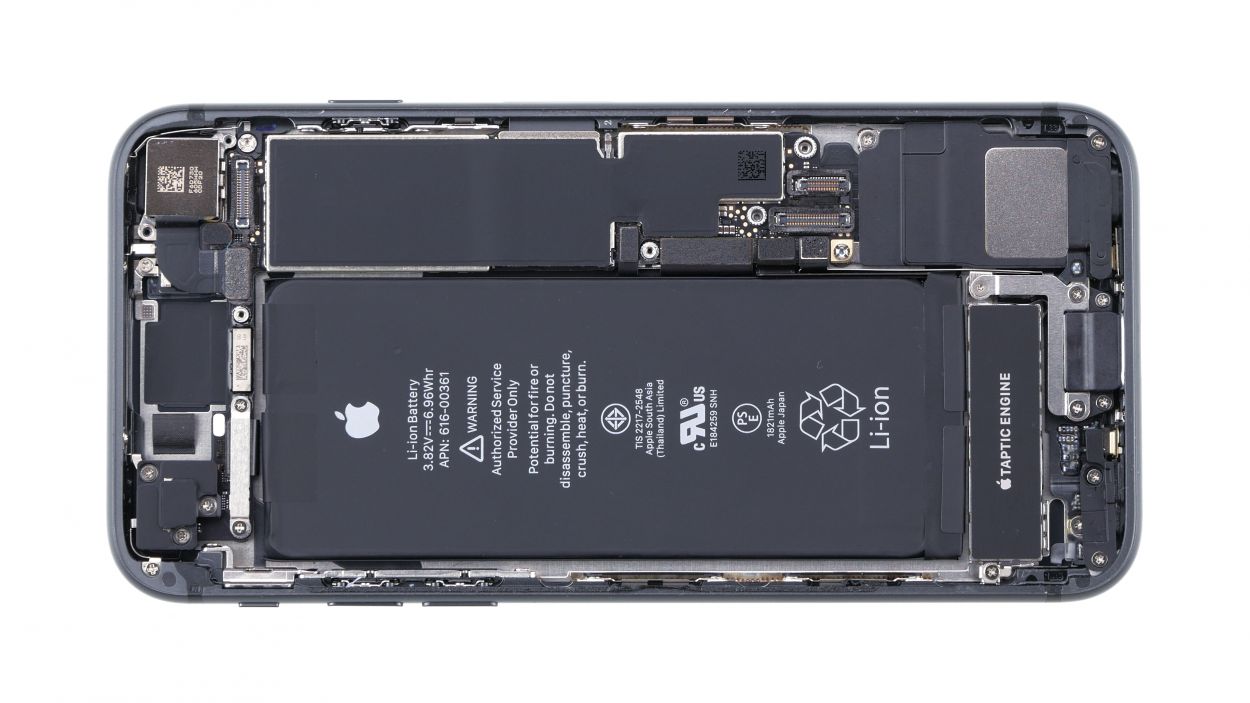

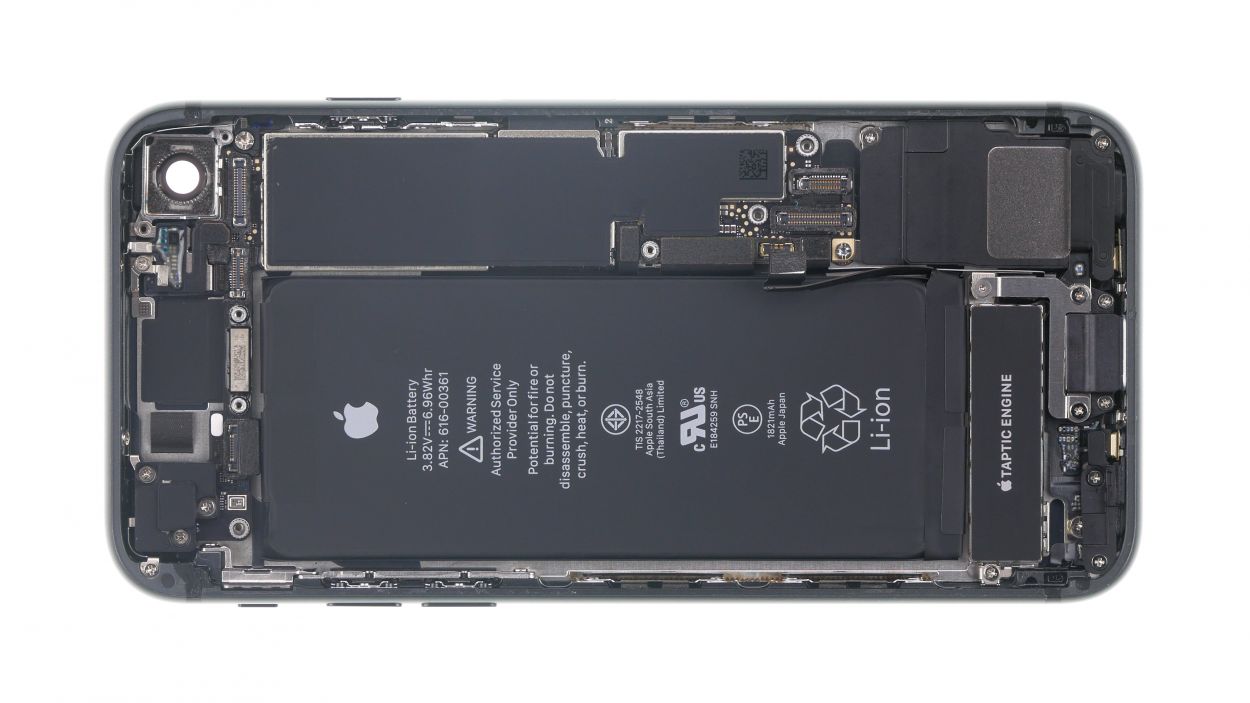

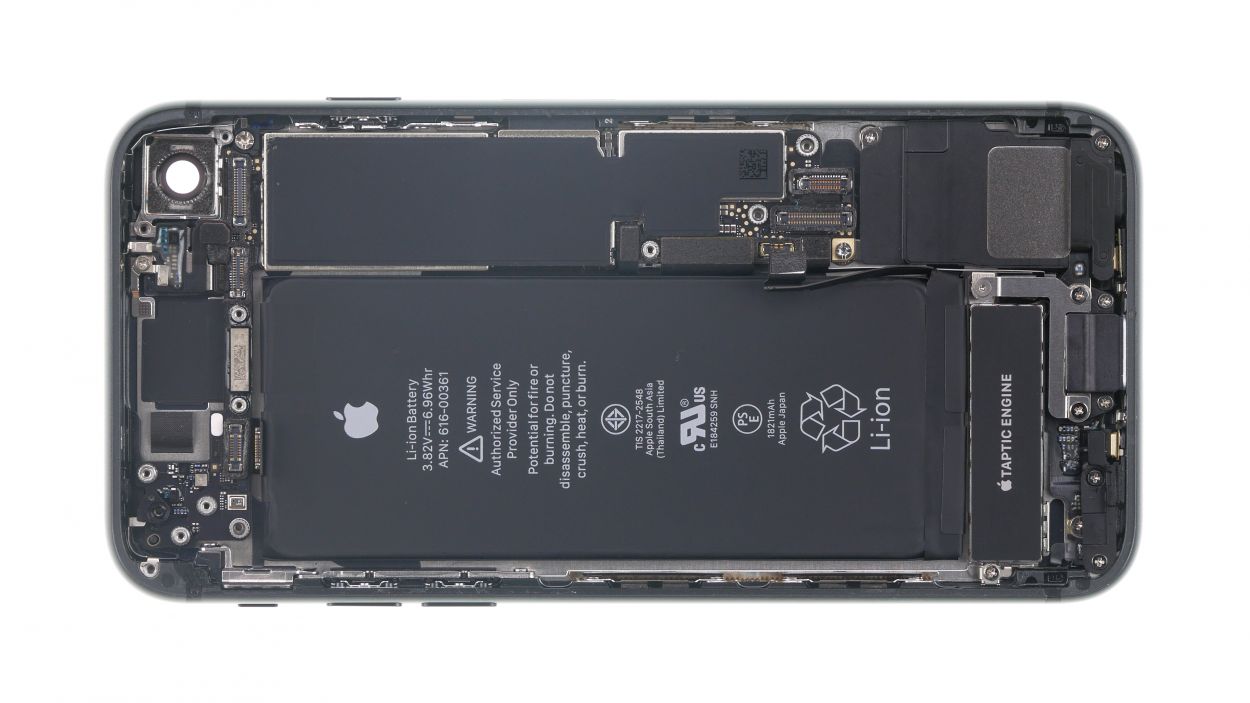

- Carefully place the logic board back in its original spot, just like a puzzle piece finding its home. You've got this!
Step 16
If you're finding it a bit tricky to slide it in, take a moment to check the logic board's position. A little adjustment might just do the trick!

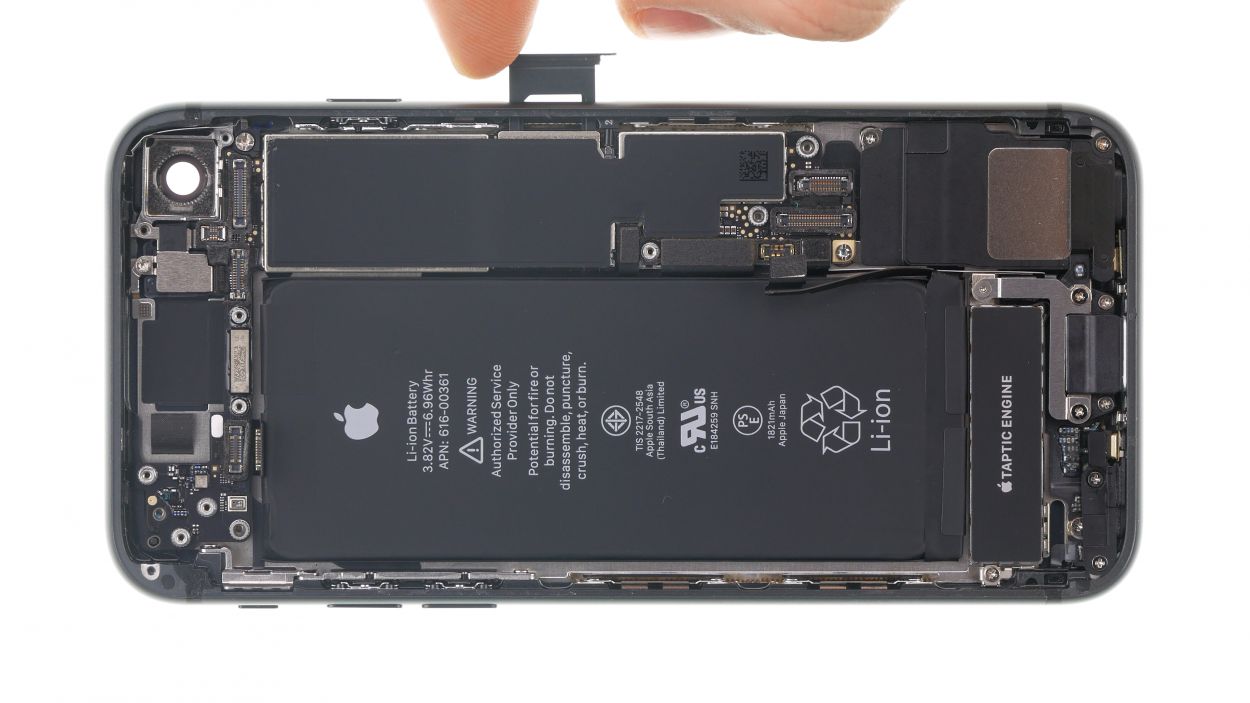

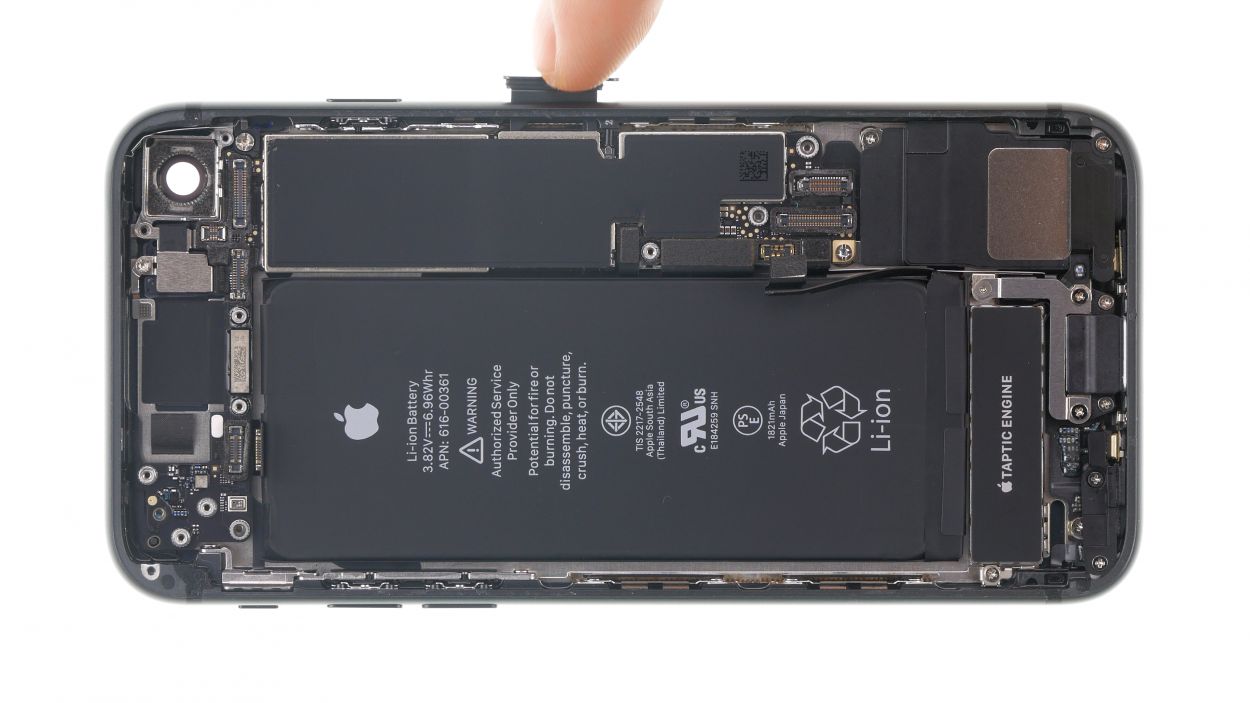

- Now, slide that SIM card tray back into its cozy little home in the slot. It's like tucking in your favorite blanket!
Step 17
1 × 1.3 mm Phillips
1 × 1.2 mm Phillips

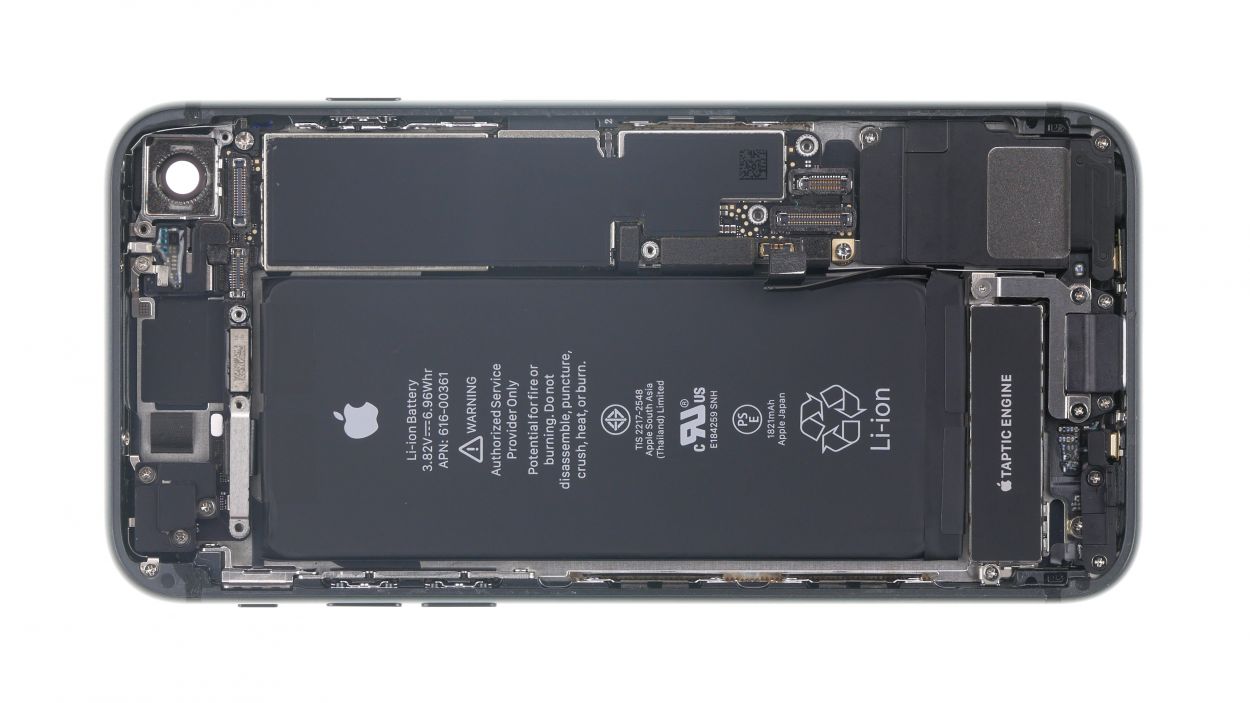

- First, let's get that Wi-Fi antenna back where it belongs! Gently press it into place to help it stick like it used to.
- Next, connect the antenna's connector for a solid connection.
- Finally, grab those two Phillips screws and secure the bracket plate back in place. You're doing awesome!
Step 18
1 × 2.5 mm Phillips
1 × 1.4 mm Phillips
2 × 1.2 mm Phillips
2 × 1.0 mm Phillips

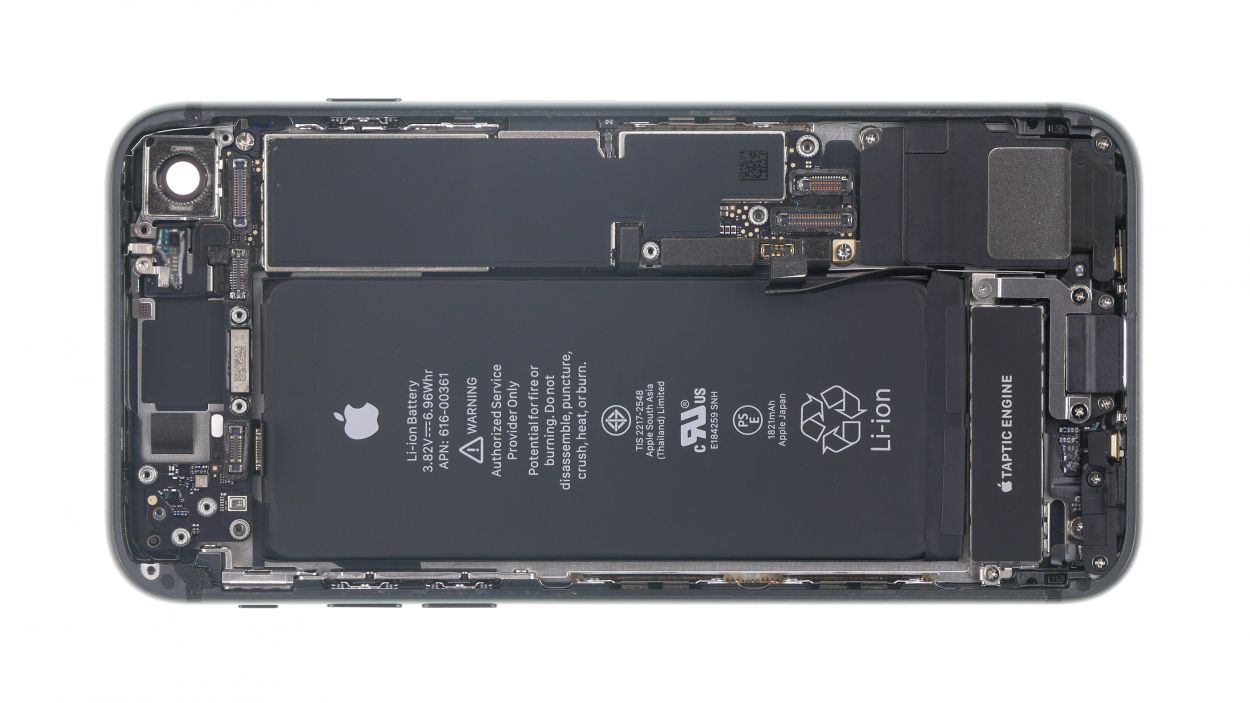

- Carefully slide that connecting piece back into its rightful spot and secure it with those trusty Phillips screws.
- Now, let's get that plastic bracket back in action and fasten it down with Phillips screws too. You're almost there!
Step 19
1 × 1.1 mm Phillips
1 × 2.7 mm Phillips
- Reconnect the volume control cable's connector like a pro!
- Next, slide the bracket plate back onto the connector and tighten it up with those screws. You're doing great!
Step 20
1 × 2.9 mm Phillips
1 × 3.0 mm Standoff

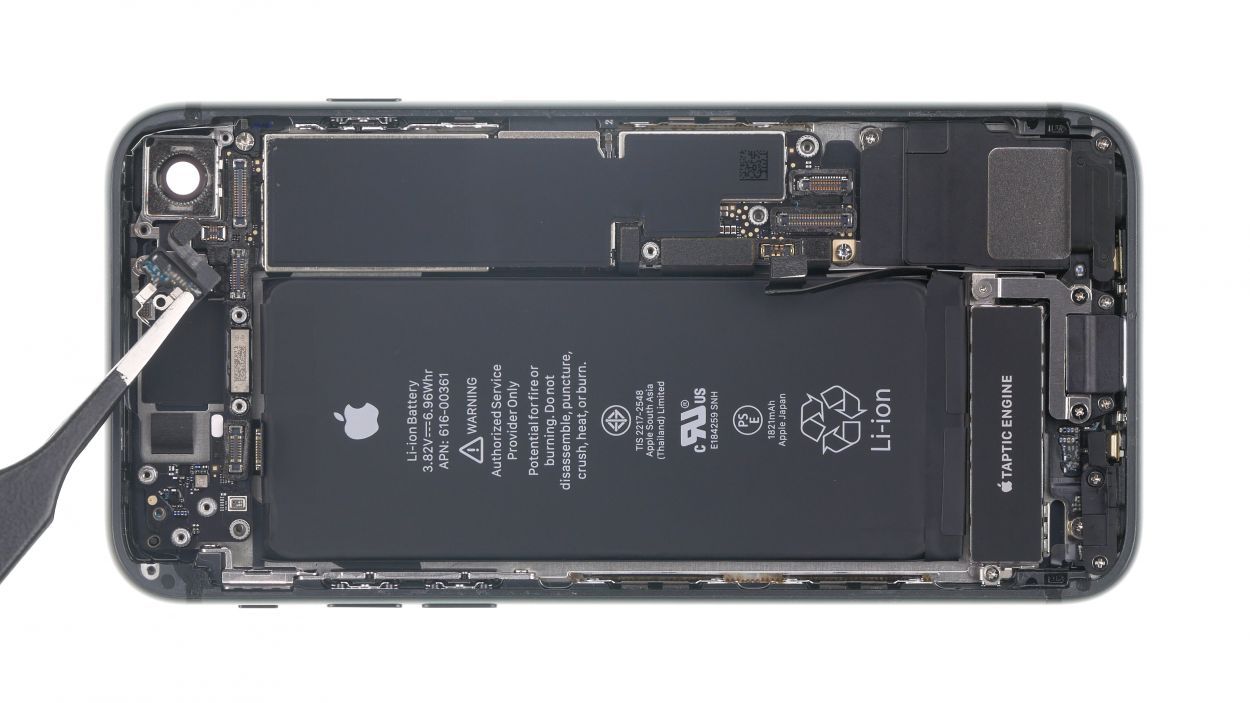

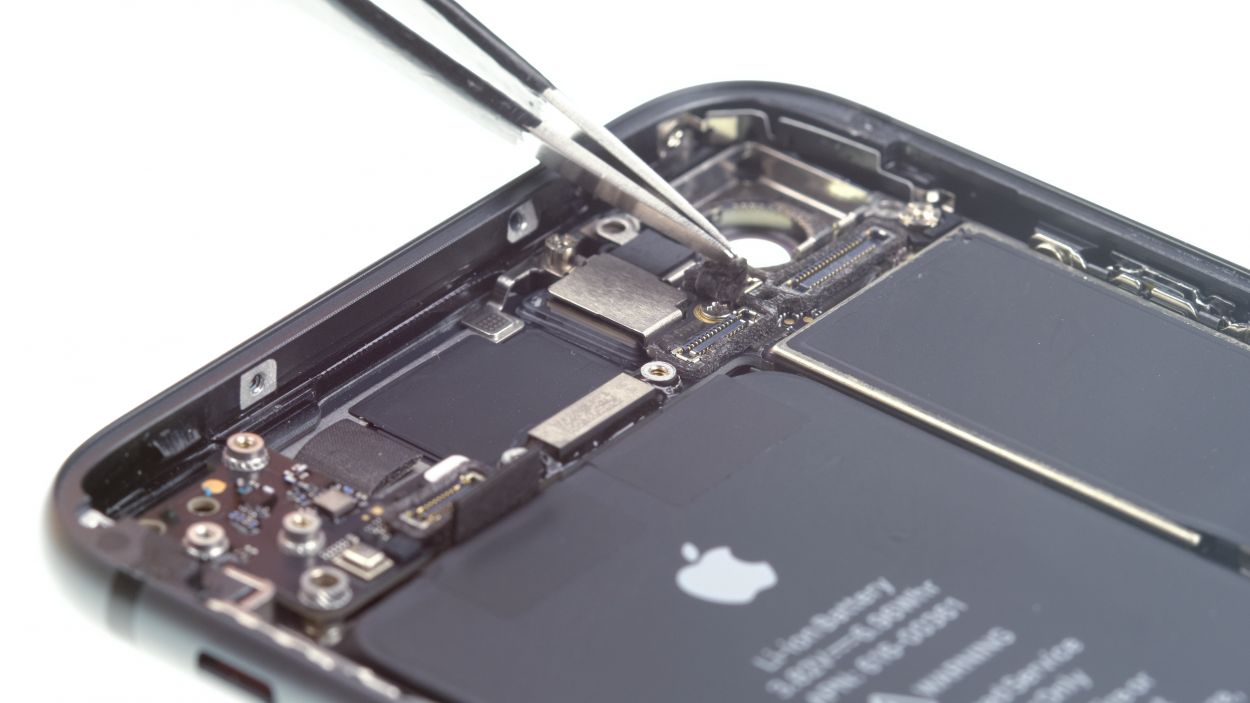

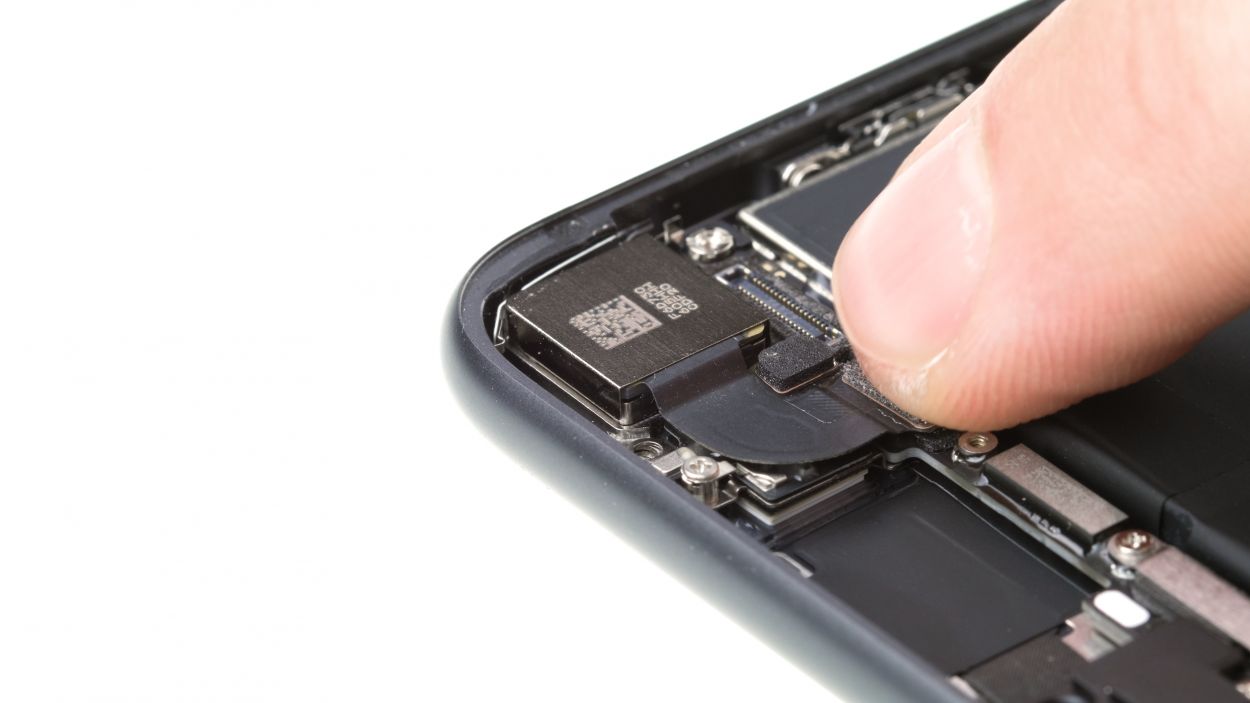

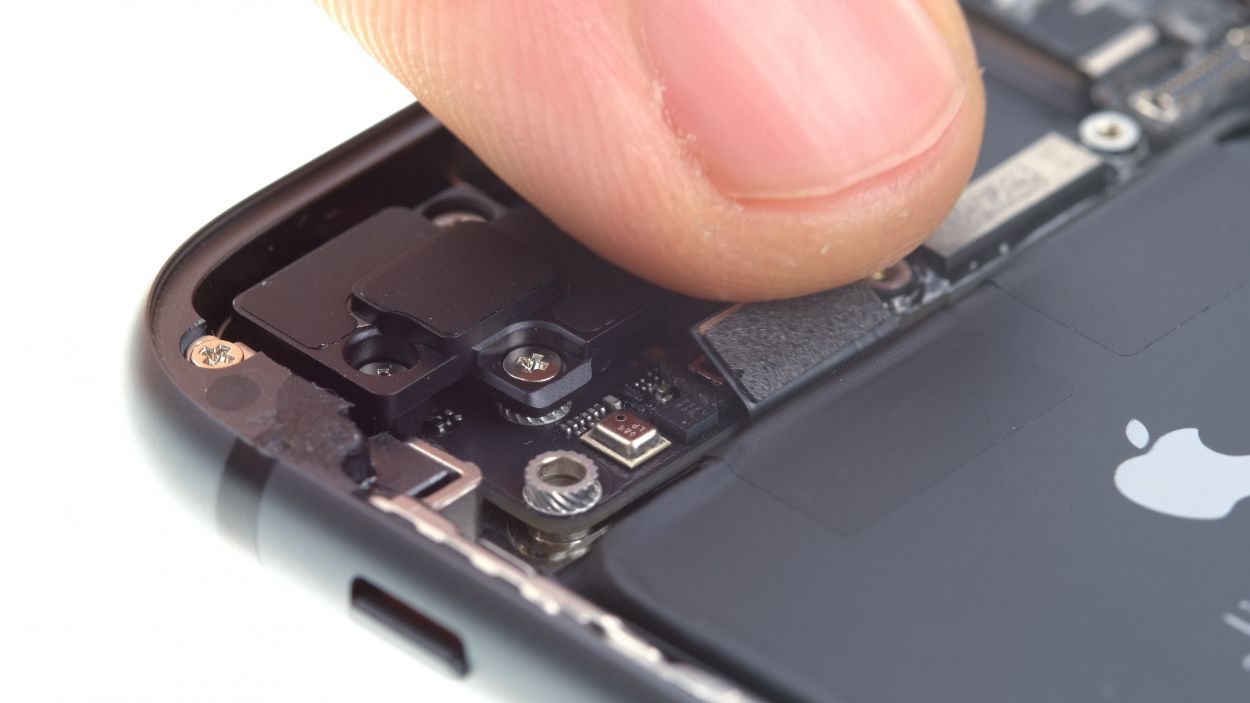

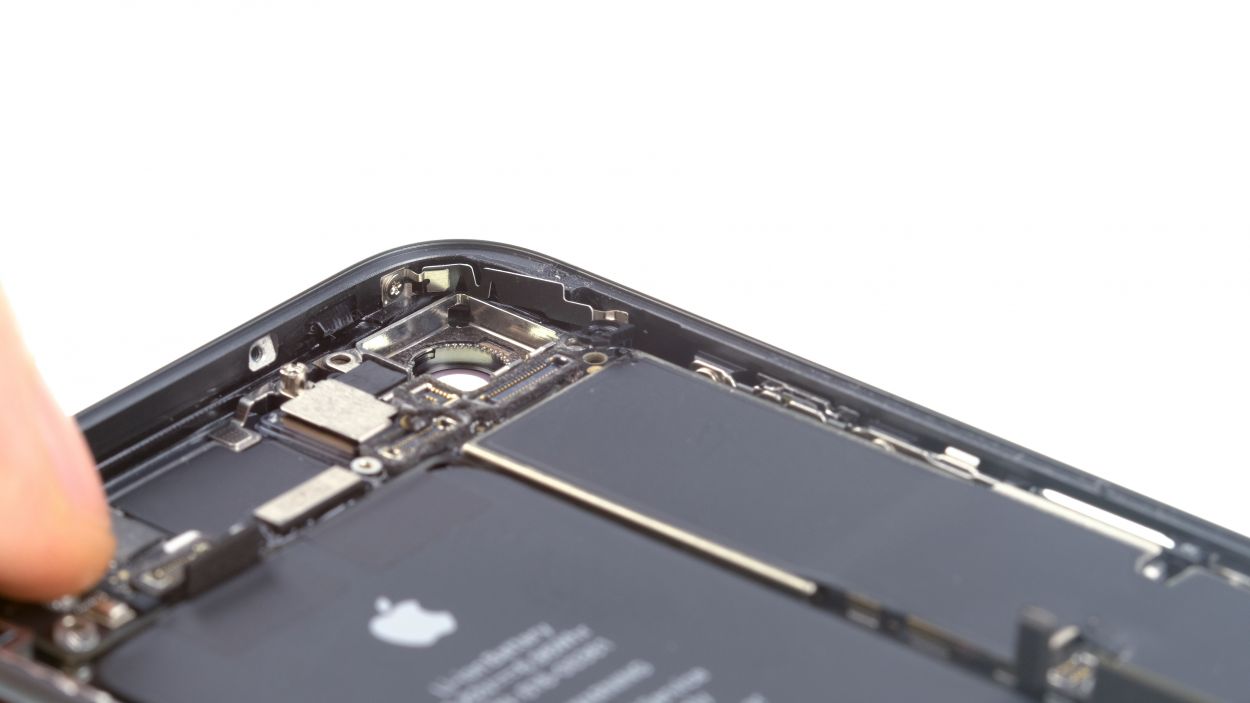

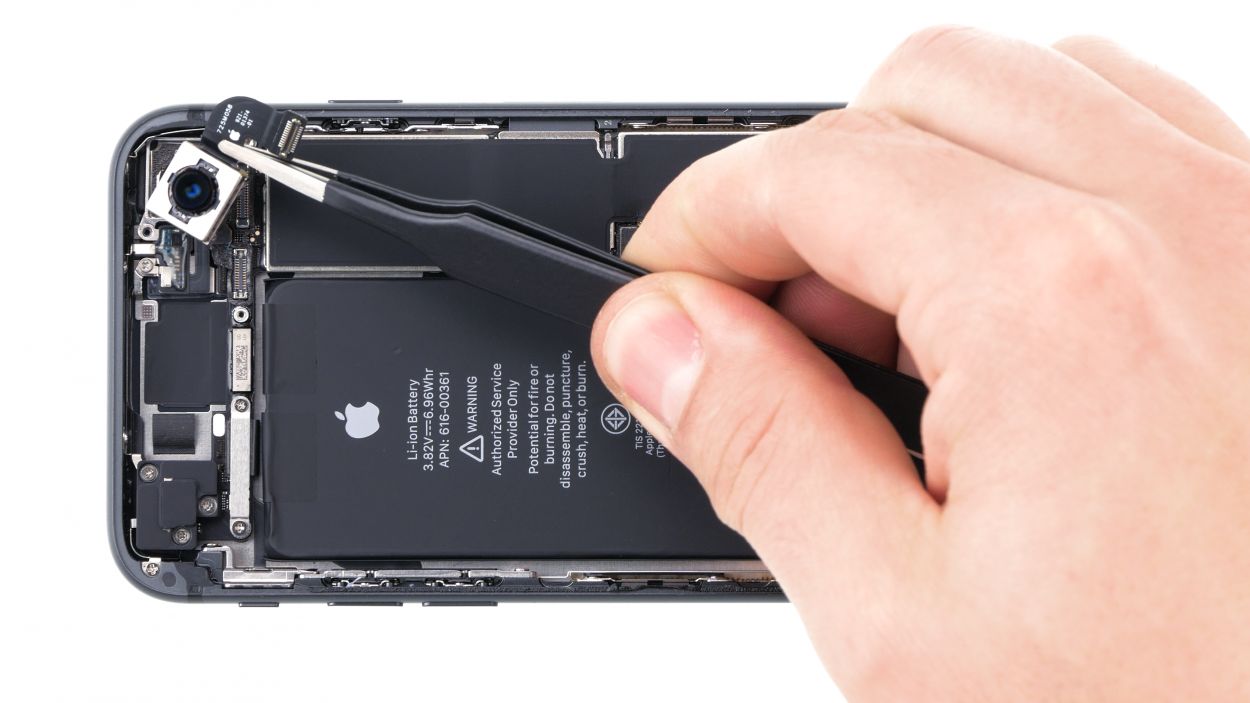

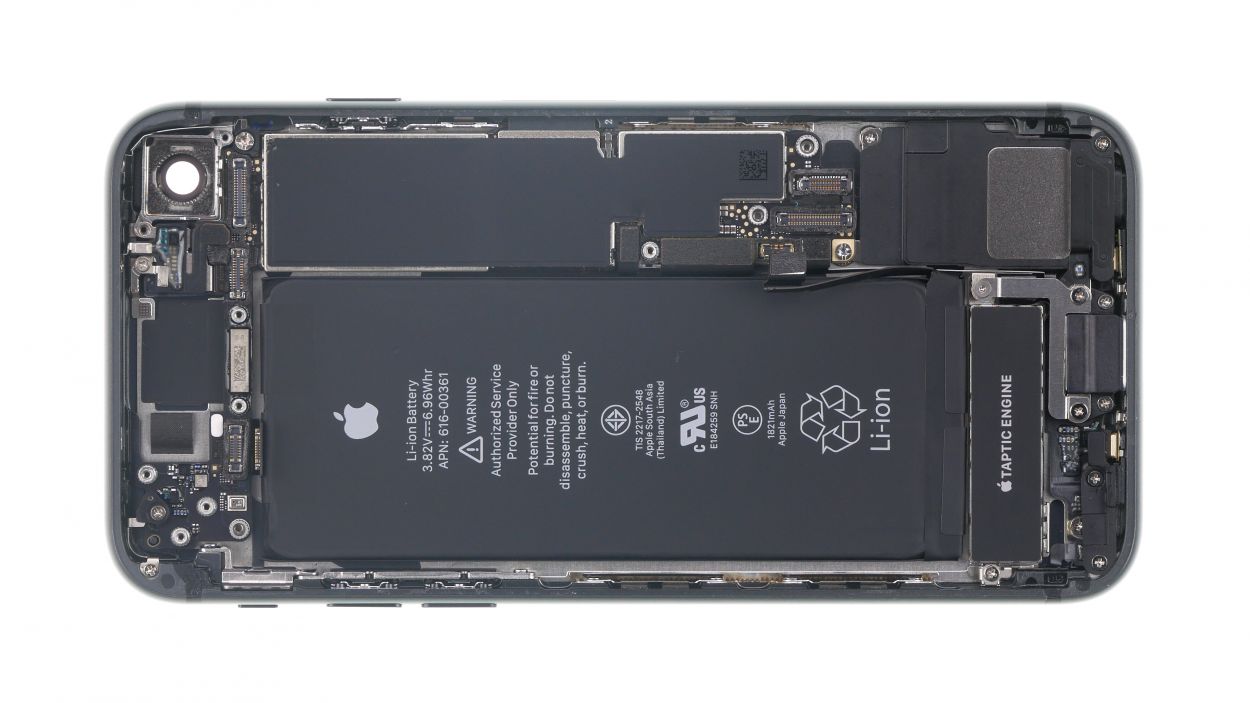

- Gently press the camera back into its cozy little home.

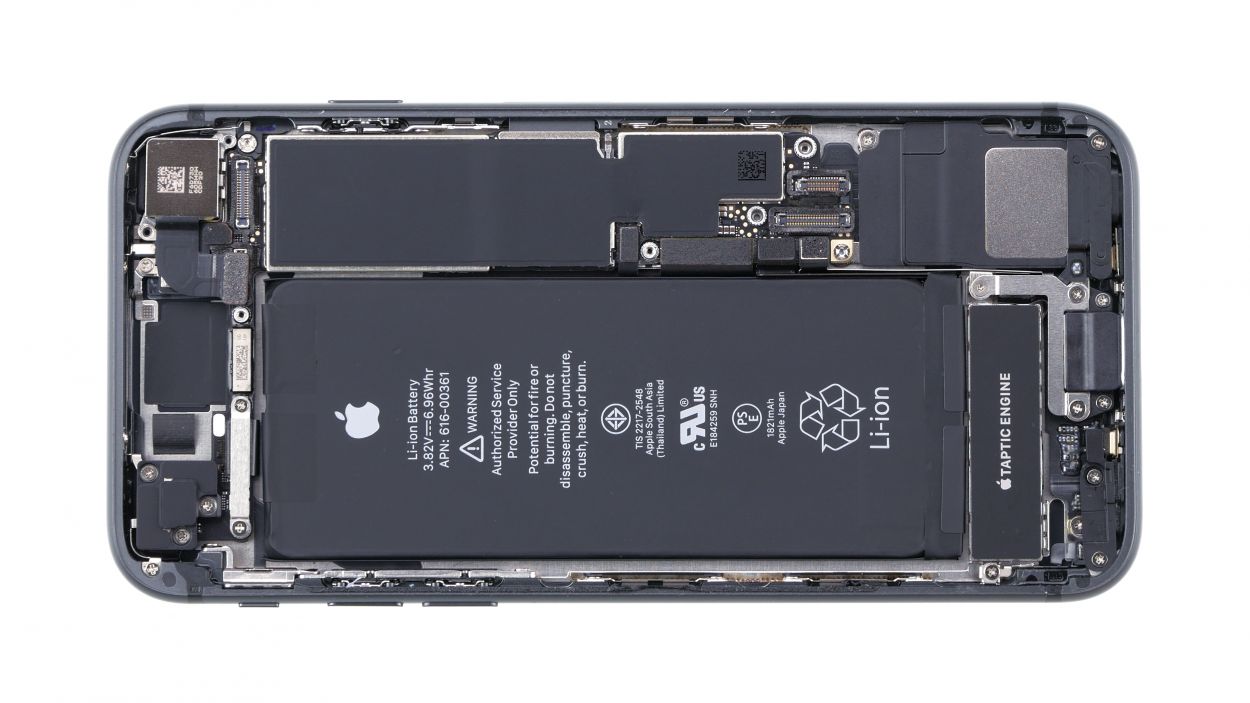

- Connect the camera connector like a pro.

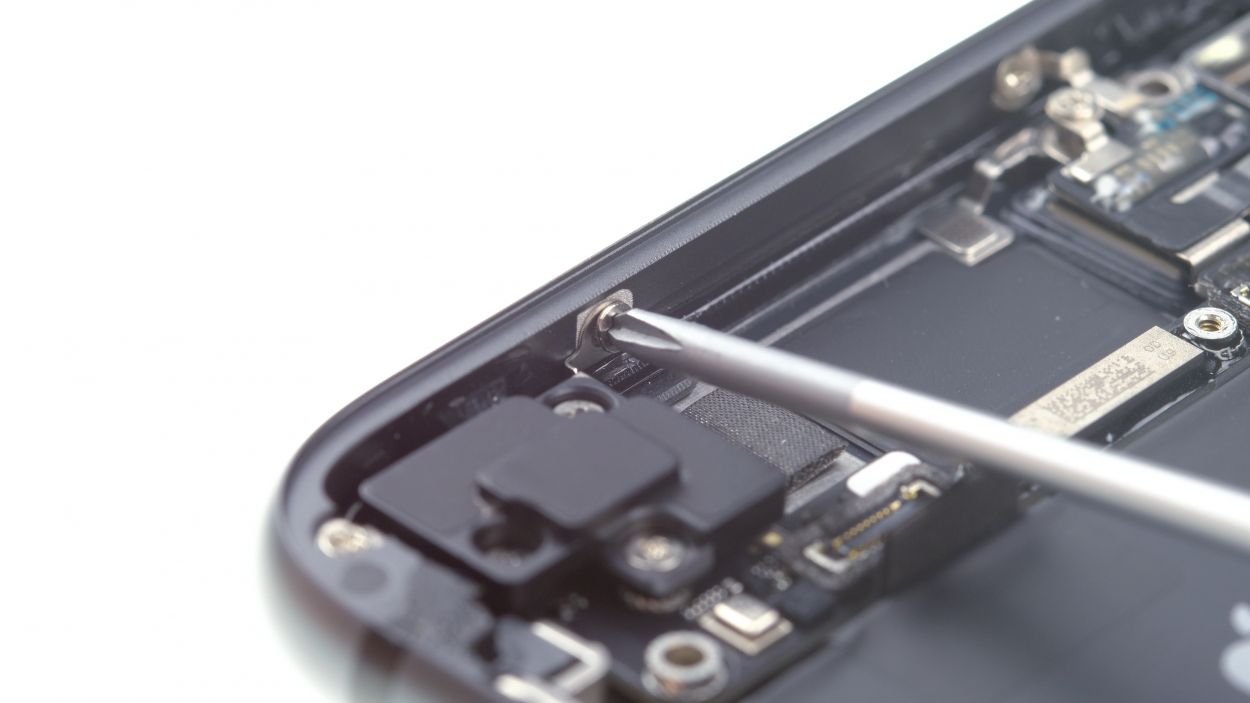

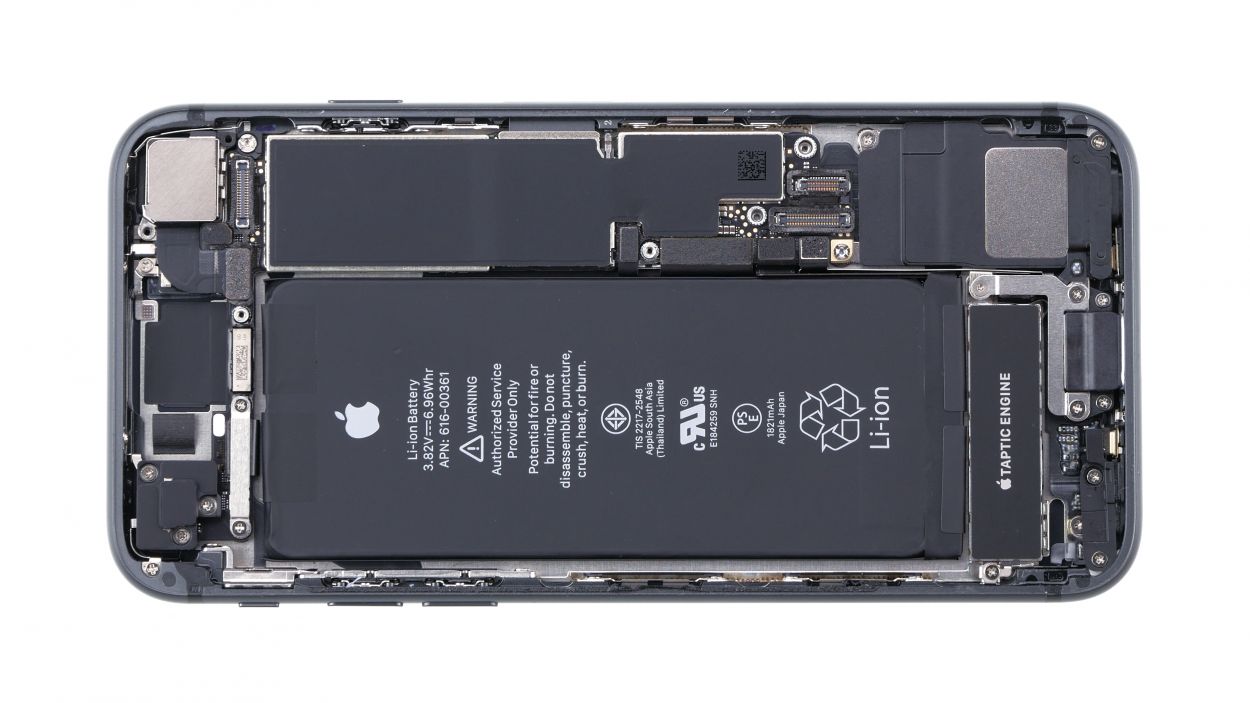

- Secure the camera's bracket plate back on and give it a good twist to tighten it up.
Step 21
Once you've got that fresh adhesive frame on, your iPhone 8 is back to being protected from dust and splashes, but it's worth noting that it's not quite the waterproof wonder it used to be. Keep that in mind while you enjoy your repair journey!
The corners are unique and designed to help you find your way around!

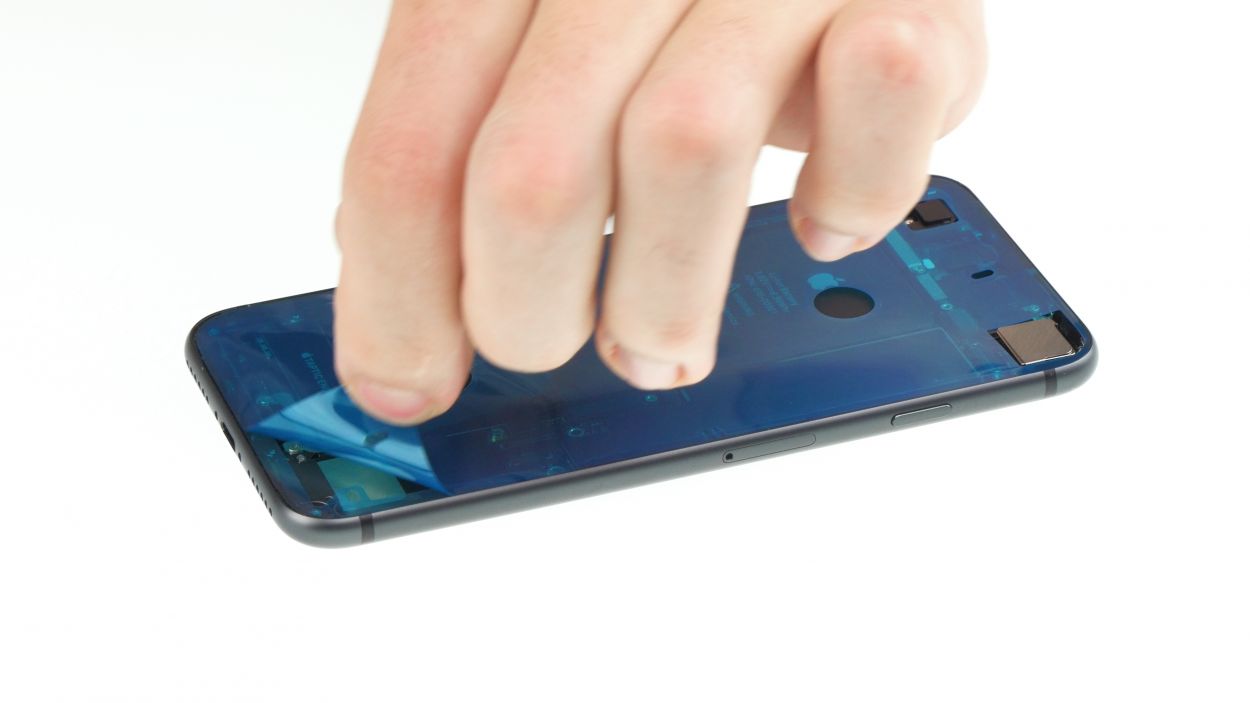

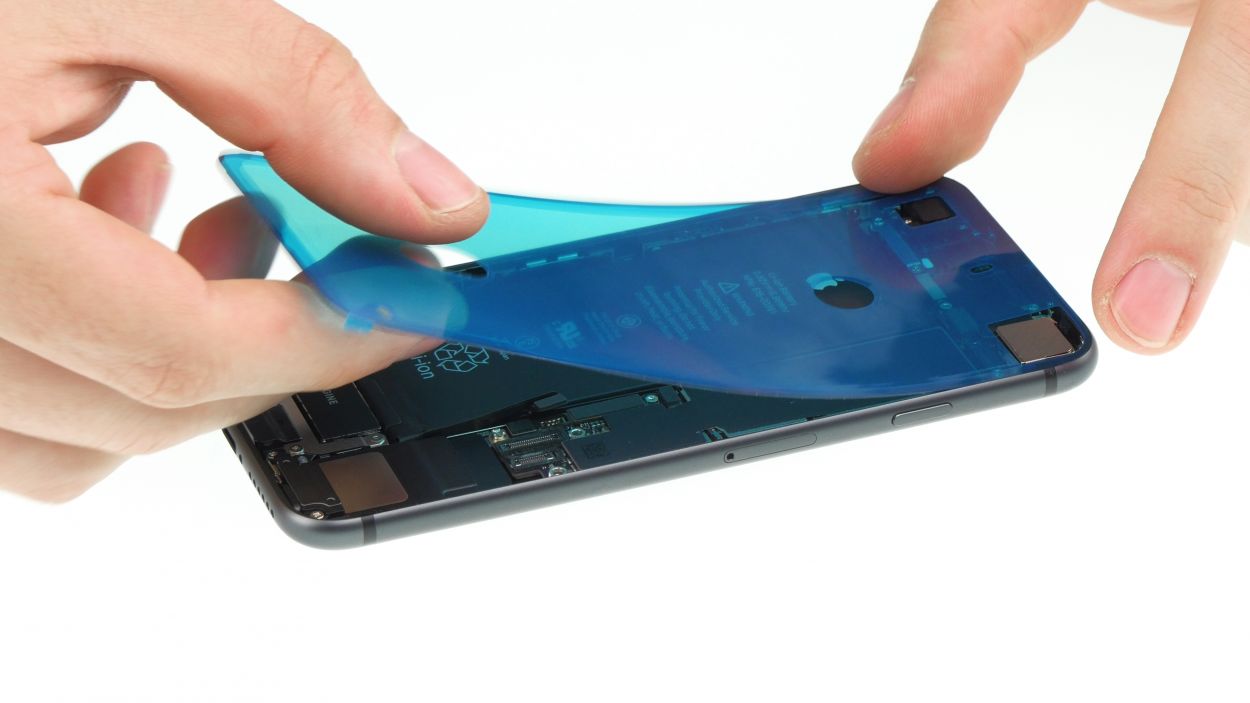

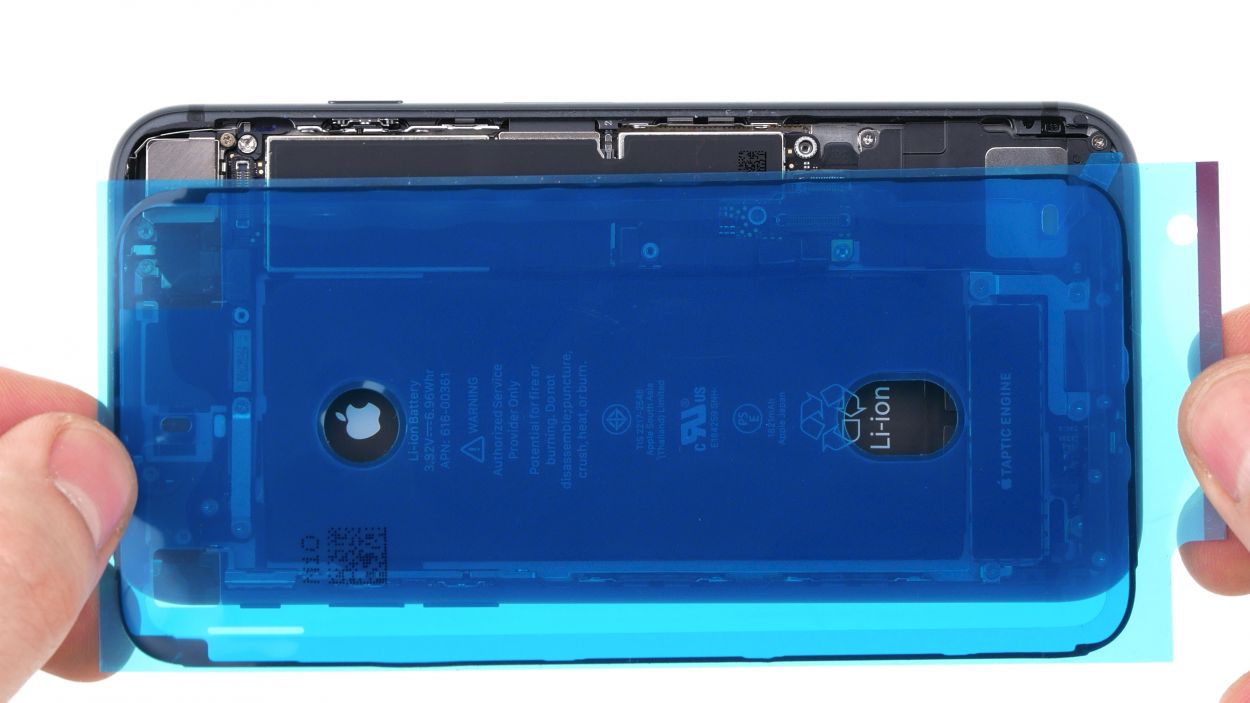

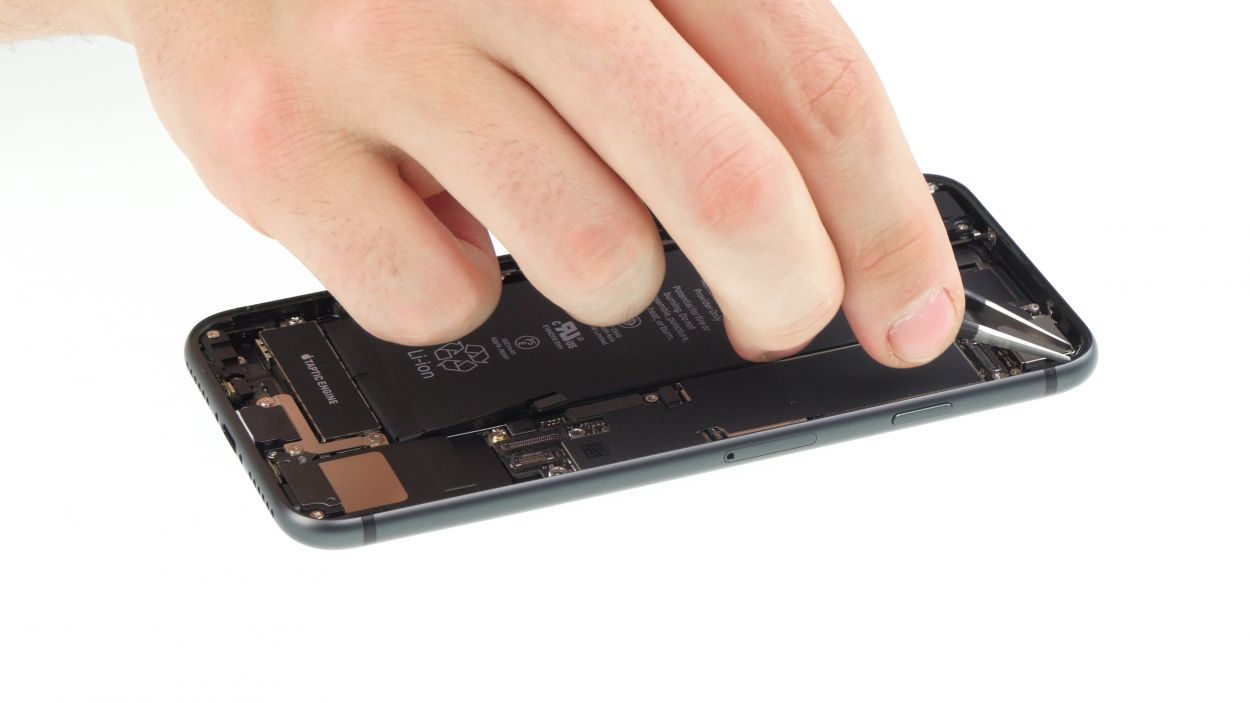

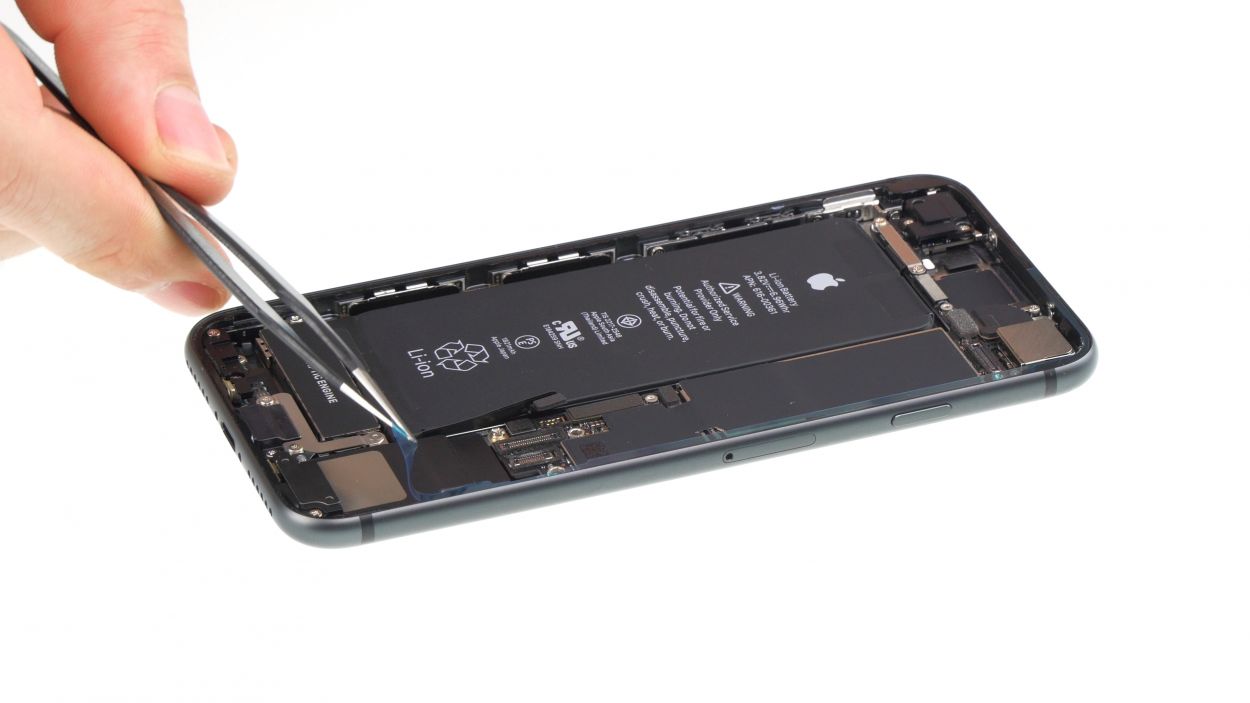

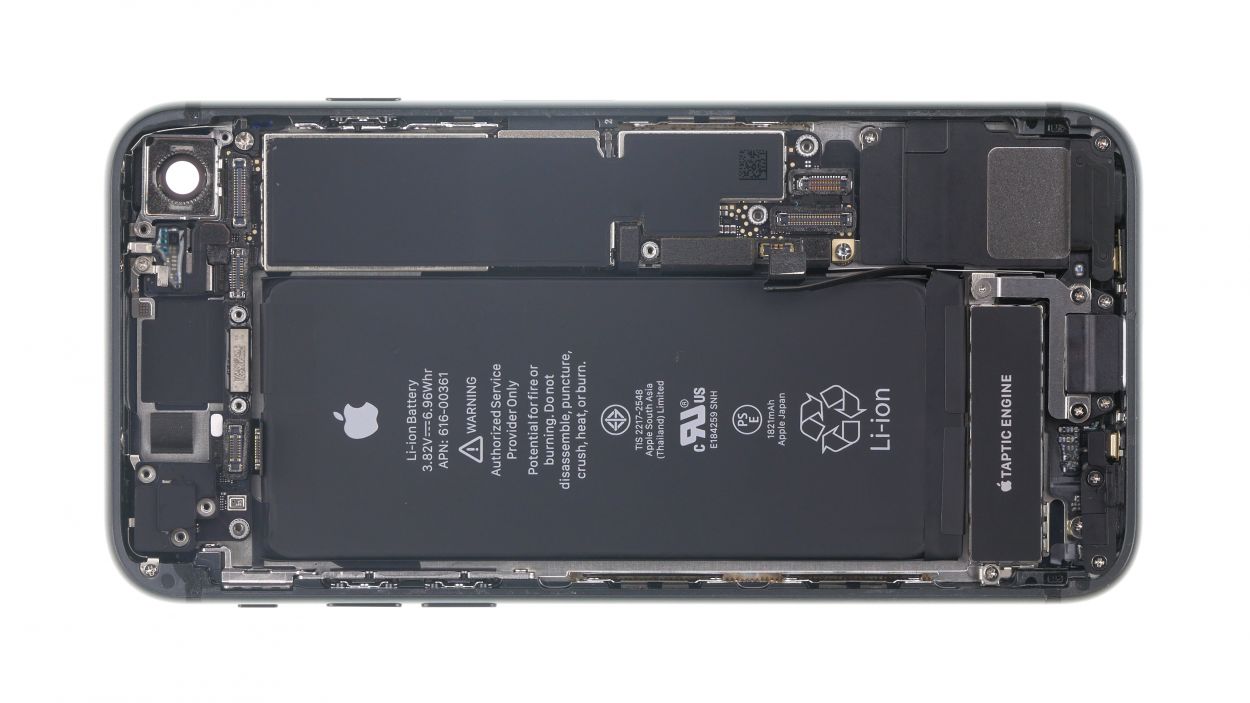

- First, let's get rid of any sticky leftovers on the metal frame and display. This way, the new adhesive frame can fit like a glove!
- Next, align that adhesive frame with the back cover of your iPhone, making sure it’s just right. You're doing great!
Tools Used
Step 22
3 × 1,0 mm Phillips-Schraube

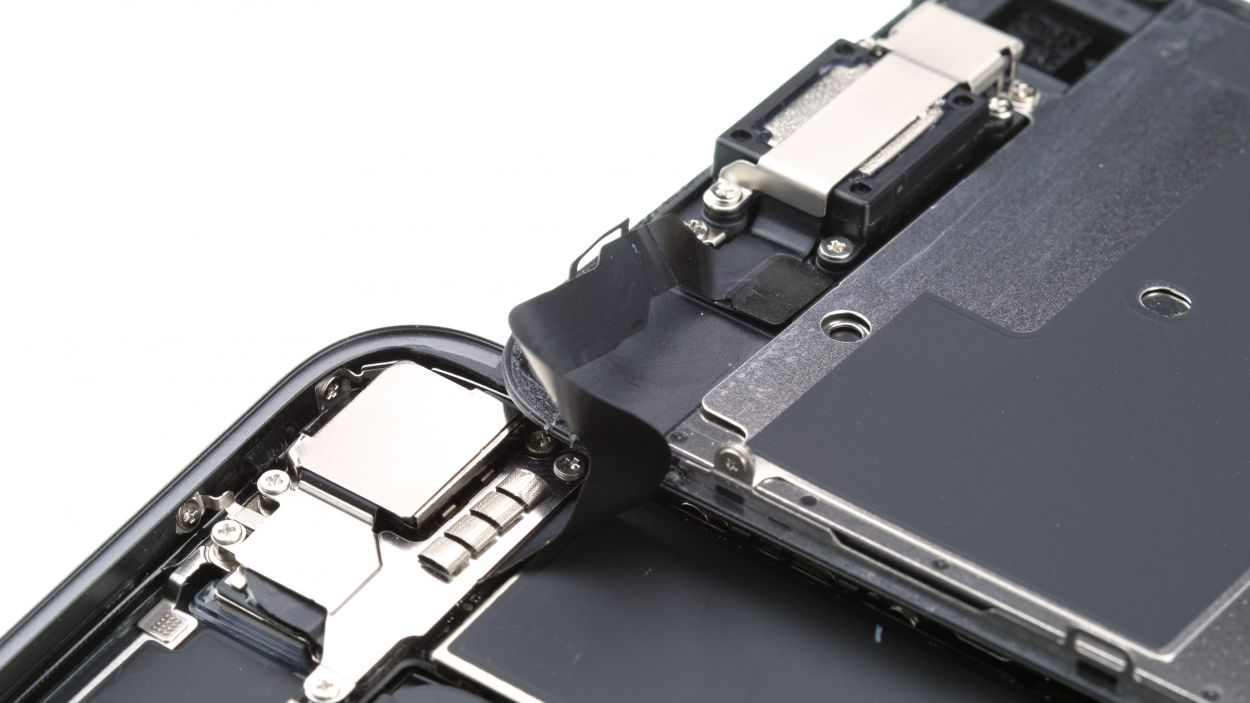

- Stand the display up on the frame and connect that FaceTime connector to the logic board like a pro!
- Next, gently lay the display down next to the back cover, ready for the next step.

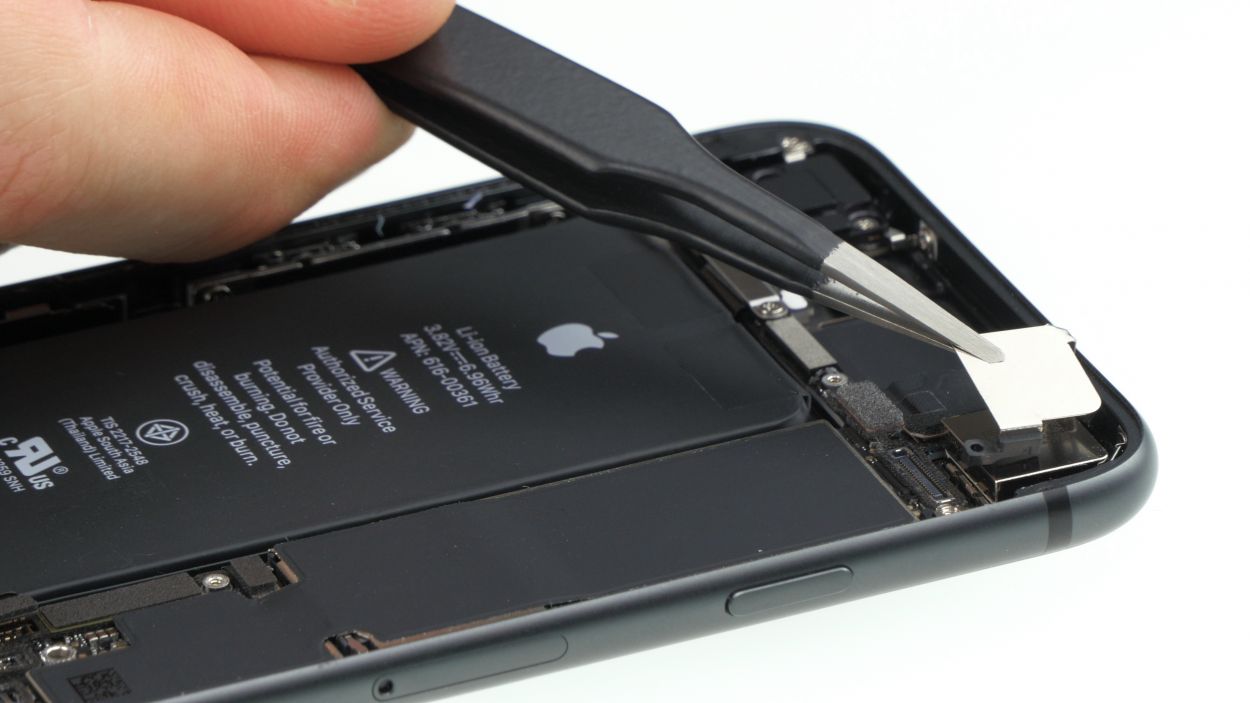

- Now, cover the FaceTime connector with the plate and secure it with those three Phillips screws. You’re almost done!
Step 23

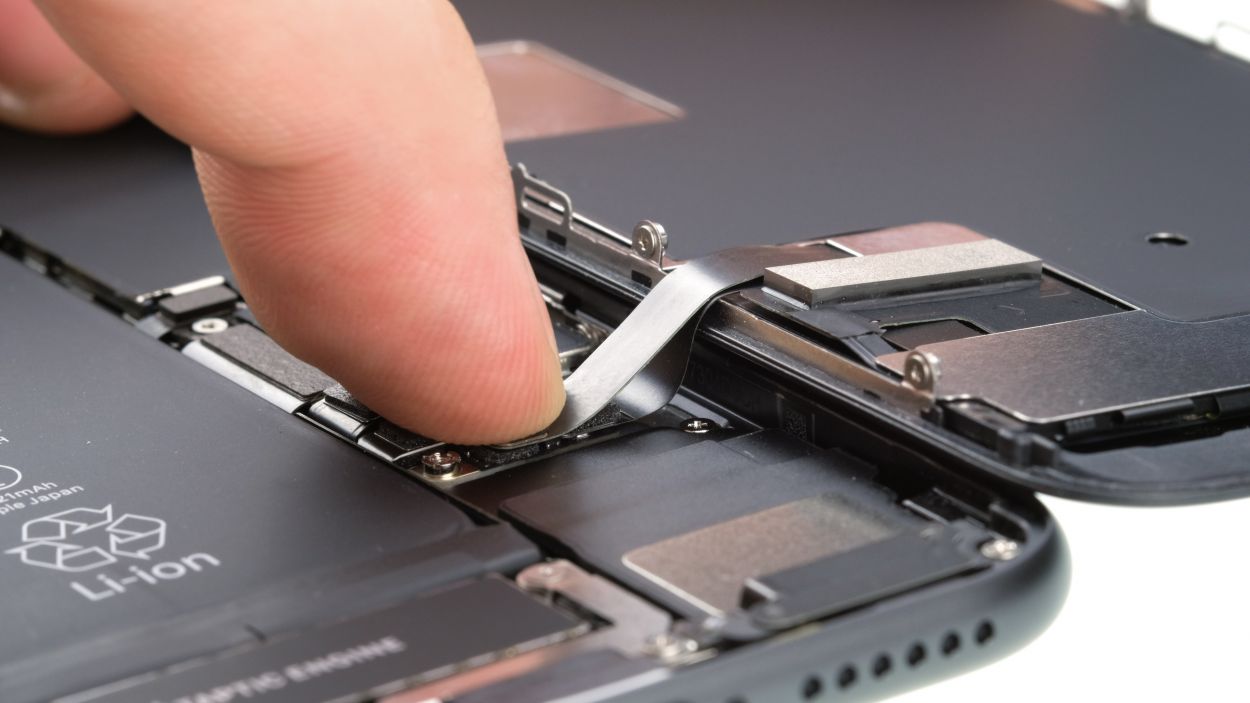

- Reconnect the display connectors (one for the display and one for the home button) to the logic board. You've got this!
Step 24
2 × 2.6 mm Phillips
2 × 1,0 mm Phillips-Schraube

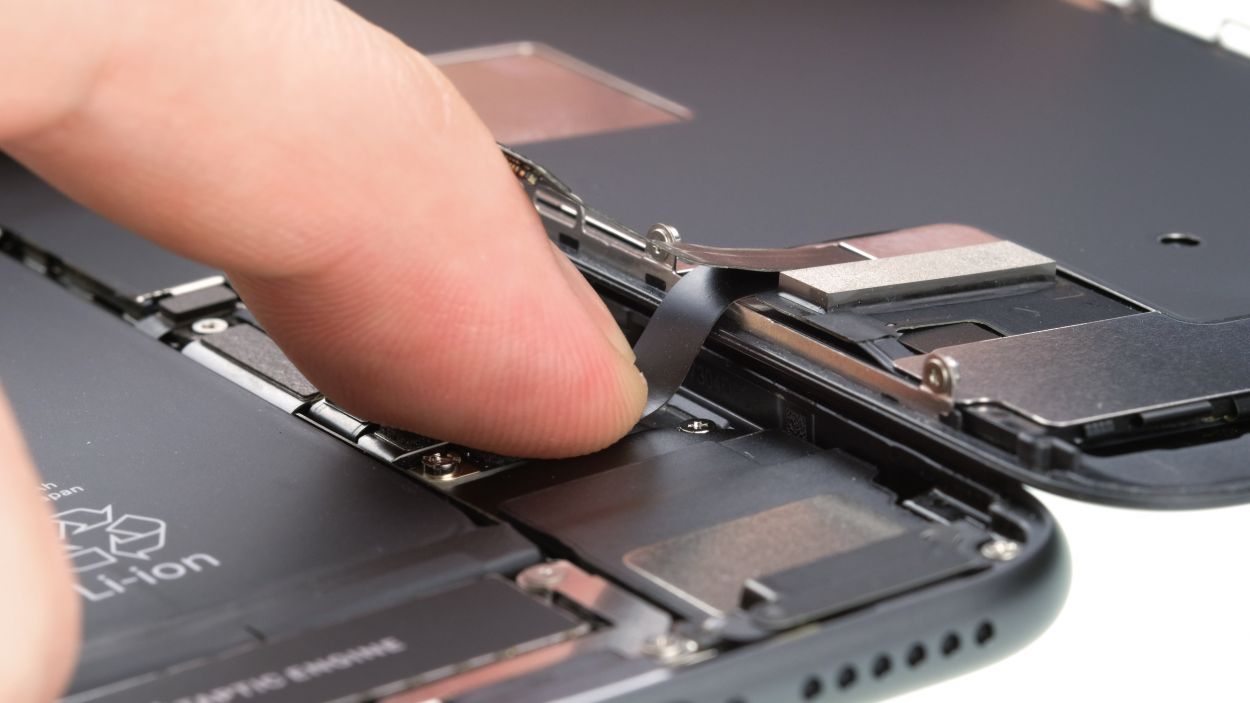

- Reconnect that battery by snapping the battery connector back in place like a pro!
- Next up, place the bracket plate over the battery connector and secure it down with those four screws. You're almost there!
Step 25

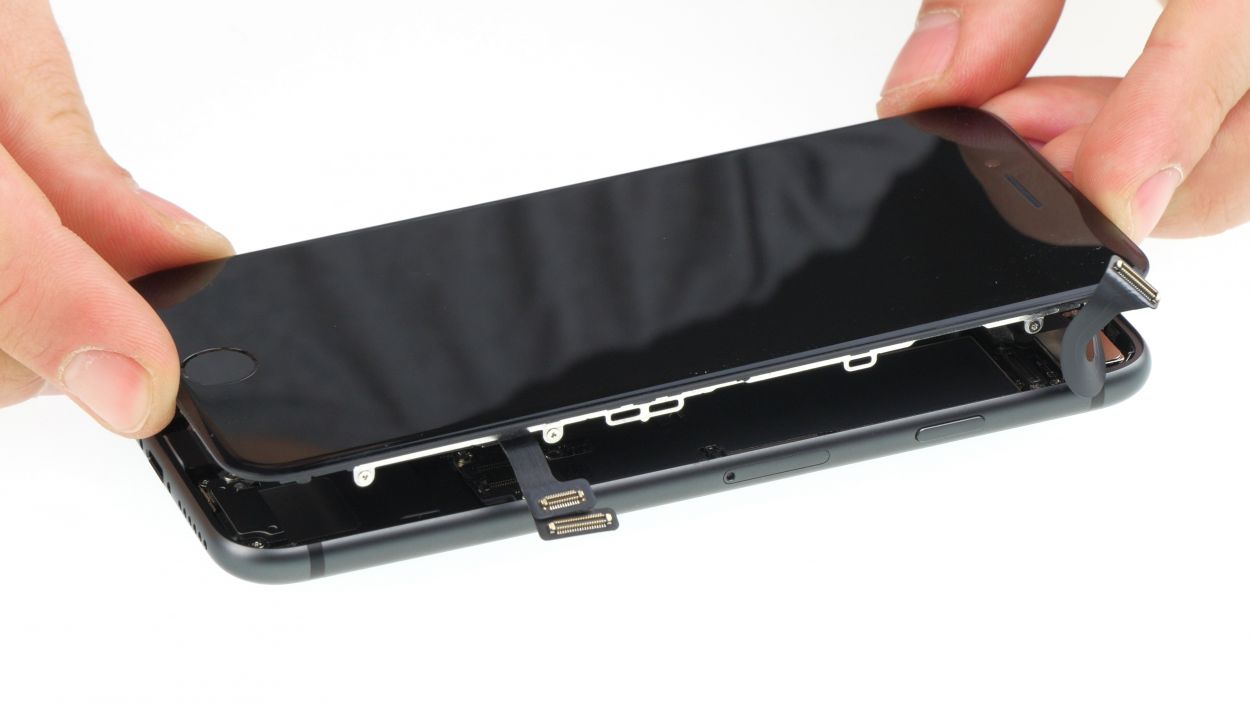

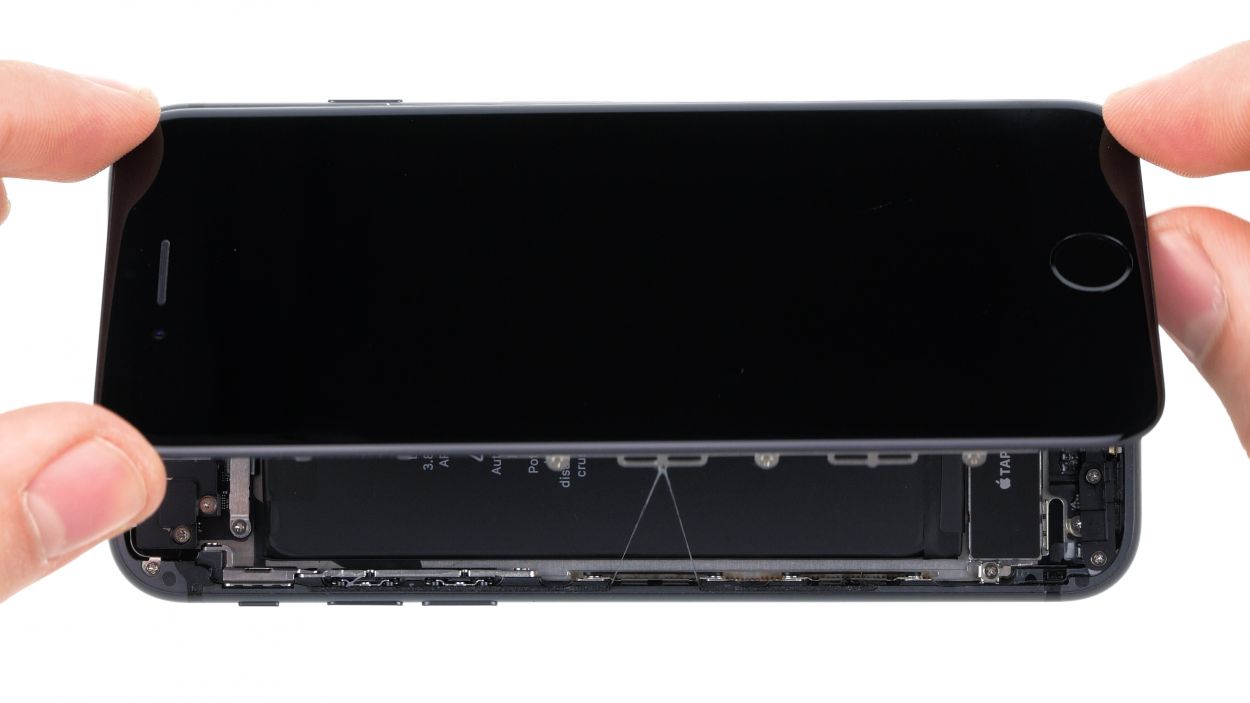

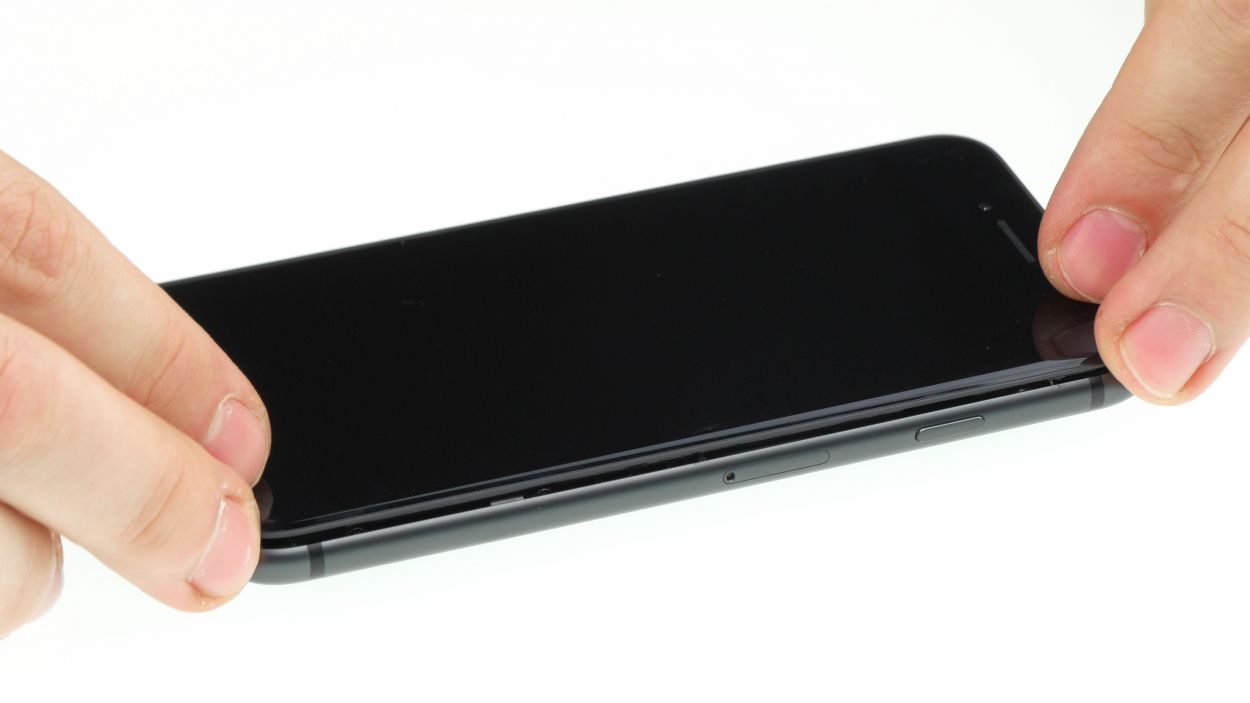

- Gently set the display next to the back cover and fold it over with care, like tucking in a cozy blanket.
- Now, give that display a nice firm press all over to make sure it’s snug and secure. You’re almost there!

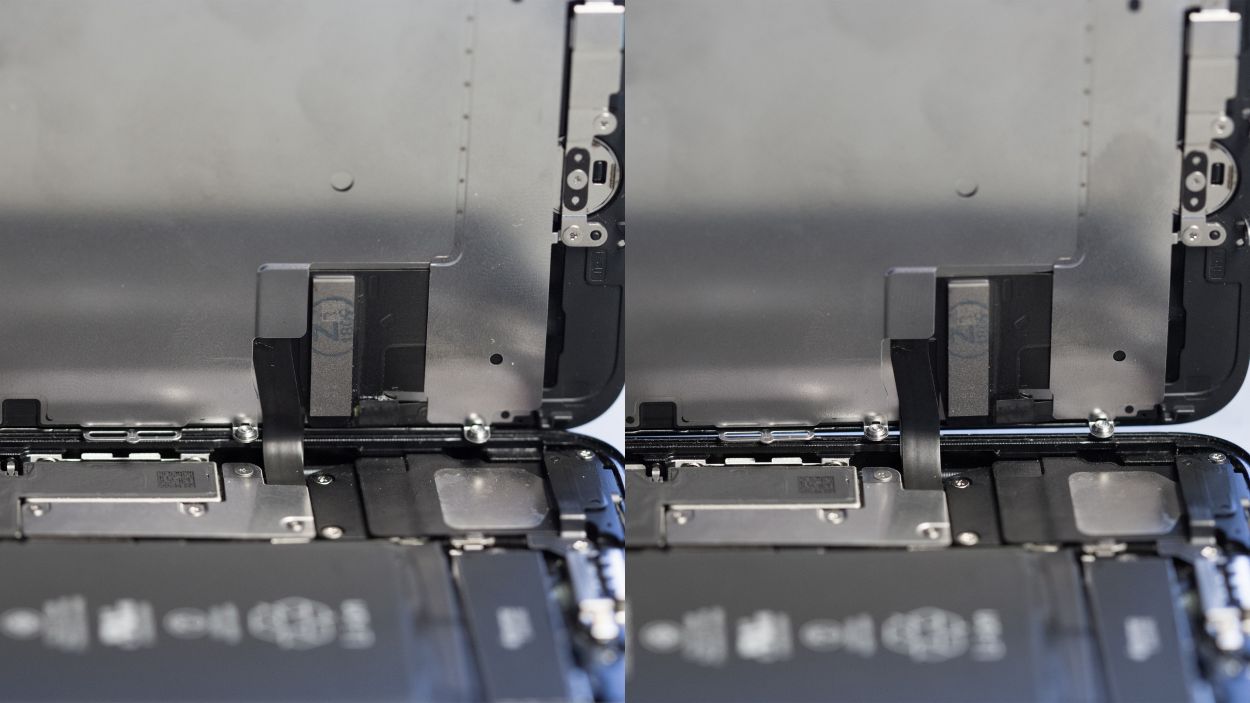

Wrong position
Right position

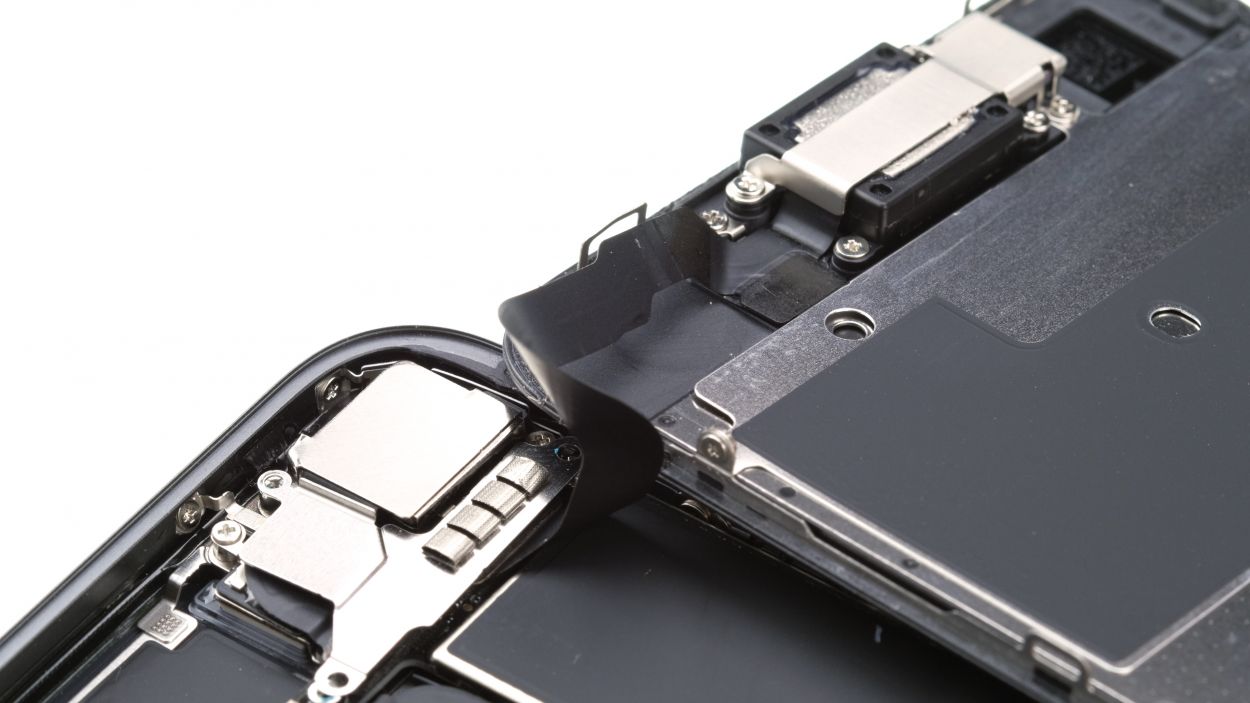

Just a friendly reminder: the silver chip on the cable needs to be placed exactly as it was before (check out the photo!). If it’s not, you might notice some funky discolorations and spots on the screen after you’re done. If that happens, don’t panic! Just double-check the cable’s position and make sure that chip is aligned just like in our photo. You’ve got this!
Step 26
2 × 3.4 mm Pentalobe
- Time to wrap things up! Grab those two Pentalobe screws that you've been saving on either side of the Lightning connector and screw them back into the rear case. You're almost there!
