iPhone X – Removing the logicboard
Duration: 90 min.
Steps: 19 Steps
So, your iPhone X just had a little swim? No worries! It’s a good idea to give that logicboard a nice clean to prevent any sneaky corrosion from crashing the party. Our repair instructions will guide you through the process step by step. Good luck with the logicboard removal! If you find our guide helpful, we’d love for you to give it a thumbs up! Remember, a clean logicboard is a happy logicboard!
Step 1
- Before diving into the repair fun, make sure to power down your iPhone X to keep it safe and sound. Just press and hold the standby button along with one of the volume buttons for about three seconds, and you're golden!
- When you see the 'Power Off' slider pop up on your screen, swipe it from left to right. Your iPhone will take a little nap and shut down completely in about 10 seconds. Easy peasy!
Step 2
- Unscrew those two pentalobe screws hanging out on either side of the Lightning connector and toss them into your trusty screw storage box. They’ll be safe and sound there!
2 × 6,8 mm Pentalobe
To keep all those tiny screws and components from playing hide and seek, we suggest using a screw storage box. An old sewing box can work wonders for this! We love using a high-quality magnetic pad during our repairs, where we neatly arrange the removed components just like they were before. This way, you’ll know exactly where each screw belongs, making reassembly a breeze!
Tools Used
Step 3
When it comes to warming up your device, aim for just the right touch—warm enough to be cozy but not so hot that it feels like you just opened the oven door! Keep it chill, and you'll be good to go.
- Gently set your iPhone X on a soft, clean surface—let's keep that back looking sharp while we lift the display!
- Now, grab your hot air tool—be it a trusty hairdryer or a hot air gun—and glide it along the glued edge of the display. Let's warm things up just right!
Tools Used
Step 4
Once you pop open that iPhone X, the waterproof party is over—no more warranty for keeping those pesky water droplets at bay! Plus, the IP67 dust and splash protection warranty takes a little vacation too.
- Stick that suction cup right on the bottom edge of your device and give it a gentle tug upwards—this will create a nice little gap between the stainless steel and display frame.
- Now, grab a sturdy, flat tool and slide it into that gap to widen it up a bit. While you're at it, give the display a little nudge upwards with the tool, using those flat plastic picks to help out.
Tools Used
Step 5
Hey there! When you're working on your iPhone X, remember to treat those delicate flex cables with care. So, no need to fold the display all the way over while it's still connected—let's keep it happy and healthy!
- Gently nudge that display upwards from the aluminum frame with your trusty hard plastic plectrum. You got this!
- Once the display is free, gently fold it over towards the standby button. It's like giving it a little hug!
- Now, lean it against something stable so it stands tall and proud while you work your magic.
Tools Used
Step 6
1 × 3,0 mm Y-Type
3 × 1,0 mm Y-Type
1 × 3,6 mm Y-Type
Just a heads up! The screws in your iPhone X are like a mixed bag—some are long, some are short. So keep your eyes peeled and stay organized!
- Grab your trusty Y-type screwdriver and unscrew those Y-type screws to lift off the cover plate. Easy does it!
- Now, gently slide that battery connector out of its snug spot using a flat plastic tool—like a spudger. You're doing great!
Tools Used
Step 7
Display Connector
Earpiece Connector
Hey there! When you're disconnecting those connectors, make sure to use your tools from the side where there are no components. It’s like giving your logicboard a gentle high-five without any accidental bumps!
- Grab your spudger and gently wiggle those connectors free from the Logicboard, one by one. Just a heads up, the earpiece flex cable at the top of the display might be feeling a bit clingy due to some glue.
- Once you've disconnected all the connectors, you can wave goodbye to the display and remove it completely. You're doing awesome!
Tools Used
Step 8
In the upcoming images, you might notice that the speaker, Taptic Engine, and battery are taking a little vacation. But don’t worry, you can still remove the logicboard without having to take them out! It's all about keeping it simple!
Step 9
Camera Connector
1 × 2,2 mm Phillips
1 × 1,9 mm Phillips
- First, let's loosen those two Phillips screws holding the iSight camera bracket plate in place. Easy does it!

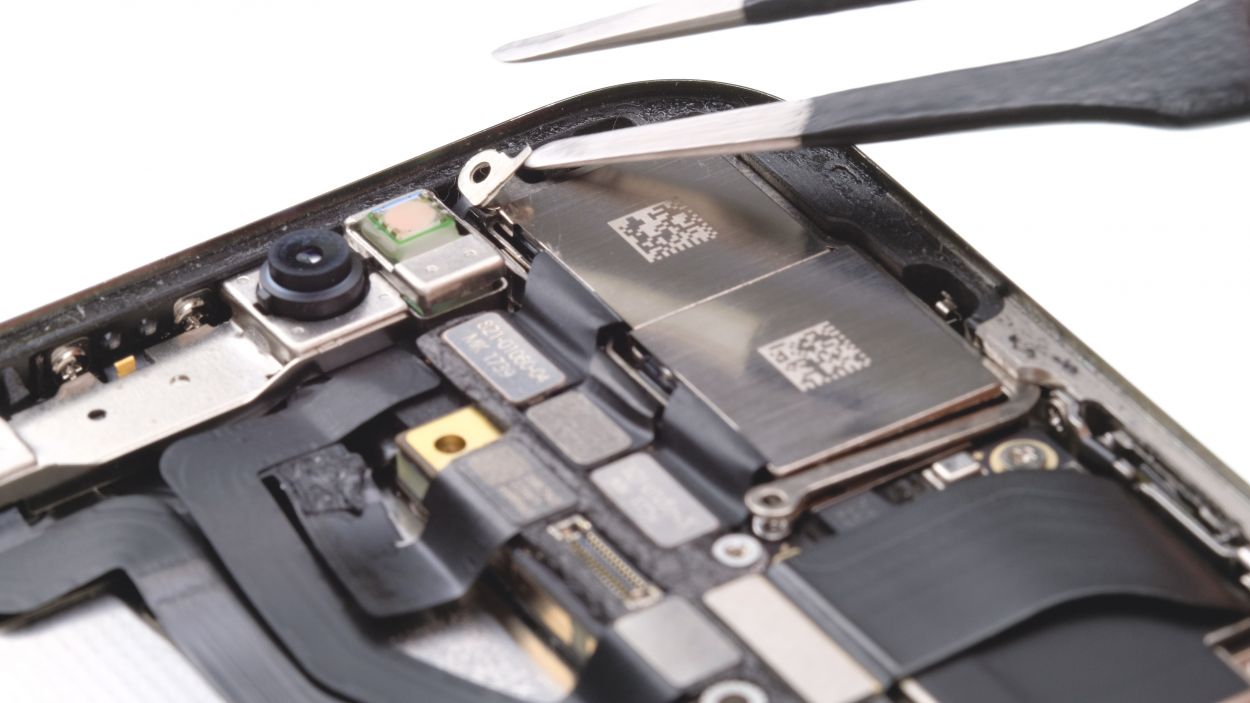

- Next, gently lift the little eyelet at the top edge of the rear case that’s keeping the bracket plate secure. You've got this!

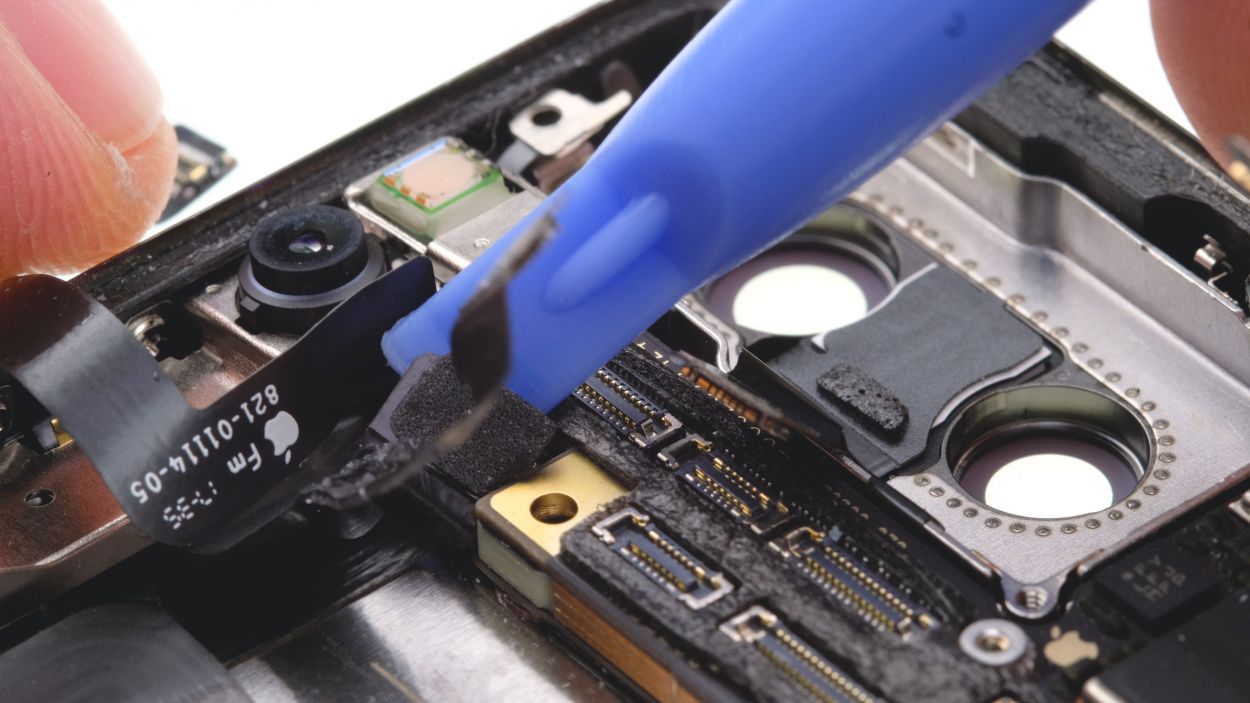

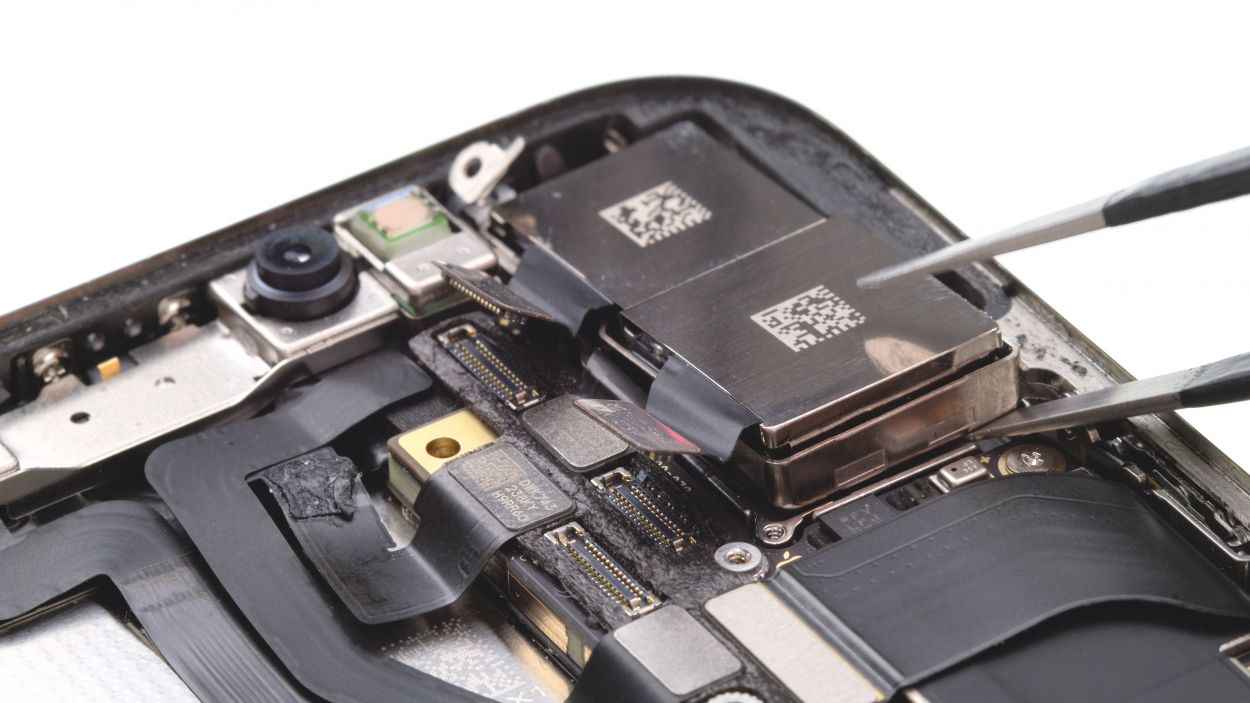

- Now, grab your trusty spudger and carefully separate the two connectors of the iSight camera from the logicboard. Nice and steady!
- Finally, with a delicate touch, use the spudger to pry the camera out of its cozy spot and set it aside. You're doing great!
Step 10

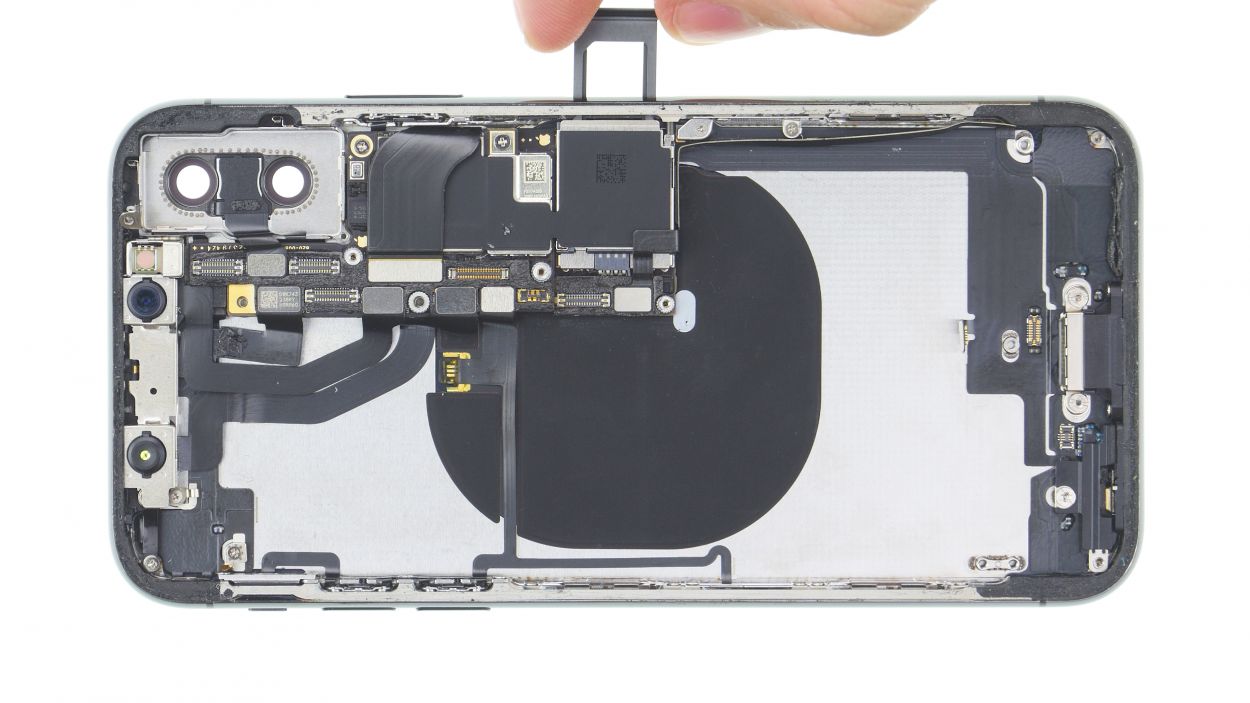

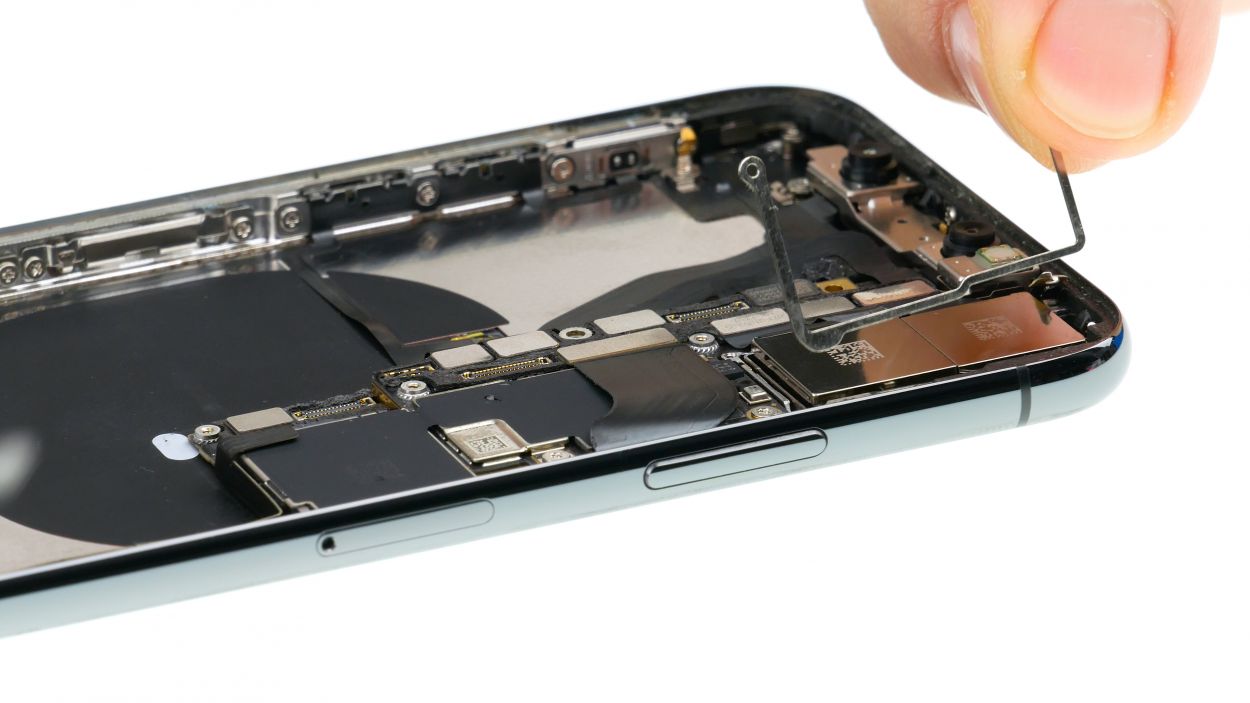

- Grab your trusty SIM tool or a paperclip and slide it into the little opening right next to the SIM card tray. Give it a gentle push and watch that tray pop right out!
Tools Used
Step 11

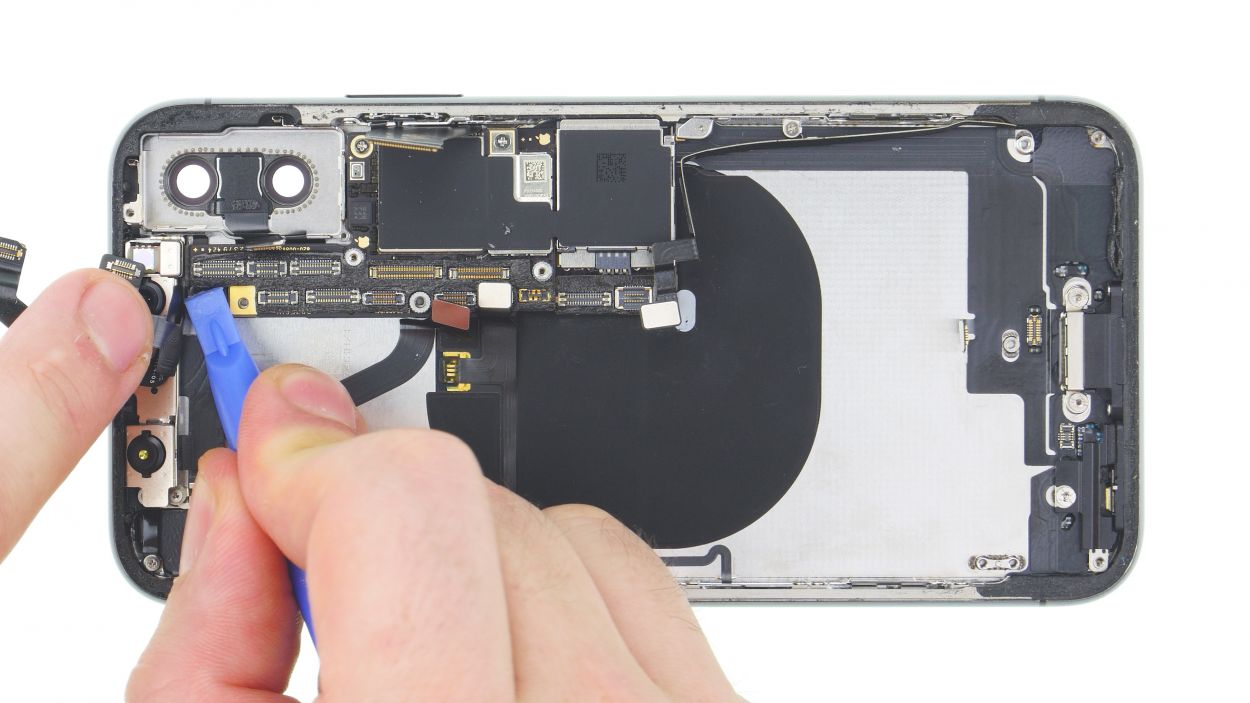

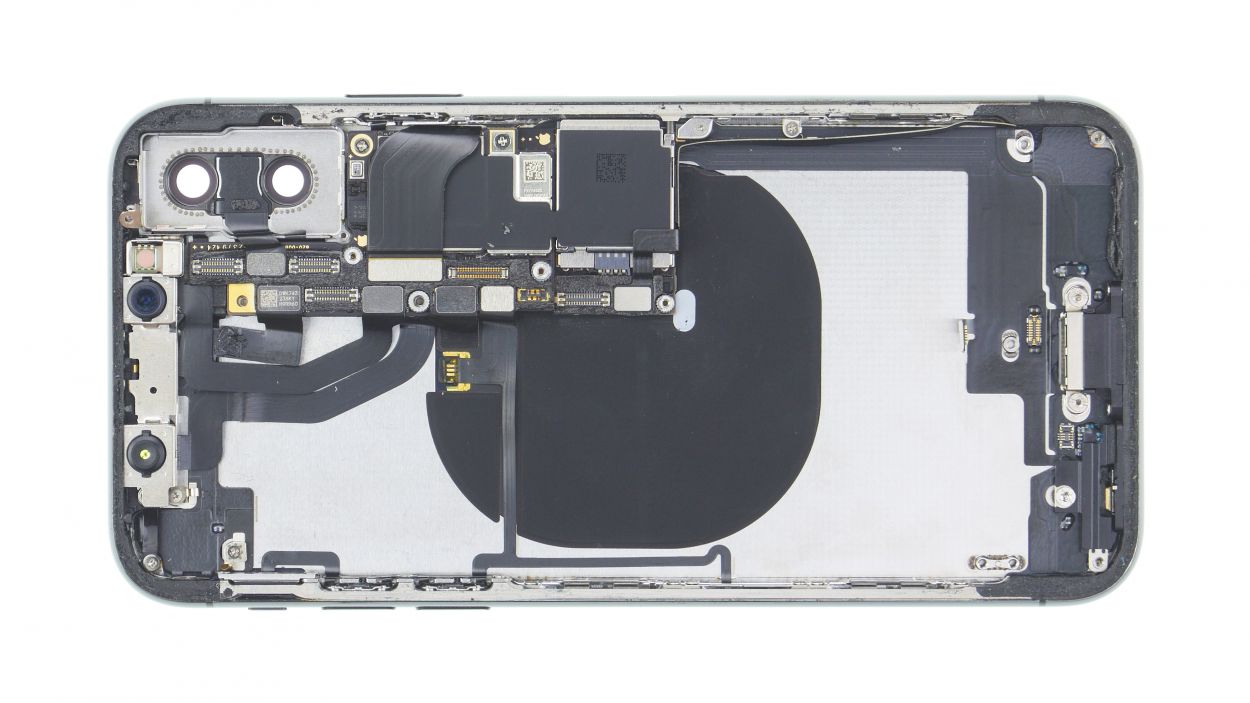

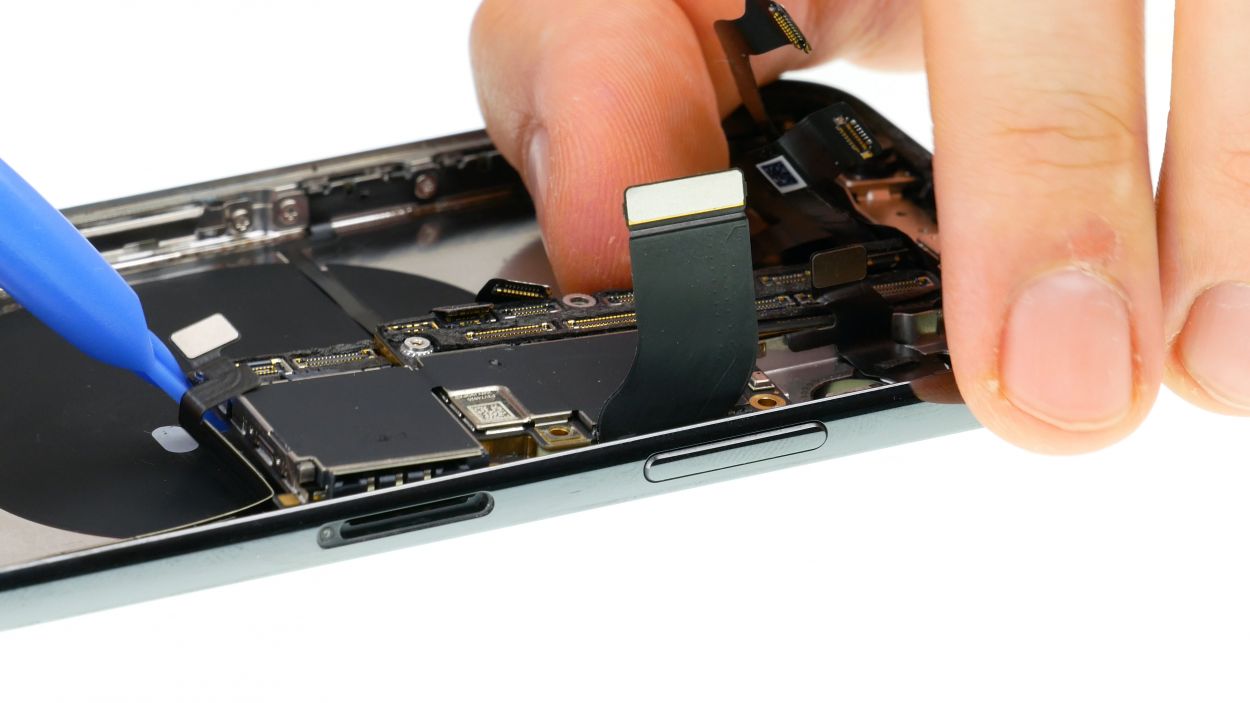

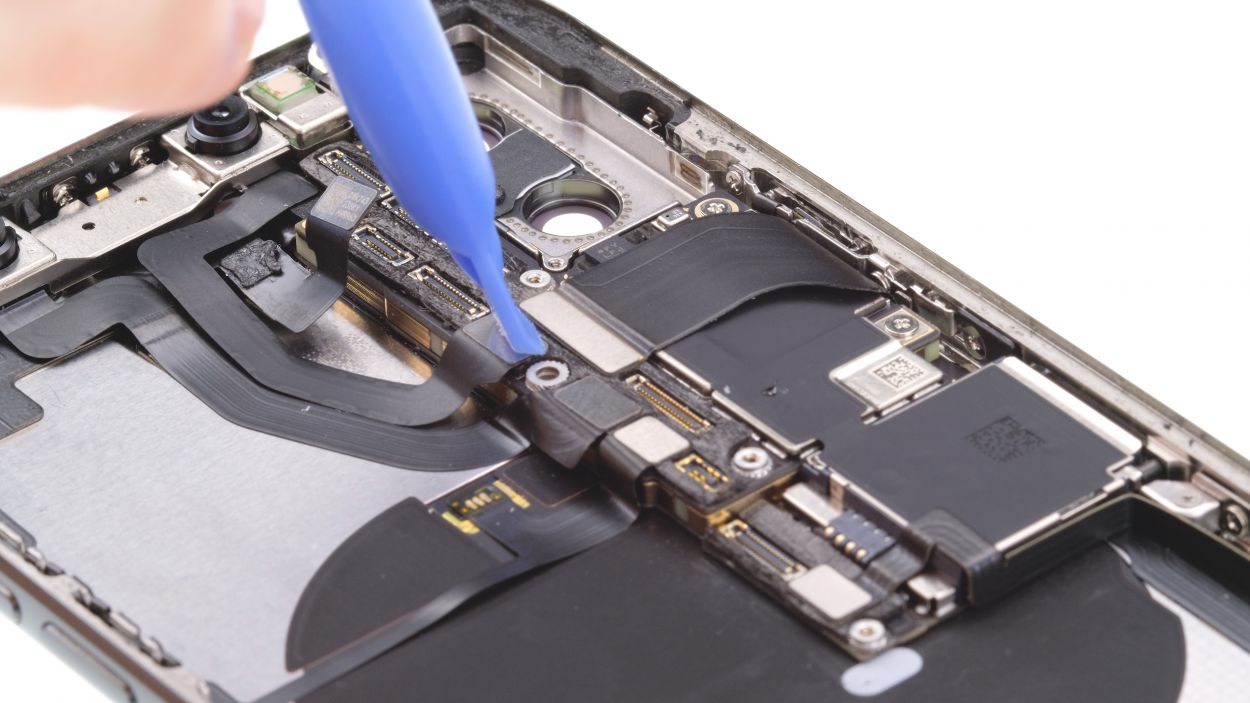

- Grab your trusty spudger and gently disconnect all those connectors from the logicboard. We're talking about the Lightning connector, flash light, FaceTime camera, and volume buttons—let's make sure they're all set free!
- Oh, and keep an eye out for a connector hiding under the flex cable of the FaceTime camera. Just bend that cable a bit to the side, and you'll be able to detach it with ease. You're doing great!
1 × 2,8 mm Phillips
1 × 2,1 mm Phillips
1 × 1,1 mm Phillips
Lightning connector
Camera flash connector
Speaker connector
Front-facing camera connector
Wi-Fi antenna connector
Wireless charging connector
If you're having a bit of trouble releasing that connector right away, no sweat! Just go ahead and take out the FaceTime camera first. It’s like a little detour on your way to success!
Step 12
1 × 2,7 mm Phillips
1 × 2,1 mm Phillips
1 × 1,1 mm Phillips
Lightning connector
Camera flash connector
Speaker connector
Front-facing camera connector
Wi-Fi antenna connector
Wireless charging connector

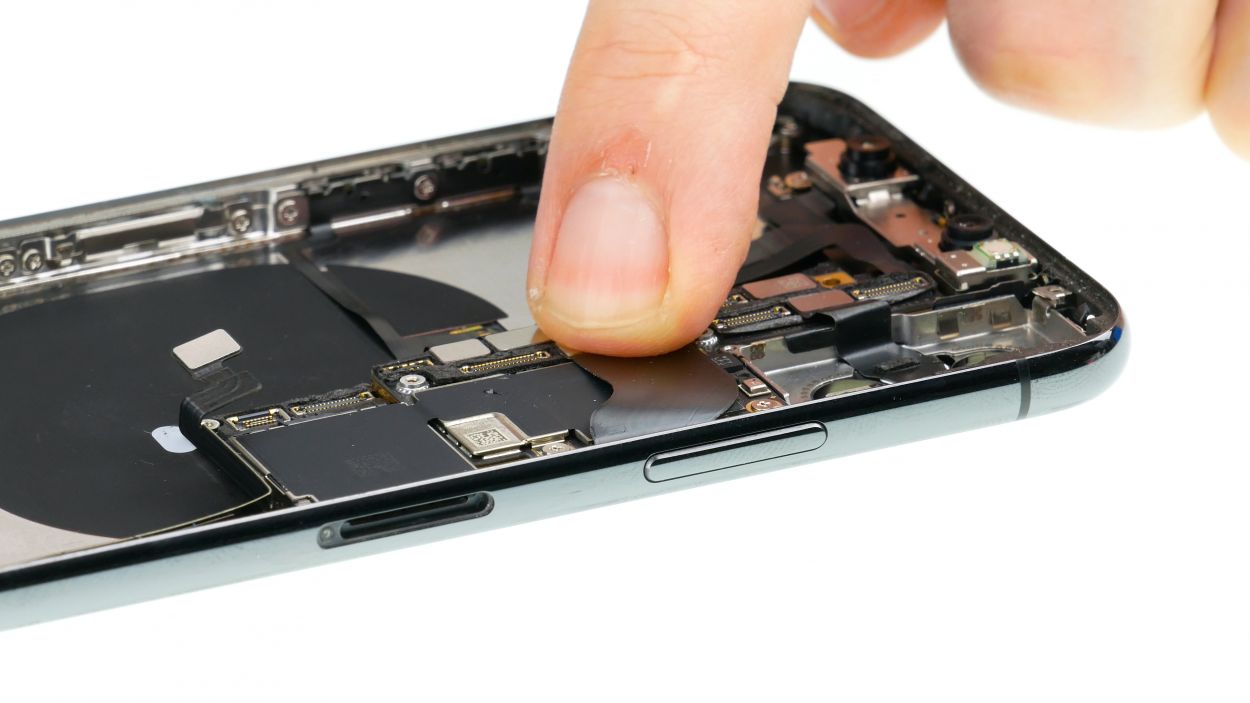

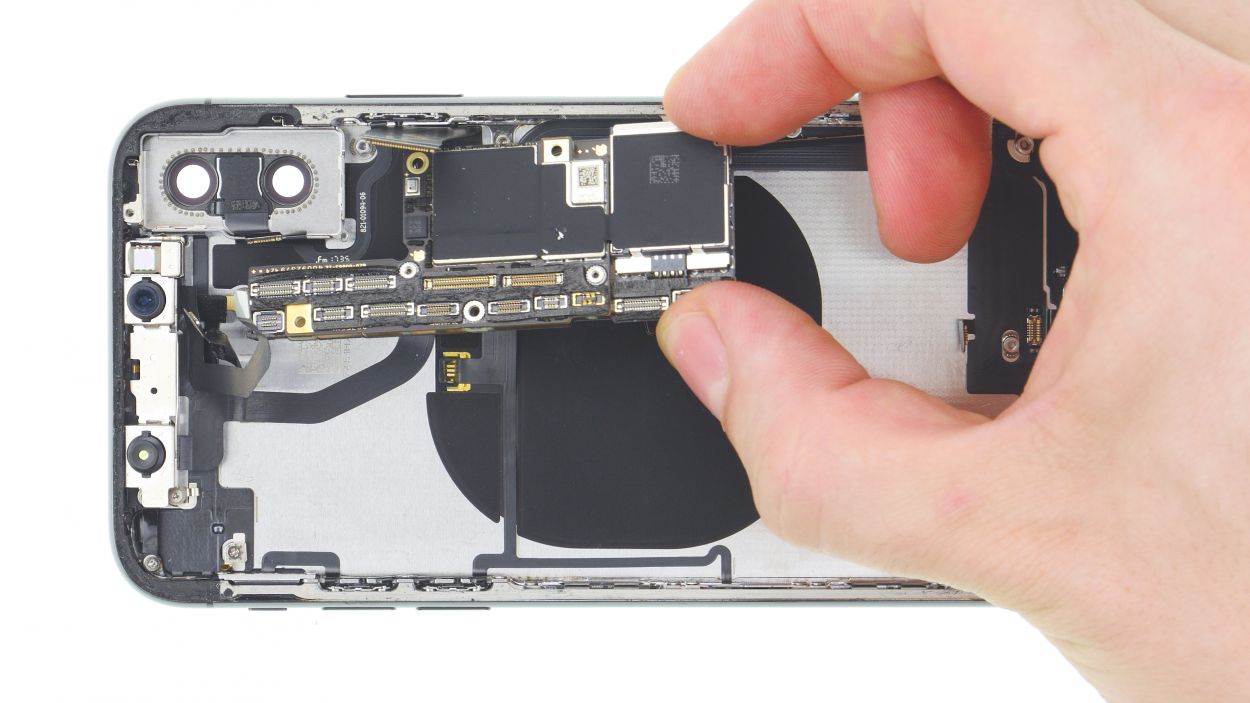

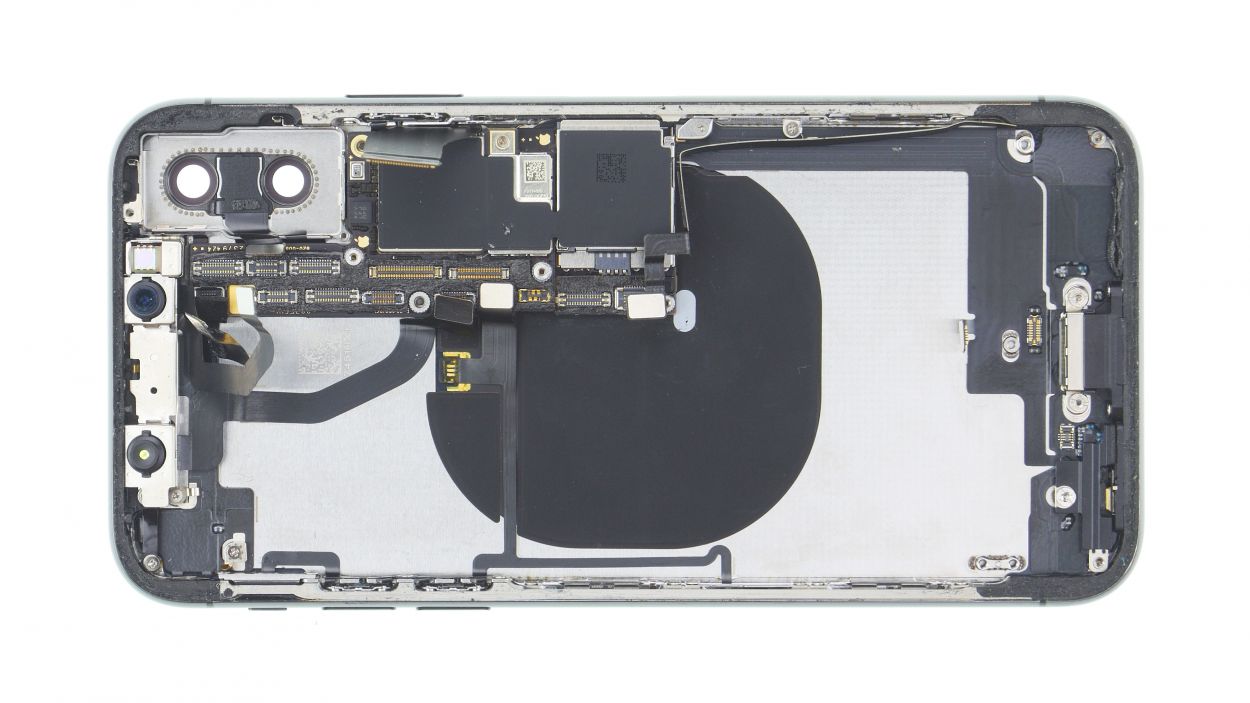

- Give those loose flex cables a little nudge to the side before you slide the logicboard back into the back cover. We want to keep everything cozy and avoid any jam-ups!
- Pop that small metal cover back where it belongs and secure it with a screw or two.

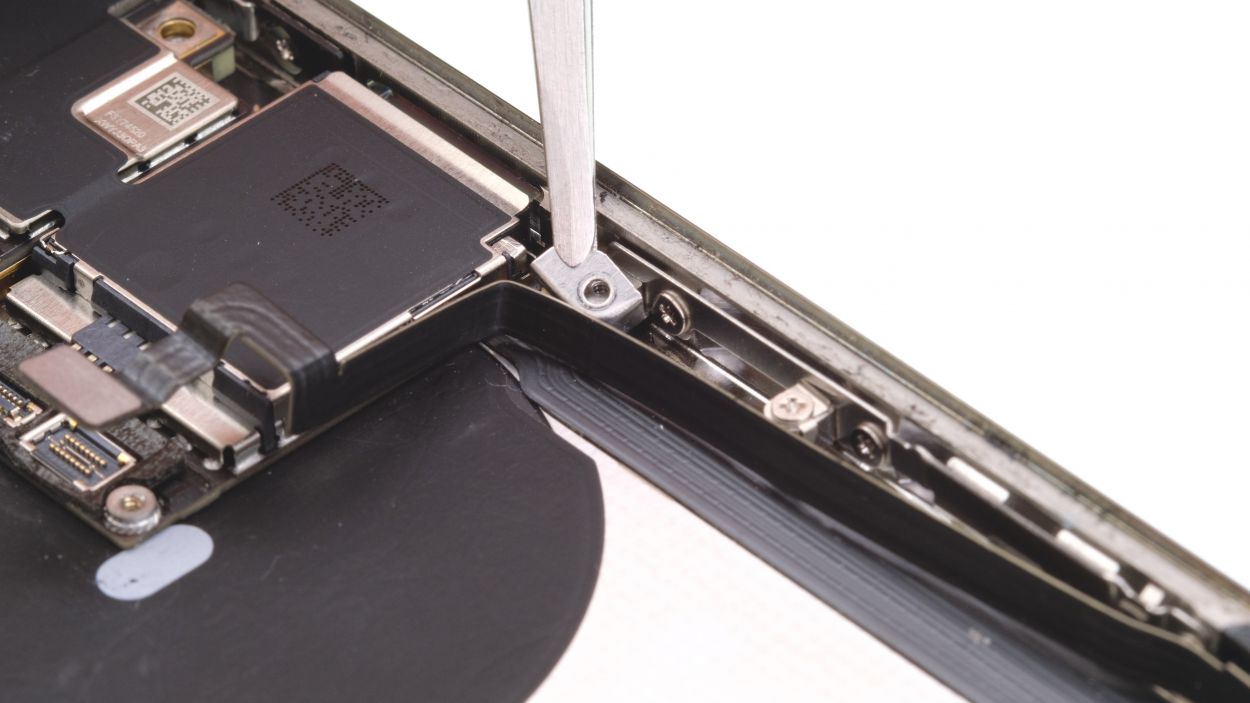

- Fasten the logicboard down with the remaining screws—let's keep it snug!
- Now it's time to reconnect all those connectors. You're almost there!
Step 13
When you're sliding that SIM card tray back in, it should glide in smoothly—like butter on toast! If you feel any serious resistance, it might mean the logicboard is playing hard to get. Let's make sure everything is snug and seated just right!
- Gently slide that SIM card tray back into its cozy spot in the back cover frame. It should glide in smoothly—just like a well-rehearsed dance move!
Step 14

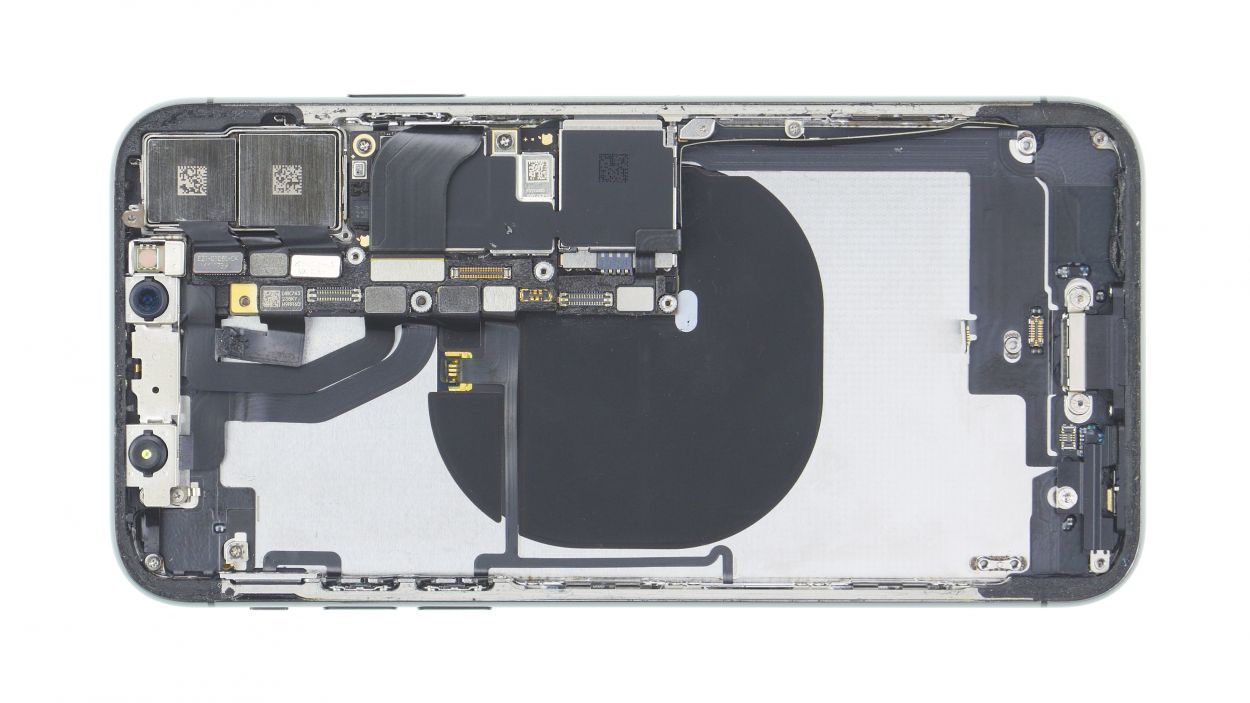

- Gently slide the iSight camera back into its designated spot in the enclosure and give it a gentle squeeze to secure it.
- Connect the two camera connectors together—let's make sure they’re best buds!
- Position the metal cover next to the iSight camera so it's standing tall on the rear case.
- Fold it over carefully, ensuring the screw holes are perfectly aligned.
Camera Connector
1 × 1,9 mm Phillips
1 × 2,2 mm Phillips
Before you pop in that iSight camera, give the lens a little love! Make sure it's free of dust and fingerprints, both on the lens itself and inside the camera cover. A clean camera is a happy camera!
Make sure that the little metal eyelet is happily resting above the metal cover. It's all about that perfect fit!
Step 15
- To make sure that your shiny new adhesive frame fits like a glove, start by giving the stainless steel and display frames a good scrub to get rid of any leftover adhesive residue. No sticky situations here!
- Once you've got a clean slate, align that adhesive frame just right and peel off the protective film from the bottom—let's get sticking!
After sticking on that fresh adhesive strip, your iPhone is back in action, keeping out dust and splashes like a champ! Just a friendly reminder though, it's not fully waterproof—so let's keep it away from the deep end!
The corners of the adhesive frame are uniquely shaped, making it super easy to line it up perfectly with your device's frame. Just follow the groove, and you'll be all set!
Tools Used
Step 16
Display Connector
Earpiece Connector
Give that lower connector a little nudge with your spudger to ensure it's snug as a bug in a rug. We want everything seated just right for a smooth operation!
- To keep those delicate flex cables from getting all stretched out when you're hooking up the display, just rest the display on the side of your iPhone X's frame and lean it against something sturdy. You've got this!
- Now, gently connect the three display connectors by pressing them until you hear that satisfying click! It's like a little victory dance for your device.
Tools Used
Step 17
1 × 3,0 mm Y-Type
3 × 1,0 mm Y-Type
1 × 3,6 mm Y-Type
- Reconnect that battery connector like a pro!
- Next, grab the bracket plate and secure it back in place with those Y-Type screws. You're almost there!
Tools Used
Step 18
Before you seal the deal with that glue, give your iPhone a little test drive! Check out the display and all those nifty functions to make sure everything's running smoothly. It's like a final check before the big show!
- With a gentle grip, lift that display and give it a friendly fold over. You're doing great!
- Now, give it a little press down along the frame, one step at a time. You've got this!
Step 19
2 × 6.8 mm Pentalobe
- Time to tighten things up! Grab your trusty Pentalobe screwdriver and fasten those two pentalobe screws snugly on either side of the Lightning connector. You're on the home stretch!
