iPhone X Speaker Replacement Guide: DIY Tutorial
Duration: 45 min.
Steps: 16 Steps
If your iPhone X is playing music at a whisper or you’re missing those ringtone vibes when a call comes in, it’s time to swap out that speaker! Our easy-to-follow repair guide will walk you through the steps to do it yourself, helping your iPhone X get its groove back. Good luck with the repair! We can’t wait to hear your thoughts on our guide.
Step 1

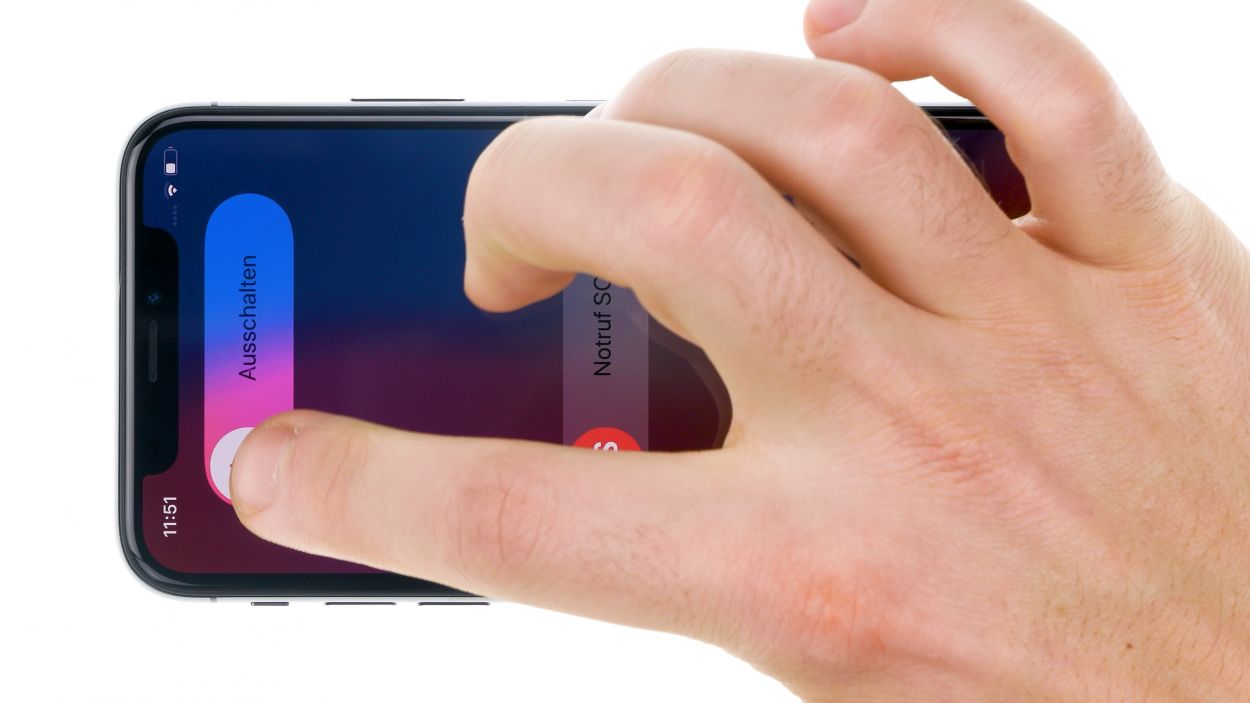

– First things first, let’s power down your iPhone X before diving into repairs. This is your phone’s way of saying, ‘Thanks for looking out for me!’ To turn it off, just press the standby button and one of the volume buttons at the same time for about three seconds.
– When you see the ‘Power Off’ slider pop up on the screen, give it a gentle swipe from left to right. In about 10 seconds, your iPhone will be completely off and ready for some TLC.
Step 2

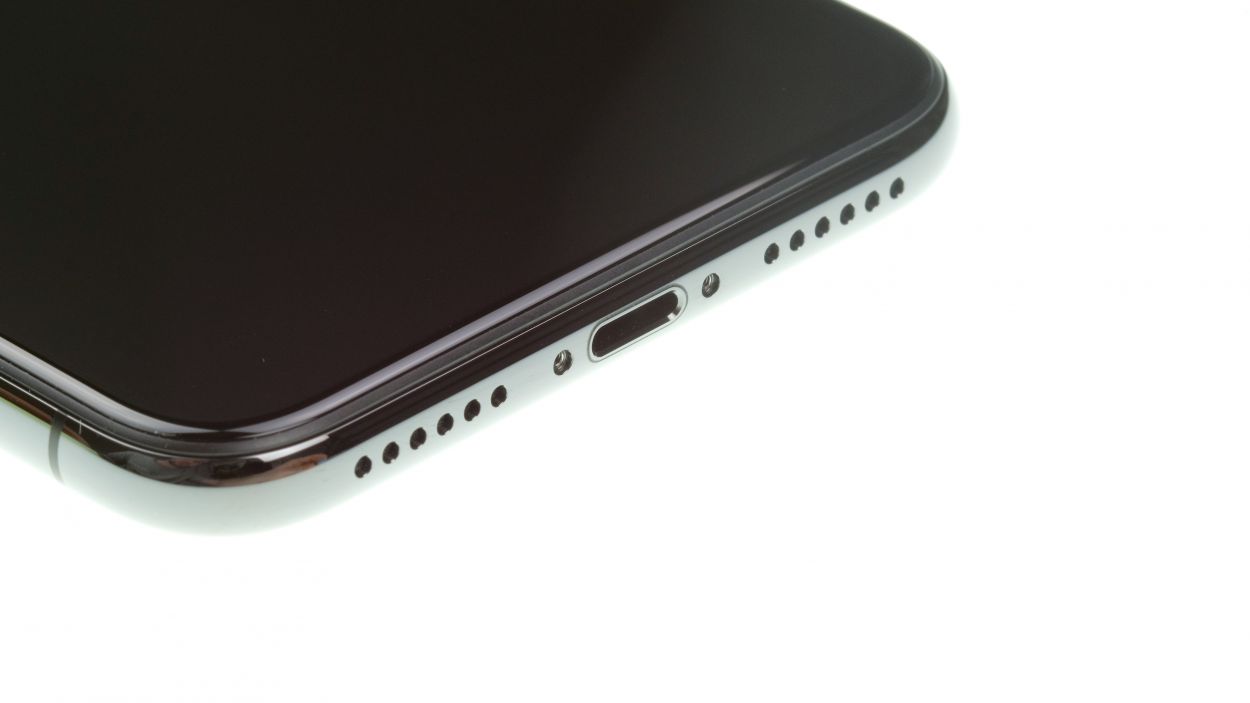

– Unscrew the two pentalobe screws that are hanging out to the left and right of the Lightning connector. Once you’ve got them out, toss them into your trusty screw storage box so they don’t wander off!
2 × 6,8 mm Pentalobe
To keep all those tiny screws and components from going on a little adventure, we suggest using a screw storage box. An old sewing box can work wonders for this! We like to use a nifty magnetic pad during our repairs, where you can neatly arrange the parts just like they were in your phone. This way, you’ll know exactly where each screw belongs, making reassembly a breeze!
Tools Used
Step 3

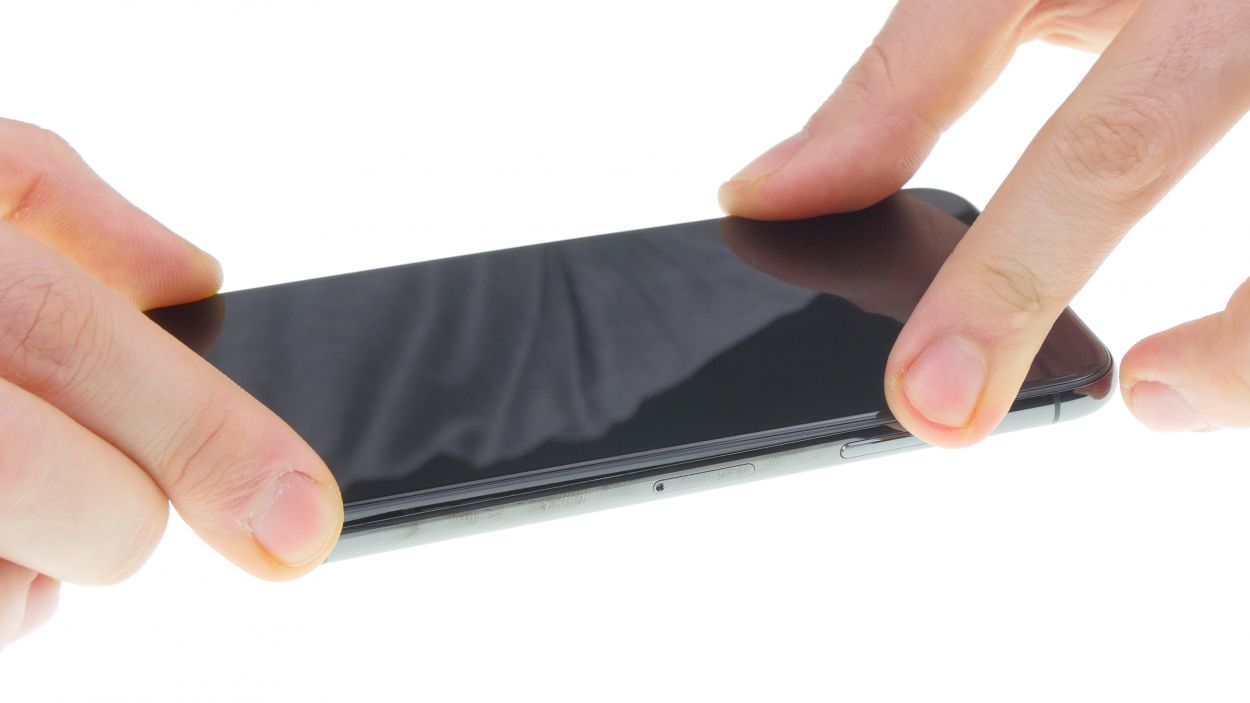

When warming up your device, aim for just the right cozy feel – warm enough to hold without turning your fingers into little ice cubes! You want it comfortable to the touch, but definitely not a hot potato.
– Alright, let’s set the stage for your iPhone X – find a cozy spot for it on a soft, clean surface to keep its back scratch-free. It’s like giving your phone a little pampering session!
– Now, grab your hot air tool, whether it’s a hot air dryer or a regular hairdryer, and glide it smoothly over the glued edge of the display. Heat things up gently!
Tools Used
Step 4
Hey there! Just a heads up: once you pop open that iPhone X, the waterproof warranty takes a little vacation. Plus, the IP67 dust and splash protection warranty waves goodbye too. So, let’s keep it dry and clean while we work on it!

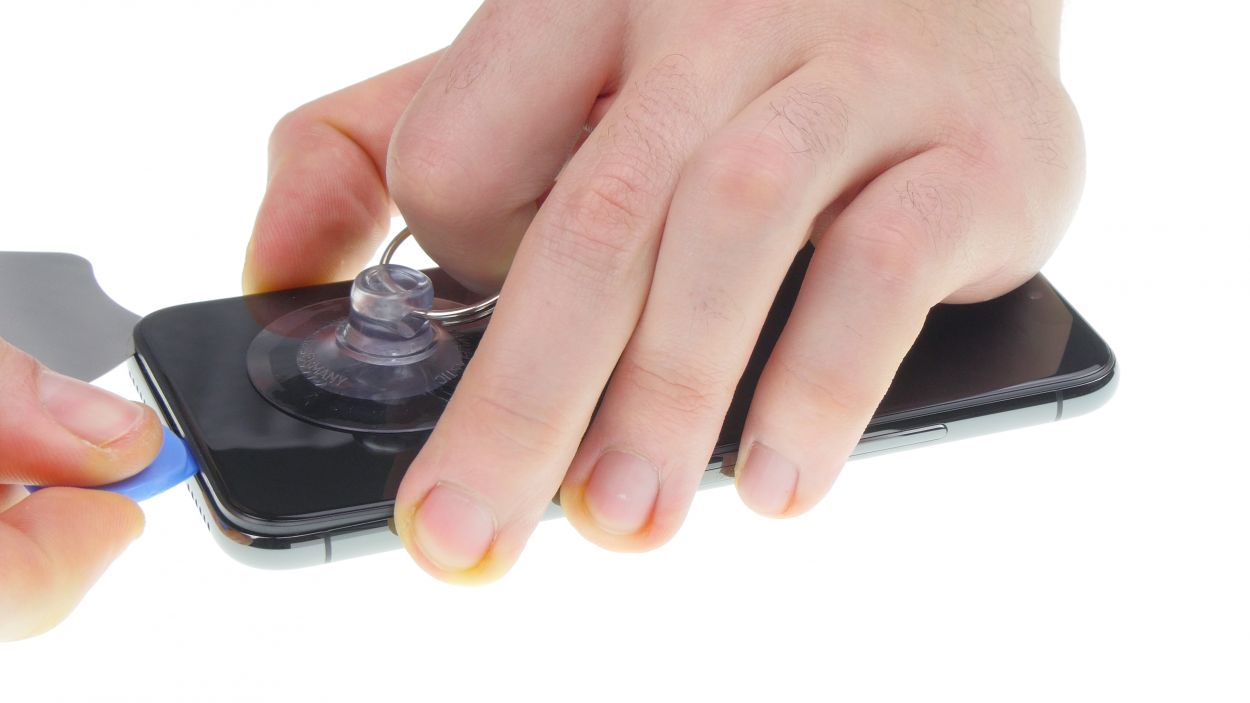

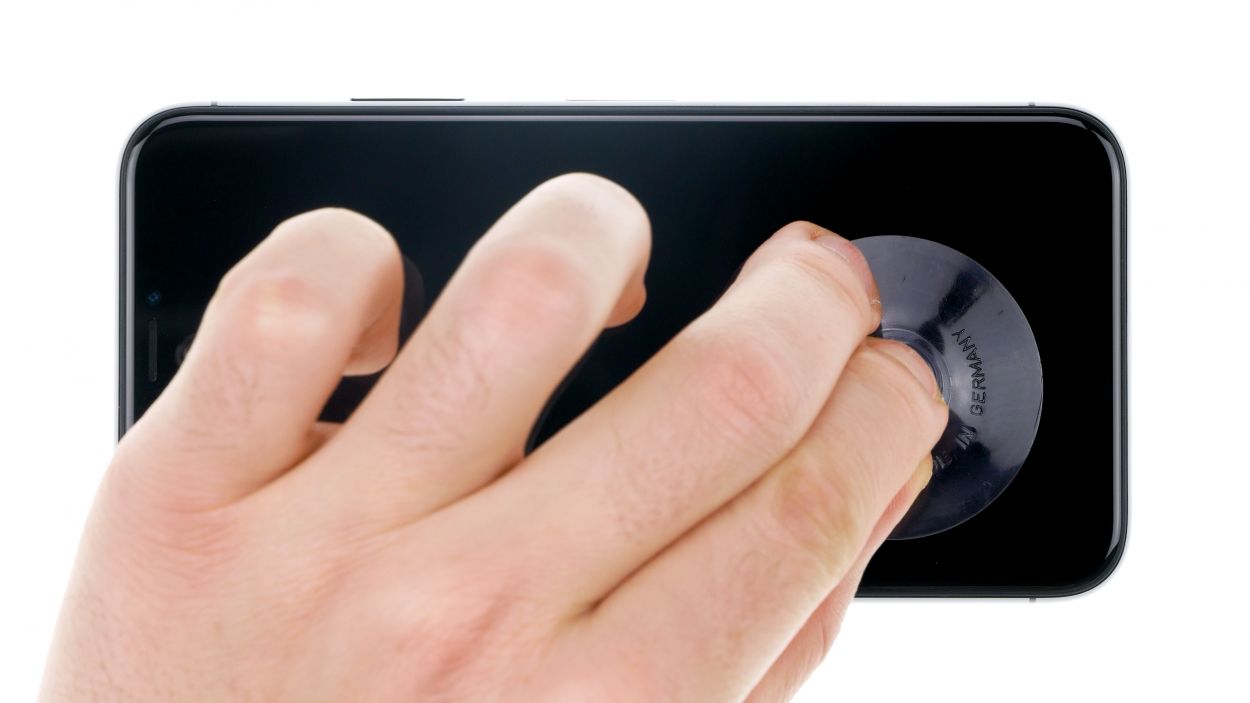

– Ready for some action? Stick that suction cup like a pro on the bottom edge of your device and give it a gentle tug upwards. This move creates a cool narrow gap between the stainless steel and display frame.

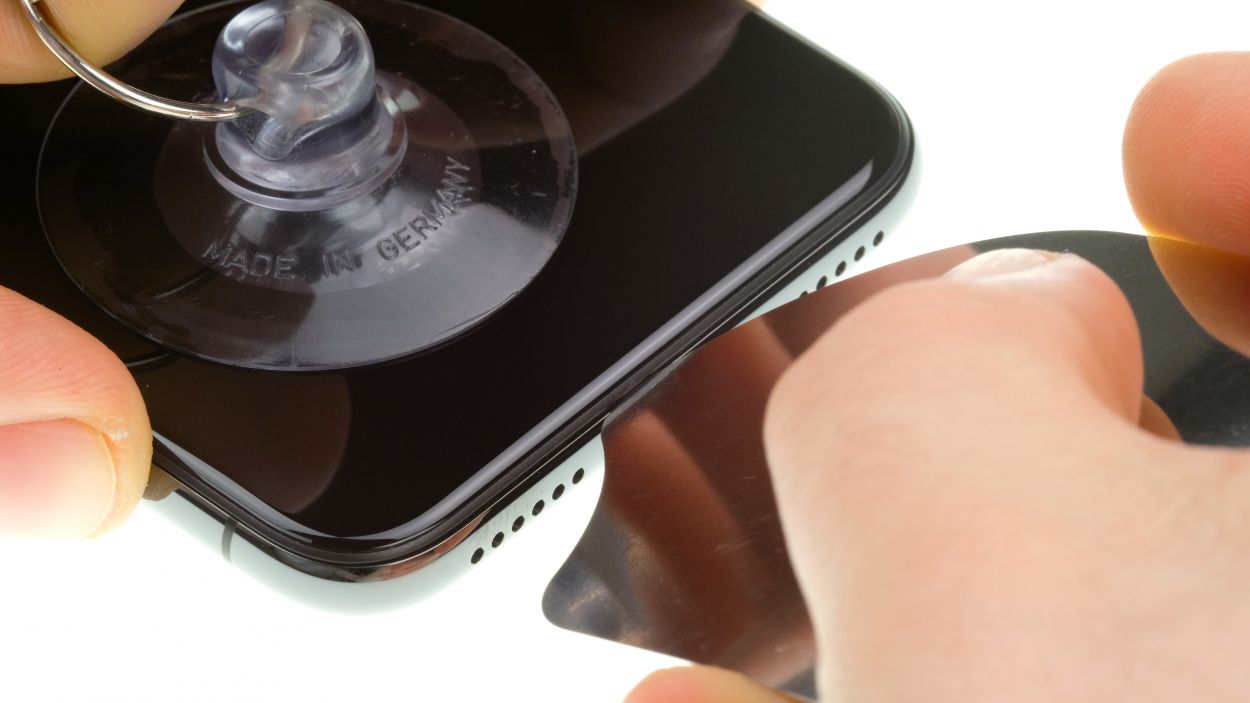

– Time to show off your skills! Slide in a sturdy, flat tool into that gap to widen it. And hey, while you’re at it, give the display a little nudge upwards with the tool, using those trusty flat plastic picks.
Tools Used
Step 5
To avoid overstretching the sensitive flex cables connected to the display, you should not completely fold the display over while it is still connected.

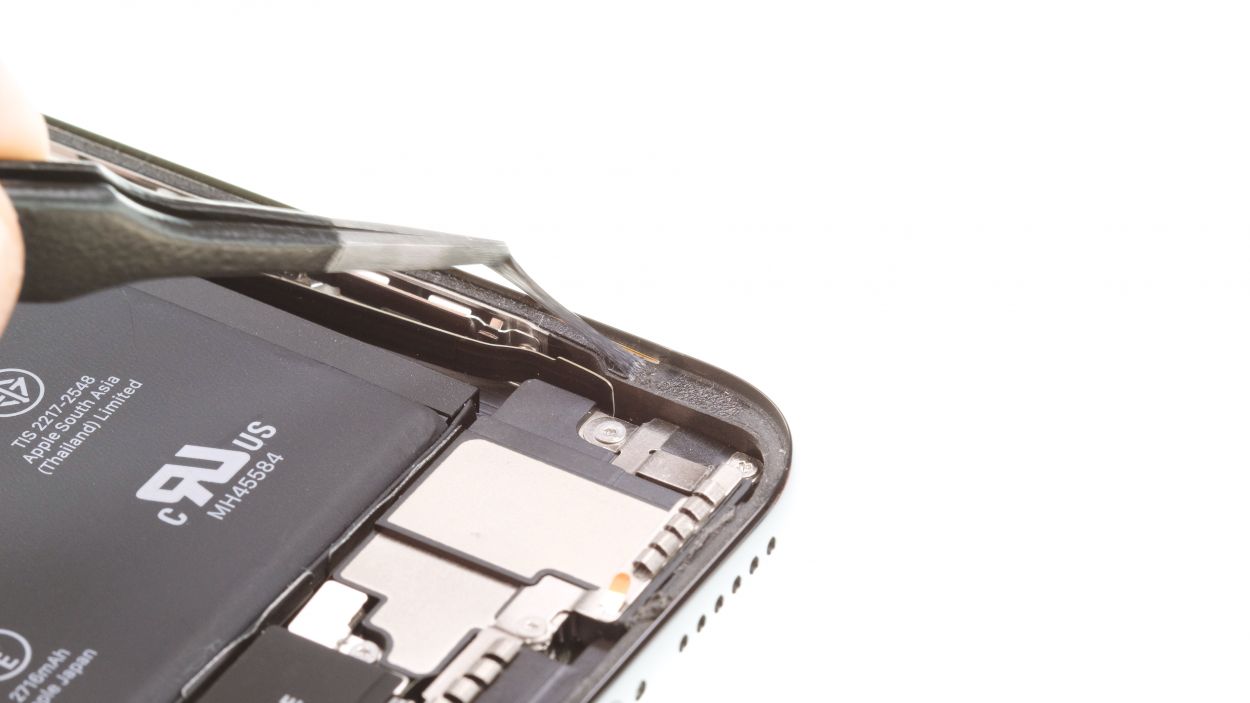

– Gently nudge the display upwards from the aluminum frame using a hard plastic plectrum. It’s like giving it a little lift off its seat!
– Once the display is fully unhinged, you can smoothly fold it away to the side of the standby button.
– Prop it up against a sturdy object to keep it standing tall and proud while you work your magic!
Tools Used
Step 6
1 × 3,0 mm Y-Type
3 × 1,0 mm Y-Type
1 × 3,6 mm Y-Type
Just a little reminder: the screws in your iPhone X come in different lengths, so keep an eye on them! Mixing them up could lead to a bit of a puzzle later on.
– Grab your trusty Y-type screwdriver and unscrew those Y-type screws to lift off the cover plate. Easy peasy!

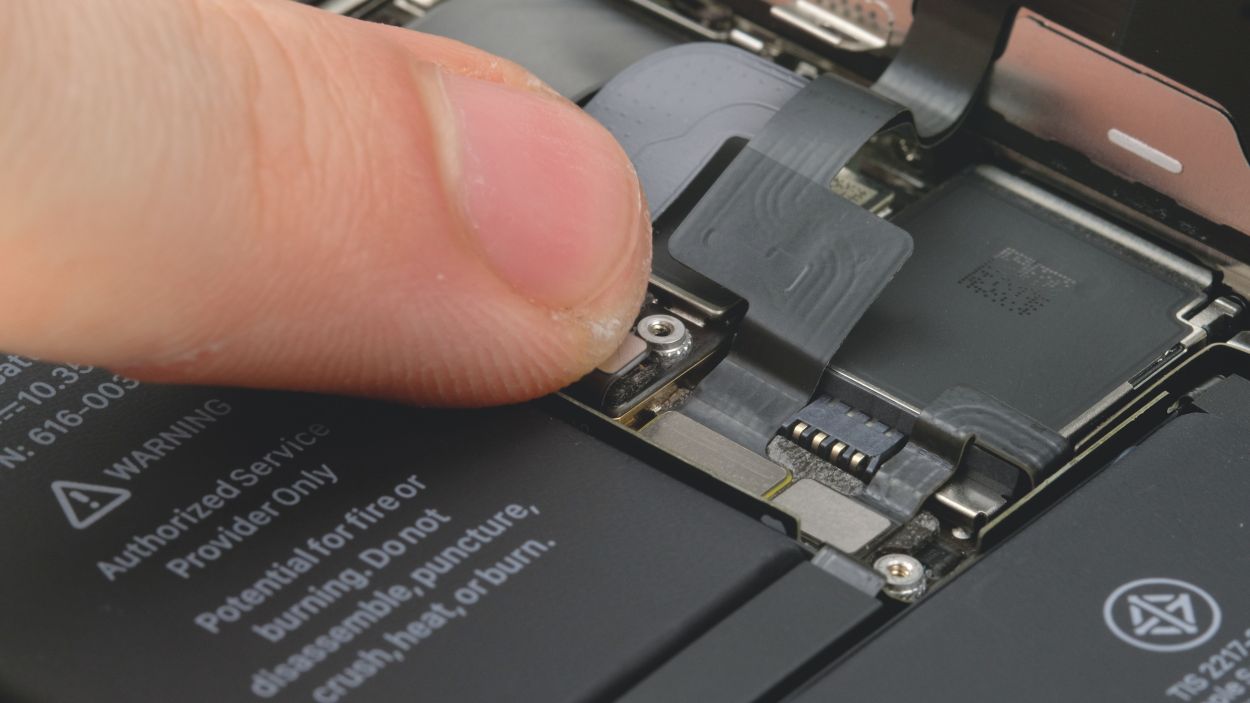

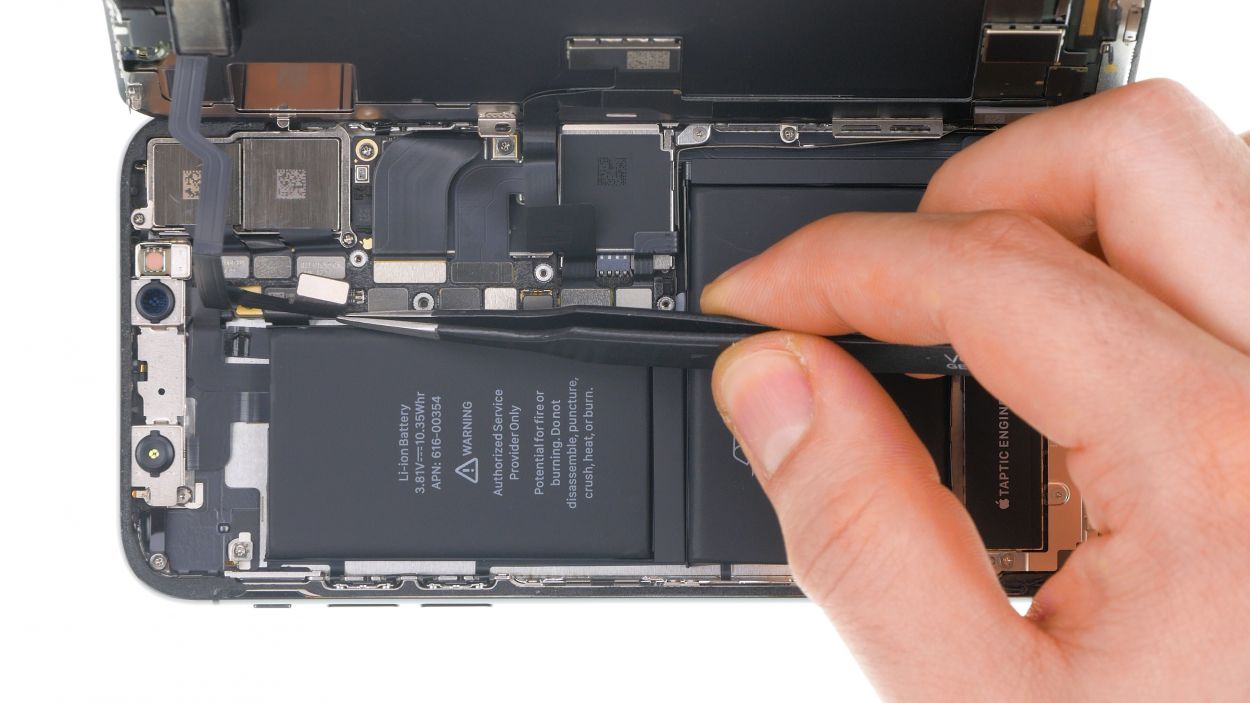

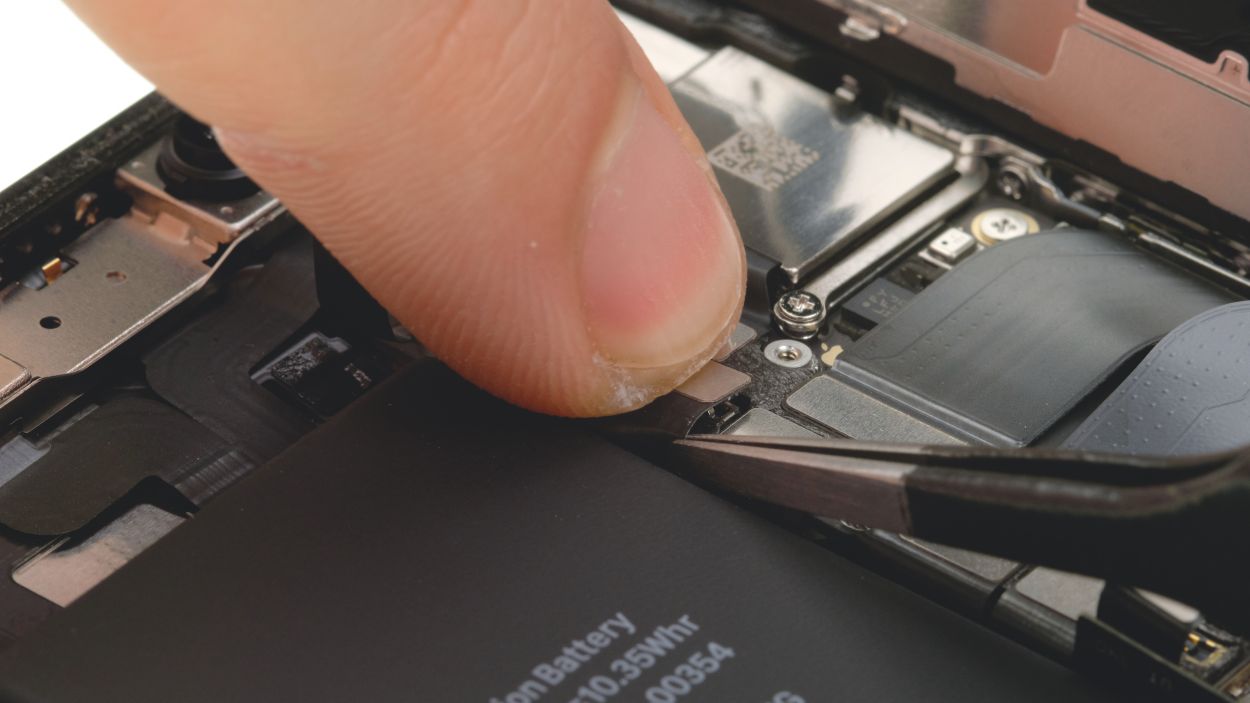

– Now, let’s gently disconnect the battery connector. Slide it out with a flat plastic tool—like a spudger, if you have one. You’ve got this!
Tools Used
Step 7
Display Connector
Earpiece Connector
Hey there! Just a friendly reminder: when you’re disconnecting those connectors, make sure to use your tools from the side without any components. It’s like giving your logic board a little high-five while keeping it safe!

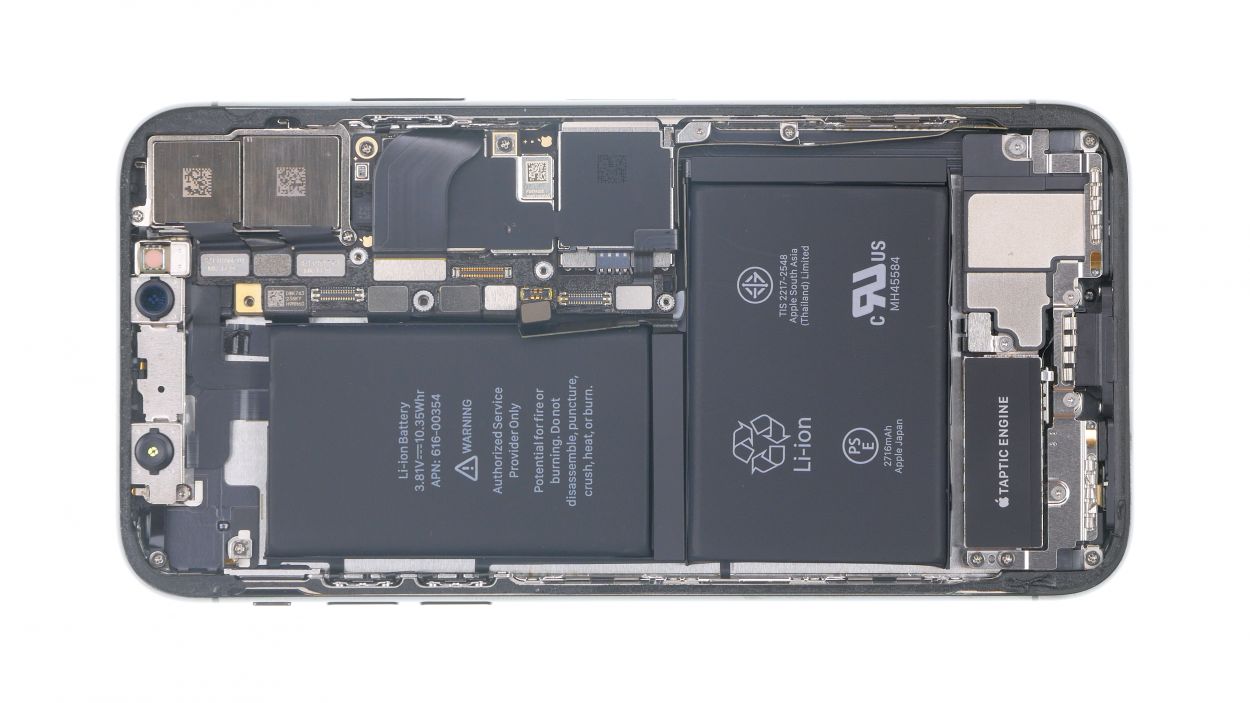

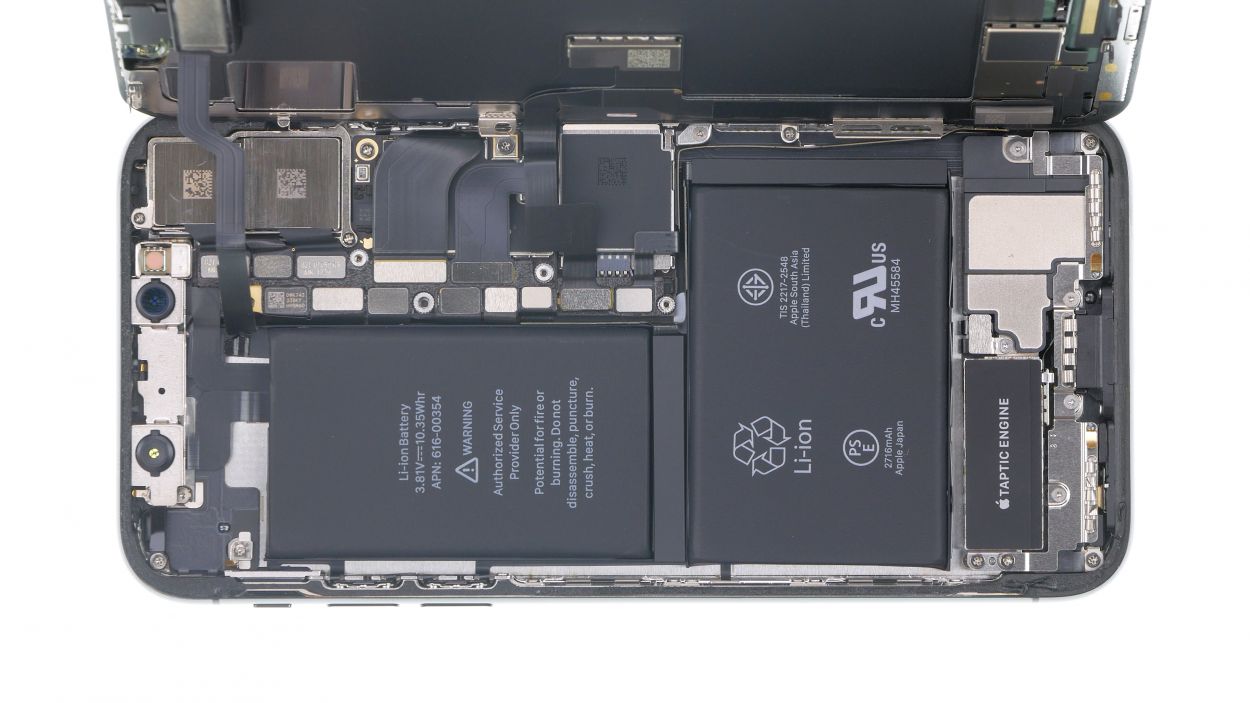

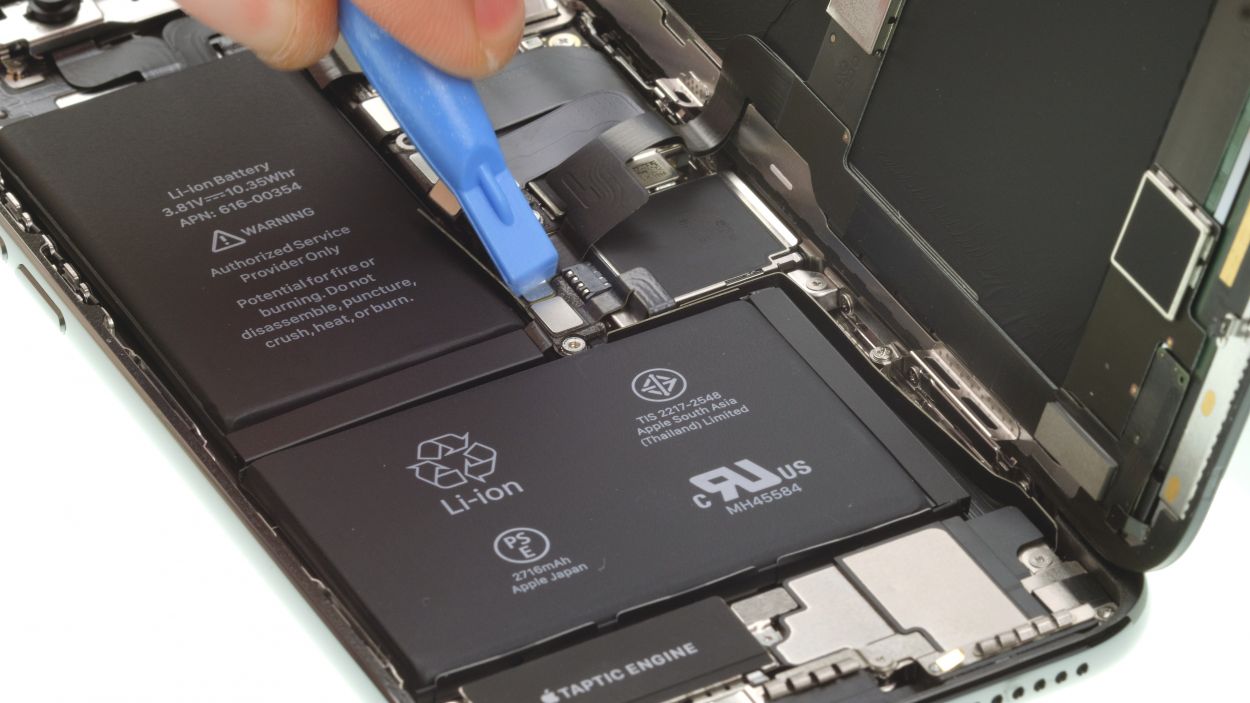

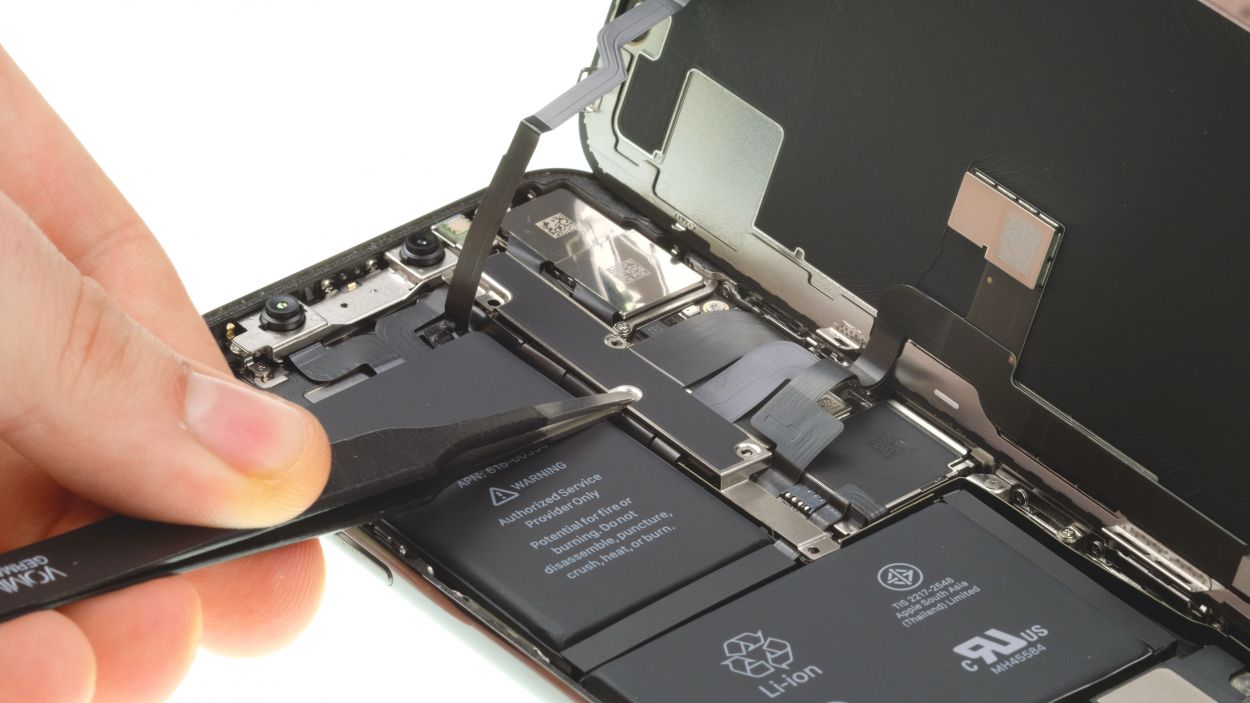

– With a spudger in hand, gently detach the connectors from the Logicboard one at a time. Just a quick heads-up: that ear piece flex cable at the top of the display is hugging the surface a bit, so take your time! It’s a bit glued, but you’ve got this.
– Once all those connectors are free and clear, you can totally go ahead and lift the display off completely. Just like that, you’re making progress!
Tools Used
Step 8
1 × 1,5 mm Y-Type
1 × 1,4 mm Phillips
2 × 1,8 mm Y-Type
1 × 1,0 mm Y-Type
1 × 1,5 mm Phillips
1 × 2,2 mm Phillips

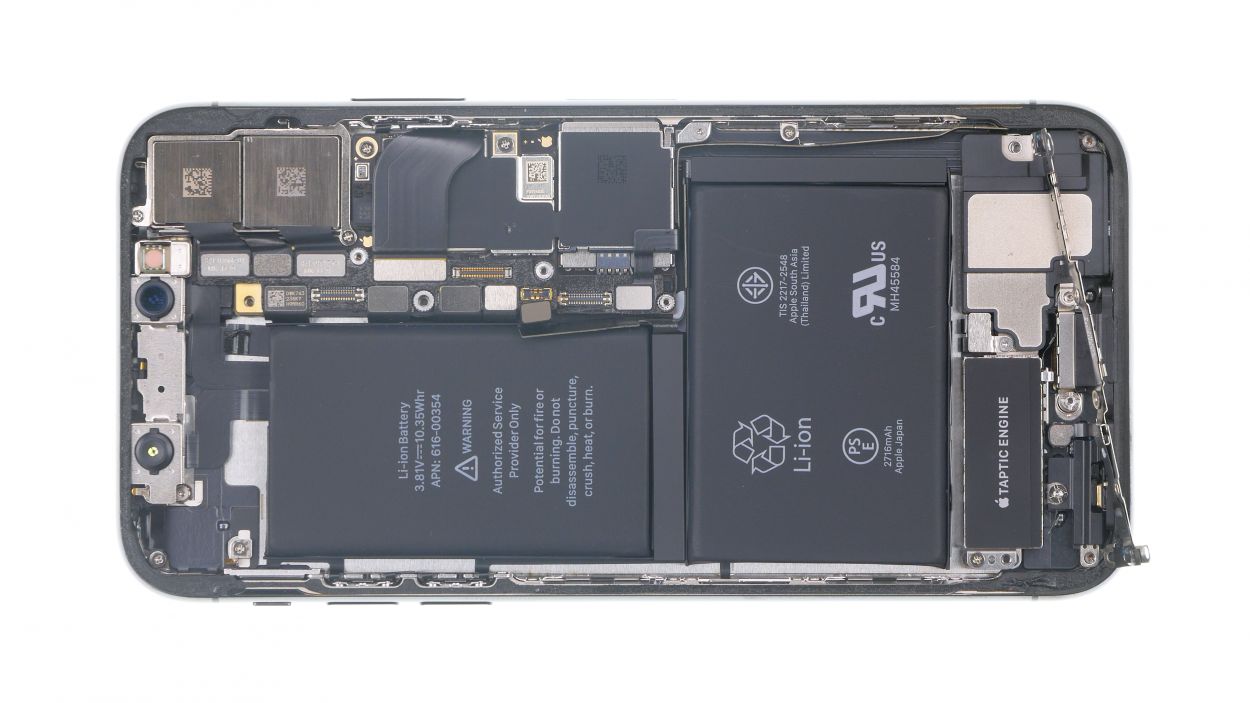

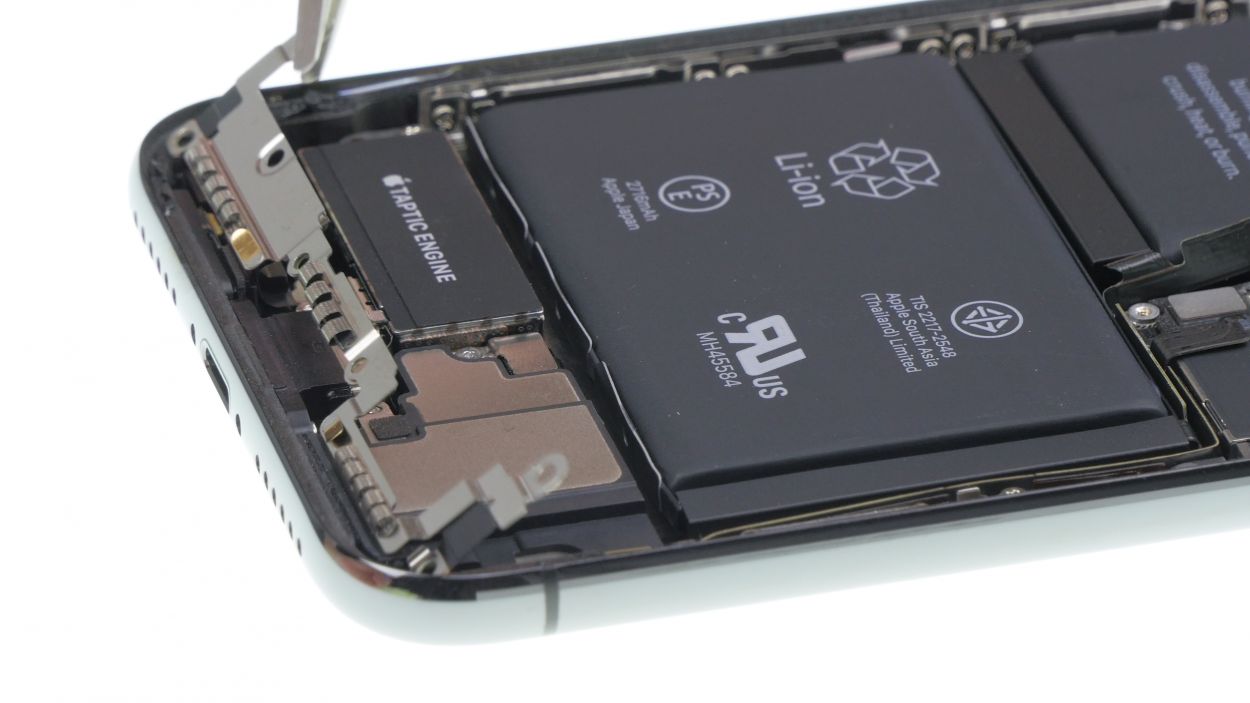

– Start by loosening those Phillips and Y-Type screws from the speaker’s bracket plate. You’ve got this!
– Next, give that plate a little flip and use a spudger to gently separate the connector. Easy peasy!
– Now, it’s time to remove the bracket plate. You’re making great progress!
Step 9
1 × 2.1 mm Y-Type

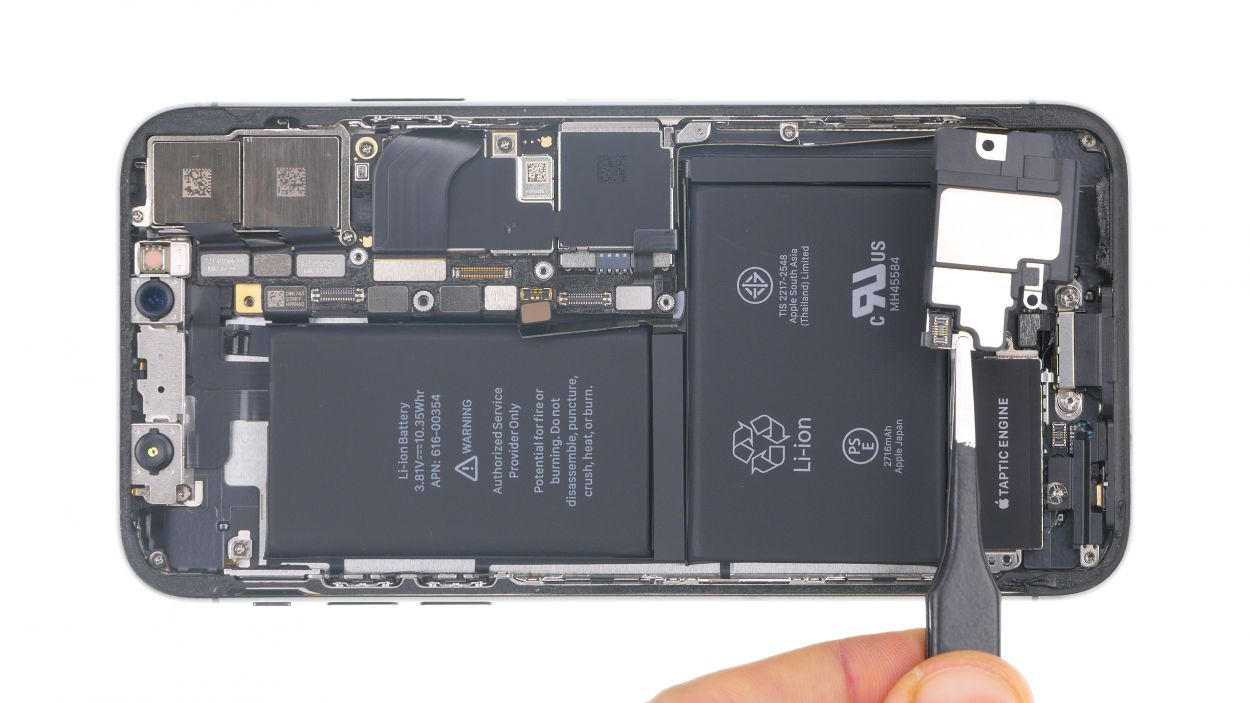

– Loosen the Y-type screw of the bracket plate and then remove the cover plate.
– Disconnect the speaker connector and lift up the flex cable.

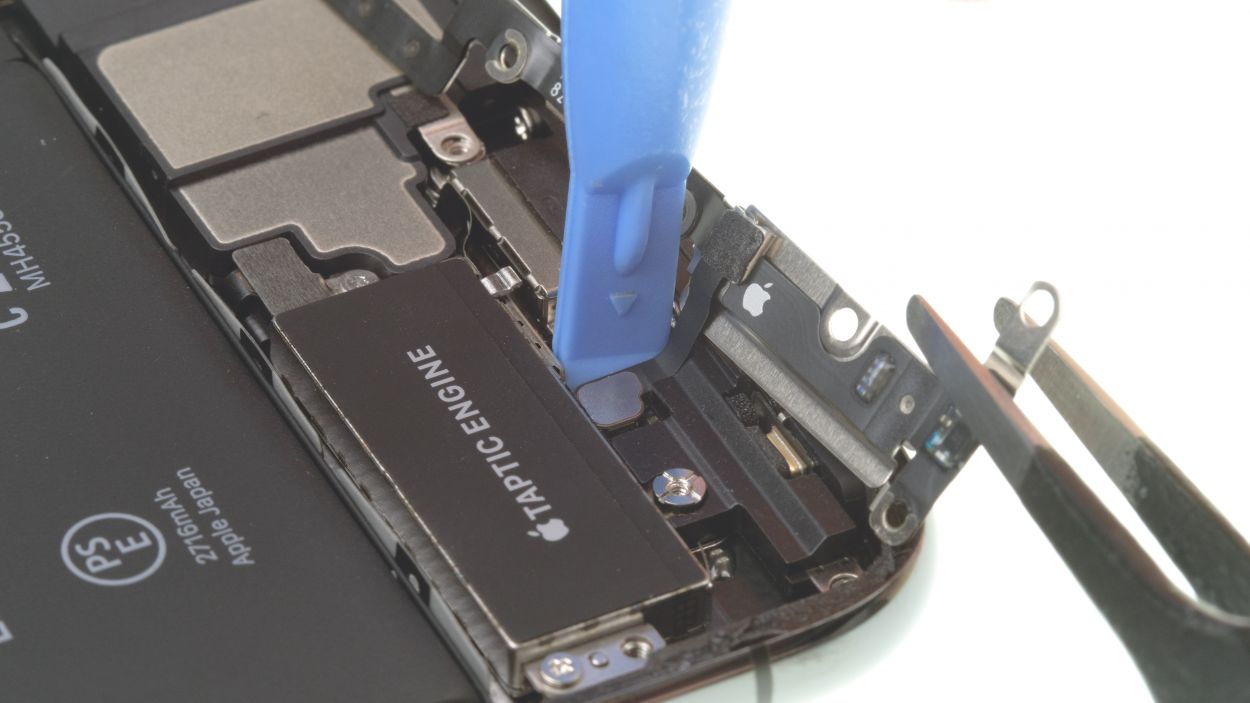

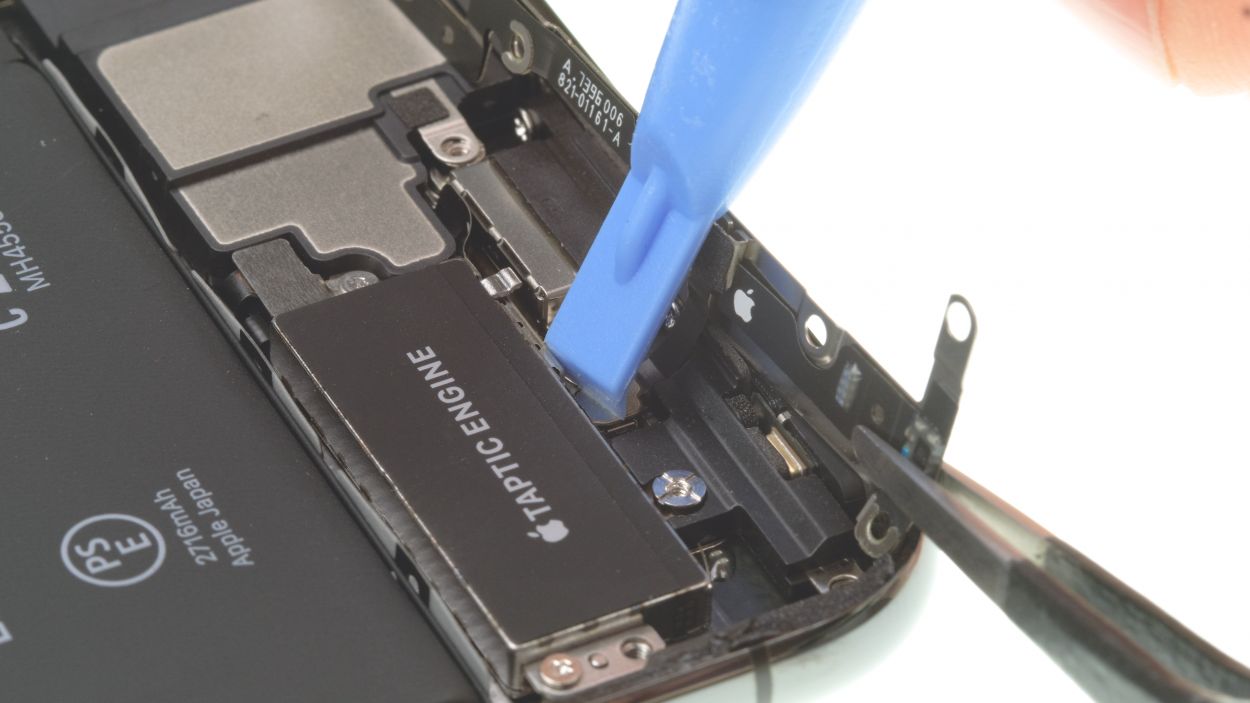

– Loosen the heavily bonded speaker a little by carefully lifting it up with the spudger.
– Once the speaker is loosened, you can remove it from your machine along with the flex cable.
Step 10
1 × 2,2 mm Y-Type
– Pop that speaker back into its cozy spot and give it a little press to make sure it’s snug.
– Connect the speaker’s connector like a pro.
– Now, place the bracket plate over the speaker connector and secure it with the Y-type screw. You’re doing great!
Step 11
1 × 1.5 mm Y-Type
1 × 1.4 mm Phillips
2 × 1.8 mm Y-Type
1 × 1.0 mm Y-Type
1 × 1.5 mm Phillips
1 × 2.2 mm Phillips

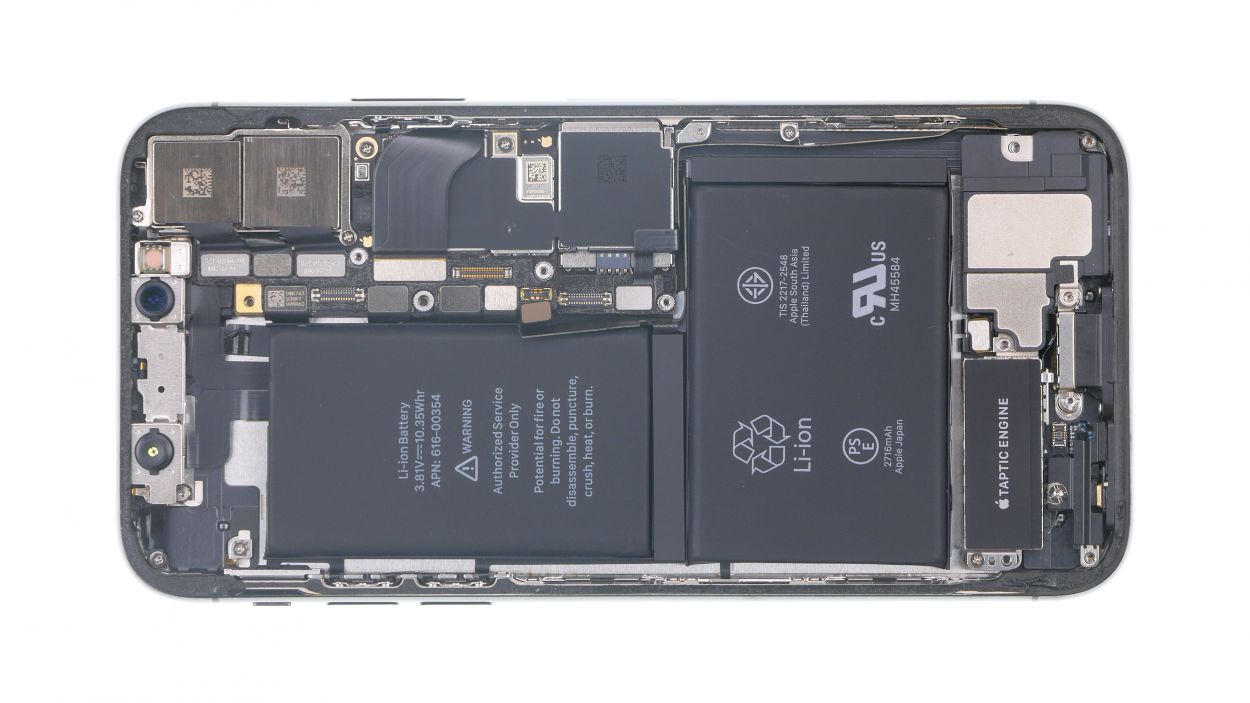

– First, get that bracket plate lined up vertically along the display’s lower edge – it’s all about getting that connector ready to connect!
– Next, gently fold the bracket plate over, making sure those screw holes match up perfectly with the threads. It’s like a little plate-matching puzzle!
– Now, for the grand finale: tighten those Phillips and Y-type screws. You’re a repair rockstar!
Step 12
– To make sure that the new adhesive frame sticks like a champ, start by giving the stainless steel and display frames a good clean-up. Say goodbye to any leftover adhesive residue!
– Next, align that adhesive frame just right and then peel off the protective film from its underside. You’re on the right track!
Heads up! After you stick on that new adhesive strip, your iPhone will be back to fending off dust and splash water like a champ, but remember, it’s not quite ready for a swim. Let’s keep it dry while we work our magic!
Those funky corners on the adhesive frame? They’re your secret weapon for a perfect fit! They’ll help guide you to get it lined up just right with your device’s frame. Need a hand? You can always schedule a repair
Tools Used
Step 13
Display Connector
Earpiece Connector
You may need to press the lower connector with a flat tool to ensure it’s securely seated.
– To prevent the sensitive flex cables from being overstretched when connecting the display, place the display on the side of the frame of your iPhone X and lean it against a stable object.
– Connect the three display connectors by gently pressing them until you feel them click into place.
Tools Used
Step 14
1 × 3,0 mm Y-Type
3 × 1,0 mm Y-Type
1 × 3,6 mm Y-Type
– Snap that battery connector back in place – it’s like giving your phone a high-five!
– Then, pop on the bracket plate and secure it with those Y-type screws. You’re a repair whiz!
Tools Used
Step 15
Step 16
2 × 6.8 mm Pentalobe
– Alright, let’s get the job done! Screw those two pentalobe screws to the left and right of the Lightning connector tight, like you mean it!
Tools Used
