Macbook Pro 14″ Late 2023 (M3 Pro and M3 Max) Speakers Replacement
Duration: 45 minutes
Steps: 29 Steps
Hey there! Just a friendly reminder to take a moment to double-check your work before moving on. A little care goes a long way in ensuring everything runs smoothly. If you find yourself in a jam, don’t hesitate to schedule a repair!
Rock on with this upbeat guide to swap out one or both speakers in your MacBook Pro 14" late 2023 (M3 Pro and M3 Max). While some snaps might be from a different model showing minor differences, don’t sweat it—they won’t throw you off your repair groove!
Step 1
Make sure to let your MacBook's battery dip below 10% before diving into this repair. A battery that's still charged could spark a little drama if it gets damaged during the process. Stay safe and happy fixing!
- First things first, power down your MacBook completely, give that lid a nice close, and flip it over like a pro. Keep that lid shut tight until you've safely disconnected the battery.
- Next up, unplug the MagSafe cable and any other accessories that are hanging out with your MacBook.
Step 2
Before diving in, make sure your MacBook Pro is completely powered off and unplugged. Close the lid, flip that bad boy over and let's get cracking!
As you dive into this repair adventure, remember to keep an eye on each screw and return it to its original home. This way, your device stays happy and healthy!
- Grab your trusty P5 Pentalobe driver and get ready to tackle those eight screws holding the lower case in place. You've got this!
Step 3
- Stick a suction handle onto the front edge of the lower case, right between those screw holes.
- Give that suction handle a gentle pull to create a little gap under the lower case.
Tools Used
Step 4
- Gently slide an opening pick into the little gap you've created. You're off to a great start!
- Now, take that opening pick and glide it around the nearest corner, then make your way halfway up the side of the MacBook Pro. Keep it smooth and steady!
Step 5
- Now, let's do that magic on the other side! Grab your opening pick and release that second sneaky clip like a pro.
Step 6
The MacBook's back edge has these sneaky sliding clips that keep the lower case in place. Getting these clips loose might take some muscle, so it's a good idea to wear gloves to keep your hands safe from those sharp edges. If you need help, you can always schedule a repair.
- Give that lower case a confident tug away from the back edge, one corner at a time. You're just disengaging those sneaky sliding clips—like a boss!
Step 7
- Whip off the lower case like a pro!
- When popping that lower case back on:
Step 8
- Go ahead and gently peel away any tape that's hiding the battery board data cable connector on the logic board. It's like finding hidden treasure!
Step 9
- Grab your trusty spudger and gently lift the locking flap on the ZIF connector for the battery board data cable. You've got this!
Tools Used
Step 10
- Slide the battery board data cable out of its socket on the logic board like you're pulling a magic trick. Smooth move!
Step 11
Hey there! Just a heads-up, your MacBook is rocking some Torx Plus screws, but no sweat—your regular Torx bits will do the trick. Just remember to keep the pressure steady and straight to avoid any oopsies with stripping!
- Grab your T3 Torx driver and unscrew the two snazzy 2.1 mm-long 3IP Torx Plus screws that are keeping the trackpad cable bracket cozy with the logic board.
Step 12
- Grab your tweezers or just use your fingers to whisk away that trackpad cable bracket like a magic trick!
Step 13
To snap these press connectors back into place, just align and gently press down on one end until you hear a satisfying click, and then do the same on the other side. Avoid the middle to dodge any pin-bending mishaps that could totally wreck your day!
- Grab the flat end of your spudger and gently pop open the trackpad cable's press connector from the logic board. Easy does it!
Tools Used
Step 14
The trackpad cable just can't let go—it's got a gentle stickiness to the frame.
- Gently peel the trackpad cable away from the device, taking care to separate the adhesive like a pro.
Step 15
- Slide that sneaky tape off the battery board data cable connector hiding under the big pancake screw.
Step 16
- Grab your spudger and gently pop open the locking flap on the ZIF connector for the battery board data cable. It’s like unlocking a tiny treasure chest!
Tools Used
Step 17
- Slide out that battery board data cable from its cozy socket on the battery board like a pro!
Step 18
The battery board data cable is gently secured to the device.
- Gently slide those blunt nose tweezers under the sticky spots to free the cable from its cozy home in the device.
- Carefully disconnect the battery board data cable and give it a little wave goodbye.
Step 19
- Grab your T5 Torx driver and unscrew that 3.8 mm 5IP Torx Plus wide-head screw holding down the battery power connector. Let's get that power flowing right!
Step 20
Pop that connector up just enough so it doesn’t sneakily reconnect during your fix—aim for no more than a cheeky 45 degrees to avoid any hinge hijinks.
For a bit of extra safety, slip something like a slice of a playing card between the connector and the board. It’s a nifty little shield!
- Grab your spudger and gently lift the battery connector off the board to unplug that power. Easy does it!
Tools Used
Step 21
- Gently lift the tape that's keeping the right speaker ZIF connector under wraps.
Step 22

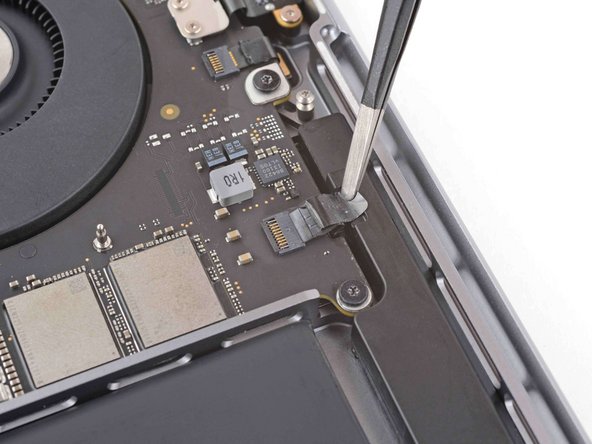

- Gently use the pointed end of a spudger to lift the locking flap on the right speaker ZIF connector. You've got this!
Tools Used
Step 23
- Slide out the right speaker cable from its socket like a boss. You've got this!
Step 24
- Just like you rocked the last three steps, keep that groove going and disconnect the left speaker. You got this!
Step 25

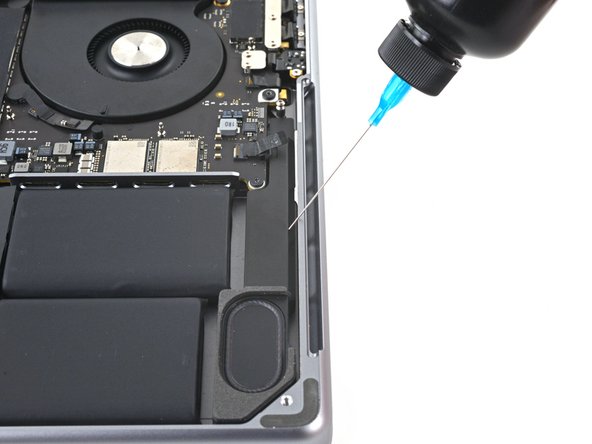

- Drop a little party of isopropyl alcohol (>90% concentration, because we go hard!) right into that sneaky gap between the speaker and the frame's edge.
- Chill for a moment—like 1–2 minutes—while that alcohol does its magic, softening the sticky stuff holding things together.
Step 26

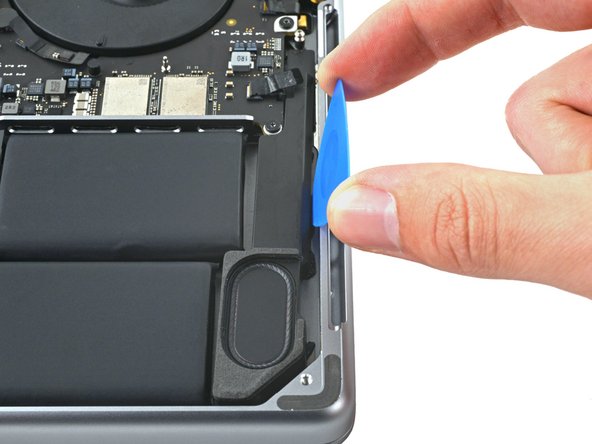

- Pop the tip of an opening pick into the sneaky little gap between the speaker and the frame edge.
- Glide that pick along the speaker's edge to cut through the sticky adhesive holding it down.
Step 27
- Slide the tip of your opening pick into the cozy gap between the battery and the speaker. It's like inserting a bookmark into your favorite novel!
- Give that pick a gentle pry upwards to persuade the speaker to part ways with the frame. It’s like lifting a slice of pizza from the box—smooth and satisfying!
Step 28
- Glide the pick around the speaker's edge to loosen up that sticky adhesive.
Step 29
- Grab the speaker with your fingertips and gently lift it out, peeling away any stubborn adhesive that dares to stick around.
- Do the same groove-and-remove dance with the other speaker.
- Slap on some snazzy Tesa Tape to stick the speaker securely back onto the frame.
- Give the frame a good cleanup to remove any leftover adhesive before you bring in the new sticky stuff.
