Acer Aspire 4520-5464 Keyboard Replacement

– Power off your device and unplug any cables or external devices. Let’s give it a little rest!

– Flip the device over carefully, it’s time to get to work on the other side.

– Make sure the battery lock tab is in the unlocked position before proceeding.

– Slide the black tab away from the battery compartment to loosen things up.

– Gently lift the inside edge of the battery—it should pop out just a little, making it easier to remove.

– Grab the edge of the battery with your fingers and gently lift it out to disconnect it from the device. If you need help, you can always schedule a repair.

– First up, grab your screwdriver and unscrew the five tiny 1mm Phillips #1 screws hiding inside the battery compartment. Next, locate the top edge of the case and remove the three 2mm Phillips #1 screws along the perimeter. Keep track of all screws as you go—salvationrepair.com can help if you need a hand with the tricky bits. When you’re ready, proceed to the next step to continue your repair adventure!

– Time to get started! Use your trusty prying tool to carefully remove the gray plastic section above the keyboard – it’s like a little door waiting to be opened.

– Now, gently lift off the keyboard. You’re making great progress!

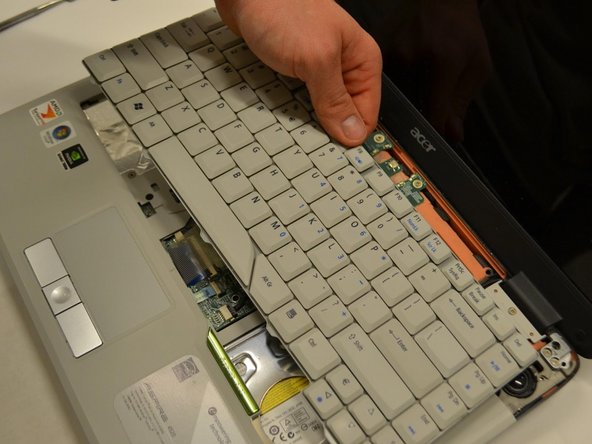

– Grab the keyboard from behind the function keys and carefully lift it up – you got this!

– Flip up the small black locking tab where the keyboard connects to the laptop—think of it as unlocking a little treasure chest.

– Gently slide the keyboard cable toward the trackpad and lift out the keyboard. Mission accomplished!
