Acer Aspire 5 A515-46-R3UB Screen Replacement Replacement

Duration: 45 minutes

Steps: 4 Steps

Ready to swap out that busted screen on your Acer Aspire 5 A515-46-R3UB? No sweat—just take your time and keep things chill. The screen’s plastic (not glass), but if it’s cracked, handle those sharp bits with extra care so you don’t snag yourself. This job takes a little patience to keep all your laptop parts in one piece, so don’t rush. Before you dive in, make sure your laptop’s totally powered off and unplugged. Need an expert hand? You can always schedule a repair.

Step 1

Acer Aspire 5 A515-46-R3UB Screen Replacement Replacement

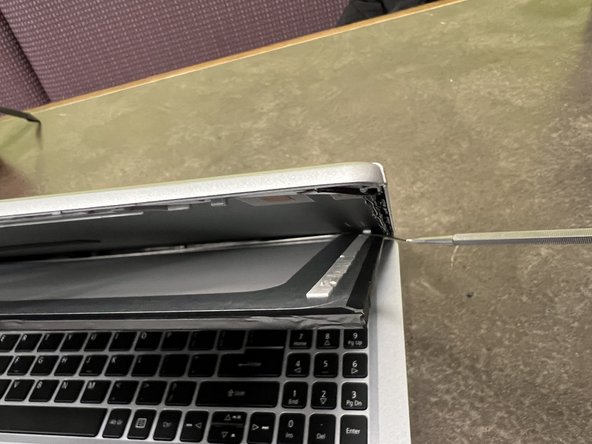

If the bezel at the bottom of the screen is being stubborn, don’t worry! Just grab your trusty metal spudger and gently coax it out. Be careful not to apply too much pressure, or you might end up with a cracked bezel or screen – and that’s not what we’re going for here.

– Gently slide your opening pick between the shiny silver cover and the black plastic bezel around the screen. Take your time – it’ll give you just the space you need to move forward!

Tools Used

Metal Spudger

Step 2

– Grab your opening tool and gently lift the top right corner of the screen. It’s like giving it a little nudge to get things started.

– Now, slide that tool to the other side and lift up the screen there too. It’s like giving the other side a friendly push to join the fun.

Step 3

The LCD screen is securely held in place by grey plastic backing and white adhesive strips. You’ll find these strips on each side of the screen, making sure everything stays in position.

– Grab your trusty spudger and gently pop the LCD away from the grey plastic base—easy does it.

– Lift out the LCD and rest the whole setup on top of the keyboard. Looking good!

Step 4

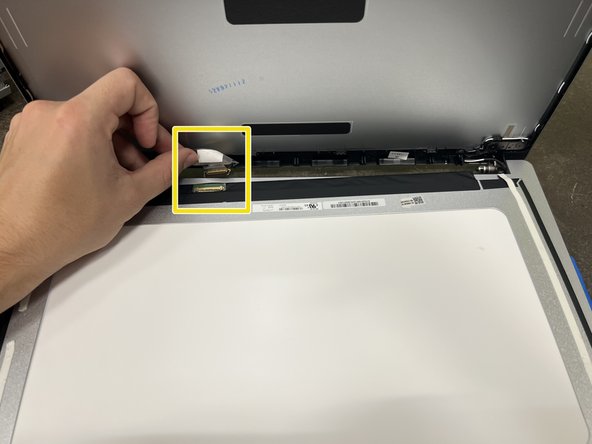

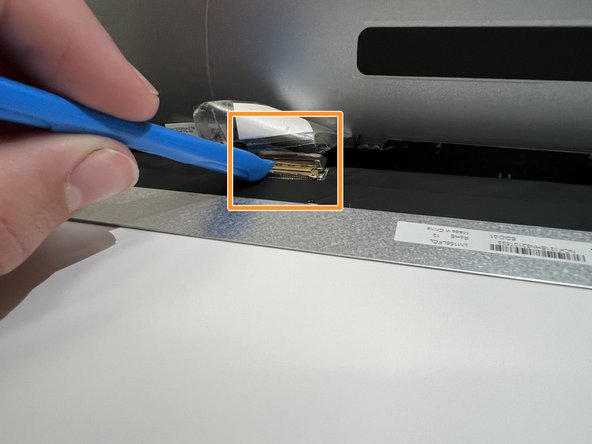

Be careful when prying – make sure you’re lifting the hinged flap, not the connector socket itself. If you’re unsure, take a deep breath and proceed with caution!

– Ready to put it all back together? Just cruise through these steps in reverse, and your device will be up and running in no time. If you hit a snag, you can always schedule a repair for a helping hand!

–
