Acer Iconia B1-710 Screen Replacement

Duration: 45 minutes

Steps: 14 Steps

If the screen on your Acer Iconia B1-710 tablet isn’t working or has taken a hit, this guide will walk you through replacing it. Be careful if the screen is cracked—there might be glass shards ready to make an unexpected appearance. Before diving in, double-check that the device is powered off and unplugged from any charging cables.

Step 1

Take it easy when pulling the pieces apart. There’s a wire in there that might not appreciate too much tugging.

– Gently pop off the back cover using an opening tool – it’s like giving your device a little hug to help it breathe!

Step 2

– Disconnect the battery from the motherboard.

Step 3

The battery is snugly secured with a bit of adhesive, so it might take a little finesse to pop it out.

– Pop out the battery like a pro!

Step 4

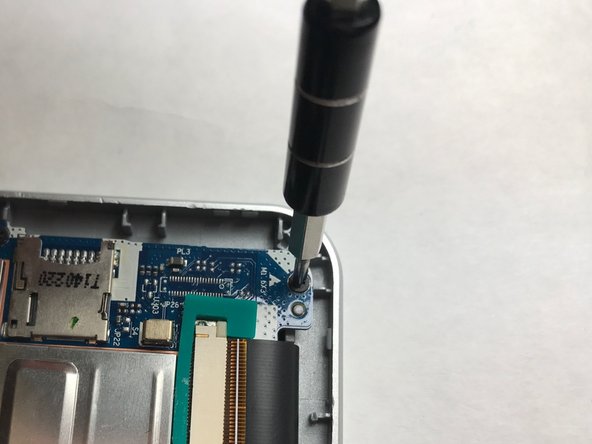

– Remove all five 3 mm #000 Phillips screws with care.

Step 5

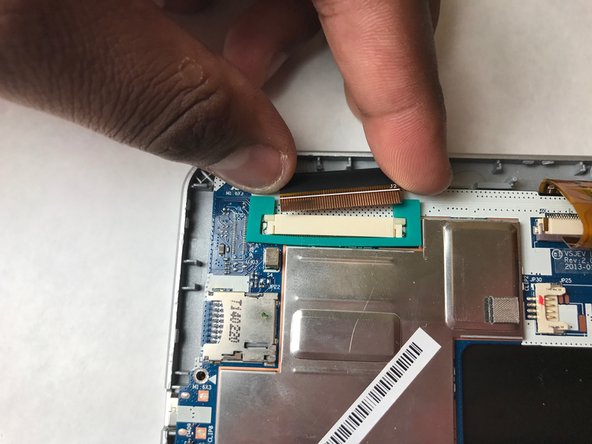

– Let’s get started by carefully unplugging the LCD ribbon.

Step 6

– Disconnect the orange ribbon with care.

Step 7

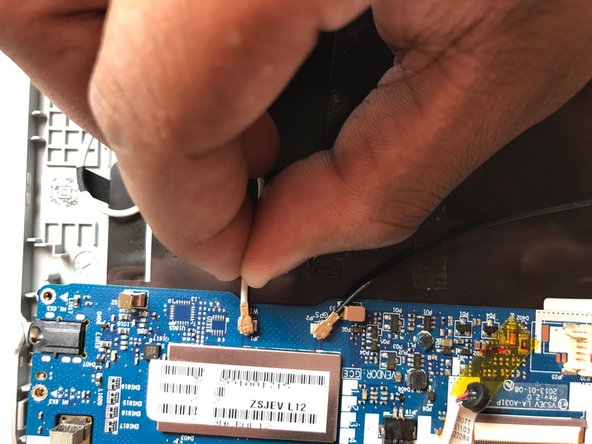

– Let’s start by disconnecting the white wire from the motherboard – easy peasy!

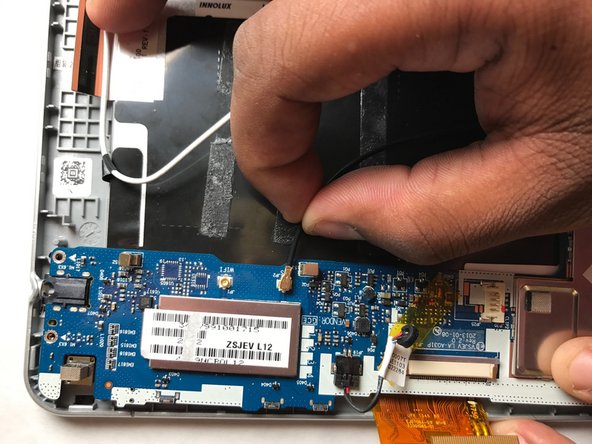

– Next, gently unplug the black wire from the motherboard.

Step 8

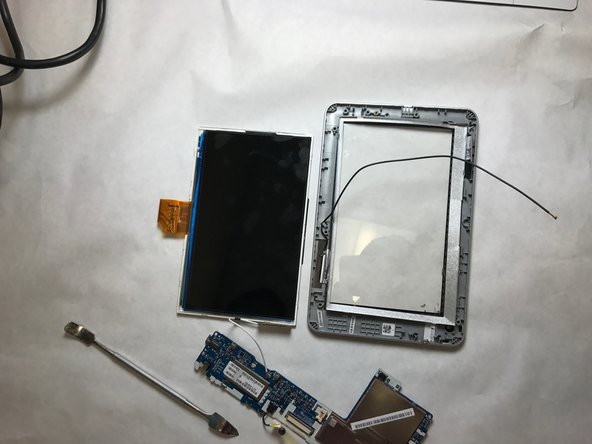

– Carefully pop the motherboard out of the tablet.

Step 9

Take a deep breath and get comfy – this step might take a few minutes, but don’t worry, the glue will melt soon. If you need help, you can always schedule a repair

– Grab your trusty blow dryer and give that glue a little heat to loosen its grip on the LCD display. You’ll have it off in no time!

Step 10

Be gentle when peeling this piece – it’s fragile and needs some TLC!

Heads up: some parts might be hot, so handle with care!

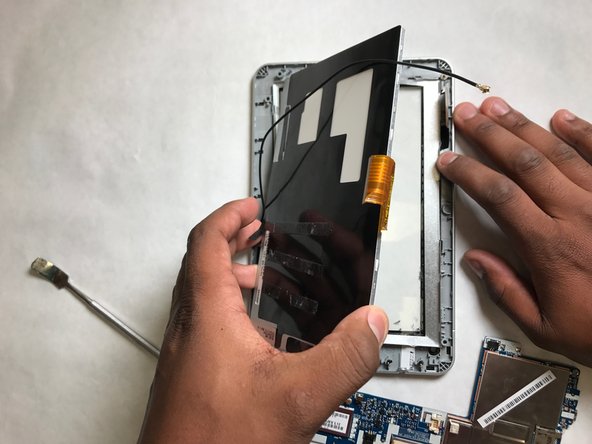

– Gently peel away the LCD display like you’re unveiling a surprise gift!

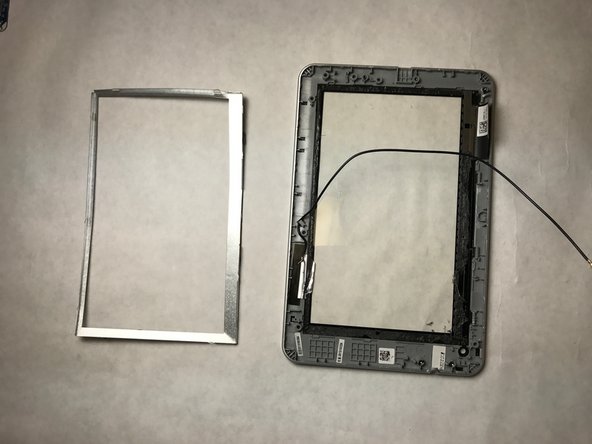

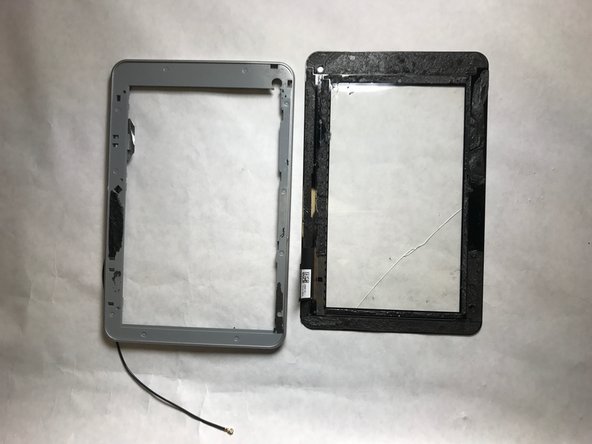

Step 11

Caution: This metal part is going to be heated up during this process, so watch your fingers!

– Grab your trusty blow dryer and crank it up to melt the glue holding that delicate metal frame. Keep it moving—you’re aiming for warm and gooey, not scorching!
