AMTC Tablet 7 MD7305 Touch Screen Replacement Guide

Duration: 45 minutes

Steps: 5 Steps

Step 1

AMTC TABLET 7” MD7305 Touch Screen Replacement

– Unscrew the 2 screws on the bottom of the device (see arrows)

Step 2

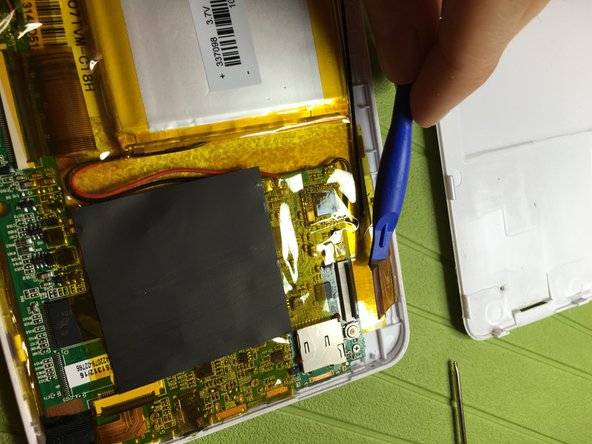

– gently pry off the back cover using a slim tool

Step 3

– gently flip the latch on the touch screen connector

Step 4

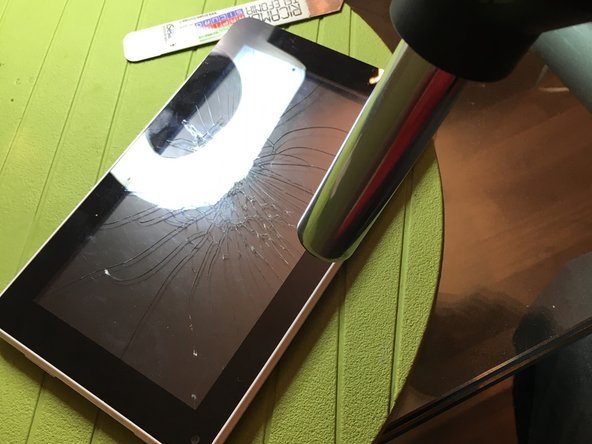

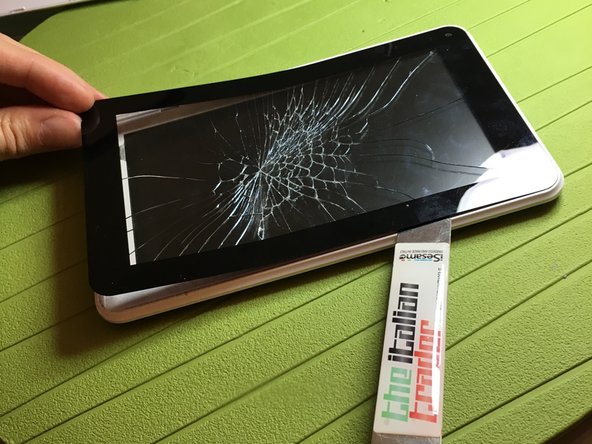

– Using a gentle heat source and a slim tool, carefully detach the touch screen.

Step 5

– Time to put your device back together! Just follow these steps in reverse, and you’ll be all set.

– If you feel like taking a break from this guide, that’s totally cool!

– Remember, if you ever find yourself in a jam, you can always schedule a repair.

Success!

Now that you’ve completed the steps, simply reverse them to put everything back together. You’ve got this!

Oops, if you didn’t finish, no worries. You can always come back later!

If this felt a bit too tricky, remember, we’re here to help! Just schedule a repair and we’ll take care of the rest.
