Asus Padfone 2 Camera Replacement: Step-by-Step Guide
Duration: 45 minutes
Steps: 6 Steps
Step 2
– Grab your trusty plastic opening tool and gently pop off the phone’s back cover—easy does it!
Step 3
– Time to get cozy with your phone’s inner workings? No biggie! Just take that lil’ warning sticker off the battery plug, won’t you?

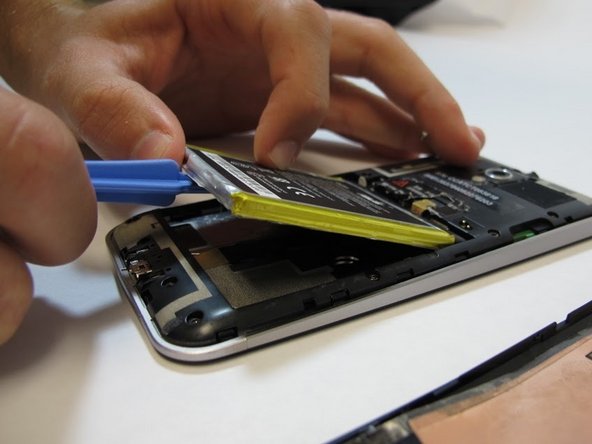

– Now, let’s spot that gap that’s wider than the rest. Gently lift that battery outta there with your trusty plastic tool, yep?

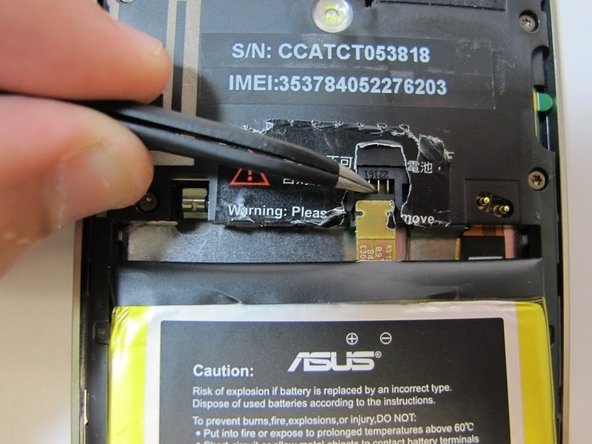

– Last but not least, grab your tweezers and unplug that nifty battery connector. Cheers!
Tools Used
Step 4
A magnetic pad is your trusty sidekick for keeping those pesky screws in check.
– Grab your trusty T5 Torx screwdriver and get ready to tackle those 14 screws holding the internal back plate in place. Let’s get them out!
– Once you’ve freed all the screws, gently lift off the plate and reveal the inner workings of your device.
Tools Used
Step 5
– Unplug those sneaky little connectors with your trusty tweezers, and give that green motherboard a little pick-me-up!
Tools Used
Step 6
– To put your device back together, just retrace your steps in reverse. You’ve got this!
– If you decided to pause here, no worries at all!
– If you find yourself in a pickle, remember, you can always schedule a repair.
Tools Used
Success!
