Dell Latitude D630 Touchpad Replacement

– First things first, power down your laptop and unplug it from any outlets. Make sure it’s closed up tight with the latch secured—no peeking allowed!

– Now, flip that laptop over so we can work on its underbelly.

– Grab both battery latches with your index fingers and gently slide them outward.

– Keep holding those latches open and use your thumbs to slide the battery towards you.

– Once the battery comes loose, let go of the latches and pull the battery out.

– Now that the battery is out, flip your laptop over and open it up all the way – we’re talking a full 180 degrees, baby!

– Time to get a little tricky! Use a plastic opening tool to gently pry off the corner of the keyboard bezel by releasing the tab. Easy does it!

– You’ve got the corner off, now it’s time to use a bit of elbow grease to carefully pull the rest of the bezel up and towards you, releasing the remaining tabs as you go. You’re doing great!

– Let’s get started by removing the three 3mm Phillips #0 screws that hold the keyboard in place. Grab your trusty screwdriver and get ready to take the first step in fixing your device!

– Gently lift the keyboard and fold it back over the touchpad. Take your time and make sure everything is aligned properly.

– Grab your trusty plastic opening tool and gently unhook the blue latch holding the keyboard cable in place.

– Now, give that blue tab a little tug and pull the keyboard cable connector out of its socket on the motherboard.

– Gently tug on the blue tab to detach the display’s ribbon cable, as shown in the picture. Easy does it!

– Now, follow the cable’s path back to the display and carefully unhook it from the body using the spudger. Take your time, it’s like a mini treasure hunt!

– Grab your spudger and carefully lift off the 6 circular rubber pads on the display. Underneath, you’ll find the bezel screws waiting to be uncovered. Keep those rubber pads safe in a labeled container for later.

– Quick heads up: Don’t touch the two longer pads on the left and right sides of the bezel—they’re not hiding any screws and are just there to stay put!

– Grab your Phillips #0 screwdriver and carefully unscrew the six screws (M2.5-5mm) on the bezel. Be sure to place them in a labeled container so they don’t get lost in the shuffle!

– Grab your trusty spudger and gently nudge the bezel away from the laptop. Start by slipping the spudger into the tiny gap that separates the two screen pieces along the edge. Take your time and slide it carefully along this opening until the screen feels free and ready to be lifted off!

– First, carefully remove the 8 screws (M2-3mm) shown in the picture. Make sure to place them in a labeled container so you don’t mix them up with the bezel screws—they’re a little different!

– Whatever you do, don’t remove these screws by mistake!

– Gently detach the connector from the coin using your trusty spudger.

– With a little wiggle and a friendly tug, slide that coin battery right out of its cozy slot.

– If it’s being a bit stubborn, feel free to use the spudger to nudge the battery out from the top of the slot where you see the yellow square.

– Time to get started! Carefully flip your laptop over and get ready to dive in.

– Now, let’s get those screws out. Remove the seven M2.5-8mm screws on the left side and stash them in a labeled container so they don’t go MIA.

– Remove the hard drive screws and organize them neatly – we don’t want any missing screws later on.

– Carefully slide out the hard drive and set it aside where it won’t get damaged – it’s still a crucial part.

– Loosen the two screws on the edge of the laptop, but don’t take them out just yet – we’re just getting started.

– Flip the laptop back over, open up the screen, and let’s keep going – the fun part is just beginning.

– Gently pop off the black and white cables from the wireless card by giving them an upward pull with your trusty tweezers.

– Follow the path of those sneaky cables back to the screen, and use the spudger to free them from the clip-like tabs holding them down. Make sure the wires are fully released, blissfully unattached, and ready for the next move!

– Alright, let’s get started! Grab your screwdriver and take out the two screws (M2.5-8mm) hanging out at the back panel of your laptop. Once they’re out, the hinges are free! Pop them into a container to keep things organized.

– Now, time for the big move—gently pull up on the screen like you’re opening a treasure chest. Lift it off completely from the bottom half of the laptop. Smooth like butter!

– Pop out those three (M2.5-8mm) ‘P’ screws on the left, and stash them safely in a labeled container—you’ve got this!

– Grab your trusty spudger and gently unhook that touchpad’s ribbon cable from the left side of the board, just like the picture shows. You’ve got this!

– Grab your trusty spudger and gently work your way around the edges of the laptop. Your goal is to separate the black-grey palm rest layer from the lighter-grey base layer. It’s like peeling an orange—just take your time!

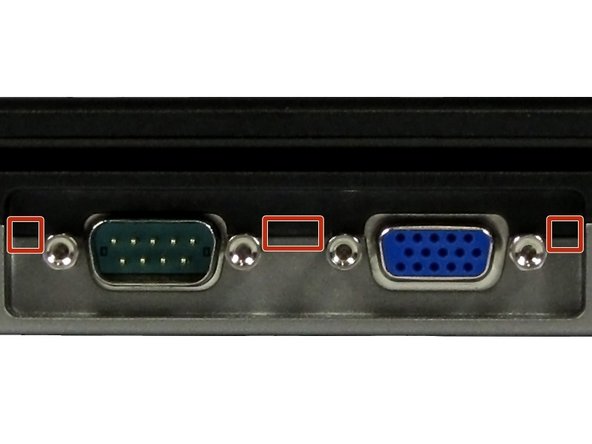

– Start at a spot near the display input ports on the back of the laptop—this is usually the easiest place to get going. From there, just work your way around, nice and steady.

– Once you’ve successfully unlatched all the tabs, go ahead and lift off the palm rest layer. You’re almost there!

– Time to get started! Flip that palm rest layer over and let’s get a glimpse of the touchpad.

– Now, remove the four screws (M2-5mm) shown in the picture and stash them safely in a labeled container – we don’t want any tiny parts getting lost!

– To put everything back together, just reverse these steps and you’ll be good to go with your new touchpad!
