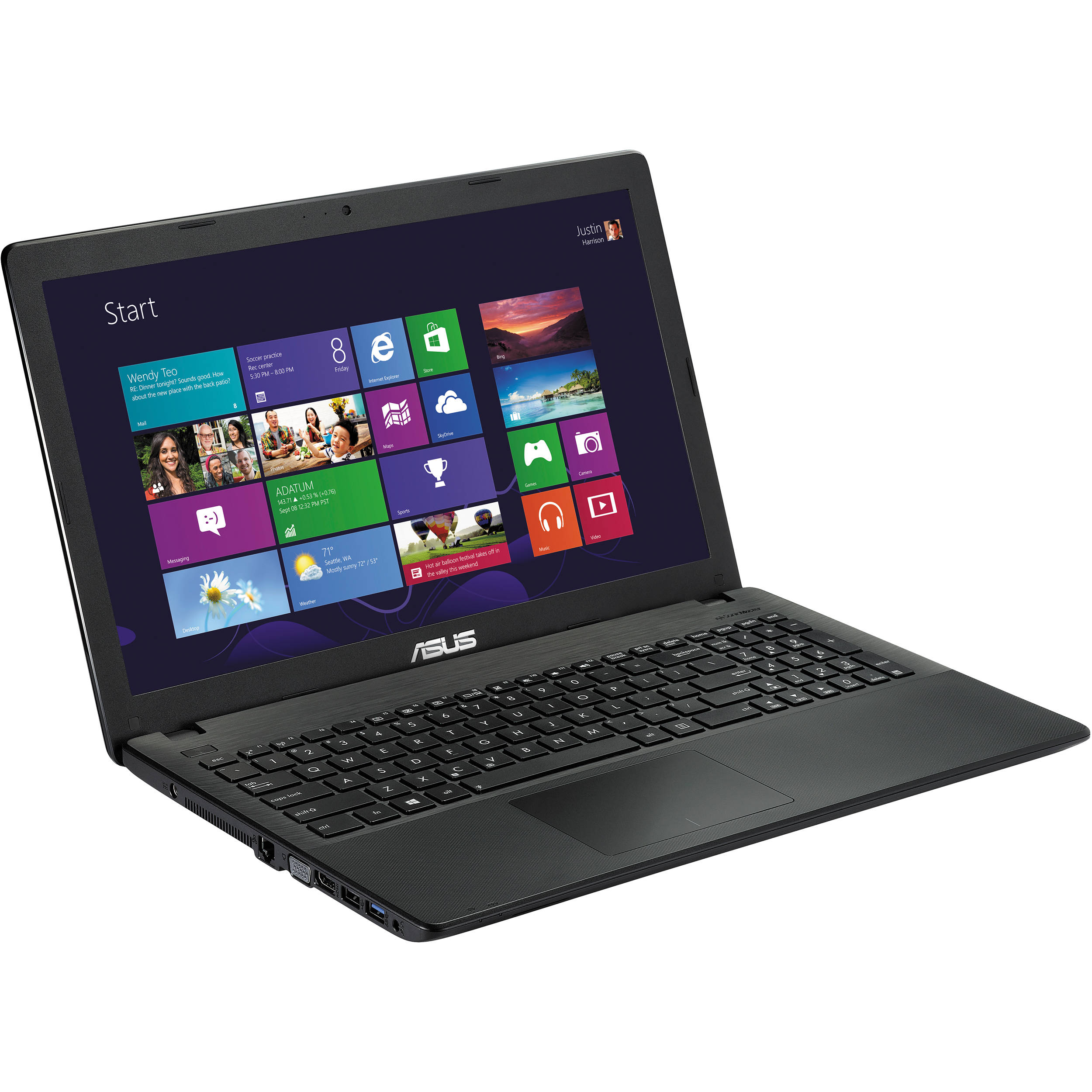

DIY Asus D550MA Keyboard Module Replacement Guide
Duration: 45 minutes
Steps: 5 Steps
Hey there, repair champ! Just a friendly reminder to handle those delicate parts with care. If you find yourself in a pinch, don’t hesitate to schedule a repair. You’ve got this!
Has your keyboard decided to take a break, or are you just itching to dive into your laptop for some repairs? No worries! This guide will walk you through the process of removing the keyboard. Think of it as the first step on your journey to disassembling your laptop—essential for tackling any tasks ahead. And remember, if you need help, you can always schedule a repair.
Step 1
First things first, let’s keep things safe! Make sure to power down your laptop and unplug it from the wall before diving in.
– Grab your trusty Philips #1 screwdriver and let’s get to work! Start by unscrewing those nine screws on the back cover like a pro. You’ve got this!
Step 2
Be gentle when prying open the lid! You should hear each plastic clip give a satisfying snap as you glide the spudger along the edge. Remember, patience is key!
– Flip your laptop over and pop open that display like a pro!
– Gently slide the flat edge of your trusty spudger into the groove of the keyboard cover.
– With the spudger in position, carefully nudge the casing open by gliding the spudger along the edge. You’ve got this!
Tools Used
Step 3
Ensure that you’ve popped the entire cover free from those pesky plastic clips.
– Gently lift the cover from the front of the laptop like you’re revealing a surprise, but hold off on taking it all the way off just yet.
– Keep an eye on the three white and blue data cables that connect the keyboard to the computer’s main board – it’s like a little treasure map to remember!
Step 4
If you’re just swapping out the battery, feel free to breeze past this step and the next one! Gently nudge the keyboard module away from the display, making sure those delicate flex cables are comfy and not under any stress.
To free a ZIF connector, grab a spudger or your trusty fingernail and flip up that tiny hinged locking flap. With care, slide the cable out of the socket like a pro!
– Unplug the three data cables from the motherboard with care.
Tools Used
Step 5
– Carefully detach the completely disconnected keyboard module from the laptop. Give it a gentle tug, and it should come right off!
