DIY Asus Padfone 2 A68 Sub Cables Replacement Guide

Duration: 45 minutes

Steps: 6 Steps

Step 1

Asus Padfone 2 A68 Sub Cables Replacement

Press and hold the power button. It’s like giving your device a little power nap!

Step 2

– Grab those trusty plastic opening tools and gently work your magic to lift off the phone’s cover. You’ve got this!

Step 3

That battery is stuck on there like superglue! Just be careful not to mess with the battery or the wires. It’s not that hard, just be gentle.

– First things first, peel away that pesky warning sticker blocking the way to your battery plug and connecting cord. Easy peasy!

– Next up, spot the widest gap on either side of the battery. With a plastic opening tool in hand, gently lift the battery out like you’re bringing a sleepy buddy into the daylight.

– Finally, grab some tweezers and disconnect the battery connecting cord with a light touch. You’re doing awesome!

Tools Used

Tweezers

Step 4

A magnetic pad is your trusty sidekick for keeping those pesky screws in check.

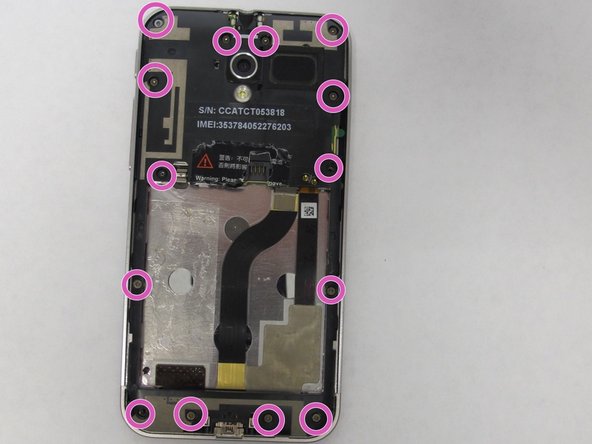

– Grab your T5 Torx screwdriver and take out the 14 screws holding the internal back plate.

– With those screws out of the way, go ahead and lift off the plate.

Tools Used

T5 Torx Screwdriver

Step 5

– Grab those tweezers and gently disconnect the sub cables from the circuit board and housing. You’re doing great!

Tools Used

Tweezers

Step 6

– Connect the new sub cables to both the circuit board and the housing. You’ve got this!

Success!

Now it’s time to put your device back together! Just follow these steps in reverse, and you’ll be all set. If you hit a snag, remember, you can always schedule a repair for some extra help. Happy repairing!
