DIY Asus PadFone S Front Camera Replacement – Step-by-Step Guide

Duration: 45 minutes
Steps: 7 Steps

Ready to tackle the task of removing the front camera from your Asus PadFone S? We’ve got your back! Make sure to gather some essential tools before diving in. Don’t forget to take out the battery and logic board first—it’s a must! With this guide, swapping out that broken or damaged front camera will be a breeze, and soon your phone will be back in action. If you need help, you can always schedule a repair.

Step 1

– Pop your thumb in the charging port and gently pry that back cover off. Easy-peasy!

Step 2

– Unscrew all the screws with your trusty T5 Torx screwdriver.

– Gently lift the back panel off the phone like you’re unveiling a surprise!

Step 3

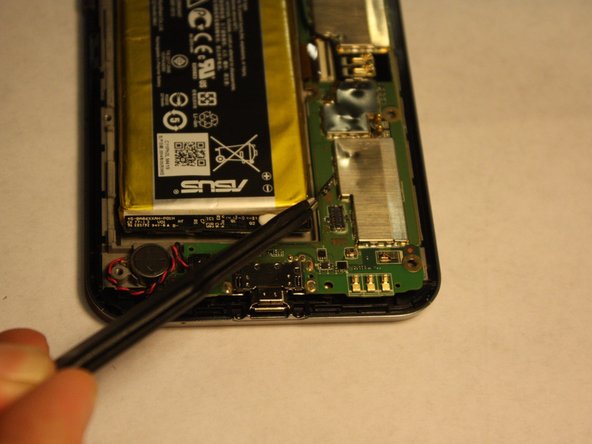

– Gently detach the battery from the logic board using your trusty tweezers.

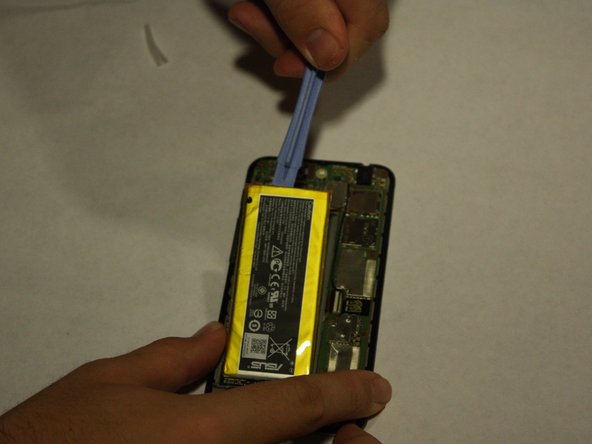

– With the help of some plastic opening tools, carefully lift the battery out of its cozy little slot.

Tools Used
  1. TweezersAsus PadFone S Front Facing Camera Replacement

Step 4

– Now that you’ve successfully said goodbye to the battery, it’s time to glide on over to step 2!

Step 5

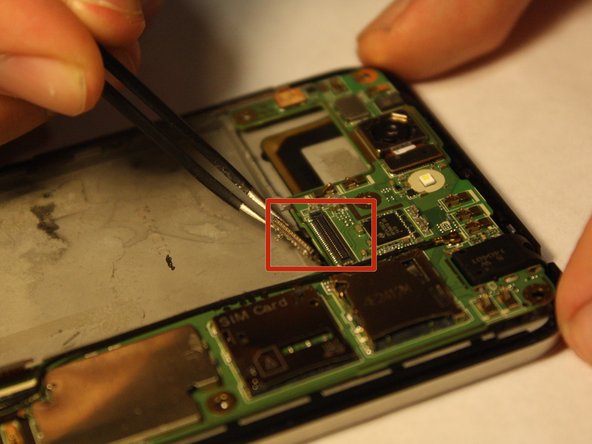

– Gently detach the highlighted strips from the logic board using your trusty tweezers.

– Don’t forget to unplug the speaker connection nestled in the bottom left corner!

Tools Used
  1. TweezersAsus PadFone S Front Facing Camera Replacement

Step 6

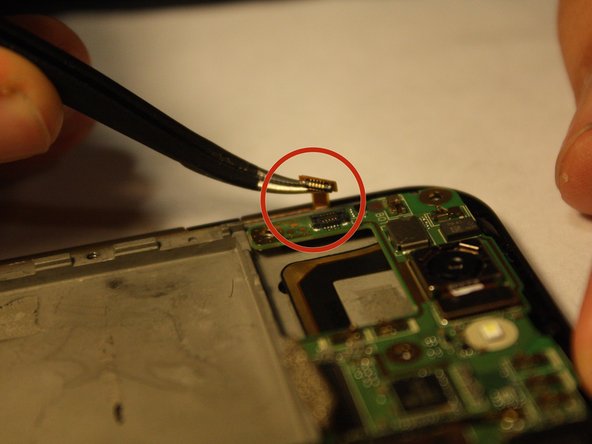

– Unplug those two little strips connecting the logic board to the phone. Time to set it free!

Step 7

– Time to put your device back together! Just retrace your steps and follow these instructions in reverse. You’ve got this!

– If you hit a snag and need a hand, feel free to schedule a repair.

– Remember, you’re not alone in this journey!

Tools Used
  1. TweezersAsus PadFone S Front Facing Camera Replacement
