DIY Guide: How to Replace Asus Zenfone 4 Max Charging Port

Duration: 45 minutes
Steps: 7 Steps

If your phone is giving you the silent treatment when it comes to charging, the culprit might just be a pesky charging port that’s seen better days. These little guys can take a hit from water, corrosion, and all those crumbs that mysteriously find their way in. But don’t worry! We’ve got your back with this guide to swap out that worn-out charging port and get your phone back in action.

Step 1

– Grab your trusty removable head screwdriver with a T3 bit and start by unscrewing the two screws chilling on either side of the charging port. Easy peasy!

Step 2

– Sneak the opening tool in between the phone and the back case.

– Work the opening tool up and down to pop the back off the device.

Step 3

– Now that you’ve got the back off, it’s time to tackle those bottom panel screws! Grab your AT3 bit and unscrew those four little guys—you’re almost there!

Step 4

– Let’s kick things off by gently removing the bottom panel—easy does it!

Step 5

– Slide an opening tool gently between the battery and the phone.

– Carefully coax the battery out of its snug little home in the device.

Step 6

– Pop out that old battery and slide in the shiny new one!

Step 7

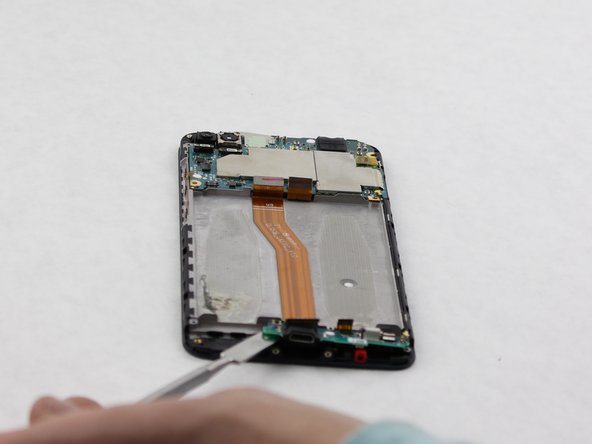

– After you’ve successfully removed the battery, take your trusty metal spudger and gently slide it under the green panel. We’re about to do some magic!

– Now, carefully lift that panel along with the charging port out of the device. It’s time to swap in the shiny new charging port and get everything back in action!

Tools Used
  1. Metal SpudgerAsus Zenfone 4 Max Charging Port Replacement

Success!
Now that you’ve put your device back together, go ahead and give it a test! You’re a superstar. If you need help, you can always schedule a repair
If you didn’t finish this guide, don’t worry, you can always come back to it later!
You rock!
