DIY Guide: How to Replace Lenovo IdeaTab A2109 Digital Board

Duration: 45 minutes
Steps: 6 Steps

Follow this guide to swap out your digital board.

Step 1

– Flip your tablet over and check out the back to find those sneaky speakers hiding at the top of the rear cover.

– You’ll notice a smaller plastic cover stretching across the top of the device—let’s get ready to tackle that!

– Grab your trusty blue opening tool and gently slide it under the center of that cover. Give it a little push upwards, and voilà! The cover should pop right off.

Step 2

– Time to get those screws out! Grab your trusty screwdriver and tackle these two screws:

– M3.0 x 3.0 mm #00 phillips screws (black)

Step 3

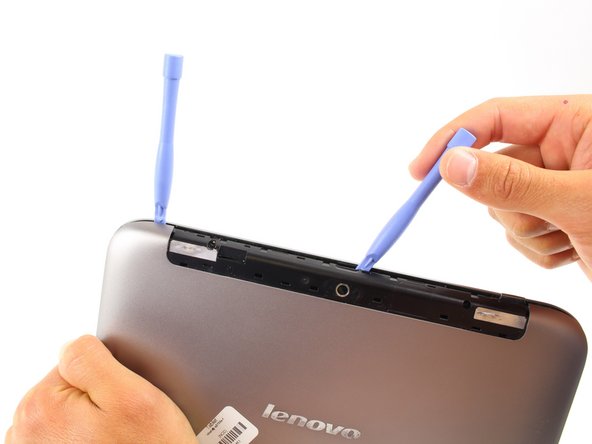

– Once you’ve got those screws out, it’s time to pop off the rear cover!

– Grab your trusty blue opening tool and gently pry it apart.

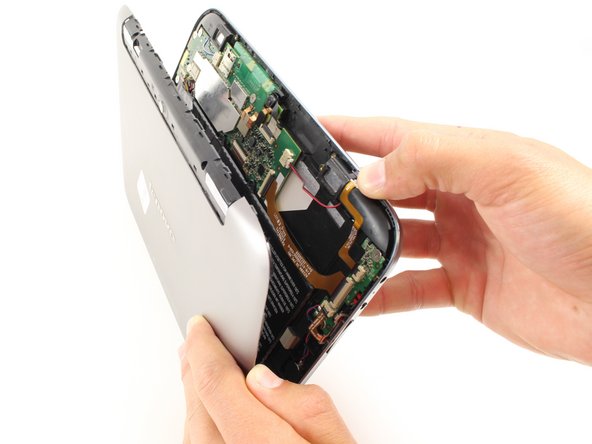

– Lift that cover up—it’s ready to come off!

– You might need to give it a bit of oomph, but don’t worry, with a little push, it’ll pop right off!

– Slide the tool into one corner, then grab another tool and slide it into the opposite corner for a smooth opening.

Step 4

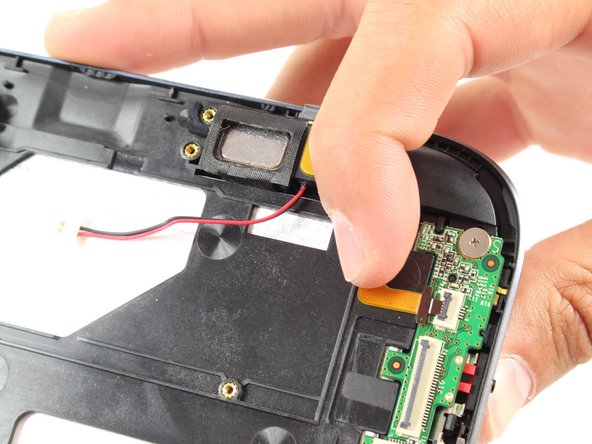

– Grab your trusty tweezer tool and carefully pop up those three tiny plastic locks holding the digital board in place—take your time, no rush!

– Once those locks are up, gently slide the newly revealed ribbons right out like a pro.

Step 5

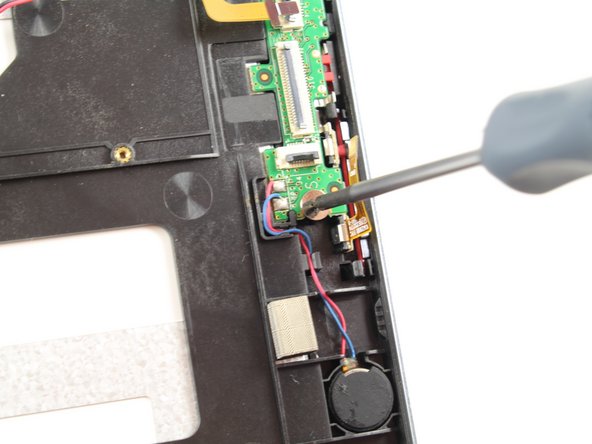

– Alright, let’s get this party started! First up, we need to say goodbye to those pesky screws. Grab your trusty screwdriver and remove these two little guys:

– M5.3 x 1.75 mm #00 Phillips screws (silver)

Step 6

– After you’ve unscrewed it, grab your trusty tweezers and gently pull the digital board straight out. You’ve got this!

Success!
Put your device back together by following the steps in reverse. If things get tricky or you feel stuck, you can always schedule a repair. You’ve got this!
