DIY Guide: Step-by-Step Samsung Galaxy Prime Camera Replacement

Duration: 45 minutes
Steps: 7 Steps

Step 1

– Start by inserting an opening tool or your trusty fingernail into the tab on the power button side of the phone – it’s time to get this repair started!

– Gently lift on the tab to pry the back cover off the phone, working your way around the edges.

– Keep prying all around the edges of the phone until the entire cover is fully removed – you’re making great progress! If you need help, you can always schedule a repair

Step 2

– To get started, simply lift up on the thumb tab located at the bottom right corner of the battery bay to remove the battery. If you need help, you can always schedule a repair

Step 3

– Ready to tackle that SD card and SIM card? Just peek above the battery bay and give that card a gentle slide to set it free.

– Now, grab your trusty opening tool and pop up the plastic plate that’s keeping the LCD ribbon cable cozy. It’ll come off with a little lift!

Step 4

– Grab your PH000 Phillips screwdriver and remove the nine screws from the back. If you need help, you can always schedule a repair

Step 5

– Time to get this screen loose. Use a heat gun or a heating device to gently warm up the edges of the phone’s screen

– Now it’s time to pry things open. Carefully insert an opening tool between the screen and the plastic bezel, and apply some pressure to separate them. If you need help, you can always schedule a repair

Step 6

– Grab your trusty plastic spudger and gently detach the ribbon cable from the loudspeaker unit. You’ve got this!

– Now, with a little lift from the top, free that loudspeaker unit from the phone. Easy peasy!

Tools Used
  1. SpudgerSamsung Galaxy Prime Front Facing Camera  Replacement

Step 7

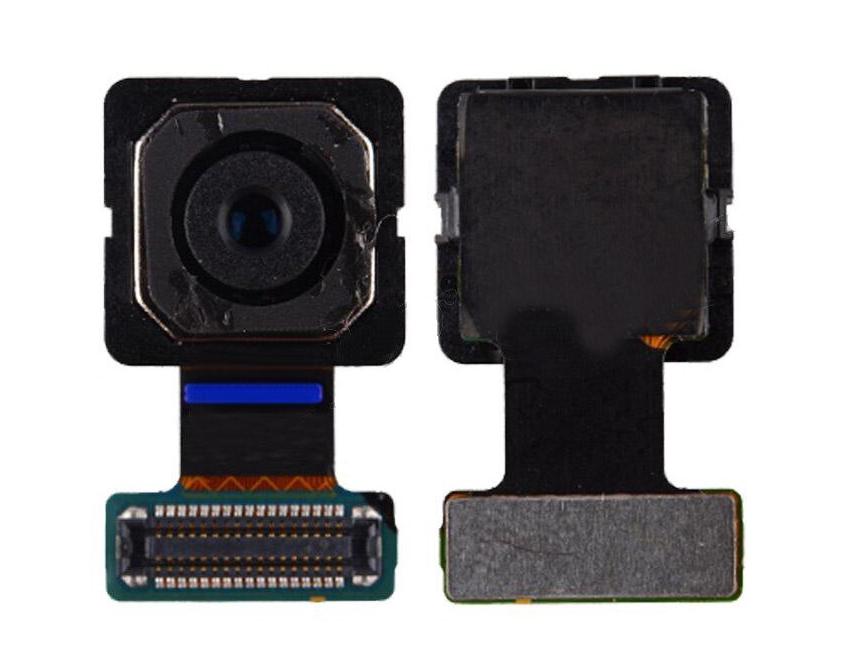

– Time to get started – use a plastic spudger to carefully disconnect the ribbon cable from the motherboard. You’re making great progress!

– Now that the ribbon cable is out of the way, the camera should be free to remove. If you need help, you can always schedule a repair

Tools Used
  1. SpudgerSamsung Galaxy Prime Front Facing Camera  Replacement
