DIY Guide to Replace Earpiece in Galaxy S10e
Duration: 90 min.
Steps: 18 Steps
Ready to give your Samsung Galaxy S10e a little TLC? This guide will walk you through the simple steps to swap out that pesky earpiece that’s been letting you down. Let’s get started and bring back the sound you love! If you need help, you can always schedule a repair.
Step 1
Tap the little Play button at the top right of the image to enjoy a video for each step!
– First things first, let’s power down your device! Just press and hold the power button until you see the ‘Power off’ option pop up.
– Now, give it a tap with your finger to confirm that you really want to shut it down. Sit tight and watch the screen go blank—you’re doing great!
Step 2
– Alright, let’s tackle that back cover! It’s stuck on there pretty good, so we’ll need to give it some love. Warm up your device evenly with hot air to melt that stubborn glue. Aim for a cozy temperature of 60 – 80°C. Remember, it should feel warm but not like a hot potato!
– To make life easier, grab a flat and flexible tool like the iPlastix or iFlex. You’ll also want a few picks handy to help pry that back cover loose all around. Teamwork makes the dream work!
– Start by heating up the spot where you’re going to begin. Then, gently slide your flat tool between the back cover and the frame. You’ve got this!
Hey there! Just a heads up, the back cover is a bit delicate, so handle it with care. If it doesn’t budge the first time, no worries—give it another go with some heat! It might take a little while, around half an hour, but taking your time will help you avoid any mishaps. So, relax, enjoy the process, and remember, if you need help, you can always schedule a repair.
The iPlastix is crafted from plastic, which means it’s gentle on your device and won’t leave any scratches. However, it can be a bit soft and tricky to maneuver. On the flip side, the iFlex is your best buddy for slipping into the narrow space between the glass and the frame, thanks to its super thin, sturdy metal design. Just a heads up, it might scratch the frame of your S10e if you’re not careful. Start off with the iFlex to get into that gap, and as soon as you can, switch over to the iPlastix for the rest of the job!
Tools Used
- heat gun to heat parts that are glued on so they’re easier to remove.
In most cases, you can also use a hairdryer.” rel=”noopener”>Heat gun - screen and the frame. The practical iFlex is made of stainless steel and sits comfortably in the hand. This makes it the perfect assistant for every smartphone repair.” rel=”noopener”>iFlex Opening Tool
- battery? Then the iPlastix with its large blade will help you. The practical assistant is made of flexible, especially sturdy plastic and lies comfortably in the hand. Thanks to its design, you can even get into smaller gaps, for example to lift the screen or to prevent it from sticking together again.” rel=”noopener”>iPlastix Opening Tool
- VAKUPLASTIC Suction Cup
Step 3
8 × 3,9 mm Phillips
– Start by loosening those Phillips screws holding the cover in place. Just a heads up, the contactless charging coil and NFC antenna are snugly attached to that plastic cover.
– Next up, the cover is cleverly hooked into the top of the housing, while the lower part is just a tad glued on. Gently slide a flat tool under the attached areas and give them a little wiggle to loosen things up.
– Now, it’s time to lift off the cover along with the coil. You’re doing great!
Step 4
Battery Connector
When you’re prying things open, make sure to start from the side that’s free of tiny components on the motherboard. This little tip helps you dodge any accidental mishaps with capacitors or ICs. Keep it smooth and safe!
– With your trusty spudger in hand, gently detach the battery contact from the motherboard. You’ve got this!
Tools Used
Step 5
7 × 3,9 mm Phillips
– Start by loosening the Phillips screws that hold the speaker in place, and then gently take it out.
– To make it easier to lift the speaker, give it a little nudge upwards at the side openings. You’ll find those spots marked with cute little triangular arrows!
Step 6
– First up, gently disconnect the headphone jack connector from the motherboard. Grab your trusty spudger and carefully wiggle it out of there.
– Next, give the side of the jack a little nudge to free it from its cozy spot, and then pop it out of the case. Easy peasy!
Step 7
Camera Connector
– Time to say goodbye to the front camera connector! Gently disconnect it using your trusty spudger.
– Carefully pry it up from the side that’s free of any PCB components.
– Now, let’s free the camera from its cozy little holder!
Step 8
3 × 3,7 mm Phillips
Display connector
Fingerprint connector
Hey there! Just a heads up: there’s a tiny plastic pin hanging out in the SIM tray opening. Keep an eye on it so it doesn’t wander off!
– Grab your trusty spudger and gently disconnect those highlighted contacts from the motherboard. You got this!
– Next up, let’s tackle those pesky Phillips screws. Remove them with care.
– Now, it’s time to pop out the SIM card holder. Easy peasy!
– With a gentle touch, you can now lift the motherboard out. Just be sure it doesn’t snag on any of the connectors you’ve already freed.
– Finally, set that motherboard down in a safe spot. It’s a big step, so let’s keep it cozy!
Step 10

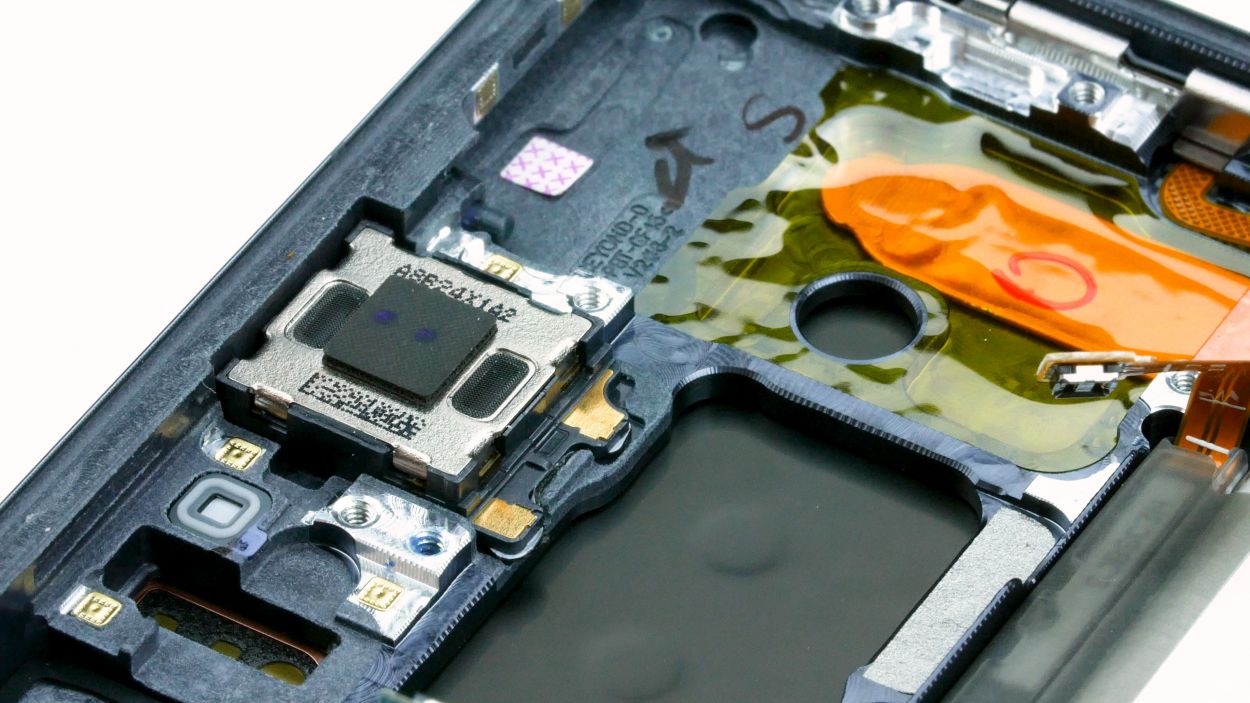

If you’re swapping out the earpiece and notice there’s no sticky stuff on the new one, go ahead and peel off the adhesive from the old earpiece. You’ve got this!

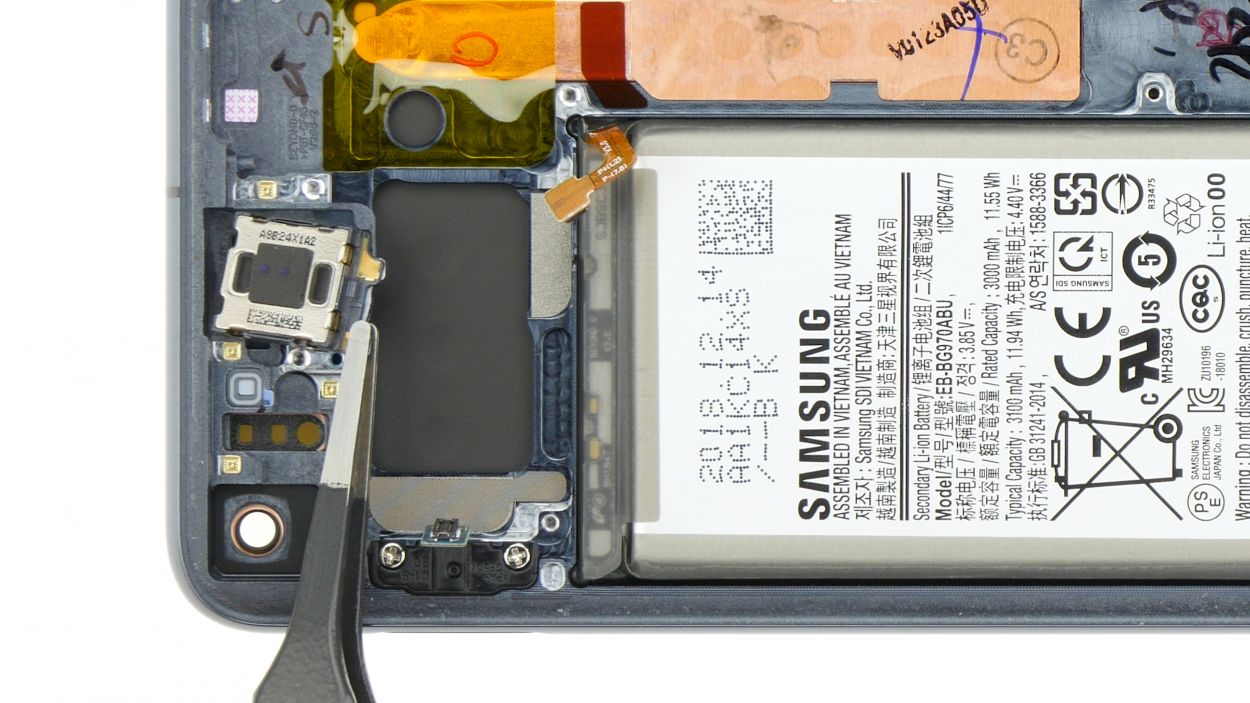

– Gently place the earpiece back into its cozy little home in the case.

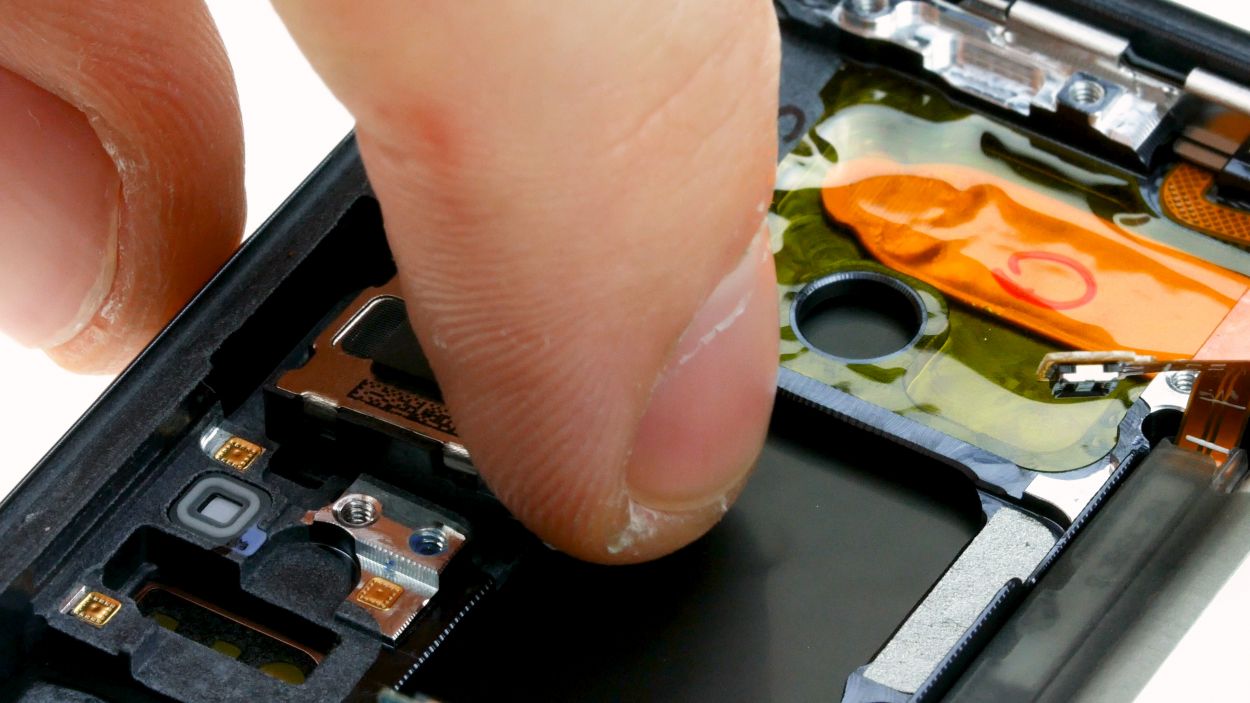

– Give it a light press to help the glue bond like best buddies.
Step 11
3 × 3,7 mm Phillips
Display connector
Fingerprint connector
– Gently place the motherboard into the device, making sure to avoid pinching any cables. Just bend those connectors to the side, and you’re golden!
– Start by positioning the board at the bottom and snugly press the charging socket into its designated opening. Give the board a little push down until it fits perfectly all around.
– Now, it’s time to insert the SIM card holder. If it’s being a bit stubborn, no need to force it! Just double-check that the mainboard is seated properly.
– Next up, secure the motherboard by fastening those screws nice and tight.
– Lastly, reconnect all those connectors and make sure everything is back in its happy place.
Step 12
Camera Connector
Before diving into the fun, double-check that all those pesky protective films are off and give that camera lens a little love—make sure it’s nice and dust-free!
– Pop that front camera into place and give its connector a little hug to secure it.
– Camera Connector
Step 13
– Gently slide the audio jack in and give it a light press until you hear that satisfying click! It’s like a little victory dance for your device.
– Now, let’s reconnect that connector like the best buddies they are!
Step 14
7 × 3,9 mm Phillips
– Now, gently position the speaker back over the USB port, give it a little push to snug it in place, and secure it with those screws. You’re almost there!
– Don’t forget to check that it’s properly latched at the bottom. You’re doing great!
Step 15
Battery Connector
– Attach the battery to the motherboard. Firmly press the connector onto the motherboard until you hear a satisfying click, letting you know it’s secure.
Step 16
8 × 3,9 mm Phillips
– First, let’s get that cover with the antenna back into its cozy home! Just hook it onto the top of the enclosure like a pro.
– Now, give it a gentle press with your fingers until you hear that satisfying click. It’s like a little high-five!
– Finally, grab your trusty Phillips screwdriver and fasten those screws. You’re almost there!
Step 17
Make sure to give every function of that replaced part a good test drive! It’s time to see if everything is running smoothly and working like a charm.
– Fire up your device and give it a whirl with the built-in test mode!
– To dive into the test mode, just dial *#0*#.
– Follow the prompts to check out the screen, cameras, and sensors. You’ve got this!
Step 18
If the sticky stuff on the back cover is still holding strong, you can close up your device without needing a fresh adhesive frame. How convenient is that?
– Carefully place the back cover back where it belongs.
– Give the back cover a gentle press all around to ensure the glue sticks nicely.
