DIY Guide to Replace iPhone 8 Speaker Tutorial
Duration: 60 min.
Steps: 29 Steps
Welcome to our illustrated step-by-step guide! Here, we’ll guide you through the process of swapping out that faulty speaker on your iPhone 8, bringing back the crisp, clear sound you love. We wish you all the best with your repair adventure! Don’t forget to share your thoughts on our instructions – we can’t wait to hear from you!
Step 1
– First, give your iPhone a little break by turning it off completely. This will keep it safe from any unexpected short circuits. Just press that standby button for about three seconds until you see the ‘Turn off’ slider pop up on your screen.
– Now, slide that little slider from left to right and hang tight until your iPhone has fully powered down. You’re on your way to a successful repair!
Step 2
– Get ready to tackle those two Pentalobe screws on either side of the Lightning Connector! Loosen them up and make sure to stash them safely in your screw storage. You’re doing great!
2 × 3.4mm Pentalobe
To keep track of those tiny screws and parts, we suggest using a screw storage solution. Got an old sewing box lying around? Perfect! At Salvation Repair, we love using a high-quality magnetic mat that lets us arrange the parts just like they were in the device. This way, you’ll know exactly where each screw goes when it’s time to put everything back together. Easy peasy, right?
Tools Used
Step 3
When it comes to heating your device, think of it like a warm hug – just enough heat so you can comfortably touch it without feeling like you’re in a sauna. Keep it cozy, not scorched!
– First, set your iPhone 8 down on a soft, clean surface – we want to keep it scratch-free while we work our magic!
– Next up, grab a hot air tool like a hairdryer or heat gun and give the display a nice, even warm-up all around.
Tools Used
- heat gun to heat parts that are glued on so they’re easier to remove.
In most cases, you can also use a hairdryer.” rel=”noopener”>Heat gun
Step 4
Opening up your iPhone 8 means waving goodbye to its dust and splash resistance warranty, and yes, that waterproof warranty too! But hey, you’re about to embark on a repair adventure, and that’s pretty cool!
– Start by placing a suction cup just above the Home button on the display and gently pull it upwards. This will create a tiny gap between the aluminum and display frames, making it easier for us to work.
– Now, take a flat plastic tool and slide it into that gap you just made. Use it to gently push the aluminum frame upwards, widening the gap a bit more. Flat plastic picks work wonders for this task!
Tools Used
Step 5
While you’re on this repair journey, keep the display’s opening angle under 180°! Going beyond that could risk tearing those delicate flex cables. Let’s keep everything intact and happy!
– With a gentle touch, nudge the display upwards using your trusty plectrum to pop those lugs free from the aluminum frame. It’s like giving your device a little lift!
– Next, swing the display open towards the standby button. To keep everything cozy, lean it against something stable so those flexible cables don’t feel overstretched. You’ve got this!
Tools Used
Step 6
2 × 2.6 mm Phillips
2 × 1.0 mm Phillips
Before diving into your repair adventure, let’s make sure to disconnect that battery connector! This little step helps prevent any surprise short circuits and keeps your device from accidentally powering on while you’re busy fixing things up.
– Grab your trusty Phillips screwdriver and tackle those four Phillips screws like a pro! Once they’re out, use those handy tweezers to gently lift off the cover. Easy peasy!
– Next, it’s time to disconnect the battery connector. Use a plastic spudger to carefully pry it off. You’ve got this – just take it slow and steady!
Step 7
– Use the spudger to gently detach the display connectors for both the display and the home button. You’re doing awesome!
Tools Used
Step 8
3 × 1.0 mm Phillips
– Time to tackle those three Phillips screws sitting above the connector! Unscrew them with a smile.
– Next, grab your trusty tweezers and gently lift that cover plate off your iPhone 8. You’ve got this!
– Now, with a delicate touch, use a spudger to separate the FaceTime connector from the board. Easy does it!
– And just like that, you can now completely remove the display. Look at you go!
Step 9
1 × 2.9 mm Phillips
1 × 3.0 mm Standoff
For the stand-off screw, you can grab a specialized screwdriver if you’ve got one, but if not, a regular narrow slotted screwdriver will do the trick just fine! You’ve got this!
– Get those screws loosened up and gently lift off the cover plate of the iSight camera. You’re making progress!
Step 10
2 × 1.2 mm Philliips
2 × 1.0 mm Philliips
1 × 2.5 mm Phillips
1 × 1.4 mm Phillips
One of the screws is nestled snugly into the side of the back cover, just waiting for you to give it some love and attention!
– First, let’s get those screws of the plastic bracket loosened up! Just a little twist and you’ll be on your way to the next step.
Step 11
1 × 1.3 mm Phillips
1 × 1.2 mm Phillips
– First, let’s tackle those Phillips screws holding the antenna in place. Give them a twist and set them aside for safekeeping!
– Next, gently disconnect the connector from the board. You’re on the right track!
– If the antenna is feeling a bit stubborn, warm it up with a little hot air to loosen it up. Then, carefully pry it off with a spatula. You’re doing amazing!
Step 12
– Grab your trusty SIM tool or a paper clip and let’s get that SIM card holder out of there! Just give the SIM tool a little push into the tiny hole right next to the holder. You’ve got this!
Tools Used
Step 13
– Grab your trusty spudger and gently wiggle it to detach those three connectors on the battery side of the logic board. You’re doing great – just take your time and keep it steady!
Tools Used
Step 14
1 × 2.4 mm Standoff
1 × 2.1 mm Standoff
1 × 1.6 mm Phillips
The Phillips screw is hiding behind a sticker, just waiting for you to uncover it (check out the photo)! Don’t worry, it’s all part of the adventure.
– First, let’s unscrew all those little screws that are keeping the logic board snug and secure. You got this!
– Now, with a gentle touch, you can lift the logic board out by hand. Just a heads up, there’s a plastic holder for a screw right next to the two holes for the iSight camera. It’s sitting pretty on top of the logic board, so keep an eye out for it!
Step 15
1 × 1.2 mm Y-type
1 × 2.9 mm Phillips
1 × 2.5 mm Phillips
1 × 1.4 mm Phillips
1 × 2.1 mm Phillips
– First, let’s loosen those cover plate screws that are hanging out over the flex cable connector and set that plate aside like a pro.
– Next up, disconnect the flex cable connector and gently lift it up, giving it some space to breathe.
– Now, it’s time to loosen the screws of the speaker – you’re almost there!
– Finally, you can lift out the speaker along with the flex cable. You’re doing an awesome job!

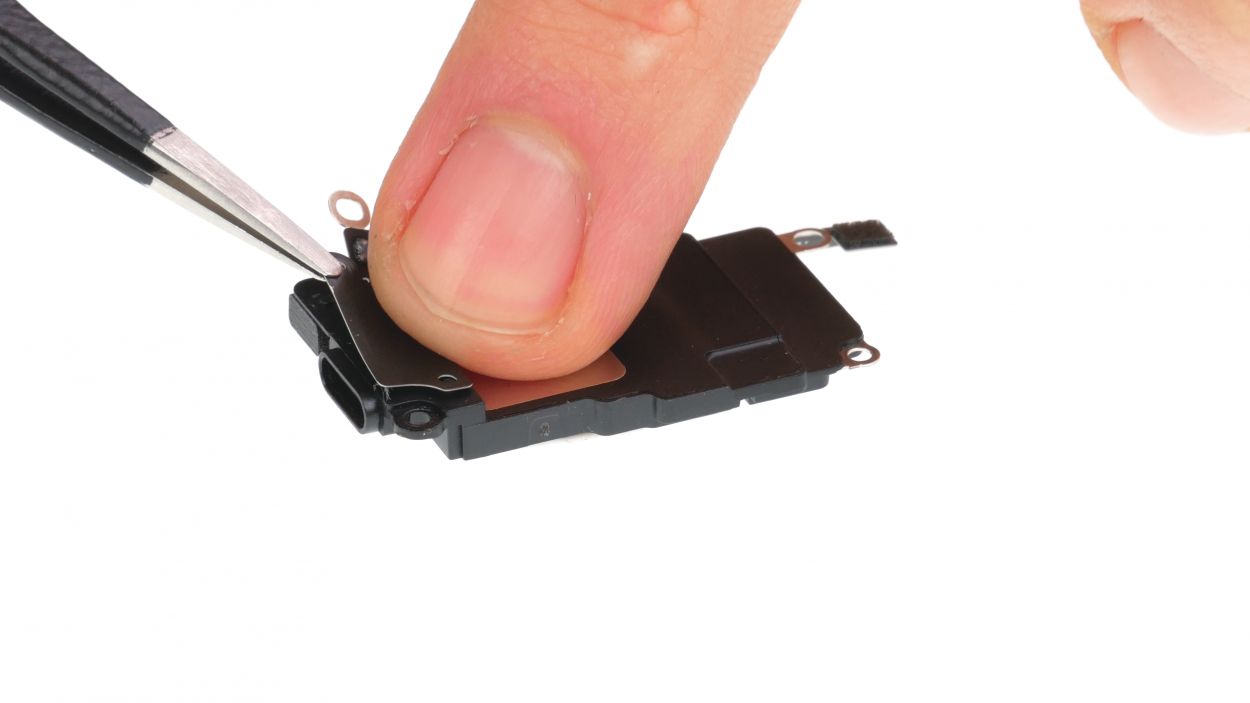

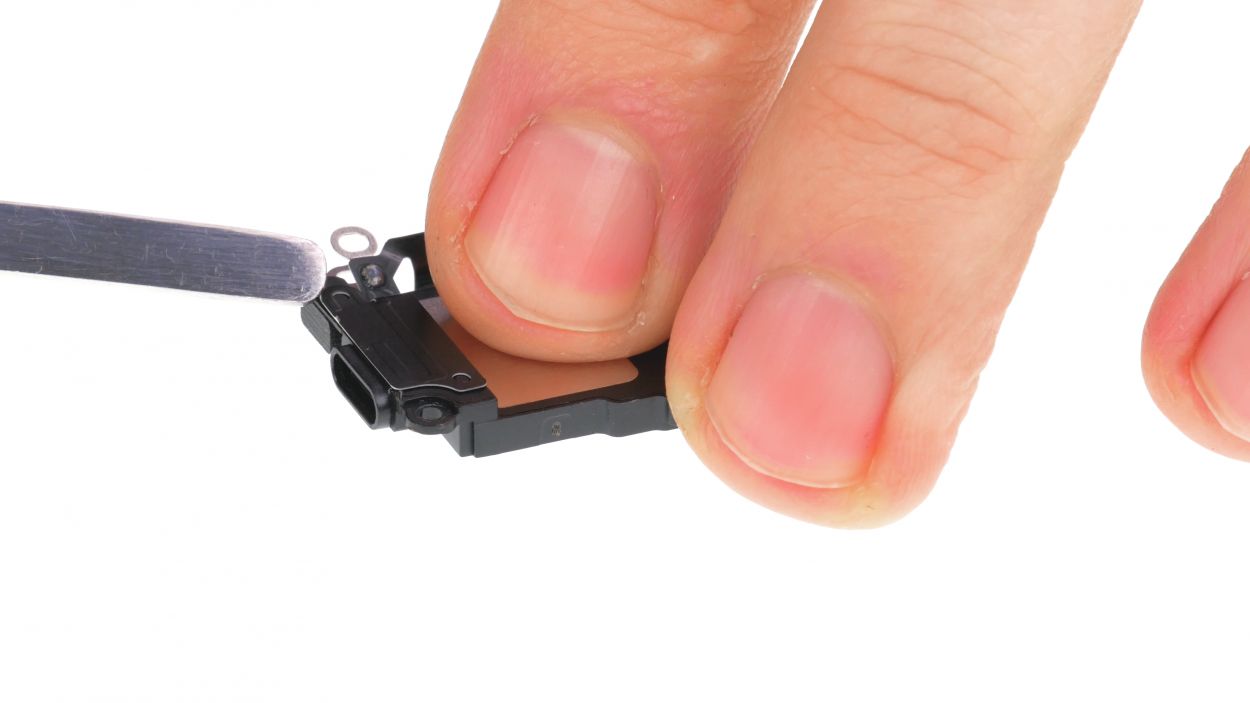

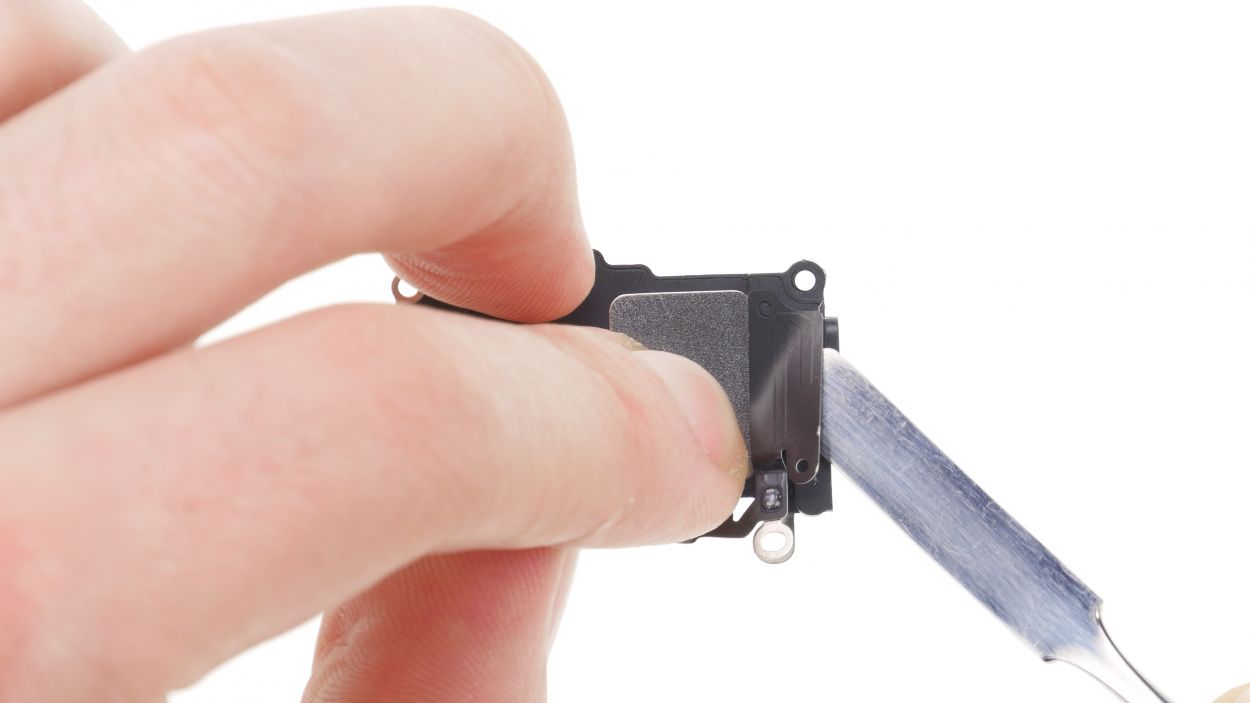

Step 16
– First, give that glued antenna a little warm-up with some hot air to make it easier to pop off.
– Next, grab a steel spatula or some tweezers and gently coax the antenna away from the speaker surface.
– Finally, place that antenna right back where it belongs on the new speaker. You’ve got this!
Tools Used
Step 17
1 × 2.1 mm Phillips
1 × 1.4 mm Phillips
1 × 1.2 mm Y-type
1 × 2.9 mm Phillips
1 × 2.5 mm Phillips
Just a friendly reminder to snugly place that flex cable right between the battery and the speaker! It’s all about keeping things cozy in there.
– First, slide the speaker back into its cozy spot in the rear case and give it a gentle press to make it snug.
– Next up, grab those two Phillips screws and fasten the speaker in place – you’re almost done!
– Now, give that speaker connector a firm press to make sure it’s snug and secure.
– Finally, reinsert the bracket plate over the flex cable and fasten it down with the three screws. You’re doing fantastic!
Step 18
1 × 2.4 mm Standoff
1 × 2.1 mm Standoff
1 × 1.6 mm Phillips
The camera holder is hanging out right on top of the logic board, just chilling above that screw hole in the top right corner of the image. Make sure it’s in the right spot before you close everything up!
– Carefully place the logic board back in its original spot, just like a puzzle piece fitting snugly into place. You’ve got this!
Step 19
– First, line up those connectors with their cozy little sockets and give them a gentle push with your finger. You’re doing great!
Step 20
If you’re having a tough time getting it to slide in, take a moment to double-check where the logic board is sitting. A little adjustment might just do the trick!
– Now, slide that SIM card tray back into its cozy little slot. It’s like tucking it in for a good night’s sleep!
Step 21
1 × 1.3 mm Phillips
1 × 1.2 mm Phillips
– First, let’s get that Wi-Fi antenna back in its original spot and give it a gentle press to help it stick like it used to.
– Next, connect the antenna’s connector like a pro.
– Finally, fasten the bracket plate back on with those two Phillips screws. You’re almost there!
Step 22
1 × 2.5 mm Phillips
1 × 1.4 mm Phillips
2 × 1.2 mm Phillips
2 × 1.0 mm Phillips
– First, pop that connecting piece back into its rightful place and secure it with those trusty Phillips screws.
– Now, let’s get that plastic bracket back in action and fasten it down with Phillips screws too. You’re doing great!
Step 23
1 × 2.9 mm Phillips
1 × 3.0 mm Standoff
– Gently press the camera back into its cozy little home.
– Connect the camera connector like a pro.
– Pop the bracket plate of the camera back on and give it a good twist to secure it tight.
Step 24
After you’ve added that shiny new adhesive frame, your iPhone 8 will be ready to fend off dust and splashes like a champ! Just a heads up though, it won’t be 100% waterproof anymore. But hey, you’re making it awesome again!
The corners are unique and serve as your trusty guides for orientation.
– First, let’s tidy up that metal frame and display by removing any leftover adhesive residue. This way, your new adhesive frame will fit like a glove!
– Next, align that adhesive frame with the back cover of your iPhone. Get it just right, and you’ll be on your way to a flawless finish!
Tools Used
Step 25
3 × 1,0 mm Phillips-Schraube
– First, set the display upright on the frame and connect the FaceTime connector to the logic board. You’ve got this!
– Next, gently place the display on the side of the back cover. Just like that!
– Finally, cover the FaceTime connector with the cover plate and secure it with those three Phillips screws. You’re almost there!
Step 26
– Reconnect the display connectors for both the display and the home button to the logic board. You’re doing great!
Step 28
– First, gently place the display alongside the back cover and give it a little fold over, just like tucking in a cozy blanket.
– Then, press down on the display with a firm yet friendly touch, ensuring it’s snug and secure all over. You’re doing awesome!
Wrong position
Right position
Just a quick heads-up! Make sure that silver chip on the cable is sitting just like it did before (check out the photo!). If it’s off, you might end up with some funky discolorations and spots on your screen right where it counts after you finish up. If you see any of that, just double-check the cable position and get that chip aligned like in our photo!
Step 29
2 × 3.4 mm Pentalobe
– Now it’s time to put those two Pentalobe screws back where they belong, right next to the Lightning connector! Just give them a little twist and secure them into the rear case. You’re almost there!
