DIY Guide to Replace Microsoft Surface Laptop 7 13.8-Inch Chip ID
Duration: 45 minutes
Steps: 10 Steps

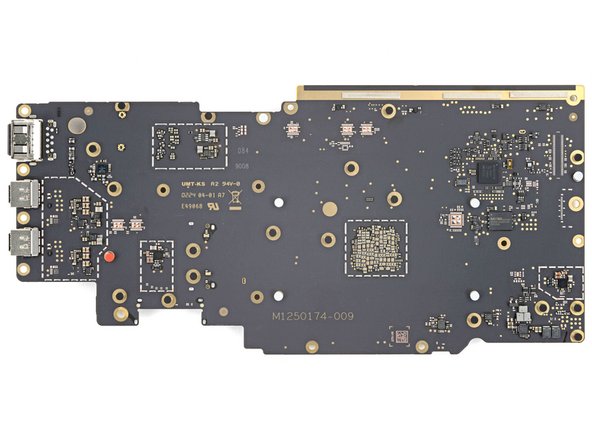

Step 1
– Get ready to meet the powerhouse: Qualcomm’s X1P-64-100-103 Snapdragon X Plus deca-core applications processor! It’s the brain behind the operation.
– Next up, we have the Micron MT62F1G32D2DS-023 WT:C 4 GB LPDDR5X SDRAM memory. This little gem is all about keeping things running smoothly.
– Don’t forget the power players: Qualcomm’s PMC8380-001-00 and PMC8380VE-001 power management systems. They’re here to ensure everything gets the energy it needs!
– And let’s not overlook the dynamic duo of charge pumps and buck regulators: Qualcomm’s PMC1010H-001-02 and PMC1010H-001-06. They’re essential for keeping the voltage just right.
– Last but not least, Qualcomm’s power management is like the conductor of an orchestra, ensuring all components work in harmony.
Step 2
– Get ready to rock with the Qualcomm SMB2360-002 battery charger!
– Don’t forget to have the Qualcomm SMB2361-002 battery charger on hand for extra power!
– You might want to keep an eye on that Qualcomm clock generator – it’s likely going to be your best friend.
– Make sure the Parade Technologies PS8830 USB4, DisplayPort 2.0, and Thunderbolt 3.0 retimer is ready to strut its stuff.
– The camera processor is probably your go-to for capturing those perfect moments.
– Grab the Macronix MX25U1633FZUI 2 MB serial NOR flash memory; it’s a small but mighty piece of tech.
– And last but not least, keep the Qualcomm camera power management handy to ensure everything runs smoothly!
Step 3
– Murata PE23108 LED backlight driver – Brighten up your life with this nifty little driver!
– Texas Instruments TPS61163A 2-ch. white LED driver – Get your lights shining right, it’s a two-for-one deal!
– Analog Devices MAX34417 current & voltage monitor – Keep an eye on your power like a pro!
– Monolithic Power Systems MP2322 1 A synchronous step-down converter – Smoothly transition power like a boss!
– Monolithic Power Systems DC-DC converter – Convert your way to power efficiency!
– Monolithic Power Systems DC-DC converter – Another round of power conversion, because why not?
– NXP Semiconductors NX20P0407UK USB type-C port protector – Safeguard your connection with style!
Step 4
– Get your hands on the Nexperia 74LVC2G66 dual SPST analog switch for some smooth switching action.
– Grab the Monolithic Power Systems MP5077GG programmable load switch to control that power like a pro.
– Next up, the Texas Instruments TPS22964C 3 A load switch is here to help you manage your currents effortlessly.
– Don’t forget the Diodes Incorporated AP22653AFDZ-7 adjustable current-limited power distribution switch for those times you need to dial it back a notch.
– The Diodes Incorporated AP22800HB-7 programmable load switch is your go-to for a little extra control when you need it.
– Consider the Richtek LDO regulator to keep things running smoothly and efficiently.
– Finally, the Texas Instruments PCA9306 2-bit voltage level translator will ensure your signals are speaking the same language.
Step 5
– Get ready to tackle the Texas Instruments SN74LV1T08 single 2-input AND gate like a pro!
– Next up, we’ve got the Texas Instruments SN74LV1T32 single 2-input OR gate. It’s time to make those connections happen!
– Finally, wrap things up with the Texas Instruments SN74AUP1G08 single 2-input AND gate. You’ve got this!
Step 6
– Get ready to dive into the tech world with the Qualcomm WCN7851-501 FastConnect 7800 WiFi 7 & Bluetooth 5.4 controller, which will bring your devices back to life with speedy connections.
– Next up, we’ve got the Qualcomm 2.4 GHz front-end module, your trusty sidekick for stable connections in the lower frequency range.
– And don’t forget the Qualcomm 5 GHz front-end module, your go-to for those high-speed internet adventures!
Step 7
– Alright, you’re tackling the Qualcomm B7530 Bluetooth/WLAN SAW filter—nice choice! Stay focused, take it step by step, and you’ll get this sorted in no time.
Step 8
– NXP Semiconductors MIMXRT633SFFOB 32-bit ARM Cortex-M33 microcontroller w/ Xtensa HiFi4 audio DSP – Hey there tech enthusiast! First up, let’s dive into the NXP Semiconductors MIMXRT633SFFOB. This 32-bit ARM Cortex-M33 microcontroller with Xtensa HiFi4 audio DSP is your new best friend in this adventure.
– Macronix MX25U51293GZ4I40 64 MB serial NOR flash memory – Next, we’ve got the Macronix MX25U51293GZ4I40. It boasts a whopping 64 MB of serial NOR flash memory. Let’s get this beauty connected and ready to roll.
– Macronix MX25U1633FZUI 2 MB serial NOR flash memory – Following that, we have the Macronix MX25U1633FZUI, packing 2 MB of serial NOR flash memory. Just follow the steps, and you’ll nail it.
– Qualcomm WCD9385-000 audio codec – Now it’s time for the Qualcomm WCD9385-000 audio codec. This component is going to make your device sound like a rockstar.
– Qualcomm audio amplifier – Next, let’s introduce the Qualcomm audio amplifier into the mix. Get ready to amp up the volume!
– Renesas mixed signal array – Moving on to the Renesas mixed signal array. This step might be a bit tricky, but I believe in you. Remember, if you need help, you can always schedule a repair.
– Monolithic Power Systems MP28167GQ-A 3 A buck-boost converter – Finally, let’s finish strong with the Monolithic Power Systems MP28167GQ-A, a 3 A buck-boost converter. You’re almost there!
Step 9
– Need to step things down? Here’s a few awesome converters to help you out: The Richtek RT5753ALGQW 3A synchronous step-down converter is a great choice, as is the Richtek RT5788AGJ8F 4A synchronous step-down converter. Both of these are top-notch for smooth power management.
– For those USB connections, the Analog Devices MAX4983EEVB+ USB 2.0 DPDT analog switch is a solid option to keep your signals in check. But if you need something a little more versatile, try the Vishay DG2723 dual SPDT analog switch – it’s got you covered with more flexibility.
– Sometimes a simple switch is all you need. The Nexperia 74LVC2G66 dual SPST analog switch is perfect for those quick and easy toggles.
– Over-voltage or over-current issues? No worries – the onsemi FPF2495CUCX 28V over-voltage & over-current protection load switch is here to make sure you’re covered and your device stays safe.
– Need to manage loads? The onsemi FPF1504 load management switch is a great pick to help keep everything in check when things get a bit heavy.
Step 10
– Check out the Texas Instruments TPS22964C, a 3 A load switch that’s ready to help you power through your repairs!
– Say hello to the Diodes Incorporated AP22653AFDZ-7, an adjustable current-limited power distribution switch that keeps things under control while you work your magic.
– Meet the Diodes Incorporated AP22800HB-7, a programmable load switch that adds some flexibility to your repair toolkit.
– Don’t forget the Richtek LDO regulator, a handy little component that’s essential for keeping voltage levels just right.
– Last but not least, we have the Nexperia 74AVC2T245 2-bit level shifter, perfect for those times when you need to shift things up a notch.
