DIY Microsoft Lumia 640 LTE Headphone Jack Replacement Guide
Duration: 45 minutes
Steps: 12 Steps
Ready to say goodbye to that pesky headphone jack on your Microsoft Lumia 640 LTE? This guide will walk you through the steps to remove it so you can get your headphones jamming on your phone in no time! Let’s dive in and make some magic happen!
Step 1
– Gently use your thumb or fingernail to pop off the back cover of your phone from the edge or corner. You’ve got this!
Step 2
Take it easy when you’re unscrewing those little guys—it’s super easy to accidentally strip them. Treat them gently and they’ll be your buddies!
– Alrighty, y’all! Time to put on your tweezerman costume and meticulously pull back that sticker, uncovering the hidden screw. Ready to shed some light on this little beauty? Let’s go! If you need help, we’ve got you covered with a repair date schedule a repair.
Tools Used
Step 3
– Grab your trusty T4 Torx driver and unscrew the six screws—four chilling in the corners and two hanging out on the middle left side. Easy peasy!
Step 4
– Grab your trusty T4 Torx driver and get ready to unscrew those two little guys! It’s time to say goodbye to them.
– Make sure to keep these screws in their own little corner, away from the ones you took out of the back of the phone. We want to keep everything organized so they can find their way back home!
Step 5
– Grab your trusty plastic opening tool and gently slide it between the screen and the back casing—let’s give that screen the separation it deserves!
– Now, it’s time to bring in the tweezers to work their magic. Use them to nudge the clip on the side of the device so you can smoothly peel off the back cover of your phone. You’ve got this!
Tools Used
Step 6
If you’re ready to tackle the motherboard, jump ahead to Step 11 after finishing this step. You’ve got this!
Step 7
This part is stuck on with some serious glue!
– Grab a plastic opening tool and gently slide it under that shiny gold strip. You’ve got this!
– With your trusty tweezers, lift the camera up like you’re unveiling a surprise.
– Now, give that depth sensor a little tug with your tweezers. It’s time for it to shine!
Tools Used
Step 8
This bad boy is stuck on there with some serious adhesive power.
– Grab a trusty plastic opening tool and gently nudge up that ear speaker. You’ve got this!
Step 9
– Grab that trusty T-4 bit and gently unscrew those last 2 screws. You’ve got this!
Step 11

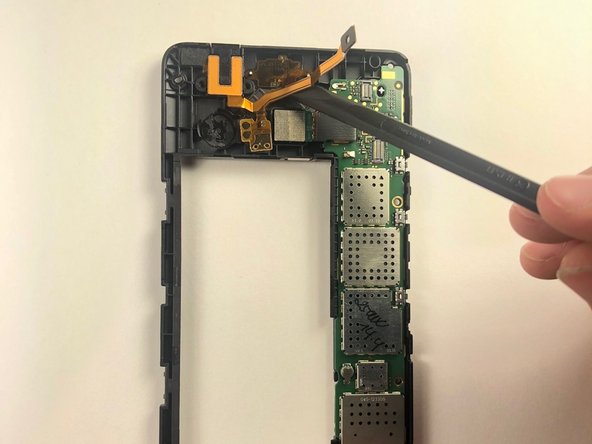

– Grab that trusty plastic opening tool and give the black tab a little lift-off action.
– With your tweezers in hand, gently coax the gold tab upwards—you’re doing great!
– Now, take your spudger and carefully slide it under the gold sticker. Just a heads up, this sticker is sticking around a bit too tightly, so pry it up slowly and steadily.
Step 12
– Time to put it all back together! Just retrace your steps and follow the instructions backwards. You’ve got this!
– If you’re feeling a bit lost, it’s totally okay to take a break. Remember, it’s perfectly fine to step back and regroup if needed.
–
Tools Used
Success!
