Google Pixelbook Battery (Back Panel) Replacement
Duration: 45 minutes
Steps: 7 Steps
In this guide, we’ll walk you through how to remove the back panel of your Pixelbook so you can replace that tired old battery. But here’s the catch: the back panel is seriously stuck on there, clinging to the battery like it’s never letting go. Trying to pry them apart? It could get messy, so we strongly recommend getting a brand new back panel and battery pack instead of trying to separate them. Need a hand? No worries, you can always schedule a repair if you’re feeling stuck!
Step 1

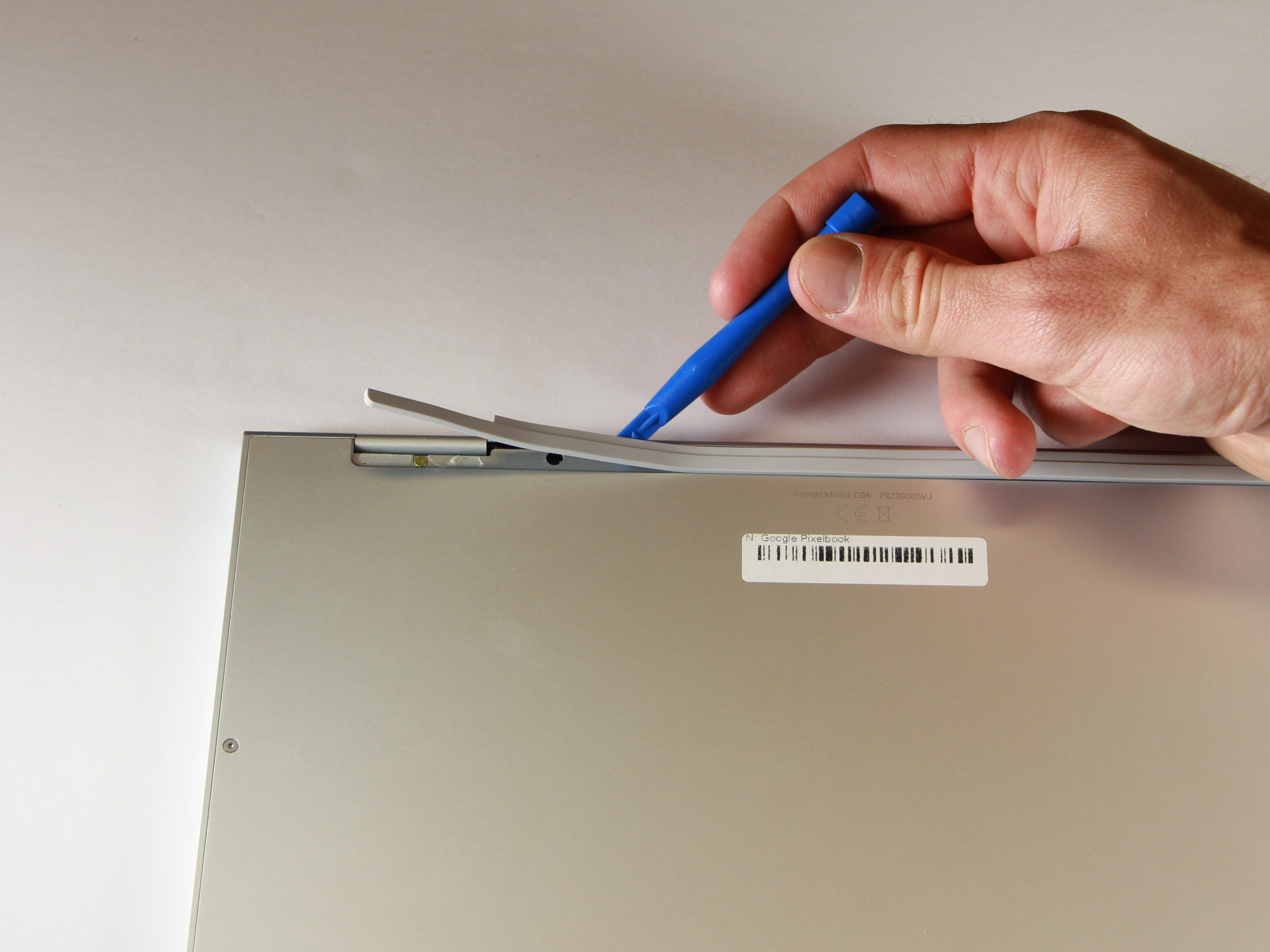

– Grab your trusty opening tools or a metal spudger and gently lift the rubber covers off the back of your Pixelbook. It’s like peeling a delicious fruit, but techy!
– Carefully peel the linings away until the back of your Pixelbook is all bare and ready for the next step. You’re almost there!
Tools Used
Step 2

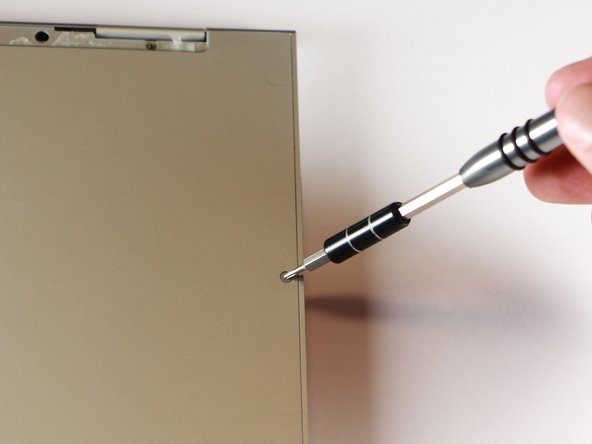

– Grab your trusty T3 Torx screwdriver and get to work loosening those two yellow 2.0mm screws. Once they’re out, you’re one step closer to your goal!
Tools Used
Step 3
– Unscrew the seventeen 3.0mm T5 Torx screws from the bottom panel. Get ready to loosen those screws and keep them safe for the next step!
Step 4
– Grab your trusty nylon spudger and gently work it under the edge of the Pixelbook until you’ve got enough space to get your fingers underneath.
– Flip that back panel all the way open and lay it down flat so you can see every bit of what’s going on inside.
Tools Used
Step 5
– Grab your T3 Torx screwdriver and carefully unscrew the yellow 2.0mm screw right in the middle of the panel by turning counterclockwise. Keep up the good work—you’re making progress! If you need a hand, you can always schedule a repair.
Tools Used
Step 6
– Gently pry off the small, black casing with your trusty spudger. Just lift it up from its snug spot, and voilà, it’s free!
Tools Used
Step 7
– Gently disconnect the flat, black cable from the main component by pushing it out of its socket with a spudger or carefully pulling it free with your fingers.
– Now, your back panel is ready to be removed from the main device.
