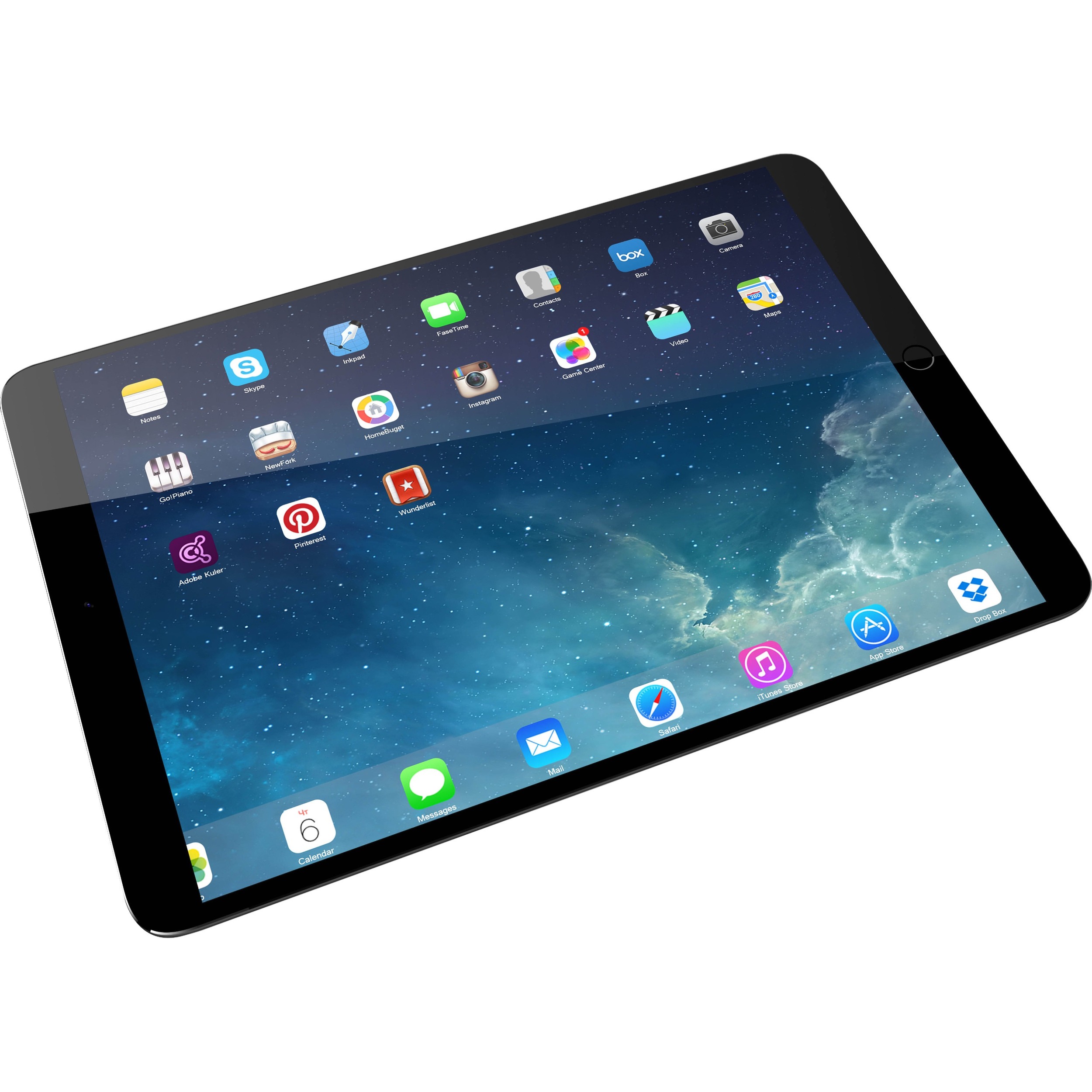

How to Replace iPad 5 LTE Logic Board – Step-by-Step Guide
Duration: 45 minutes
Steps: 77 Steps
Hey there! Just a quick heads-up: make sure to handle your device with care. If you run into any bumps along the way, don’t hesitate to reach out for help. You can always schedule a repair!
Let’s dive into swapping out the logic board on your iPad 5 LTE. Keep in mind, this operation will wipe all your data and disable Touch ID. Some photos in this guide were taken using the Wi-Fi model, so the insides might look a bit different from your LTE version. However, the steps are consistent across both models unless specified otherwise. If you need help, you can always schedule a repair.
Step 1
– Warm up your iOpener and give it a cozy two-minute hug on the left edge of your device.
Tools Used
Step 2
– While you’re letting that adhesive take its sweet time to loosen up, keep an eye on these areas that are a bit touchy when it comes to prying:
Step 3
In the next three steps, we’ll show you how to use the Anti-Clamp, our nifty little tool designed to make opening your device a breeze. If you’re not rocking the Anti-Clamp, no worries! Just skip ahead three steps for a different approach.
– Grab that blue handle and pull it back to unleash the Anti-Clamp’s arms.
– Slide something under your iPad so it’s chillin’ nice and level between those suction cups.
– Get those suction cups cozy near the middle of the left edge—one up top, and one down low.
– Hold the bottom of the Anti-Clamp steady and give the top cup a firm press to get that suction going.
Step 4
– Give that blue handle a gentle tug forward to lock those arms in place.
– Now, twist that handle a full 360 degrees or until you see those suction cups start to stretch out.
– Keep an eye on those suction cups to make sure they’re staying in sync. If they start to drift apart, just loosen them a bit and realign those arms like a pro.
Step 5
– Give the adhesive a minute to do its magic and create a sweet opening gap.
– If the heat isn’t kicking in, grab a blow dryer and warm up the left side of the iPad.
– Slide in an opening pick under the digitizer when the Anti-Clamp game is strong enough.
– Feel free to skip the next step and jam on.
Step 6
– When the screen feels warm to the touch, grab a suction handle and stick it to the left edge of the screen, getting as close to the edge as you can.
– Gently pull up on the suction handle to make a tiny gap between the digitizer and the frame.
– Slide an opening pick into that little gap you just created between the digitizer and the frame.
If your screen is in rough shape with a serious crack, don’t fret! A layer of clear packing tape can give that suction cup a fighting chance to stick. If you’re feeling adventurous, you can opt for some heavy-duty tape instead of the suction cup. And if things get really tricky, a touch of superglue on the suction cup might just do the trick to keep it in place on that broken screen. Remember, if you need help, you can always schedule a repair.
Tools Used
Step 7
No need to stress if you spot the opening pick peeking through the digitizer — just give it a gentle tug and pull it out. The LCD screen should be just fine, but be mindful of any sticky adhesive that might be a bit tricky to clean up.
– Pop another opening pick into the little gap you just made.
– Slide that pick down to the bottom-left corner to loosen up the sticky stuff.
– Keep that pick chillin’ in the bottom-left corner to stop the adhesive from sticking back together.
Step 8
– If the opening pick gets jammed in the adhesive, just ‘roll’ the pick along the side of the iPad to keep separating the adhesive. If you need help, you can always schedule a repair.
Step 9
– Gently slide the first opening pick towards the top-left corner of the device to separate the adhesive with finesse.
– Keep the pick snug in the top-left nook to prevent the adhesive from sneakily sealing back up.
Step 10
– Warm up your iOpener and give it a cozy two-minute hug on the top edge of your device.
Tools Used
Step 11
– Swing that pick around the top-left corner to pop off the adhesive.
Step 12
Steer clear of sliding the pick over the front camera—protect that lens! Here’s how to do it right.
– Run the opening pick along the top edge of your device, stopping just before you hit the front camera.
Step 13
– Gently pull the pick out until just the tip is nestled between the digitizer and the frame.
– Slide the pick above the front camera to break free the adhesive.
– Keep the pick close to the right side of the front camera before moving on.
Step 15
– Warm up an iOpener and place it on the right edge of your device for a cozy two minutes.
Tools Used
Step 16
– Twist that trusty pick around the top-right corner of your device to break free the adhesive like a pro!
Step 17
Hey there! The display cables are chilling about halfway up from the bottom of your iPad. Keep it cool and stop sliding when you’re around three inches from the bottom. If you need help, you can always schedule a repair.
– Grab a fresh opening pick and gently slide it right into the heart of the iPad’s right edge.
Step 18
– Warm up your iOpener and give it a cozy hug to the bottom edge of your device for a solid two minutes.
Tools Used
Step 19
– Gently slide the bottom-left pick into the corner to break that adhesive seal like a pro!
– Keep that pick snug in the bottom-left corner before you dive into the next step.
Step 20
– Get ready to slide in a fresh opening pick right into that gap you just made on the bottom side of your iPad.
– Gently glide the pick over the antenna, making sure to stop right before reaching the home button.
– Take a breather, leave the pick to the left side of the home button for now before you move on.
Step 21
Just a friendly reminder: only slide that pick in about 1 mm to keep the right antenna safe and sound!
– Gently slide an opening pick into the little gap you’ve just made.
– Carefully maneuver the pick under the home button and glide it towards the bottom-right corner, ensuring that only the tip is nestled between the digitizer and the frame.
Step 22
– Gently re-insert the pick and smoothly slide it towards the home button to fully detach the bottom adhesive.
– Take a quick break and place the pick to the right of the home button before moving ahead.
Step 23
– Get the iOpener nice and toasty, then gently press it onto the right edge of your device for a cool two minutes.
Tools Used
Step 24
Take it easy with this step! Make sure the adhesive is nice and toasty, and gently work your pick to separate all that sticky stuff. If you feel like you need a little break, don’t hesitate to reheat and give it another go!
If you’re feeling some serious resistance, give those edges a little heat and glide along with an opening pick like a pro!
– Give those two opening picks a twist on the left corners of your iPad, just enough to lift the digitizer a bit. You’re almost there, separating the last of that adhesive. If you need help, you can always schedule a repair
Step 26
– Gently support the digitizer and slide an opening pick between the two display cables to loosen up the last bit of adhesive. If you need help, you can always schedule a repair.
Step 27
– Once you’ve successfully peeled away all that sticky adhesive, gently open the digitizer like a book and lay it down parallel to your iPad. Easy peasy!
– When it’s time to put everything back together, grab some isopropyl alcohol and give the leftover adhesive on the frame—and the digitizer if you’re reusing it—a good clean. Then, stick on our
