How to Replace Screen Adhesive on Your Google Pixel 7 – DIY Guide

Duration: 45 minutes
Steps: 12 Steps

Alright, techie, let’s get this Google Pixel 7 back in tip-top shape! This guide will show you how to apply new screen adhesive after a repair. We’ll be following the same steps as the Pixel 6, so don’t worry if you’ve got a different model. Now, about water resistance, it all depends on how well you get that adhesive back in place. Your device will lose its IP rating, but hey, we’re confident in your skills! If you need help, you can always schedule a repair.

Step 1

– Get started by using the flat end of your trusty spudger to gently scrape away as much adhesive as possible – you’re making great progress already!

– Next, grab some tweezers or use your fingers to carefully peel and remove any remaining adhesive. You’re doing fantastic!

– Now, let’s get the perimeter of the frame squeaky clean. Dampen a lint-free or microfiber cloth with a small amount of highly-concentrated isopropyl alcohol (we’re talking over 90% here) and wipe it down. If you need help, you can always schedule a repair with the experts at Salvation Repair.

Step 2

– If you’re planning to reuse that screen, give it a good cleaning just like you did with the frame.

Step 3

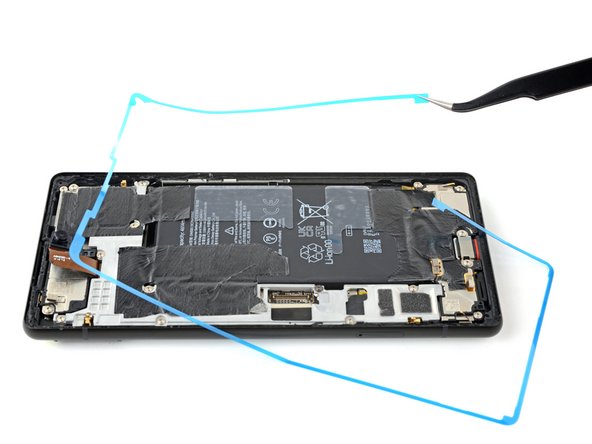

– Before you stick that new adhesive down, lay it over the frame to make sure it’s in the right spot. No need to get sticky fingers before you’re ready!

Step 4

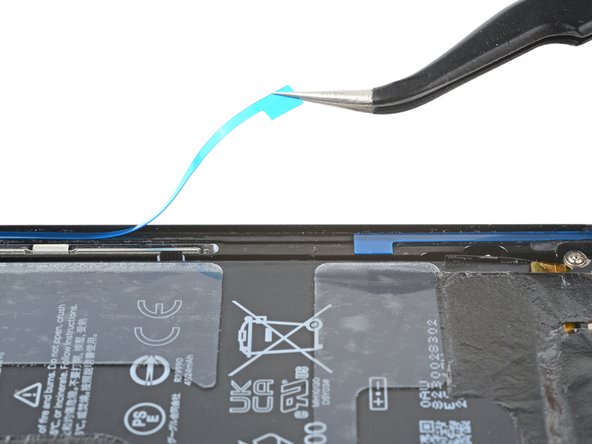

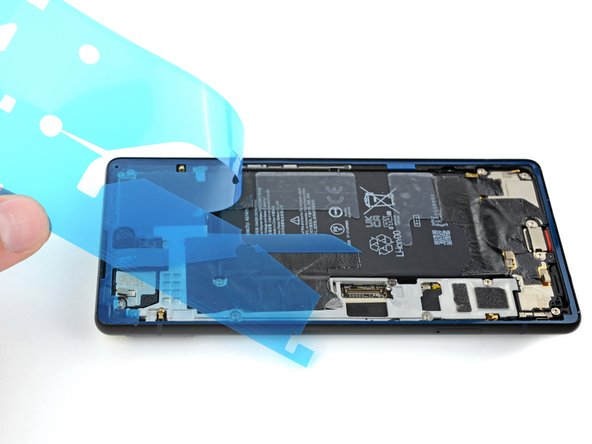

– Grab the pull tab at the top of the adhesive and gently peel away the protective backing. It’s like unwrapping a present, but way cooler!

Step 5

– Alright, time to stick on that adhesive! Start with the bottom or top edge of the frame, and lay it down nice and smooth. Don’t stress if you need to make a few tiny adjustments along the way. You’ve got this!

Step 6

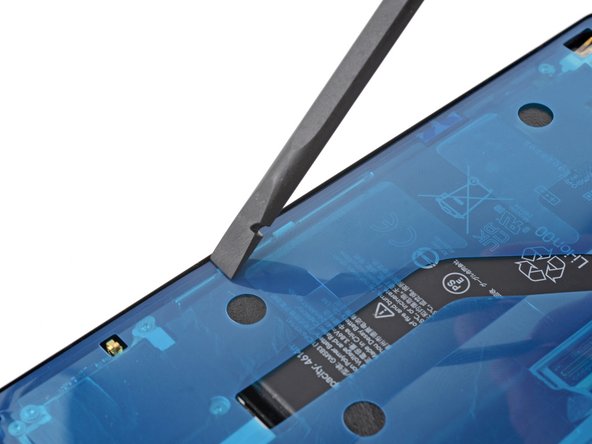

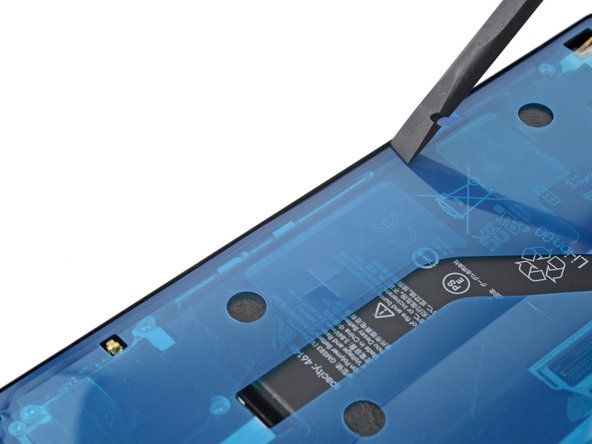

– Now it’s time to get the adhesive to stick to the frame. Use a spudger or your fingers to press along the edges of the adhesive, making sure it’s securely attached. If you need help, you can always schedule a repair

Tools Used
  1. SpudgerHow to Replace the Screen Adhesive for Your Google Pixel 7

Step 7

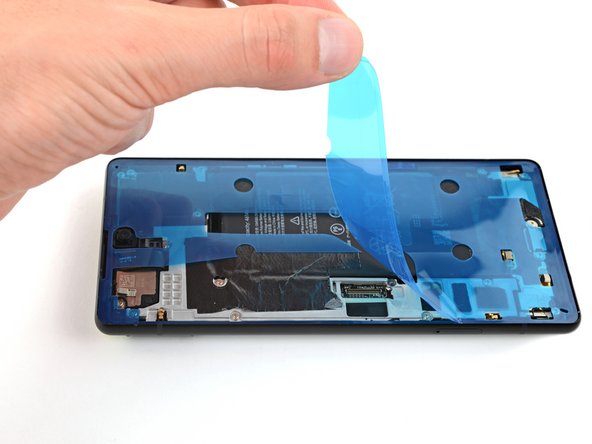

– Give that pull tab on the upper left of the frame a gentle tug and peel off the main liner like a pro!

Step 8

– Okay, champ, you swapped out that screen! Now, give that front-facing camera hole and sensor cutout a quick glance. Make sure any leftover protective films are gone. You got this!

Step 9

– You’re almost there! Head back to the main guide and keep on rockin’ that reassembly.

– Wrap things up when that screen is snug as a bug and you’re ready to seal the deal. You’re a repair master!

Step 10

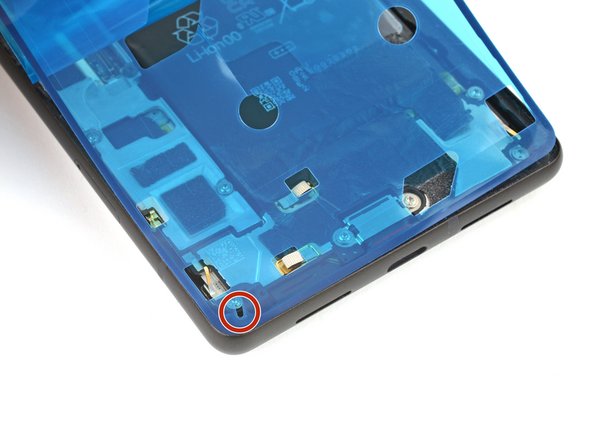

– Alright, let’s get this party started! Grab that pull tab on the lower right side of the frame and peel off the liner covering the perimeter adhesive. You’ve got this!

Tools Used
  1. TweezersHow to Replace the Screen Adhesive for Your Google Pixel 7

Step 11

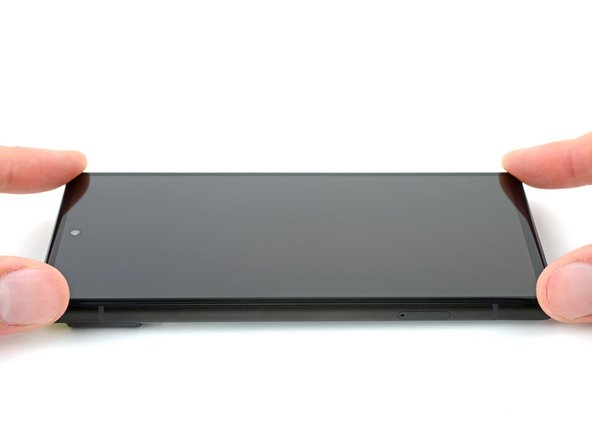

– Flip that screen over and give it a gentle lay down on the frame.

– Now, give that screen a little love tap all around the edges to make sure it’s snug as a bug in a rug.

Step 12

– First things first, grab some tape and stick it all around the edges of your rear glass to keep its shine safe and sound!

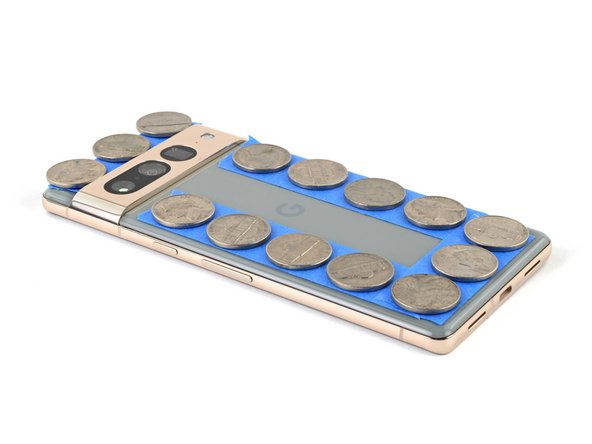

– Next up, gather some coins or similar thick buddies and line them up along the edges of the rear glass. Just make sure they’re as thick or thicker than that camera bar!

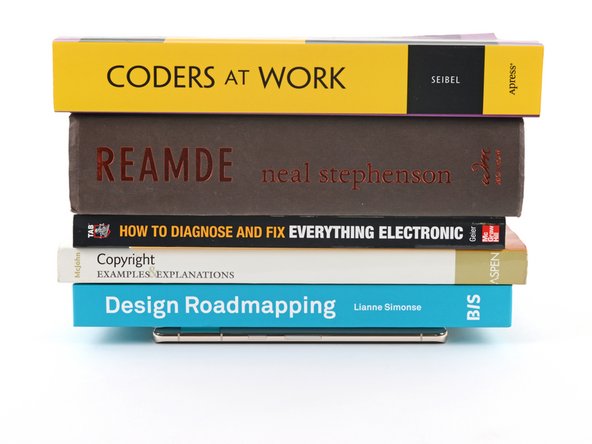

– Now it’s time to stack up! Get your hands on some hefty books or other substantial items and pile them on top of your phone. Let them chill there for at least thirty minutes, but hey, if you can swing it, let them lounge overnight for the best results.

– Got some screen vise clamps? Awesome! You can work around that pesky camera bar. Just snugly attach the clamps to the perimeter of your device. You’re doing great!
