Huawei P One Earpiece Speaker Replacement Guide
Duration: 45 minutes
Steps: 7 Steps
Ready to dive into the world of repairs? Let’s tackle that issue with your device together! Follow these simple steps, and soon you’ll be back to enjoying your tech without a hitch. If you find yourself stuck or need a hand, remember, you can always schedule a repair. Let’s get started!
Step 1
If your screen is sporting a crack, grab some tape to shield your eyes from those pesky glass shards and give yourself a better grip for opening up your phone. Safety first, and let’s get this repair party started!
– First, power down your phone and pop out that SIM card tray like a pro!
– Next up, grab your trusty screwdriver and unscrew those two Pentalobe P2 screws hanging out at the bottom, right next to the USB C port.
Step 2
– Grab an iSclack or a trusty suction handle to gently pry the phone assembly away from the rear panel. You’ve got this!
Tools Used
Step 3
– Gently pry away the fingerprint sensor using a spudger. You’ve got this!
Tools Used
Step 4
– Let’s get those seven Phillips #00 screws on the motherboard loosened up, shall we?
– Time to unplug that antenna cable – it’s just a little shy.

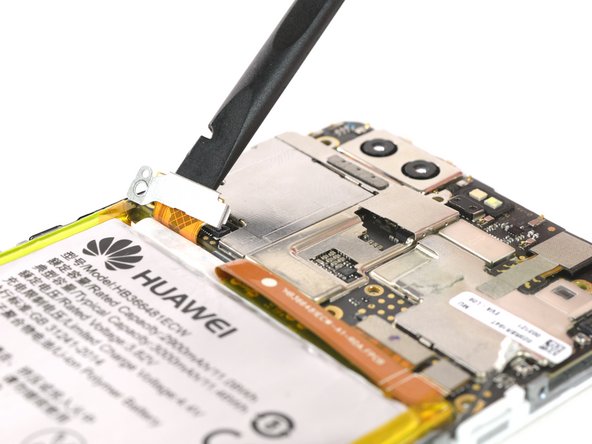

– The metal plate hiding the battery connector has two tiny hooks on each side. Use a tweezer to give them a gentle nudge and unhinge the plate towards the top like a pro!
Step 5
– Unplug the volume button cable and the display cable to keep things smooth and tidy…
Step 6
– … along with the battery connector and the cable that connects to the daughter board.
Step 7

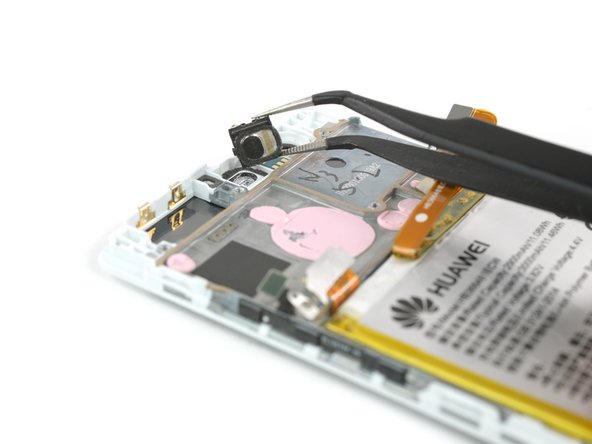

– Now it’s time to gently lift the motherboard out of the way to reach that earpiece speaker.
– Just a heads up, the earpiece speaker is stuck in place with an adhesive foam gasket.
