iPhone 8 – Replacing the volume control cable
Duration: 120 min.
Steps: 36 Steps
If your iPhone 8’s ring/silent switch or flashlight seems to be on strike, it might be time to check the volume control cable! These components are all connected through the same cable set. Don’t worry, we’ve got your back! In this guide, we’ll walk you through the process of replacing the volume control cable step by step, so you can get those buttons and flashlight working like new again. Good luck, and most importantly, enjoy the repair journey! If you find our guide helpful, we’d love a thumbs up in the form of a positive review. Let’s get started!
Step 1
– First things first, let’s keep your iPhone safe from any electrical surprises! Power it down completely by pressing the standby button for about three seconds until you see the ‘Turn off’ slider pop up on the screen.
– Now, give that slider a gentle swipe from left to right and hang tight until your iPhone is fully powered down.
Step 2
– Unwind those two Pentalobe screws on either side of the Lightning Connector and stash them safely away in your screw storage.
2 × 3.4mm Pentalobe
To keep your screws and tiny parts from going on a little adventure of their own, we suggest using a screw storage solution. Got an old sewing box lying around? Perfect! Here at Salvation Repair, we love our high-quality magnetic mat that keeps everything organized just like it was in your phone. This way, you’ll know exactly where each screw belongs when it’s time to put everything back together. Easy peasy, right?
Tools Used
Step 3
When it comes to heating things up, think of it like a cozy hug for your device! Just warm it enough so you can touch it comfortably—like a warm cup of cocoa, not a scorched marshmallow. Keep it chill and safe!
– First off, find a nice, soft spot for your iPhone 8 to chill out while you work. This way, you can lift the display without worrying about scratches!
– Next, grab your trusty hot air tool—be it a heat gun or even a hairdryer—and give the outside of the display a nice, even warm-up. It’s like giving your phone a cozy blanket before the big reveal!
Tools Used
Step 4
Opening your iPhone 8 means saying goodbye to that cozy warranty blanket for dust and splash protection, as well as the waterproof guarantee. So, handle with care and let’s get to it!
– Stick a suction cup right above the Home button on the display and give it a gentle tug upwards to create a snug little gap between the aluminum and display frames.
– Now, grab a flat plastic tool and slide it into that gap you just made. Give it a little nudge to widen the gap by pushing the aluminum frame up. Flat plastic picks work like a charm for this!
Tools Used
Step 5
While you’re in the zone, remember to keep that display under 180°! Going beyond that can lead to some sensitive flex cables getting a little too stretched out. Let’s keep everything intact and happy!
– With a gentle nudge, push the display upwards using your plectrum to pop those lugs free from the aluminum frame.
– Next, swing it open towards the standby button. Lean the display against something sturdy to keep those flexible cables from overstretching. You’ve got this!
Tools Used
Step 6
2 × 2.6 mm Phillips
2 × 1.0 mm Phillips
Before you dive into the repair fun, let’s disconnect that battery connector! It’s like putting your device on a little vacation to prevent any short circuits and to keep it from accidentally waking up during your repair adventure.
– Grab your trusty Phillips screwdriver and unscrew those four screws like a pro! Once they’re out, gently lift off the cover using your tweezers—easy peasy!
– Next up, it’s time to disconnect the battery connector. Just use a plastic spudger to carefully pry it off. You’ve got this!
Step 7
– Grab your trusty spudger and gently pry those display connectors apart—both the display and the home button connectors. You’ve got this!
Tools Used
Step 8
3 × 1.0 mm Phillips
– Unscrew the three Phillips screws from the cover plate above the connector. Just think of it as unlocking a treasure chest!
– Now, grab your tweezers and gently lift that cover plate off your iPhone 8. You’re doing great!
– With a spudger in hand, carefully separate the FaceTime connector from the board. You’re almost there!
– And voilà! You can now completely remove the display. Keep up the awesome work!
Step 9
1 × 2.9 mm Phillips
1 × 3.0 mm Standoff
For that tricky stand-off screw, we’ve got specialized screwdrivers at the ready! But hey, if you don’t have one on hand, a regular narrow slotted screwdriver will do just fine. You’ve got this!
– Loosen those screws and gently lift off the cover plate of the iSight camera. You’re almost there!
Step 10
1 × 1.1 mm Phillips
1 × 2.7 mm Phillips
– To kick things off, let’s get those pesky bracket plate screws out of the way. Unscrew them with care!
– Once those screws are gone, gently lift out the bracket plate from your device like it’s a delicate treasure.
– Now, it’s time to disconnect the connector from the logic board. Use a plastic spudger to carefully pry it off—you’re doing great!
Step 11
2 × 1.2 mm Philliips
2 × 1.0 mm Philliips
1 × 2.5 mm Phillips
1 × 1.4 mm Phillips
One of the screws has decided to cozy up to the side of the back cover. It’s like a little screw party! Just make sure to keep an eye on it while you work!
– First, let’s get those screws on the plastic bracket loosened up!
Step 12
1 × 1.3 mm Phillips
1 × 1.2 mm Phillips
– First, let’s tackle those Phillips screws that are holding the antenna in place. Time to set them free!
– Next up, gently detach the connector from the board with care—like unwrapping a present!
– If the antenna is feeling a bit clingy, warm it up with a touch of hot air and carefully pry it off with a spatula. You’ve got this!
Step 13
– Grab your trusty SIM tool or a paper clip to pop that SIM card holder out. Just press the tool into the tiny hole next to the SIM card holder and let the magic happen!
Tools Used
Step 14
– Grab your trusty spudger and gently wiggle those three connectors apart on the battery side of the logic board. You’re doing awesome!
Tools Used
Step 15
1 × 2.4 mm Standoff
1 × 2.1 mm Standoff
1 × 1.6 mm Phillips
The Phillips screw is hiding behind a sticker—like a little secret agent! Just peel it back gently to reveal the screw underneath. You’re on the right track!
– Time to get those screws out of the way! Unscrew all the screws holding the logic board snugly in place.
– Now, with a gentle touch, you can lift the logic board out by hand. Right next to the two holes for the iSight camera, you’ll find a little plastic holder for a screw, sitting pretty on top of the logic board.
Step 16
1 × 1.2 mm Y-type
1 × 2.9 mm Phillips
1 × 2.5 mm Phillips
1 × 1.4 mm Phillips
1 × 2.1 mm Phillips
– First, let’s loosen those screws on the cover plate that’s resting over the flex cable connector and set it aside like a pro.
– Next, disconnect that flex cable connector and gently lift it up—you’re doing great!
– Now, loosen the screws holding the speaker in place.
– And just like that, you can lift out both the speaker and the flex cable. Keep it up!
Step 17
1 × 2.0 mm Standoff
1 × 2.0 mm Phillips
– First, let’s give that little flex cable above the Taptic Engine connector a gentle nudge with your spudger or tweezers and detach it like a pro!
– Next up, loosen those screws that are keeping the Taptic Engine snug and secure.
– Now, with a careful touch, use your spudger to lever the Taptic Engine connector and gently lift the Taptic Engine out of your device. You’re doing awesome!
Step 18

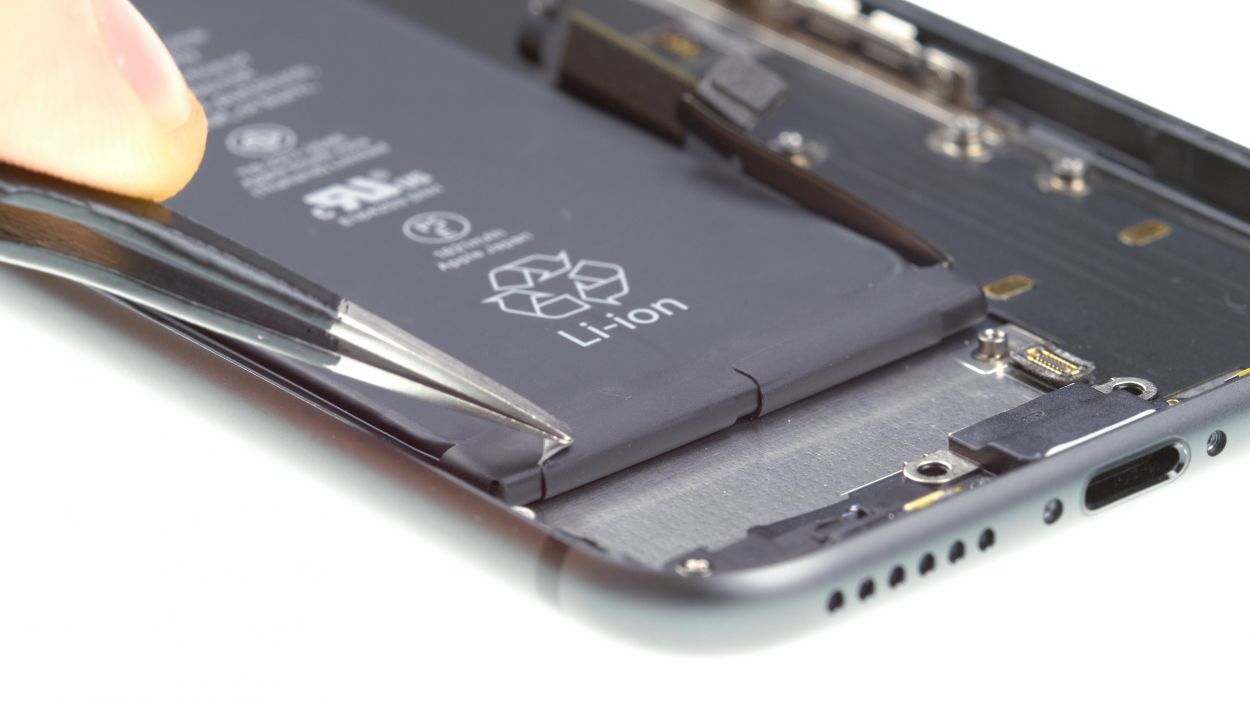

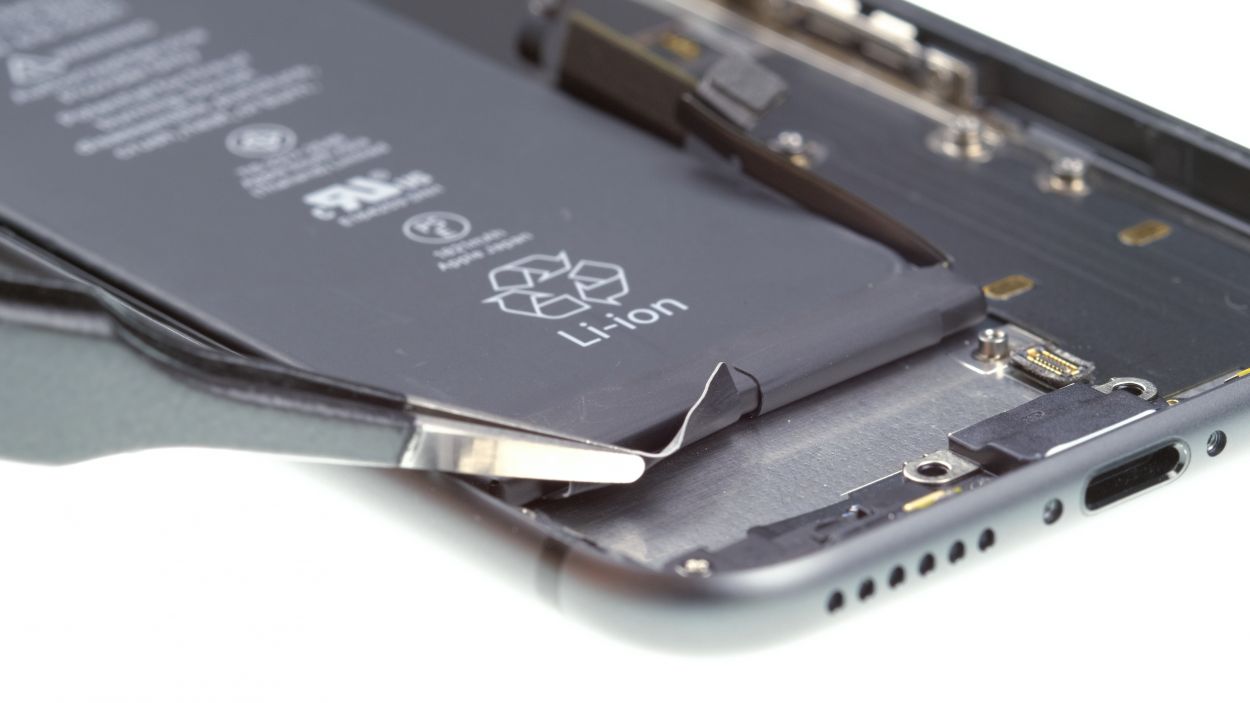

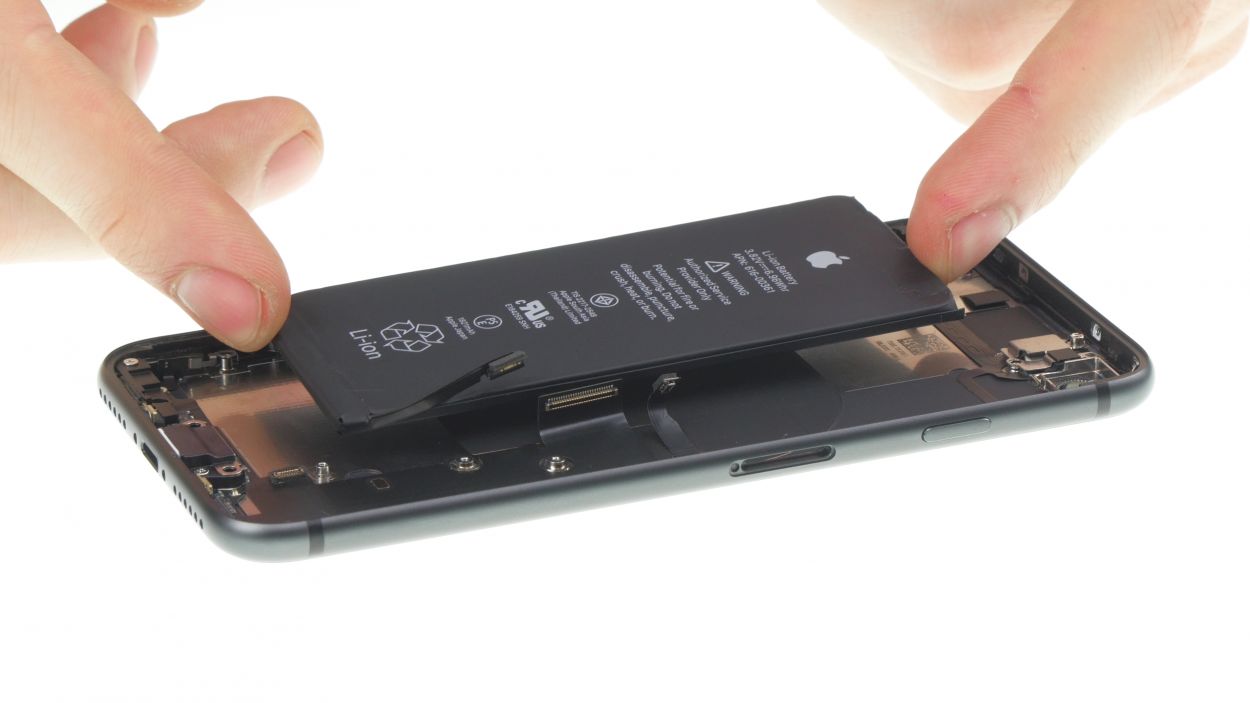

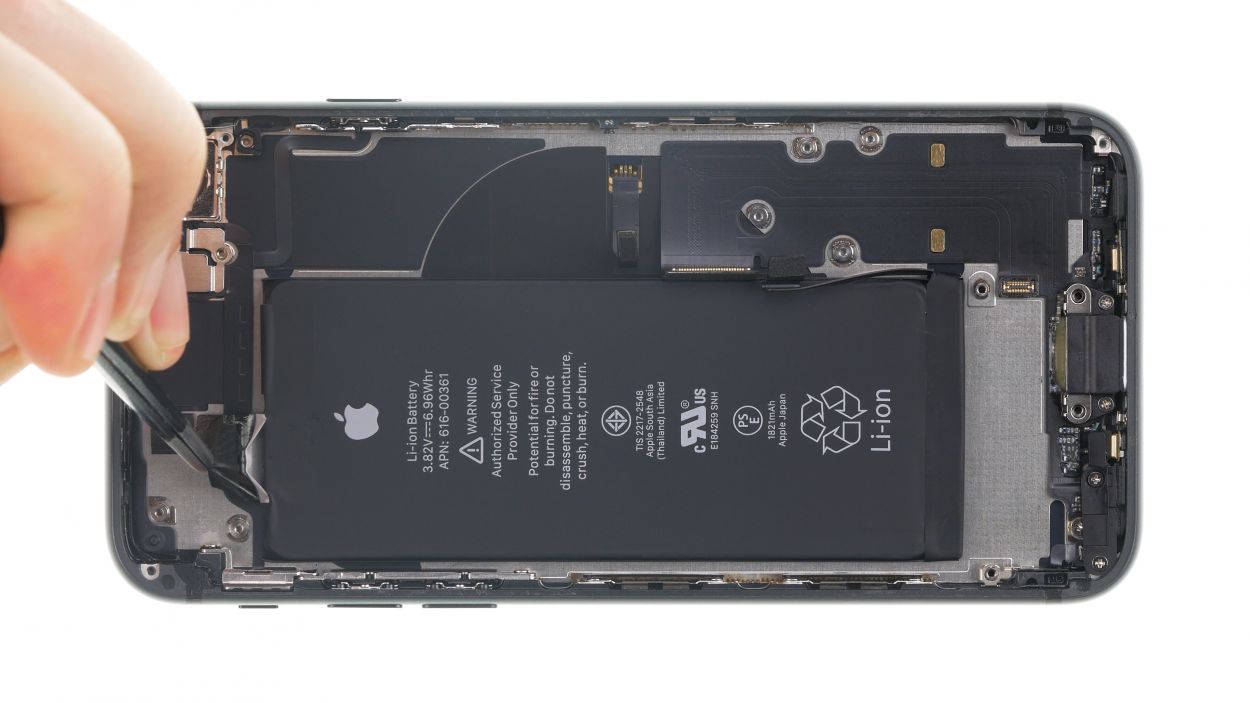

– Using tweezers or a spatula, carefully lift off the black tabs from the battery. Underneath, you’ll find the white adhesive strips waiting for you!
When you’re pulling out those adhesive strips, just be super careful not to mess with the standby and volume cable connections. We want everything to stay cozy and intact!
If one of those little tabs decides to take a vacation, no worries! Just gently lever the battery out using a wide spudger. Remember, we want to keep the battery as straight as possible—no need for any bending gymnastics here!
Tools Used
Step 19
1 × 2.4 mm Standoff
2 × 1.6 mm Phillips
1 × 2.6 mm Phillips
2 × 2.3 mm Phillips

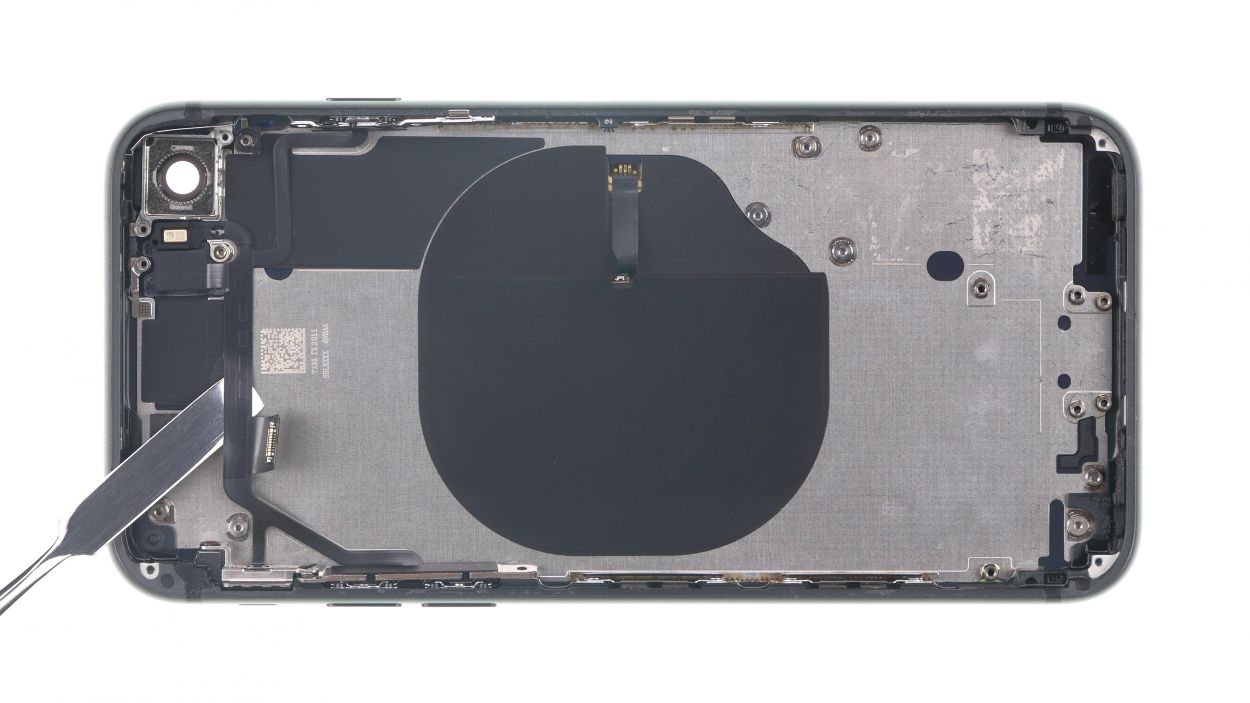

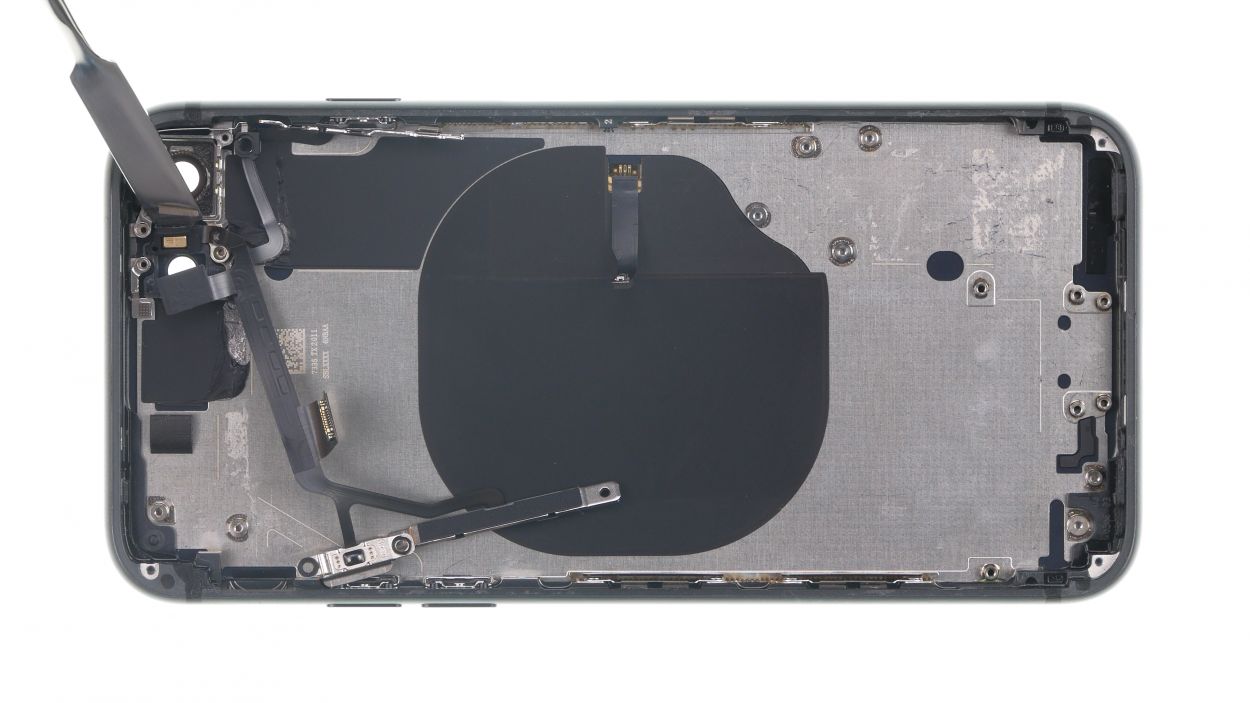

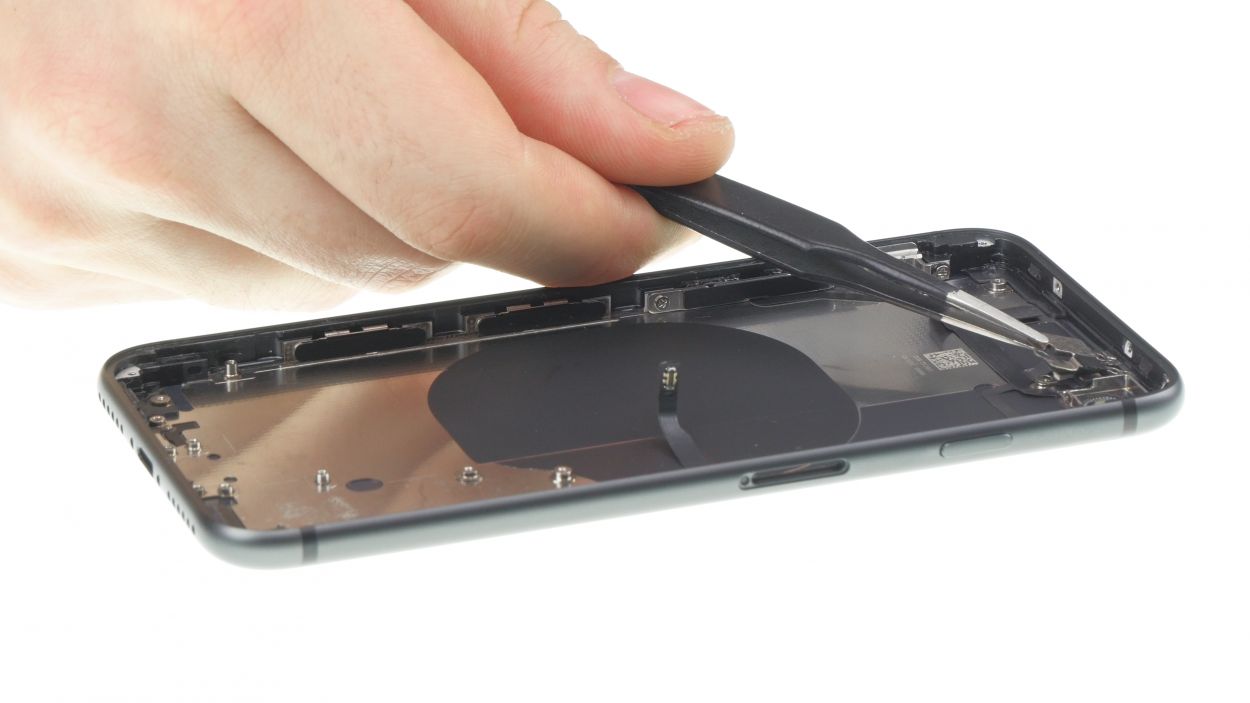

A little heat goes a long way! Give that cable a quick warm-up to make it easier to slide it out from the back cover. Think of it as giving your phone a gentle nudge to help it let go!

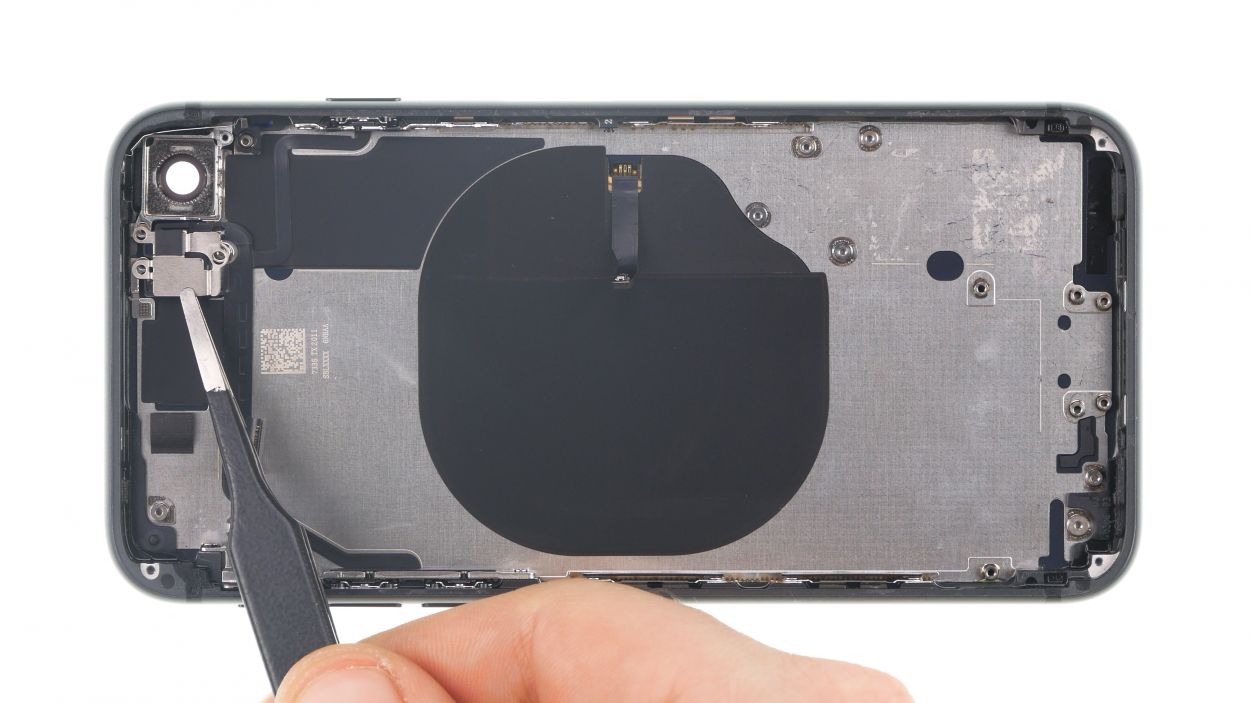

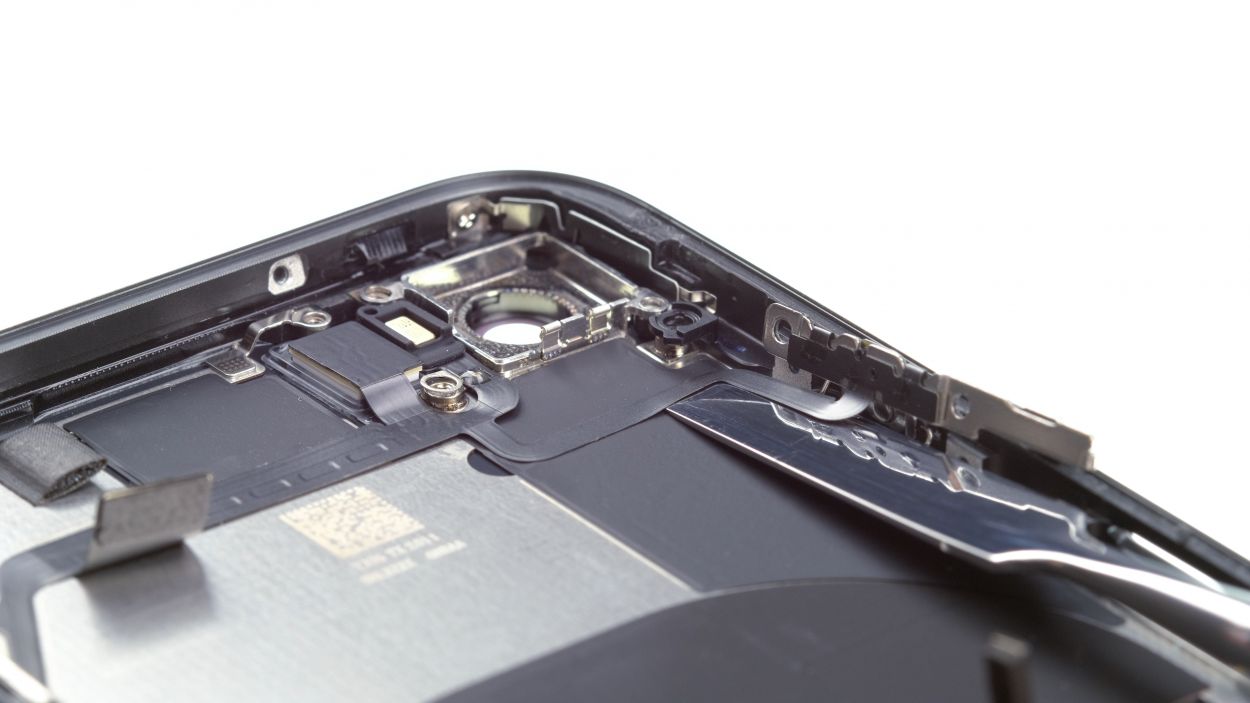

– First, let’s tackle that stand-off screw on the flash cover and give it a little twist to set it free.

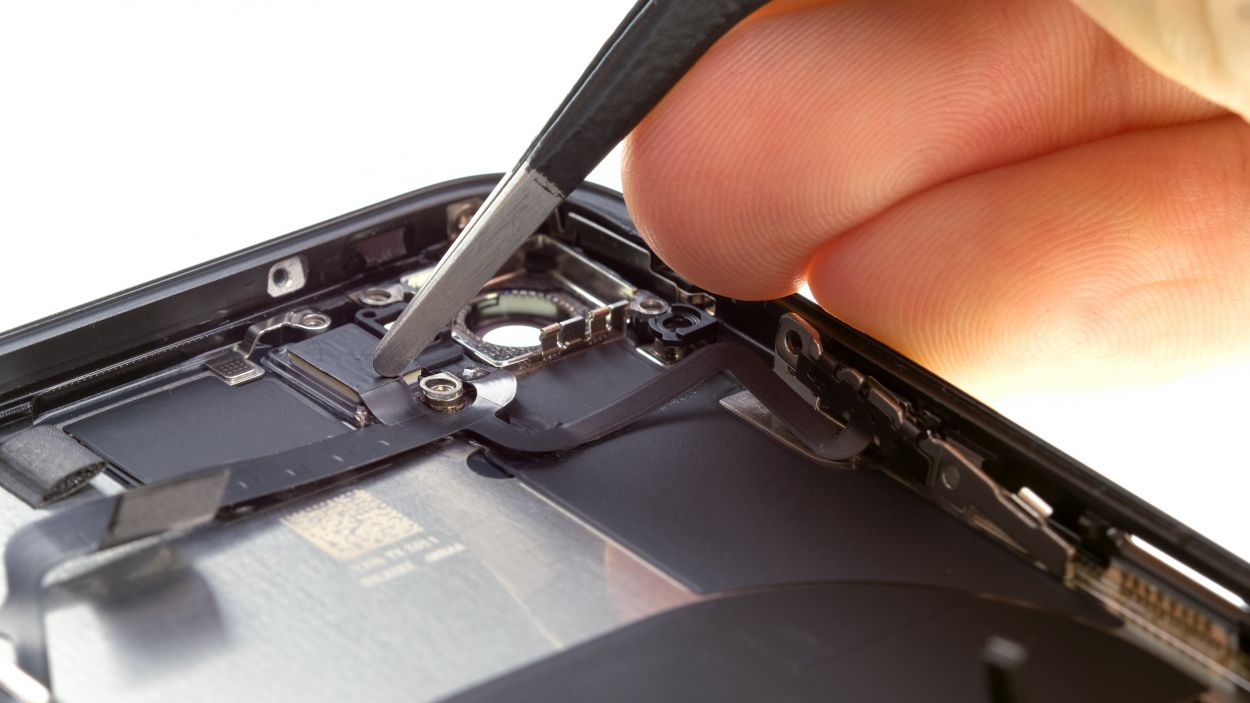

– Next up, it’s time to unscrew the five Phillips screws that are holding the volume control cable in place. You’ve got this!
Step 20
2 × 1.6 mm Phillips
1 × 2.6 mm Phillips
2 × 2.3 mm Phillips
1 × 2.4 mm Standoff
When you’re sliding in that flex cable, give it a nice, flat lay—like it’s ready for a comfy nap! Also, ensure the microphone and flash are lined up perfectly before you secure it with screws. Let’s make this connection a smooth one!

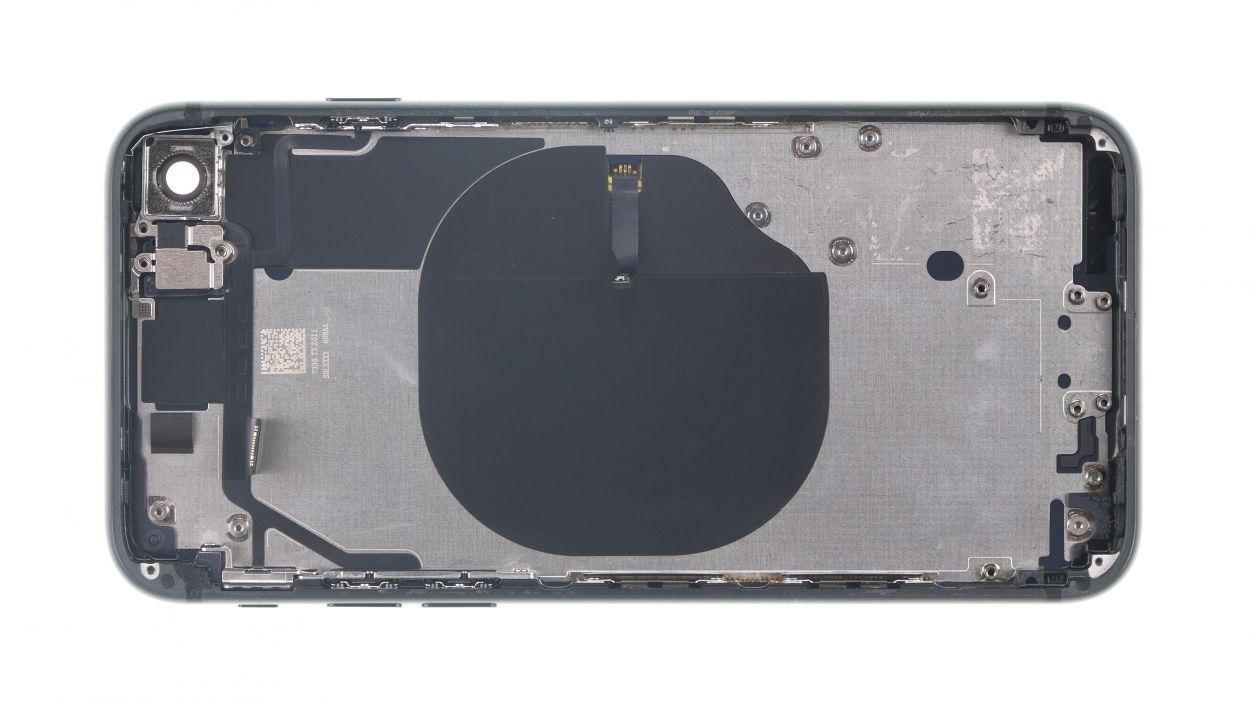

– Slide that flex cable for the standby and volume buttons back into the back cover, and secure it with those five Phillips screws—you’re on the right track!
– Once those screws are snug, give the buttons a little test to check their pressure sensitivity. If they need a little more love, readjust as needed.

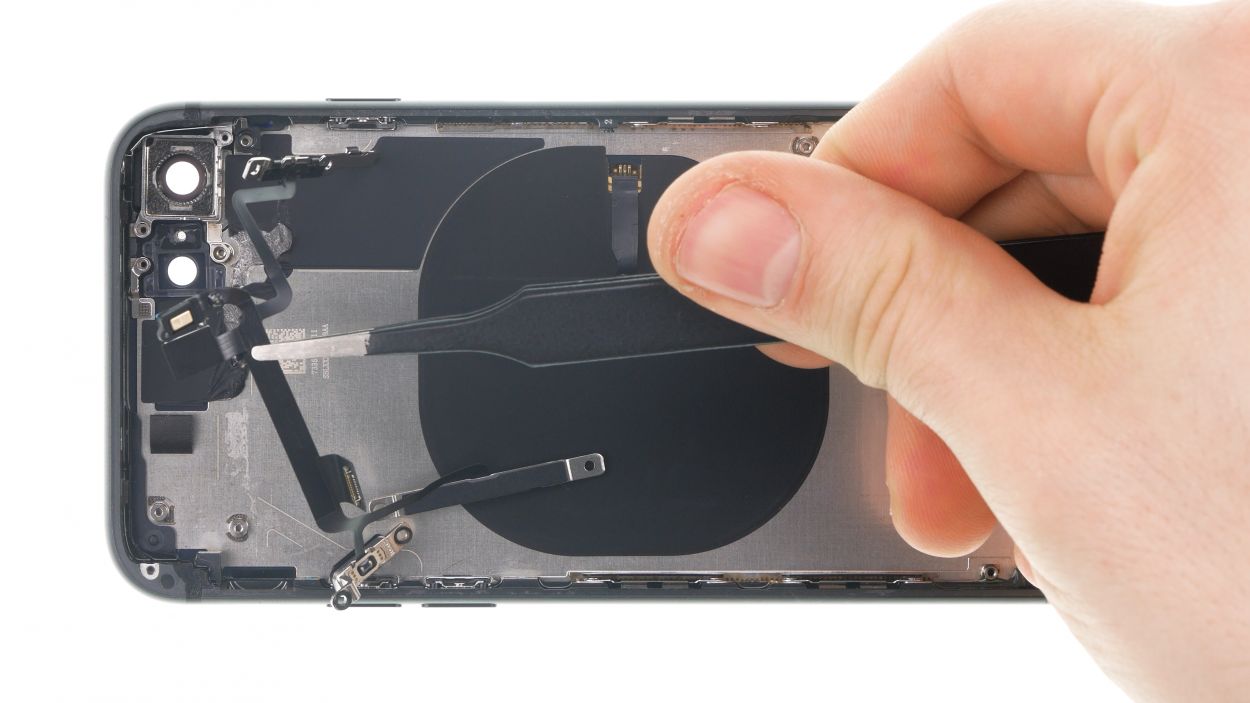

– Press the entire cable set, including the microphone and flashlight, firmly into the case. Make sure everything is cozy in there!
– Finally, secure the bracket plate of the flashlight with the stand-off screw. You’re almost done!
Step 21
Make sure to leave a little wiggle room around the battery for its pals! A bit of space on all sides is key to keeping everything cozy and functioning smoothly.

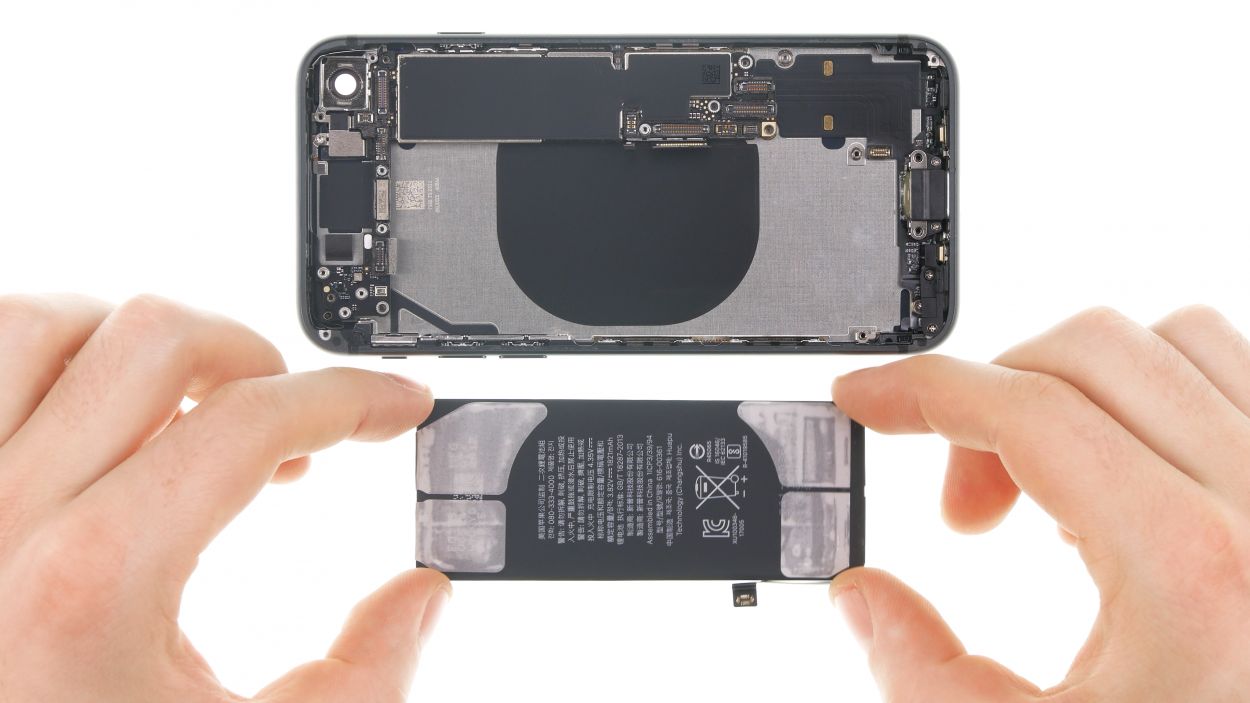

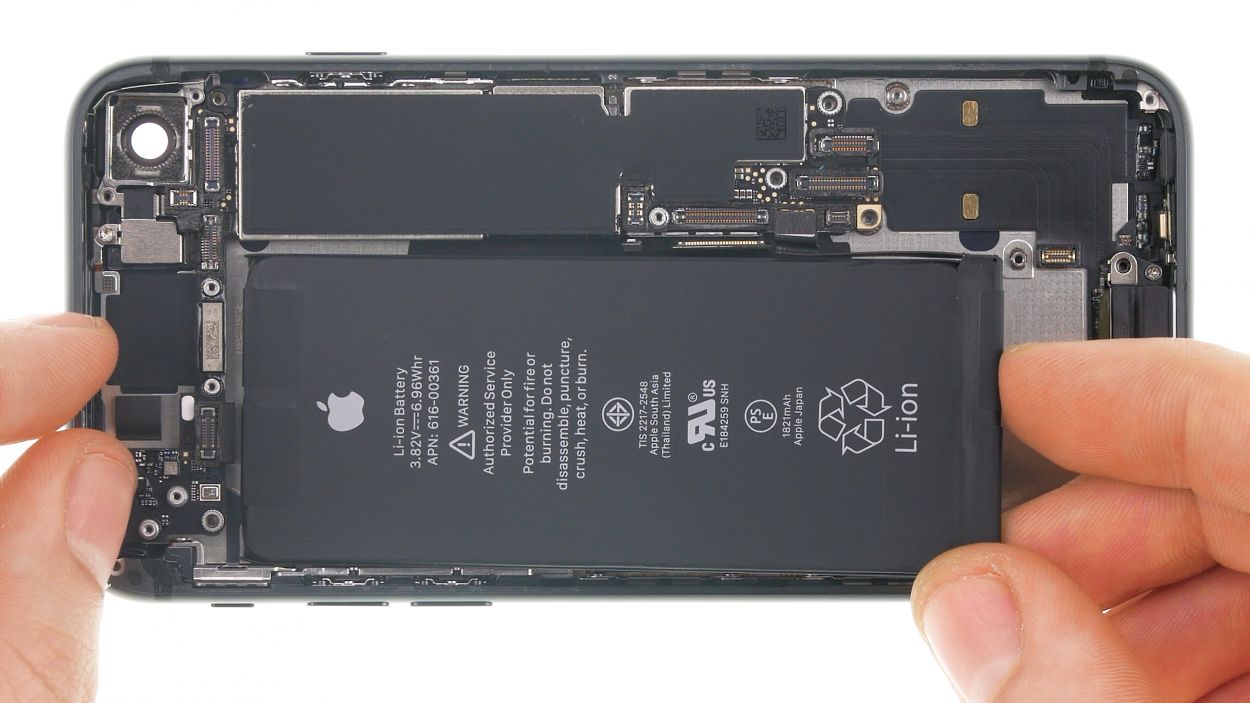

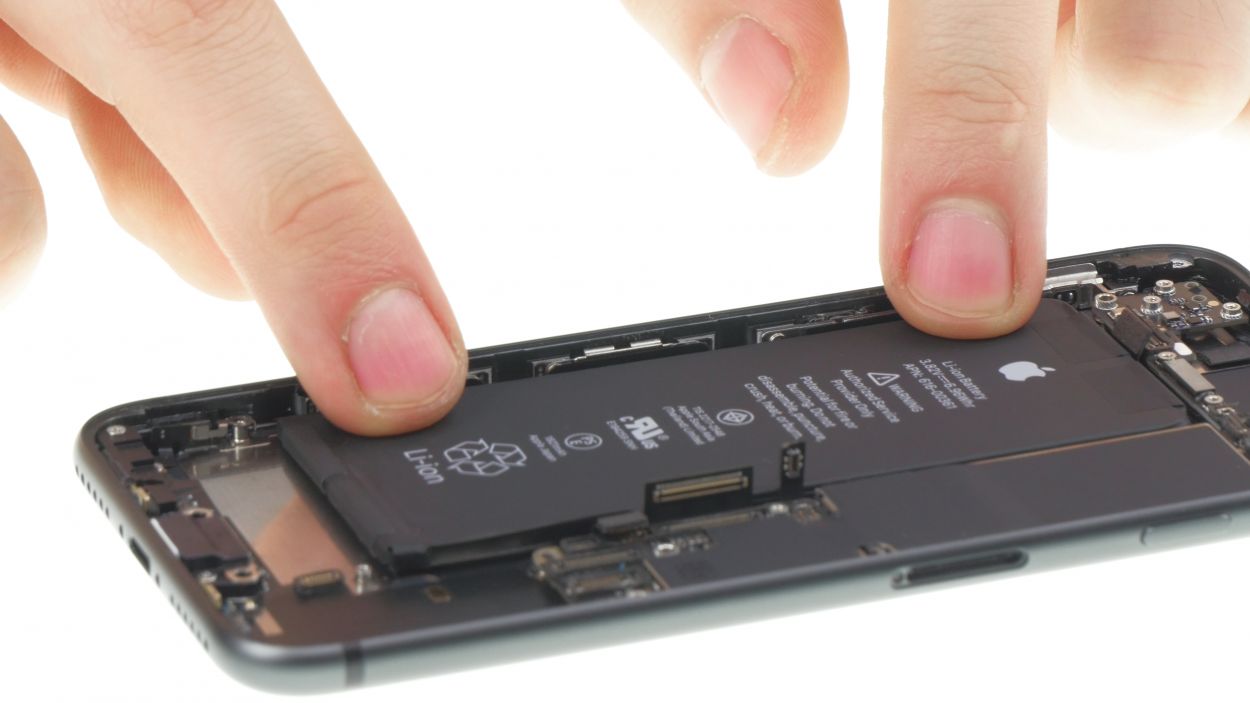

– Pop that battery back into your iPhone 8’s cozy little home, using the battery connector as your trusty guide to make sure it fits just right.
Step 22
1 × 2.0 mm Standoff
1 × 2.0 mm Phillips
Be sure to align the screw holes of the Taptic Engine just right to keep those screws happy and safe from any mishaps!
– Nestle that Taptic Engine right back in its cozy spot between the battery and the Lightning connector. It’s like tucking your device in for a good night’s sleep!
Step 23
1 × 2.1 mm Phillips
1 × 1.4 mm Phillips
1 × 1.2 mm Y-type
1 × 2.9 mm Phillips
1 × 2.5 mm Phillips
When you’re placing that flex cable, think of it like tucking in a little buddy between the battery and the speaker. Make sure they’re snug and cozy together!
– First, let’s tuck that speaker back into its cozy home in the rear case and give it a gentle press down.
– Now, grab those two Phillips screws and fasten the speaker in place like a pro.
– Time to connect the speaker! Just press that connector in nice and snug.
– Reinsert the bracket plate over the flex cable and secure it with the three screws—you’re almost there!
Step 24
1 × 2.4 mm Standoff
1 × 2.1 mm Standoff
1 × 1.6 mm Phillips
The camera holder is like the cherry on top of your logic board sundae—nestled right above the screw hole on the top right side of the image. Make sure it’s cozy there!
– Carefully slide the logic board back into its original spot, making sure it fits snugly. You’ve got this!
Step 25
– First, let’s line up those connectors with their cozy little sockets and give them a gentle press in with your finger. You’ve got this!
Step 26
If you’re having a bit of a tough time sliding it in, take a moment to check where the logic board is hanging out. It might just need a little adjustment to make everything fit perfectly!
– Now, go ahead and slide that SIM card tray right back into its cozy little slot. You’ve got this!
Step 27
1 × 1.3 mm Phillips
1 × 1.2 mm Phillips
– Reposition the Wi-Fi antenna to its original spot and give it a gentle press to make sure it sticks back on nicely.
– Next, connect the antenna’s connector.
– Finally, secure the bracket plate with those two Phillips screws.
Step 28
1 × 2.5 mm Phillips
1 × 1.4 mm Phillips
2 × 1.2 mm Phillips
2 × 1.0 mm Phillips
– Carefully place the connecting piece back where it belongs and secure it with those trusty Phillips screws.
– Next up, let’s reinstall that plastic bracket and give it a good fastening with Phillips screws too!
Step 29
1 × 1.1 mm Phillips
1 × 2.7 mm Phillips
– Reconnect the volume control cable’s connector like a pro!
– Now, place the bracket plate back onto the connector and secure it with those trusty screws.
Step 30
1 × 2.9 mm Phillips
1 × 3.0 mm Standoff
– Gently press the camera back into its cozy little home.
– Connect the camera connector with care, just like a friendly handshake.
– Place the camera’s bracket plate back on and tighten it up with screws, ensuring everything is snug and secure.
Step 31
After you pop on that shiny new adhesive frame, your iPhone 8 will be ready to fend off dust and splash water like a champ, but keep in mind, it’s not quite the superhero it used to be—definitely not 100% waterproof anymore!
The corners are unique and assist with orientation.
– First, let’s kick off by cleaning up that metal frame and display—goodbye, adhesive residue! This will help the new adhesive frame fit like a glove.
– Next up, align that adhesive frame with the back cover of your iPhone to get everything in the right spot. You’re doing great!
Tools Used
Step 32
3 × 1,0 mm Phillips-Schraube
– Stand the display up on the frame and connect the FaceTime connector to the logic board with a smile!
– Gently position the display next to the back cover, like it’s ready for a friendly hug.
– Now, place the cover plate over that FaceTime connector and secure it with the three Phillips screws—just like putting on a snug little cap!
Step 33
– Let’s get those display connectors back together! Gently reconnect both the display and home button connectors to the logic board. You’re doing great!
Step 34
– Gently lay the display alongside the back cover and fold it over with care, like tucking in a cozy blanket.
– Now, give that display a firm press all over to make sure it’s snug as a bug!
Wrong position
Right position
Just a friendly reminder: make sure that silver chip on the cable is snugly in place just like in our photo! If it’s not, you might end up with some funky discolorations and spots on your screen after everything’s back together. If that happens, don’t sweat it—just double-check the cable’s position and align that chip perfectly as shown in our pic.
Step 35
2 × 2.6 mm Phillips
2 × 1,0 mm Phillips-Schraube
– Reconnect that battery by snapping the battery connector back into place—it’s like giving it a warm hug!
– Now, place the bracket plate over the battery connector and secure it with those four trusty screws. You’ve got this!
Step 36
2 × 3.4 mm Pentalobe
– Time to wrap things up! Grab those two Pentalobe screws and snugly screw them back into the rear case, right next to the Lightning connector. You’re doing awesome!
