iPhone SE 2022 Front Camera And Sensor Cable Replacement

Duration: 45 minutes
Steps: 33 Steps

This guide will show you how to remove or replace the front camera and sensor cable on your iPhone SE 2022. The assembly includes the microphone, front camera, proximity sensor, and ambient light sensor. This guide is based on the A2783 (international) model. Just a heads up—if you don’t replace the adhesive seals during reassembly, your phone will still work fine, but you might lose its water resistance. To get everything sealed back up nicely, make sure you have replacement adhesive ready for reassembly. If things get tricky, you can always schedule a repair.

Step 1

- Make sure to power down your phone before you dive into taking it apart.

- Next, grab your P2 pentalobe screwdriver and remove the two 3.4 mm screws located at the bottom edge of the iPhone.

Step 2

- Grab your trusty permanent marker and measure out 3 mm from the tip of that opening pick. Give it a little dot to mark your spot!

Step 3

- Start by layering clear packing tape over your iPhone's screen until it’s fully covered. This is going to help protect the screen and give you a better grip.

- If you’re struggling to get the suction cup to stick in the next steps, just fold a piece of strong tape (like duct tape) into a handle and use that to lift the screen instead. It works like a charm!

Step 4

- Grab the blue handle and pull it back to release the Anti-Clamp's arms.

- Slide those arms onto either the left or right side of your iPhone.

- Place the suction cups close to the bottom edge of the iPhone, just above the home button—one on the front and one on the back.

- Press the cups together to create a good seal and get that suction going.

Step 5

- Give that blue handle a gentle tug forward to secure those arms in place.

- Now, twist that handle a full 360 degrees or until you see those suction cups start to stretch—let's get them working!

- Keep an eye on those suction cups to ensure they're in sync. If they start to drift apart, just loosen them a bit and guide the arms back into alignment.

Step 6

- Warm up an iOpener and thread it carefully through the arms of the Anti-Clamp.

- Fold the iOpener so it rests snugly along the bottom edge of your iPhone.

- Hold tight for one minute to let the adhesive soften and create a small gap to work with.

- Gently slide an opening pick under the screen’s plastic bezel—steer clear of the screen itself.

- Feel free to skip the next two steps.

Tools Used
  1. iOpeneriPhone SE 2022 Front Camera And Sensor Cable Replacement
  2. Heat GuniPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 7

- Grab your iOpener and let it work its magic on the screen for at least two minutes. This will help loosen up the adhesive beneath, making it easier to tackle the next step.

Step 8

- Grab a suction handle and stick it onto the lower section of the front panel, aiming for that sweet spot near the home button.

- Gently pull on the suction handle to lift the front panel a bit, creating just enough space between it and the frame for the next step.

- Slide an opening pick into the newly created gap beneath the screen's plastic bezel.

Step 9

- Gently slide the opening pick to the bottom right corner to cut through the sticky stuff holding the front panel down.

- Now grab a second opening pick and slide it in at the bottom edge of your phone.

- Slide that pick to the bottom left corner, just like the first one, to slice through the rest of the adhesive.

- Leave those picks in place to keep the adhesive from re-sticking while you work.

Step 10

- Take your trusty opening pick and glide it along the left side of your phone, cutting through that sticky adhesive like a pro.

- When you get close to the top left corner of the display, go ahead and stop—you're almost there!

Tools Used
  1. iOpeneriPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 11

- Gently glide the bottom right opening pick along the right edge of your phone to break through that stubborn adhesive.

- Pause just before reaching the top right corner of the display.

Step 12

- Let's get those opening picks out of the way!

- Now, give a gentle tug on the suction handle to lift the bottom edge of that display up.

- Time to say goodbye to the suction handle.

Tools Used
  1. Suction HandleiPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 13

- Start by slipping an opening pick under the top left corner of the display, like you're unlocking a treasure chest!

- Then, gently glide the pick around the top left corner and along the top edge of the phone, cutting through the last bit of adhesive like a pro. You're almost there!

Step 14

- Gently slide the display assembly down toward the charging port to pop those clips free from the rear case—smooth and steady wins the race!

Step 15

- Open the phone by lifting the display up from the left side, just like flipping the cover of a book.

- Prop the display against something sturdy so it stays put while you tackle the phone.

Step 16

- Unscrew the four Phillips screws holding down the lower display cable bracket:

- Keep a close eye on your screws during this process—each one has its own special spot to return to later. Mixing them up could cause some serious trouble.

- Two screws are 1.2 mm long

- Two screws are 2.8 mm long

Step 17

- Grab your trusty tweezers and gently lift off the lower display cable bracket. You've got this!

Tools Used
  1. TweezersiPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 18

- Grab your trusty spudger and use its sharp end to gently lift the battery connector straight up from its cozy socket. You've got this!

Tools Used
  1. SpudgeriPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 19

- Grab your trusty spudger and use the pointed end to gently pry up the bottom two display cables. Be careful as you lift those connectors right out of their sockets.

- When it's time to put them back, just press down on one side of the connector until you hear a satisfying click, then repeat on the other side. Skip pressing the middle, though—it's picky about alignment! If it's off by even a smidge, you could end up with a bent connector, and nobody wants that. Remember, take it slow, and your device will thank you.

Tools Used
  1. SpudgeriPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 20

- Grab your Phillips screwdriver and carefully unscrew the three 1.2 mm-long screws holding down the front sensor assembly bracket. Keep them safe!

Step 21

- Grab your tweezers and gently lift out the front sensor assembly bracket. Easy does it—no need to rush!

Tools Used
  1. TweezersiPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 22

- Grab your trusty spudger and let’s get to work! Use the pointed end to gently lift the front sensor assembly. Just pry that connector straight up from its socket, and voilà!

Tools Used
  1. SpudgeriPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 23

- Carefully lift and detach the display assembly.

Step 24

- Let's get started by loosening those three screws holding the earpiece speaker bracket in place:

- Two Phillips screws that are 2.6 mm long

- One Phillips screw that's a bit shorter at 1.6 mm

Step 25

- Grab a pair of tweezers and gently remove the earpiece speaker bracket. Just take your time and work carefully—you’ve got this!

Tools Used
  1. TweezersiPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 26

- Grab your tweezers and gently lift the front facing camera out of its socket. Swing it to the left like you’re opening a tiny door—now you’ve got a clear path to the earpiece speaker!

Tools Used
  1. TweezersiPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 27

- Let's get those earpiece speaker screws out of there! First up, grab your trusty Phillips screwdriver and unscrew these two little guys:

- One Phillips screw that's 1.8 mm long

- One Phillips screw that's 2.3 mm long

Step 28

- Grab your trusty tweezers and gently lift out that earpiece speaker like a pro!

Tools Used
  1. TweezersiPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 29

- Place a warm iOpener on the top edge of the screen for about 2 minutes to help loosen up the adhesive that's holding the front camera and sensor assembly in place. Give it a little time to work its magic!

Tools Used
  1. iOpeneriPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 30

- Grab your trusty spudger and use its sharp end to gently lift the proximity sensor out of its cozy spot in the front panel. Take it slow, no need to rush!

Tools Used
  1. SpudgeriPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 31

- Grab the spudger and gently work the pointed end into the groove around the ambient light sensor. Carefully pry it out from its spot on the front panel. No rush, just take it slow and steady!

Tools Used
  1. SpudgeriPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 32

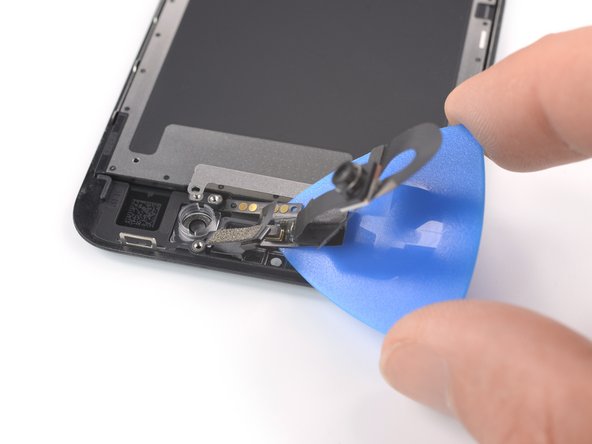

- Gently slide an opening pick under the front camera and sensor cable assembly to carefully detach it from the front panel.

Tools Used
  1. iOpeneriPhone SE 2022 Front Camera And Sensor Cable Replacement

Step 33

- If you can, power up your device and check that your repair worked before sticking everything back together with new adhesive.

- Make sure to compare your new part with the original—sometimes you’ll need to move over leftover bits or peel off adhesive liners before installing.

- To put your device back together, just follow these steps in reverse order.

- Don’t forget to recycle your e-waste responsibly at an R2 or e-Stewards certified center.

- If things didn’t go as expected, try some basic troubleshooting or you can always schedule a repair for extra help.

Tools Used
  1. TweezersiPhone SE 2022 Front Camera And Sensor Cable Replacement
Success!
If you can, power up your device and give your repair a test run before sticking everything back together with new adhesive.
Make sure to check your replacement part against the original—sometimes you’ll need to move over small bits or peel off adhesive covers before putting it in place.
Put your device back together by reversing these steps.
Remember to recycle your old electronic parts responsibly at an R2 or e-Stewards certified facility.
If things didn’t go as smoothly as hoped, try some basic troubleshooting, or if you get stuck, you can always schedule a repair.
