iPhone X Wireless Charging IC Replacement

Duration: 45 minutes
Steps: 10 Steps

Step 1

- Start by giving the motherboard a quick once-over. Make sure it’s looking good — no bends, no water spots, just a solid, healthy board.

- Next, it's time to put everything back together and do a quick test to check that it’s all in working order.

- Press the power button and see what happens. If it powers on without a hitch, you're all set!

Step 2

- First things first, plug in that charging cable. Your phone is ready to soak up some power.

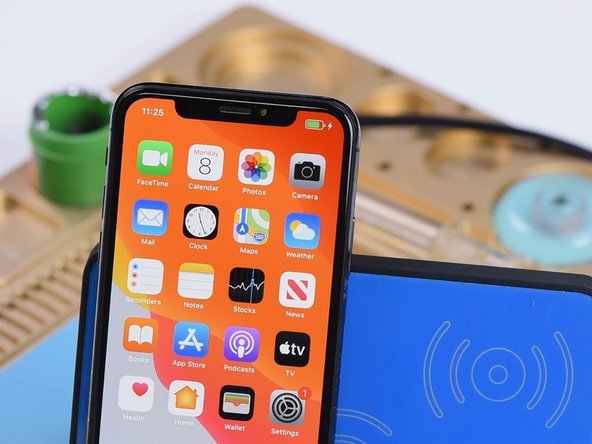

- Want to skip the cords? Place your phone on the wireless charger. But just a heads-up, if your phone doesn't support wireless charging, it won't work here.

- Let's zoom in on the wireless charging circuits. These are the little guys that make the magic happen.

Step 3

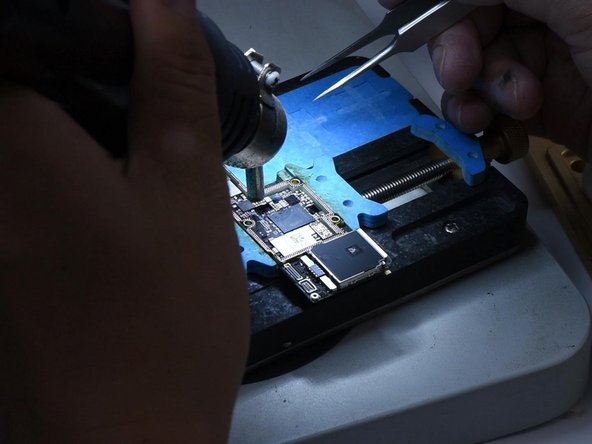

- Pop open your phone and gently lift out the motherboard. First, peel off that dust-proof sponge sitting on top—it’s just hanging out there, blocking our way.

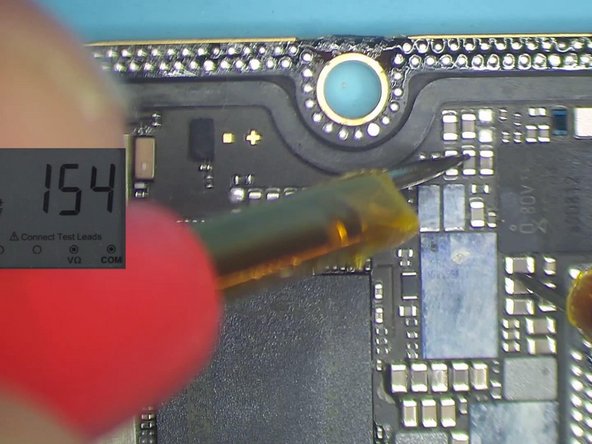

- Get your multimeter ready for diode mode and check out the wireless charging connector. Normal readings mean the top-side wireless charging circuits are in good shape. Now let’s dig a little deeper and check out the circuits below.

Step 4

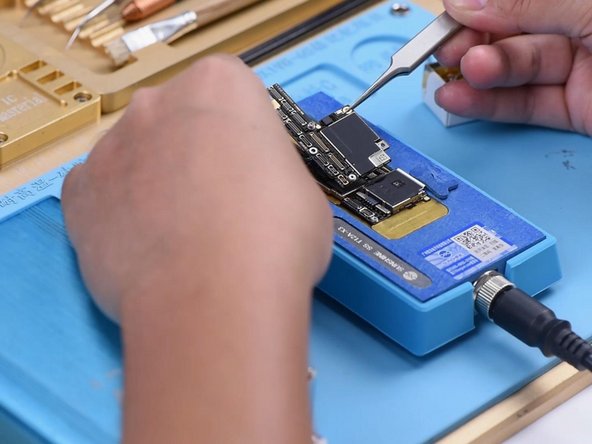

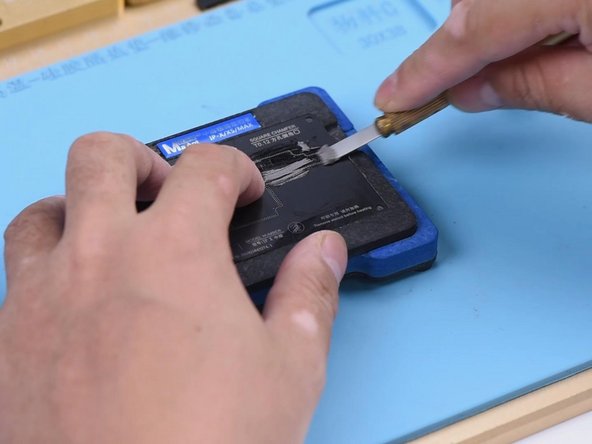

- First up, let's separate the top layer from the bottom layer! Pop that motherboard onto the heating platform and snug a screw into the screw hole on the motherboard. This will make it super easy to remove the upper layer later on.

- Next, it's time to give that motherboard a warm hug for 2 minutes at 165℃ on the heating platform. Just enough to get it nice and toasty!

- Once it's heated up, grab your tweezers and gently lift off the upper layer, followed by the lower layer. You're doing great!

Step 5

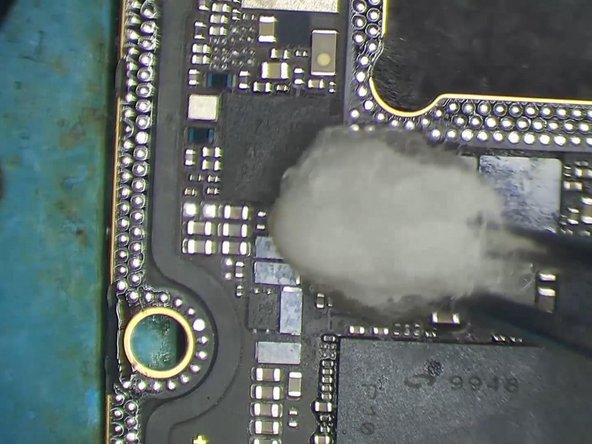

- Take a good look at the lower layer to make sure everything’s looking sharp and nothing’s out of place.

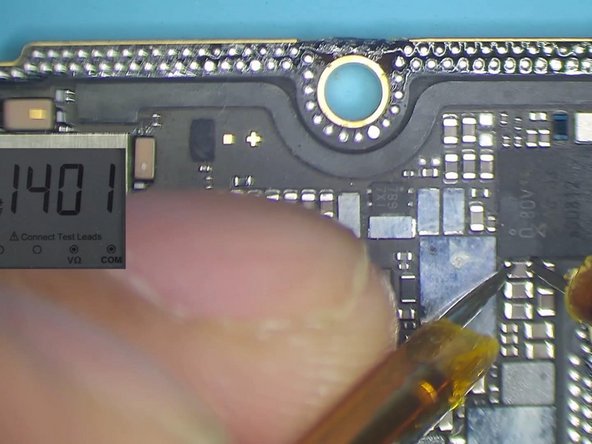

- Switch to diode mode and check the capacitors around the wireless charging IC. The readings show no signs of shorts, so all clear here.

- Keep going with diode checks around the wireless charging IC. The numbers look good, so no issues detected.

Step 6

- Alright, let's swap in a fresh wireless charging IC and see if we can get things buzzing again.

- Secure the lower layer onto the PCB holder and spread a little paste flux on the wireless charging IC to get things ready.

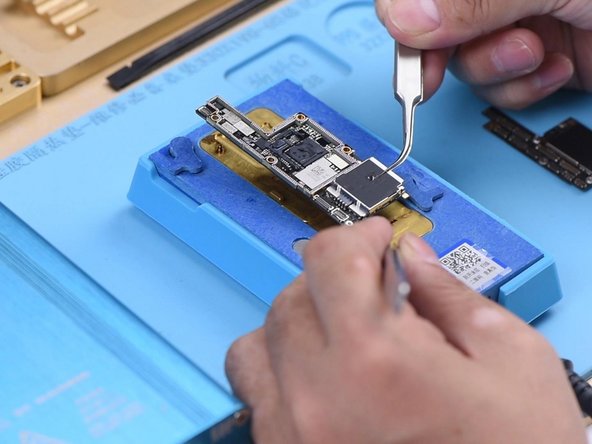

- Use the QUICK 990 AD Hot Air Gun set to 360℃ with airflow at 3 for about a minute. Carefully lift the wireless charging IC off the board using tweezers.

- Next, apply some medium-temp solder paste to the bonding pad. Clean it up nicely by heating with a soldering iron at 365℃.

Step 7

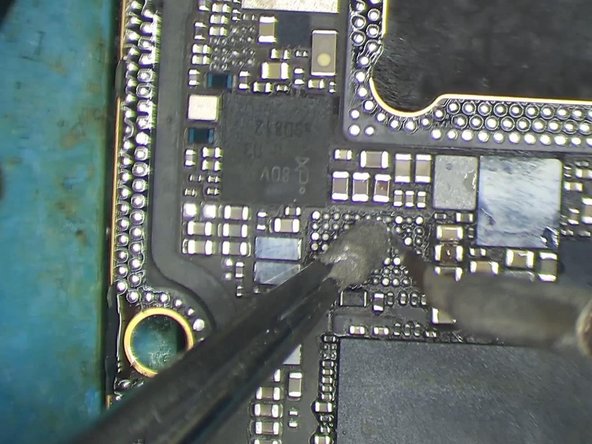

- Crank up the Hot Air Gun to 360℃ with airflow set to 3, and gently glide over the bonding pad using rosin-soaked solder wick. It’s like giving your pad a spa day.

- Wipe down with PCB cleaner, then dab a little paste flux onto the bonding pad to keep things smooth and ready for action.

Step 8

- Snag yourself a new wireless charging IC and make sure it's in the right spot. Then, grab your QUICK 990 AD Hot Air Gun, set it to 360℃, and let that airflow dance at a level 3 to solder it in place.

Step 9

- Alright, let's get those layers connected! Start by cleaning the bonding pad – it’s like prepping your canvas before painting. Once it’s nice and clean, go ahead and solder them together.

- Once that's all set, it's time to rebalance the bonding pad. Give it a little love and attention, and you'll be good to go!

Step 10

- To put your device back together, just follow these steps in reverse—easy peasy! And if you hit a snag, no worries, you can always schedule a repair with us.

Success!
To put your device back together, just follow these steps in reverse order and you’ll be good to go! If you hit any snags, remember you can always schedule a repair with us.
