Replace Google Pixel 9 Pro Fold Rear Camera: DIY Guide

Duration: 45 minutes
Steps: 110 Steps

This handy guide is here to help you swap out the rear camera assembly in your Pixel 9 Pro Fold. It’s crafted with care by the team at Salvation Repair. For more details on our repair guides, check it out here. If you find yourself in a pinch, remember, you can always schedule a repair!

Step 1

– First things first, unplug all the cables from your phone and give it a complete power down. We want to make sure everything is safe and sound before we get started.

Step 2

– Stick a suction cup right onto the back cover, aiming for the center of the bottom edge. Make sure it’s nice and snug.

– Hold the phone steady with one hand, and use your other hand to pull up on that suction cup. Give it a good, strong tug to create a little gap between the back cover and the frame.

– Slide an opening pick into the gap. You’re getting closer!

Step 3

– Gently detach the suction handle from the back cover, like peeling off a sticker.

– Carefully slide the opening pick around the bottom left corner and up the left edge of the back cover to break the adhesive seal. You’re doing great!

Tools Used
  1. Suction HandleGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 4

– Keep gliding that pick around the top left corner and along the top edge of the back cover like a pro!

Step 5

– Gently glide your pick along the right edge and around that tricky bottom right corner to break free any stubborn adhesive still holding on.

Step 6

– Gently lift the bottom edge of the back cover and swing it over the top edge of your phone like a pro.

– Support the back cover with your trusty suction handle or a clean, sturdy object—just be sure that the cable is comfy and not under any stress.

Tools Used
  1. Suction HandleGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 7

– Grab your Torx Plus 3IP driver and unscrew that 3.0 mm-long screw holding the top bracket in place. Easy peasy!

Step 8

– Whoa there, adventurer! Time to unleash the tweezers’ mighty grip or your super duper fingers to give that top bracket a gentle tug-n-release, all the way to the top of the phone. Once it’s loose, wave goodbye to that top bracket, and enjoy the feeling of making progress on this fun repair journey!

Step 9

– Slide your spudger’s tip gently under the edge of the back cover cable connector—no rush, you’ve got this!

– Carefully lift and pop the back cover cable free. Easy peasy!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 10

– Gently pop off the back cover from the frame and set it aside.

Step 11

– Grab your trusty Torx Plus 3IP driver and get ready to tackle those two 3.0 mm-long screws holding down the base battery bracket. You’ve got this!

Step 12

– Grab your tweezers or use those nimble fingers of yours to gently tug the base battery bracket towards the bottom of the phone, freeing it from its clip.

– Now, go ahead and remove that base battery bracket. You’re doing great!

Step 13

– Slide the tip of your trusty spudger under the bottom left corner of the base battery press connector, right by that little gold marker. You’ve got this!

– Gently pry upwards to disconnect the base battery. Nice work—you’re making progress!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 14

– Grab your trusty spudger and gently wiggle it to lift up and disconnect the USB-C port board cable press connector. You’re doing great!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 15

– Grab your trusty Torx Plus 3IP driver and pop out those two 3.0 mm long screws holding the vibrator bracket in place. You’ve got this!

Step 16

– Grab those tweezers or just use your fingers to gently lift the vibrator bracket off the frame and set it aside. You’ve got this!

Step 17

– Gently slide one arm of your trusty angled tweezers beneath the metal neck of the black antenna cable’s connector head on the USB‑C board.

– Now, with a steady hand, lift straight up to disconnect the cable.

Tools Used
  1. Angled TweezersGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 18

– Grab your Torx Plus 3IP driver and unscrew the two 2.6 mm-long screws holding the inner front camera bracket in place. Easy peasy!

Step 19

– Grab those tweezers or use your fingers to gently lift the inner front camera bracket up and towards the left edge of the phone. This will help you pop those clips loose!

– Now, go ahead and remove the inner front camera bracket. You’re doing great!

Step 20

– Grab your trusty spudger and gently pry up that inner front camera press connector. It’s like giving it a little nudge to say ‘see ya later!’

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 21

– Time to give that inner front camera a little nudge! Gently pry it up from the frame using the tip of your spudger, carefully separating the adhesive holding it in place.

– Now, gently remove the inner front camera. You’re doing great!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 22

– Gently slide the flat end of your trusty spudger under the ultra wideband antenna to break free the adhesive foam that’s holding it snugly to the frame.

– Now, grab your tweezers or just your fingers to carefully lift the antenna off the frame. This will help you detach any lingering adhesive that’s still trying to keep them together.

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 23

– Grab your trusty Torx Plus 3IP driver and get ready for action! It’s time to unscrew those two 3.0 mm-long screws that are holding the ultra wideband bracket in place. You’re on your way to a successful repair!

Step 24

– Gently hold that ultra wideband antenna to the side and give the bracket a little tug towards the bottom of the phone to pop those clips loose. You’ve got this!

– Now, go ahead and take out the ultra wideband bracket.

Step 25

– Grab your Torx Plus 3IP driver and unscrew the 3.0 mm-long screw holding the interconnect cable bracket in place. Easy peasy! If you need help, you can always schedule a repair.

Step 26

– Grab your trusty tweezers or just use your fingers to gently nudge the bracket towards the right edge of the phone. This will help you pop that clip loose like a pro!

– Now, it’s time to remove the bottom interconnect cable bracket. You’re doing great!

Step 27

– Alright, champ! Grab that Torx Plus 3IP driver and give that little 3.0 mm screw holding the inner display cable bracket a friendly farewell. You got this!

Step 28

– Grab those tweezers or just use your fingers to gently nudge the inner display cable bracket over to the left edge of the phone. This will help it pop free from its little clip.

– Now, go ahead and remove that inner display cable bracket with care.

Step 29

– Let’s disconnect that inner display cable! Grab your trusty spudger and gently slide its tip under the bottom left corner of the inner display press connector. You’ll spot a gold marker on the logic board – that’s your target area.

– Now, with a smooth, careful motion, pry up the inner display cable. You’ve got this!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 30

– Give it another go! Disconnect those top and bottom interconnect cable press connectors just like before, and remember to gently pry next to those shiny gold markers. You’re doing great!

Step 31

– Gently peel off the graphite sheet from the bottom speaker to release the adhesive holding it in place.

Step 32

– Now, let’s get this graphite sheet off the logic board! Keep peeling it back, separating the adhesive bit by bit. You’ve got this!

Step 33

– Grab your trusty tweezers or your nimble fingers and gently peel away the yellow tape from the side button cable ZIF connector. You’re doing great!

– Once you’ve got that tape off, set it aside for now. It’ll come in handy when it’s time to put everything back together.

Step 34

– Now, grab your trusty spudger (or your fingernail if you’re feeling adventurous) and give that little locking tab on the side button cable ZIF connector a gentle lift. It’s like giving it a high five, but with less enthusiasm.

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 35

– Take those trusty angled tweezers and gently nudge the side button cable right out of its cozy little slot. You’re doing great!

Tools Used
  1. Angled TweezersGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 36

– Gently slide the spudger’s tip under the 5G mmWave antenna and lift it away from the frame, separating it from the thermal pad below. Take it slow and make sure everything stays intact—you’ve got this!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 37

– Grab your trusty Torx Plus 3IP driver and let’s tackle those screws holding the logic board in place:

– One sneaky little 2.2 mm-long screw

– Two slightly longer 2.6 mm-long screws, ready to be unscrewed!

Step 38

– Gently slide the flat end of your trusty spudger under the top left corner of the logic board, right next to the inner front camera cutout. You’re doing great!

– Now, lift the logic board just enough so you can get a good grip on the top edge with your fingers. You’ve got this!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 39

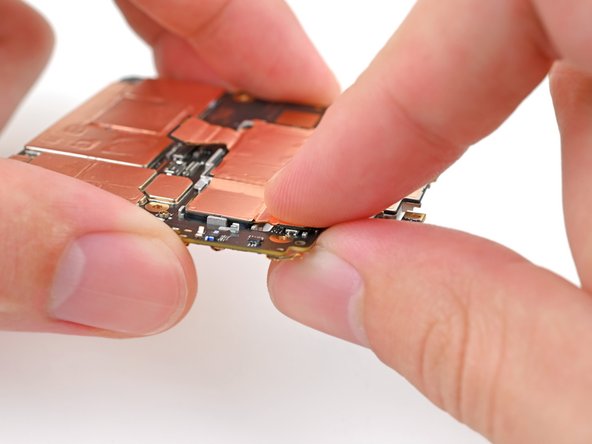

– Gently lift the top of the logic board away from the frame and set it free.

– Carefully flip the logic board over and place it on a clean surface, ready for its next adventure.

Step 40

– Grab that handy spudger and gently scrape off any big chunks of old thermal paste that are hanging out on the frame.

– Now, let’s get those last bits of thermal paste out with a little help from some high-strength isopropyl alcohol (90% or more). Just a couple of drops will do the trick.

– Take a clean coffee filter or lint-free cloth and wipe away any remaining residue. We’re getting close to a fresh start!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 41

– Give the thermal paste cleaning action another go on the underside of the logic board!

Step 42

– Grab your trusty spudger and gently work your magic to lift and disconnect that 5G mmWave antenna press connector. You’re doing great!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 43

– Gently slide the flat end of a spudger under the section of the 5G mmWave antenna cable that’s stuck to the bottom of the logic board.

– Give the cable a little nudge to break free from its adhesive grip.

– Using tweezers or your fingers, carefully pull the cable away from the logic board, making sure to detach any leftover adhesive.

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 44

– Time to rock and roll! Let’s repeat the last step for that 5G mmWave antenna cable stuck to the top of the logic board.

– Now, it’s time to give that 5G mmWave antenna its freedom. Let’s gently remove it.

Step 45

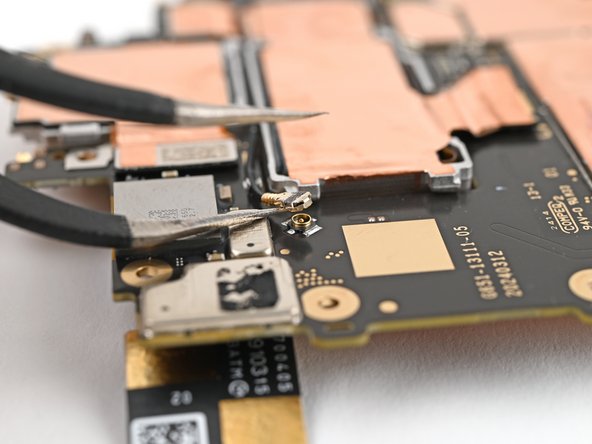

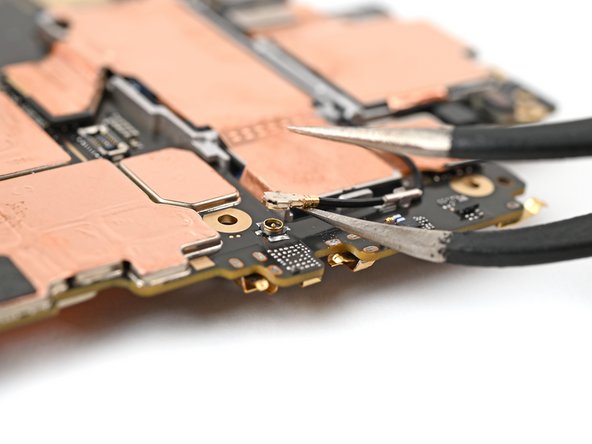

– Gently slip one arm of your trusty angled tweezers beneath the metal neck of the rear camera antenna cable’s connector head.

– Now, give it a little lift straight up to disconnect the cable. Easy peasy!

– Repeat this graceful move for the other connector head. You’ve got this!

Tools Used
  1. Angled TweezersGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 46

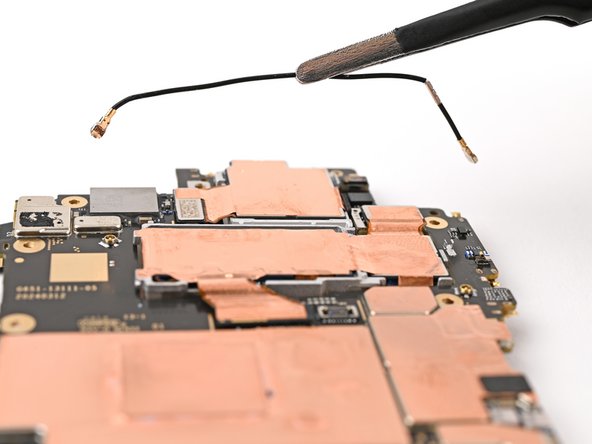

– Grab your trusty tweezers or just use your fingers to gently lift the antenna cable out of its cozy little groove on the rear camera assembly.

– Now, it’s time to say goodbye to the antenna cable and remove it with care.

Step 47

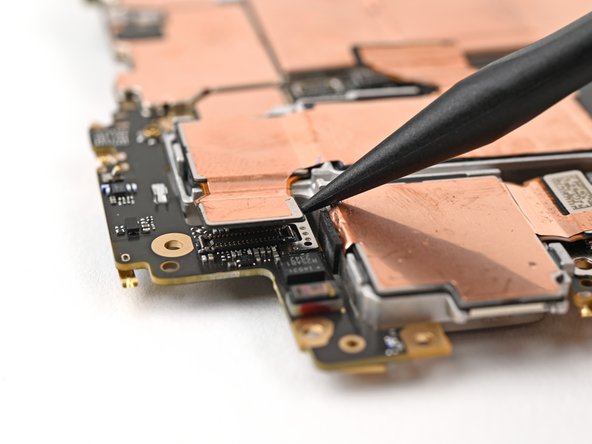

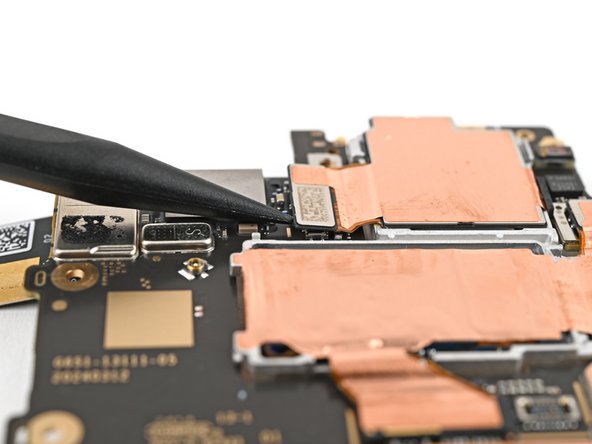

– Gently slide the spudger’s tip under the bottom left corner of the wide camera press connector, right next to the shiny gold marker.

– Carefully pry upwards to disconnect the wide camera. You’ve got this!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 48

– Give those ultrawide and telephoto camera press connectors some love by repeating the previous step!

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 49

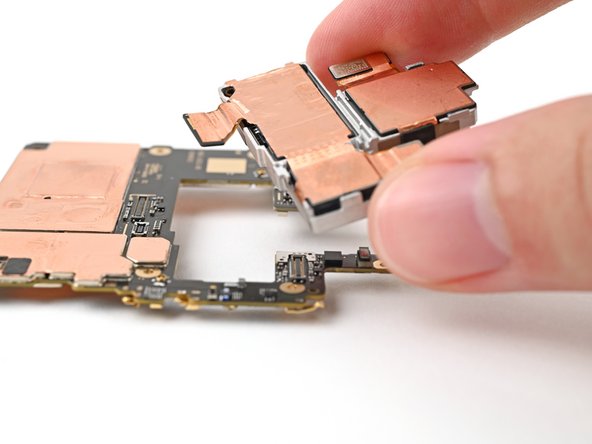

– Gently lift the rear camera assembly out of its cozy spot on the logic board and set it free.

Step 50

– Awesome job on getting through the disassembly! Now, let’s dive into the fun part—putting your device back together. Follow these steps, and you’ll have it up and running in no time!

Step 51

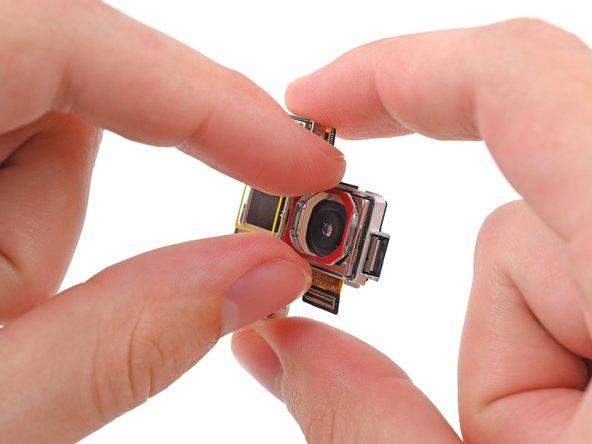

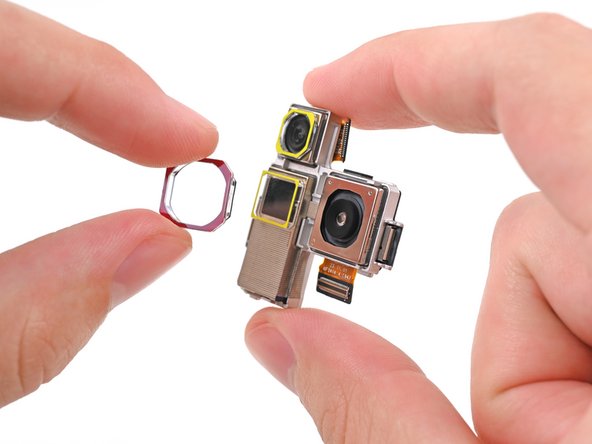

– Gently use your fingers to pop off those three lens covers from your shiny new rear camera assembly!

Step 52

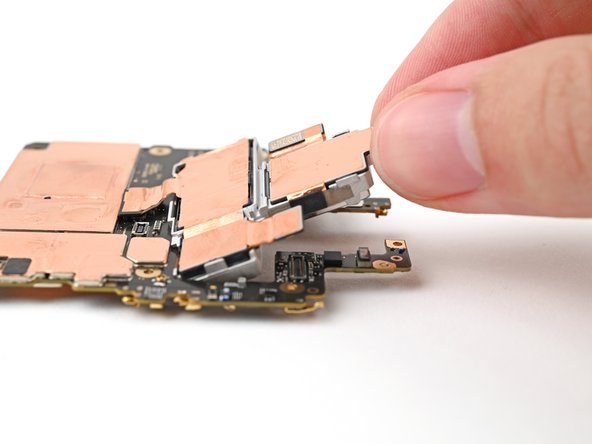

– Carefully line up your shiny new rear camera assembly and gently set it into its cozy spot on the logic board.

Step 53

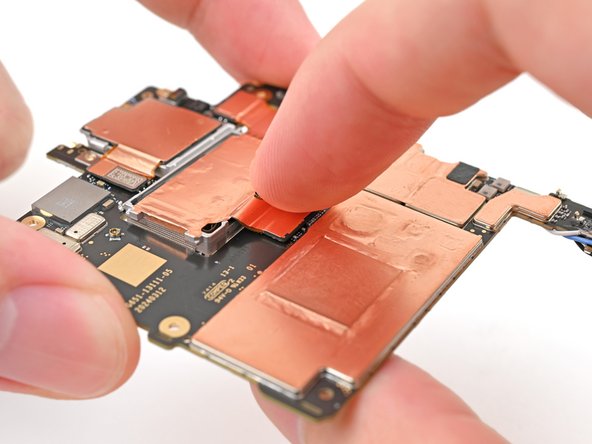

– Gently line up one of the rear camera assembly’s press connectors right above its socket, then give it a little nudge with your fingertip until you hear that satisfying click!

Step 54

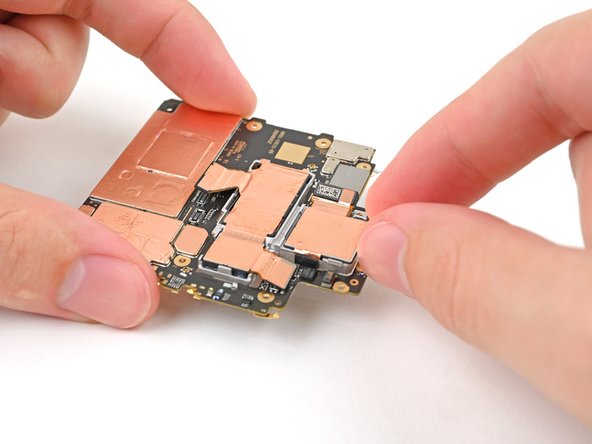

– Feel the satisfaction as you double up on that fun by repeating the previous step for the other two rear camera press connectors. That’s right, you’re on a roll! Keep going!

Step 55

– Grab those tweezers and hold one of the rear camera assembly’s antenna connectors right over its socket. Give it a gentle press with your finger or a spudger until you hear that satisfying snap!

– Now, let’s do the same for the other connector on the antenna cable. You’ve got this!

– Take your spudger or your trusty fingers and press the antenna cable snugly into its clips and groove in the rear camera assembly.

Tools Used
  1. SpudgerGoogle Pixel 9 Pro Fold Rear Camera Assembly Replacement

Step 56

– First off, let’s have a little chat between your replacement adhesive and the old adhesive. Make sure you’re both on the same page about those
