Replace Samsung Galaxy Note20 Rear Camera: Step-by-Step Guide

Duration: 45 minutes
Steps: 32 Steps

Ready to give your Samsung Galaxy Note20’s camera a new lease on life? This guide will walk you through replacing the rear camera module. Just a heads-up: Always make sure your phone’s battery is below 25% before you start taking things apart. This helps keep things safe and prevents any potential battery-related mishaps. If your battery is looking a little puffy, just be extra careful. And remember, if you need help, you can always schedule a repair.

Step 1

– Grab your trusty SIM eject tool, a bit, or even a straightened paperclip, and slide it into the SIM card tray hole located on the top edge of your phone.

– Give that SIM eject tool a little push into the SIM card tray hole to pop out the SIM card tray with style.

– Carefully remove the SIM card tray, and you’re all set!

Step 2

– Let’s get started by heating up an iOpener and applying it to the left side of the rear cover for about a minute. If you need help along the way, you can always schedule a repair

Tools Used
  1. iOpenerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 3

– Let’s get this party started! Grab your suction cup and stick it to the heated edge of the rear cover, right on the edge if you can.

– Now, pull up on that suction cup with some serious strength and steady hand – we’re going to create a little gap between the rear cover and the frame.

– Time to get your tool in there. Slide that opening pick into the gap and get ready for the next step. If you need help, you can always schedule a repair.

Step 4

– Let’s loosen that adhesive! Slide the opening pick along the left edge toward the bottom left corner. You’re cutting through the adhesive, like a hot knife through butter!

– Now, keep that pick in the bottom left corner. We don’t want that adhesive sealing itself back up. It’s a slippery little bugger, that adhesive!

Step 5

– Keep the good times rolling by heating and slicing through the adhesive on the last three sides of the rear cover. You’re almost there!

– As you work your magic, pop an opening pick in each corner to keep that adhesive from getting cozy again.

Step 6

– Time to get started – carefully lift the rear cover straight up to remove it. If you need help, you can always schedule a repair

Step 7

– Alright, grab your trusty Phillips screwdriver! We’re gonna remove those six 4.0 mm screws holding the motherboard shield in place. It’s like giving your device a little massage, but with screws instead of fingers.

Step 8

– Grab a trusty pair of tweezers and gently lift up that motherboard shield, then flip it back like a pro!

Tools Used
  1. TweezersSamsung Galaxy Note20 Rear Camera Module Replacement

Step 9

– Grab your tweezers and give that motherboard shield a gentle nudge out of the way. Then, use the pointed end of your spudger to give that battery press connector a little lift.

– Now, let’s put that connector back in place! Carefully line it up and give one side a gentle press until you hear that satisfying click. Repeat on the other side, but be careful not to press down in the middle. If it’s not lined up perfectly, those tiny pins can bend and that’s not good. If you’re feeling nervous, you can always schedule a repair.

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement
  2. TweezersSamsung Galaxy Note20 Rear Camera Module Replacement

Step 10

– While using a pair of tweezers to gently keep the motherboard shield out of the way, take the pointed end of a spudger and carefully pop up the wireless charging coil press connector. You’ve got this!

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement
  2. TweezersSamsung Galaxy Note20 Rear Camera Module Replacement

Step 11

– Get a good grip on the motherboard shield with your fingers – it’s time to get started!

– Carefully peel the wireless charging coil up and away from the device, taking your time to avoid any damage.

– Now, remove the wireless charging coil completely. If you need help, you can always schedule a repair

Step 12

– Grab your trusty Phillips screwdriver and get ready to tackle those five 4.0 mm screws holding the loudspeaker snugly to the frame. You’ve got this!

Step 13

– Let’s get that loudspeaker out! Gently slide the pointed end of your spudger underneath the loudspeaker, near its top left screw hole.

– Now, give that loudspeaker a little nudge. Use the spudger to pry up and separate it from the frame.

– Almost there! Use your trusty tweezers to carefully lift and remove the loudspeaker. You’re doing great!

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement
  2. TweezersSamsung Galaxy Note20 Rear Camera Module Replacement

Step 14

– Grab your trusty Phillips screwdriver and carefully take out the five 4.0 mm screws that are holding the earpiece speaker snugly to the frame. You’ve got this!

Step 15

– Let’s get that earpiece speaker out! Use the flat end of a spudger to gently pry it loose from the frame. You’ve got this! We’re almost there!

– Go ahead and pry up the earpiece speaker. It’s just waiting to come out and say hello. You’re doing great!

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 16

– Time to give that earpiece speaker a little lift! Carefully remove it, and you’ll be well on your way to a successful repair. If you need help, you can always schedule a repair

Step 17

– Gently use the pointed end of a spudger to lift the front-facing camera press connector; it’s like giving it a little nudge to say, ‘Hey there, let’s get you out!’

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 18

– Grab a trusty pair of tweezers and gently lift out the front-facing camera. You’ve got this!

Tools Used
  1. TweezersSamsung Galaxy Note20 Rear Camera Module Replacement

Step 19

– Now it’s time to disconnect the secondary interconnect cable from the daughterboard. Use the pointed end of a spudger to gently pry it loose. If you need help, you can always schedule a repair

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 20

– Now, let’s give that interconnect cable a little break. Grab your trusty spudger and use the pointed end to gently disconnect the cable from the daughterboard.

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 21

– Grab your trusty spudger and gently use its pointed end to unplug the display cable from the motherboard. You’ve got this!

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 22

– Grab your trusty spudger and gently use its pointed end to unplug the main interconnect cable from the motherboard. You’ve got this!

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 23

– Alright, let’s get that secondary interconnect cable disconnected from the motherboard. Grab your spudger and use the pointed end to gently pry the cable off. No need to be rough, just a little encouragement is all it needs.

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 24

– Grab your trusty spudger and gently use its pointed end to unplug the S-Pen press connector from the motherboard. You’ve got this!

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 25

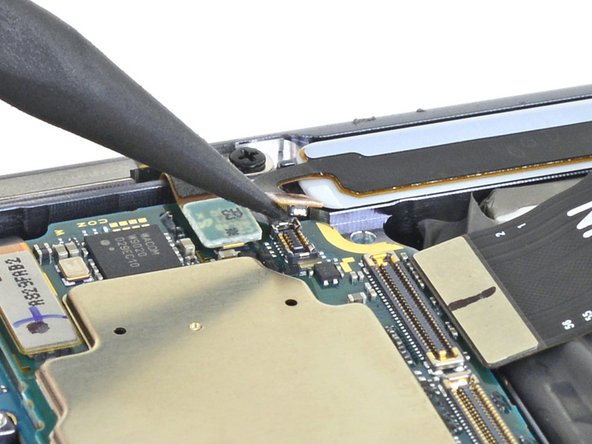

– Grab your trusty spudger and gently use the pointed end to pop that green press connector off the motherboard. You’ve got this!

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 26

– Now, grab that spudger (you know, the pointy end) and give that touch layer press connector a little nudge. Gently disconnect it from the motherboard. We’re almost there!

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 27

– Grab your trusty Phillips screwdriver and get ready to loosen the 4.0 mm screw that’s holding the motherboard snugly to the frame. Let’s get that part ready for action!

Step 28

– Alright, let’s get that motherboard out! Slide the pointed end of your trusty spudger under the bottom left corner of the motherboard. We’re gonna gently lift that bad boy out.

– Now, give that motherboard a little pry straight up to loosen it from the frame. You got this!

– Time to lift that motherboard out of the phone. Careful not to drop it! If you need help, you can always schedule a repair.

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 29

– Flip that motherboard over like you’re showing off the back of a fancy phone! You want those camera connectors facing the sky.

– Grab your spudger, the pointed end, and give that upper camera connector a little lift-off from the motherboard. Think of it like giving it a high five.

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 30

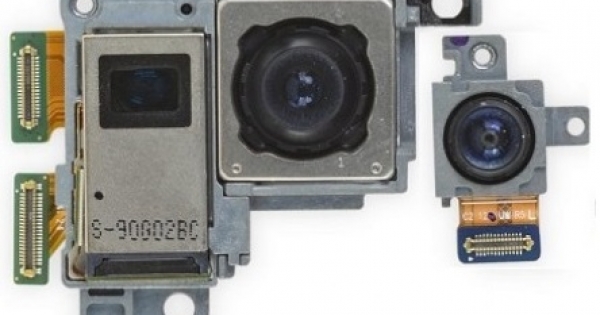

– Time to get up close and personal with that motherboard. Use a trusty pair of tweezers to carefully lift and remove the upper camera – it’s like a little liberation for your device. If you need help, you can always schedule a repair

Tools Used
  1. TweezersSamsung Galaxy Note20 Rear Camera Module Replacement

Step 31

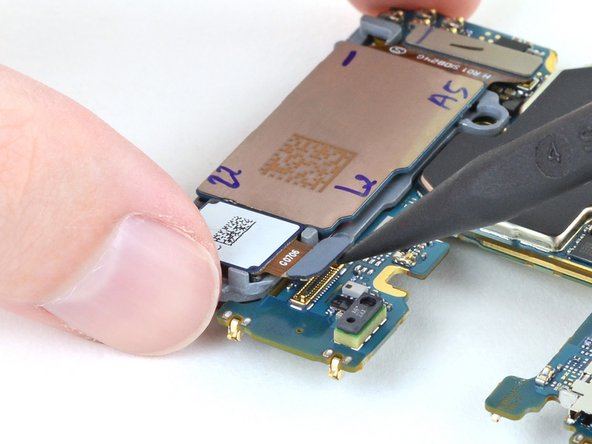

– Grab your trusty spudger and use the pointed end to gently lift the lower cameras’ press connector off the motherboard. It’s like giving it a little high-five, but without the excitement (and the germs).

Tools Used
  1. SpudgerSamsung Galaxy Note20 Rear Camera Module Replacement

Step 32

– Time to give those lower cameras a little break! Carefully lift them right off the motherboard. No worries, they’ll be back in action soon.
