Samsung Galaxy Fame S6812i Speaker Replacement Guide

Duration: 45 minutes
Steps: 5 Steps

Get ready to swap out your Samsung Galaxy Fame S6812i’s speaker with this handy guide. It’s time to bring back those sweet sounds! If you need help, you can always schedule a repair.

Step 1

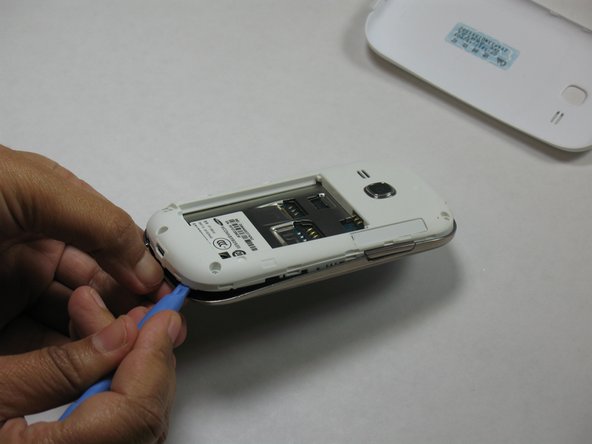

– First, power down your phone completely. Now, use your thumbnail or a trusty plastic spudger to carefully pry open the back cover. If you need help, you can always schedule a repair

Step 2

– Time to give that battery a little nudge! Use your plastic opening tool or your thumb nail to gently lift the battery out of its little home.

Step 3

– Let’s get those screws out! Use a Phillips #00 screwdriver to remove the five 4mm screws.

– Don’t forget about the sticker hiding that sneaky screw in the bottom left corner. Get ’em all!

Step 4

– Alright, let’s loosen up this mid-frame! Use that plastic opening tool to gently pry it away from the bezel.

– Keep moving that tool around the mid-frame, carefully separating it from the display assembly. Take your time – we want everything nice and smooth! If you need help, you can always schedule a repair

Step 5

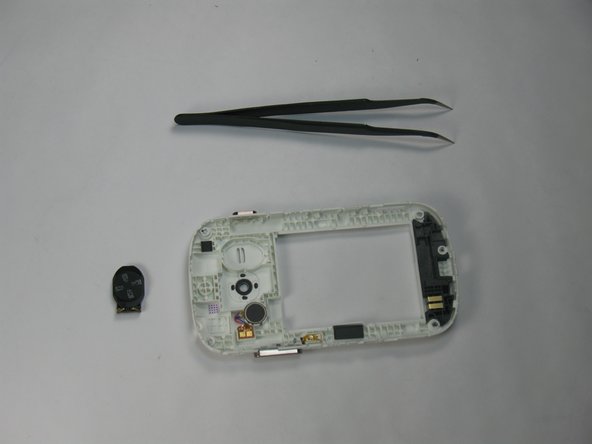

– Gently coax the speaker off the device using your trusty tweezers. Take your time with this step; we want to keep everything safe and sound!

– Now, pop in that shiny new speaker and piece your phone back together. You’re almost there!

Tools Used
  1. TweezersSamsung Galaxy Fame S6812i SPEAKER Replacement
