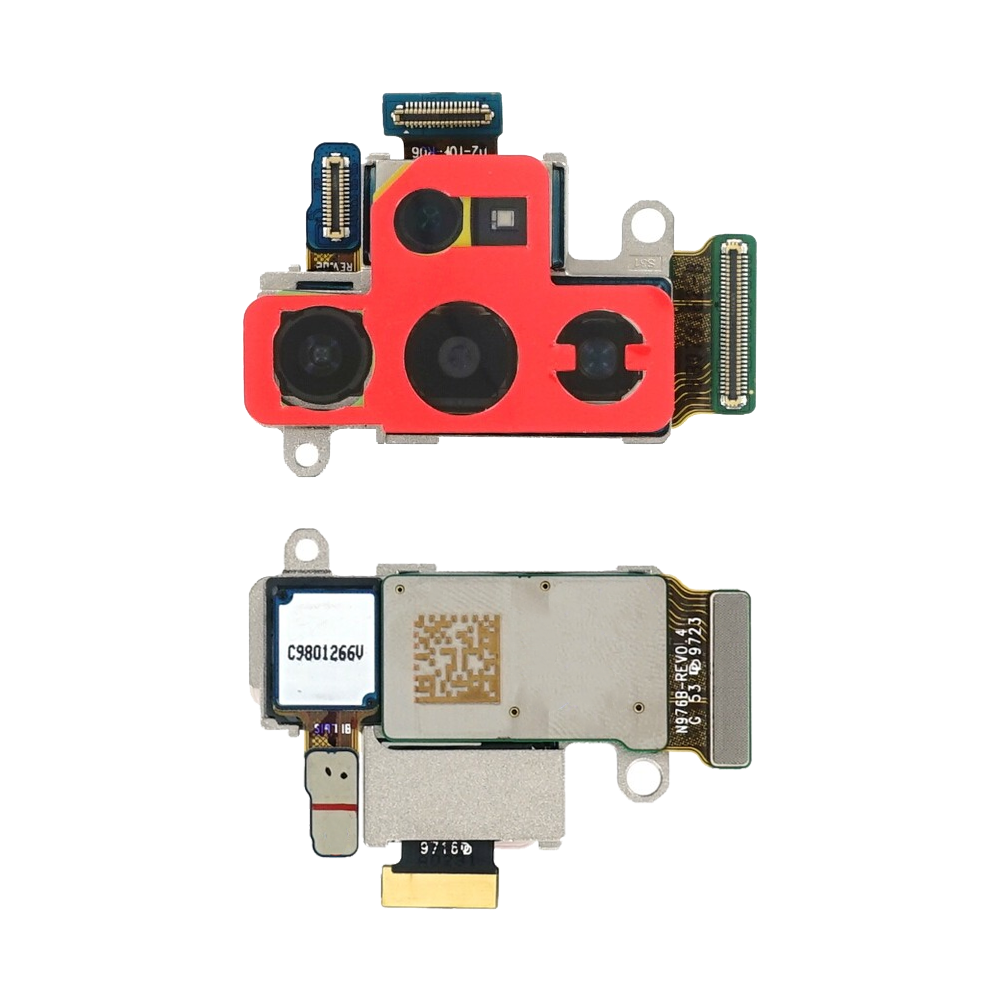

Samsung Galaxy Note10+ 5G Rear Camera Replacement Guide

Duration: 45 minutes
Steps: 28 Steps

Alright, gear up for this rad repair sesh! We’re gonna give your Samsung Galaxy Note10+ 5G’s rear camera module a bit of a makeover. It’s a bit of a Behind The Music situation with our buddy, the motherboard. But don’t sweat it! We’ll guide you through every inch of it. Just to let you know, some photos might not align 100% with the steps, but who cares, right? It’s all about the vibe. If you’re struggling, you might want to consider booking a repair with the cool cats at schedule a repair and let ’em handle the magic.

Step 1

– Grab a SIM eject tool, a small screwdriver, or even a straightened paper clip and gently insert it into the tiny hole on the SIM card tray located at the top edge of your phone.

– Give it a good push to pop that tray out!

– Now, carefully pull out the SIM card tray.

Step 2

– Grab your trusty iOpener and give the left edge of that rear cover a warm hug for about a minute. You’re on your way to a smooth repair!

Tools Used
  1. iOpenerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 3

– Start by placing a suction cup on the warm edge of the rear cover, keeping it as close to the edge as you can.

– With some strong but steady pulling on the suction cup, create a little opening between the rear cover and the frame.

– Next, slip the point of an opening pick into that gap you just made.

Step 4

– Gently glide the opening pick along the left edge, heading towards the bottom left corner, to carefully cut through that pesky adhesive.

– Keep the pick nestled in the bottom left corner to stop that adhesive from playing tricks and sealing back up!

Step 5

– Now, let’s repeat the heating and cutting process for the rest of those phone sides. Keep moving! Three more to go!

– Once you’ve cut a side, leave your trusty opening pick there to keep the glue from getting too cozy and re-sticking. You’ve got this!

Step 6

– Time to ditch that back cover! Gently lift it straight up and give it a little wiggle to say goodbye.

– Now that you’re all done, let’s put everything back together. Follow these steps to put that cover back on and swap out that sticky stuff.

– Got Tesa tape on hand? We’ve got you covered. Follow this guide to get your device looking good as new!

Step 7

– Grab your trusty Phillips screwdriver and give those five 4mm screws holding the wireless charging coil in place a little twist. They’ll be happy to come out and say hi! 😄 If you need help, you can always schedule a repair

Step 8

– Grab a trusty pair of tweezers and gently lift up that metal shield covering the battery connector. Give it a little flip back and you’re on your way!

Tools Used
  1. TweezersSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 9

– Alright, now hold that metal shield up and out of the way. Using the pointy end of your spudger, give that battery connector a little pry to disconnect it. You’re doing great! Keep going!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 10

– Let’s get this wireless charging coil unplugged! Grab your spudger, and gently use the pointed end to disconnect the connector from the motherboard. It’s like a little dance – just a tiny wiggle to separate them.

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 11

– Gently lift that metal shield so you can grab hold of it—it’s time to say hello to what’s underneath!

– Carefully peel back the wireless charging coil, giving it a little wiggle as you pull it away from the device.

– Now, go ahead and remove that wireless charging coil with a flourish!

Step 12

– Grab your trusty Phillips screwdriver and let’s get those five 4 mm screws off the loudspeaker! You got this!

Step 13

– Grab a trusty pair of tweezers and gently lift out the loudspeaker. You’ve got this!

Tools Used
  1. TweezersSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 14

– Grab your trusty spudger and gently use the pointed end to unplug the main interconnect cable from the motherboard. You’ve got this!

– Next up, it’s time to disconnect the secondary interconnect cable from the motherboard. Easy peasy!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 15

– Grab that spudger and use its pointed end to gently detach the main interconnect cable from the daughterboard. You’re doing great!

– Next up, let’s unplug the secondary interconnect cable from the daughterboard. Keep it up!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 16

– Let’s get started by removing the main interconnect cable. This is a crucial step, so take your time and make sure it’s done correctly. If you need help, you can always schedule a repair

Step 17

– Gently fold the secondary interconnect cable away from the battery using a spudger or your fingers. It’s like giving the cable a little hug, but without the awkwardness! If you need help, you can always schedule a repair

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 18

– Grab your trusty Phillips screwdriver and go to town on those four 4 mm screws holding the top plastic cover in place. You’ve got this!

Step 19

– Time to get started. Use a pair of tweezers to carefully pry the top plastic cover up and off your phone. If you need help, you can always schedule a repair

Tools Used
  1. TweezersSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 20

– Grab your trusty spudger and gently use the pointed end to free the touch layer connector from the motherboard. It’s like giving it a little nudge to say, ‘Time to disconnect!’

– Now, let’s give the side button connector a break and disconnect it from the motherboard. Just a little tug and you’re on your way!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 21

– Time to get started! Use the point of a spudger to carefully pry up and disconnect the 5G mmWave antenna connector from the motherboard – it’s like freeing a tiny captive.

– Now, gently bend the cable away from the motherboard, making sure not to put too much stress on it. If you need help, you can always schedule a repair

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 22

– Grab your spudger and use the pointy end to gently disconnect the S-Pen charging coil connector from the motherboard. It’s like a little dance!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 23

– Grab your trusty spudger and use its pointed end to gently pop that display cable off the motherboard. You’ve got this!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 24

– Time to get a grip on that motherboard. Use the pointed end of a spudger to carefully pry it up until you can get a good hold of it with your fingers.

– Now that you’ve got a grip, go ahead and remove the motherboard. If you need help, you can always schedule a repair

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 25

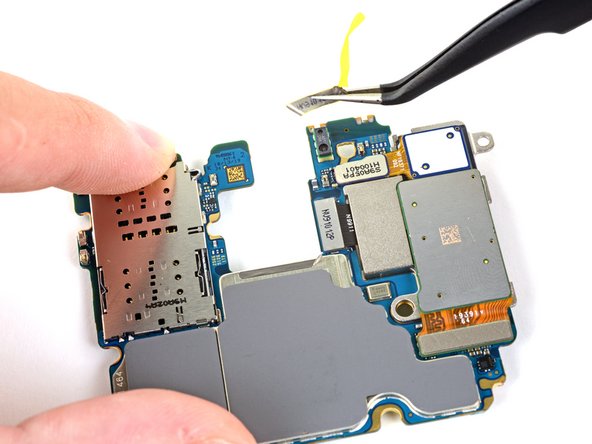

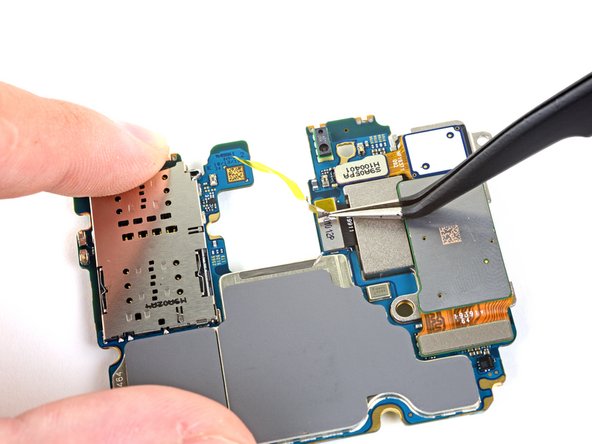

– Time to get up close and personal with that middle camera connector. Use a trusty pair of tweezers to gently remove the small piece of tape covering it. If you need help, you can always schedule a repair

Tools Used
  1. TweezersSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 26

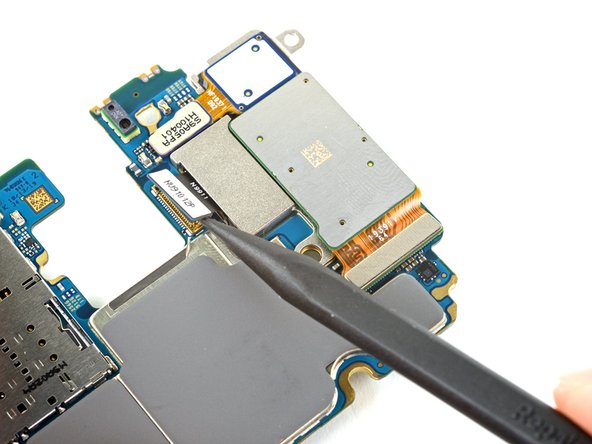

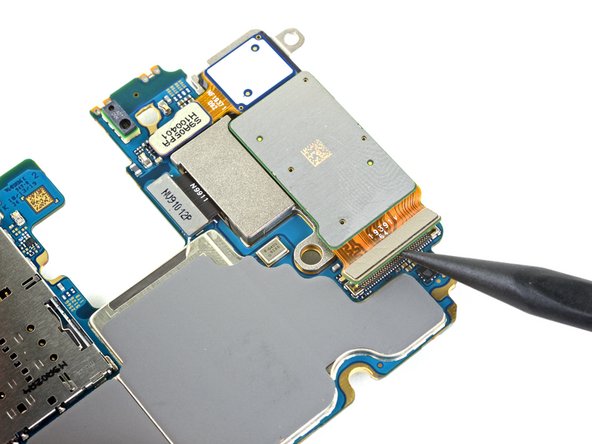

– Time to get started – use the pointed end of a spudger to carefully disconnect the bottom camera connector.

– Next up, disconnect the middle camera connector. If you need help, you can always schedule a repair

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

Step 27

– Now it’s time to disconnect the top camera connector – use the pointed end of a spudger to gently pry it loose. If you need help, you can always schedule a repair

Tools Used
  1. SpudgerSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement

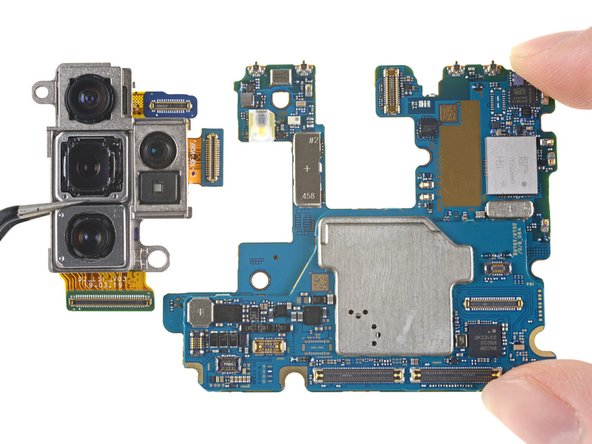

Step 28

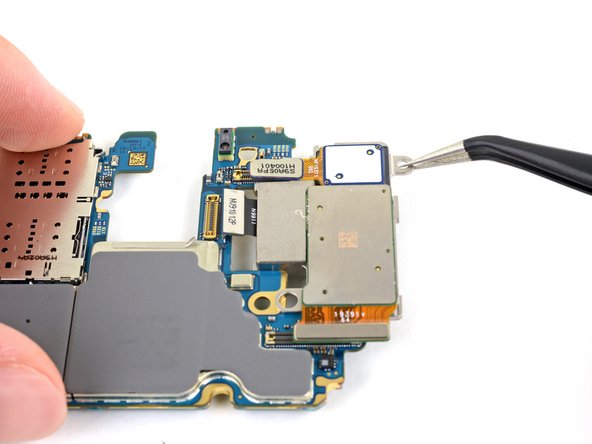

– Grab a trusty pair of tweezers or just your fingers to gently lift out the rear camera module. You’ve got this!

Tools Used
  1. TweezersSamsung Galaxy Note10 Plus 5G Rear Camera Module Replacement
