Samsung Galaxy Note10 Front Facing Camera Replacement Guide – DIY Tutorial
Duration: 45 minutes
Steps: 18 Steps
This repair guide will show you how to replace the front-facing camera on your Samsung Galaxy Note10. We’ll break it down step-by-step so you can tackle this repair like a pro. Don’t worry if you’ve never done this before – we’ve got your back. Ready to rock and roll? Let’s get started!
Step 1
Alright, champ, before we dive into this repair, let’s make sure your phone is completely powered off. We don’t want any surprises during the disassembly process, right? 😉
You can also use a hair dryer, heat gun, or hot plate to help loosen the adhesive, but remember, too much heat can be a bad thing! The display and battery are sensitive to heat, so be careful. If you’re not sure about using heat, you can always schedule a repair.
– Get your iOpener warmed up and ready. Let’s apply that heat to the left edge of the back panel for about a minute. It’ll make things a bit easier, we promise!
Tools Used
Step 2
Got a badly cracked back glass? No worries, just cover it with some clear packing tape and the suction cup should stick. Or, if you’re feeling extra handy, you can use some super strong tape instead. And if all else fails, a little superglue can work wonders to get that suction cup to stick to the broken panel.
Having trouble with this step? Don’t sweat it, it can be a bit tricky depending on your phone’s age. Just apply some more heat to the edge and try again. If you’re still stuck, remember that you can always schedule a repair with Salvation Repair for some expert help.
– Grab a suction cup and stick it right on that warmed-up edge of the back panel, as close to the edge as you can get.
– Give that suction cup a firm, steady pull to open up a little gap between the back panel and the frame.
– Now, take the tip of your opening pick and slide it into that gap you’ve created.
Step 3
Be careful not to slide that opening pick in too far—keep it to halfway or you might accidentally poke something important inside!
– Let’s get this party started! Slide your opening pick along the left edge of your device, heading towards the bottom left corner. Think of it like a hot knife through butter, slicing that adhesive right open.
– Keep that pick in the bottom left corner – you don’t want that sticky stuff sealing itself back up. We’re in this together!
Step 4
– Grab a second opening pick and glide it along the left side up to the top left corner to cut through that adhesive like a pro.
– Keep that pick snug in the top left corner to stop the adhesive from getting all clingy again.
Step 5
– Grab your trusty iOpener and give it a warm hug against the top edge of your phone for about a minute. You’ve got this!
Tools Used
Step 6
– Pop in a third opening pick into that little gap hanging out at the top edge of your phone.
– Now, glide that opening pick over to the top right corner, cutting through the adhesive like a pro.
– Keep that pick right where it is at the top right corner to make sure the adhesive doesn’t sneak back in and seal up your hard work.
Step 7
– Grab that iOpener and give it a warm hug on the right edge of your phone for a solid minute. You’ve got this!
Tools Used
Step 8
As you work your way down, the back panel will start to come loose from the phone – you’re making progress!
– Now it’s time to add the final opening pick to the right side of your phone. Slide it down towards the bottom right corner to cut through the remaining adhesive. You’re almost there!
– Take your opening pick and run it around the entire edge of your phone to make sure all the adhesive is released. If you hit any stubborn spots, don’t worry – just reheat the area and try again. If you need help, you can always schedule a repair
Step 9
– Carefully lift and take off that back panel like a pro!
Step 10
– Grab your trusty Phillips screwdriver and get ready to tackle those five 4 mm screws holding the wireless charging coil in place. You’ve got this!
Step 11
– Grab your trusty tweezers and gently lift up the metal shield covering the battery connector. Flip it back and you’re ready for the next step! Don’t worry if it feels a little snug – just be careful and you’ll get it! If you need help, you can always schedule a repair.
Tools Used
Step 13
– Grab your trusty spudger and use its pointed end to gently detach the wireless charging coil connector from the motherboard. You’re doing great!
Tools Used
Step 14
That wireless charging coil is stuck on there like it’s glued! Don’t worry, it’s just a little bit of adhesive holding it in place. We’ve got this!
– Ready to give that metal shielding a little lift? Go ahead and tilt it up so you can get a good grip.
– Now, let’s peel that wireless charging coil right off. Gently lift it away from the device.
– Alright, you’ve done it! You’ve successfully removed that wireless charging coil. If you need help, you can always schedule a repair.
Step 15

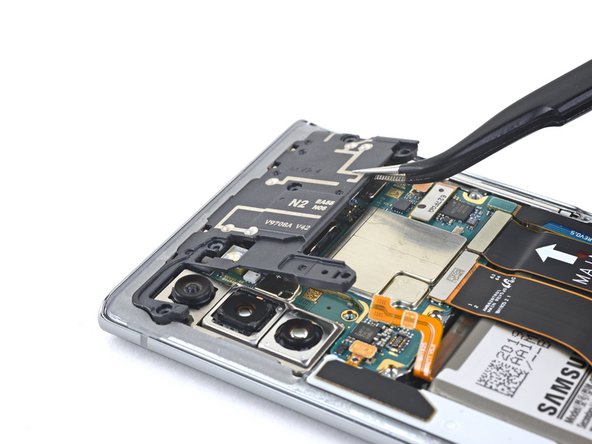

– Alright, let’s get this party started! Grab your trusty Phillips screwdriver and unscrew those four 4 mm screws holding the top plastic cover in place. You’re doing great, keep going!
Step 17

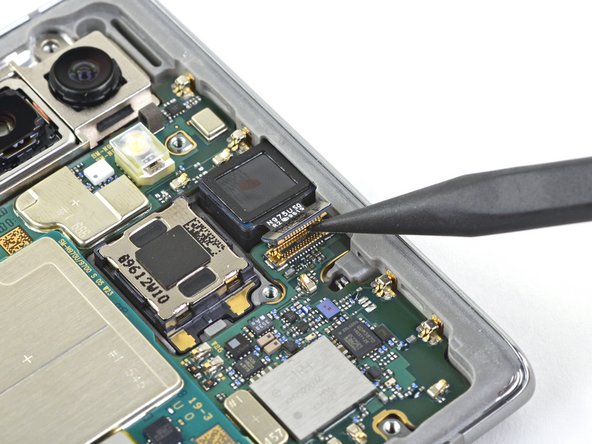

– Now it’s time to carefully disconnect the front-facing camera connector from the motherboard. Use the pointed end of a spudger to gently pry it straight up. Remember to take your time and be patient – you’re doing great! If you need help, you can always schedule a repair
Tools Used
Step 18

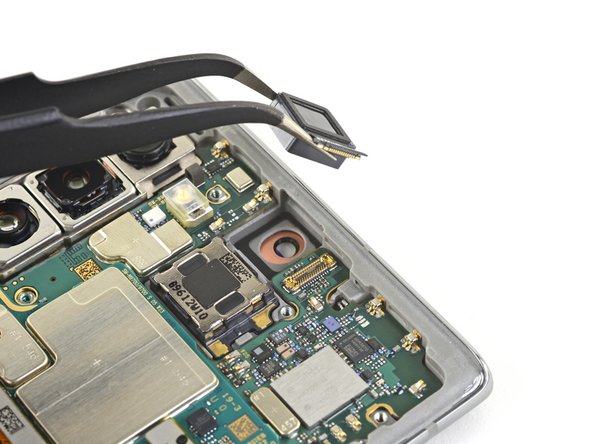

– Alright, let’s give that front-facing camera a little break. Time to gently remove it. Don’t worry, it’s a piece of cake!
