Samsung Galaxy Note10 Rear Camera Replacement Guide

Duration: 45 minutes
Steps: 25 Steps

Ready to give your Samsung Galaxy Note10 a little makeover? Follow this guide to easily take out or swap the rear camera module. If you need help, you can always schedule a repair.

Step 1

– Grab your trusty iOpener and give the left edge of the back panel a nice warm hug for about a minute.

Tools Used
  1. iOpenerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 2

– Grab a suction cup and stick it to the warm edge of the back panel, getting as close to the edge as you can.

– Give that suction cup a solid pull with steady strength to open up a little gap between the back panel and the frame.

– Slide the tip of an opening pick into that gap you’ve just created.

Step 3

– Gently glide the opening pick along the left edge, making your way to the bottom left corner to deftly cut through that adhesive.

– Keep the pick snugly in the bottom left corner to stop the adhesive from getting all clingy again.

Step 4

– Now it’s time to bring in some extra help – insert a second opening pick and gently slide it across the left side, making your way towards the top left corner. This will help you slice through the adhesive with ease.

– Leave that pick right where it is, nestled in the top left corner, to keep the adhesive from re-sealing and making your job more difficult. If you need help, you can always schedule a repair

Step 5

– Grab your trusty iOpener and heat up that top edge of the phone for a minute. It’s gonna be a warm welcome for the phone’s guts!

Tools Used
  1. iOpenerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 6

– Let’s get this phone open! First, slide a third opening pick into the gap along the top edge of the phone.

– Now, slide the pick to the top right corner, gently cutting through the adhesive holding it shut.

– Leave the pick in place in the top right corner, keeping the adhesive from sealing back up. You got this!

Step 7

– Grab your trusty iOpener and give it a warm hug on the right edge of the phone for a solid minute. You’re doing great!

Tools Used
  1. iOpenerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 8

– Pop in that fourth and final opening pick into the gap on the right side of your phone, and slide it down towards the bottom right corner to cut through that pesky adhesive.

– Now, take that opening pick and gently glide it back and forth around the entire edge of the phone to free any stubborn adhesive that might have been missed. If you encounter some extra-stubborn spots, don’t hesitate to give it a little heat!

Step 9

– Gently pop off the back panel and set it aside like a pro.

Step 10

– Alright, let’s get those screws out! Use a Phillips screwdriver to remove the five 4 mm screws holding the wireless charging coil in place. If you need help, you can always schedule a repair

Step 11

– Grab a trusty pair of tweezers and gently lift that metal shield off the battery connector like a pro. Flip it back with style!

Tools Used
  1. TweezersSamsung Galaxy Note10 Rear Camera Module Replacement

Step 12

– While keeping the metal shield lifted and out of the way, grab your trusty spudger and use its pointed end to gently pry up the battery connector and disconnect it. You’re doing great!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 13

– Grab your trusty spudger and gently use its pointed end to unplug the wireless charging coil connector from the motherboard. You’ve got this!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 14

– Gently tilt the metal shield upward so you can easily grab it with your fingers.

– Carefully peel the wireless charging coil away from the device, just like taking off a cozy blanket.

– Time to say goodbye! Remove the wireless charging coil and set it aside.

Step 15

– Grab your trusty Phillips screwdriver and get ready to tackle those five 4 mm screws holding the loudspeaker in place. You’ve got this!

Step 16

– Grab a trusty pair of tweezers and gently coax out the loudspeaker like a pro.

Tools Used
  1. TweezersSamsung Galaxy Note10 Rear Camera Module Replacement

Step 17

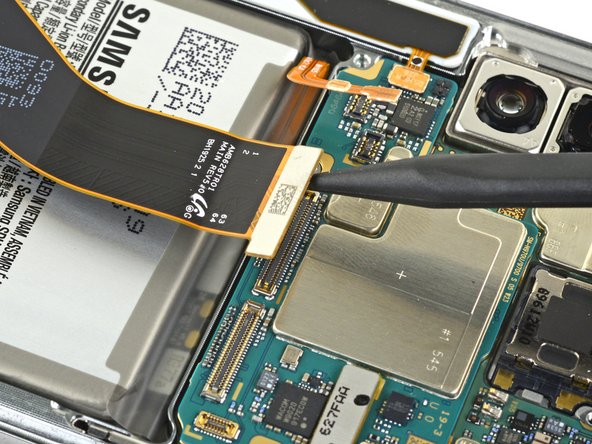

– Grab your trusty spudger and gently use the pointed end to unplug the main interconnect cable from the motherboard. You’ve got this!

– Next up, it’s time to disconnect the secondary interconnect cable from the motherboard. Just a little tug and you’re on your way!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 18

– Now, let’s give those cables a little break! Grab your trusty spudger and gently disconnect the main interconnect cable from the daughterboard.

– Don’t forget about the secondary interconnect cable! Give it a little nudge with the spudger and disconnect it from the daughterboard too.

Tools Used
  1. SpudgerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 19

– Disconnect both interconnect cables with care.

Step 20

– Grab the pointed end of your trusty spudger and gently pry away the display cable from the motherboard. You’ve got this!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 21

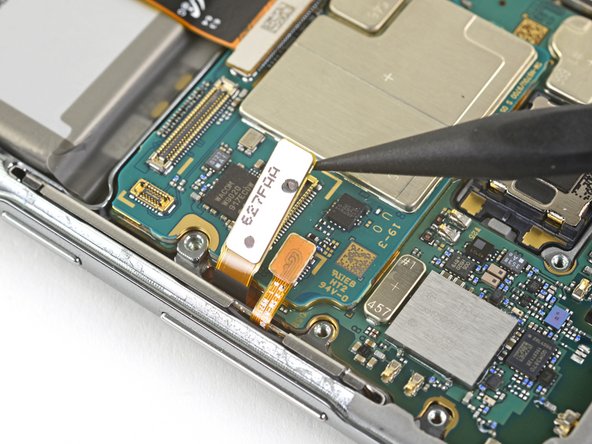

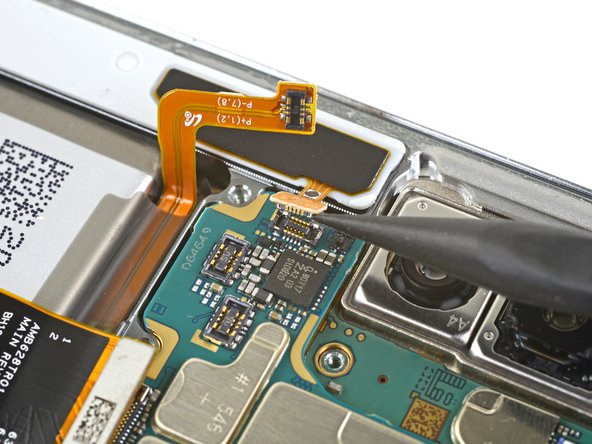

– Grab your trusty spudger and gently use its pointed end to pop off the side button connector from the motherboard. Easy peasy!

– Next up, let’s disconnect the touch layer connector from the motherboard. You’re doing great!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 22

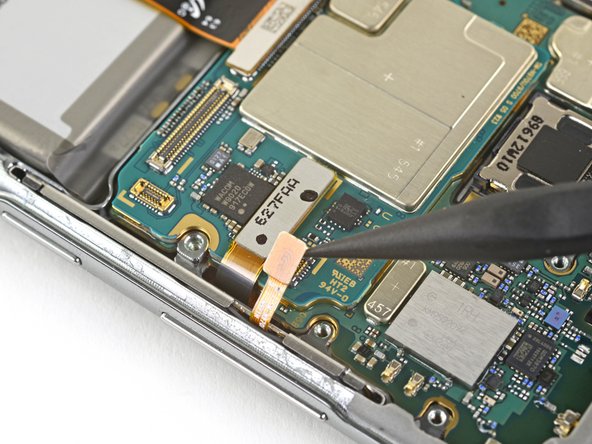

– Grab your spudger, the pointed end, and gently disconnect the S-Pen charging coil connector from the motherboard. It’s like giving the connector a little high five! Don’t worry, it’s a super easy step. If you need help, you can always schedule a repair

Tools Used
  1. SpudgerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 23

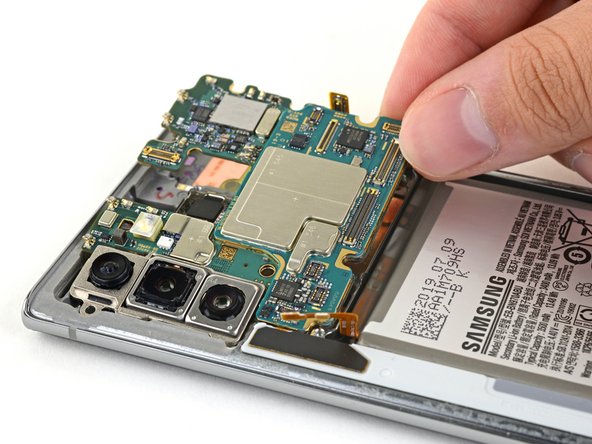

– Grab that spudger and use its pointy end to gently lift the motherboard just enough so you can get a good grip on it with your fingers.

– Now, go ahead and remove the motherboard!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 24

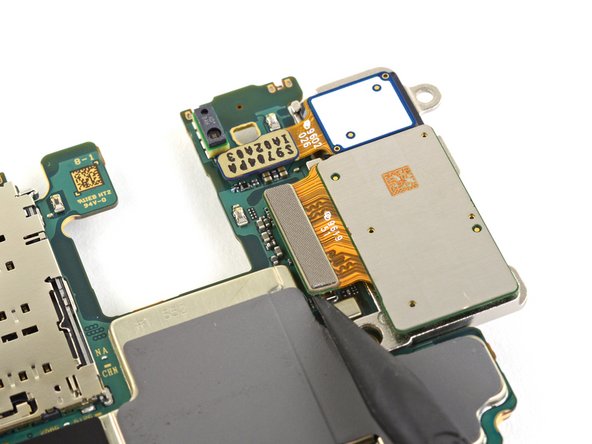

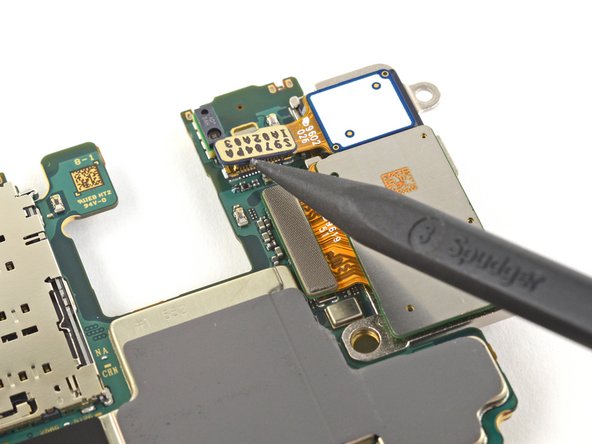

– Let’s gently unplug the top camera connector from the motherboard using the pointy end of a spudger.

– Now, give that bottom camera connector the same treatment!

Tools Used
  1. SpudgerSamsung Galaxy Note10 Rear Camera Module Replacement

Step 25

– Time to say goodbye to that old camera module! Carefully remove it, and don’t worry, we’re here to help every step of the way. If you need a helping hand, you can always schedule a repair.
