Samsung Galaxy S III Mini Display Assembly Replacement Guide Tutorial

Duration: 45 minutes
Steps: 11 Steps

If your phone’s touch screen, digitizer, or LCD display has taken a dive for the worse, fear not! This guide is your new best friend for disassembling your phone and swapping out the Display Assembly without the frame. Center stage, please! _______________________________________ Video tutorial _______________________________________

Step 1

– LCD Display + Touch Screen (Display Assembly) for Samsung Galaxy S III mini / i8190.

– Power down your device, pop out the battery, and yank out any SIM or memory cards.

Step 2

– Unscrew the 10 Phillips screws—you got this!

– Grab a plastic tool and pop off the Middle frame. You’re doing great!

Step 3

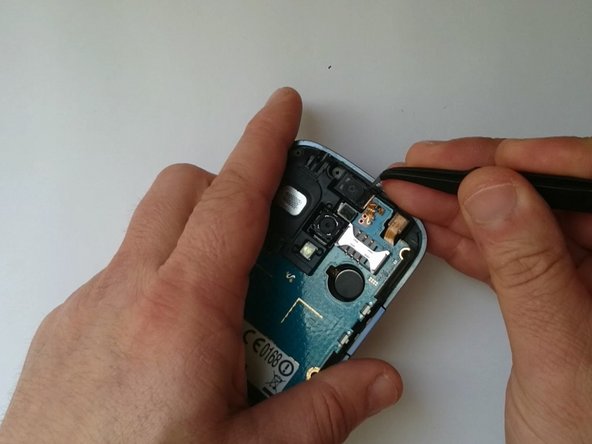

– Unplug:

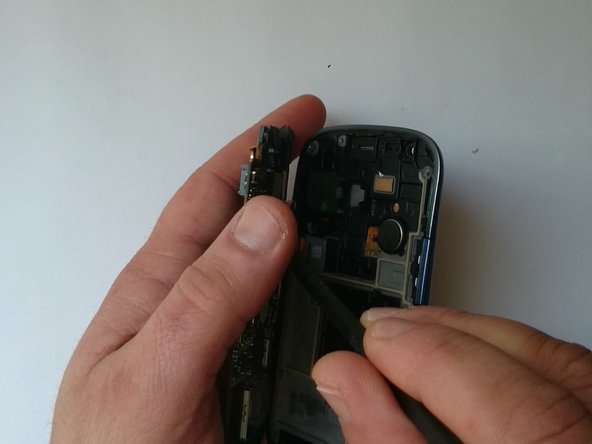

– Give the motherboard a gentle nudge upwards from the right side.

– Peek underneath the board and you’ll find the LCD Display flex cable. Go ahead and disconnect it.

Step 4

– Front camera

– Main / Rear camera

– Earpiece

– Loudspeaker

– Vibro motor

– Micro SD Card reader

Step 5

– Alright, let’s give that shiny new part a whirl and see how it does!

Step 6

– Heat up that touchscreen with a hair dryer to soften the adhesive. It’s like giving your device a mini spa day!

– Pop into the front camera hole to start lifting the glass at the corner. It’s like unlocking a little door!

– Glide through with your plastic tools from top to bottom to keep separating. You’re on a roll!

Step 7

Step 8

– If your screen is still hanging out with the frame, just use those same slick moves to separate them.

Step 9

– Let’s spruce up that frame! Clear off all that old tape gunk and pop on some shiny new tape.

Step 10

– Pop in the new display assembly and let’s kick off the reassembly party!

Step 11

– Boom! You’re done!

– Wasn’t that a breeze?

– High five!

– Feeling like a tech wizard yet?

– You totally nailed it!

– So, did you pull it off like a champ?
