Tivax Tablet MiTraveler 10Q-8

Tivax MiTraveler 10Q-8 Rear Case Replacement

Duration: 45 minutes

Steps: 5 Steps

In this step, we're diving into the device to pop off the back plate and get to the parts that need some TLC! Grab your trusty PH000 Phillips head screwdriver and a plastic opening tool to make this task a breeze. Let's get started on this repair journey together!

Step 1

Tivax MiTraveler 10Q-8 Rear Case Replacement

- Flip your device over so the screen is facing down, and give that charging port cover on the left side a little slide to the side and off. You're doing great!

Step 2

- Grab your trusty Phillips #000 screwdriver and carefully take out the 2.9 mm screw from the charging port. Easy does it!

Step 3

Ensure the lip of the plastic opening tool is pointing upwards.

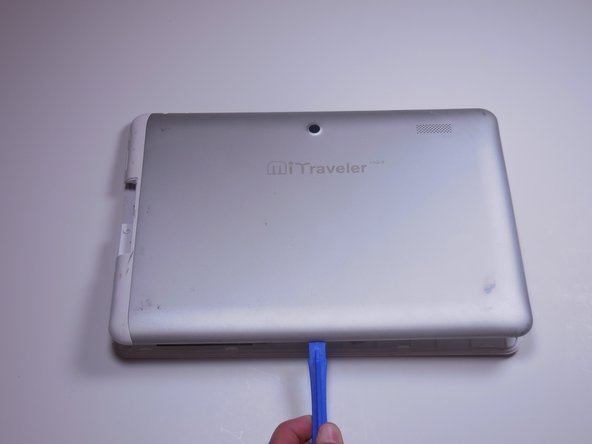

- To carefully detach the back plate, slide the plastic opening tool between the back plate and front plate, beginning at the headphone jack.

Step 4

Don't be alarmed if you hear some popping noises while working on the device—it's totally normal!

- Gently glide the plastic opening tool around the device, applying a little pressure to pop the back plate free from its clips.

Step 5

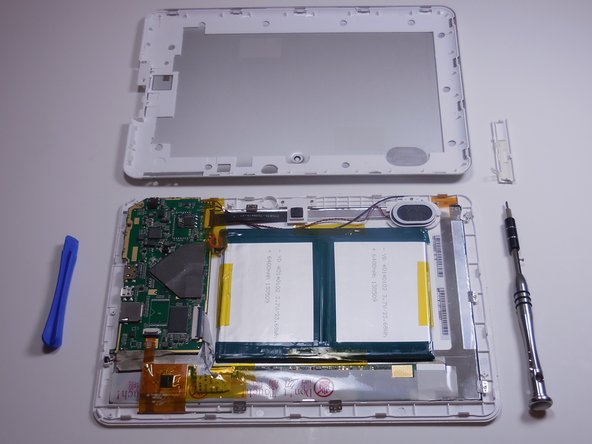

- After you've skillfully navigated the entire device with your trusty plastic opening tool, the back plate will pop right off, freeing it from the rest of the gadget. Way to go!

Success!

To put your device back together, just slide the back plate into position and press down until you hear a few satisfying clicks. You’re almost there! If anything feels tricky, remember you can always schedule a repair for a helping hand.
